  1. Memory Hierarchy Design

  2. Outline • Introduction • Reviews of the ABCs of caches • Cache Performance • Reducing Cache Miss Penalty • Reducing Miss Rate • Reducing Cache Miss Penalty or Miss Rate Via Parallelism • Reducing Hit Time • Main Memory and Organizations for Improving Performance • Memory Technology • Virtual Memory • Protection and Examples of Virtual Memory • Assignment Questions

  3. 5.1 Introduction

  4. Memory Hierarchy Design • Motivated by the principle of locality - A 90/10 type of rule • Take advantage of 2 forms of locality • Spatial - nearby references are likely • Temporal - same reference is likely soon • Also motivated by cost/performance structures • Smaller hardware is faster: SRAM, DRAM, Disk, Tape • Access vs. bandwidth variations • Fast memory is more expensive • Goal – Provide a memory system with cost almost as low as the cheapest level and speed almost as fast as the fastest level

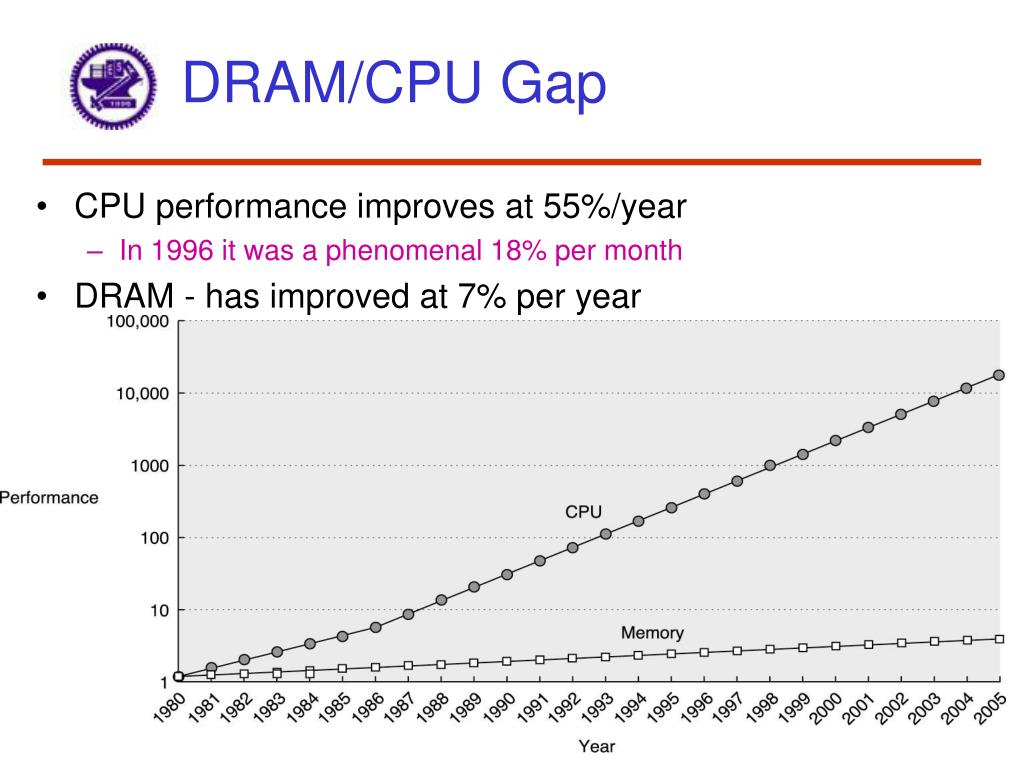

  5. DRAM/CPU Gap • CPU performance improves at 55%/year • In 1996 it was a phenomenal 18% per month • DRAM - has improved at 7% per year

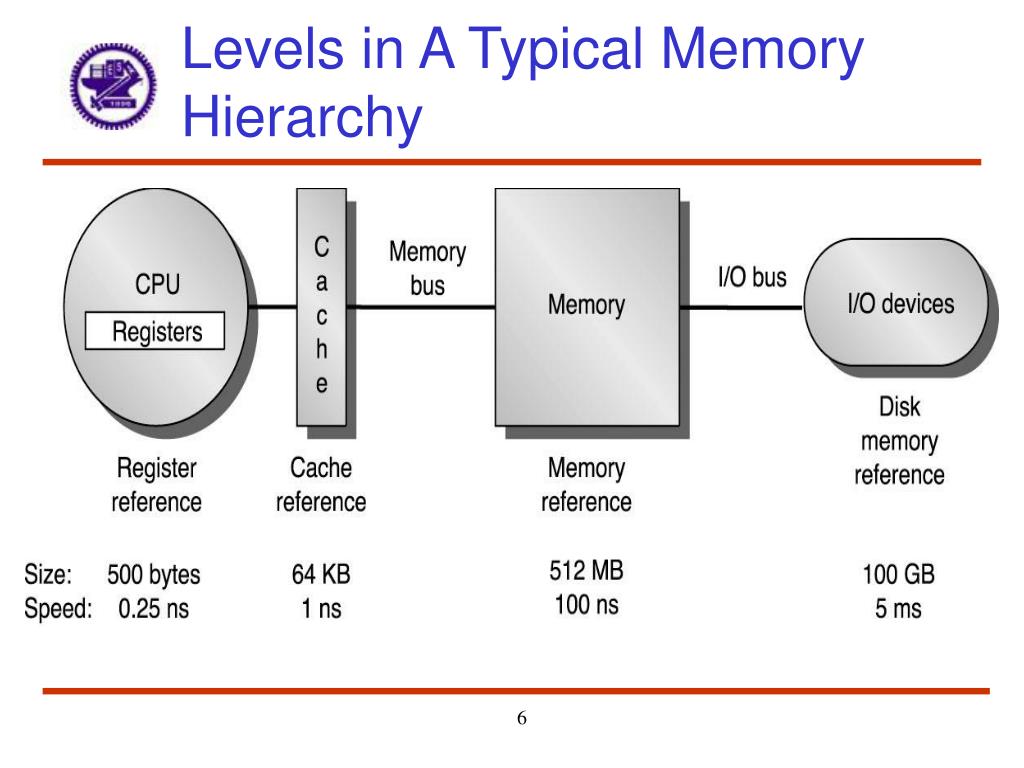

  6. Levels in A Typical Memory Hierarchy

  7. Sample Memory Hierarchy

  8. 5.2 Review of the ABCs of Caches

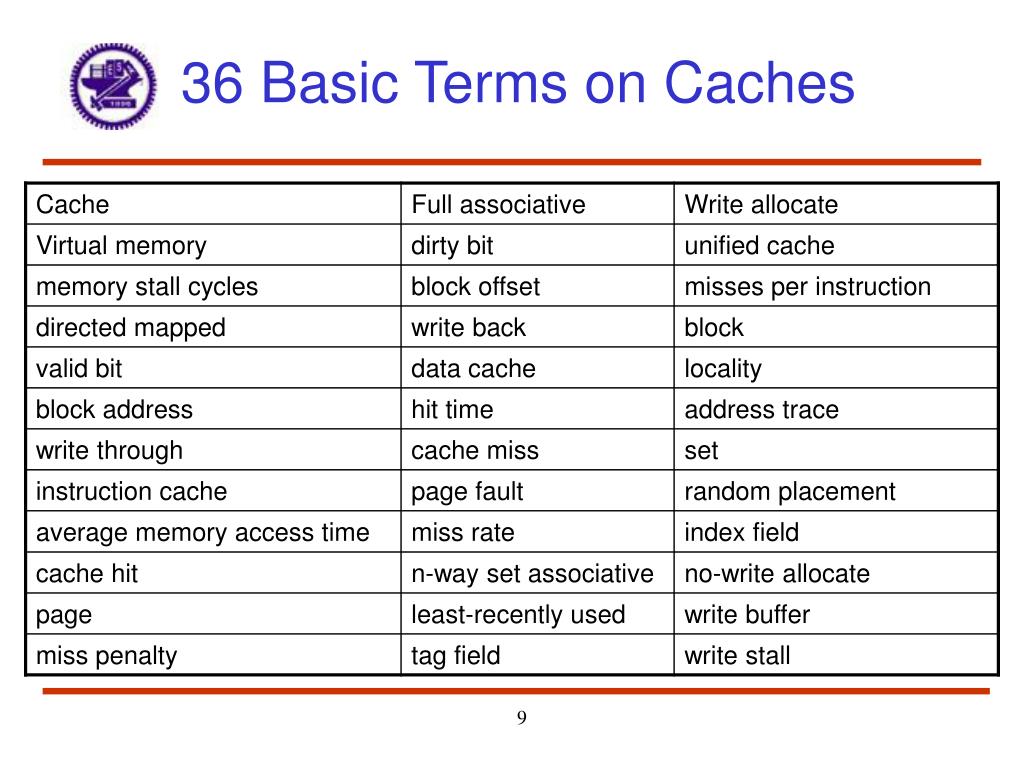

  9. 36 Basic Terms on Caches

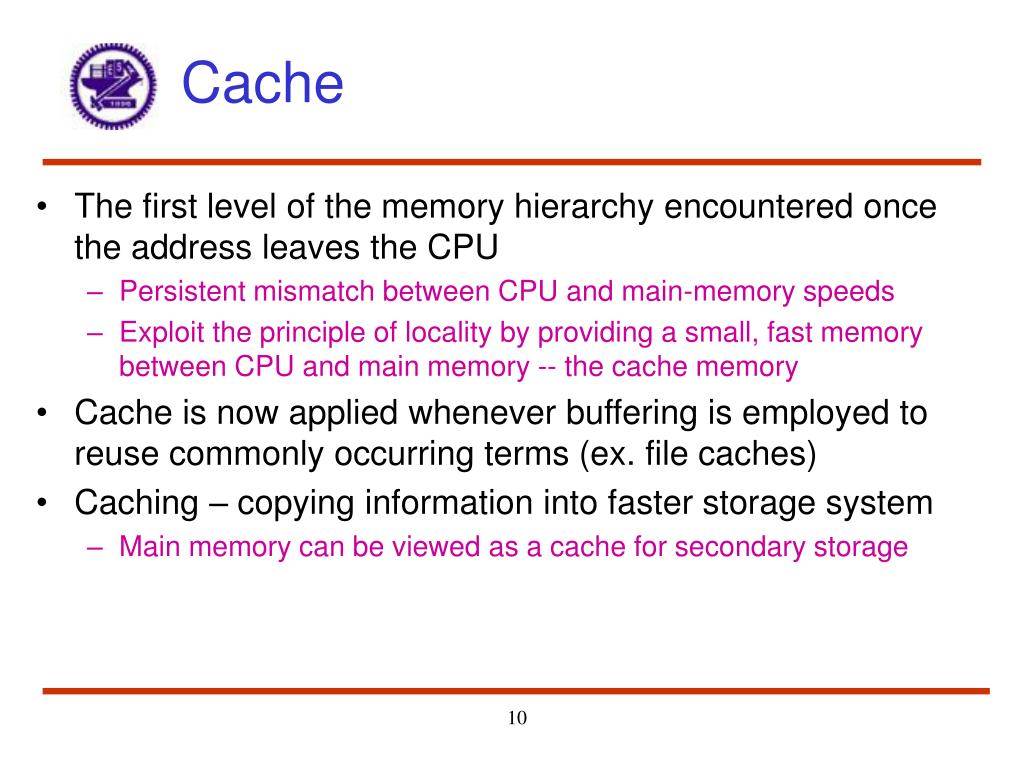

  10. Cache • The first level of the memory hierarchy encountered once the address leaves the CPU • Persistent mismatch between CPU and main-memory speeds • Exploit the principle of locality by providing a small, fast memory between CPU and main memory -- the cache memory • Cache is now applied whenever buffering is employed to reuse commonly occurring terms (ex. file caches) • Caching – copying information into faster storage system • Main memory can be viewed as a cache for secondary storage

  11. General Hierarchy Concepts • At each level - block concept is present (block is the caching unit) • Block size may vary depending on level • Amortize longer access by bringing in larger chunk • Works if locality principle is true • Hit - access where block is present - hit rate is the probability • Miss - access where block is absent (in lower levels) - miss rate • Mirroring and consistency • Data residing in higher level is subset of data in lower level • Changes at higher level must be reflected down - sometime • Policy of sometime is the consistency mechanism • Addressing • Whatever the organization you have to know how to get at it! • Address checking and protection

  12. Physical Address Structure • Key is that you want different block sizes at different levels

  13. Latency and Bandwidth • The time required for the cache miss depends on both latency and bandwidth of the memory (or lower level) • Latency determines the time to retrieve the first word of the block • Bandwidth determines the time to retrieve the rest of this block • A cache miss is handled by hardware and causes processors following in-order execution to pause or stall until the data are available

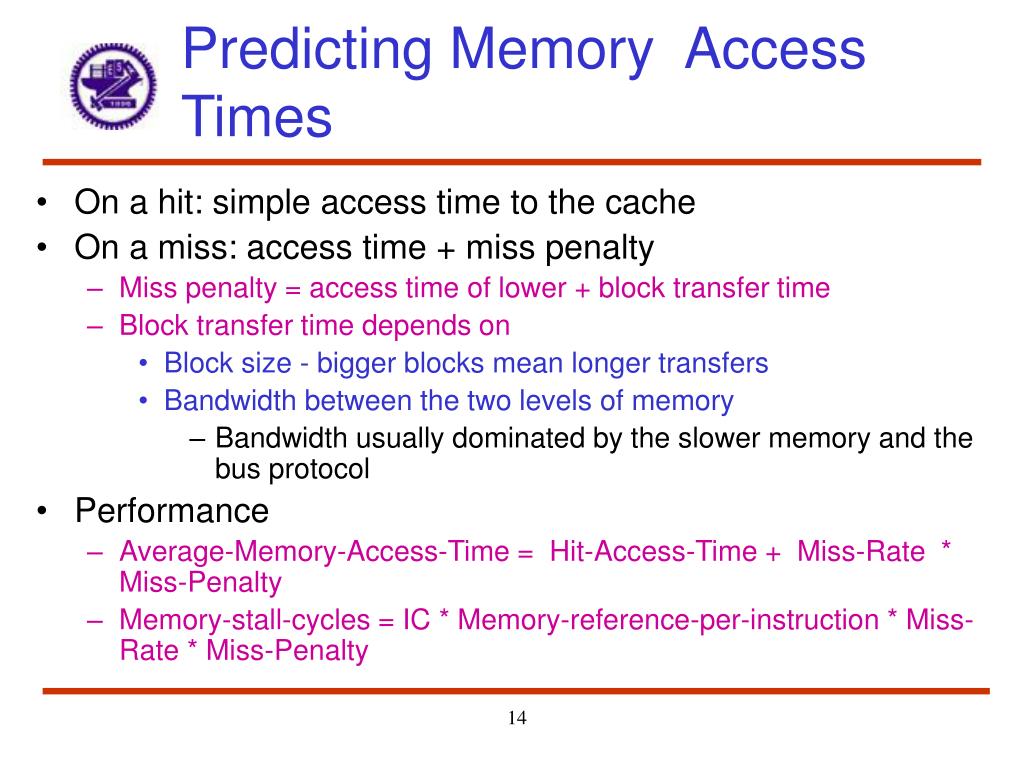

  14. Predicting Memory Access Times • On a hit: simple access time to the cache • On a miss: access time + miss penalty • Miss penalty = access time of lower + block transfer time • Block transfer time depends on • Block size - bigger blocks mean longer transfers • Bandwidth between the two levels of memory • Bandwidth usually dominated by the slower memory and the bus protocol • Performance • Average-Memory-Access-Time = Hit-Access-Time + Miss-Rate * Miss-Penalty • Memory-stall-cycles = IC * Memory-reference-per-instruction * Miss-Rate * Miss-Penalty

  15. Block Sizes, Miss Rates & Penalties, Accesses

  16. Typical Memory Hierarchy Parameters for WS or SS

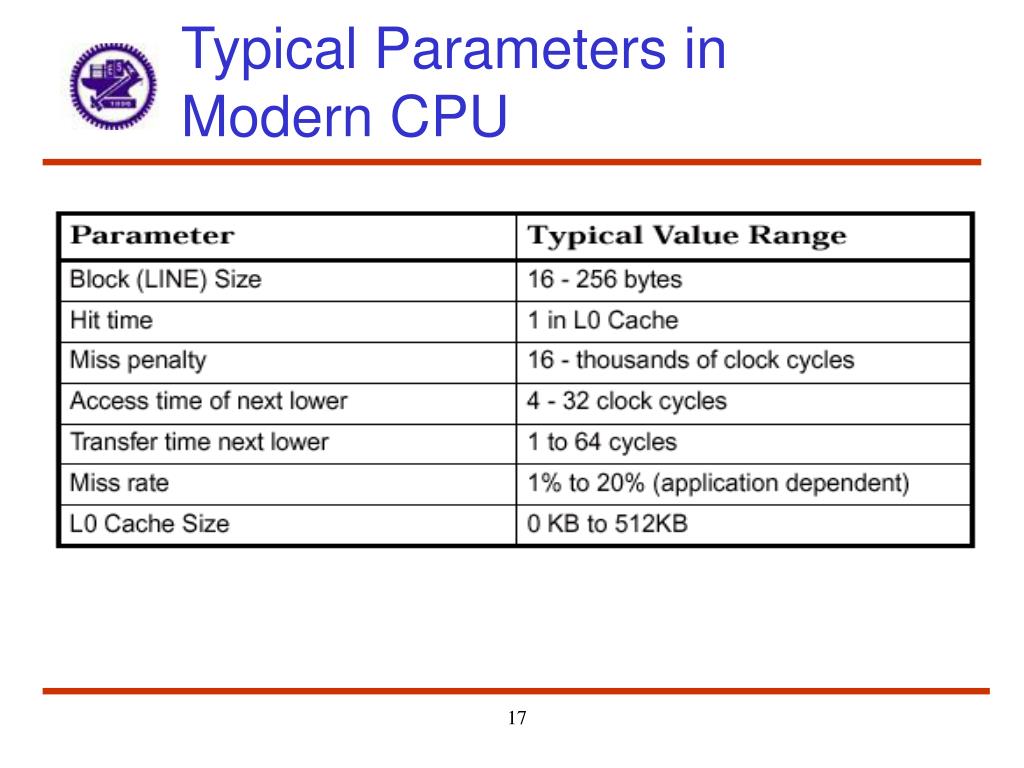

  17. Typical Parameters in Modern CPU

  18. Headaches of Memory Hierarchies • CPU never knows for sure if an access will hit • How deep will a miss be - i. e. miss penalty • If short then the CPU just waits • If long then probably best to work on something else – task switch • Implies that the amount can be predicted with reasonable accuracy • Task switch better be fast or productivity/efficiency will suffer • Implies some new needs • More hardware accounting • Software readable accounting information (address trace)

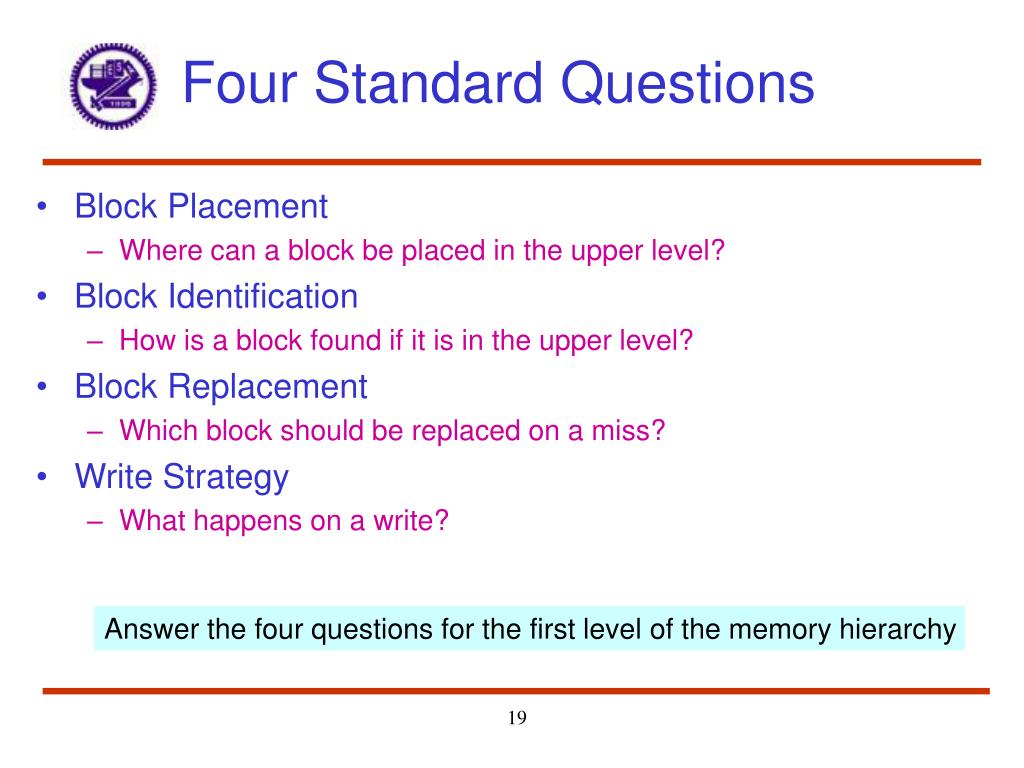

  19. Four Standard Questions • Block Placement • Where can a block be placed in the upper level? • Block Identification • How is a block found if it is in the upper level? • Block Replacement • Which block should be replaced on a miss? • Write Strategy • What happens on a write? Answer the four questions for the first level of the memory hierarchy

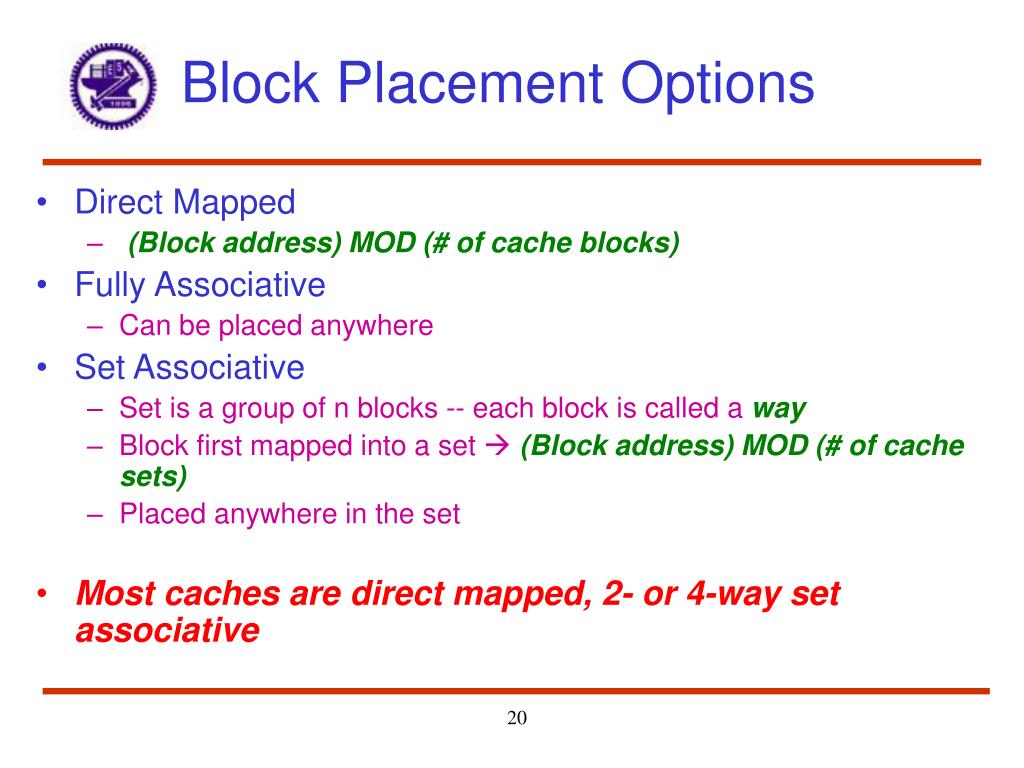

  20. Block Placement Options • Direct Mapped • (Block address) MOD (# of cache blocks) • Fully Associative • Can be placed anywhere • Set Associative • Set is a group of n blocks -- each block is called a way • Block first mapped into a set  (Block address) MOD (# of cache sets) • Placed anywhere in the set • Most caches are direct mapped, 2- or 4-way set associative

  21. Block Placement Options (Cont.) Continuum of levels of set associativity (m=0) (m=3) (m=2)

  22. Block Identification Many memory blocks may map to the same cache block • Each cache block carries tags • Address Tags: which block am I? • Physical address now: address tag## set index## block offset • Note relationship of block size, cache size, and tag size • The smaller the set tag the cheaper it is to find • Status Tags: what state is the block in? • valid, dirty, etc. Physical address =r + m + n bits r (address tag) m (set index) n(block offset) 2m addressable sets in the cache 2n bytesper block

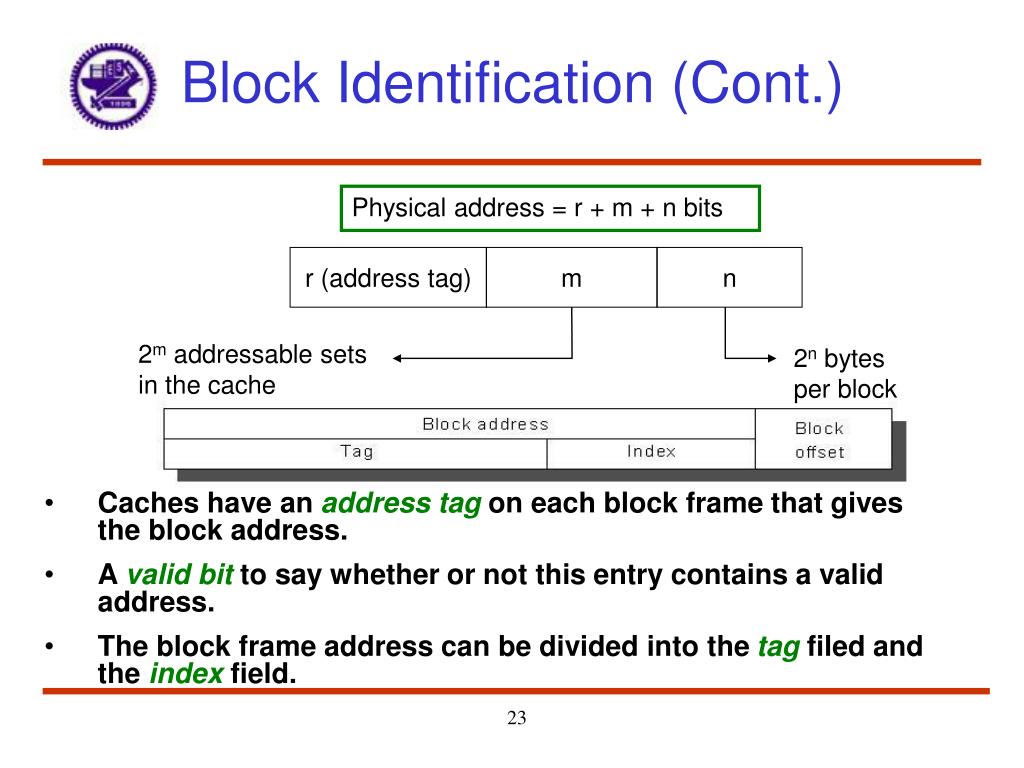

  23. Block Identification (Cont.) Physical address = r + m + n bits r (address tag) m n 2m addressable sets in the cache 2n bytesper block • Caches have an address tag on each block frame that gives the block address. • A valid bit to say whether or not this entry contains a valid address. • The block frame address can be divided into the tag filed and the index field.

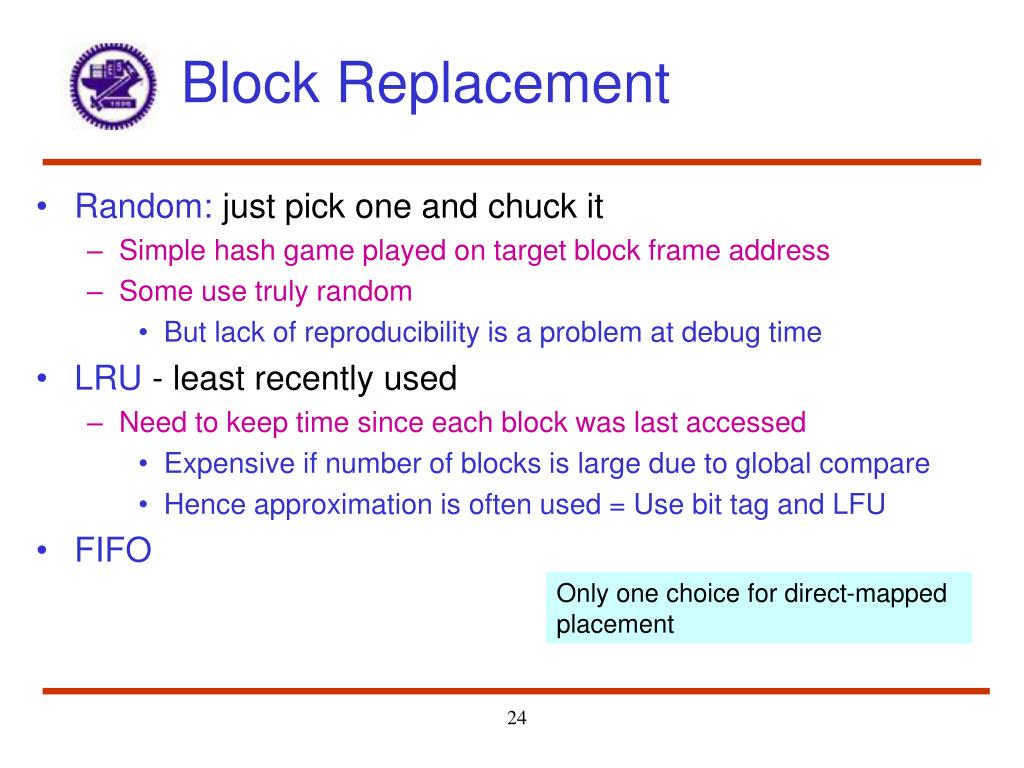

  24. Block Replacement • Random: just pick one and chuck it • Simple hash game played on target block frame address • Some use truly random • But lack of reproducibility is a problem at debug time • LRU - least recently used • Need to keep time since each block was last accessed • Expensive if number of blocks is large due to global compare • Hence approximation is often used = Use bit tag and LFU • FIFO Only one choice for direct-mappedplacement

  25. Data Cache Misses Per 1000 Instructions 64 byte blocks on a Alpha using 10 SPEC2000

  26. Short Summaries from the Previous Figure • More-way associative is better for small cache • 2- or 4-way associative perform similar to 8-way associative for larger caches • Larger cache size is better • LRU is the best for small block sizes • Random works fine for large caches • FIFO outperforms random in smaller caches • Little difference between LRU and random for larger caches

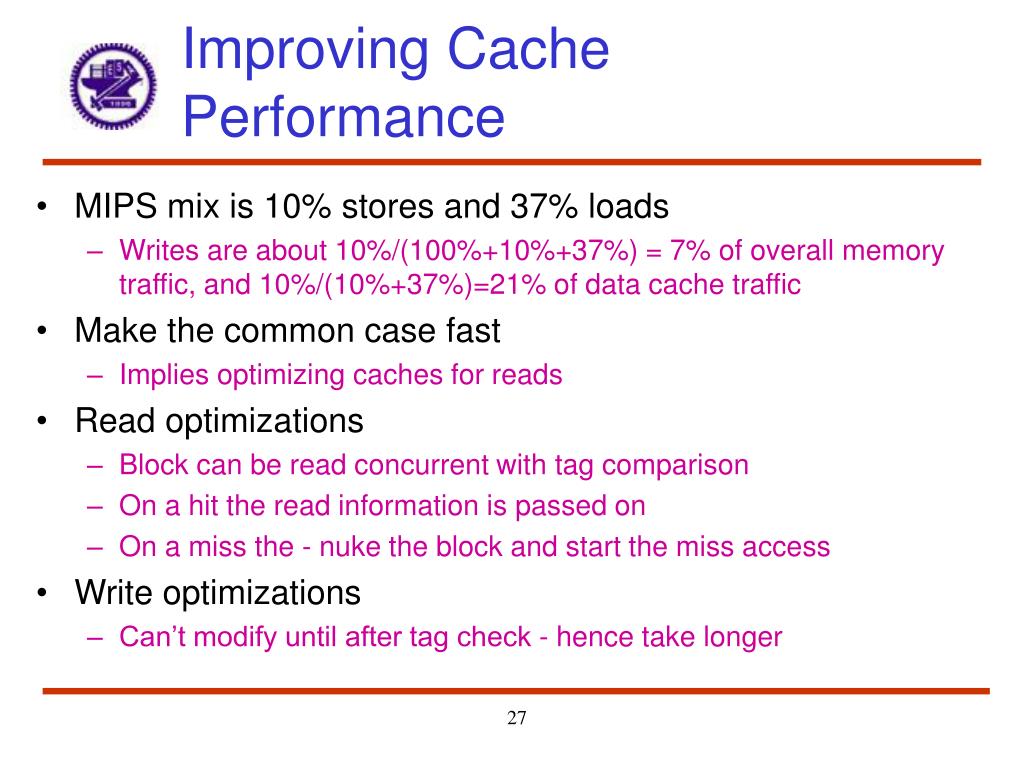

  27. Improving Cache Performance • MIPS mix is 10% stores and 37% loads • Writes are about 10%/(100%+10%+37%) = 7% of overall memory traffic, and 10%/(10%+37%)=21% of data cache traffic • Make the common case fast • Implies optimizing caches for reads • Read optimizations • Block can be read concurrent with tag comparison • On a hit the read information is passed on • On a miss the - nuke the block and start the miss access • Write optimizations • Can’t modify until after tag check - hence take longer

  28. Write Options • Write through: write posted to cache line and through to next lower level • Incurs write stall (use an intermediate write buffer to reduce the stall) • Write back • Only write to cache not to lower level • Implies that cache and main memory are now inconsistent • Mark the line with a dirty bit • If this block is replaced and dirty then write it back • Pro’s and Con’s  both are useful • Write through • No write on read miss, simpler to implement, no inconsistency with main memory • Write back • Uses less main memory bandwidth, write times independent of main memory speeds • Multiple writes within a block require only one write to the main memory

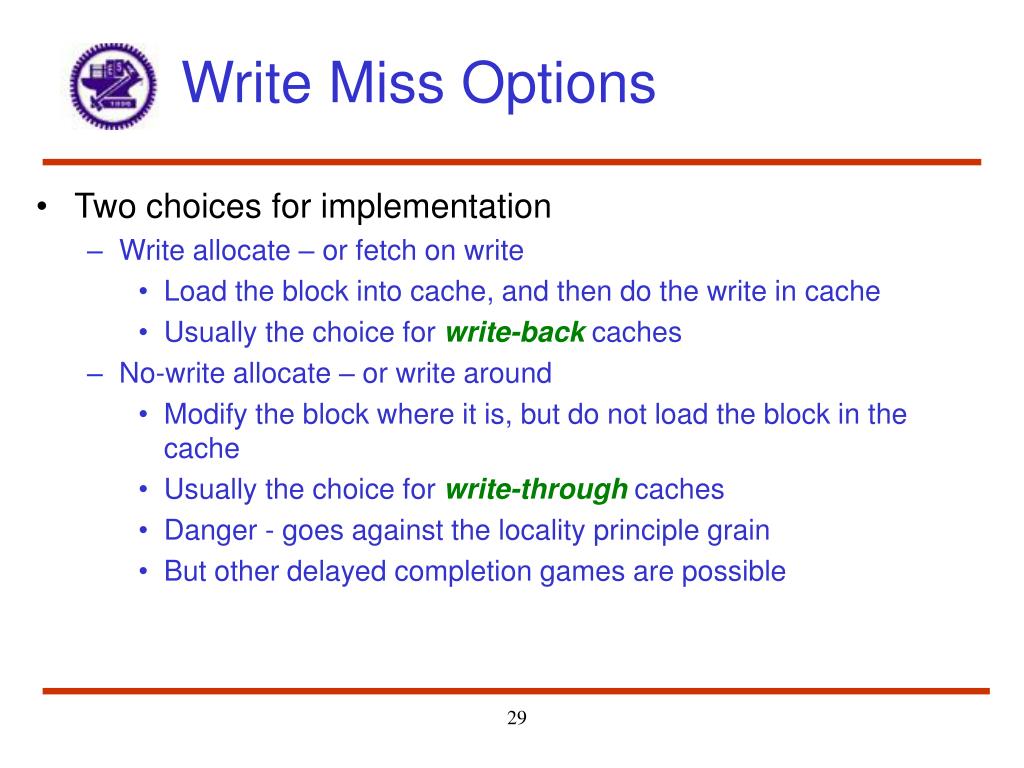

  29. Write Miss Options • Two choices for implementation • Write allocate – or fetch on write • Load the block into cache, and then do the write in cache • Usually the choice for write-back caches • No-write allocate – or write around • Modify the block where it is, but do not load the block in the cache • Usually the choice for write-through caches • Danger - goes against the locality principle grain • But other delayed completion games are possible

  30. Example • Fully associative write-back cache with many cache entries that start empty • Read/Write sequence • Write Mem[100]; • Write Mem[100]; • Read Mem[200]; • Write Mem[200]; • Write Mem[100] • Four misses and one hit for no-write allocate; two misses and three hits for write allocate

  31. Different Memory-Hierarchy Consideration for Desktop, Server, Embedded System • Servers • More context switches  increase compulsory miss rates • Desktops are concerned more with average latency, whereas servers are also concerned about memory bandwidth • The importance of protection escalates • Have greater bandwidth demands • Embedded systems • Worry about worst-case performance: caches improve average-case performance • Power and battery life  less HW  less HW-intensive optimization • Protection role is diminished • Often no disk storage • Write-back is more attractive

  32. The Alpha AXP 21264 Data Cache • The cache contains 65,536 bytes of data in 64-byte blocks with two-way set associative placement (total 512 sets in the cache), write back, and write allocate on a write miss • The 44-bit physical address is divided into three fields: the 29-bit Tag, 9-bit Index, and 6-bit block offset • Although each block is 64 bytes, 8 bytes within a block is accessed per time • 3 bits from the block offset are used to index the proper 8 bytes

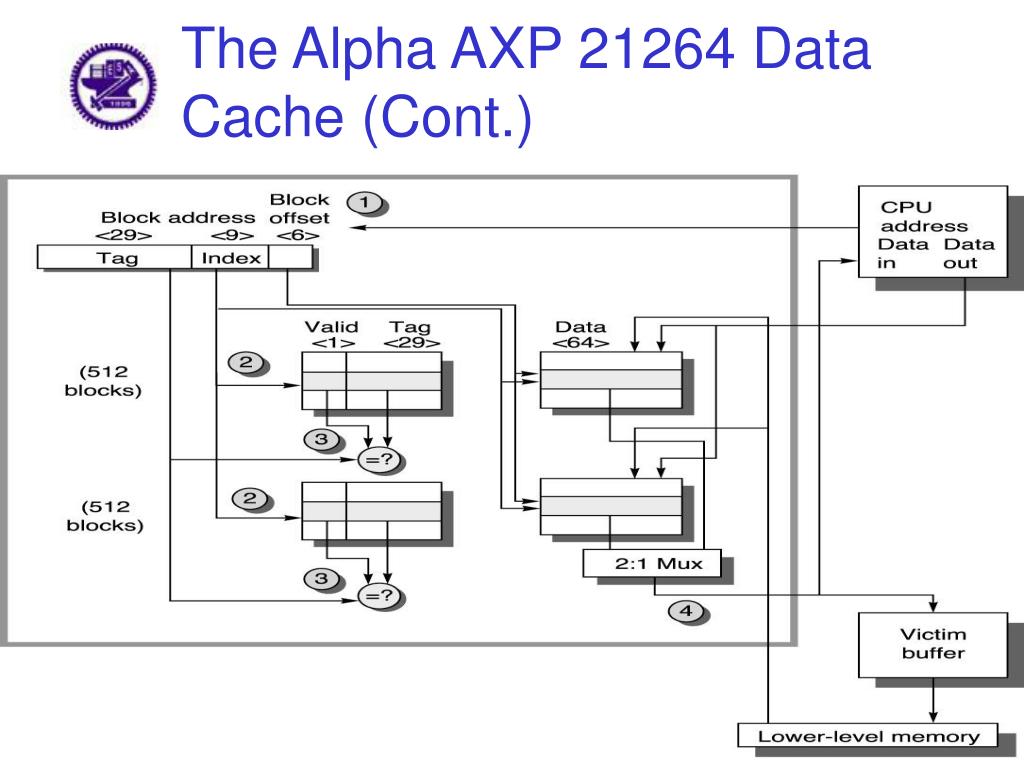

  33. The Alpha AXP 21264 Data Cache (Cont.)

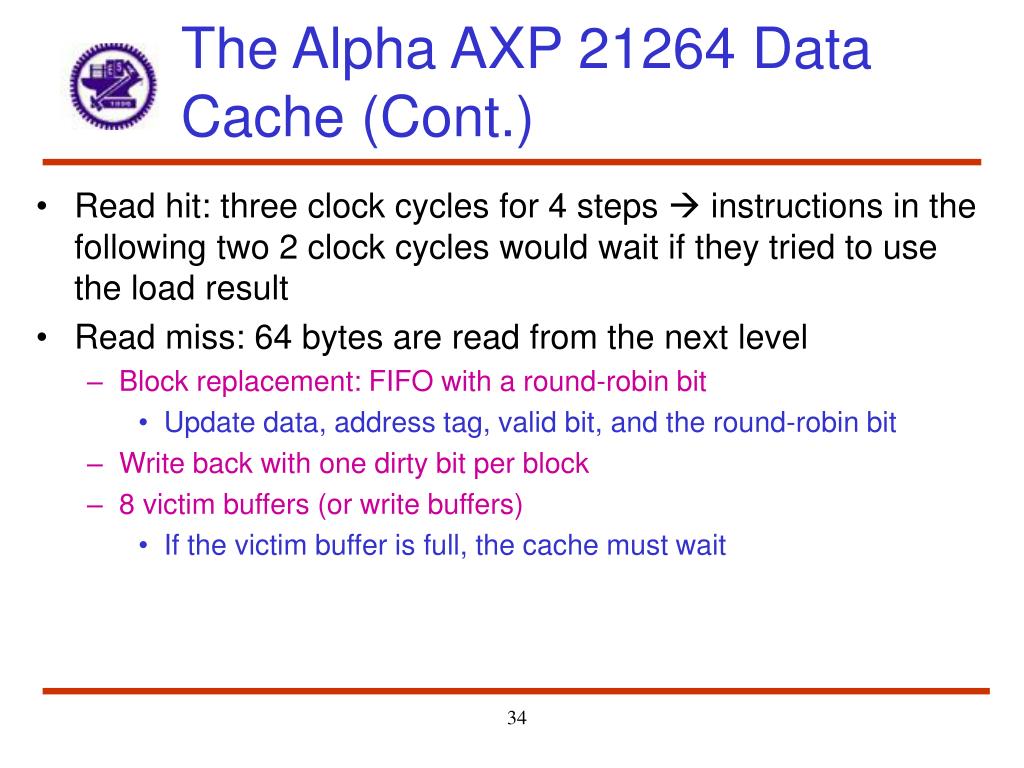

  34. The Alpha AXP 21264 Data Cache (Cont.) • Read hit: three clock cycles for 4 steps  instructions in the following two 2 clock cycles would wait if they tried to use the load result • Read miss: 64 bytes are read from the next level • Block replacement: FIFO with a round-robin bit • Update data, address tag, valid bit, and the round-robin bit • Write back with one dirty bit per block • 8 victim buffers (or write buffers) • If the victim buffer is full, the cache must wait

  35. The Alpha AXP 21264 Data Cache (Cont.) • Write hit: the first three steps are the same as read. Since 21264 executes out-of-order, only after it signals the instruction has committed and the cache tag comparison indicates a hit are the data written to the cache • Write miss: similar to read miss (write allocate) • Separate instruction and data caches • Each has 64KB

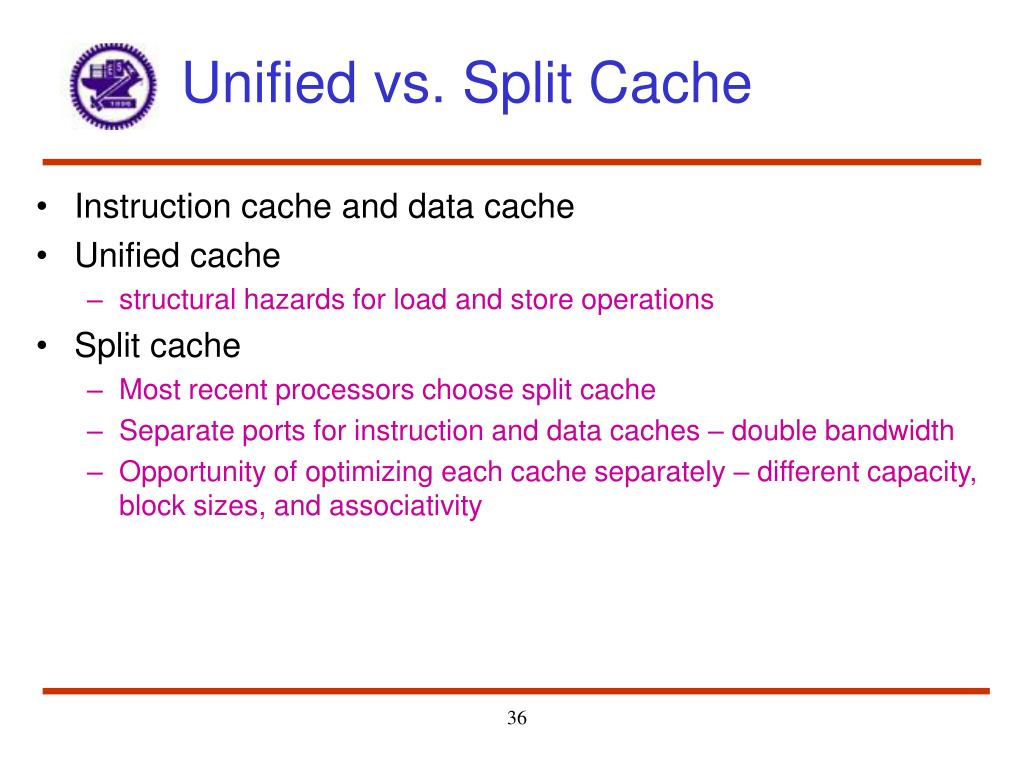

  36. Unified vs. Split Cache • Instruction cache and data cache • Unified cache • structural hazards for load and store operations • Split cache • Most recent processors choose split cache • Separate ports for instruction and data caches – double bandwidth • Opportunity of optimizing each cache separately – different capacity, block sizes, and associativity

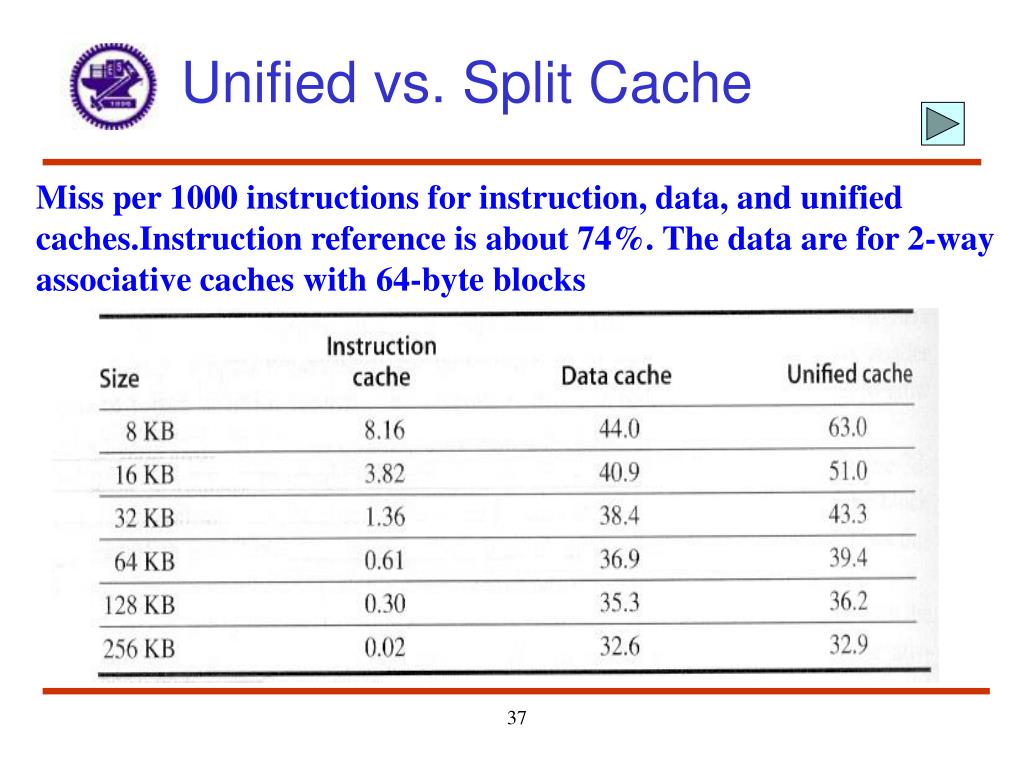

  37. Unified vs. Split Cache Miss per 1000 instructions for instruction, data, and unified caches.Instruction reference is about 74%. The data are for 2-way associative caches with 64-byte blocks

  38. 5.3 Cache Performance

  39. Cache Performance

  40. Cache Performance Example • Each instruction takes 2 clock cycle (ignore memory stalls) • Cache miss penalty – 50 clock cycles • Miss rate = 2% • Average 1.33 memory reference per instructions • Ideal – IC * 2 * cycle-time • With cache – IC*(2+1.33*2%*50)*cycle-time = IC * 3.33 * cycle-time • No cache – IC * (2+1.33*100%*50)*cycle-time • The importance of cache for CPUs with lower CPI and higher clock rates is greater – Amdahl’s Law

  41. Average Memory Access Time VS CPU Time • Compare two different cache organizations • Miss rate – direct-mapped (1.4%), 2-way associative (1.0%) • Clock-cycle-time – direct-mapped (2.0ns), 2-way associative (2.2ns) • CPI with a perfect cache – 2.0, average memory reference per instruction – 1.3; miss-penalty – 70ns; hit-time – 1 CC • Average Memory Access Time (Hit time + Miss_rate * Miss_penalty) • AMAT(Direct) = 1 * 2 + (1.4% * 70) = 2.98ns • AMAT(2-way) = 1 * 2.2 + (1.0% * 70) = 2.90ns • CPU Time • CPU(Direct) = IC * (2 * 2 + 1.3 * 1.4% * 70) = 5.27 * IC • CPU(2-way) = IC * (2 * 2.2 + 1.3 * 1.0% * 70) = 5.31 * IC Since CPU time is our bottom-line evaluation, and since direct mapped is simpler to build, the preferred cache is direct mapped in this example

  42. Unified and Split Cache • Unified – 32KB cache, Split – 16KB IC and 16KB DC • Hit time – 1 clock cycle, miss penalty – 100 clock cycles • Load/Store hit takes 1 extra clock cycle for unified cache • 36% load/store – reference to cache: 74% instruction, 26% data • Miss rate(16KB instruction) = 3.82/1000/1.0 = 0.004Miss rate (16KB data) = 40.9/1000/0.36 = 0.114 • Miss rate for split cache – (74%*0.004) + (26%*0.114) = 0.0324Miss rate for unified cache – 43.3/1000/(1+0.36) = 0.0318 • Average-memory-access-time = % inst * (hit-time + inst-miss-rate * miss-penalty) + % data * (hit-time + data-miss-rate * miss-penalty) • AMAT(Split) = 74% * (1 + 0.004 * 100) + 26% * (1 + 0.114 * 100) = 4.24 • AMAT(Unified) = 74% * (1 + 0.0318 * 100) + 26% * (1 + 1 + 0.0318* 100) = 4.44

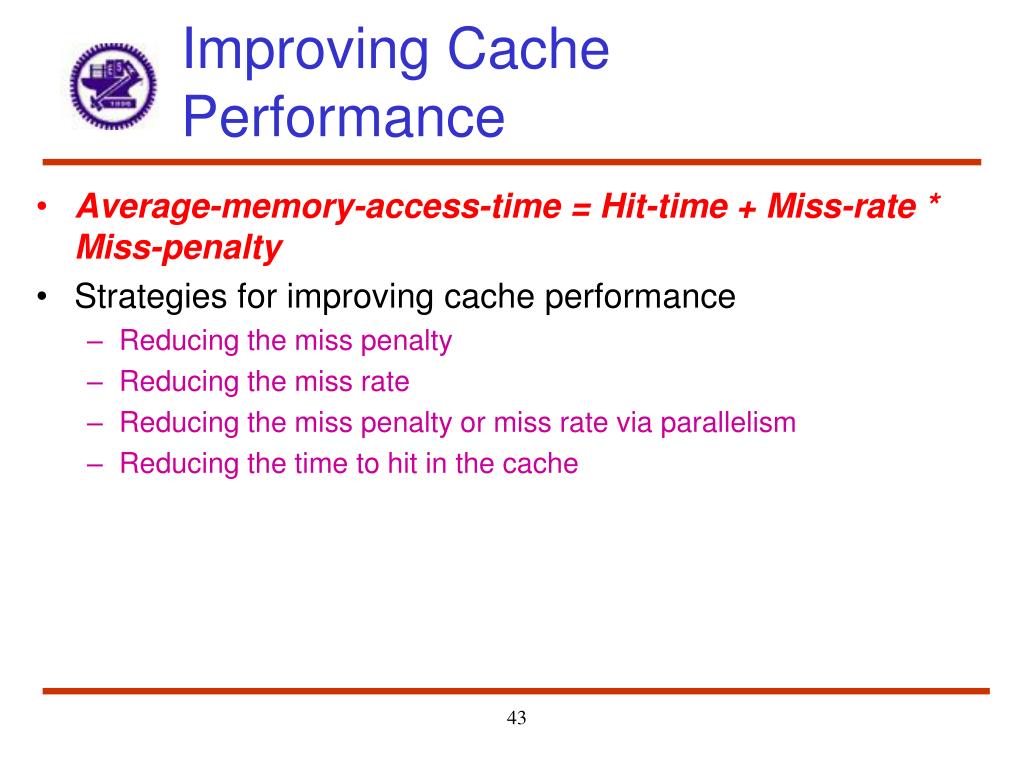

  43. Improving Cache Performance • Average-memory-access-time = Hit-time + Miss-rate * Miss-penalty • Strategies for improving cache performance • Reducing the miss penalty • Reducing the miss rate • Reducing the miss penalty or miss rate via parallelism • Reducing the time to hit in the cache

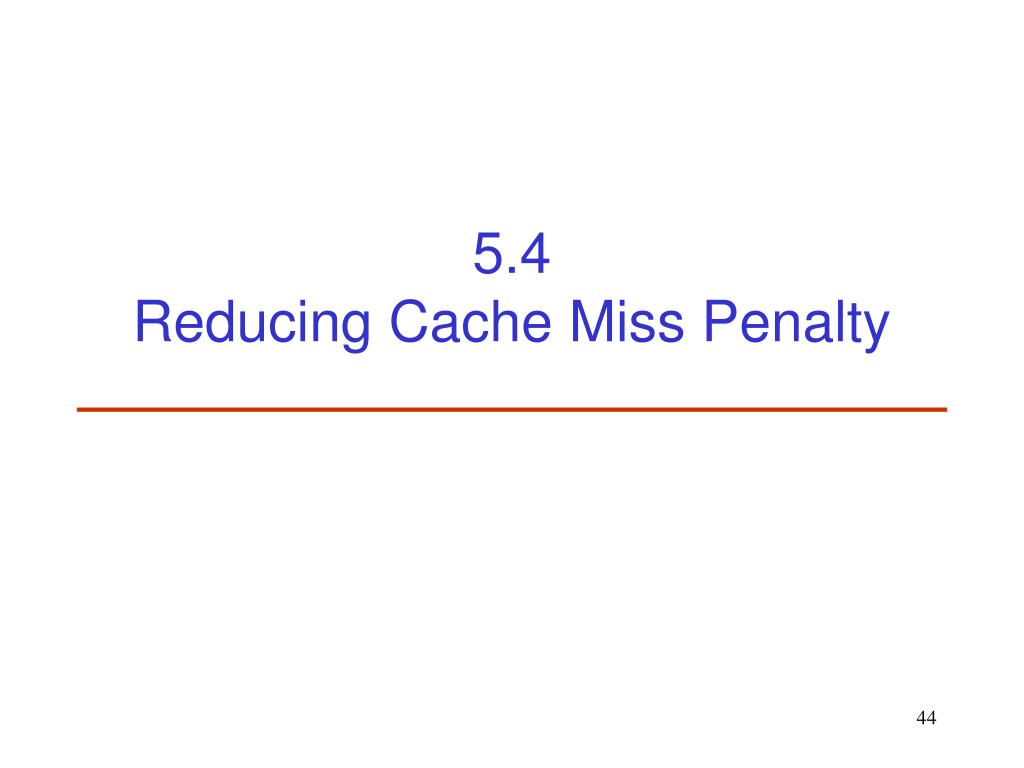

  44. 5.4 Reducing Cache Miss Penalty

  45. Techniques for Reducing Miss Penalty • Multilevel Caches (the most important) • Critical Word First and Early Restart • Giving Priority to Read Misses over Writes • Merging Write Buffer • Victim Caches

  46. Multi-Level Caches • Probably the best miss-penalty reduction • Performance measurement for 2-level caches • AMAT = Hit-time-L1 + Miss-rate-L1* Miss-penalty-L1 • Miss-penalty-L1 = Hit-time-L2 + Miss-rate-L2 * Miss-penalty-L2 • AMAT = Hit-time-L1 + Miss-rate-L1 * (Hit-time-L2 + Miss-rate-L2 * Miss-penalty-L2)

  47. Multi-Level Caches (Cont.) • Definitions: • Local miss rate: misses in this cache divided by the total number of memory accesses to this cache (Miss-rate-L2) • Global miss rate: misses in this cache divided by the total number of memory accesses generated by CPU (Miss-rate-L1 x Miss-rate-L2) • Global Miss Rate is what matters • Advantages: • Capacity misses in L1 end up with a significant penalty reduction since they likely will get supplied from L2 • No need to go to main memory • Conflict misses in L1 similarly will get supplied by L2

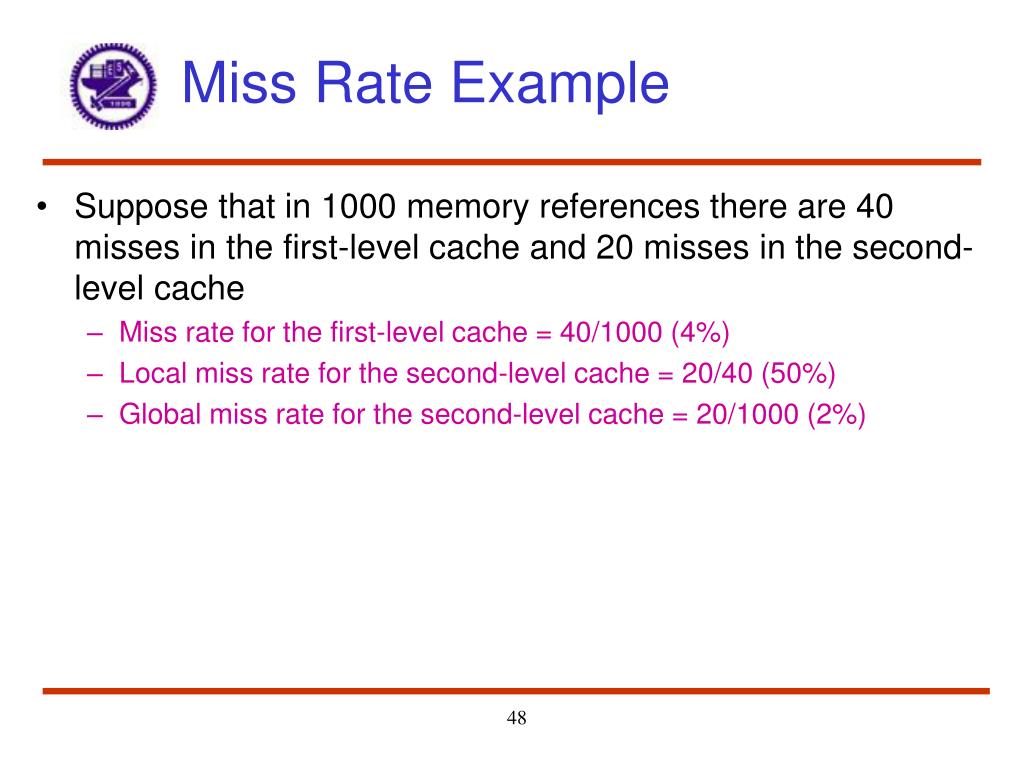

  48. Miss Rate Example • Suppose that in 1000 memory references there are 40 misses in the first-level cache and 20 misses in the second-level cache • Miss rate for the first-level cache = 40/1000 (4%) • Local miss rate for the second-level cache = 20/40 (50%) • Global miss rate for the second-level cache = 20/1000 (2%)

  49. Miss Rate Example (Cont.) • Assume miss-penalty-L2 is 100 CC, hit-time-L2 is 10 CC, hit-time-L1 is 1 CC, and 1.5 memory reference per instruction. What is average memory access time and average stall cycles per instructions? Ignore writes impact. • AMAT = Hit-time-L1 + Miss-rate-L1 * (Hit-time-L2 + Miss-rate-L2 * Miss-penalty-L2) = 1 + 4% * (10 + 50% * 100) = 3.4 CC • Average memory stalls per instruction = Misses-per-instruction-L1 * Hit-time-L2 + Misses-per-instructions-L2*Miss-penalty-L2= (40*1.5/1000) * 10 + (20*1.5/1000) * 100 = 3.6 CC • Or (3.4 – 1.0) * 1.5 = 3.6 CC

  50. Comparing Local and Global Miss Rates 32KB L1 cache More assumptions are shown inthe legend of Figure 5.10
