Contents

Contents

  • Section 1—Introduction to Plumbing

  • Section 2—Plumbing Systems

  • Section 3—Plumbing System Design and Installation

  • Section 4—Plumbing Services

  • Section 5—Career Development and Plumbing History


Section 1

Section 1

Introduction to Plumbing


Chapter 4

Chapter 4

Mathematics for Plumbers


Objectives

Objectives

  • Read a rule accurately to nearest 1/16.

  • Add and subtract fractions and whole numbers.

  • Compute pipe offsets using the Pythagorean theorem and trigonometric functions.

  • Apply the formulas for finding area and volume.

  • Explain and apply SI metric measure in finding length, area, volume, and temperature.

  • Convert customary measure to metric measure.


Measurement

Measurement

(Goodheart-Willcox Publisher)


Measurement1

Measurement

Reading Fractions of an Inch

  • Read from nearest 1/4 divisions to get precise reading.

(Goodheart-Willcox Publisher)


Measurement2

Measurement

Adding Lengths

(Goodheart-Willcox Publisher)


Measurement3

Measurement

Subtracting Lengths

(Goodheart-Willcox Publisher)


Measurement4

Measurement

Subtracting Unequal Denominators

(Goodheart-Willcox Publisher)


Measurement5

Measurement

Borrowing from the Whole Number

(Goodheart-Willcox Publisher)

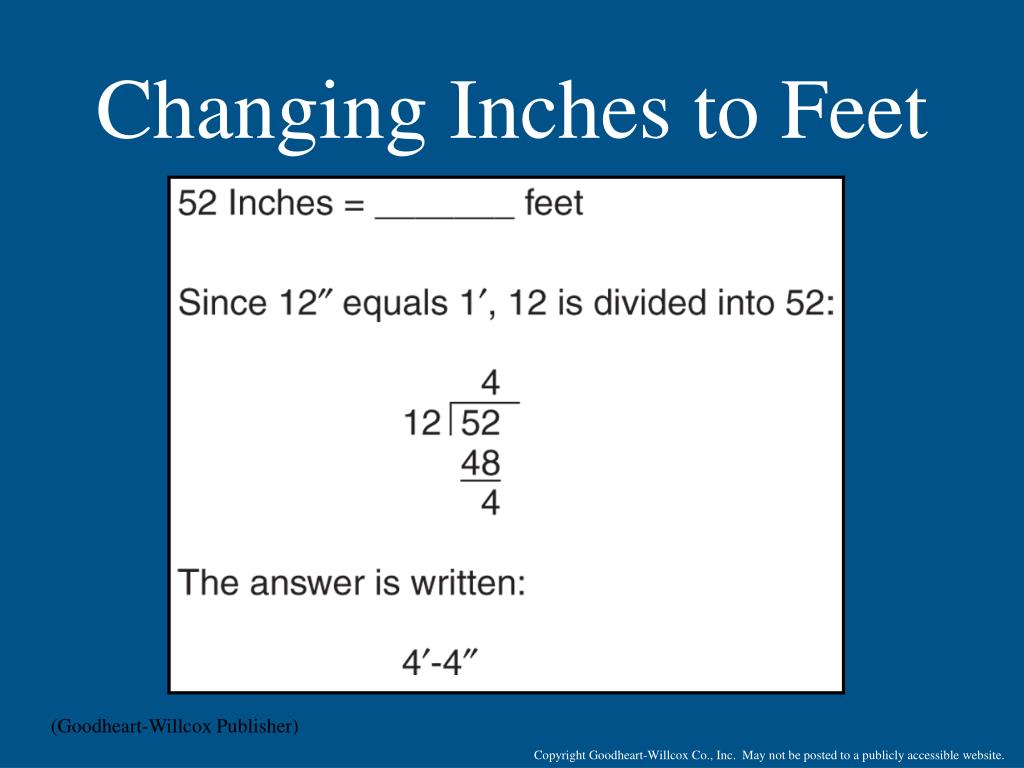

Changing inches to feet

Changing Inches to Feet

(Goodheart-Willcox Publisher)


Changing feet to inches

Changing Feet to Inches

Multiply the dimension given in feet by 12 to get the number of inches.

(Goodheart-Willcox Publisher)


Review

Review

Identify each measurement indicated.

  • 5 1/2

  • A.

  • B.

  • C.

  • D.

  • E.

  • 4 9/16

  • 3 13/16

  • 3 1/16

  • 1 11/16

(Goodheart-Willcox Publisher)


Review1

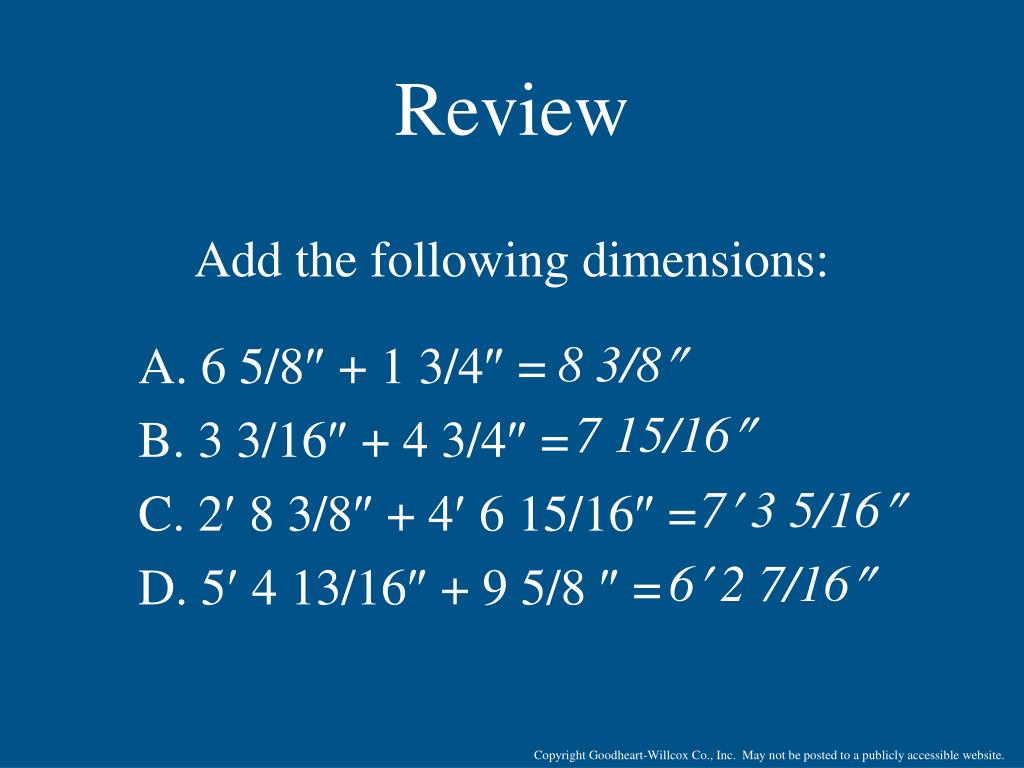

Review

Add the following dimensions:

A. 6 5/8 + 1 3/4 =

B. 3 3/16 + 4 3/4 =

C. 2 8 3/8 + 4 6 15/16 =

D. 5 4 13/16 + 9 5/8  =

  • 8 3/8

7 15/16

7 3 5/16

6 2 7/16


Review2

Review

Subtract the following dimensions:

A. 9 3/4 – 3 3/8 =

B. 1 2 1/4 – 8 1/8 =

C. 12 6 3/4 – 7 4 7/8 =

D. 6 9 11/16 – 3 10 13/16 =

6 3/8

6 1/8

5 1 7/8

2 10 7/8


Computing pipe offsets

Computing Pipe Offsets

(Goodheart-Willcox Publisher)

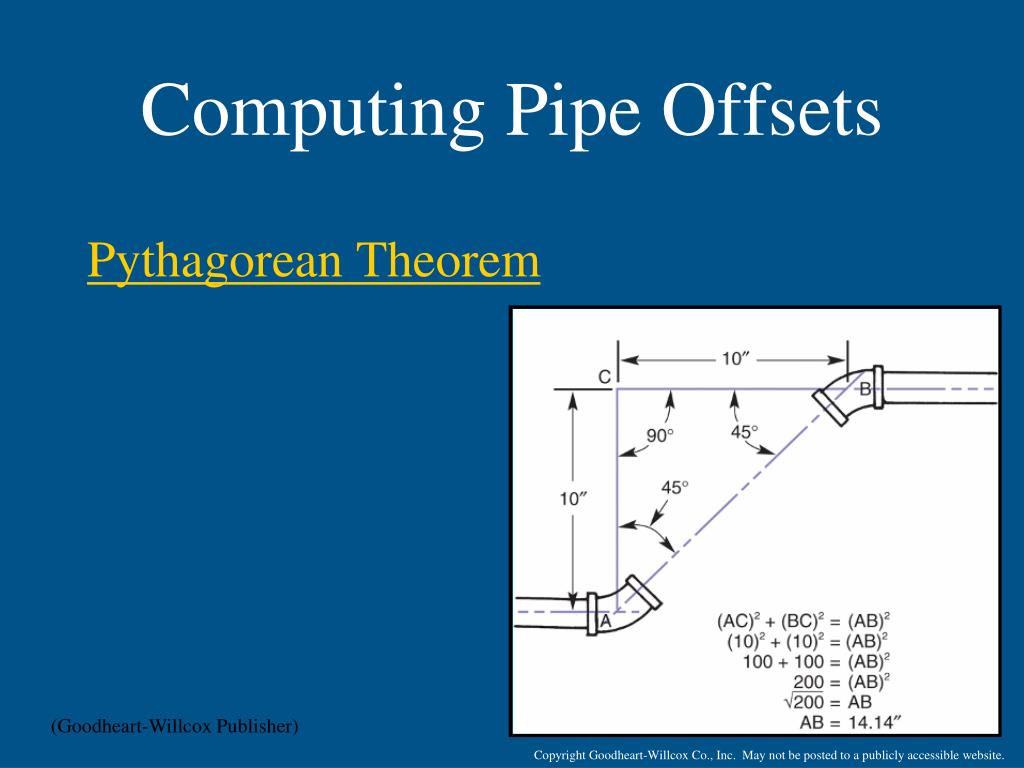

Computing pipe offsets1

Computing Pipe Offsets

Pythagorean Theorem

(Goodheart-Willcox Publisher)

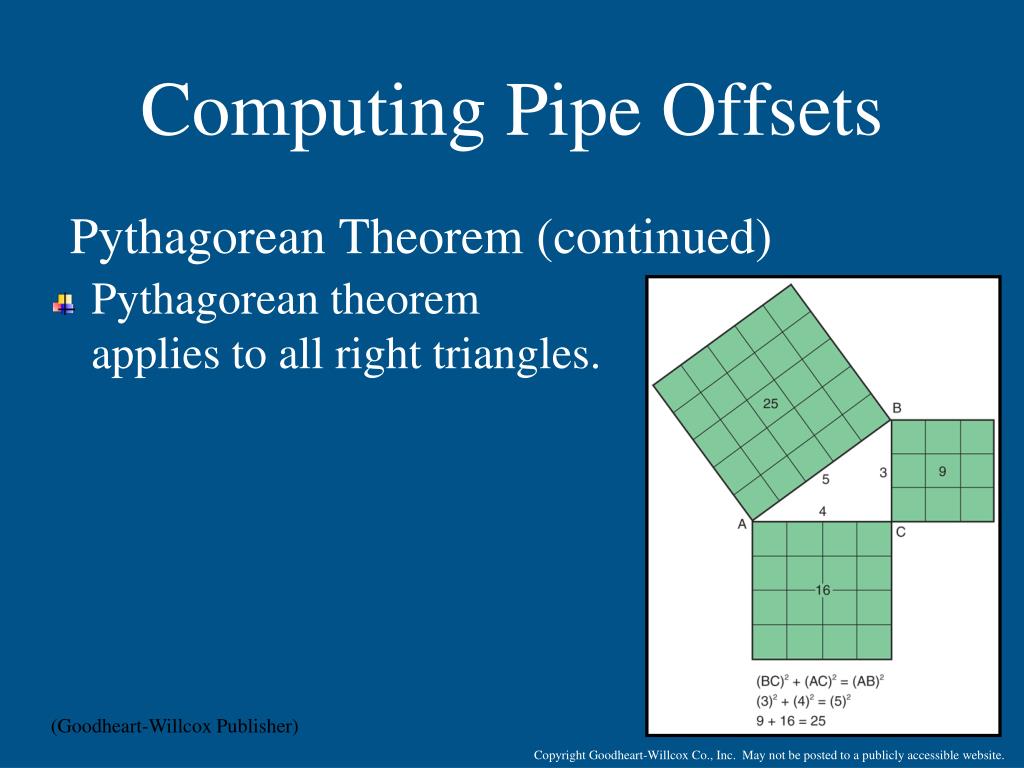

Computing pipe offsets2

Computing Pipe Offsets

Pythagorean Theorem (continued)

  • Pythagorean theorem applies to all right triangles.

(Goodheart-Willcox Publisher)


Computing pipe offsets3

Computing Pipe Offsets

Trigonometric Functions

(Goodheart-Willcox Publisher)

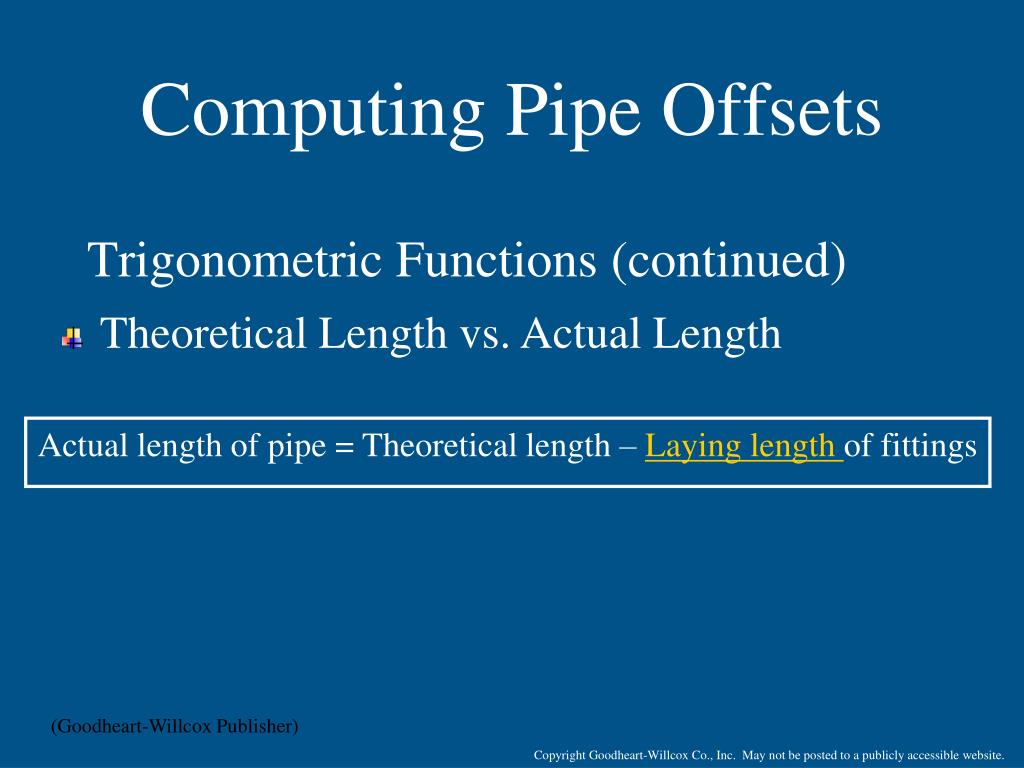

Computing pipe offsets4

Computing Pipe Offsets

Trigonometric Functions (continued)

  • Theoretical Length vs. Actual Length

Actual length of pipe = Theoretical length –Laying lengthof fittings

(Goodheart-Willcox Publisher)


Computing pipe offsets5

Computing Pipe Offsets

Simple Methods

(Goodheart-Willcox Publisher)


Computing pipe offsets6

Computing Pipe Offsets

Plumber’s Rule

(Goodheart-Willcox Publisher)


Review3

Review

  • Find the travel of the pipe required to join two pipes at a 45 angle that are offset at each of the following distances:

    • A. 30 =

    • B. 18 =

    • C. 1 3 =

    • D. 2 9 =

42.42 or 4 7/16

25.45 or 25 7/16

22.21 or 22 1/4

46.66 or 46 11/16


Computing area and volume

Computing Area and Volume

Square or Rectangular Surface

(Goodheart-Willcox Publisher)


Computing area and volume1

Computing Area and Volume

Area of Circles

(Goodheart-Willcox Publisher)


Computing area and volume2

Computing Area and Volume

Volume of a Rectangular Tank

(Goodheart-Willcox Publisher)


Computing area and volume3

Computing Area and Volume

Volume of a Cylindrical Tank

(Goodheart-Willcox Publisher)


Review4

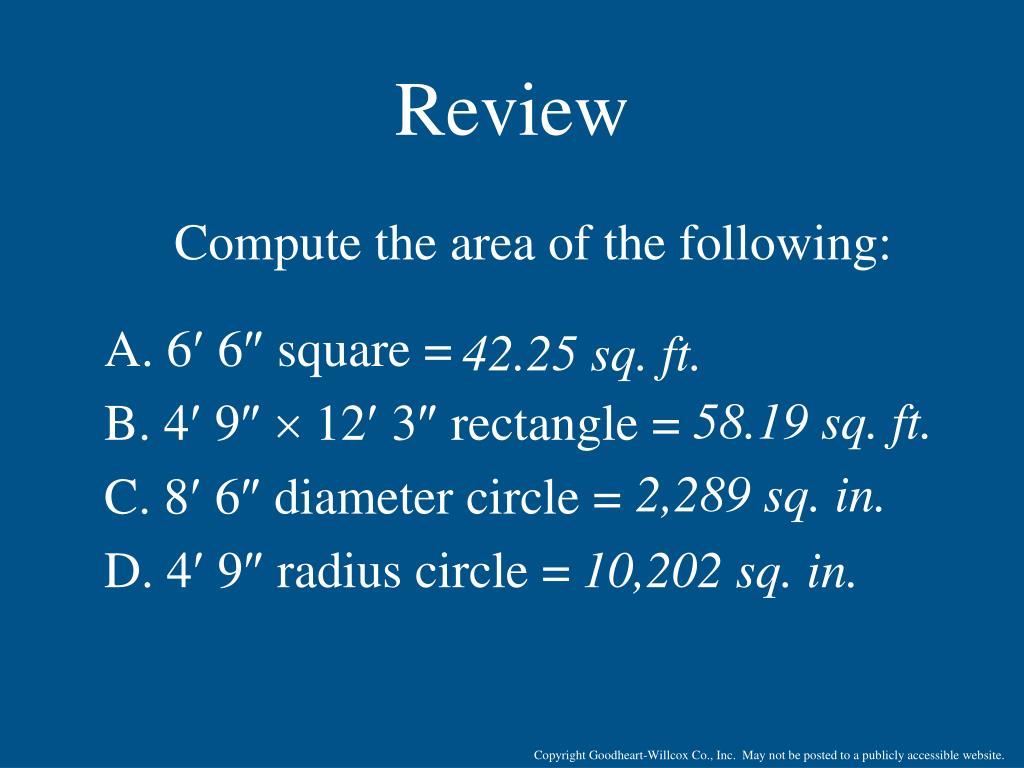

Review

  • Compute the area of the following:

    • A. 6 6 square =

    • B. 4 9 12 3 rectangle =

    • C. 8 6 diameter circle =

    • D. 4 9 radius circle =

42.25 sq. ft.

58.19 sq. ft.

2,289 sq. in.

10,202 sq. in.


Review5

Review

Compute the volume of these tanks:

A.B.

615.44 cu. ft.

63 cu. ft.


Computing slope of pipe

Computing Slope of Pipe

(Goodheart-Willcox Publisher)


Metric measurement

Metric Measurement

Length

(Goodheart-Willcox Publisher)


Metric measurement1

Metric Measurement

Dry Volume

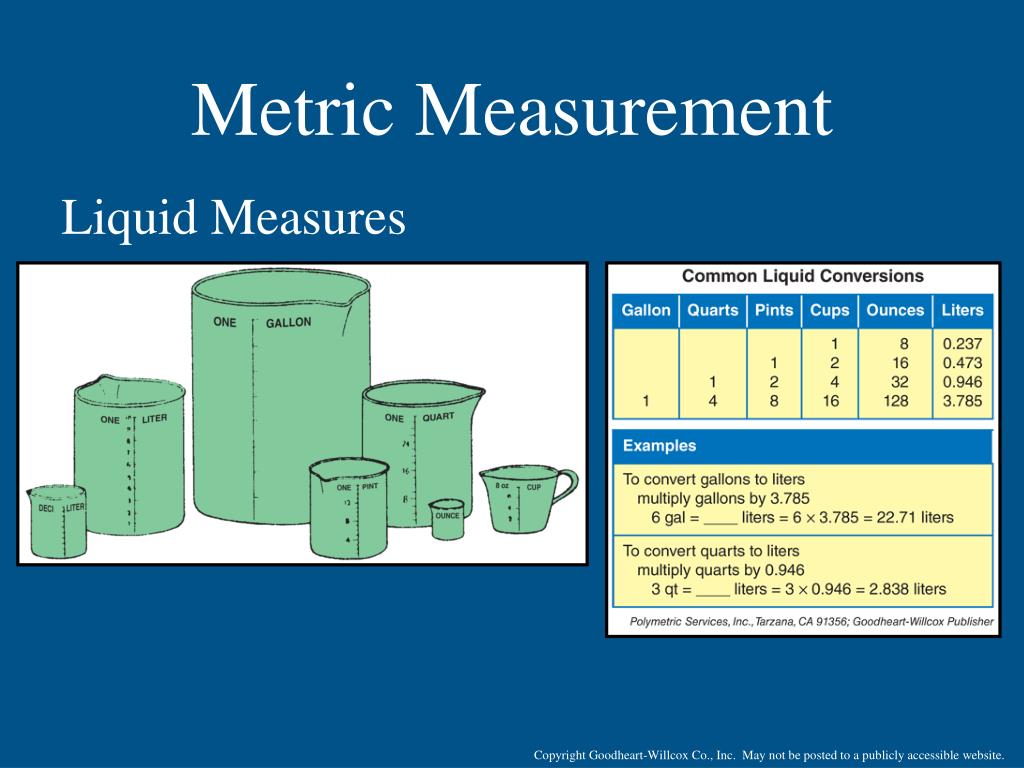

Metric measurement2

Metric Measurement

Liquid Measures

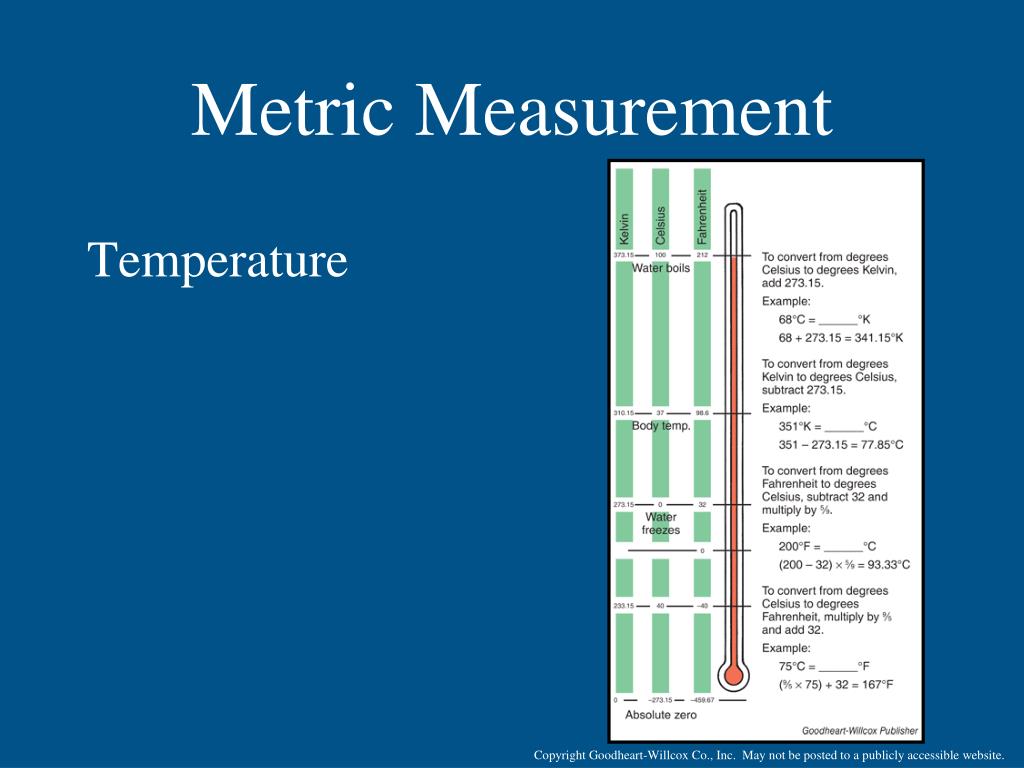

Metric measurement3

Metric Measurement

Temperature


Review6

Review

  • Identify the metric units of measurement used when measuring:

    • A. Distance:

    • B. Liquid volume:

    • C. Dry volume:

    • D. Temperature:

meter, centimeter, millimeter

liter or cubic centimeter

cubic meter

Celsius or Kelvin

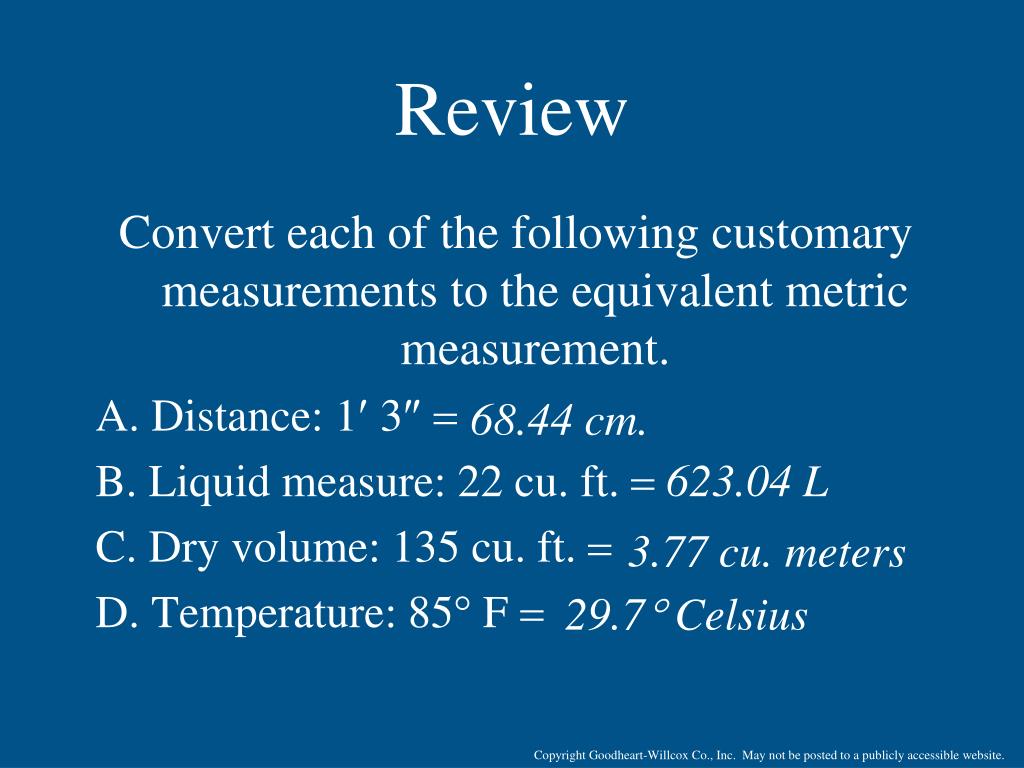

Review7

Review

  • Convert each of the following customary measurements to the equivalent metric measurement.

    • A. Distance: 1 3 

    • B. Liquid measure: 22 cu. ft. 

    • C. Dry volume: 135 cu. ft. 

    • D. Temperature: 85 F 

68.44 cm.

623.04 L

3.77 cu. meters

29.7 Celsius


End of chapter 4

End of Chapter 4
