21 web applications writing data to databases using asp

21 – Web applications:Writing data to Databasesusing ASP


Session aims objectives

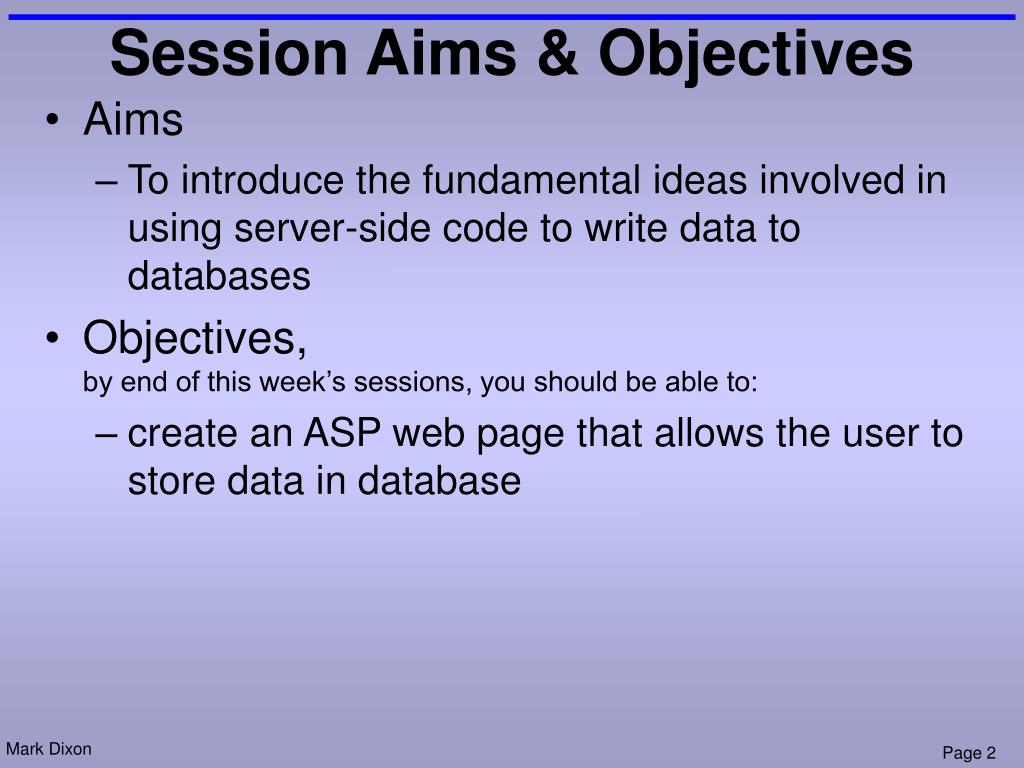

Session Aims & Objectives

  • Aims

    • To introduce the fundamental ideas involved in using server-side code to write data to databases

  • Objectives,by end of this week’s sessions, you should be able to:

    • create an ASP web page that allows the user to store data in database


Searching for data

Searching for Data

  • Recordset methods

    • Find: searches for the next record to match given criteria string:

      • e.g. "Name = 'Smith' "( " are for VB string)( ' are for database string)


Example person v1 specification

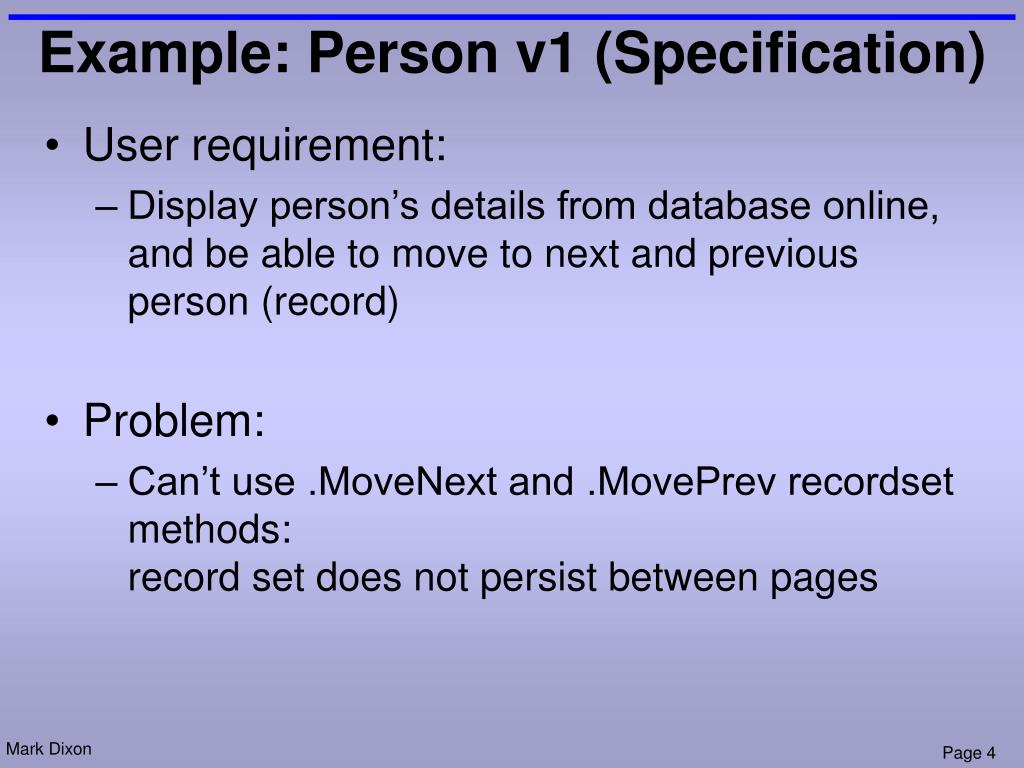

Example: Person v1 (Specification)

  • User requirement:

    • Display person’s details from database online, and be able to move to next and previous person (record)

  • Problem:

    • Can’t use .MoveNext and .MovePrev recordset methods:record set does not persist between pages


Example person v1 html

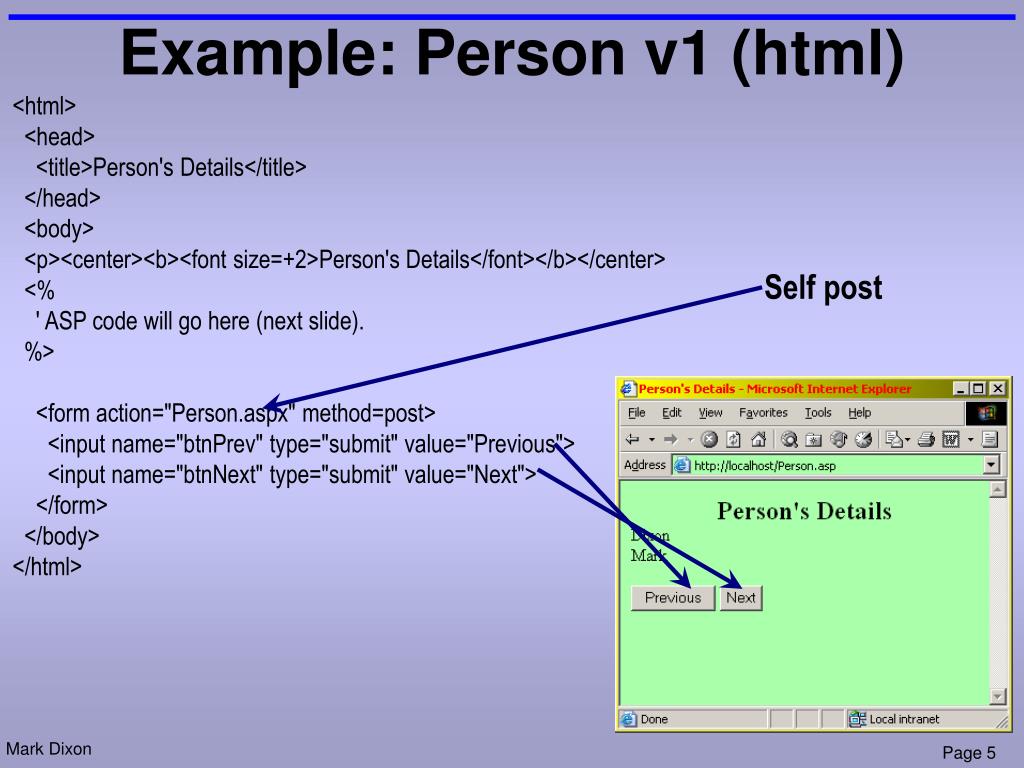

Example: Person v1 (html)

Self post

<html>

<head>

<title>Person's Details</title>

</head>

<body>

<p><center><b><font size=+2>Person's Details</font></b></center>

<%

' ASP code will go here (next slide).

%>

<form action="Person.aspx" method=post>

<input name="btnPrev" type="submit" value="Previous">

<input name="btnNext" type="submit" value="Next">

</form>

</body>

</html>


Example person v1 asp

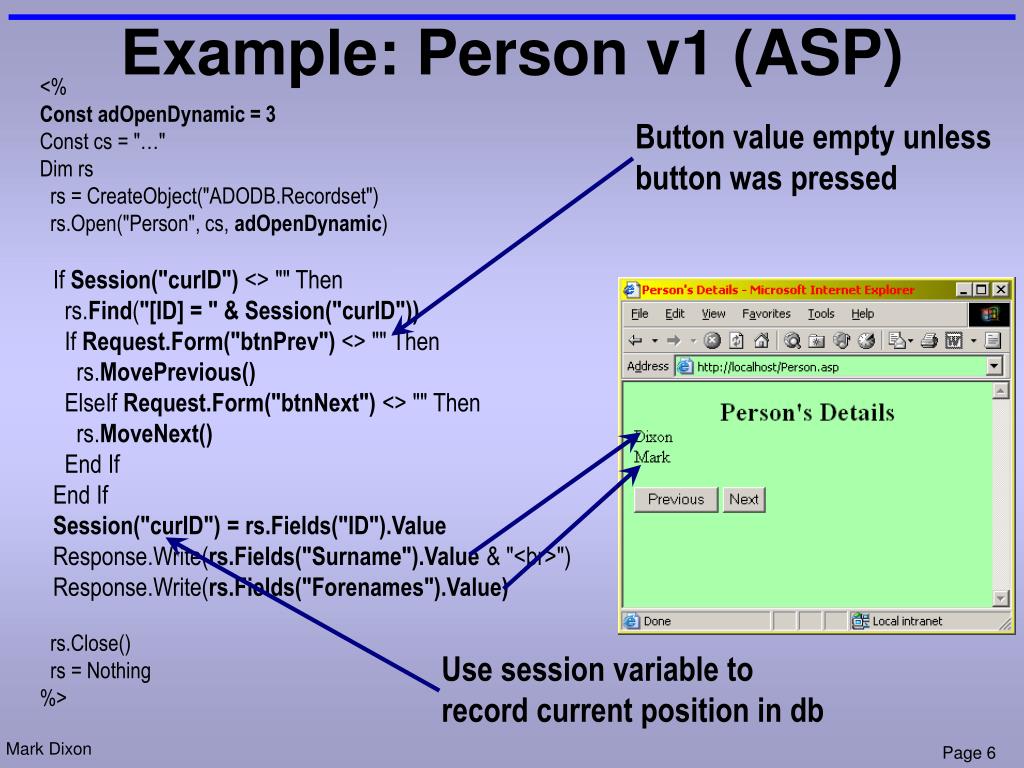

Example: Person v1 (ASP)

Button value empty unless

button was pressed

Use session variable to

record current position in db

<%

Const adOpenDynamic = 3

Const cs = "…"

Dim rs

rs = CreateObject("ADODB.Recordset")

rs.Open("Person", cs, adOpenDynamic)

If Session("curID") <> "" Then

rs.Find("[ID] = " & Session("curID"))

If Request.Form("btnPrev") <> "" Then

rs.MovePrevious()

ElseIf Request.Form("btnNext") <> "" Then

rs.MoveNext()

End If

End If

Session("curID") = rs.Fields("ID").Value

Response.Write(rs.Fields("Surname").Value & "<br>")

Response.Write(rs.Fields("Forenames").Value)

rs.Close()

rs = Nothing

%>


Example person v2 specification

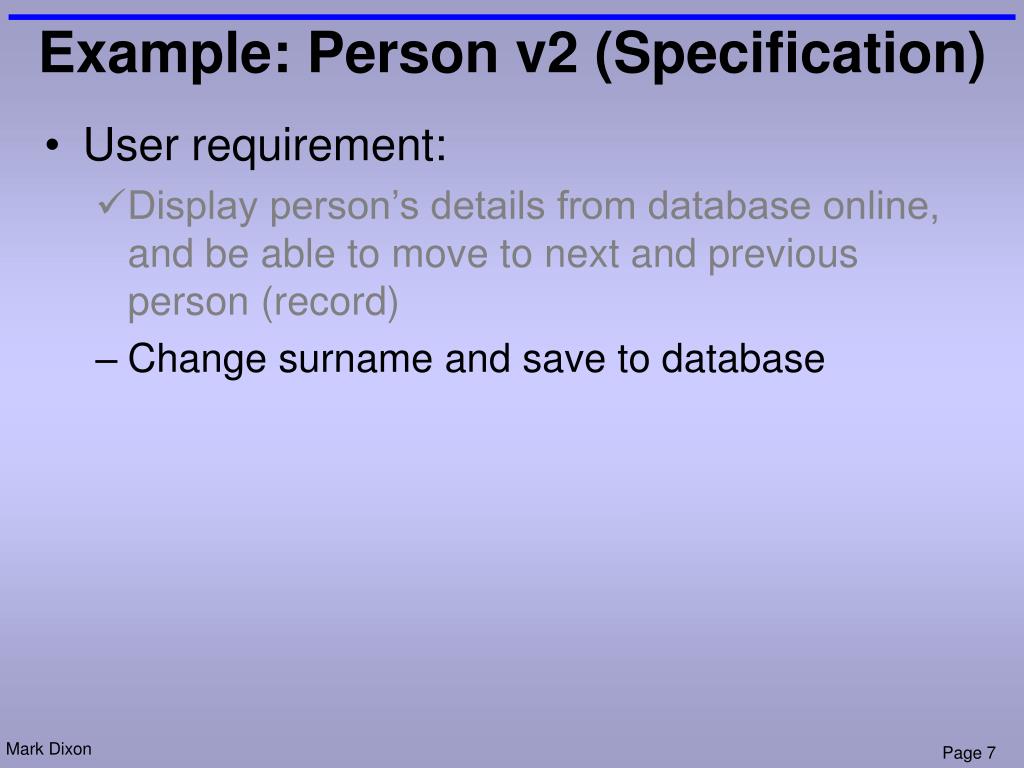

Example: Person v2 (Specification)

  • User requirement:

    • Display person’s details from database online, and be able to move to next and previous person (record)

    • Change surname and save to database


Database permissions 1

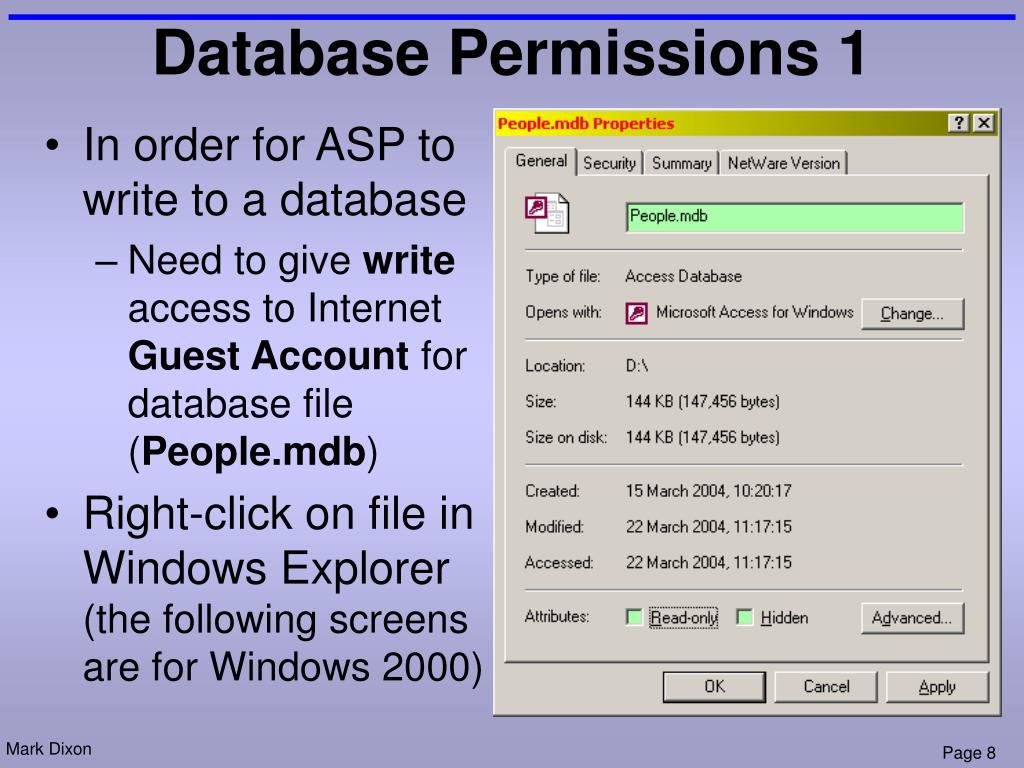

Database Permissions 1

  • In order for ASP to write to a database

    • Need to give write access to Internet Guest Account for database file (People.mdb)

  • Right-click on file in Windows Explorer(the following screens are for Windows 2000)


Database permissions 2

Database Permissions 2

  • Click Security tab

  • Click Add button


Database permissions 3

Database Permissions 3

  • Select Internet Guest Account IUSR_ … ClickAddbuttonClickOKbutton


Database permissions 4

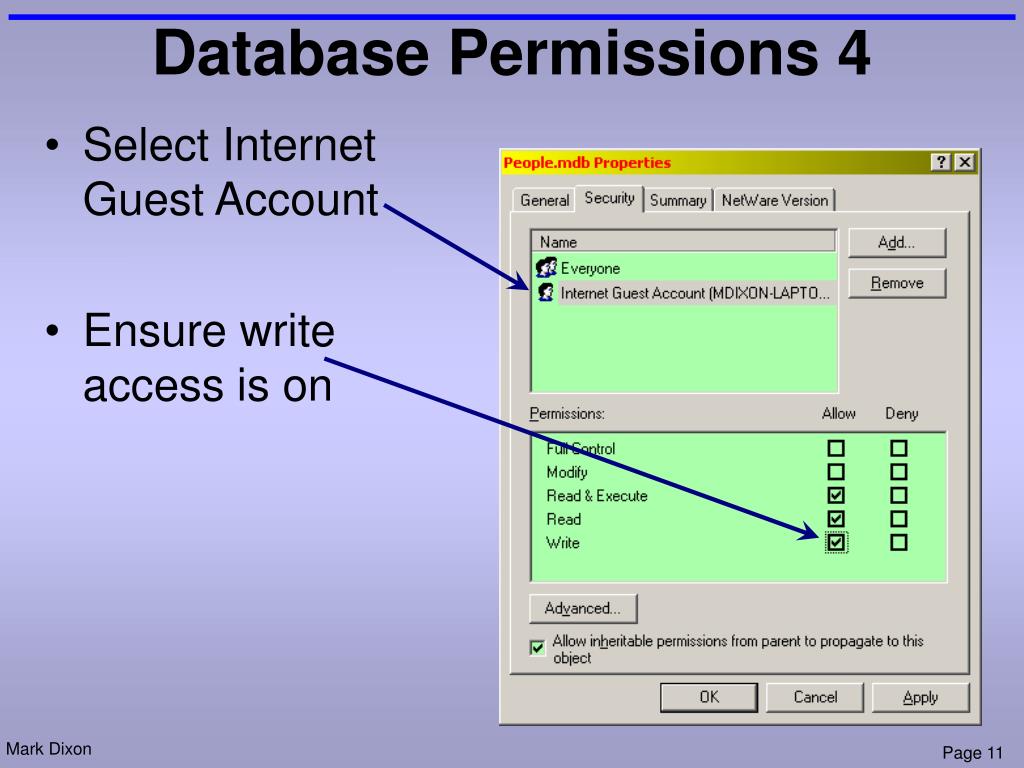

Database Permissions 4

  • Select InternetGuest Account

  • Ensure writeaccess is on


Writing data to a database

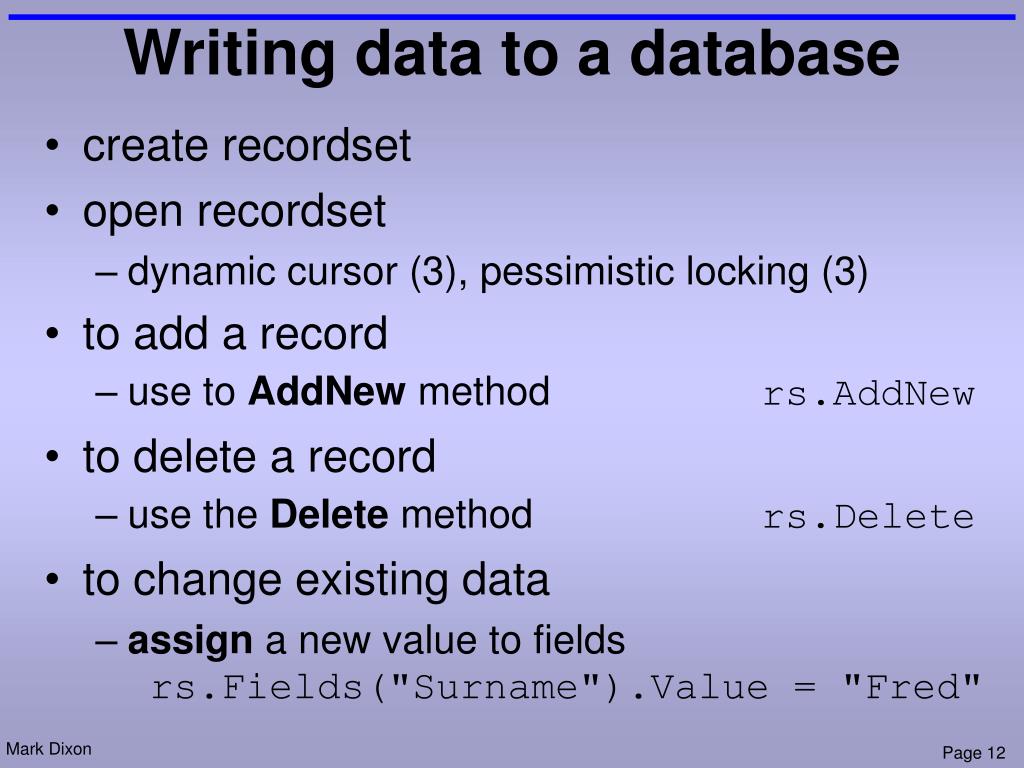

Writing data to a database

  • create recordset

  • open recordset

    • dynamic cursor (3), pessimistic locking (3)

  • to add a record

    • use to AddNew methodrs.AddNew

  • to delete a record

    • use the Delete methodrs.Delete

  • to change existing data

    • assign a new value to fieldsrs.Fields("Surname").Value = "Fred"


Changing data

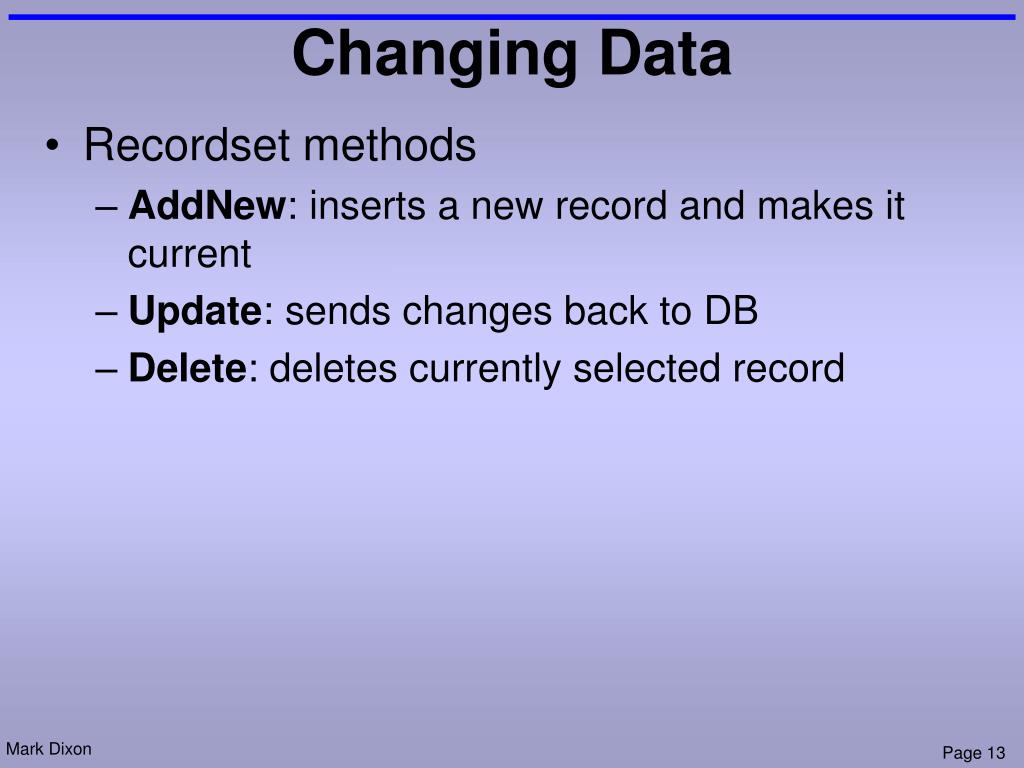

Changing Data

  • Recordset methods

    • AddNew: inserts a new record and makes it current

    • Update: sends changes back to DB

    • Delete: deletes currently selected record


Example person v2 html

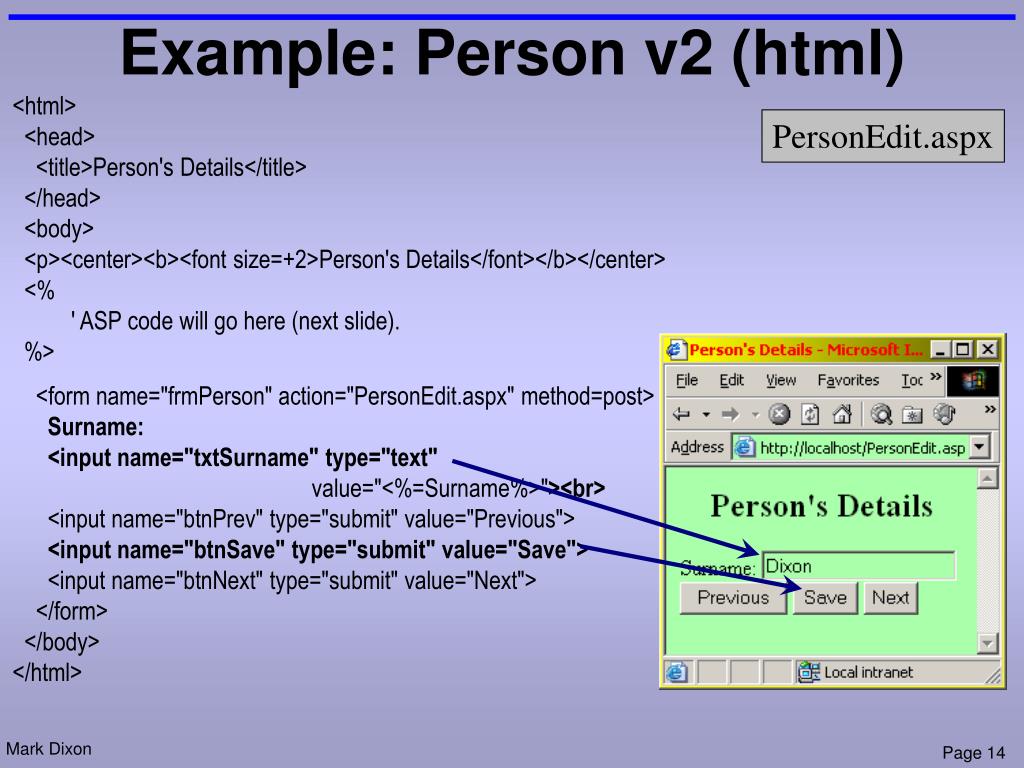

Example: Person v2 (html)

<html>

<head>

<title>Person's Details</title>

</head>

<body>

<p><center><b><font size=+2>Person's Details</font></b></center>

<%

' ASP code will go here (next slide).

%>

<form name="frmPerson" action="PersonEdit.aspx" method=post>

Surname: <input name="txtSurname" type="text"value="<%=Surname%>"><br>

<input name="btnPrev" type="submit" value="Previous">

<input name="btnSave" type="submit" value="Save">

<input name="btnNext" type="submit" value="Next">

</form>

</body>

</html>

PersonEdit.aspx


Example person v2 asp

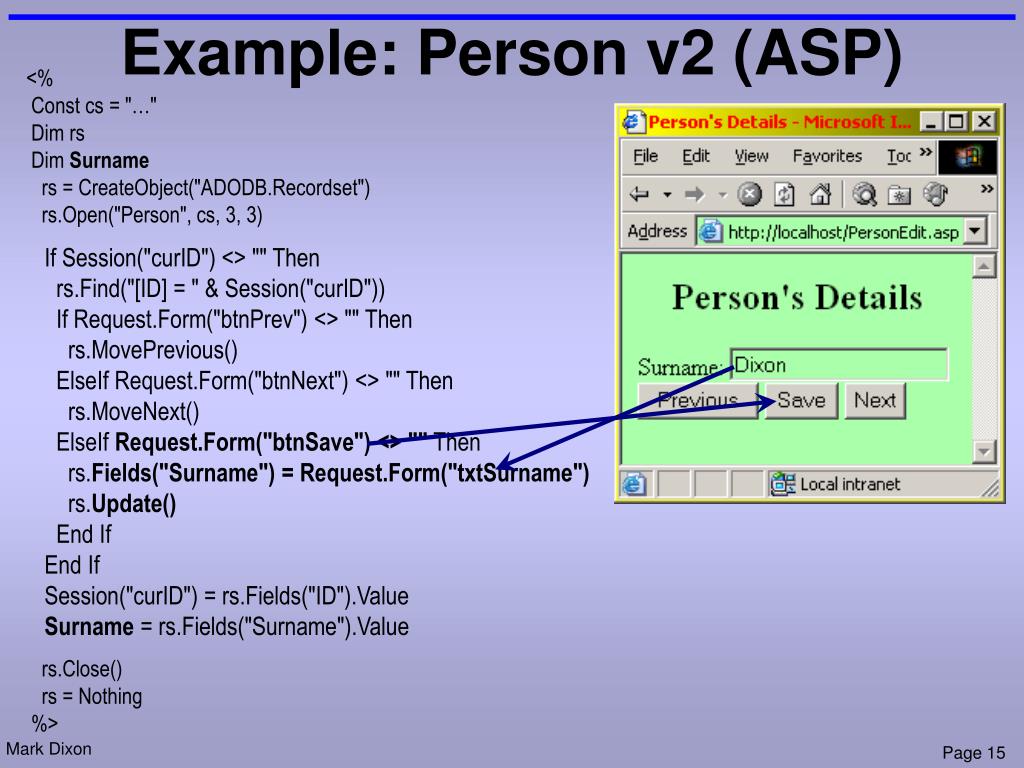

Example: Person v2 (ASP)

<%

Const cs = "…"

Dim rs

Dim Surname

rs = CreateObject("ADODB.Recordset")

rs.Open("Person", cs, 3, 3)

If Session("curID") <> "" Then

rs.Find("[ID] = " & Session("curID"))

If Request.Form("btnPrev") <> "" Then

rs.MovePrevious()

ElseIf Request.Form("btnNext") <> "" Then

rs.MoveNext()

ElseIf Request.Form("btnSave") <> "" Then

rs.Fields("Surname") = Request.Form("txtSurname")

rs.Update()

End If

End If

Session("curID") = rs.Fields("ID").Value

Surname = rs.Fields("Surname").Value

rs.Close()

rs = Nothing

%>


Example phone book database

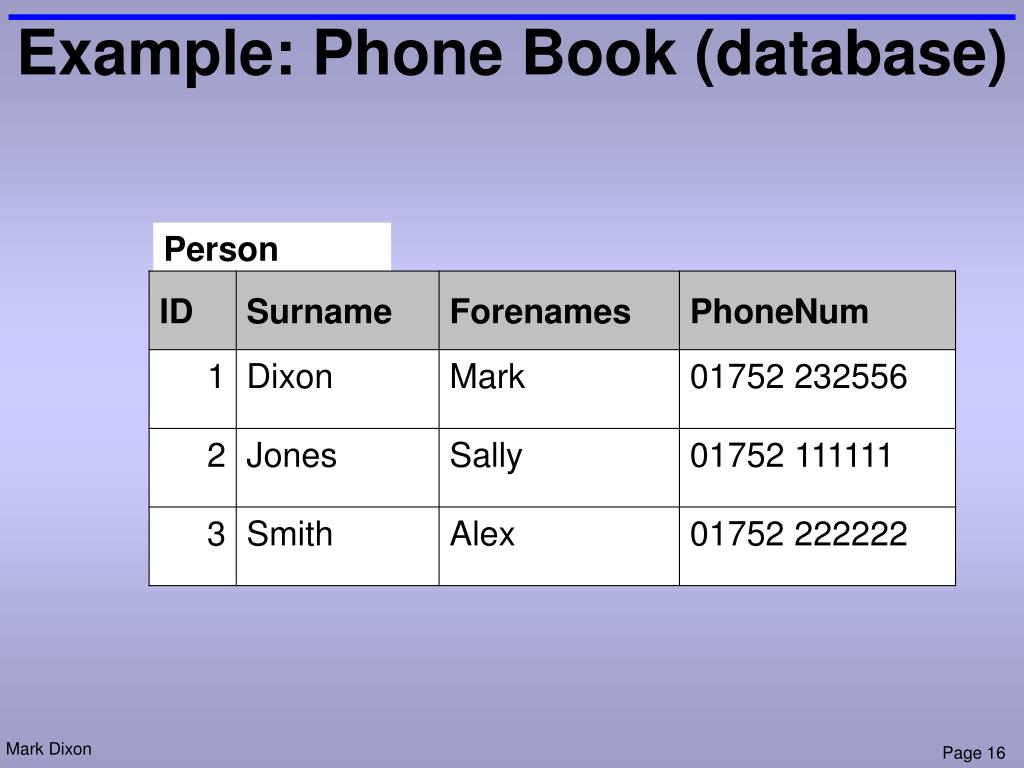

Example: Phone Book (database)

Person


Example phone book screen

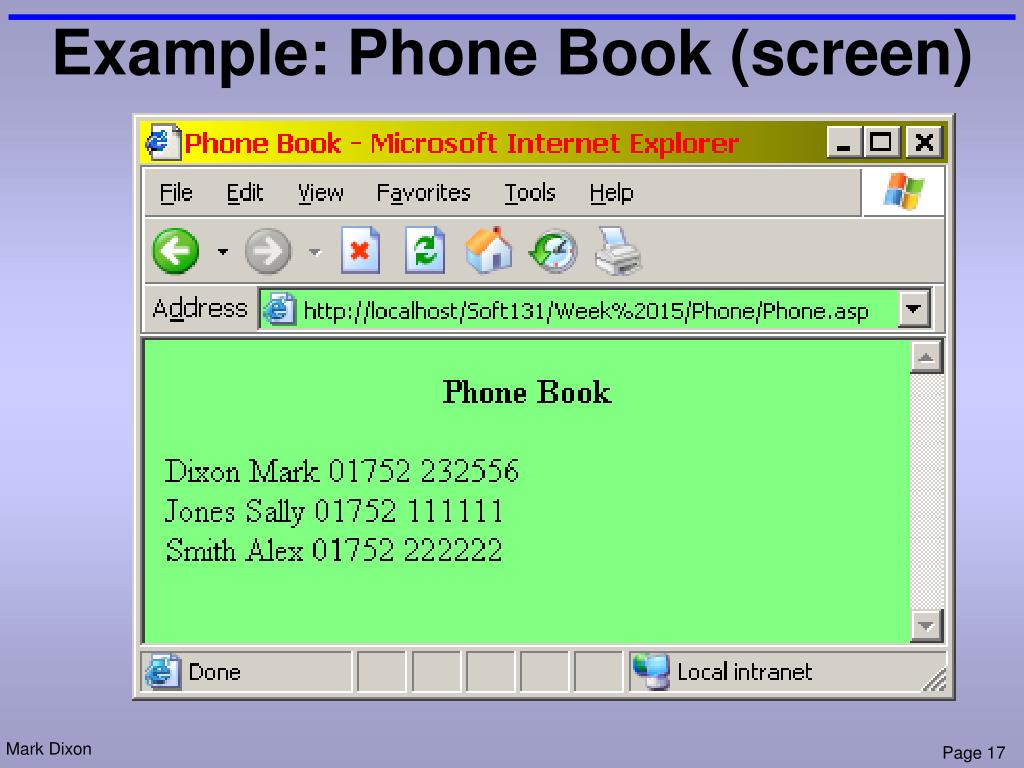

Example: Phone Book (screen)


Tutorial exercise person v1

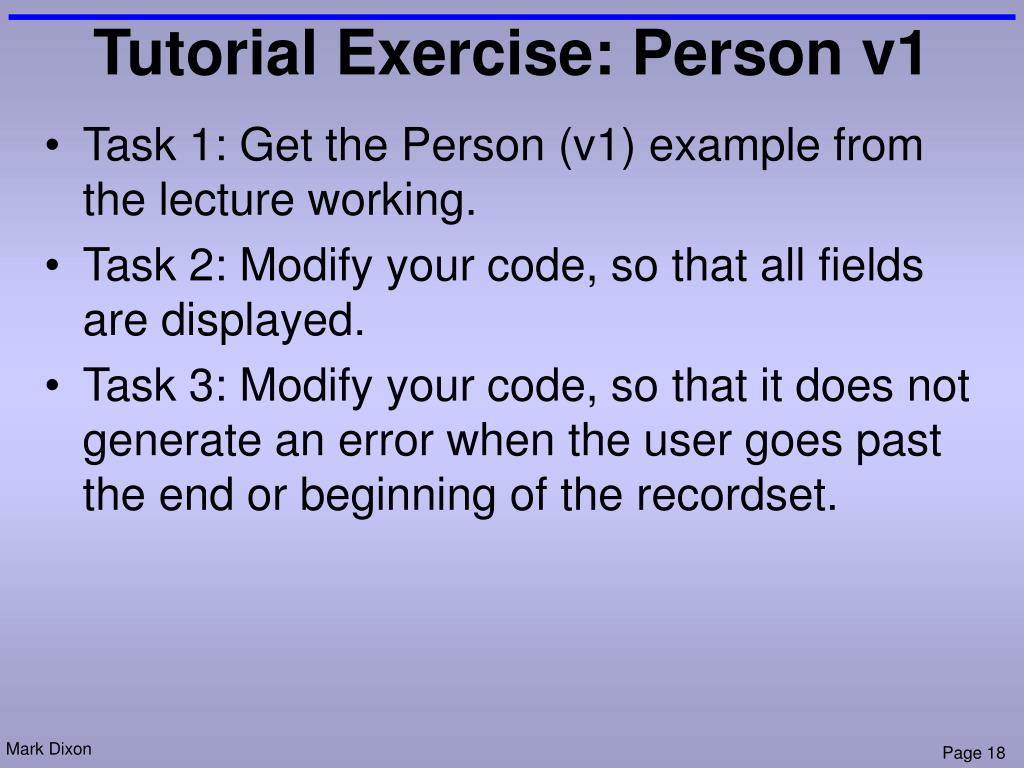

Tutorial Exercise: Person v1

  • Task 1: Get the Person (v1) example from the lecture working.

  • Task 2: Modify your code, so that all fields are displayed.

  • Task 3: Modify your code, so that it does not generate an error when the user goes past the end or beginning of the recordset.


Tutorial exercise person v2

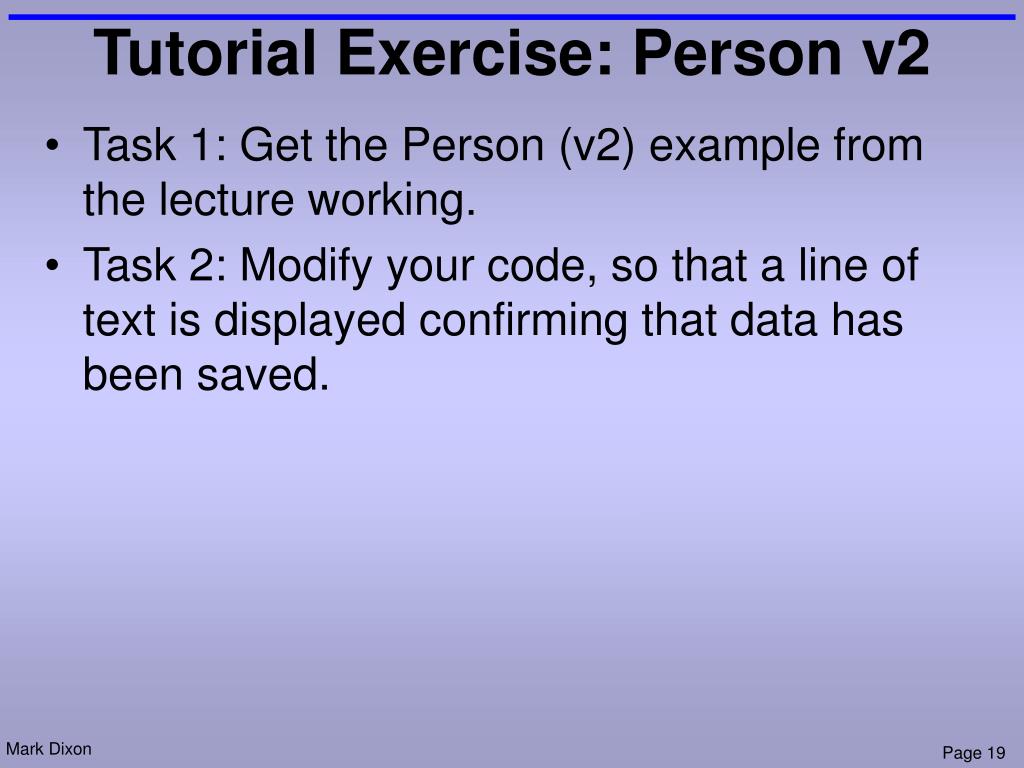

Tutorial Exercise: Person v2

  • Task 1: Get the Person (v2) example from the lecture working.

  • Task 2: Modify your code, so that a line of text is displayed confirming that data has been saved.


Tutorial example phone book

Tutorial Example: Phone Book

  • Task 1: Get the Phone Book example from the lecture working.

  • Task 2: Add a button on your page that jumps to another page, which allows a new record to be added.

  • Task 3: Modify your code, so that each line (record) has a link leading to another page that allows the data to be edited.

  • Task 4: Modify your code, so that each line (record) has a link leading to another page that allows the record to be deleted.
