Erik mueller michael white

Erik Mueller

Michael White

Microthruster Test PlatformDesign Presentation II


Contents

Contents

  • Introduction

  • Problem

  • Solution

  • Sensing

  • Frame

  • Testing

  • Q&A

  • Sources


Microthrusters

Microthrusters

  • Microthrusters produce <1N of thrust (mN range)

  • Various propulsion systems (standard, mono, ion drive)


The problem

The Problem

  • Thruster and forces involved are minute

  • Must be rugged and durable

  • Modular design preferable


Our solution

Our Solution

  • Sensing is done through direct thrust measurement using a strain gauge sensor.

  • Thruster assembly is suspended atop a pole

  • Secondary force measurement using indirect thrust plume measurement.

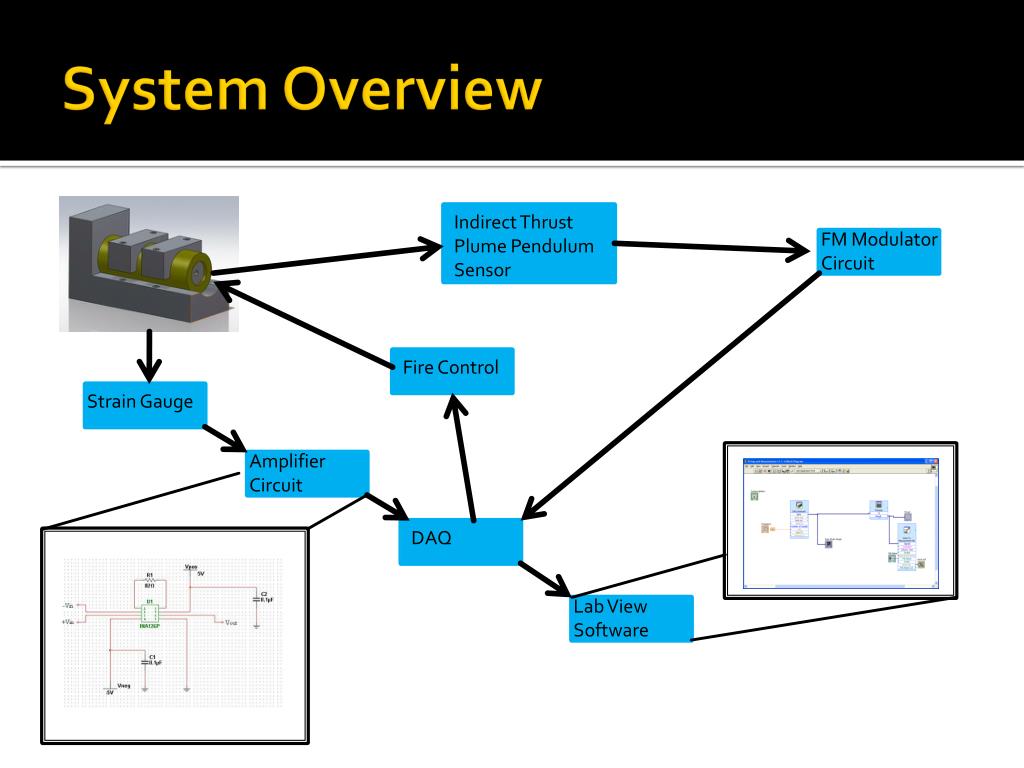

System overview

System Overview


System overview1

System Overview

Indirect Thrust Plume Pendulum Sensor

FM Modulator

Circuit

Fire Control

Strain Gauge

Amplifier Circuit

DAQ

Lab View

Software


Structure

Structure


Frame

Frame

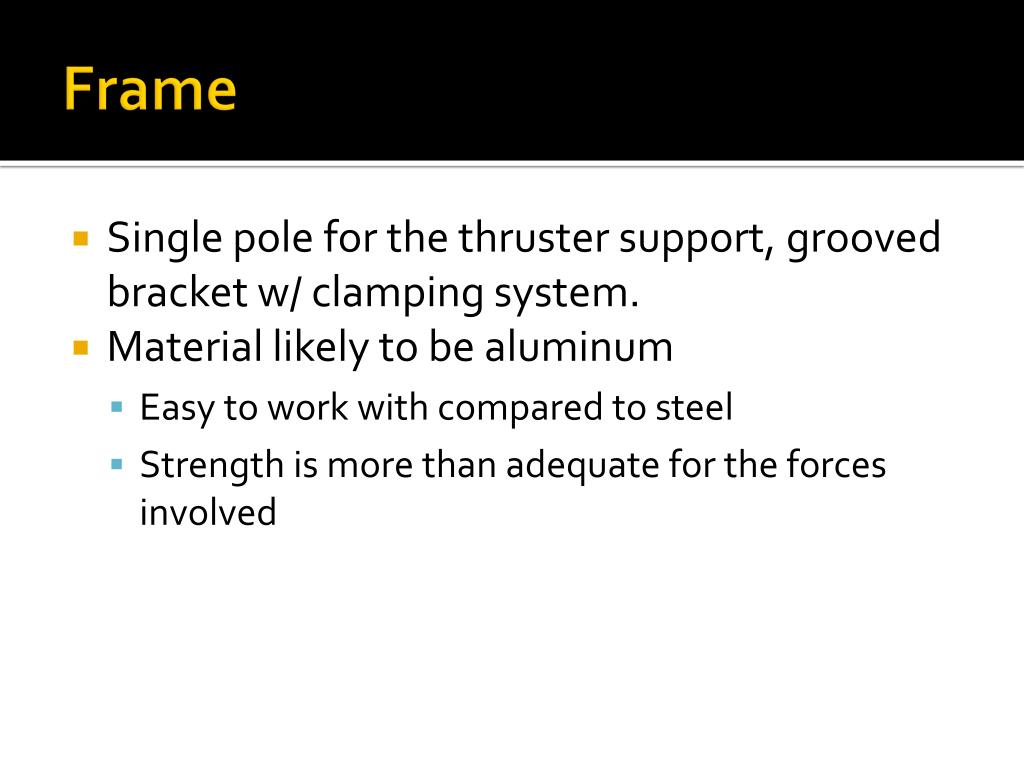

  • Single pole for the thruster support, grooved bracket w/ clamping system.

  • Material likely to be aluminum

    • Easy to work with compared to steel

    • Strength is more than adequate for the forces involved


Thrust sensing detail

Thrust Sensing - Detail


Direct force measurement

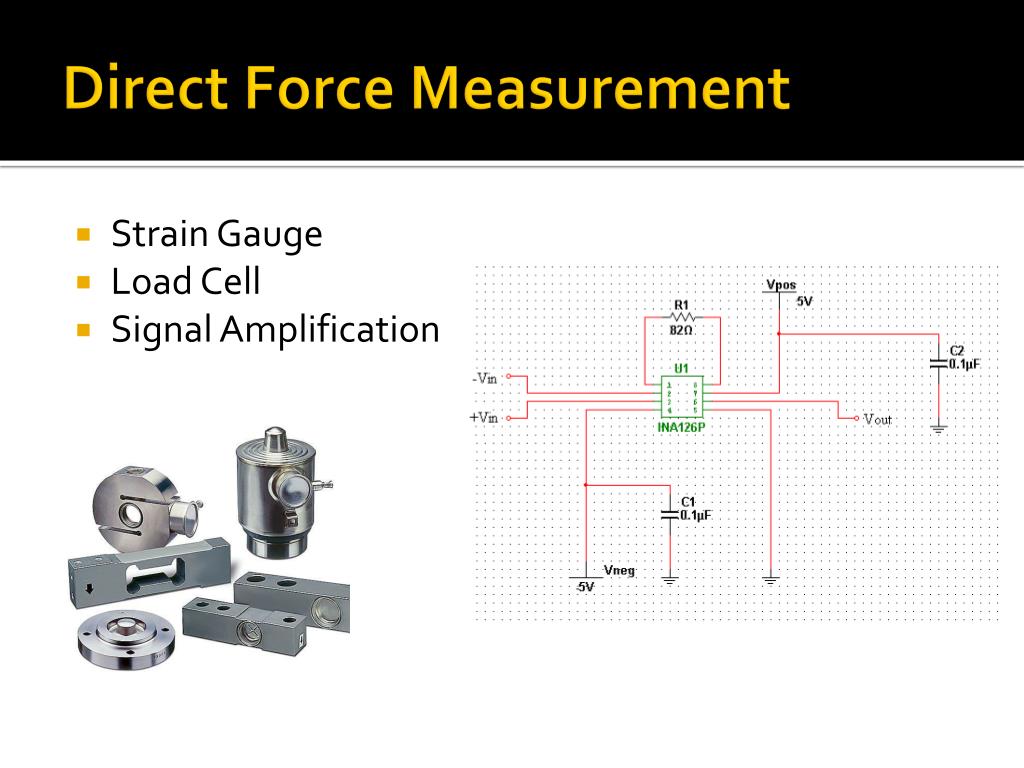

Direct Force Measurement

  • Strain Gauge

  • Load Cell

  • Signal Amplification


Indirect thrust measurement

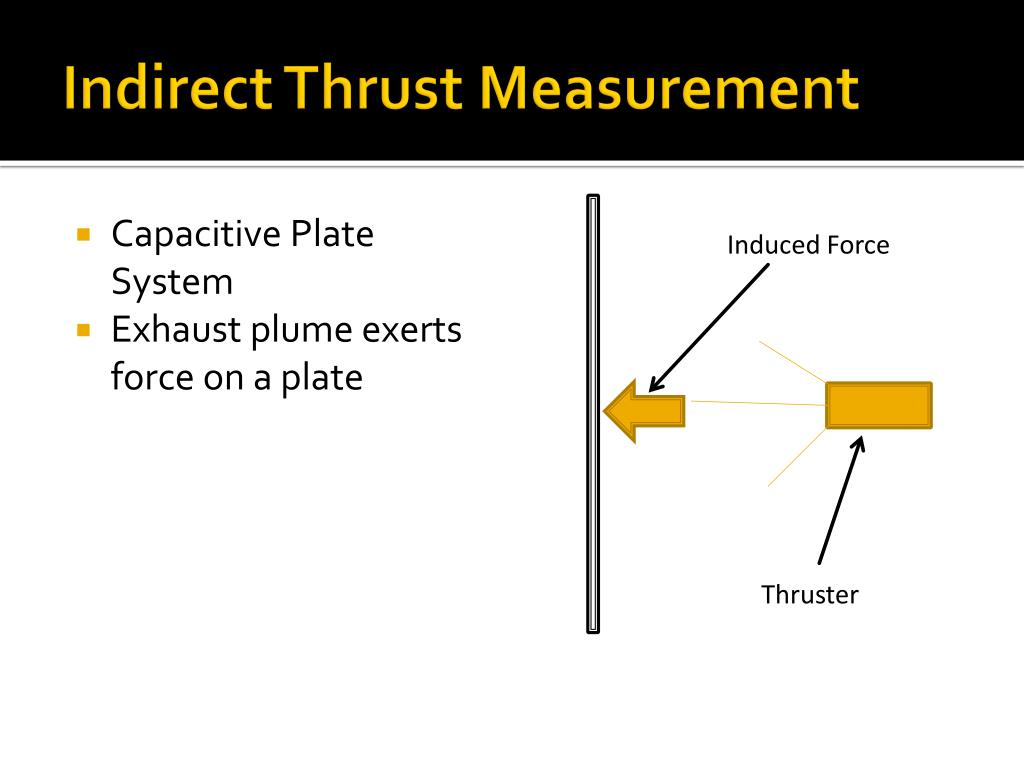

Indirect Thrust Measurement

  • Capacitive Plate System

  • Exhaust plume exerts force on a plate

Induced Force

Thruster


Capacitive pendulum

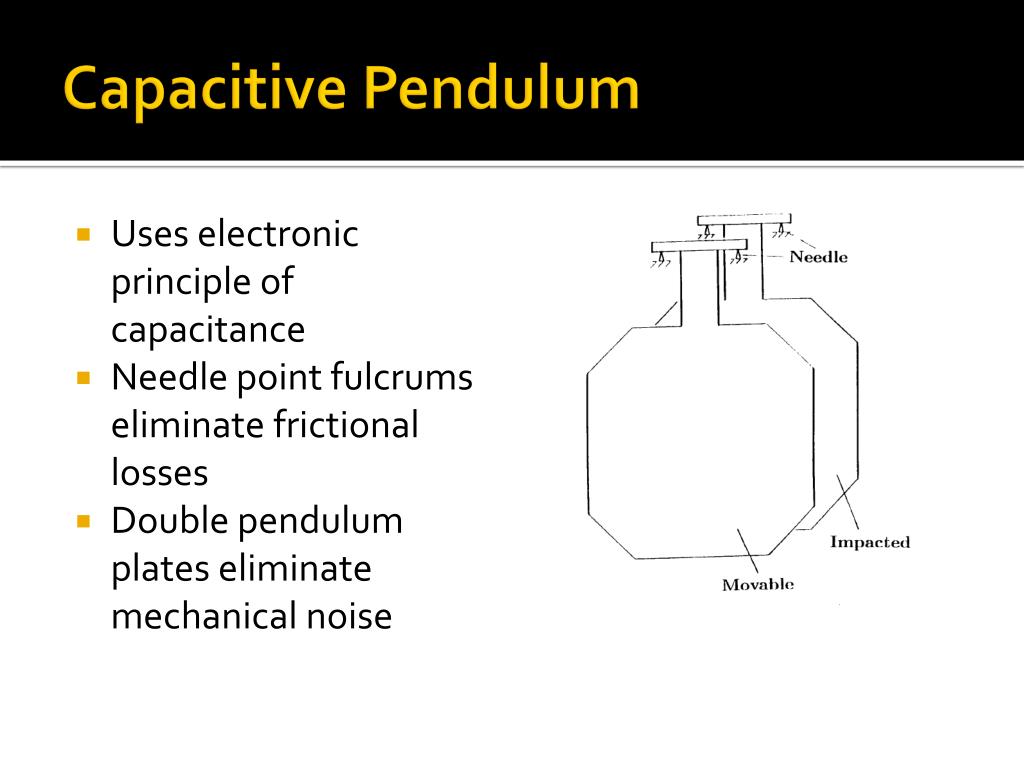

Capacitive Pendulum

  • Uses electronic principle of capacitance

  • Needle point fulcrums eliminate frictional losses

  • Double pendulum plates eliminate mechanical noise


Modified pendulum quadruple pendulum

Modified Pendulum: Quadruple Pendulum


Signal processing

Signal Processing

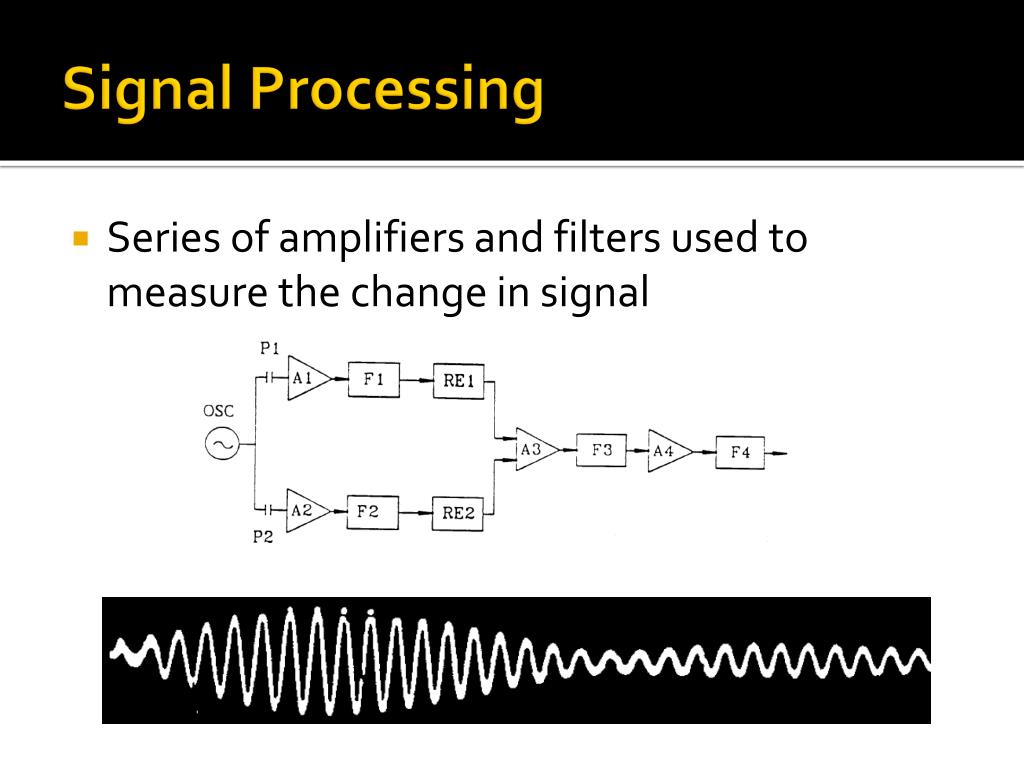

  • Series of amplifiers and filters used to measure the change in signal


Signal processing1

Signal Processing

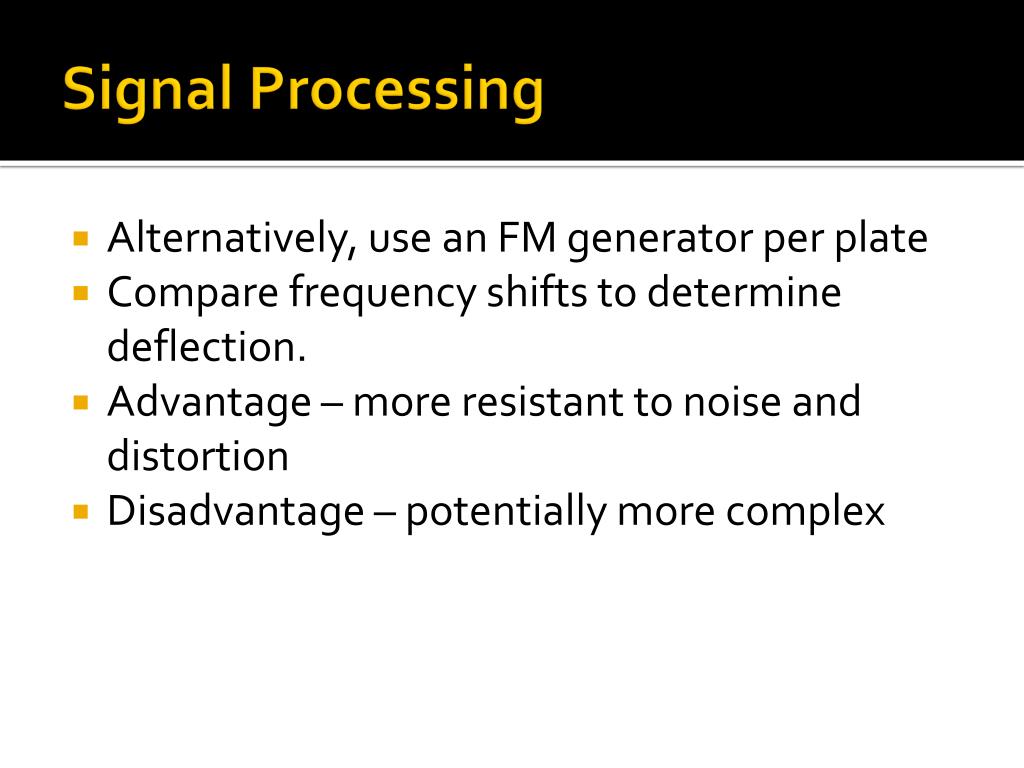

  • Alternatively, use an FM generator per plate

  • Compare frequency shifts to determine deflection.

  • Advantage – more resistant to noise and distortion

  • Disadvantage – potentially more complex


Software

Software


Software1

Software

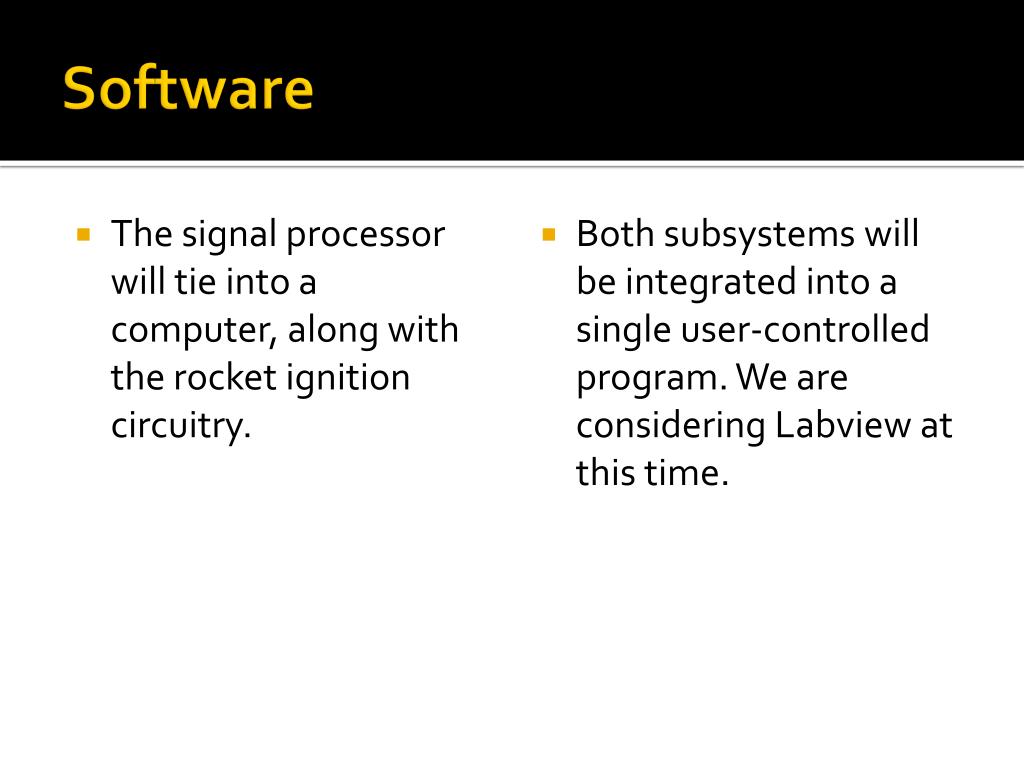

  • The signal processor will tie into a computer, along with the rocket ignition circuitry.

  • Both subsystems will be integrated into a single user-controlled program. We are considering Labview at this time.


Software2

Software


Software3

Software


Testing

Testing


Testing1

Testing

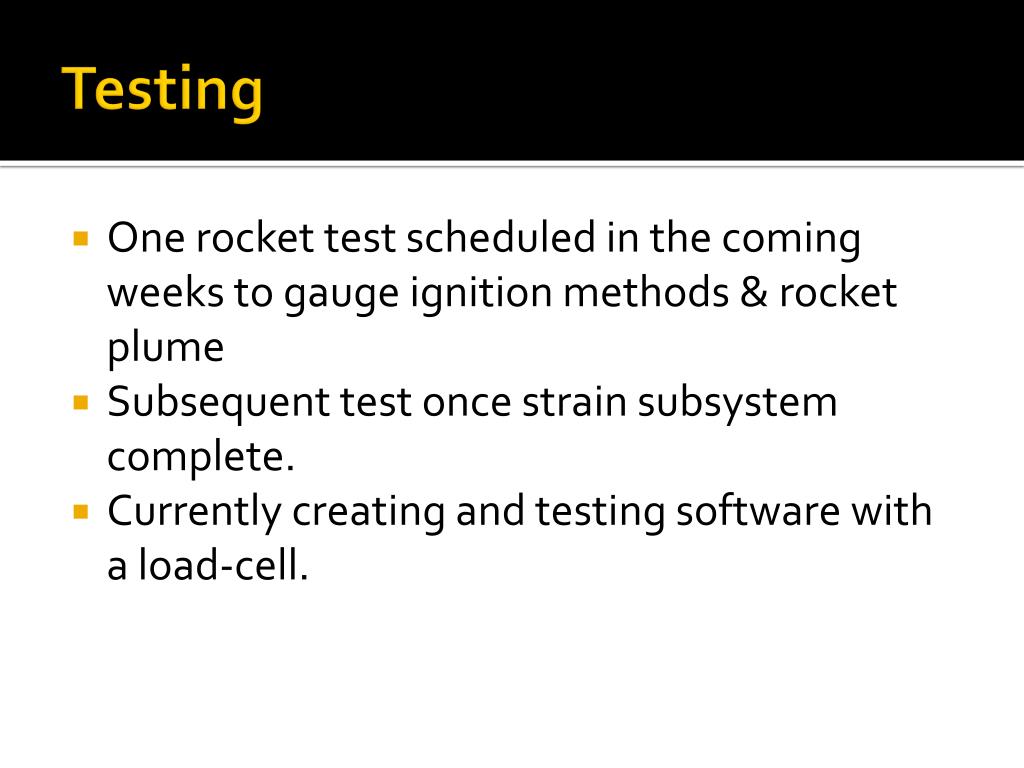

  • One rocket test scheduled in the coming weeks to gauge ignition methods & rocket plume

  • Subsequent test once strain subsystem complete.

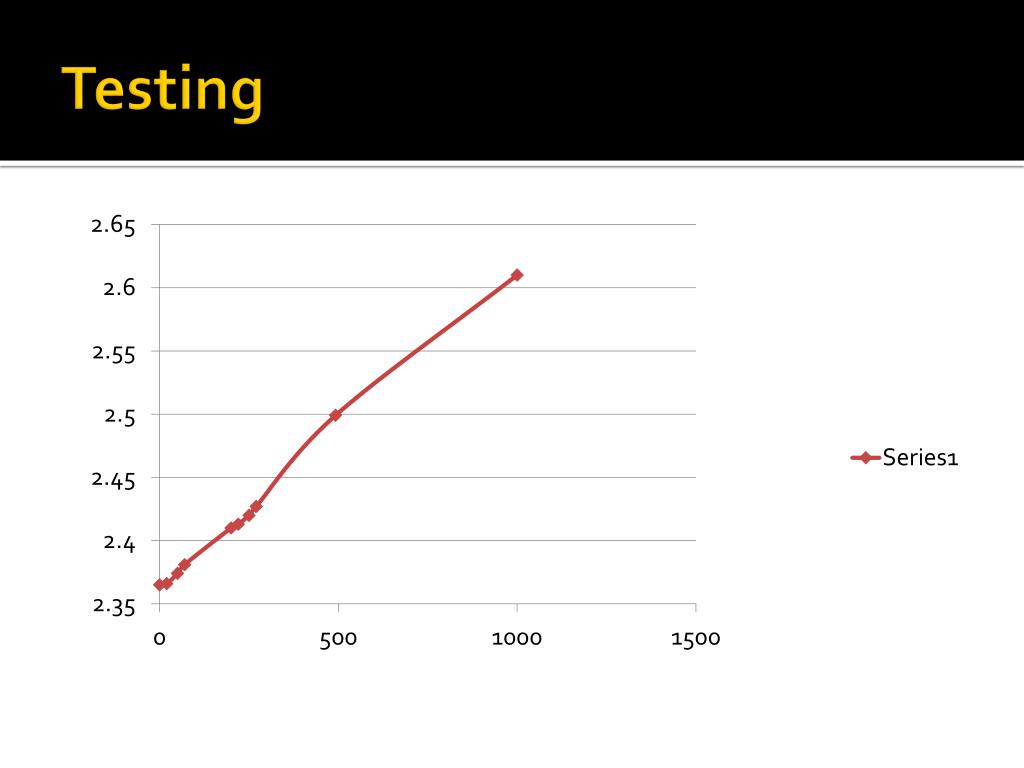

  • Currently creating and testing software with a load-cell.


Testing2

Testing


Project management

Project Management


Work breakdown structure

Work Breakdown Structure

  • Week 5-6 Subsystem and structure prototype

  • Week 6-7 Electrical circuit schematics

  • Week 5-9 Software composition and test

  • Week 7-10 Final mechanical component fabrication & revision

  • Week 9-12 Assembly, testing, revisions if needed

  • More details on website


Budget

Budget

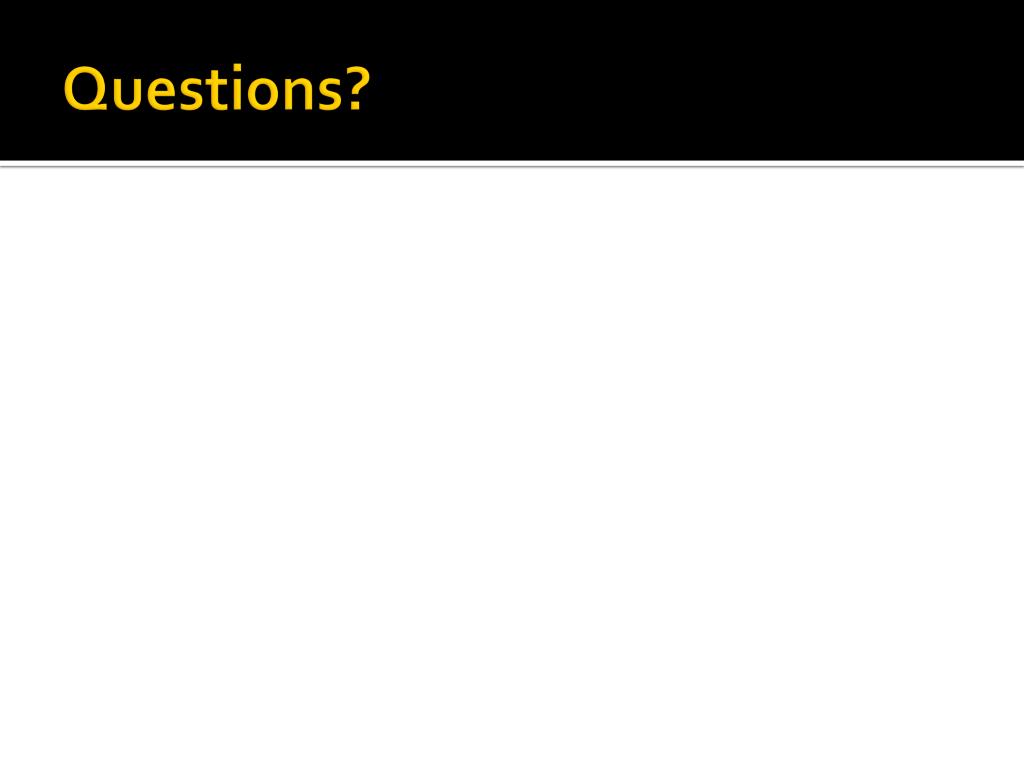

Questions

Questions?


Works cited

Works Cited
