  1. 北京宝仪通科技有限公司POINT TECHNOLOGY CO。，LTD 产 品 说 明 书

  2. Index POINT COMPANY CO.,LTD Introduction Ocean Bottom Sensors PST-6 hydrophone PST-8 hydrophone PST-10 hydrophone Geophone for OBC Operations Dual sensor for OBC Operations Waterproof Techniques Hydrophone protect New product Contact Us

  3. POINT COMPANY CO.,LTD • Introduction • 本公司在产品的开发定位上主要以高技术作为起点，现已开发生产出PST 系列海洋水听器，满足于海洋勘探高分辨率的要求。公司还将研制开发高性 能的陆地检波器以及深水系列海洋检波器。针对于勘探使用中接头使用问题，公 司开发了高密封性能的接头，能长时间工作于水中，具有良好的绝缘性能。本公 司研制的产品可广泛应用于海洋、湖泊、道路、建筑、航道疏通、地震勘探等行 业使用。 我公司可以为您提供各种海洋、陆地压电产品，还有相应的附件。我们可以根据 客户的要求进行产品设计、生产。我们以高素质、专业化、极具开拓意识和团体 意识的员工队伍，一如既往地为您提供高质量的产品和真诚快捷的服务，并且矢 志不渝的追求完美和卓越。

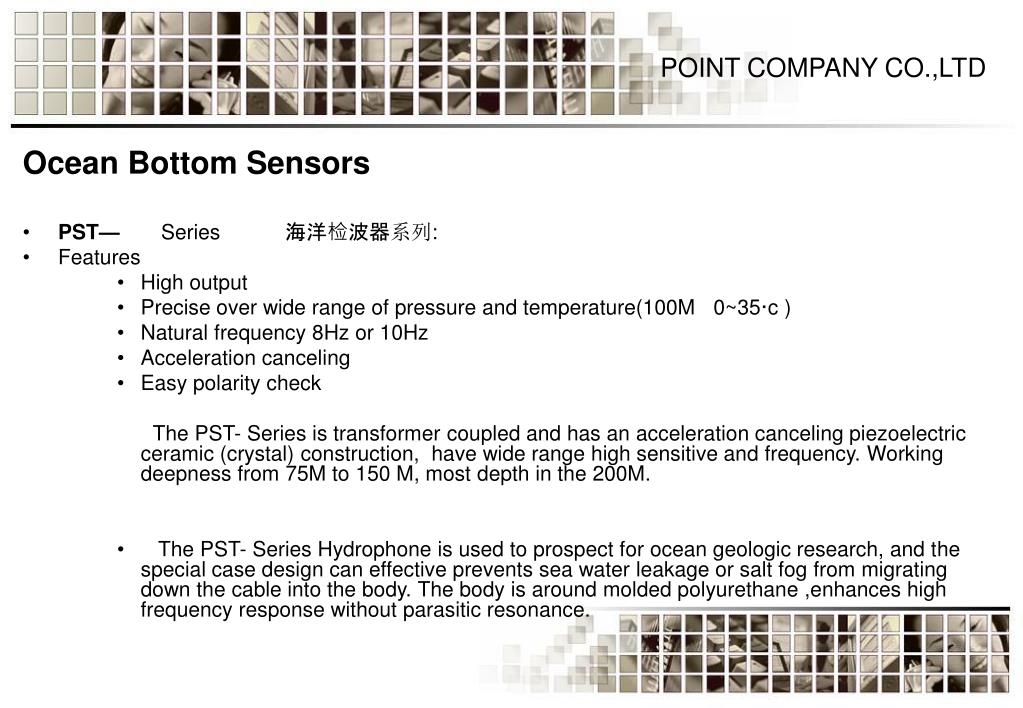

  4. POINT COMPANY CO.,LTD Ocean Bottom Sensors • PST— Series 海洋检波器系列: • Features • High output • Precise over wide range of pressure and temperature(100M 0~35·c ) • Natural frequency 8Hz or 10Hz • Acceleration canceling • Easy polarity check The PST- Series is transformer coupled and has an acceleration canceling piezoelectric ceramic (crystal) construction, have wide range high sensitive and frequency. Working deepness from 75M to 150 M, most depth in the 200M. • The PST- Series Hydrophone is used to prospect for ocean geologic research, and the special case design caneffective prevents sea water leakage or salt fog from migrating down the cable into the body. The body is around molded polyurethane ,enhances high frequency response without parasitic resonance.

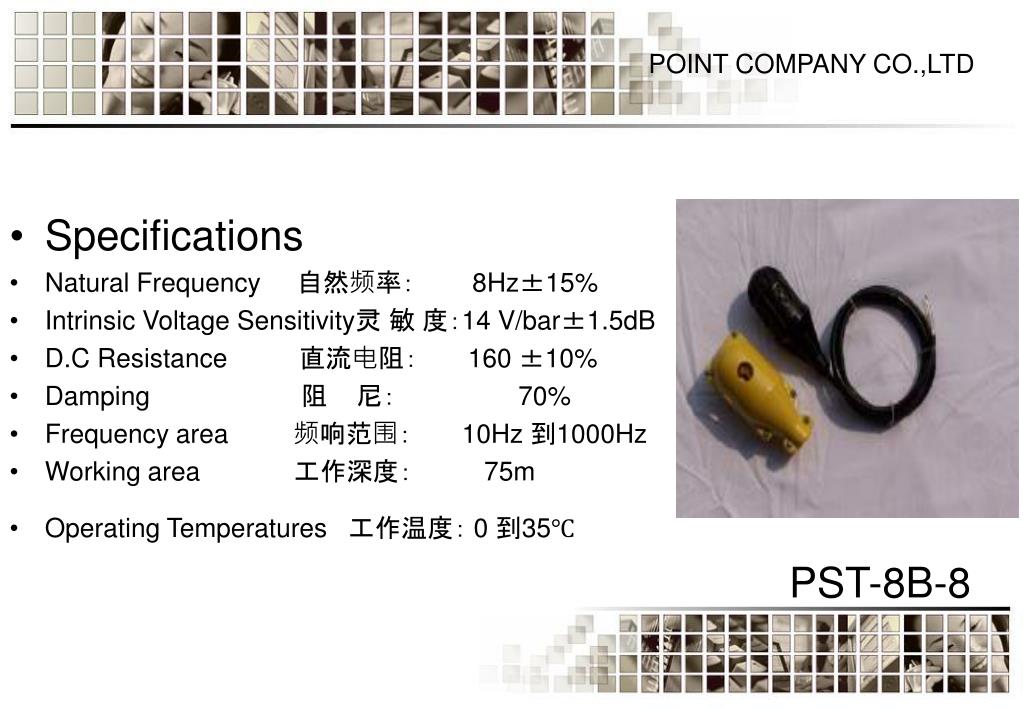

  5. POINT COMPANY CO.,LTD • Specifications • Natural Frequency 自然频率： 8Hz±15% • Intrinsic Voltage Sensitivity灵 敏 度：14 V/bar±1.5dB • D.C Resistance 直流电阻： 160 ±10% • Damping 阻 尼： 70% • Frequency area 频响范围： 10Hz 到1000Hz • Working area 工作深度： 75m • Operating Temperatures 工作温度： 0 到35℃ PST-8B-8

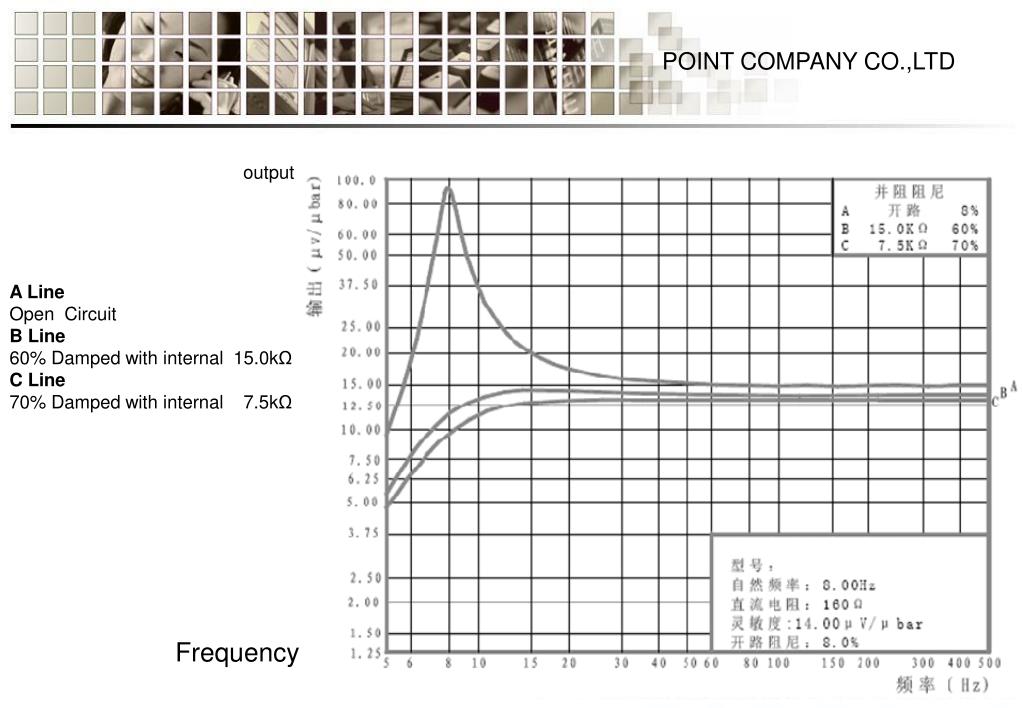

  6. POINT COMPANY CO.,LTD output A Line Open Circuit B Line 60% Damped with internal 15.0kΩ C Line 70% Damped with internal 7.5kΩ Frequency

  7. POINT COMPANY CO.,LTD • Specifications • Natural Frequency 自然频率： 8Hz±15% • Intrinsic Voltage Sensitivity灵 敏 度：14 V/bar±1.5dB • D.C Resistance 直流电阻： 145 ±10% • Damping 阻 尼： 70% • Frequency area 频响范围： 10Hz 到1000Hz • Working area 工作深度： 100m • Operating Temperatures 工作温度：0 到35℃ PST-10

  8. POINT COMPANY CO.,LTD output A Line Open Circuit B Line 60% Damped with internal 15.0kΩ C Line 70% Damped with internal 7.5kΩ Frequency

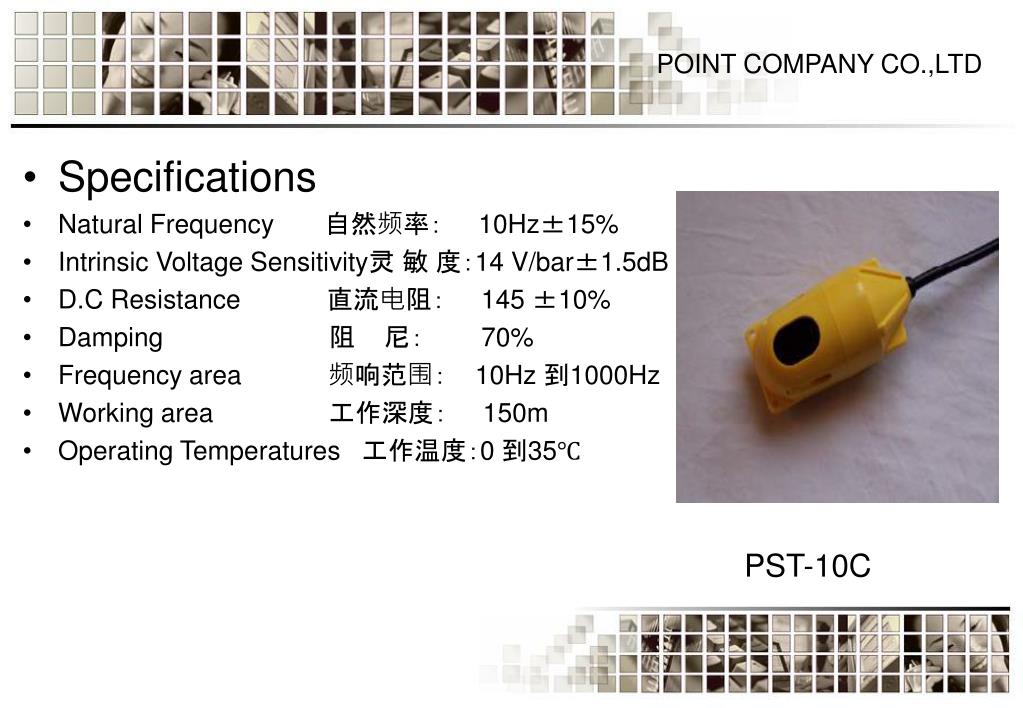

  9. POINT COMPANY CO.,LTD • Specifications • Natural Frequency 自然频率： 10Hz±15% • Intrinsic Voltage Sensitivity灵 敏 度：14 V/bar±1.5dB • D.C Resistance 直流电阻： 145 ±10% • Damping 阻 尼： 70% • Frequency area 频响范围： 10Hz 到1000Hz • Working area 工作深度： 150m • Operating Temperatures 工作温度：0 到35℃ PST-10C

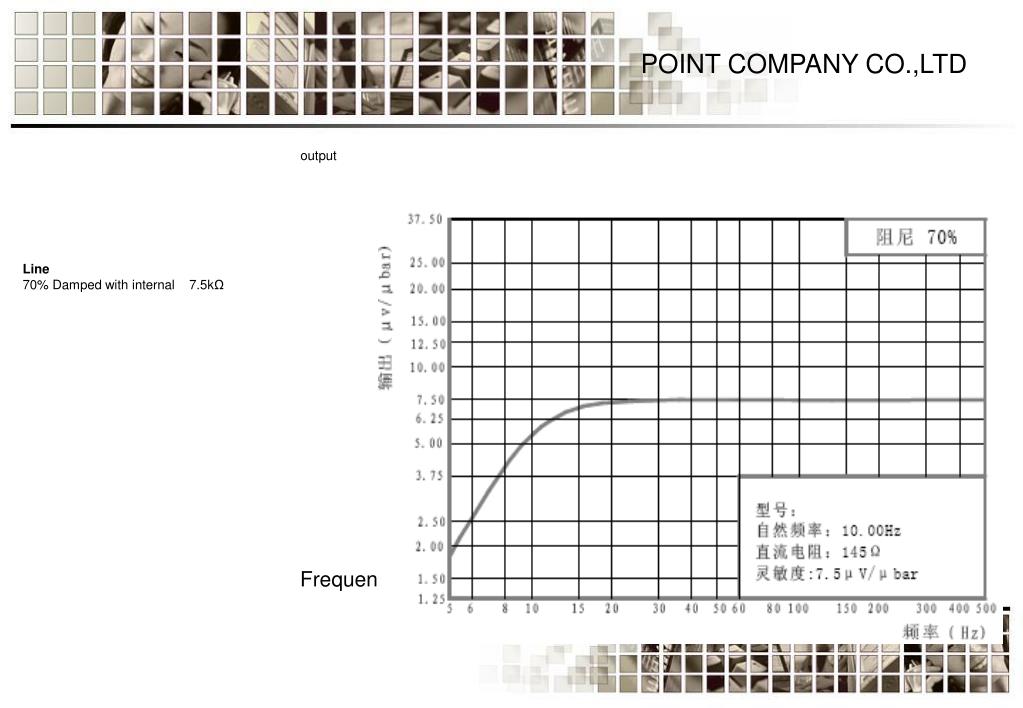

  10. POINT COMPANY CO.,LTD output Line 70% Damped with internal 7.5kΩ Frequency

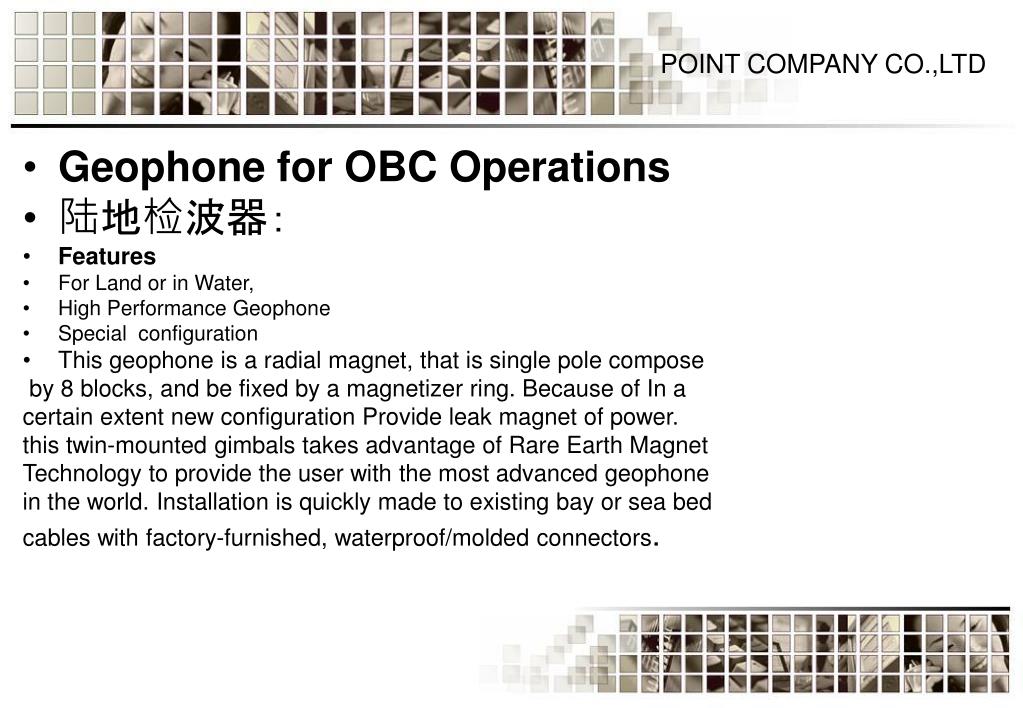

  11. POINT COMPANY CO.,LTD • Geophone for OBC Operations • 陆地检波器： • Features • For Land or in Water, • High Performance Geophone • Special configuration • This geophone is a radial magnet, that is single pole compose by 8 blocks, and be fixed by a magnetizer ring. Because of In a certain extent new configuration Provide leak magnet of power. this twin-mounted gimbals takes advantage of Rare Earth Magnet Technology to provide the user with the most advanced geophone in the world. Installation is quickly made to existing bay or sea bed cables with factory-furnished, waterproof/molded connectors.

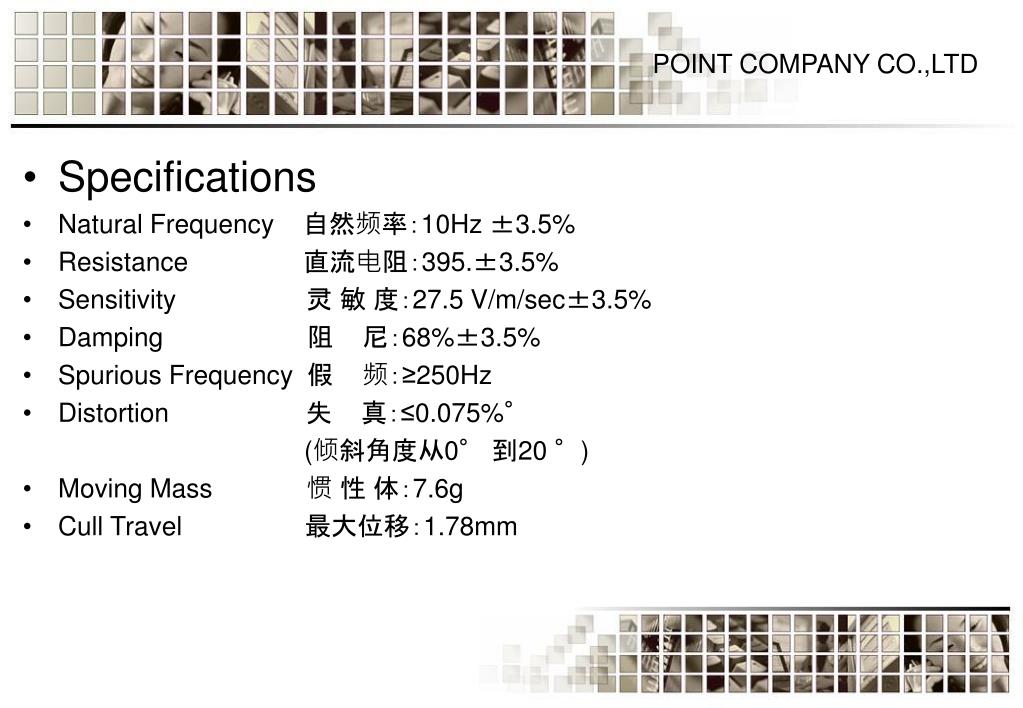

  12. POINT COMPANY CO.,LTD • Specifications • Natural Frequency 自然频率：10Hz ±3.5% • Resistance 直流电阻：395.±3.5% • Sensitivity 灵 敏 度：27.5 V/m/sec±3.5% • Damping 阻 尼：68%±3.5% • Spurious Frequency 假 频：≥250Hz • Distortion 失 真：≤0.075%° (倾斜角度从0° 到20 °) • Moving Mass 惯 性 体：7.6g • Cull Travel 最大位移：1.78mm

  13. POINT COMPANY CO.,LTD • Dual sensor for OBC Operations • 物理尺寸：（带外壳） • Length 长 度： 420m • Diameter 直 径： 75mm • Cable Diameter 电缆直径：12.7mm • This dual sensor gathered two PST-8C-II sensor elements in a vertical configuration and an hydrophone. The hydrophone can be either a PST-8B-8 for water depth up to 75 m or a PST-10C for 200 m water depth. The sensor is housed in an acoustically stealth shroud that is uniquely attached directly to the ocean bottom cable and is built to endure the rigors of deployment and retrieval of the OBC. PST-8C-II

  14. POINT COMPANY CO.,LTD • Specifications • PST-8C-II PST-8B-8PST-10C • Natural Frequency 自然频率：10Hz ±3.5% Natural Frequency 自然频率： 8Hz±15% 10HZ±15% • Resistance 直流电阻：395.±3.5% Intrinsic Voltage Sensitivity灵 敏 度：14 V/bar±1.5dB 14 V/bar±1.5dB • Sensitivity 灵 敏 度：27.5 V/m/sec±3.5% D.C Resistance 直流电阻： 160 ±10% 145 ±10% • Damping 阻 尼：68%±3.5% Damping 阻 尼： 70% 70% • Spurious Frequency 假 频：≥250Hz Frequency area 频响范围： 10Hz 到1000Hz 10Hz 到1000Hz • Distortion 失 真：≤0.075%° Working area 工作深度： 75m 150m (倾斜角度从0° 到20 °) • Moving Mass 惯 性 体：7.6g Operating Temperatures 工作温度： 0 到35℃ 0 到35℃ • Cull Travel 最大位移：1.78mm

  15. POINT COMPANY CO.,LTD • Waterproof Techniques • Hydrophone and OBC protect • The PST- Series Hydrophone is used to prospect for ocean geologic research, and the special case design caneffective prevents sea water leakage or salt fog from migrating down the cable into the body. The body is around molded polyurethane ,enhances high frequency response without parasitic resonance. Working deepness from 75M to 150 M, most depth in the 200M. OBC cable is used together waterproof material with the hydrophone in a special die. Accordingly can be prove safety in the seawater or any wateriness. The body can be support water pressure over 8kg continuum in 1000 hours, insulated ability can be support over 2000M under the 1000v power in the wet surroundings. Through every physical tests ,the body from 2 M fall off 5000 times No damaged, the OBC cable No spilt in the 20000 times for draw and move around test . Our product suffice different working environments in all-weather, ensure working quality and testing precision.

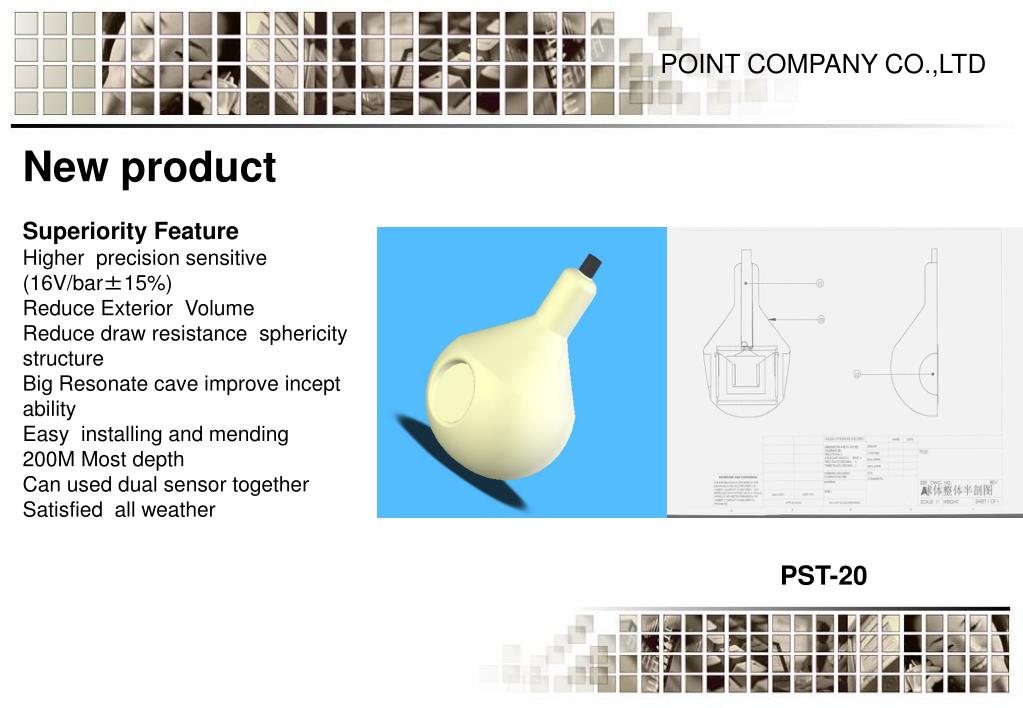

  16. POINT COMPANY CO.,LTD New product Superiority Feature Higher precision sensitive (16V/bar±15%) Reduce Exterior Volume Reduce draw resistance sphericity structure Big Resonate cave improve incept ability Easy installing and mending 200M Most depth Can used dual sensor together Satisfied all weather PST-20
