Types & Uses of Asphalt Materials. HMA Surface. HMA (Hot Mix Asphalt). +. Bituminous Materials. Tar. Asphalt. (from coal). (from petroleum crude). Asphalt Cement. Cutback. Emulsion. Trinidad Lake Asphalt. Asphalt Binder is Generally Produced in a Refinery. Source of Asphalt Cement.

Download Presentation

Types & Uses of Asphalt Materials

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Types uses of asphalt materials

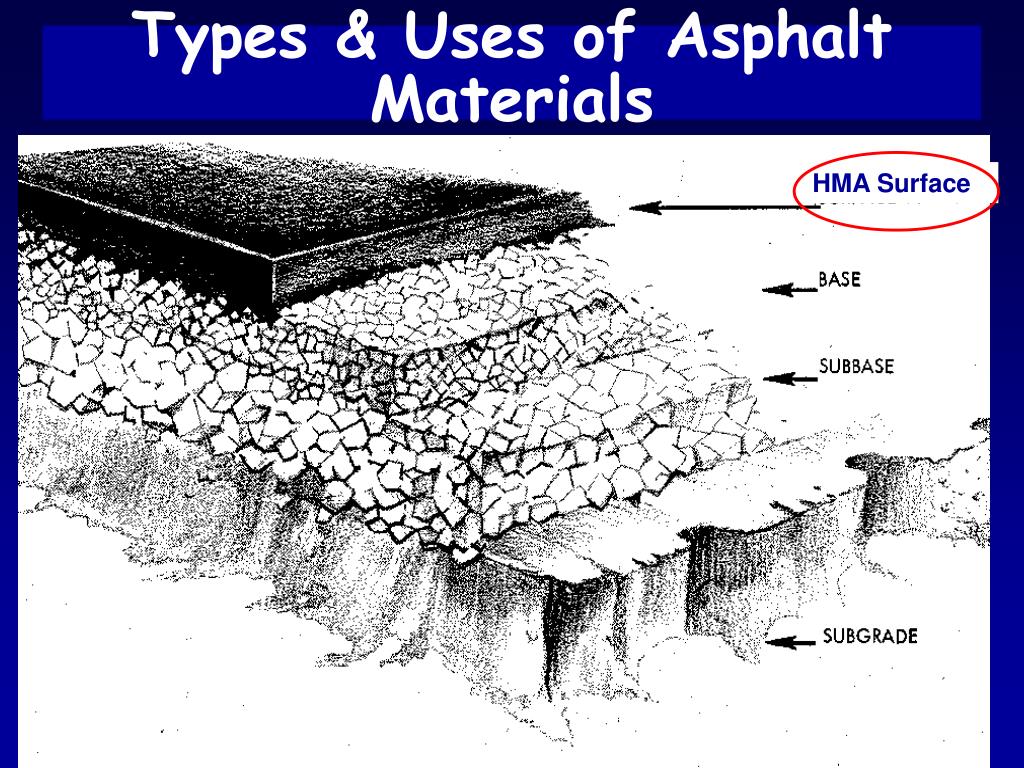

Types & Uses of Asphalt Materials

HMA Surface

Types and Uses


Types uses of asphalt materials

HMA (Hot Mix Asphalt)

+

Types and Uses

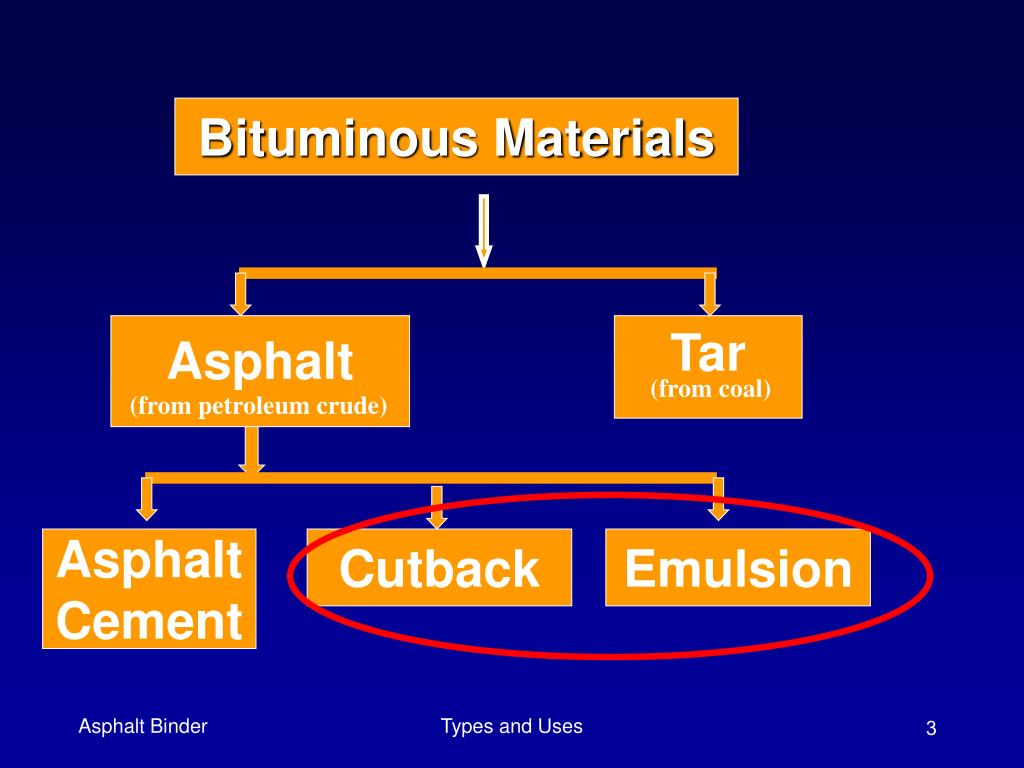

Bituminous materials

Bituminous Materials

Tar

Asphalt

(from coal)

(from petroleum crude)

Asphalt

Cement

Cutback

Emulsion

Types and Uses


Trinidad lake asphalt

Trinidad Lake Asphalt

Types and Uses


Types uses of asphalt materials

Asphalt Binder is Generally Produced in a Refinery

Types and Uses


Types uses of asphalt materials

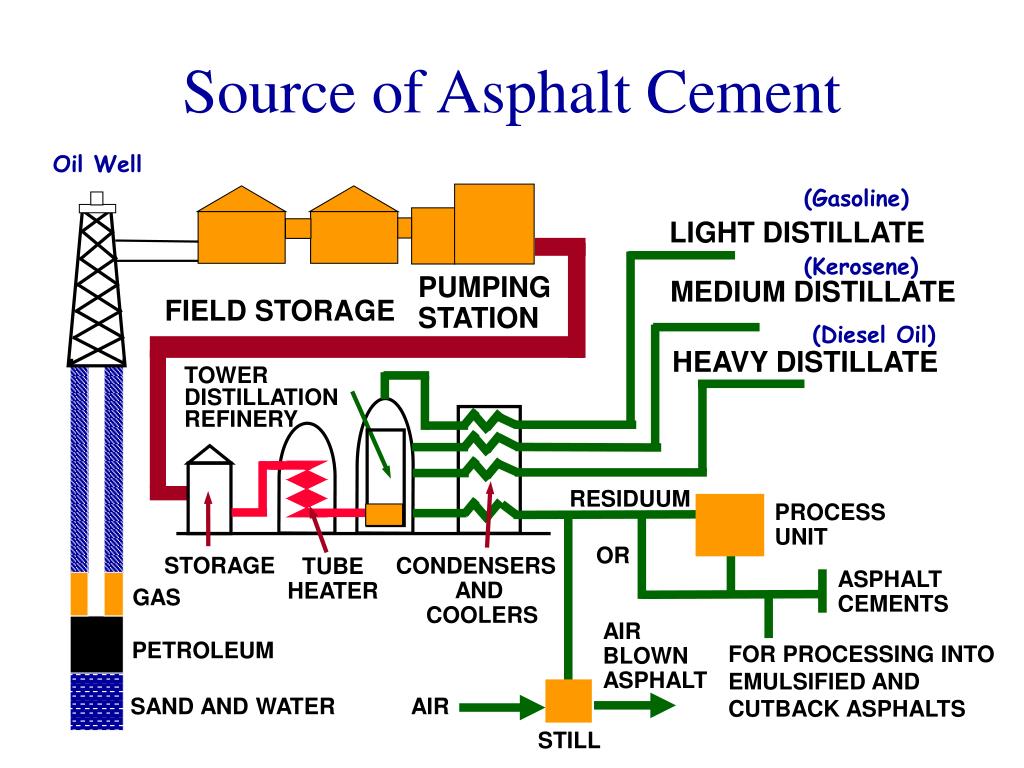

Source of Asphalt Cement

Oil Well

(Gasoline)

LIGHT DISTILLATE

(Kerosene)

PUMPINGSTATION

MEDIUM DISTILLATE

FIELD STORAGE

(Diesel Oil)

HEAVY DISTILLATE

TOWER

DISTILLATION

REFINERY

RESIDUUM

PROCESS

UNIT

OR

STORAGE

CONDENSERS

AND

COOLERS

TUBE

HEATER

ASPHALT

CEMENTS

GAS

AIR

BLOWN

ASPHALT

PETROLEUM

FOR PROCESSING INTO

EMULSIFIED AND

CUTBACK ASPHALTS

SAND AND WATER

AIR

STILL


General asphalt binder properties

General Asphalt Binder Properties

  • Adheres well to most rock

  • Waterproof

  • Fairly durable

  • Resistant to reaction with most acids, alkalis, and salts

  • Temperature sensitive

Types and Uses


Types uses of asphalt materials

Asphalt Components

Asphalt binder is broken down into 3 components:

  • Asphaltenes

    • Dark brown friable solids

    • Control viscosity and adhesive properties

  • Resins

    • Dark solid or semi-solid

    • Greatly affected by temp.

    • Disperse the asphaltenes

  • Oils

    • Colorless or white liquids

    • Oxidize and harden into asphaltenes and resin molecules

      * These three components are Blended to produce asphalt binder of desired properties

Types and Uses

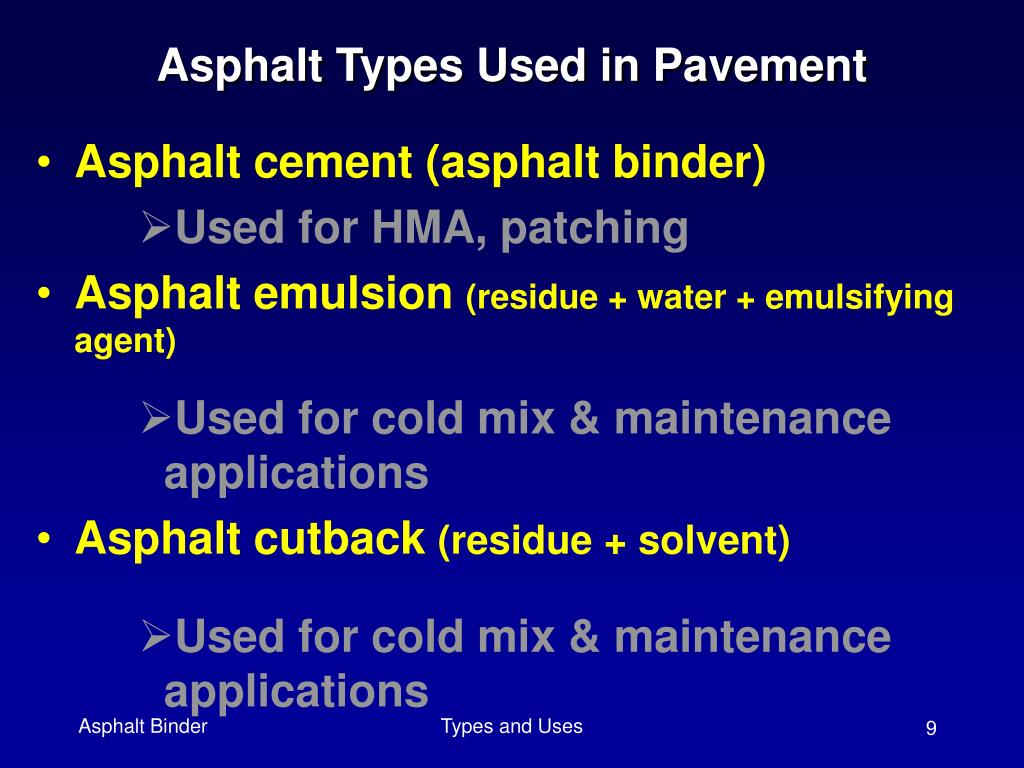

Asphalt types used in pavement

Asphalt Types Used in Pavement

  • Asphalt cement (asphalt binder)

    • Used for HMA, patching

  • Asphalt emulsion (residue + water + emulsifying agent)

    • Used for cold mix & maintenance applications

  • Asphalt cutback (residue + solvent)

    • Used for cold mix & maintenance applications

  • Types and Uses


    Hot mix asphalt hma

    Hot Mix Asphalt (HMA)

    • HMA = Asphalt concrete = binder + aggregate

      • Used mainly for hot mix pavement surfacing

    • Asphalt concrete

    • Asphalt paving mix

    • Asphalt mix

    • Asphalt

    • Bituminous concrete

    • Bituminous paving mix

    • Bituminous mix

    Types and Uses


    Types uses of asphalt materials

    Types and Uses


    Types uses of asphalt materials

    Types and Uses


    Types uses of asphalt materials

    Types and Uses


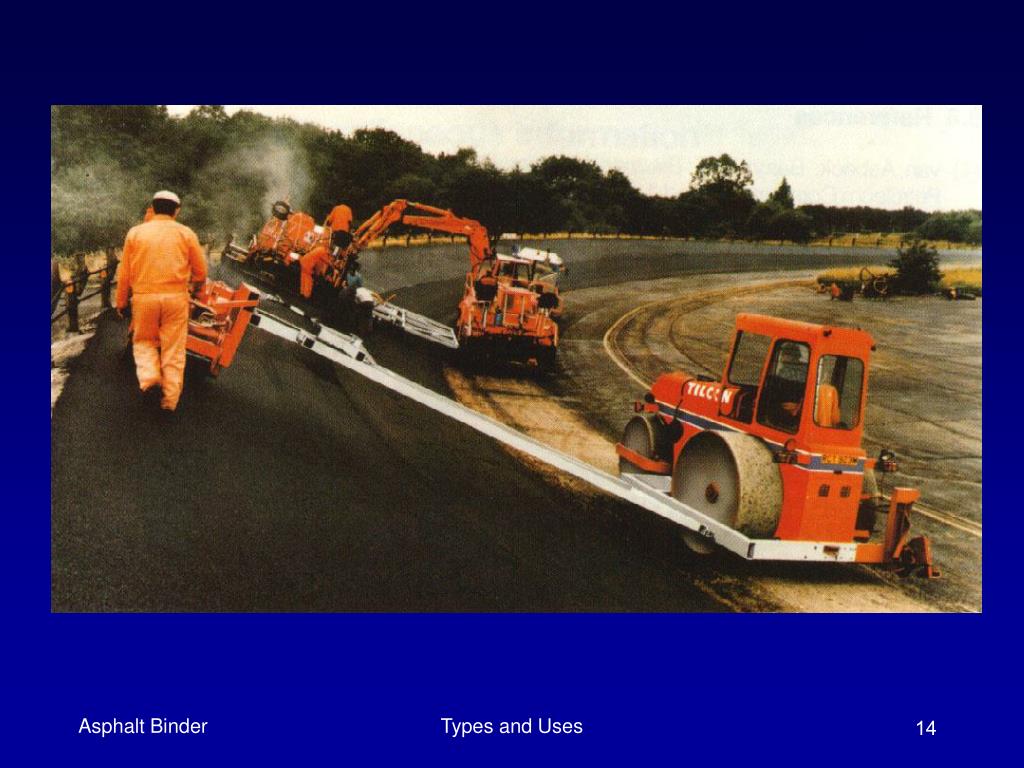

    Types uses of asphalt materials

    Types and Uses


    Cutback asphalts

    Cutback Asphalts

    Rapid Curing (RC)

    Asphalt + Naphtha

    Surface Treatment

    RC - 30

    RC - 70

    RC - 250

    RC - 800

    Medium Curing (MC)

    Asphalt + Kerosene

    Stockpile Patch

    Prime Coat

    MC - 30

    MC - 70

    MC - 250

    MC - 800

    Slow Curing (SC)

    Asphalt + Oil

    SC - 70

    SC - 250

    SC - 800

    SC - 3000

    Types and Uses

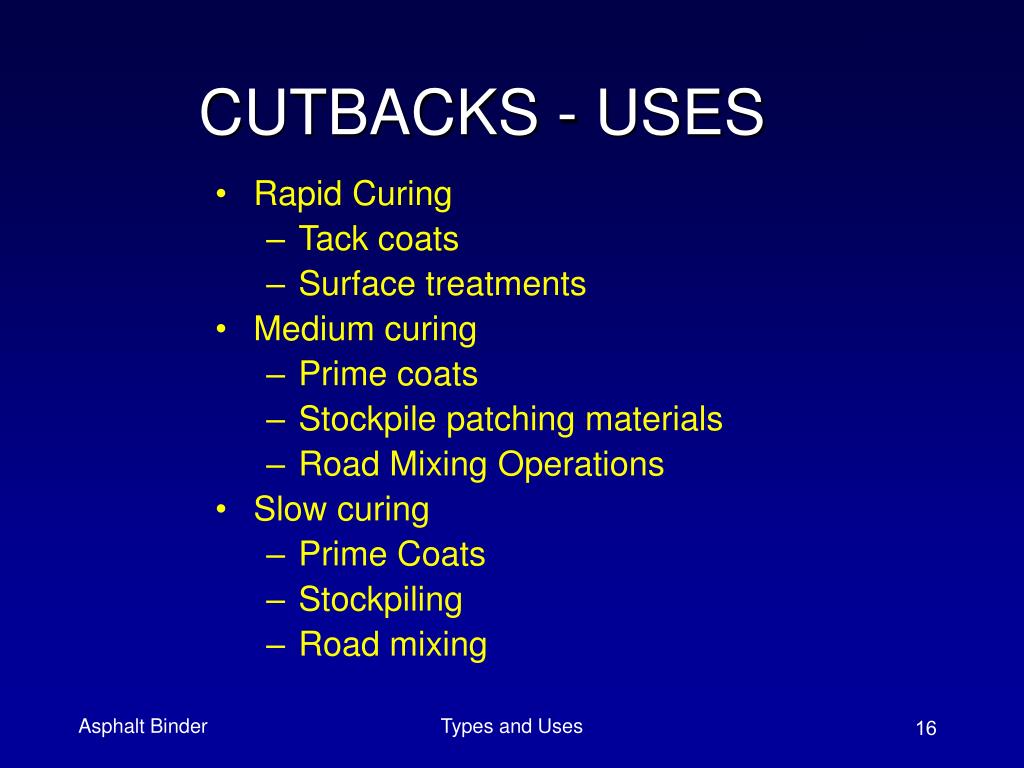

    Cutbacks uses

    CUTBACKS - USES

    • Rapid Curing

      • Tack coats

      • Surface treatments

    • Medium curing

      • Prime coats

      • Stockpile patching materials

      • Road Mixing Operations

    • Slow curing

      • Prime Coats

      • Stockpiling

      • Road mixing

    Types and Uses

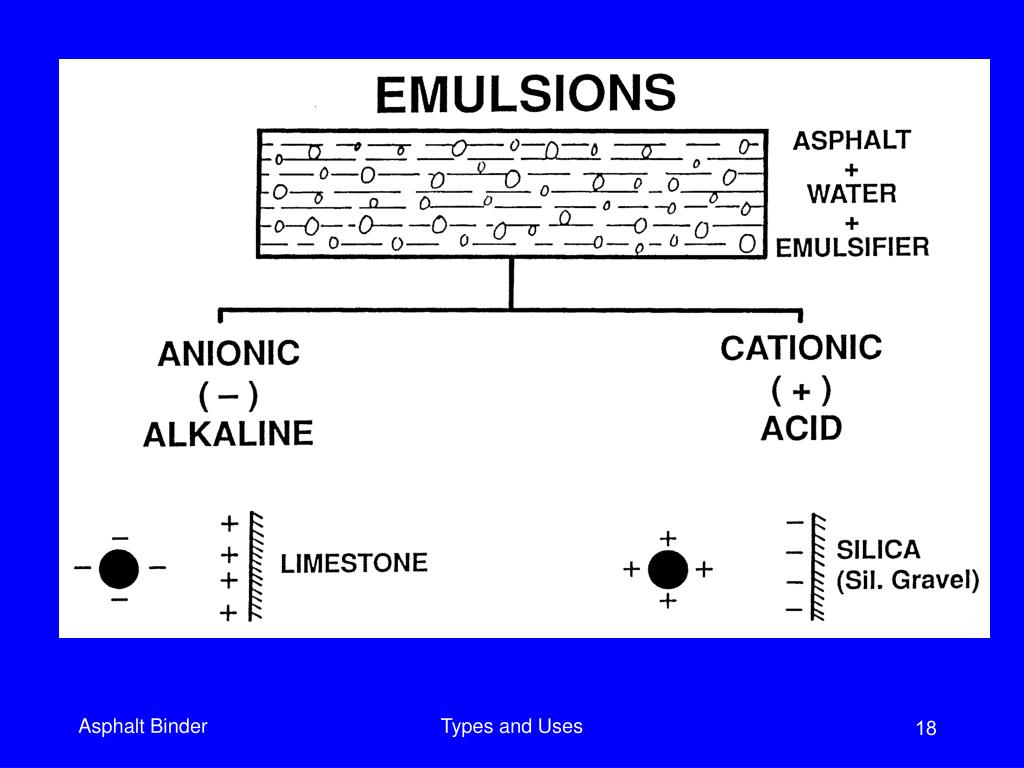

    Emulsions uses

    EMULSIONS - USES

    • Slow Setting (SS)

      • Tack coats, fog seals, dense-graded cold mixes

    • Medium Setting (MS)

      • Open graded cold asphalt-aggregate mixtures

    • Rapid Setting

      • Surface treatments

    Types and Uses


    Types uses of asphalt materials

    Types and Uses


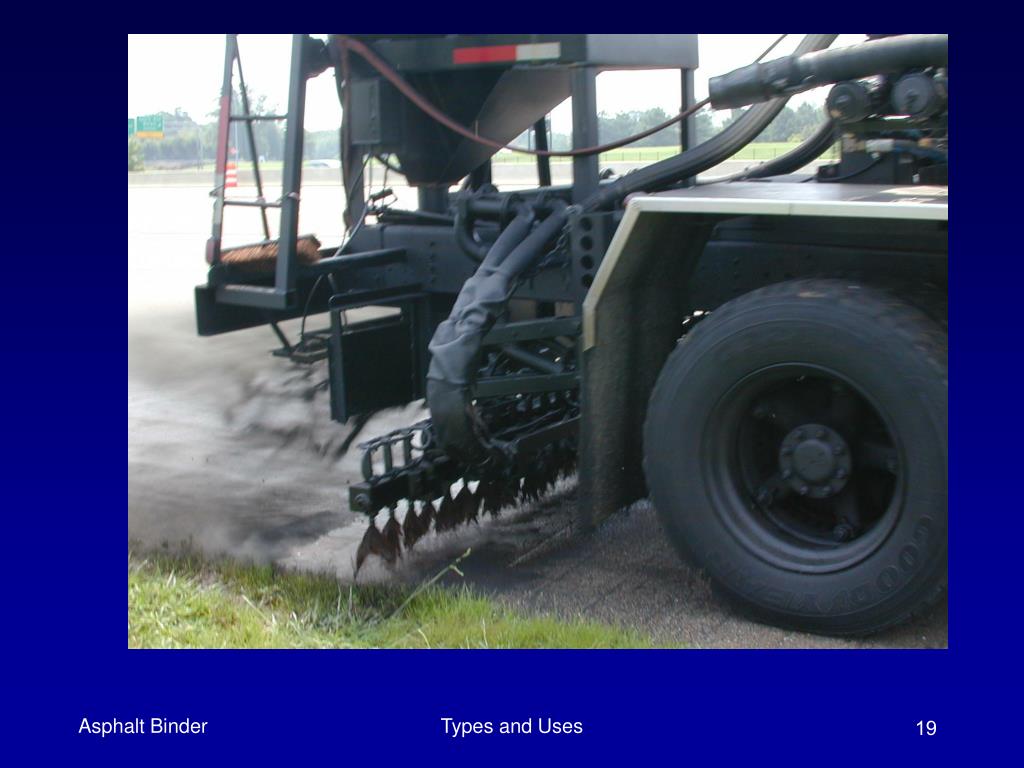

    Types uses of asphalt materials

    Types and Uses


    Types uses of asphalt materials

    Types and Uses
