Presentation Transcript

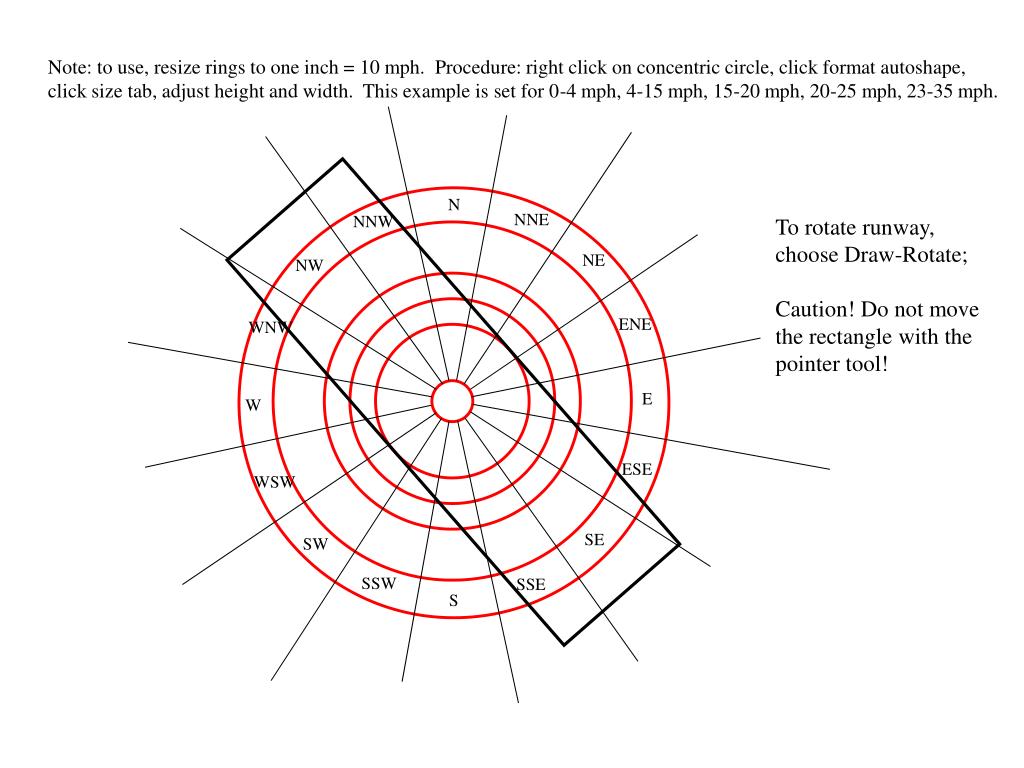

Note: to use, resize rings to one inch = 10 mph. Procedure: right click on concentric circle, click format autoshape,

click size tab, adjust height and width. This example is set for 0-4 mph, 4-15 mph, 15-20 mph, 20-25 mph, 23-35 mph.

N

NNE

NNW

To rotate runway, choose Draw-Rotate;

Caution! Do not move the rectangle with the pointer tool!

NE

NW

ENE

WNW

E

W

ESE

WSW

SE

SW

SSW

SSE

S
