Integrating graphical and textual modelling languages

Integrating Graphical and Textual Modelling Languages

Luc Engelen and Mark van den Brand


Integrating metamodel based and grammar based modelling languages

Integrating Metamodel-based and Grammar-based Modelling Languages

Luc Engelen and Mark van den Brand


Overview
Overview Languages

  • Problem description

  • Two approaches

  • Two implementations

  • Case study

  • Advanced applications

  • Conclusions

/ Software Engineering and Technology


Problem description
Problem description Languages

/ Software Engineering and Technology


Two approaches
Two approaches Languages

Extract (M2T)

Convert and transform (T2M)

Merge (M2M)

Interpret as XMI

Interpret as ‘model’

Rewrite (T2T)

= Metamodel-based model

= Metamodel-based model fragment

= Grammar-based model fragment

= XMI-representation of model

/ Software Engineering and Technology


Embedding a textual language
Embedding a textual language Languages

  • Embedding in a custom language

Statement

Textual

SendSignal

Assignment

MethodCall

Statement: String

  • Embedding the UML

/ Software Engineering and Technology

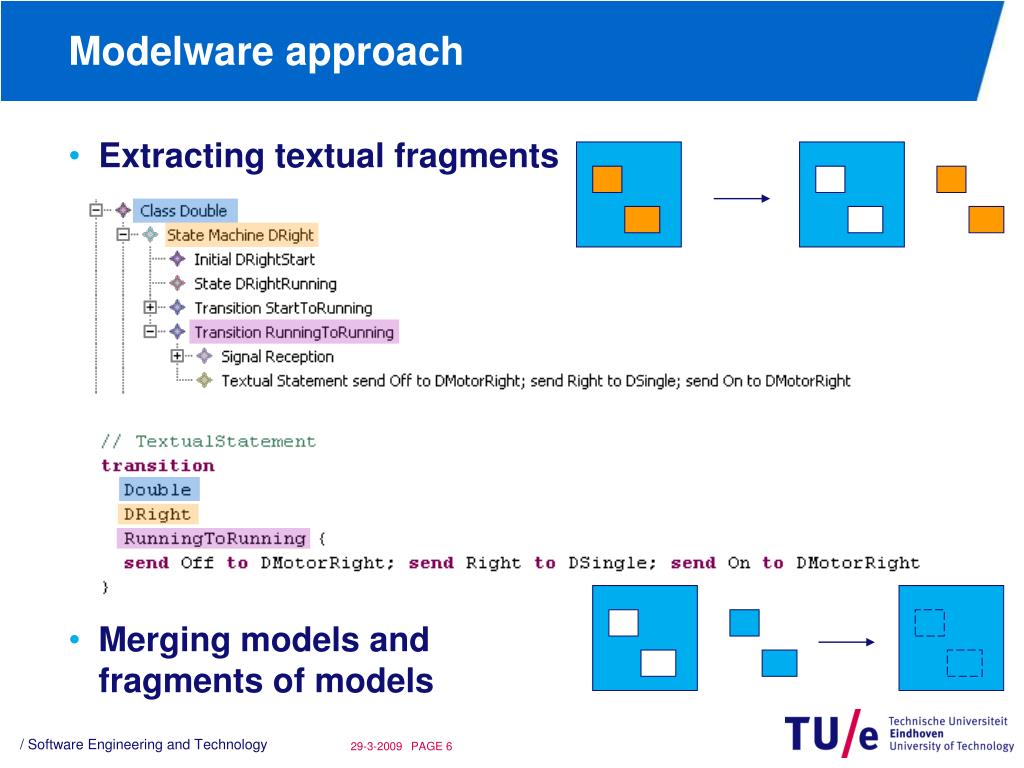

Modelware approach
Modelware approach Languages

  • Extracting textual fragments

  • Merging models andfragments of models

/ Software Engineering and Technology


Modelware approach1
Modelware approach Languages

S

  • Convert and transform

LS

LS ::= S { “;” S }

S ::= “stat”

source

CF

target

/ Software Engineering and Technology


Modelware approach2
Modelware approach Languages

S

  • Convert and transform

LS

LS ::= S { “;” S }

S ::= “stat”

source

CF

target

list: LS

s: S

f:CF

s: S

f:CF

s: S

stat; stat; stat

/ Software Engineering and Technology


Modelware approach3
Modelware approach Languages

S

  • Convert and transform

LS

LS ::= S { “;” S }

S ::= “stat”

source

CF

target

list: LS

s: S

s: S

s: S

stat; stat; stat

/ Software Engineering and Technology


Modelware approach4
Modelware approach Languages

LS

S

S

  • Convert and transform

LS

LS ::= S { “;” S }

S ::= “stat”

source

CF

target

list: LS

T2M

M2M

list: LS

s: S

s: S

s: S

stat; stat; stat

s: S

s: S

s: S

/ Software Engineering and Technology


Grammarware approach
Grammarware approach Languages

  • Rewriting

<packagedElement xmi:type="uml:Class" xmi:id="_id1" name="A">

<ownedAttribute xmi:id="_id2" name="a" type="_id3"/>

<ownedOperation xmi:id="_id4" name="n" method="_id5">

</ownedOperation>

<ownedBehavior xmi:type=“uml::OpaqueBehavior" xmi:id=“_id6">

<body>behavior{ a := n(a) }</body>

</ownedBehavior>

</packagedElement>

  • Textual fragments use names, XMI uses Identifiers

Class2Id[(A, _id1), …]

Attribute2Id[(A, a, _id2, _id3), …]

Operation2Id[A, n, _id4), …]

/ Software Engineering and Technology


Grammarware approach1
Grammarware approach Languages

T( A “:=” B ) → <effect xsi:type = “slco:AssignmentStatement”/>

T(B)

T(A)

</effect>

T( “false” ) → <expression xsi:type=“slco:BooleanConstantExpression” value=“false”/>

/ Software Engineering and Technology


Two implementations
Two implementations Languages

  • Modelware

    • Xpand for T2M

    • Xtext for M2T

    • Xtend for M2M

      All from the openArchitectureWare platform for eclipse

  • Grammarware

    • SDF for the grammars

      • XMI grammar off the shelf

      • Custom grammars for the fragments

    • ASF for the T2T transformation

/ Software Engineering and Technology


Case study
Case study Languages

/ Software Engineering and Technology


Case study1
Case study Languages

/ Software Engineering and Technology


Observations
Observations Languages

  • Modelling in eclipse

    • Diagrams

    • Simple textual models

    • Structure editing

  • Our approaches add

    • Embedding of textual fragments in metamodel based models

  • Modelware

    • Restricted to LL(*) grammar

    • Straightforward mapping from grammar to metamodel

  • Grammarware

    • Forces switching between environments

    • Deals with plain XMI

      • Tool-specific

      • Low level of abstraction

/ Software Engineering and Technology


Advanced applications
Advanced applications Languages

<packagedElement xmi:type="uml:Class" xmi:id="_id1" name="A">

<ownedAttribute xmi:id="_id2" name="a" type="_id3"/>

<ownedOperation xmi:id="_id4" name="n" method="_id5">

</ownedOperation>

<ownedBehavior xmi:type=“uml::OpaqueBehavior" xmi:id=“_id6">

<body>behavior{ a := m(a) }</body>

</ownedBehavior>

</packagedElement>

Method “m” not found in class “A”

/ Software Engineering and Technology


Conclusions
Conclusions Languages

  • Embedding grammar-based languages in metamodel-based languages

    • Two approaches

      • Modelware

      • Grammarware

    • Two implementations

    • Case study: textual alternative for UML activity diagrams

/ Software Engineering and Technology


Conclusions1
Conclusions Languages

  • Grammarware approach and implementation

    • Flexible grammar definitions

    • Dealing with XMI

  • Modelware approach and implementation

    • Only one modelling environment

    • Conversion and transformation in two steps

/ Software Engineering and Technology
