I have a headache

I have a headache.

And it has IVOTRONIC written all over it.


I have a headache

Nail biting

Anger Management

Even Chocolate


I have a headache

FORMS

DEADLINES

THE TIME IS HERE

PAPERWORK


Ivotronic

iVotronic


Objectives

Objectives

  • Ease your iVotronic headache

  • Overview of how the new equipment works

  • Logic & Accuracy testing

  • Entertain you with a compulsive need to use PowerPoint animation effects!


Overview

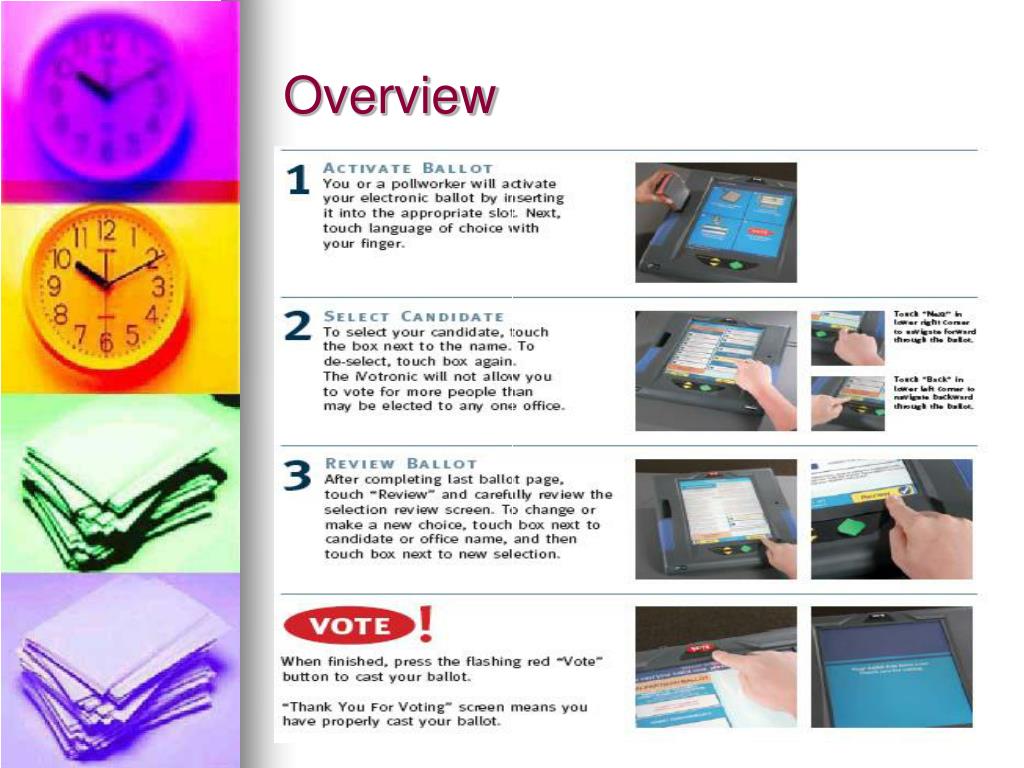

Overview


Overview behind the scenes

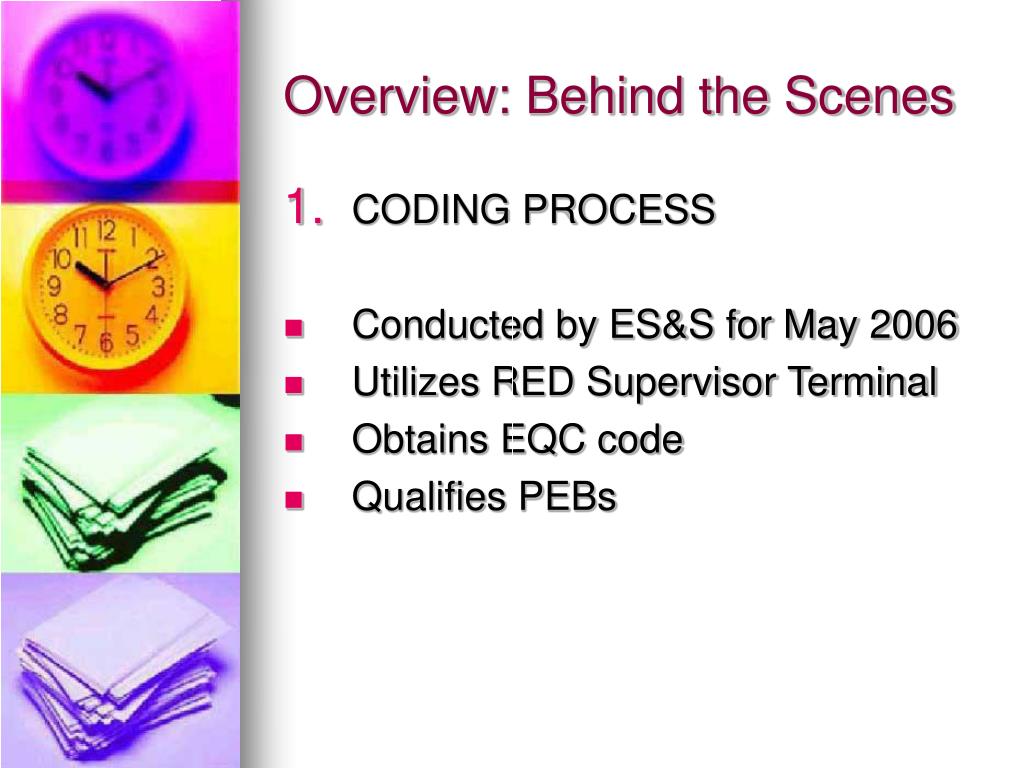

Overview: Behind the Scenes

  • CODING PROCESS

  • Conducted by ES&S for May 2006

  • Utilizes RED Supervisor Terminal

  • Obtains EQC code

  • Qualifies PEBs


Overview behind the scenes1

Overview: Behind the Scenes

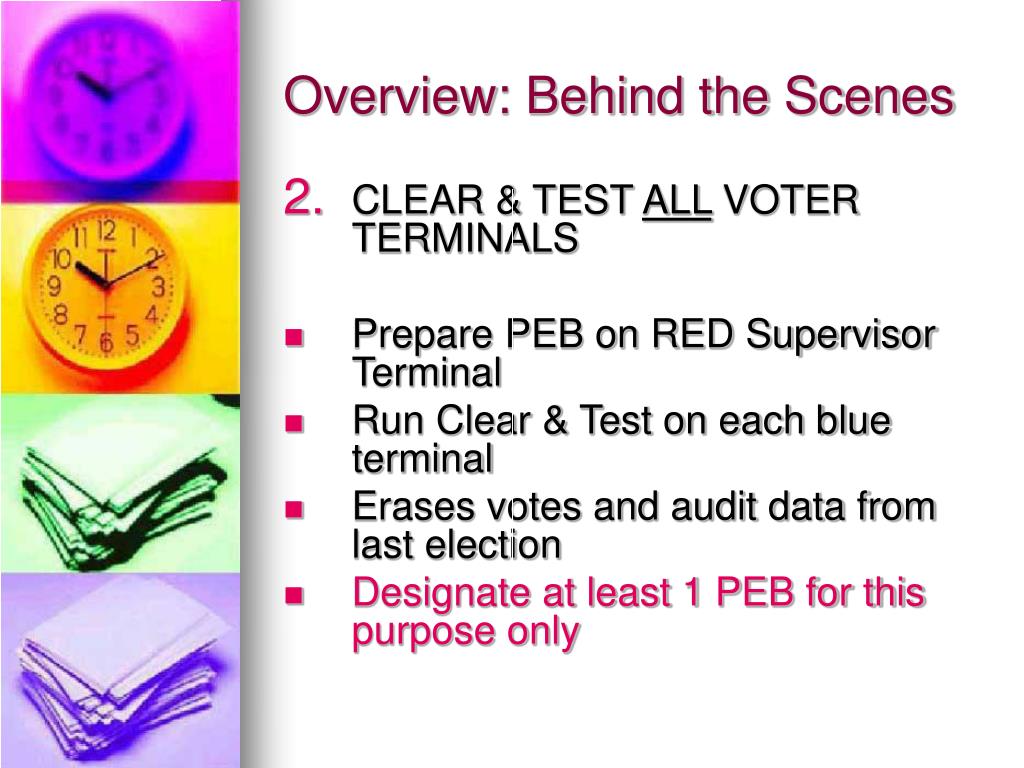

  • CLEAR & TEST ALL VOTER TERMINALS

  • Prepare PEB on RED Supervisor Terminal

  • Run Clear & Test on each blue terminal

  • Erases votes and audit data from last election

  • Designate at least 1 PEB for this purpose only


Overview behind the scenes2

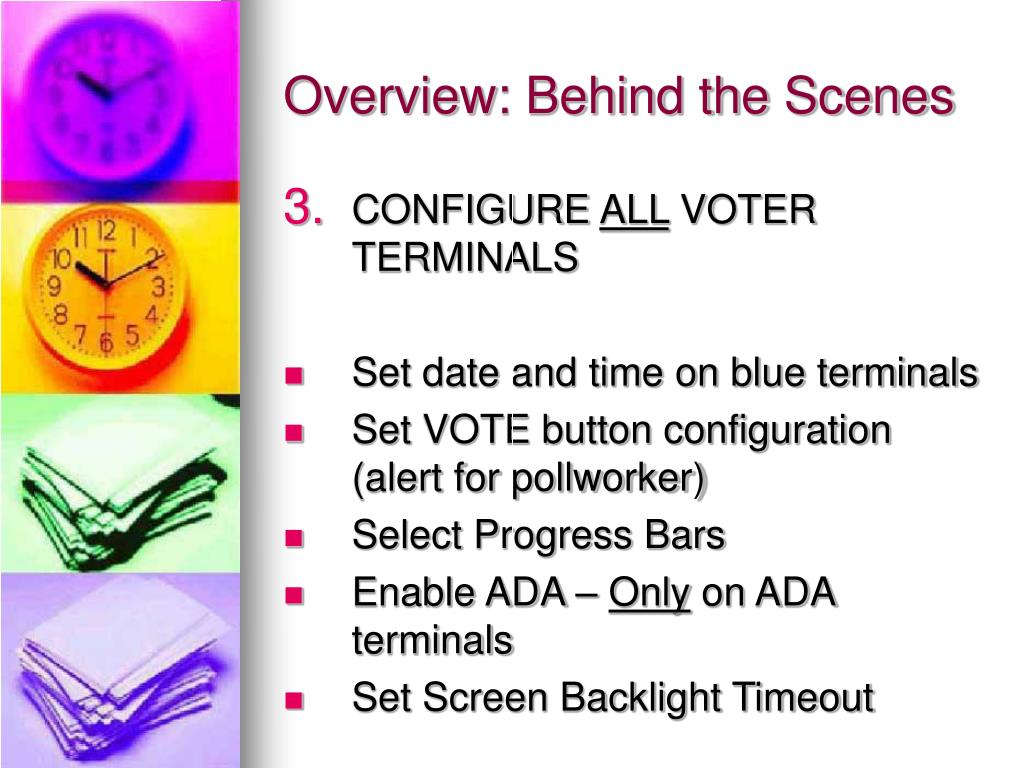

Overview: Behind the Scenes

  • CONFIGURE ALL VOTER TERMINALS

  • Set date and time on blue terminals

  • Set VOTE button configuration (alert for pollworker)

  • Select Progress Bars

  • Enable ADA – Only on ADA terminals

  • Set Screen Backlight Timeout


Overview behind the scenes3

Overview: Behind the Scenes

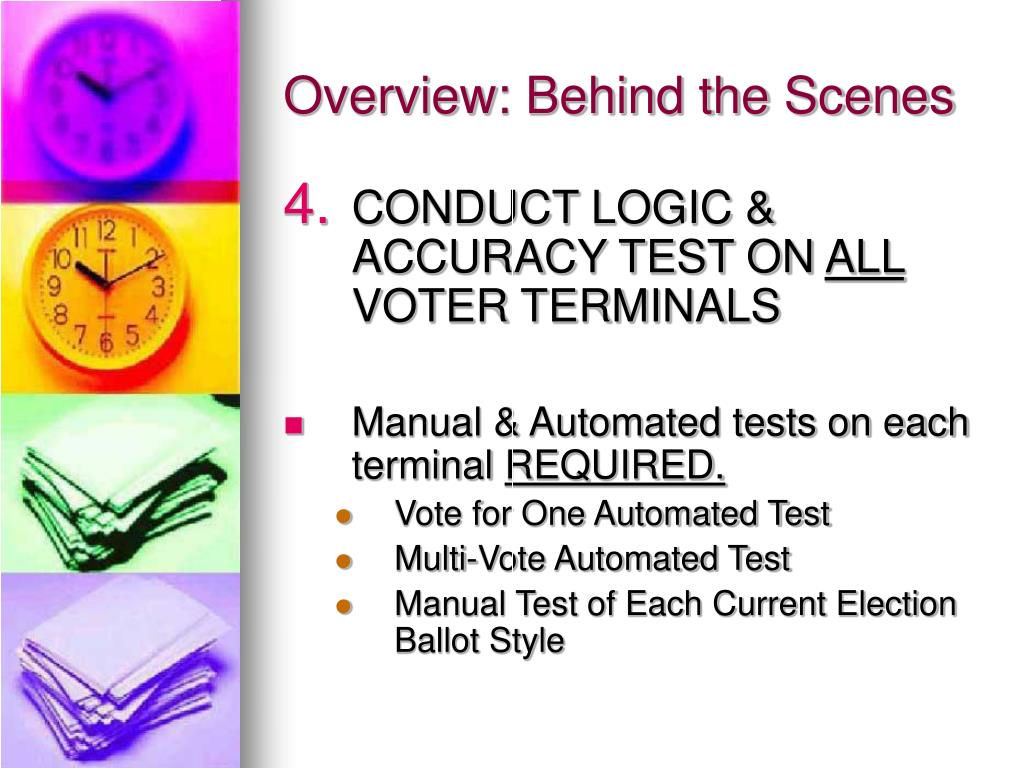

  • CONDUCT LOGIC & ACCURACY TEST ON ALL VOTER TERMINALS

  • Manual & Automated tests on each terminal REQUIRED.

    • Vote for One Automated Test

    • Multi-Vote Automated Test

    • Manual Test of Each Current Election Ballot Style


Logic accuracy testing

Logic & Accuracy Testing

Procedures for Automated Tests

  • Access the Terminal Menu by inserting the PEB and pressing the VOTE button simultaneously.


Logic accuracy testing1

Logic & Accuracy Testing

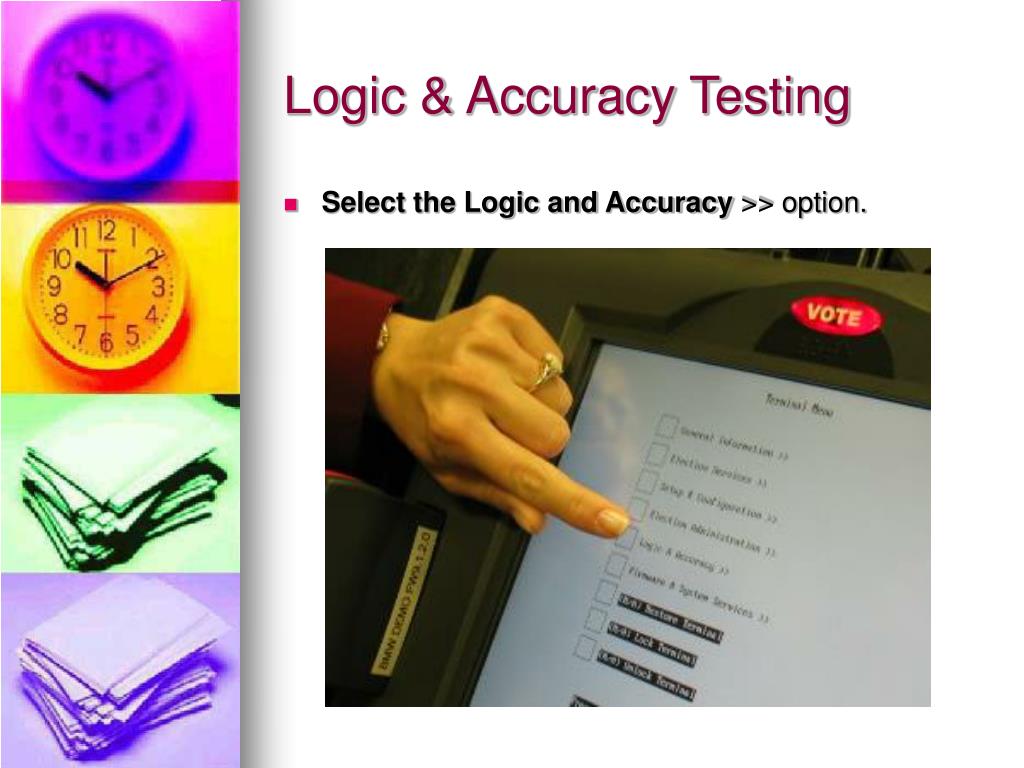

  • Select the Logic and Accuracy >> option.


Logic accuracy testing2

Logic & Accuracy Testing

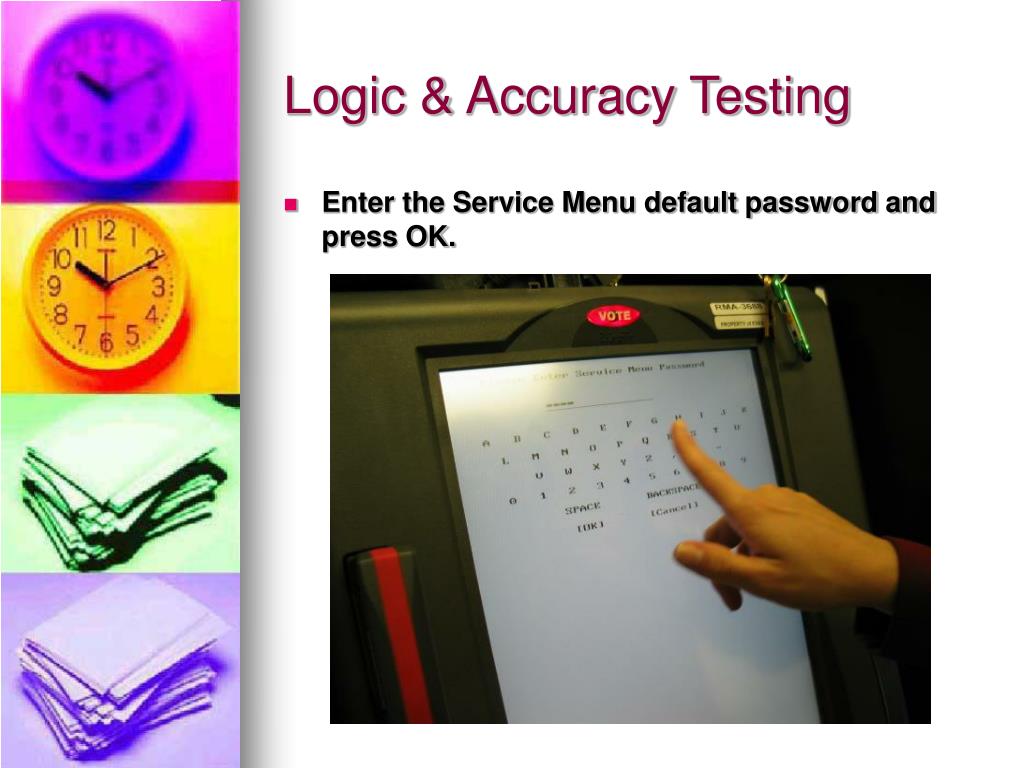

  • Enter the Service Menu default password and press OK.


Logic accuracy testing3

Logic & Accuracy Testing

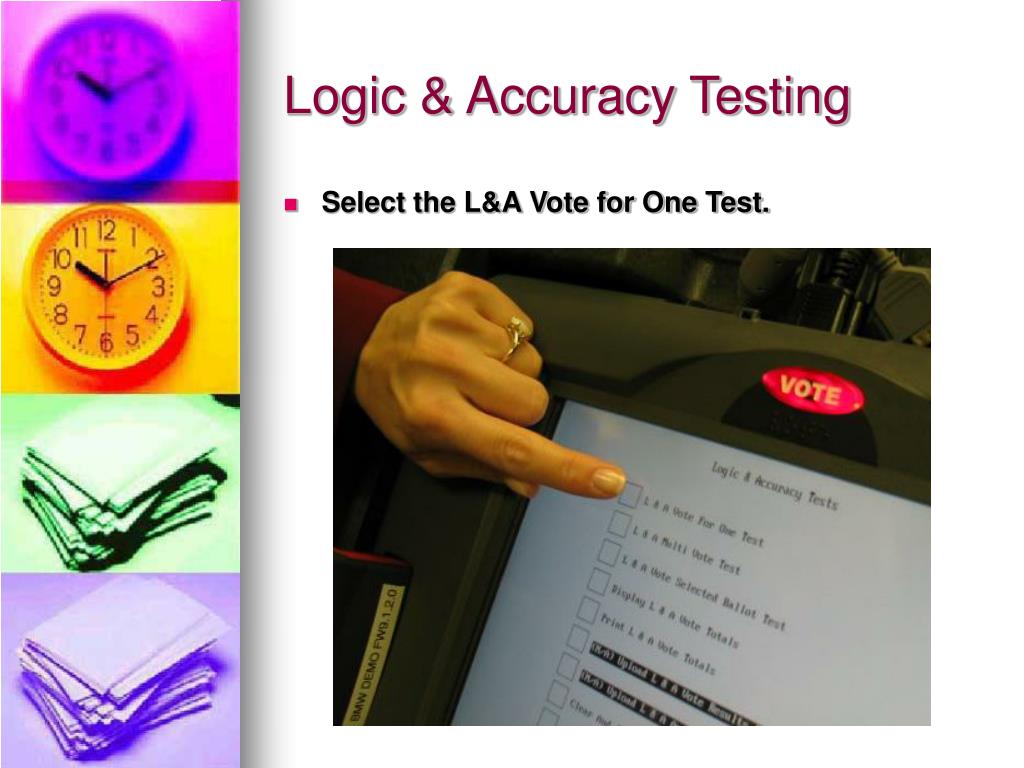

  • Select the L&A Vote for One Test.


Logic accuracy testing4

Logic & Accuracy Testing

  • A screen is displayed indicating “Touch the VOTE button to continue” or “Touch the screen to cancel this test”. Press the VOTE button.


Logic accuracy testing5

Logic & Accuracy Testing

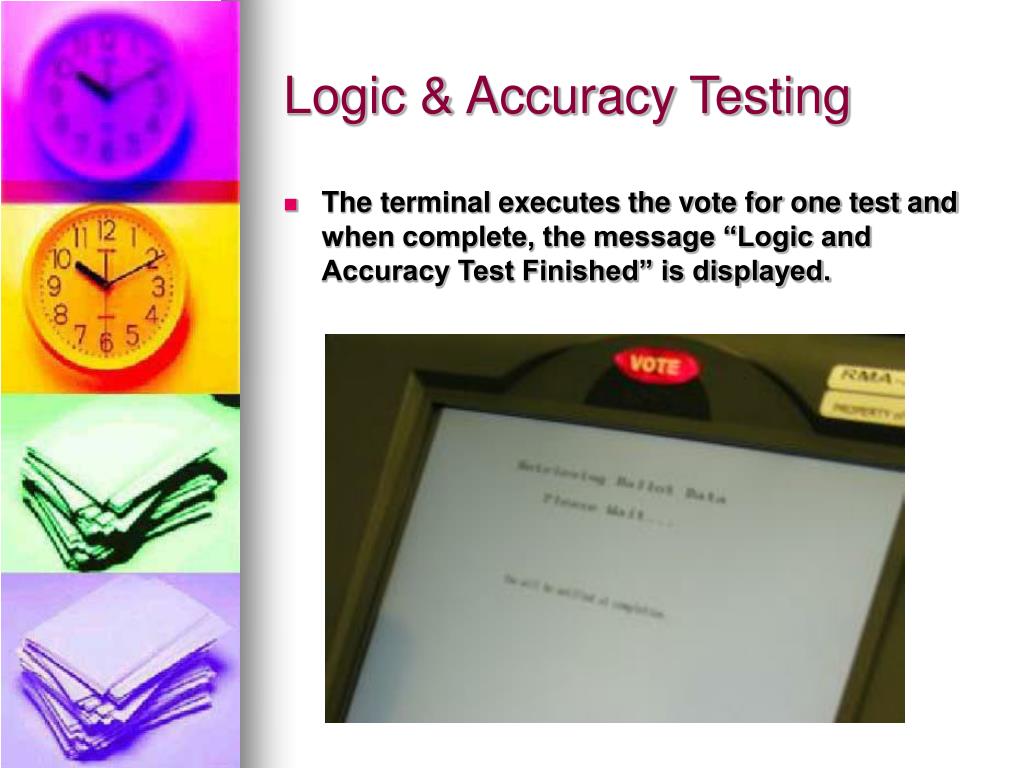

  • The terminal executes the vote for one test and when complete, the message “Logic and Accuracy Test Finished” is displayed.


Logic accuracy testing6

Logic & Accuracy Testing

  • Press the screen to return to the Logic and Accuracy Tests menu.


Logic accuracy testing7

Logic & Accuracy Testing

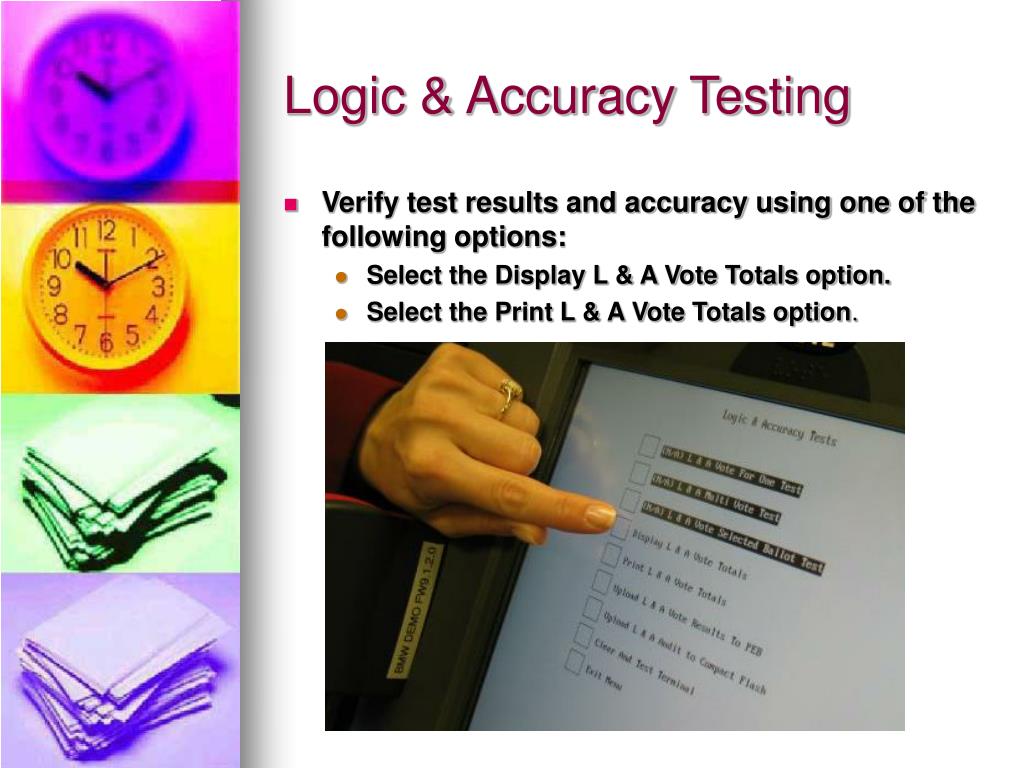

  • Verify test results and accuracy using one of the following options:

    • Select the Display L & A Vote Totals option.

    • Select the Print L & A Vote Totals option.


Logic accuracy testing8

Logic & Accuracy Testing

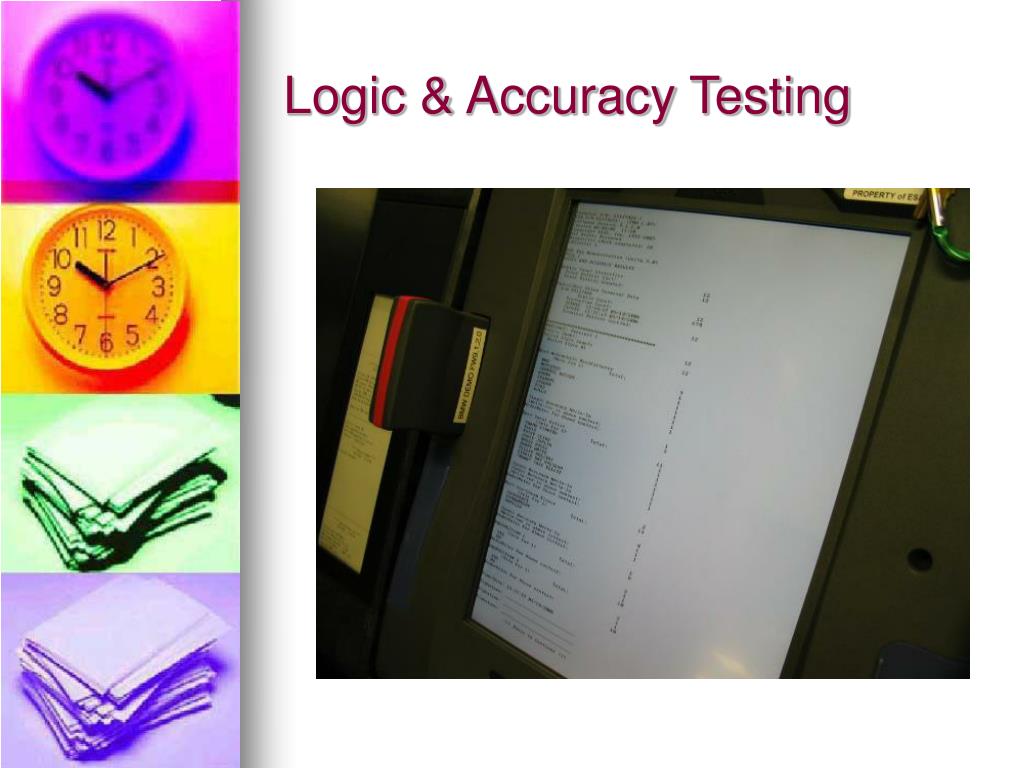

Logic accuracy testing9

Logic & Accuracy Testing

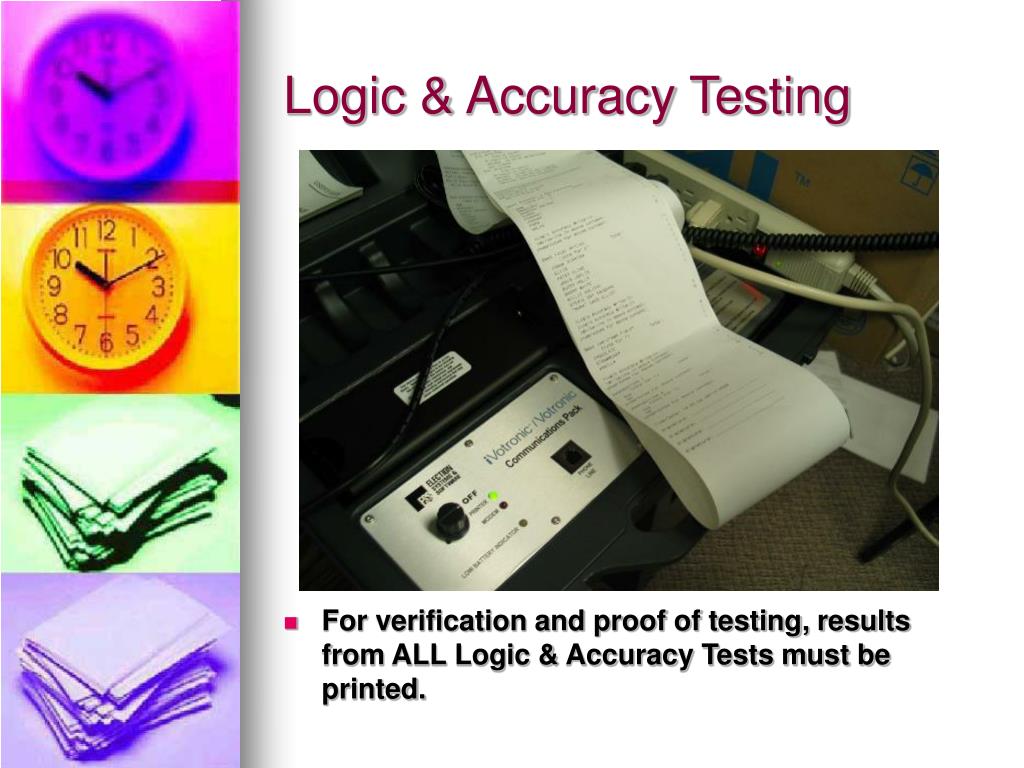

  • For verification and proof of testing, results from ALL Logic & Accuracy Tests must be printed.


Logic accuracy testing10

Logic & Accuracy Testing

  • Clear the test vote totals from the terminal by selecting the Clear and Test Terminal option.


Logic accuracy testing11

Logic & Accuracy Testing

  • The message “TERMINAL WILL BE CLEARED! Press the VOTE button to clear” is displayed.


Logic accuracy testing12

Logic & Accuracy Testing

  • Now you must clear the votes from the PEB. USING THE RED SUPERVISOR TERMINAL.


Logic accuracy testing13

Logic & Accuracy Testing

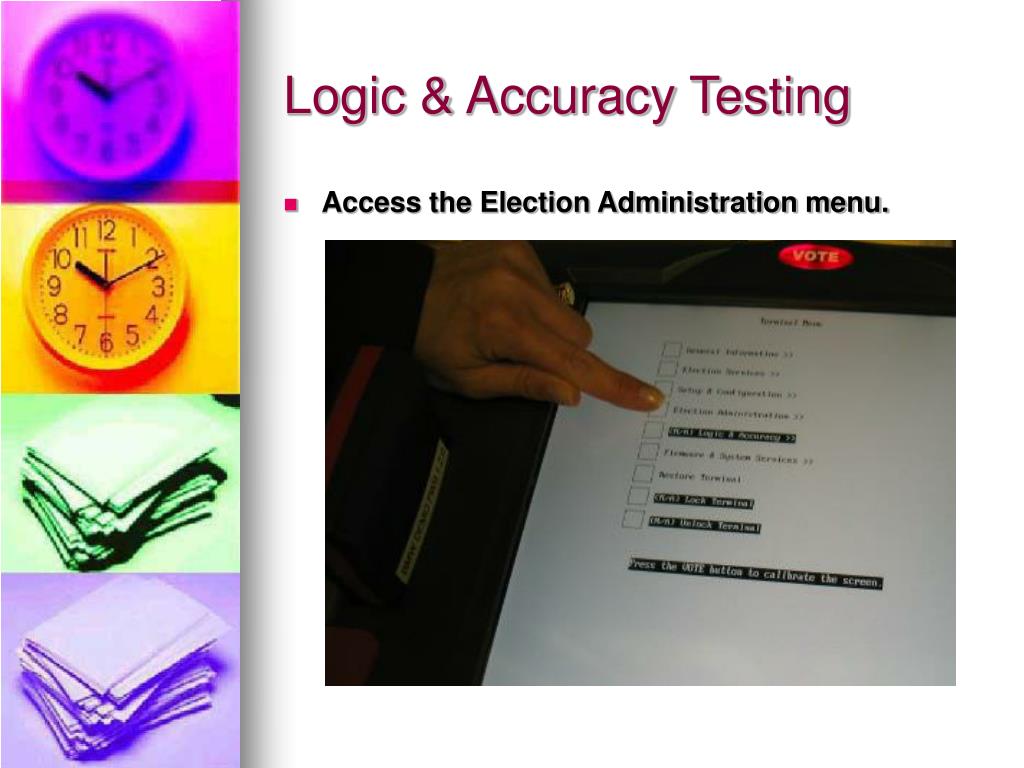

  • Access the Election Administration menu.


Logic accuracy testing14

Logic & Accuracy Testing

  • Enter the ECA password.


Logic accuracy testing15

Logic & Accuracy Testing

  • At the Election Administration menu, select PEB Services.


Logic accuracy testing16

Logic & Accuracy Testing

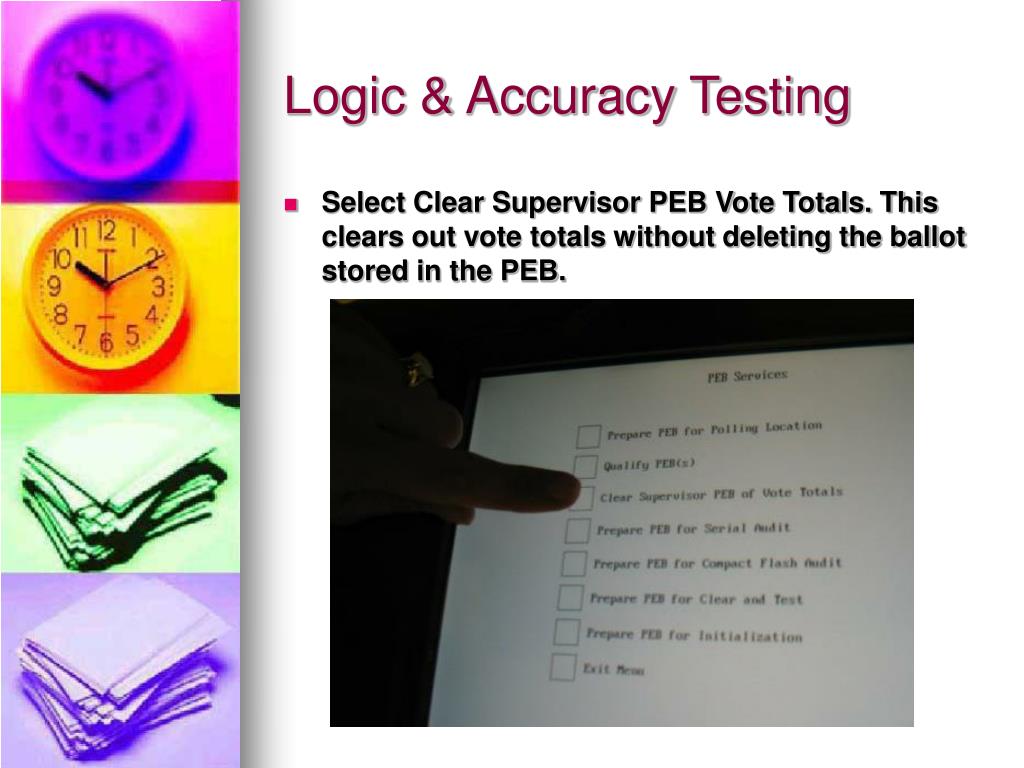

  • Select Clear Supervisor PEB Vote Totals. This clears out vote totals without deleting the ballot stored in the PEB.


Logic accuracy testing17

Logic & Accuracy Testing

So what was all that?


Logic accuracy testing18

Logic & Accuracy Testing

Congratulations!

You have just completed a full Automated Vote for One Logic & Accuracy.


Logic accuracy testing19

Logic & Accuracy Testing

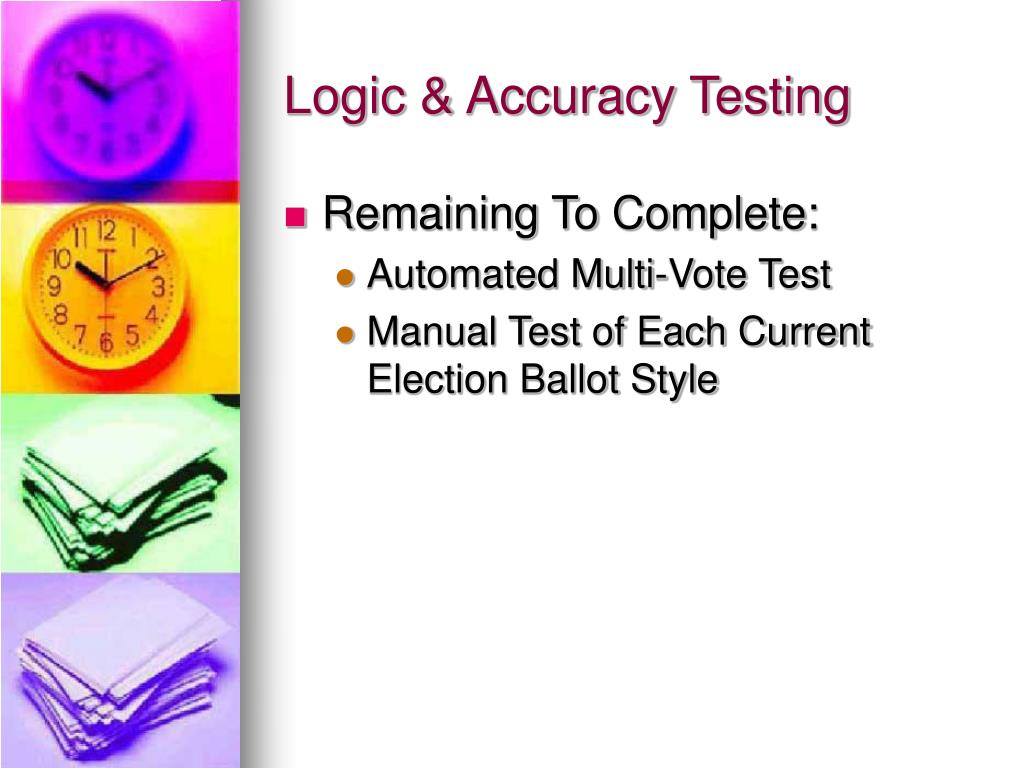

  • Remaining To Complete:

    • Automated Multi-Vote Test

    • Manual Test of Each Current Election Ballot Style


Logic accuracy testing20

Logic & Accuracy Testing

  • Keys to Manual Test

    • Uniform test process for each current ballot style

    • Sample Manual Test, iVotronic L&A Checklist, and this presentation distributed via email


Logic accuracy testing21

Logic & Accuracy Testing

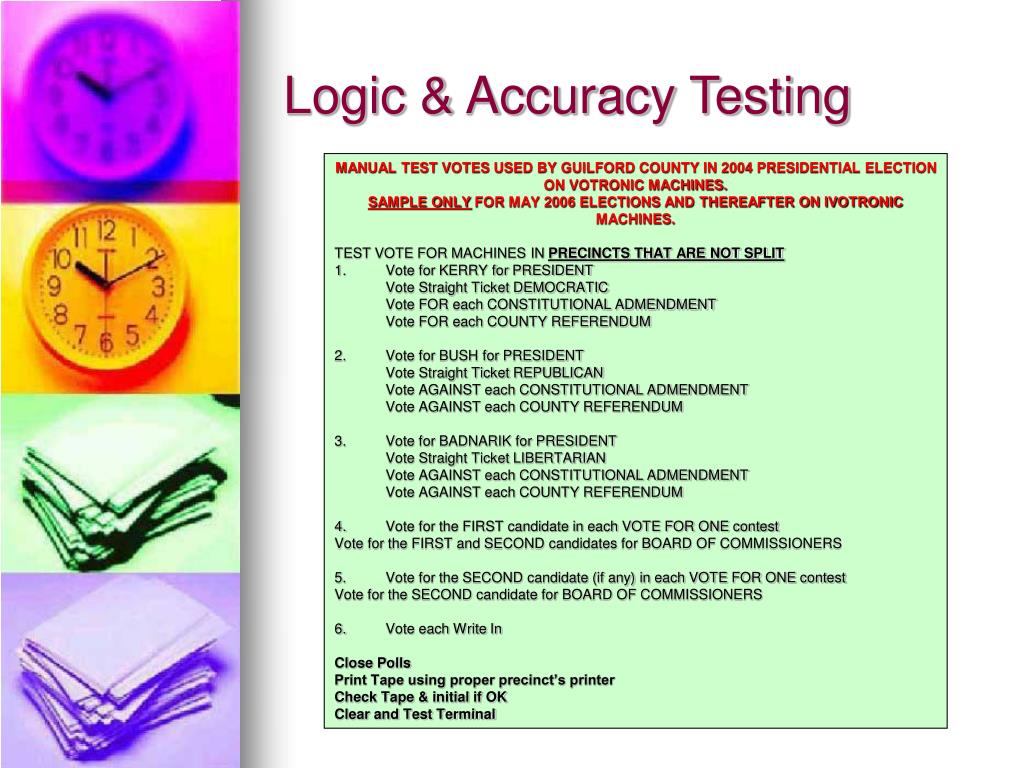

MANUAL TEST VOTES USED BY GUILFORD COUNTY IN 2004 PRESIDENTIAL ELECTION ON VOTRONIC MACHINES.

SAMPLE ONLY FOR MAY 2006 ELECTIONS AND THEREAFTER ON IVOTRONIC MACHINES.

TEST VOTE FOR MACHINES IN PRECINCTS THAT ARE NOT SPLIT

1. Vote for KERRY for PRESIDENT

Vote Straight Ticket DEMOCRATIC

Vote FOR each CONSTITUTIONAL ADMENDMENT

Vote FOR each COUNTY REFERENDUM

2. Vote for BUSH for PRESIDENT

Vote Straight Ticket REPUBLICAN

Vote AGAINST each CONSTITUTIONAL ADMENDMENT

Vote AGAINST each COUNTY REFERENDUM

3. Vote for BADNARIK for PRESIDENT

Vote Straight Ticket LIBERTARIAN

Vote AGAINST each CONSTITUTIONAL ADMENDMENT

Vote AGAINST each COUNTY REFERENDUM

4.Vote for the FIRST candidate in each VOTE FOR ONE contest

Vote for the FIRST and SECOND candidates for BOARD OF COMMISSIONERS

5. Vote for the SECOND candidate (if any) in each VOTE FOR ONE contest

Vote for the SECOND candidate for BOARD OF COMMISSIONERS

6.Vote each Write In

Close Polls

Print Tape using proper precinct’s printer

Check Tape & initial if OK

Clear and Test Terminal


I have a headache

THE TIME IS HERE!


I have a headache

AFTER

BEFORE


I have a headache

WARNING/DISCLAIMER:

Chocolate is still recommended but cannot be certified nor has it been approved for HAVA funding.
