Fault diagnosis of software systems

Fault Diagnosis* of Software Systems

Rui Maranhão

Dept. of Informatics Engineering

Faculty of Engineering of University of Porto

FEUP, 13Jan10

* aka automatic debugging


Fault diagnosis of software systems1

Fault Diagnosis* of Software Systems

Rui Abreu

Software Technology Dept.

Delft University of Technology, NL

PARC, 18Jul09

* aka automatic debugging


About the speaker

About the speaker…

PhD, TUD

ST, UU

Philips Research Labs

LESI, UM

Ass. prof., FEUP

Siemens, Porto


Fault diagnosis of software systems

  • PhD defense (4Nov09)

    • picasaweb.google.com/rui.maranhao


Outline

Outline

  • Fault Diagnosis

  • Spectrum-Based Fault Localization

    • Statistics-based

    • Reasoning-based

  • Summary


Software faults

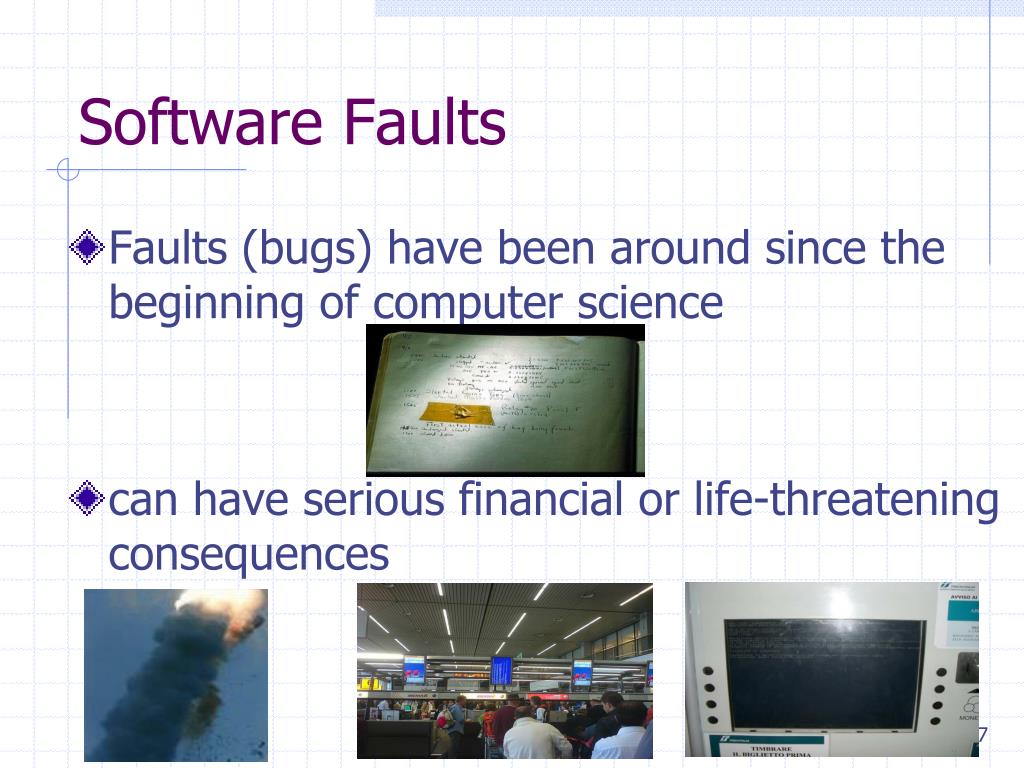

Software Faults

  • Faults (bugs) have been around since the beginning of computer science

  • can have serious financial or life-threatening consequences


Fault diagnosis

Fault Diagnosis

Identify (SW) component(s) that are root cause of failure

healthy

f1

f2

f3

x

y = f(x,h)

faulty

f4

f5

x, y: observation vectors

f: system function, fj: component functions

h: system health state vector, hj: component health vars

Diagnose failure: solve inverse problem h = f-1(x,y)

Diagnosis: h4 = fault state; or (h2 and h5) = fault state; or ..


Fault diagnosis approaches

Fault Diagnosis Approaches

x

x

fault diagnosis: SFL

x

x

x

SW

x

x

fault diagnosis: MBD

x

x

x

x: fault (bug, defect)


Model based diagnosis

x

y = f(x,h)

f2

M2

f3

M3

f1

M1

M5

f5

f4

M4

=?

Model-Based Diagnosis

  • suppose we have component models (Mi) of all fi:

    • can infer location(s) of failure (Model-Based Diagnosis)

Pass/Fail

y’ = M(x,h’)

searchfor h’=h such that y’ consistent with y


Spectrum based fault localization

x

y = f(x,h)

f2

2

f3

3

1

f1

5

f5

f4

4

=?

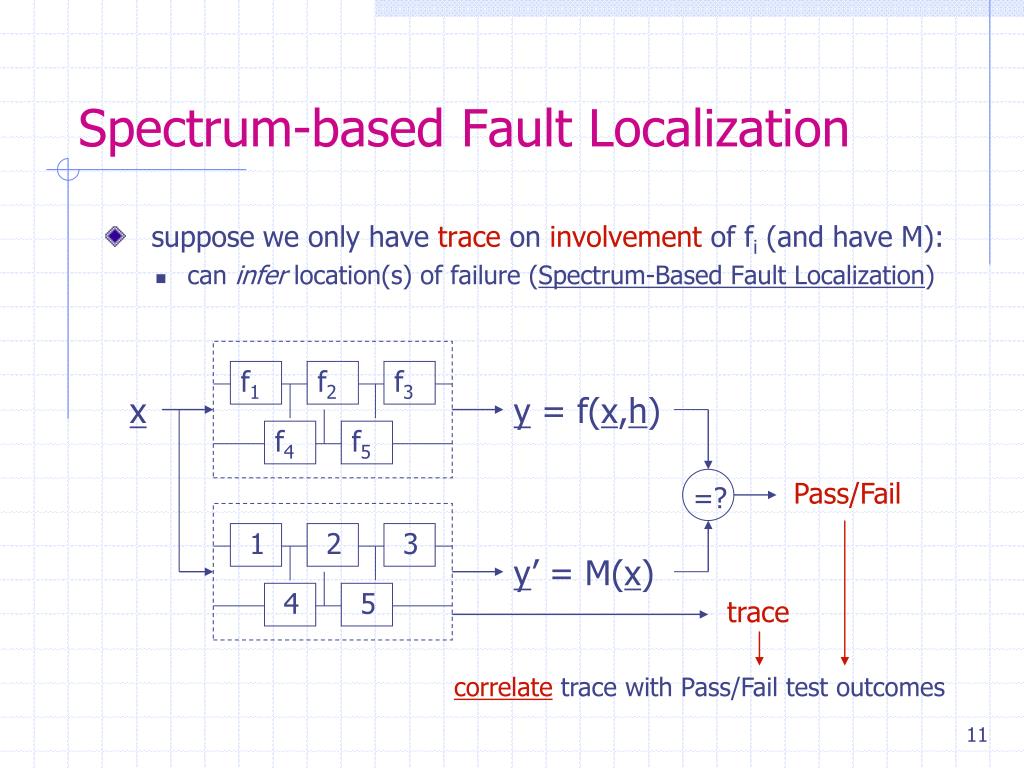

Spectrum-based Fault Localization

  • suppose we only have trace on involvement of fi (and have M):

    • can infer location(s) of failure (Spectrum-Based Fault Localization)

Pass/Fail

y’ = M(x)

trace

correlatetrace with Pass/Fail test outcomes


Mbd vs sfl

MBD vs. SFL

  • MBD

    • Reasoning approach based on (propositional) models

    • High(est) diagnostic accuracy

    • Prohibitive (modeling and/or diagnosis) cost for [Emb] SW

  • SFL

    • Statistical approach based on spectra (traces)

    • Lower diagnostic accuracy: cannot reason over multiple faults

    • No modeling cost (except test oracle) + low diagnosis cost


Outline1

Outline

  • Fault Diagnosis

  • Spectrum-based Fault Localization

    • Statistics-based

    • Reasoning-based

  • Summary


Sfl principle 1

1

2

3

4

5

6

7

8

9

10

11

12

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

SFL: Principle (1)

1

2

3

4

5

6

7

8

9

10

11

12

Not touched

Touched, pass

Touched, fail


Sfl principle 2

1

2

3

4

5

6

7

8

9

10

11

12

1

1

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

SFL: Principle (2)

1

2

3

4

5

6

7

8

9

10

11

12

Not touched

Touched, pass

Touched, fail


Sfl principle 3

1

2

3

4

5

6

7

8

9

10

11

12

2

1

1

0

1

2

2

2

2

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

SFL: Principle (3)

1

2

3

4

5

6

7

8

9

10

11

12

Not touched

Touched, pass

Touched, fail


Sfl principle 4

1

2

3

4

5

6

7

8

9

10

11

12

2

1

1

0

1

2

2

2

2

1

1

1

1

0

0

1

1

1

1

0

1

0

0

0

SFL: Principle (4)

1

2

3

4

5

6

7

8

9

10

11

12

Not touched

Touched, pass

Touched, fail


Sfl principle 5

1

2

3

4

5

6

7

8

9

10

11

12

3

1

1

0

1

3

3

2

3

1

3

3

1

0

0

1

1

1

1

0

1

0

0

0

SFL: Principle (5)

1

2

3

4

5

6

7

8

9

10

11

12

Not touched

Touched, pass

Touched, fail


Sfl principle 6

1

2

3

4

5

6

7

8

9

10

11

12

3

1

1

0

1

3

3

2

3

1

3

3

2

0

0

2

1

2

2

0

2

1

0

0

SFL: Principle (6)

1

2

3

4

5

6

7

8

9

10

11

12

Not touched

Touched, pass

Touched, fail


Sfl principle 7

1

2

3

4

5

6

7

8

9

10

11

12

3

1

1

0

1

3

3

2

3

1

3

3

2

0

0

2

1

2

2

0

2

1

0

0

SFL: Principle (7)

1

2

3

4

5

6

7

8

9

System components are ranked according to likelihood of causing the detected errors

10

11

12

Not touched

Touched, pass

Touched, fail


Sfl example 1

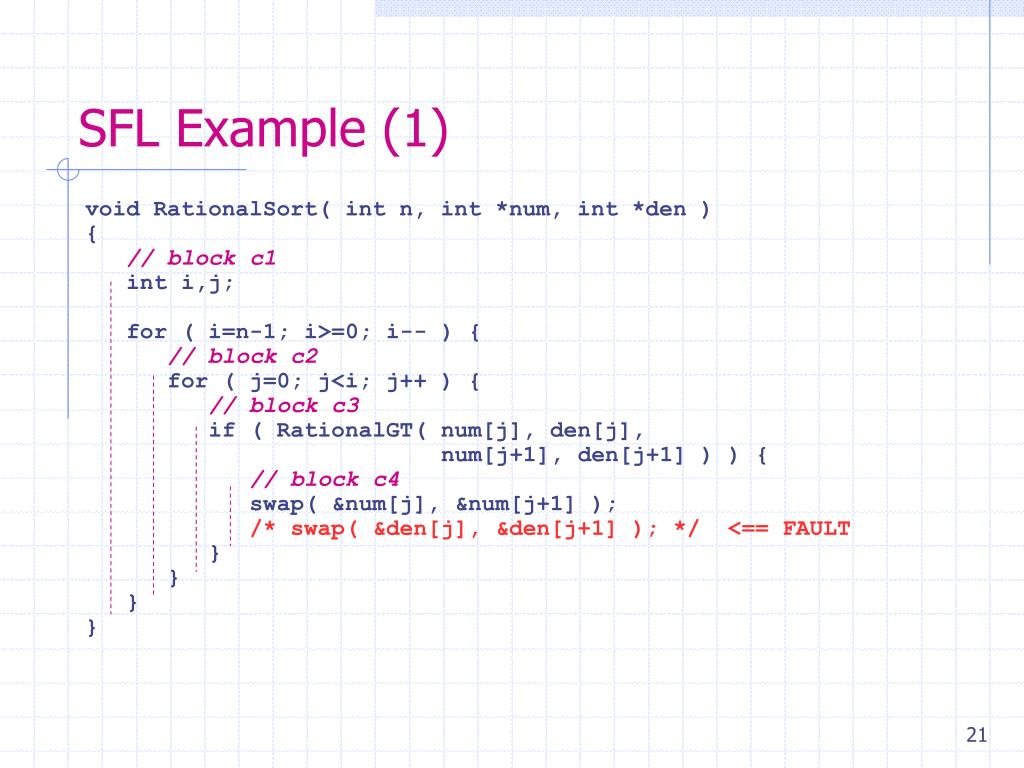

SFL Example (1)

void RationalSort( int n, int *num, int *den )

{

// block c1

int i,j;

for ( i=n-1; i>=0; i-- ) {

// block c2

for ( j=0; j<i; j++ ) {

// block c3

if ( RationalGT( num[j], den[j],

num[j+1], den[j+1] ) ) {

// block c4

swap( &num[j], &num[j+1] );

/* swap( &den[j], &den[j+1] ); */ <== FAULT

}

}

}

}


Sfl example 2

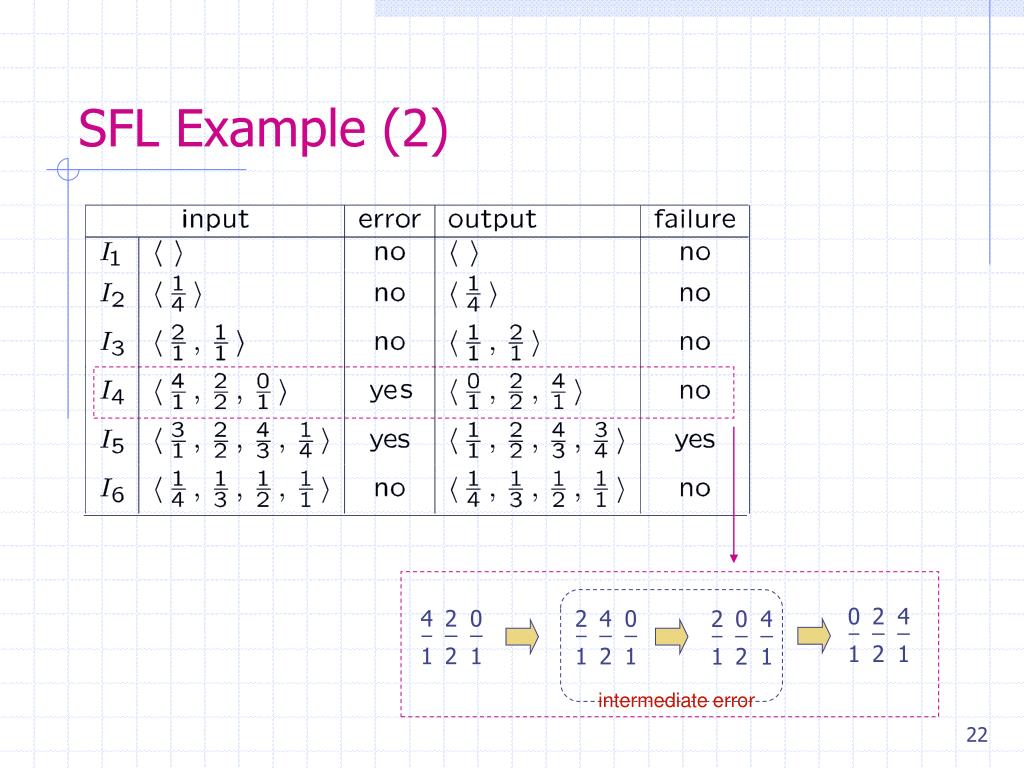

SFL Example (2)

intermediate error


Sfl example 3

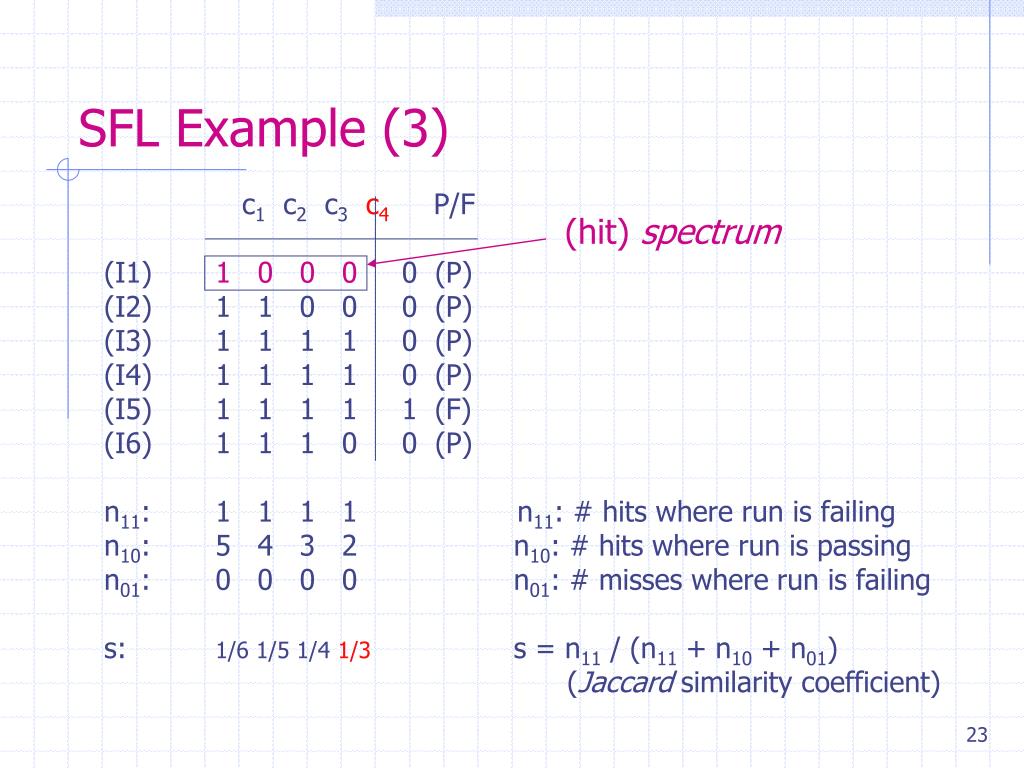

SFL Example (3)

(hit) spectrum

c1 c2 c3c4 P/F

(I1) 1 0 0 0 0 (P)

(I2) 1 1 0 0 0 (P)

(I3) 1 1 1 1 0 (P)

(I4) 1 1 1 1 0 (P)

(I5) 1 1 1 1 1 (F)

(I6) 1 1 1 0 0 (P)

n11: 1 1 1 1 n11: # hits where run is failing

n10: 5 4 3 2n10: # hits where run is passing

n01: 0 0 0 0n01: # misses where run is failing

s: 1/6 1/5 1/4 1/3s = n11 / (n11 + n10 + n01)

(Jaccard similarity coefficient)


Shortcomings of using statistics

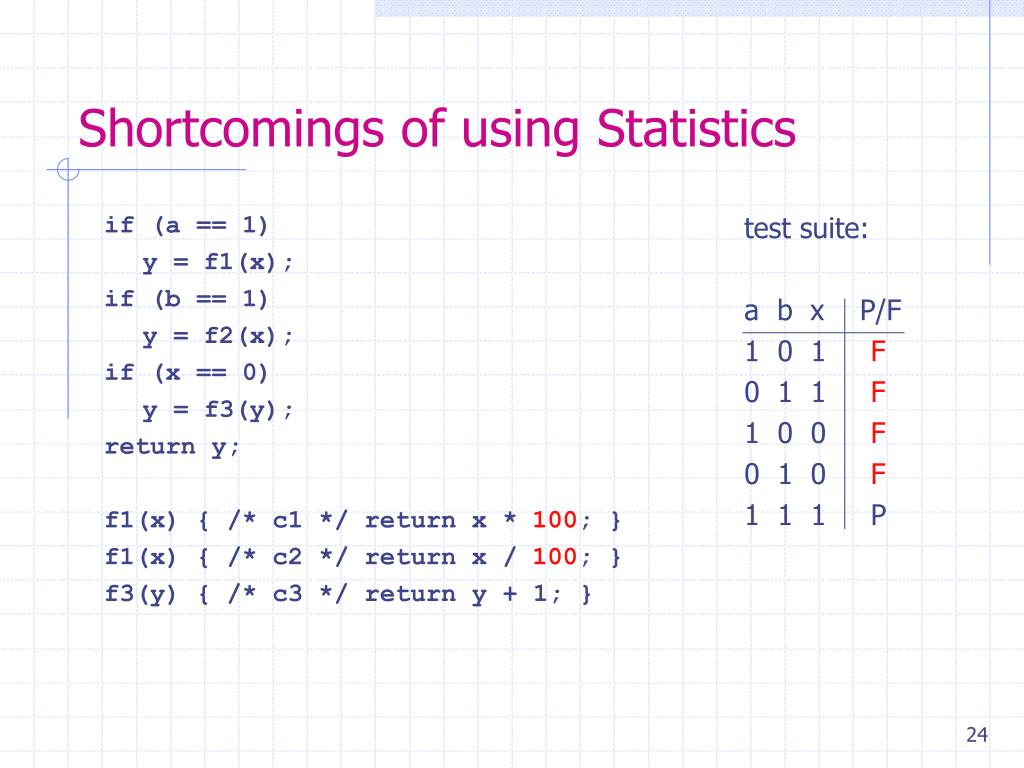

Shortcomings of using Statistics

test suite:

a b x P/F

1 0 1 F

0 1 1 F

1 0 0 F

0 1 0 F

1 1 1 P

if (a == 1)

y = f1(x);

if (b == 1)

y = f2(x);

if (x == 0)

y = f3(y);

return y;

f1(x) { /* c1 */ return x * 100; }

f1(x) { /* c2 */ return x / 100; }

f3(y) { /* c3 */ return y + 1; }


Similarity based approach

Similarity-based Approach

c1 c2 c3 P/F

1 0 0 1 (F)

0 1 0 1 (F)

1 0 1 1 (F)

0 1 1 1 (F)

1 1 0 0 (P)

n11: 2 2 2

n10: 1 1 0

n01: 1 1 1

s:1/2 1/22/3

c3 ranked highest

instead of c1, c2 !


Reasoning based approach 1

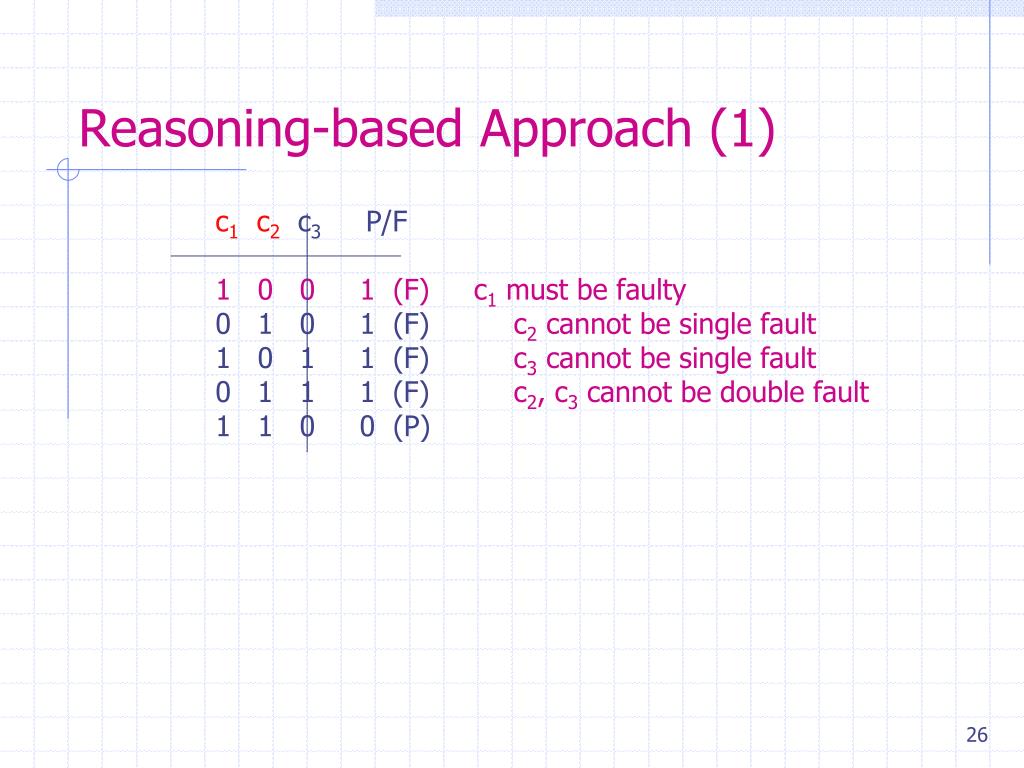

Reasoning-based Approach (1)

c1 c2 c3 P/F

1 0 0 1 (F) c1 must be faulty

0 1 0 1 (F)c2 cannot be single fault

1 0 1 1 (F) c3 cannot be single fault

0 1 1 1 (F)c2, c3 cannot be double fault

1 1 0 0 (P)


Reasoning based approach 2

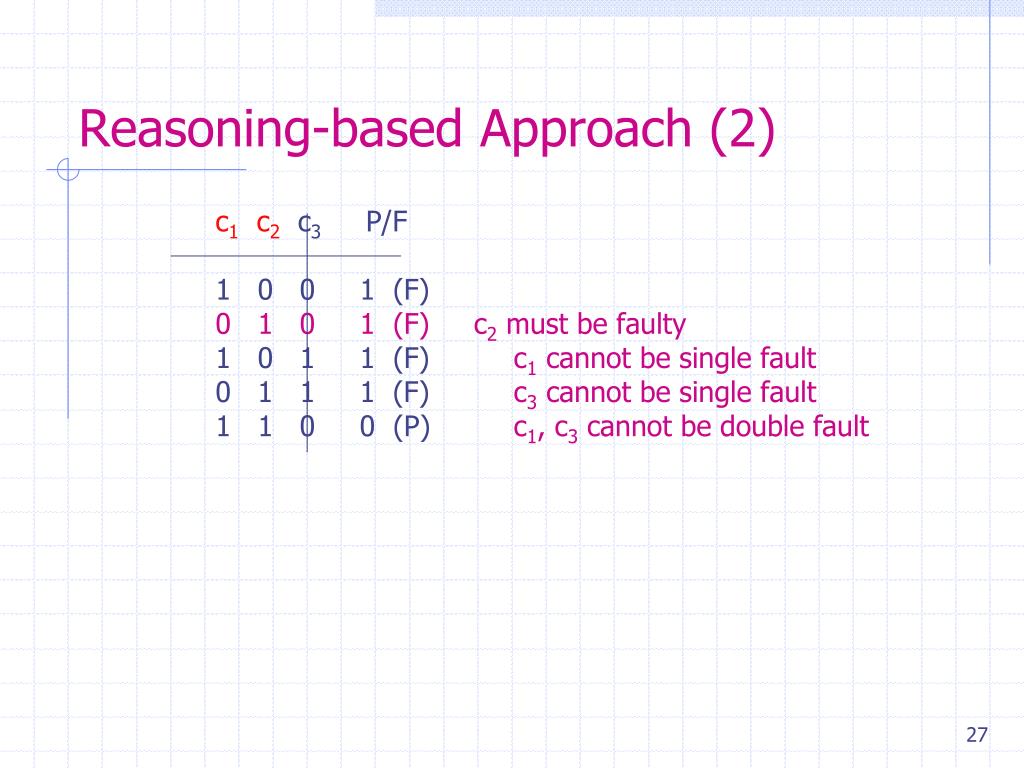

Reasoning-based Approach (2)

c1 c2 c3 P/F

1 0 0 1 (F)

0 1 0 1 (F) c2 must be faulty

1 0 1 1 (F) c1 cannot be single fault

0 1 1 1 (F)c3 cannot be single fault

1 1 0 0 (P)c1, c3 cannot be double fault


Reasoning based approach 3

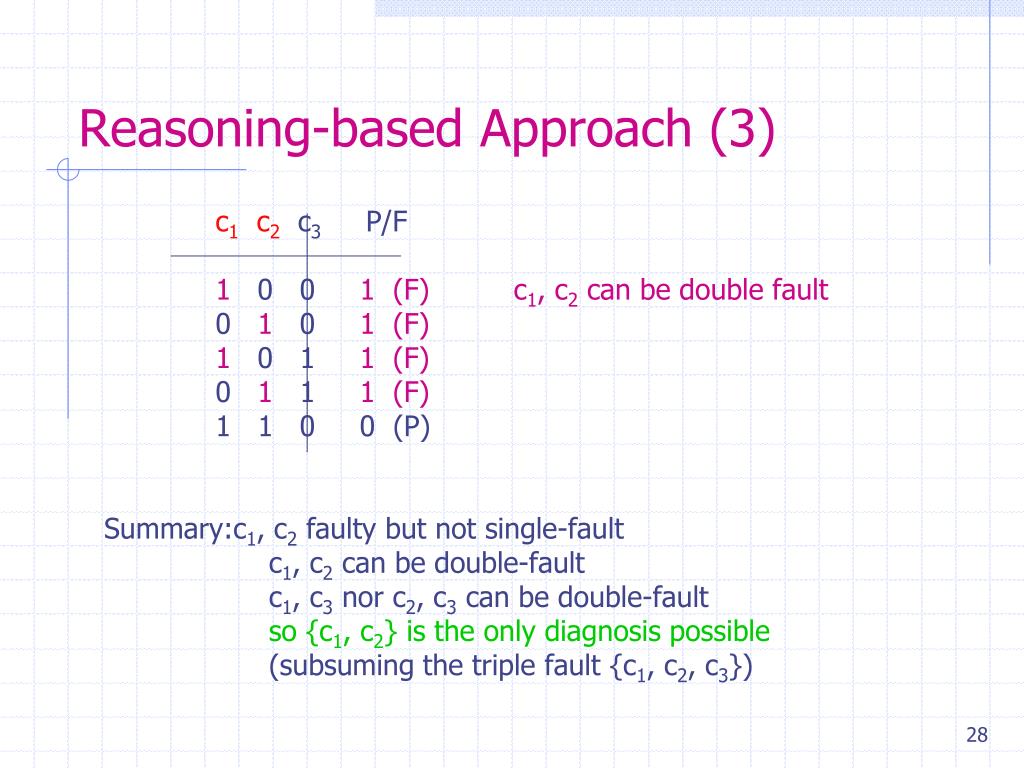

Reasoning-based Approach (3)

c1 c2 c3 P/F

1 0 0 1 (F) c1, c2 can be double fault

0 1 0 1 (F)

1 0 1 1 (F)

0 1 1 1 (F)

1 1 0 0 (P)

Summary:c1, c2 faulty but not single-fault

c1, c2 can be double-fault

c1, c3 nor c2, c3 can be double-fault

so {c1, c2} is the only diagnosis possible

(subsuming the triple fault {c1, c2, c3})


Idea extend sfl with mbd

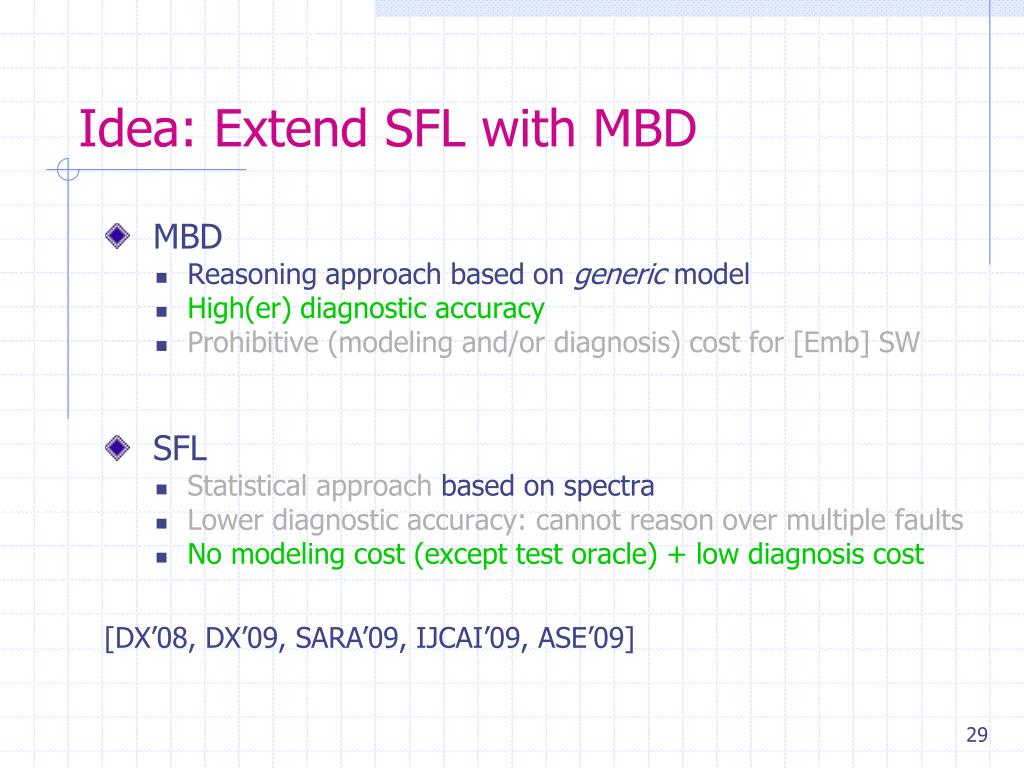

Idea: Extend SFL with MBD

  • MBD

    • Reasoning approach based on generic model

    • High(er) diagnostic accuracy

    • Prohibitive (modeling and/or diagnosis) cost for [Emb] SW

  • SFL

    • Statistical approach based on spectra

    • Lower diagnostic accuracy: cannot reason over multiple faults

    • No modeling cost (except test oracle) + low diagnosis cost

[DX’08, DX’09, SARA’09, IJCAI’09, ASE’09]


Spectrum based reasoning

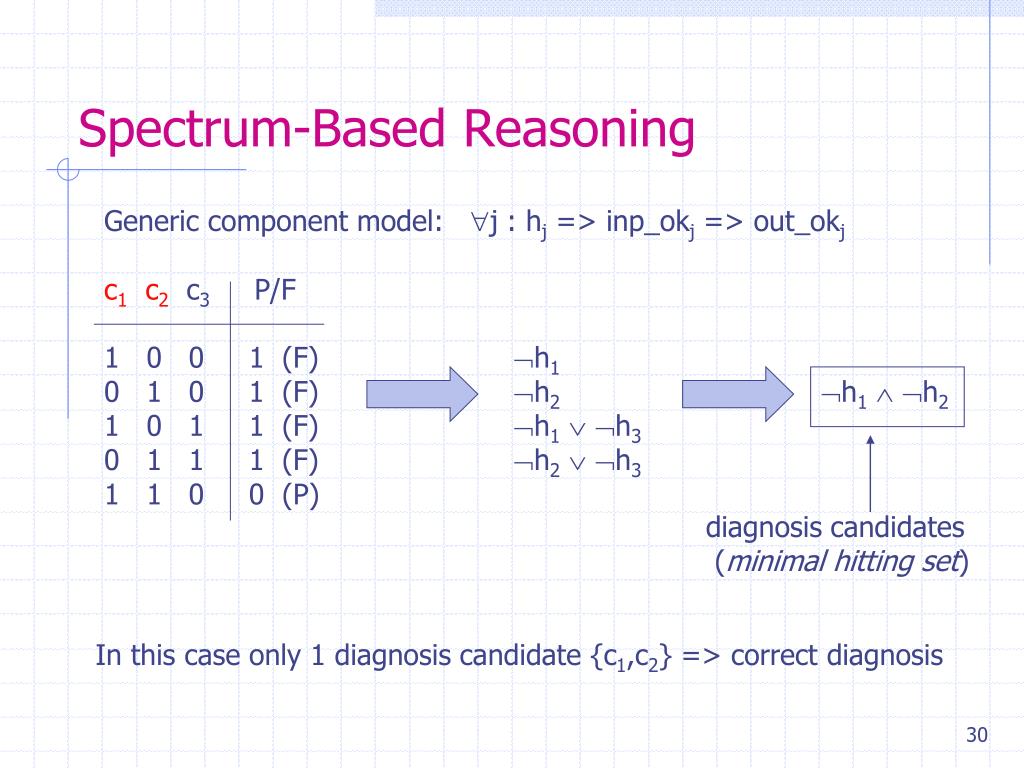

Spectrum-Based Reasoning

Generic component model: j : hj => inp_okj => out_okj

c1 c2 c3 P/F

1 0 0 1 (F) h1

0 1 0 1 (F)h2h1h2

1 0 1 1 (F) h1h3

0 1 1 1 (F)h2h3

1 1 0 0 (P)

diagnosis candidates

(minimal hitting set)

In this case only 1 diagnosis candidate {c1,c2} => correct diagnosis


Bayesian probability ranking

Bayesian Probability Ranking

Many diagnostic candidates dk (e.g., d1 = {c3}, d2 = {c4, c5}, ..)

=> Diagnosis = candidates ordered in terms of probability

Bayes’ rule: Pr(dk|obsi) = ( Pr(obsi|dk) Pr(dk|obsi-1) ) / Pr(obsi)

A priori Pr(dk) = p|dk| (1-pM-|dk|) where p fault probability of c

Intermittent component failure model: gj [0,1]

System failure model: failure when  1 comp. fails (Pr=(1-gj))

=> Pr(obsi|dk) = 1 - j gj for fail; Pr(obsi|dk) = j gj for pass


Example diagnosis

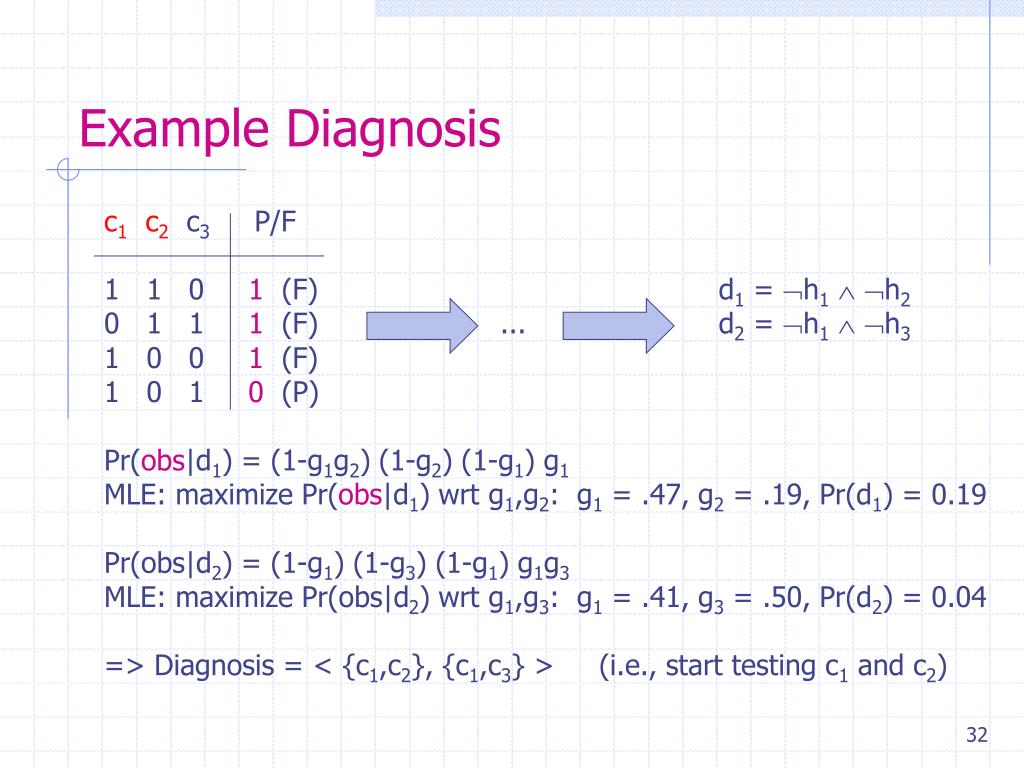

Example Diagnosis

c1 c2 c3 P/F

1 1 0 1 (F) d1 = h1h2

0 1 1 1 (F) ...d2 = h1h3

1 0 0 1 (F)

1 0 1 0 (P)

Pr(obs|d1) = (1-g1g2) (1-g2) (1-g1) g1

MLE: maximize Pr(obs|d1) wrt g1,g2: g1 = .47, g2 = .19, Pr(d1) = 0.19

Pr(obs|d2) = (1-g1) (1-g3) (1-g1) g1g3

MLE: maximize Pr(obs|d2) wrt g1,g3: g1 = .41, g3 = .50, Pr(d2) = 0.04

=> Diagnosis = < {c1,c2}, {c1,c3} > (i.e., start testing c1 and c2)


Implementation zoltar

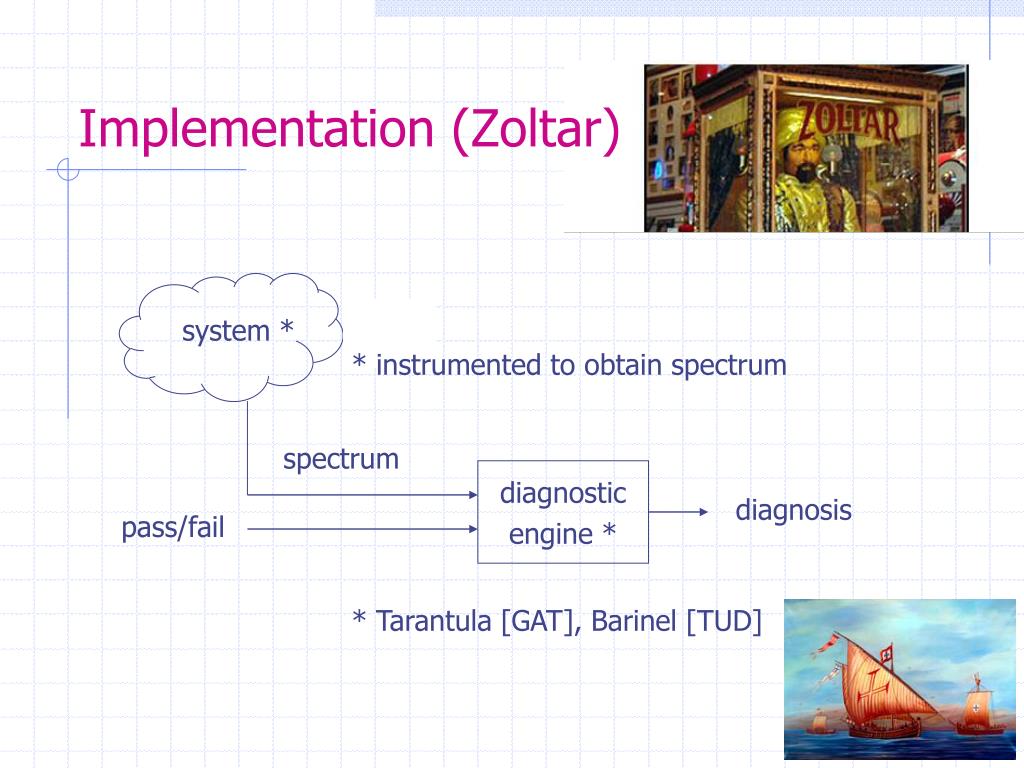

Implementation (Zoltar)

system *

* instrumented to obtain spectrum

spectrum

diagnostic

engine *

diagnosis

pass/fail

* Tarantula [GAT], Barinel [TUD]


Diagnostic work metric

Diagnostic Work - Metric

  • Wasted effort W

    • Excess work to find the faulty components

    • Independent of C

      • As opposed to measuring work

    • As an example, suppose

      • A M=10-component program, c1 and c2 are faulty

      • D = <{1,3}, {3,5}, {2,4}>

      • W = 2/10


Diagnostic work vs obs

Diagnostic Work vs. # Obs

(5 faults / 20)


Case studies siemens set

Case Studies (Siemens set)


Case studies psc nxp

Case Studies (PSC/NXP)


Outline2

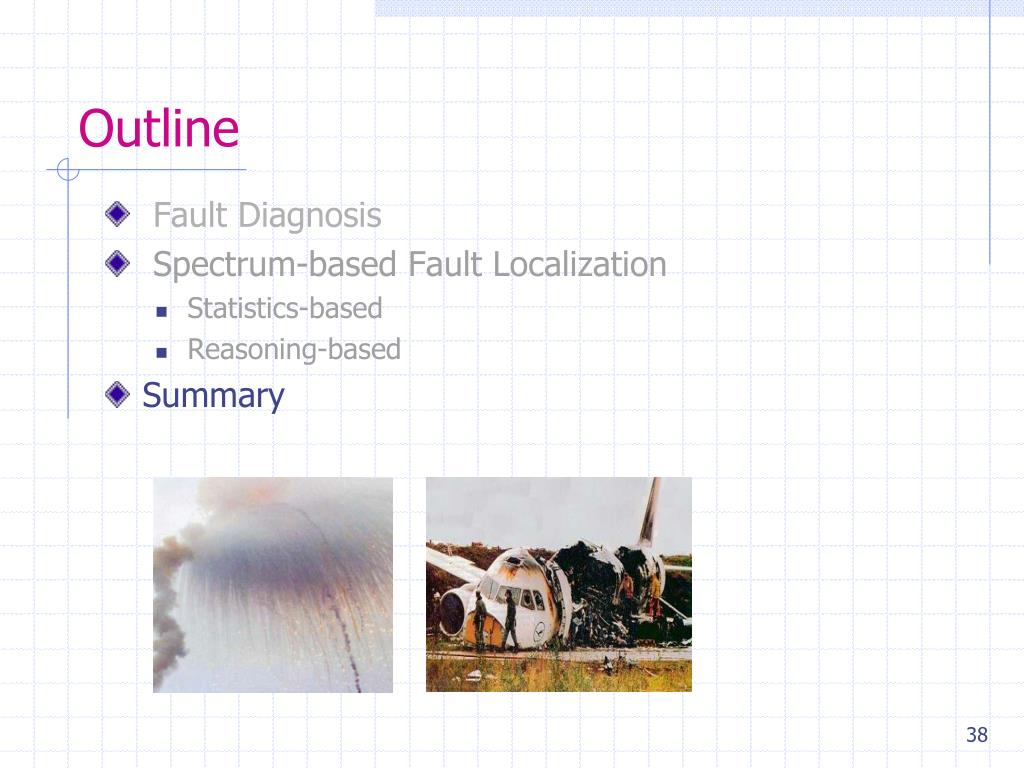

Outline

  • Fault Diagnosis

  • Spectrum-based Fault Localization

    • Statistics-based

    • Reasoning-based

  • Summary


Summary

Summary

  • Fault diagnosis critical success factor in developing SW

  • SFL viable approach to SW fault diagnosis

  • Bayesian reasoning extension yields more accuracy at marginal complexity increase

  • Work is appreciated by the scientific community

    • 28 research papers published and a best demo award @ ASE’09

  • On its way: Java + eclipse plug-in + graphical display of results

  • Acknowledgments: Arjan van Gemund (TUD), Peter Zoeteweij (ex-TUD), Johan de Kleer (PARC), Wolfgang Mayer (UniSA), Markus Stumptner (UniSA), Rob Golsteijn (Philips/NXP Semiconductors), Hasan Sozer (UTwente), Mehmet Aksit (UTwente), ….


Fault diagnosis of software systems

Help me!

I’ve got a problem. We might lose the picture for a while…

No Way, Not now!They’re about to score! I’ll recover for you!


Fault diagnosis of software systems

Questions ?


Assignments

Assignments

  • Debugging functional languages

    • Would these concepts apply to e.g., scala?

  • Visualizations for spreadsheets’ diagnostic reports

  • How to automatically detect errors?

  • Mobile Apps: testing and debugging

    • Android ; Windows Phone (2 different assignments)

  • SFL for software evolution


  • Login
