Eecs 122 introduction to computer networks evolution of the internet

EECS 122: Introduction to Computer Networks Evolution of the Internet

Computer Science Division

Department of Electrical Engineering and Computer Sciences

University of California, Berkeley

Berkeley, CA 94720-1776


Eecs 122 introduction to computer networks evolution of the internet

R U RDY 4 WOTS NXT?

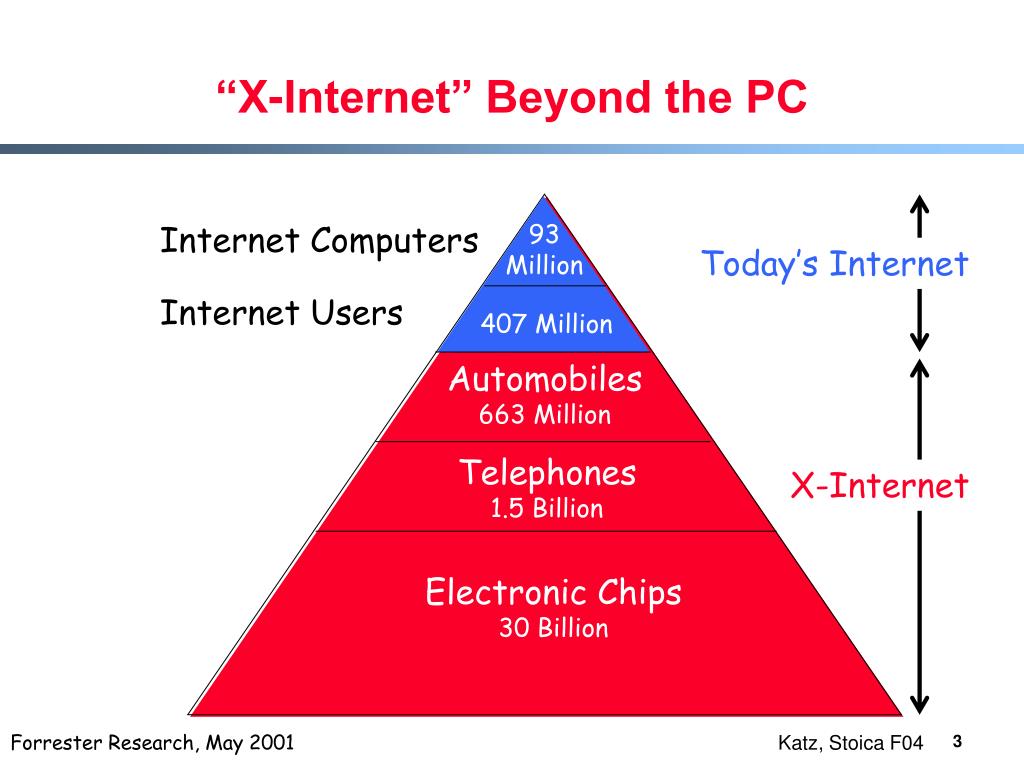

X internet beyond the pc

93

Million

Internet Computers

Today’s Internet

Internet Users

407 Million

Automobiles

663 Million

Telephones

1.5 Billion

X-Internet

Electronic Chips

30 Billion

“X-Internet” Beyond the PC

Forrester Research, May 2001

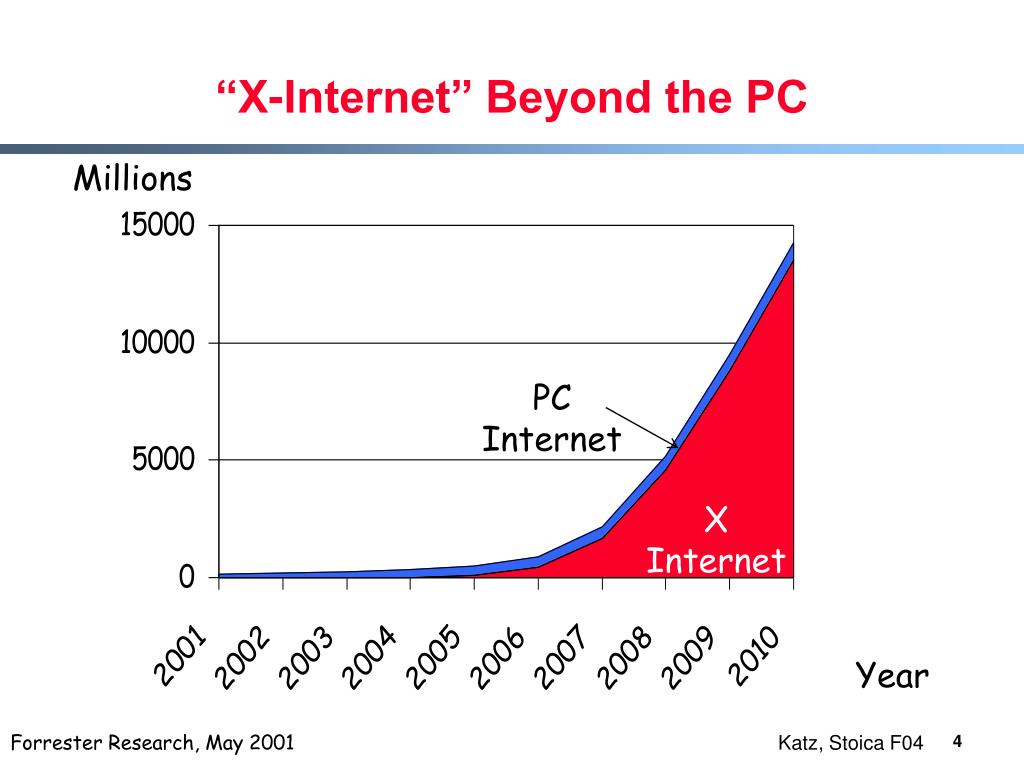

X internet beyond the pc1

Millions

PC

Internet

X

Internet

Year

“X-Internet” Beyond the PC

Forrester Research, May 2001


The old days

Shape of Things Today: Diverse Appliances and Devices

Game Consoles

Personal Digital Assistants

Digital VCRs

Communicators

Smart Telephones

E-Toys

The Old Days

All will demand broadband

Internet connectivity

… and 10BaseT won’t be sufficient


Future of the internet

Future of the Internet

  • Mobile IP

  • Networked Everything: Sensor Nets

  • Internet Economics


Why mobile ip

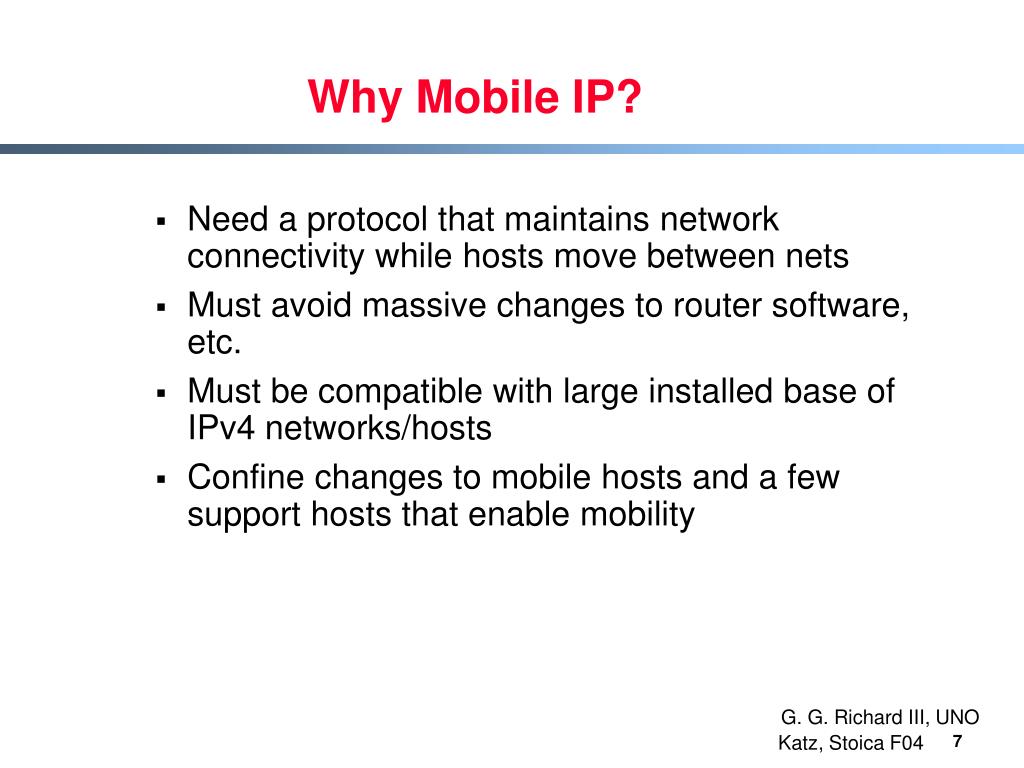

Why Mobile IP?

  • Need a protocol that maintains network connectivity while hosts move between nets

  • Must avoid massive changes to router software, etc.

  • Must be compatible with large installed base of IPv4 networks/hosts

  • Confine changes to mobile hosts and a few support hosts that enable mobility

G. G. Richard III, UNO


Mobile ip basics

Mobile IP: Basics

  • Proposed by IETF (Internet Engineering Task Force)

    • Standards development body for the Internet

  • Allows a mobile host (MH) to move about without changing its permanent IP address

  • Each mobile host has a home agent (HA) on its home network

  • MH establishes a care-of address when it's away from home

G. G. Richard III, UNO

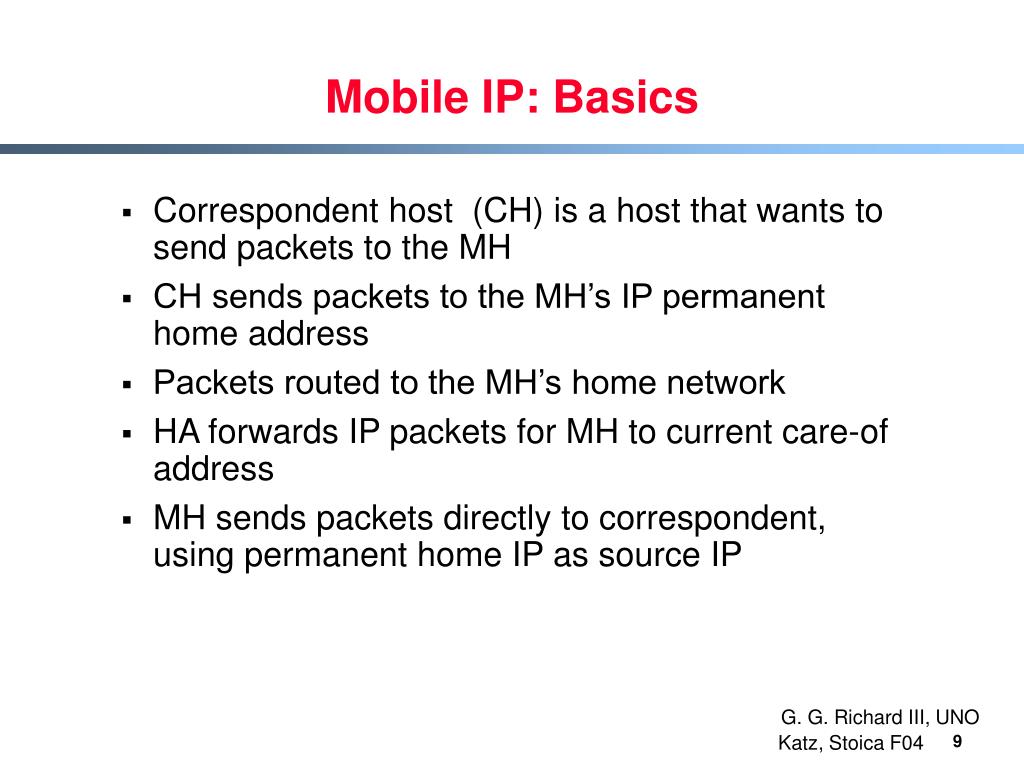

Mobile ip basics1

Mobile IP: Basics

  • Correspondent host (CH) is a host that wants to send packets to the MH

  • CH sends packets to the MH’s IP permanent home address

  • Packets routed to the MH’s home network

  • HA forwards IP packets for MH to current care-of address

  • MH sends packets directly to correspondent, using permanent home IP as source IP

G. G. Richard III, UNO


Mobile ip basics2

Mobile IP: Basics

correspondent host

home agent

G. G. Richard III, UNO


Mobile ip care of addresses

Mobile IP: Care-of Addresses

  • When MH connects to a remote network:

    • Care-of can be the address of a foreign agent (FA) on the remote network

      • FA delivers packets forwarded from HA to MA

    • Care-of can be a temporary, foreign IP address obtained through, e.g., DHCP

      • HA tunnels packets directly to the temporary IP address

  • Care-of address must be registered with HA

G. G. Richard III, UNO

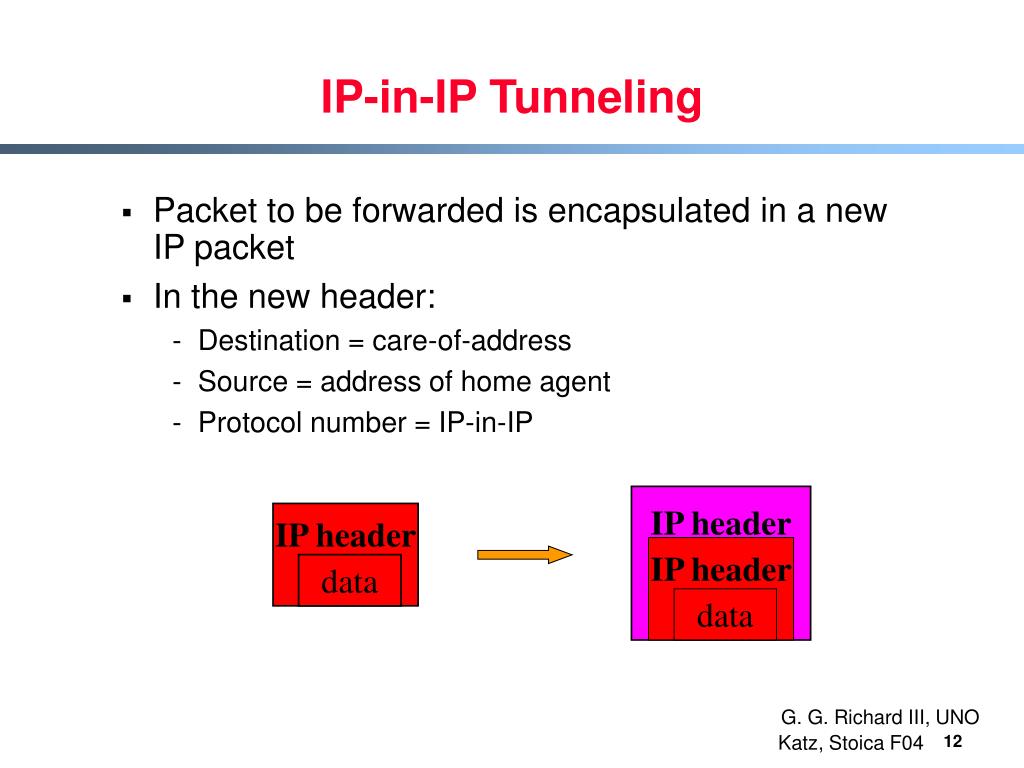

Ip in ip tunneling

IP header

IP header

data

data

IP-in-IP Tunneling

  • Packet to be forwarded is encapsulated in a new IP packet

  • In the new header:

    • Destination = care-of-address

    • Source = address of home agent

    • Protocol number = IP-in-IP

IP header

G. G. Richard III, UNO


At the other end

At the Other End...

  • Depending on type of care-of address:

    • FA or

    • MH

  • … strips outer IP header of tunneled packet, which is then fed to the MH

G. G. Richard III, UNO


Routing inefficiency

Routing Inefficiency

MH and CH may even be on the same network!!

correspondent host

home agent

G. G. Richard III, UNO


Route optimizations

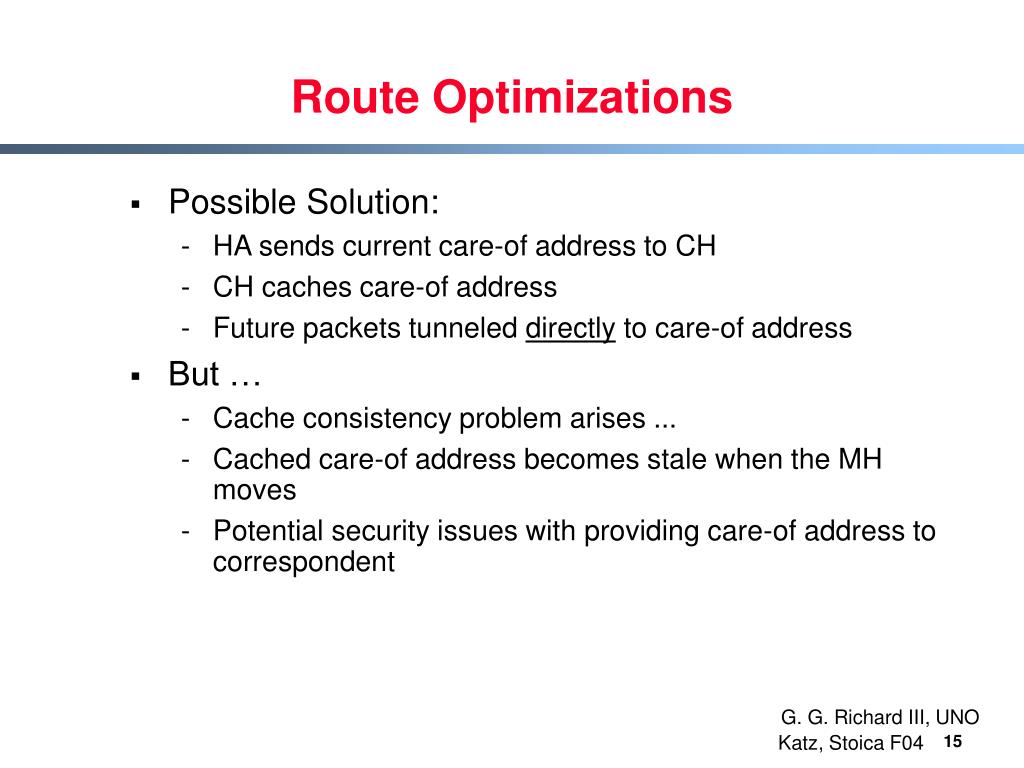

Route Optimizations

  • Possible Solution:

    • HA sends current care-of address to CH

    • CH caches care-of address

    • Future packets tunneled directly to care-of address

  • But …

    • Cache consistency problem arises ...

    • Cached care-of address becomes stale when the MH moves

    • Potential security issues with providing care-of address to correspondent

G. G. Richard III, UNO

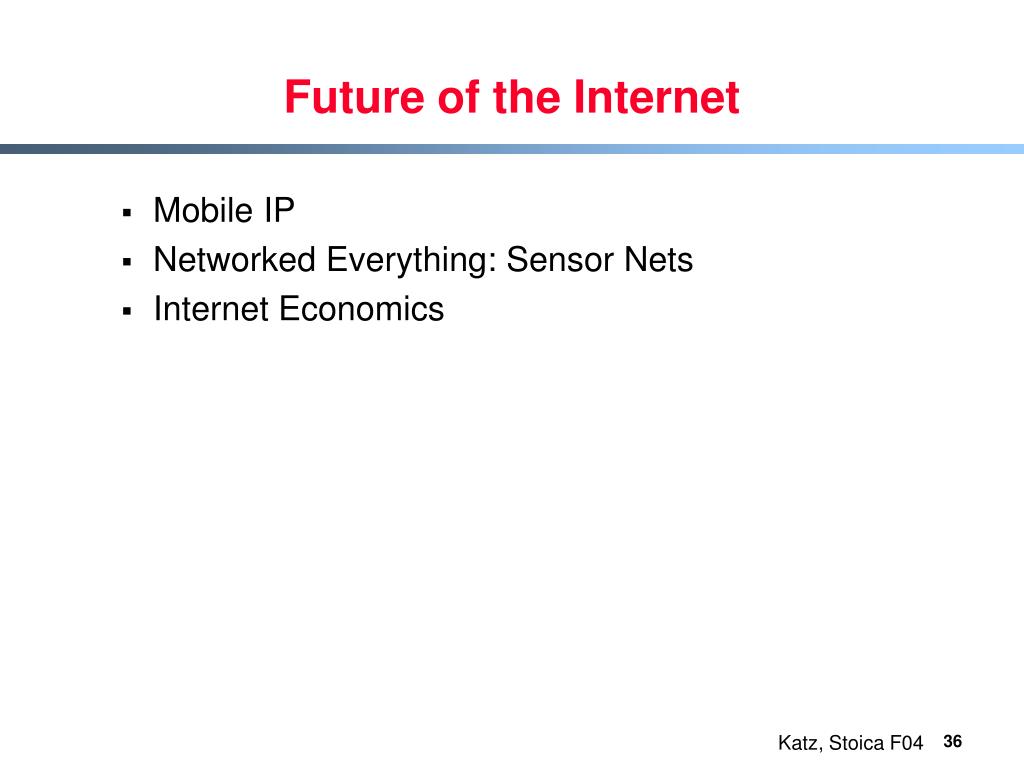

Future of the internet1

Future of the Internet

  • Mobile IP

  • Networked Everything: Sensor Nets

  • Internet Economics


Eecs 122 introduction to computer networks evolution of the internet

Embedded Sensor Nets: Enabling Technologies

Embednumerous distributed devices to monitor and interact with physical world

Networkdevices tocoordinate and perform higher-level tasks

Embedded

Networked

Exploitcollaborative

Sensing, action

Control system w/

Small form factor

Untethered nodes

Sensing

Tightly coupled to physical world

Exploit spatially/temporally dense, in situ/remote, sensing/actuation

Jim Kurose, UMass

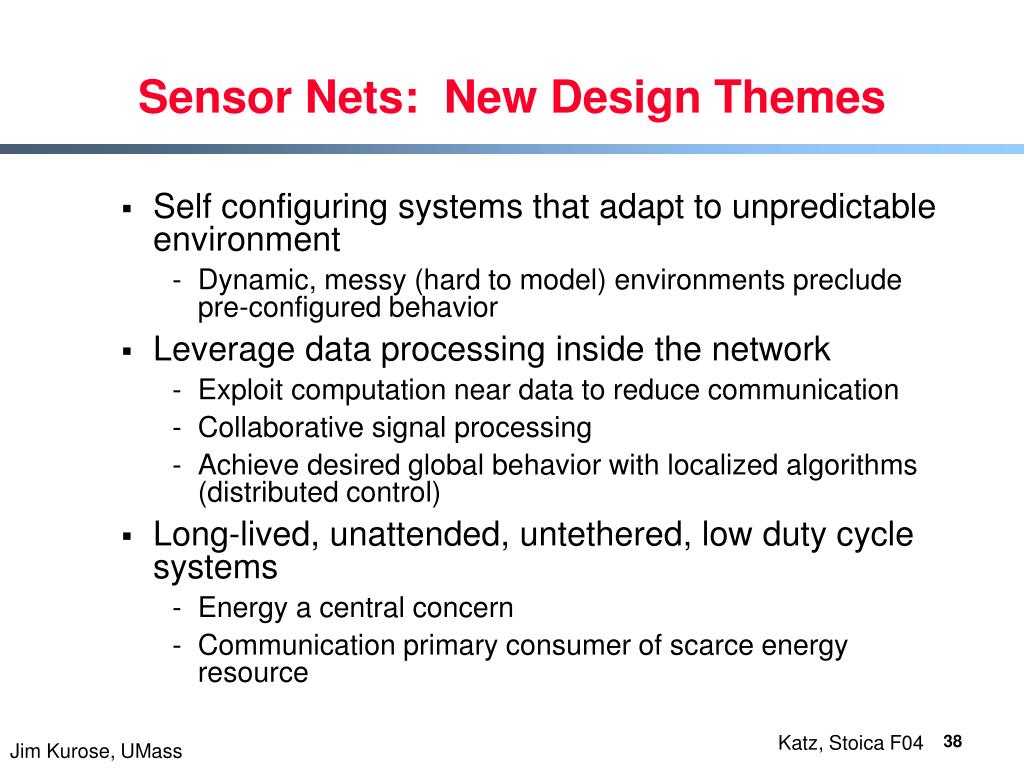

Sensor nets new design themes

Sensor Nets: New Design Themes

  • Self configuring systems that adapt to unpredictable environment

    • Dynamic, messy (hard to model) environments preclude pre-configured behavior

  • Leverage data processing inside the network

    • Exploit computation near data to reduce communication

    • Collaborative signal processing

    • Achieve desired global behavior with localized algorithms (distributed control)

  • Long-lived, unattended, untethered, low duty cycle systems

    • Energy a central concern

    • Communication primary consumer of scarce energy resource

Jim Kurose, UMass


From embedded sensing to embedded control

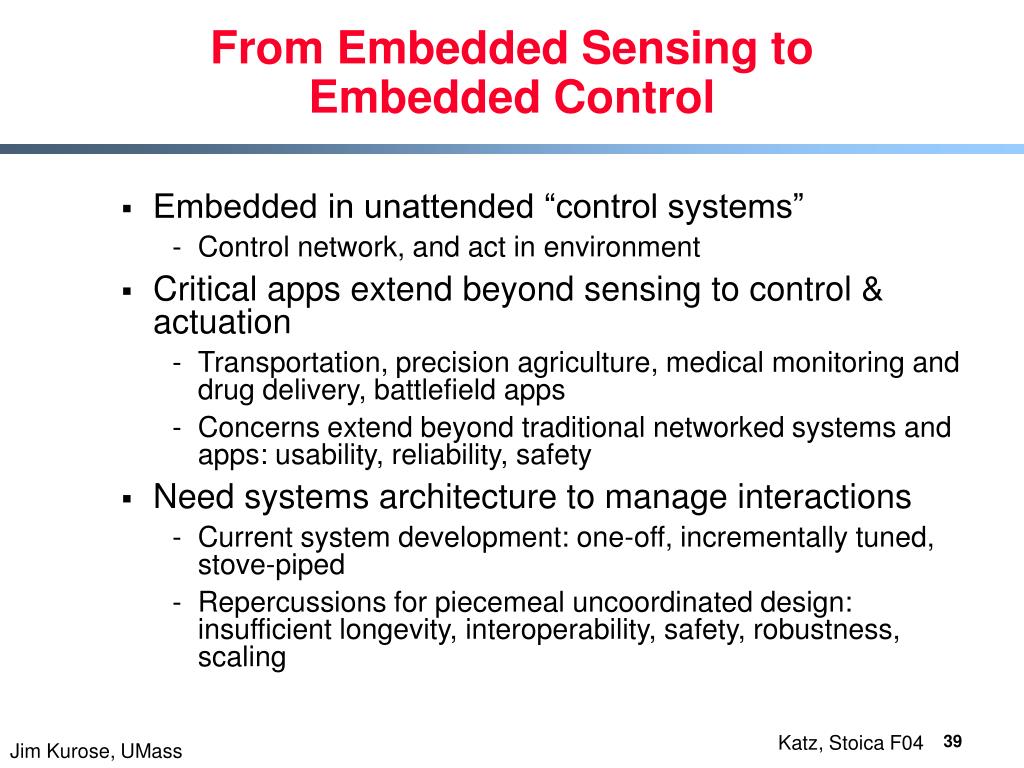

From Embedded Sensing to Embedded Control

  • Embedded in unattended “control systems”

    • Control network, and act in environment

  • Critical apps extend beyond sensing to control & actuation

    • Transportation, precision agriculture, medical monitoring and drug delivery, battlefield apps

    • Concerns extend beyond traditional networked systems and apps: usability, reliability, safety

  • Need systems architecture to manage interactions

    • Current system development: one-off, incrementally tuned, stove-piped

    • Repercussions for piecemeal uncoordinated design: insufficient longevity, interoperability, safety, robustness, scaling

Jim Kurose, UMass


Why not simply adapt internet protocols end to end architecture

Why Not Simply Adapt Internet Protocols, “End-to-End” Architecture?

  • Internet routes data using IP Addresses in Packets and Lookup tables in routers

    • Humans get data by “naming data” to a search engine

    • Many levels of indirection between name and IP address

    • Embedded, energy-constrained (un-tethered, small-form-factor), unattended systems cant tolerate communication overhead of indirection

  • Special purpose system function(s): don’t need want Internet general purpose functionality designed for elastic applications

Jim Kurose, UMass

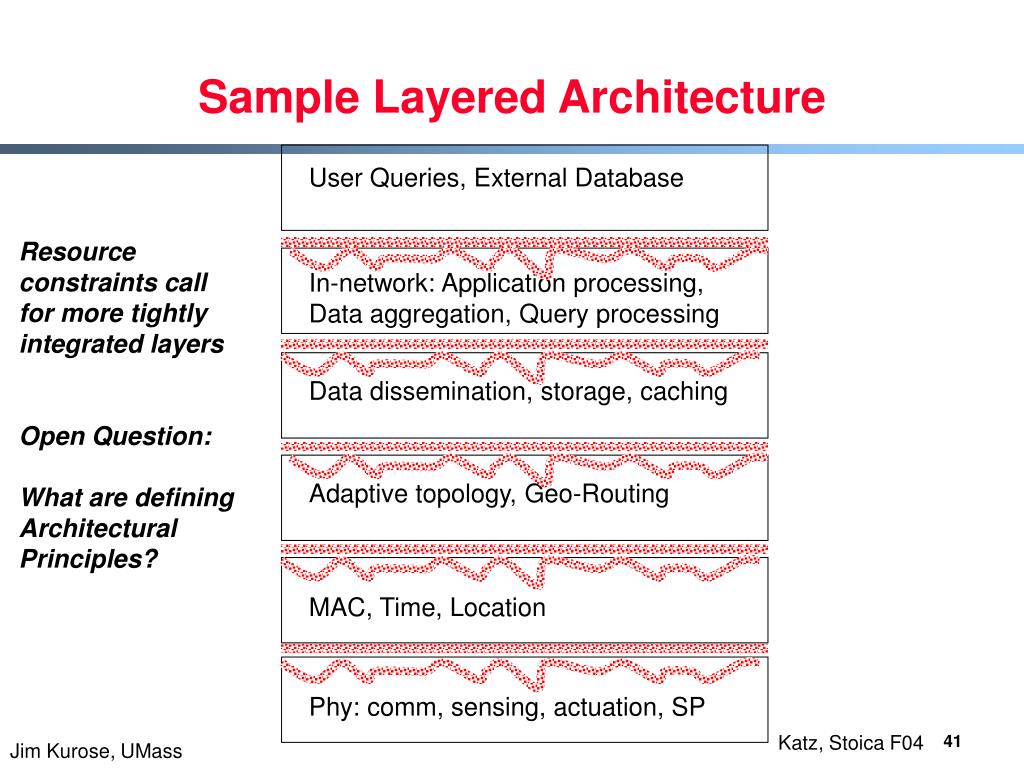

Sample layered architecture

Sample Layered Architecture

User Queries, External Database

Resource constraints call for more tightly integrated layers

Open Question:

What are defining

Architectural

Principles?

In-network: Application processing, Data aggregation, Query processing

Data dissemination, storage, caching

Adaptive topology, Geo-Routing

MAC, Time, Location

Phy: comm, sensing, actuation, SP

Jim Kurose, UMass


Sensors

Sensors

  • Passive elements: seismic, acoustic, infrared, strain, salinity, humidity, temperature, etc.

  • Passive Arrays: imagers (visible, IR), biochemical

  • Active sensors: radar, sonar

    • High energy, in contrast to passive elements

  • Technology trend: use of IC technology for increased robustness, lower cost, smaller size

    • COTS adequate in many of these domains; work remains to be done in biochemical

Jim Kurose, UMass

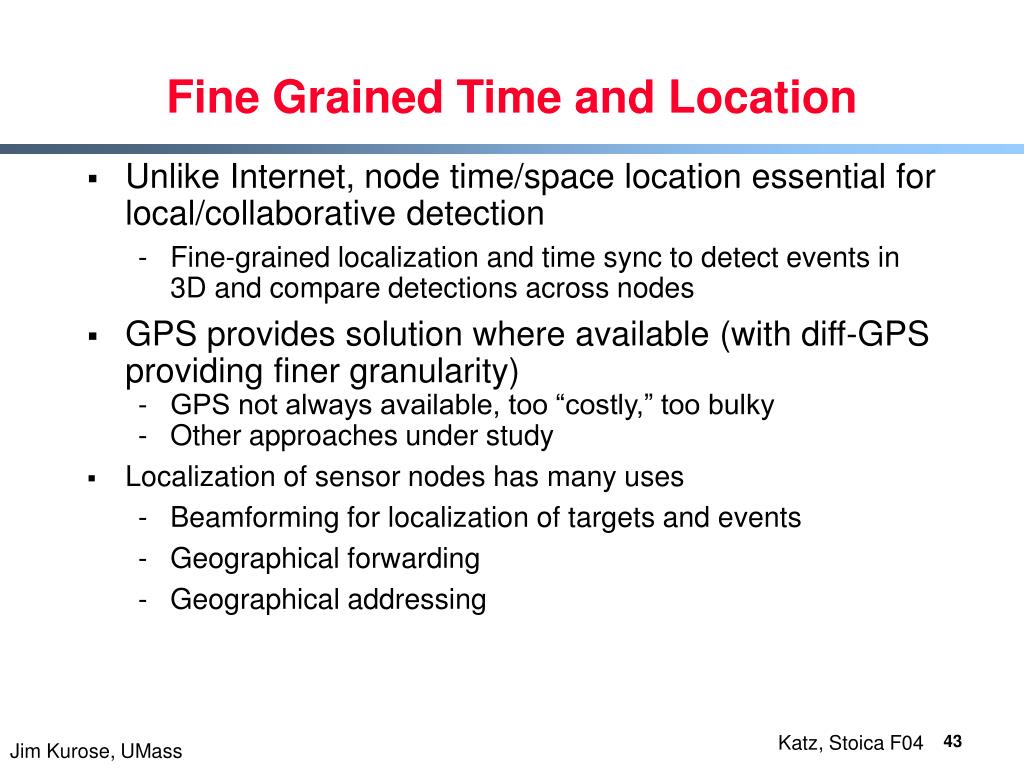

Fine grained time and location

Fine Grained Time and Location

  • Unlike Internet, node time/space location essential for local/collaborative detection

    • Fine-grained localization and time sync to detect events in 3D and compare detections across nodes

  • GPS provides solution where available (with diff-GPS providing finer granularity)

    • GPS not always available, too “costly,” too bulky

    • Other approaches under study

  • Localization of sensor nodes has many uses

    • Beamforming for localization of targets and events

    • Geographical forwarding

    • Geographical addressing

Jim Kurose, UMass


Coverage measures

Area coverage: fraction of area covered by sensors

Detectability: probability sensors detect moving objects

Node coverage: fraction of sensors covered by other sensors

Control:

Where to add new nodes for max coverage

How to move existing nodes for max coverage

Coverage Measures

D

x

S

Given: sensor field (either known sensor locations, or spatial density)

Jim Kurose, UMass


In network processing

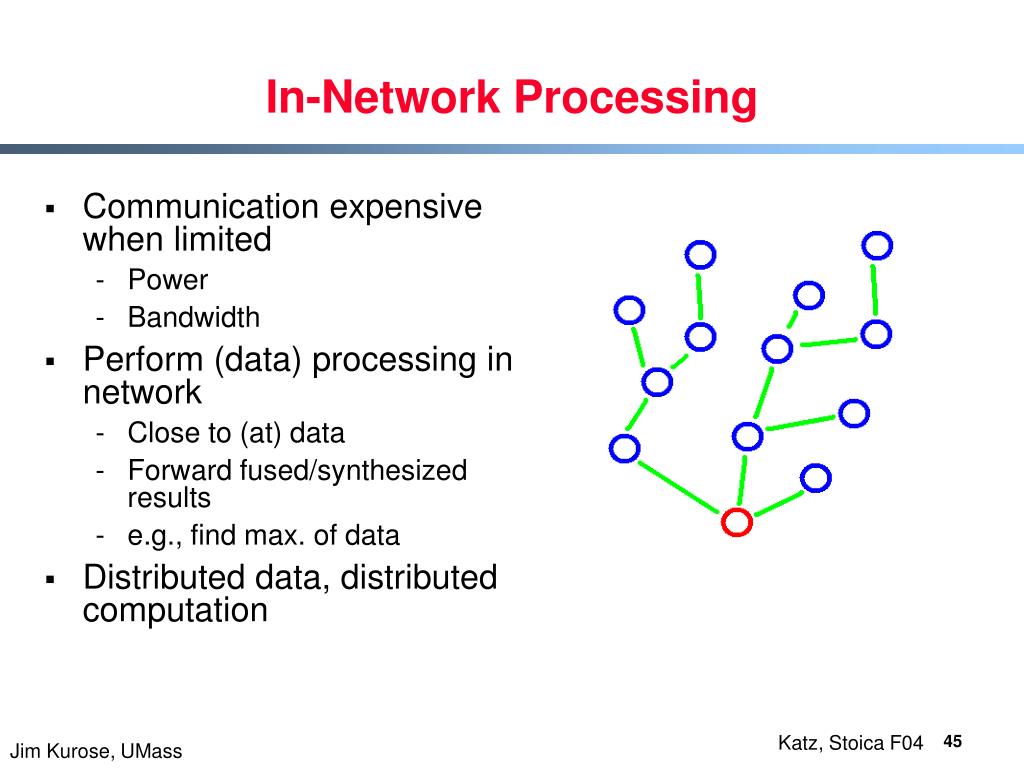

In-Network Processing

  • Communication expensive when limited

    • Power

    • Bandwidth

  • Perform (data) processing in network

    • Close to (at) data

    • Forward fused/synthesized results

    • e.g., find max. of data

  • Distributed data, distributed computation

Jim Kurose, UMass


Distributed representation and storage

K V

K V

K V

K V

K V

K V

K V

K V

K V

K V

Time

K V

Distributed Representation and Storage

  • Data Centric Protocols, In-network Processing goal:

    • Interpretation of spatially distributed data (Per-node processing alone is not enough)

    • Network does in-network processing based on distribution of data

    • Queries automatically directed towards nodes that maintain relevant/matching data

  • Pattern-triggered data collection

    • Multi-resolution data storage and retrieval

    • Distributed edge/feature detection

    • Index data for easy temporal and spatial searching

    • Finding global statistics (e.g., distribution)

Jim Kurose, UMass


Directed diffusion data centric routing

Directed Diffusion: Data Centric Routing

  • Basic idea

    • Name data (not nodes) with externally relevant attributes: data type, time, location of node, SNR,

    • Diffuse requests and responses across network using application driven routing (e.g., geo sensitive or not)

    • Support in-network aggregation and processing

  • Data sources publish data, data clients subscribe to data

    • However, all nodes may play both roles

      • Node that aggregates/combines/processes incoming sensor node data becomes a source of new data

      • Node that only publishes when combination of conditions arise, is client for triggering event data

    • True peer to peer system?

Jim Kurose, UMass


Future of the internet2

Future of the Internet

  • Mobile IP

  • Networked Everything: Sensor Nets

  • Internet Economics


The big picture

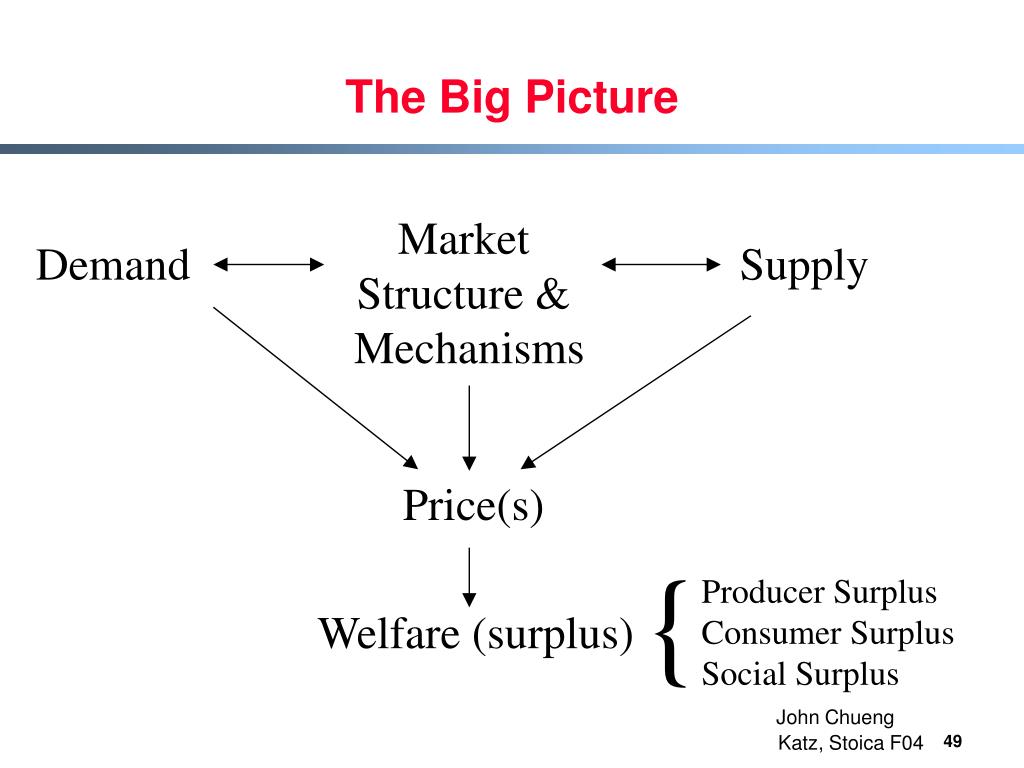

The Big Picture

Market

Structure &

Mechanisms

Demand

Supply

Price(s)

{

Producer Surplus

Consumer Surplus

Social Surplus

Welfare (surplus)

John Chueng
