Camera Calibration

CS485/685 Computer Vision

Prof. Bebis


Camera calibration goal l.jpg

f/sy

f/sx

Camera Calibration - Goal

  • Estimate the extrinsic and intrinsic camera parameters.


Camera calibration how l.jpg

f/sy

f/sx

Camera Calibration - How

  • Using a set of known correspondences between point features in the world (Xw, Yw, Zw) and their projections on the image (xim, yim)


Calibration object l.jpg

Calibration Object

  • Calibration relies on one or more images of a calibration object:

    (1) A 3D object of known geometry.

    (2) Located in a known position in space.

    (3) Yields image features which can be located accurately.


Calibration object example l.jpg

Calibration object: example

  • Two orthogonal grids of

    equally spaced black squares.

  • Assume that the world

    reference frame is centered at

    the lower left corner of the

    right grid, with axes parallel to

    the three directions identified by

    the calibration pattern.


Calibration pattern example cont d l.jpg

Calibration pattern: example (cont’d)

  • Obtain 3D coordinates (Xw, Yw, Zw)

    • Given the size of the planes, the number of squares etc. (i.e., all known by construction), the coordinates of each vertex can be computed in the world reference frame using trigonometry.


Calibration pattern example cont d7 l.jpg

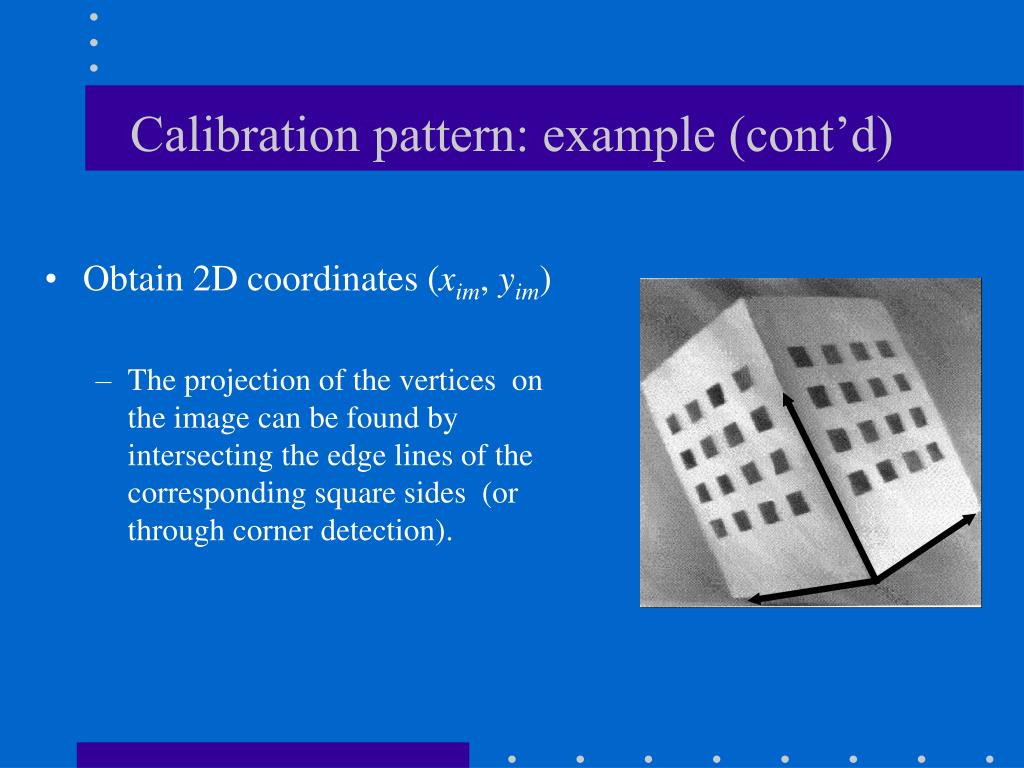

Calibration pattern: example (cont’d)

  • Obtain 2D coordinates (xim, yim)

    • The projection of the vertices on the image can be found by intersecting the edge lines of the corresponding square sides (or through corner detection).


Problem statement l.jpg

Problem Statement

Compute the extrinsic and intrinsic camera

parameters from N corresponding pairs of points:

and (xim_i, yim_i), i = 1, . . . , N.

  • Very well studied problem.

  • There exist many different methods for camera calibration.


Methods l.jpg

Methods

(1) Indirect camera calibration

(1.1) Estimate the elements of the projection matrix.

(1.2) If needed, compute the intrinsic/extrinsic camera parameters from the entries of the projection matrix.


Methods cont d l.jpg

Methods (cont’d)

(2) Direct camera calibration

Direct recovery of the intrinsic and extrinsic camera parameters.


Method 1 indirect camera calibration l.jpg

Method 1: Indirect Camera Calibration

  • Review of basic equations

Note: replaced (xim,yim) with (x,y) for simplicity.


Method 1 step 1 solve for m ij s l.jpg

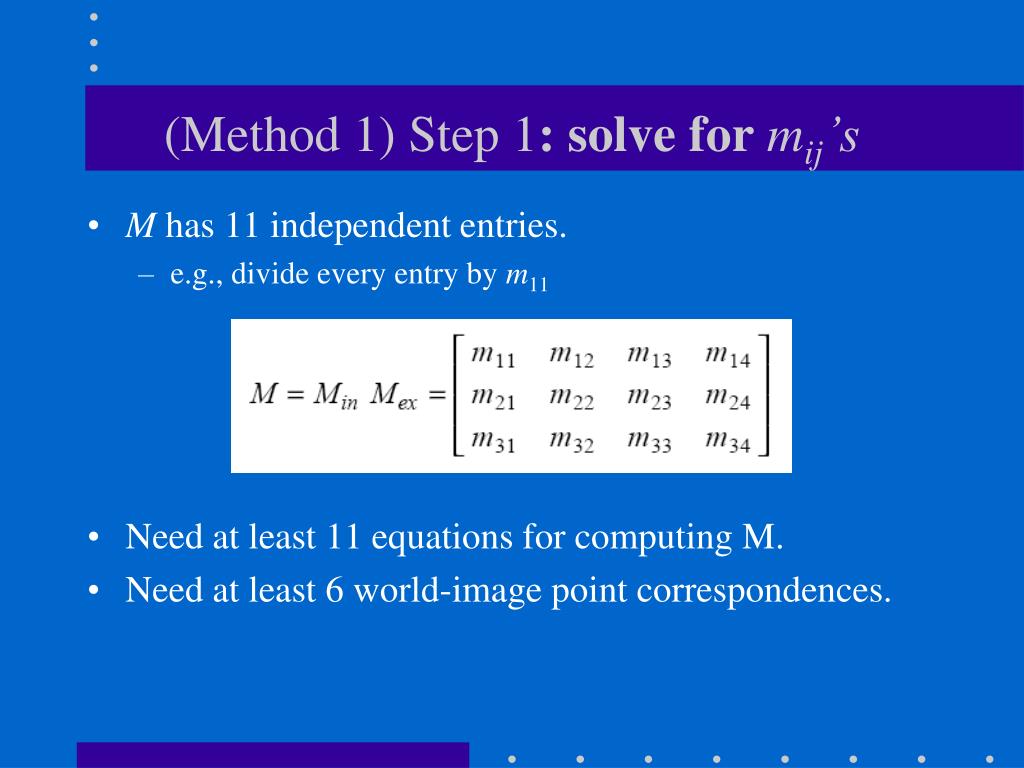

(Method 1) Step 1: solve for mij’s

  • M has 11 independent entries.

    • e.g., divide every entry by m11

  • Need at least 11 equations for computing M.

  • Need at least 6 world-image point correspondences.


Method 1 step 1 solve for m ij s13 l.jpg

(Method 1) Step 1: solve for mij’s

  • Each 3D-2D correspondence gives rise to two equations:


Method 1 step 1 solve for m ij s14 l.jpg

(Method 1) Step 1: solve for mij’s

  • This leads to a homogeneous system of equations:

N x 12 matrix


Method 1 step 1 solve for m ij s15 l.jpg

(Method 1) Step 1: solve for mij’s


Method 1 step 2 find intrinsic extrinsic parameters l.jpg

(Method 1) Step 2: find intrinsic/extrinsic parameters


Method 1 step 2 find intrinsic extrinsic parameters17 l.jpg

(Method 1) Step 2: find intrinsic/extrinsic parameters

  • Let’s define the following vectors:


Slide18 l.jpg

(Method 1) Step 2: find intrinsic/extrinsic parameters

  • The solutions are as follows (see book chapter for details):

  • The rest parameters are easily computed ....


Method 2 direct camera calibration l.jpg

Method 2: Direct Camera Calibration

  • Review of basic equations

    • From world coordinates to camera coordinates

    • For simplicity, we will replace -T’ with T

    • Warning: this is NOT the same T as before!

Pc=RPw+T


Method 2 direct camera calibration cont d l.jpg

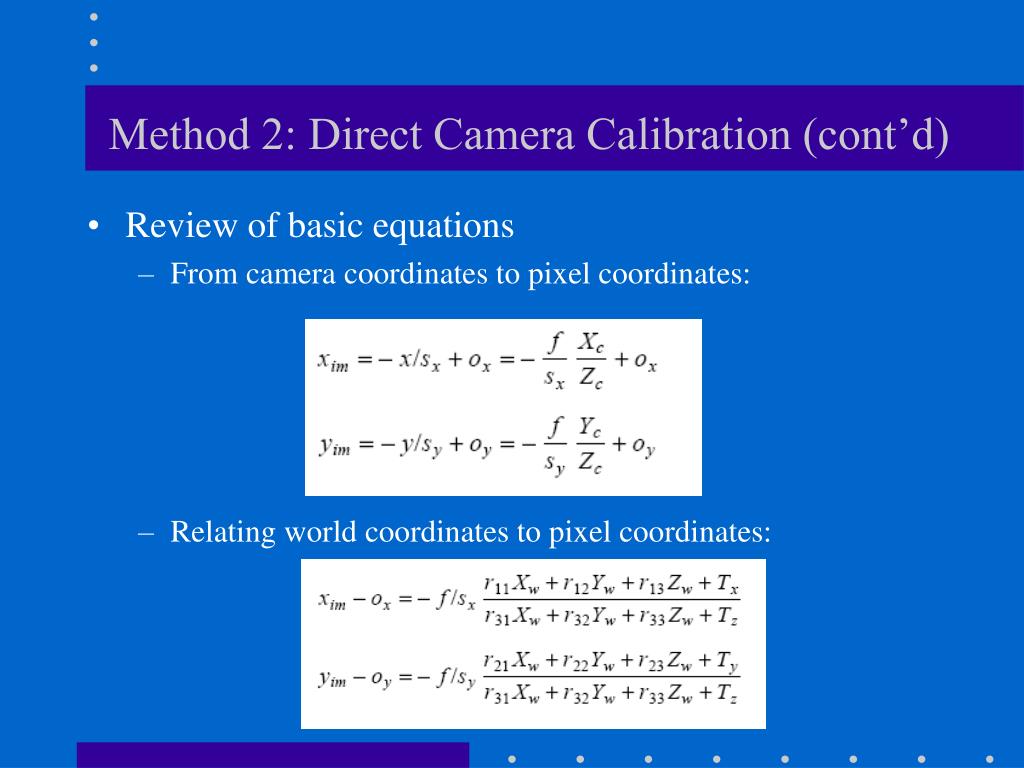

Method 2: Direct Camera Calibration (cont’d)

  • Review of basic equations

    • From camera coordinates to pixel coordinates:

    • Relating world coordinates to pixel coordinates:


Method 2 direct parameter calibration l.jpg

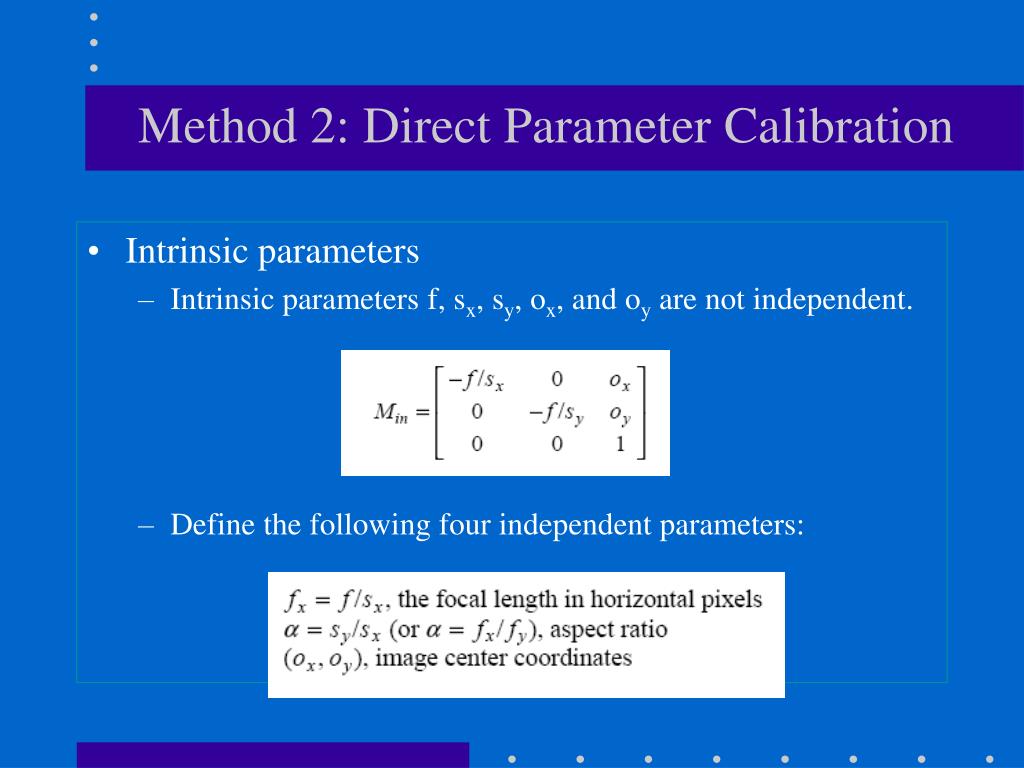

Method 2: Direct Parameter Calibration

  • Intrinsic parameters

    • Intrinsic parameters f, sx, sy, ox, and oy are not independent.

    • Define the following four independent parameters:


Method 2 main steps l.jpg

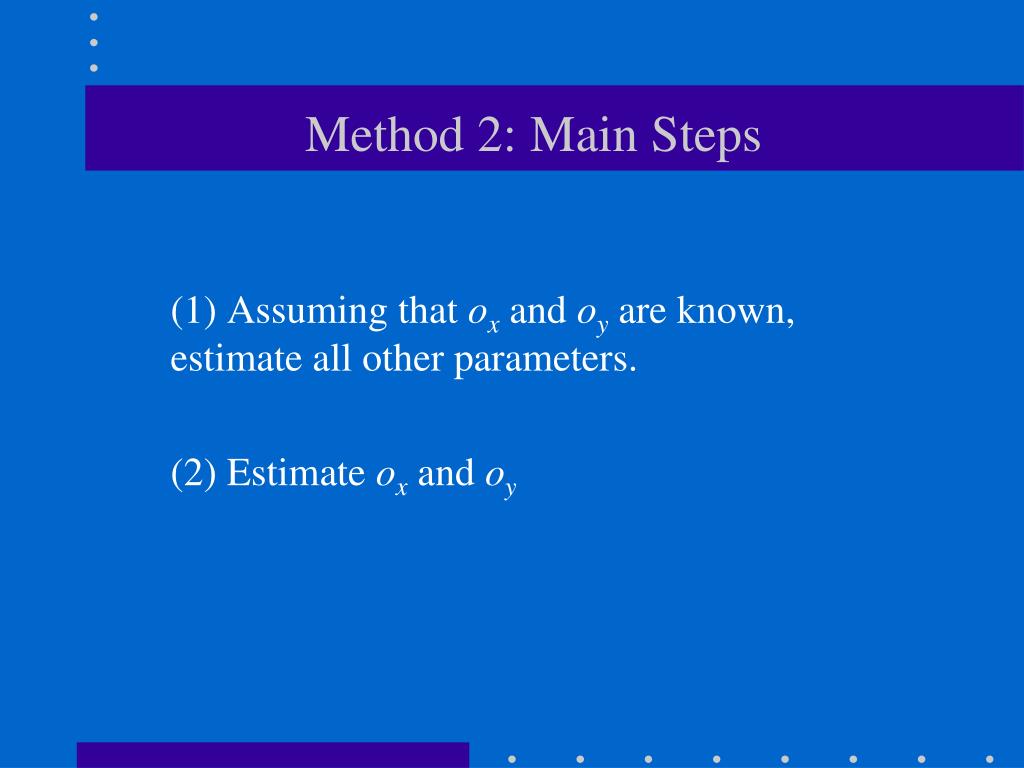

Method 2: Main Steps

(1) Assuming that oxand oyare known, estimate all other parameters.

(2) Estimate oxand oy


Method 2 step 1 estimate f x r and t l.jpg

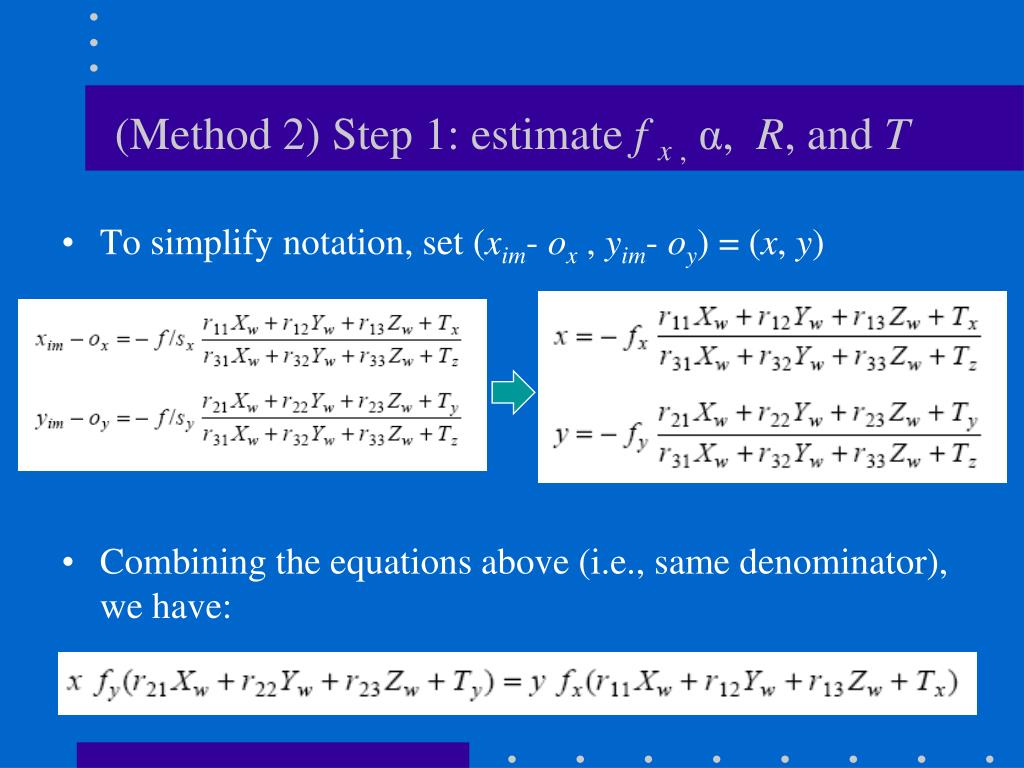

(Method 2) Step 1: estimate f x ,α, R, and T

  • To simplify notation, set (xim- ox, yim- oy) = (x, y)

  • Combining the equations above (i.e., same denominator), we have:


Method 2 step 1 estimate f x r and t cont d l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Each pair of corresponding points must satisfy the previous equation:

divide by f y and re-arrange terms:


Method 2 step 1 estimate f x r and t cont d25 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

we obtain the following equation:

where


Method 2 step 1 estimate f x r and t cont d26 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Assuming N correspondences leads to a homogeneous system :

N x 8 matrix


Method 2 step 1 estimate f x r and t cont d27 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)


Method 2 step 1 estimate f x r and t cont d28 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

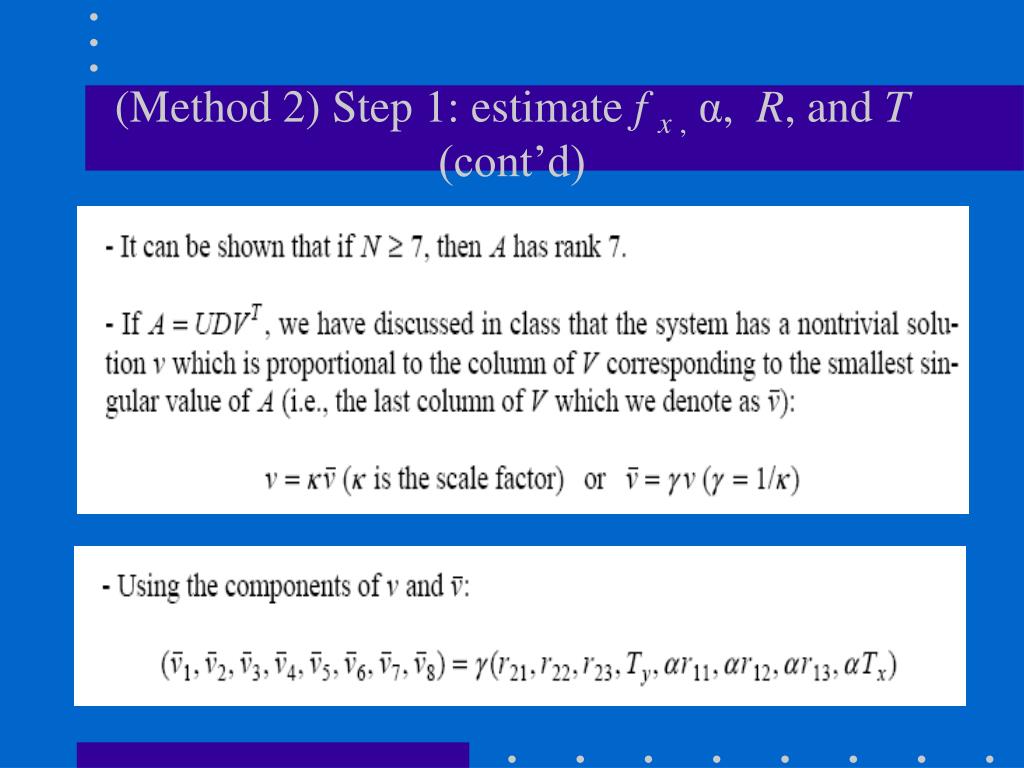

  • Determine α and | γ |


Method 2 step 1 estimate f x r and t cont d29 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Determine r21, r22, r23, r11, r12, r13, Ty, Tx

  • (up to an unknown common sign)


Method 2 step 1 estimate f x r and t cont d30 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Determine r31, r32, r33

    • Can be estimated as the cross product of R1 and R2:

    • The sign of R3 is already fixed (the entries of R3 remain unchanged if the signs of all the entries of R1 and R2 are reversed).

  • We have estimated R  call the estimate


Method 2 step 1 estimate f x r and t cont d31 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Ensure the orthogonality of R

    • The computation of R does not take into account explicitly the orthogonality constraints.

    • The estimate of R cannot be expected to be orthogonal:

    • Enforce orthogonality on using SVD:

    • Replace D with I:


Method 2 step 1 estimate f x r and t cont d32 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Determine the sign of γ

    • Consider the following equations again:


Method 2 step 1 estimate f x r and t cont d33 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)


Method 2 step 1 estimate f x r and t cont d34 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Determine Tz and fx

    • Consider the equation:

    • Let’s rewrite it in the form:

or xTz+fx(r11Xw+r12Yw+r13Zw+Tx) = -x(r31Xw+r32Yw+r33Zw)


Method 2 step 1 estimate f x r and t cont d35 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • We can obtain Tz and fxby solving a system of equations like the above, written for N points:

Using SVD, the (least-squares) solution is:


Method 2 step 1 estimate f x r and t cont d36 l.jpg

(Method 2) Step 1: estimate f x ,α, R, and T (cont’d)

  • Determine fy:


Method 2 step 2 estimate o x and o y l.jpg

(Method 2) Step 2: estimate oxand oy

  • The computation of oxand oyis based on the following theorem:

    Orthocenter Theorem:Let T be the triangle on the image plane defined by the three vanishing points of three mutually orthogonal sets of parallel lines in space. Then, (ox, oy) is the orthocenter of T.


Method 2 step 2 estimate o x and o y cont d l.jpg

(Method 2) Step 2: estimate oxand oy (cont’d)

  • We can use the same calibration pattern to compute three vanishing points (use three pairs of parallel lines defined by the sides of the planes).

  • None of the three mutually orthogonal directions should not be near parallel to the image plane!


Comments l.jpg

Comments

  • To improve the accuracy of camera calibration, it is a good idea to estimate the parameters several times (i.e., using different images) and average the results.

  • Localization errors

    • The precision of calibration depends on how accurately the world and image points are located.

    • Studying how localization errors "propagate" to the estimates of the camera parameters is very important.


  • Comments cont d l.jpg

    Comments (cont’d)

    • In theory, direct and indirect camera calibration should produce the same results.

    • In practice, we obtain different solutions due to different error propagations.

    • Indirect camera calibration is simpler and should be preferred when we do not need to compute the intrinsic/extrinsic camera parameters explicitly.


    How should we estimate the accuracy of a calibration algorithm l.jpg

    How should we estimate the accuracy of a calibration algorithm?

    • Project known 3D points on the image

    • Compare their projections with the corresponding pixel coordinates of the points.

    • Repeat for many points and estimate “re-projection” error!
