Practices on part of a field; Scenario 1

Practices on part of a field; Scenario 1. Use this guide when: 1. You want to add a practice on part of an existing field 2. There is NO Practice layer in the plan yet. Do NOT add the practice in the Practice Schedule first. 1. 2. 3. 4. Right-click on the name. 5. 6.

hisoki
Download Presentation

Practices on part of a field; Scenario 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

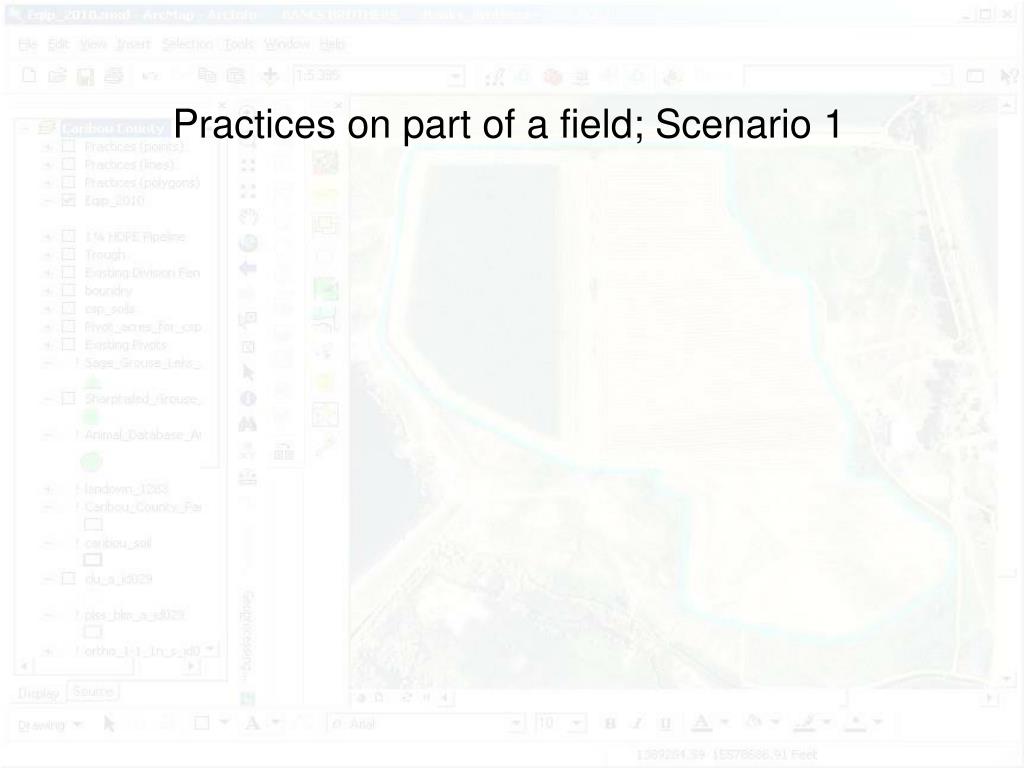

  1. Practices on part of a field; Scenario 1

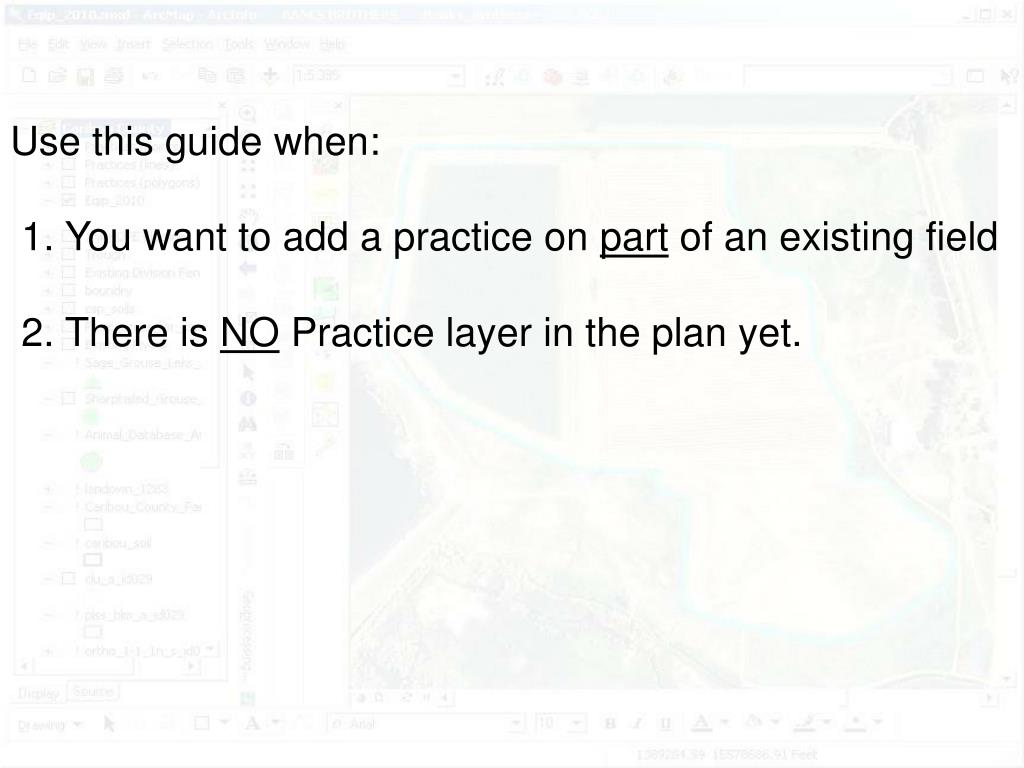

  2. Use this guide when: 1. You want to add a practice on part of an existing field 2. There is NO Practice layer in the plan yet.

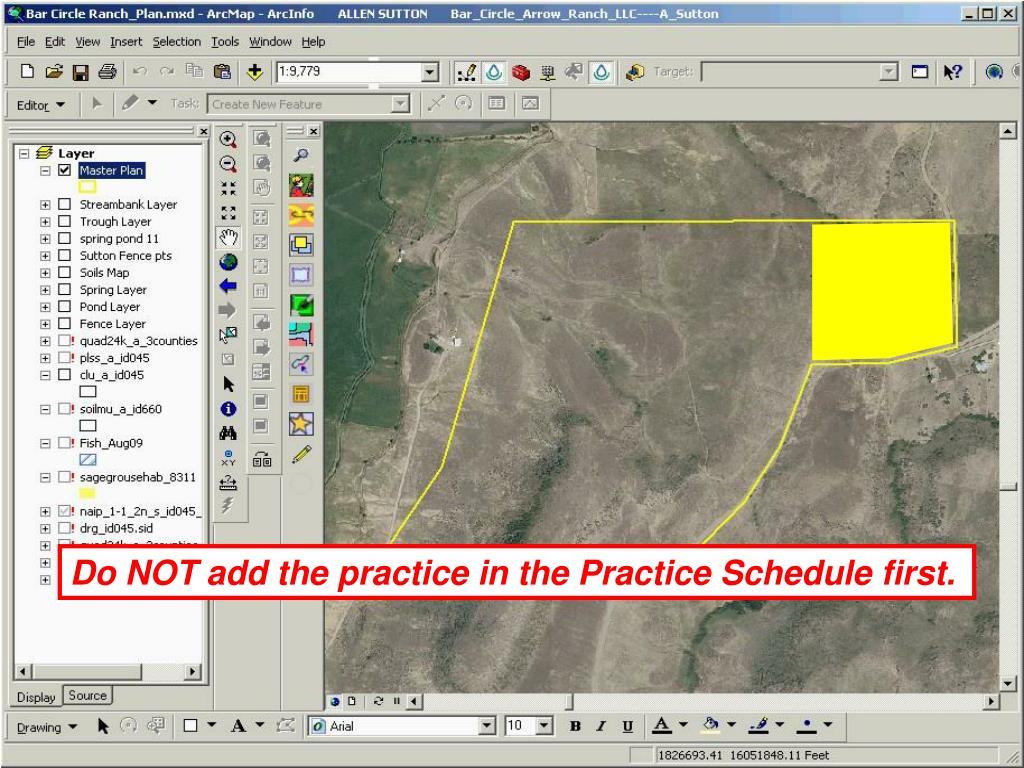

  3. Do NOT add the practice in the Practice Schedule first.

  4. 1

  5. 2

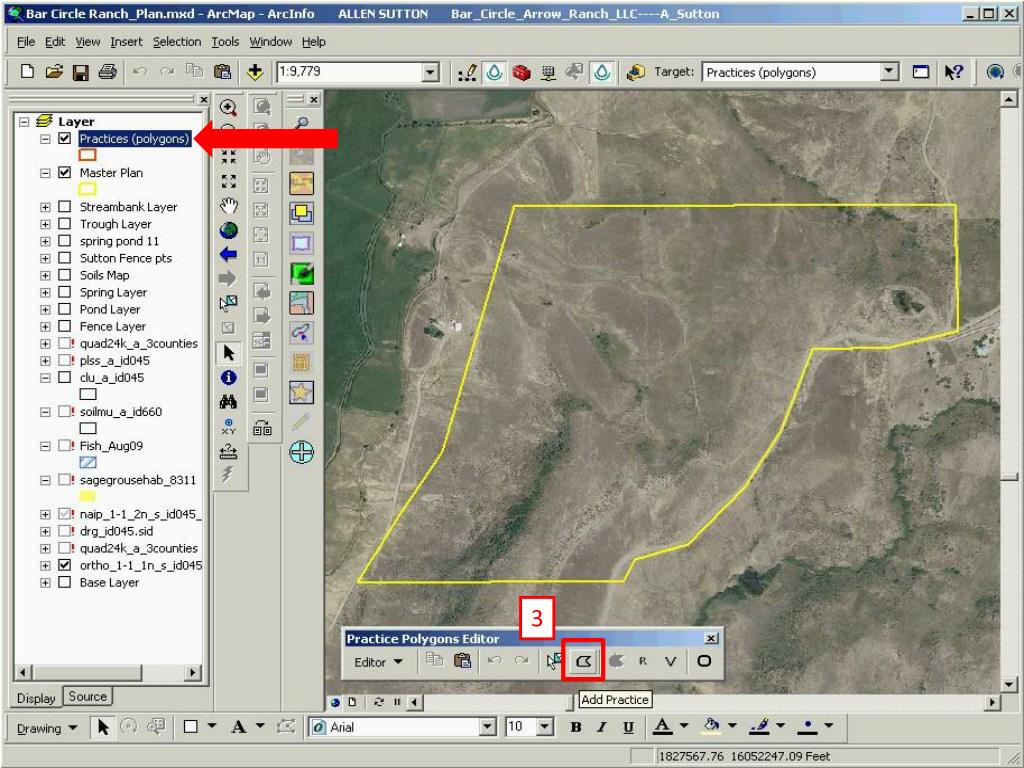

  6. 3

  7. 4

  8. Right-click on the name 5

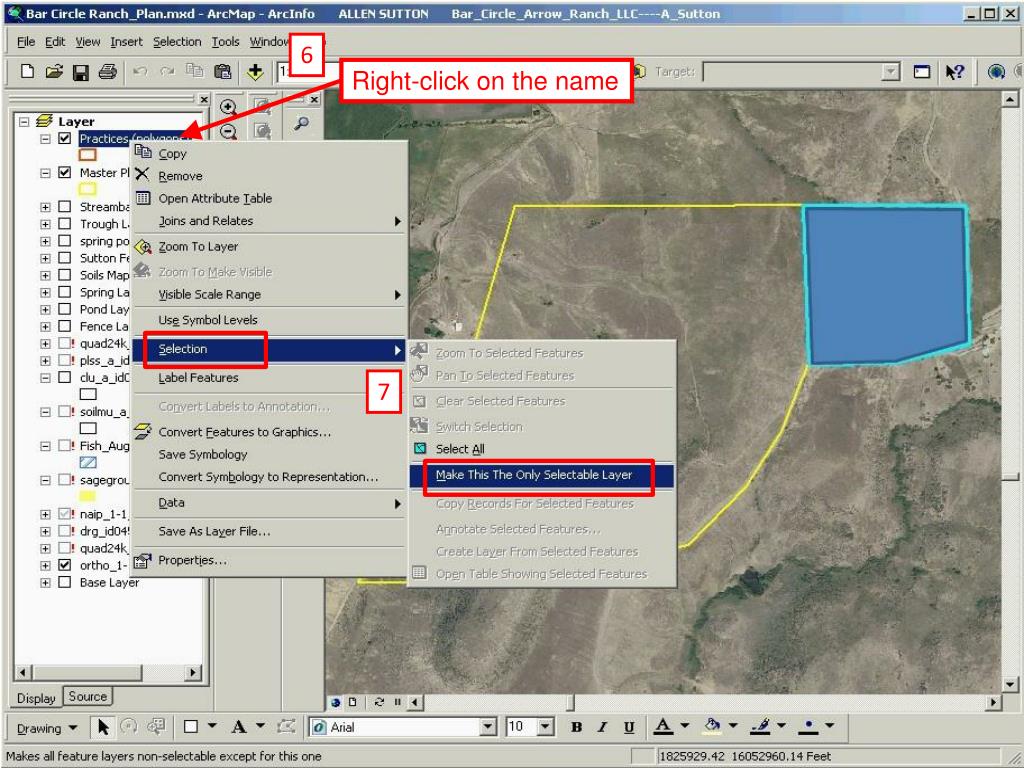

  9. 6 Right-click on the name 7

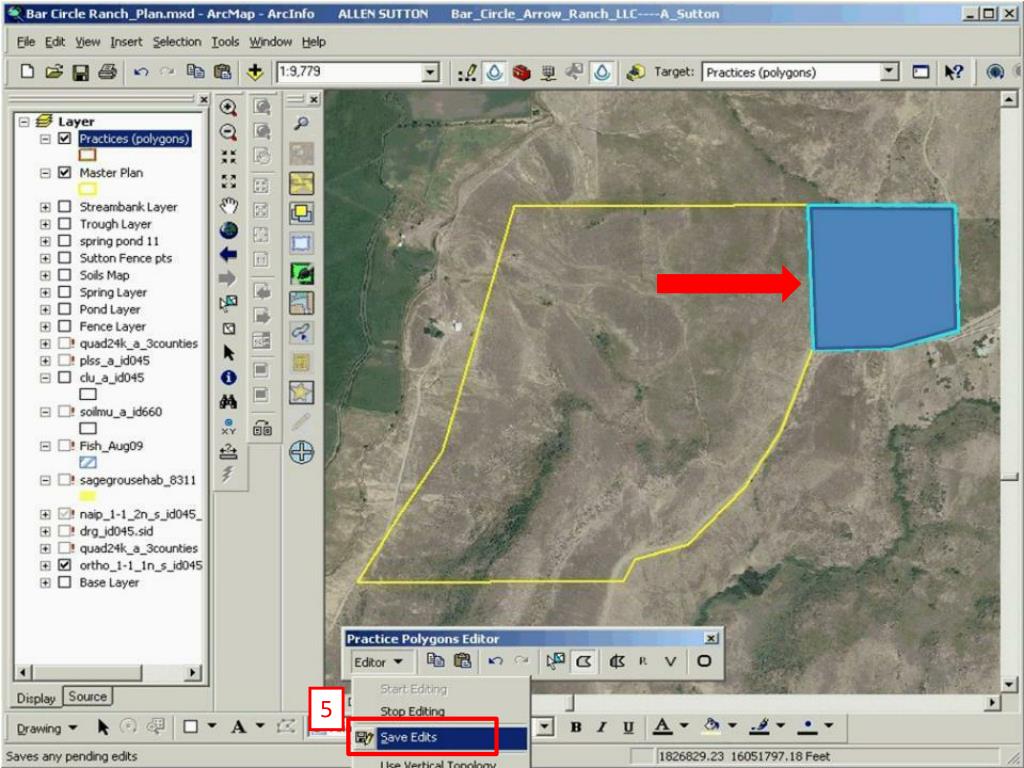

  10. 8 9

  11. 10

  12. 11

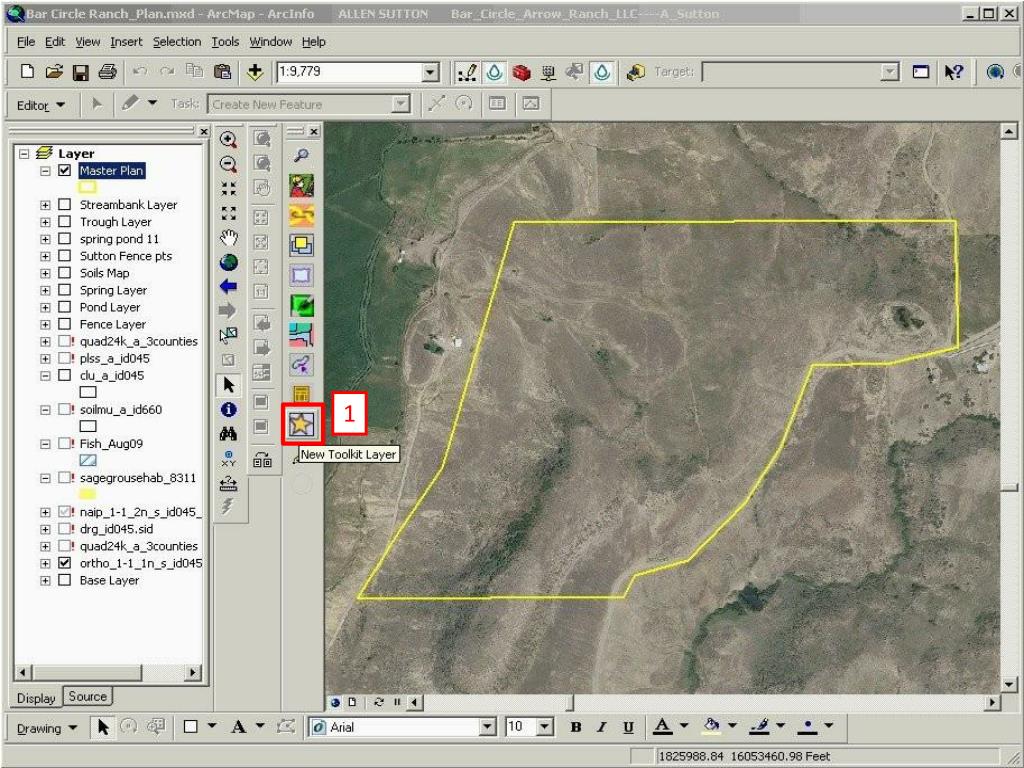

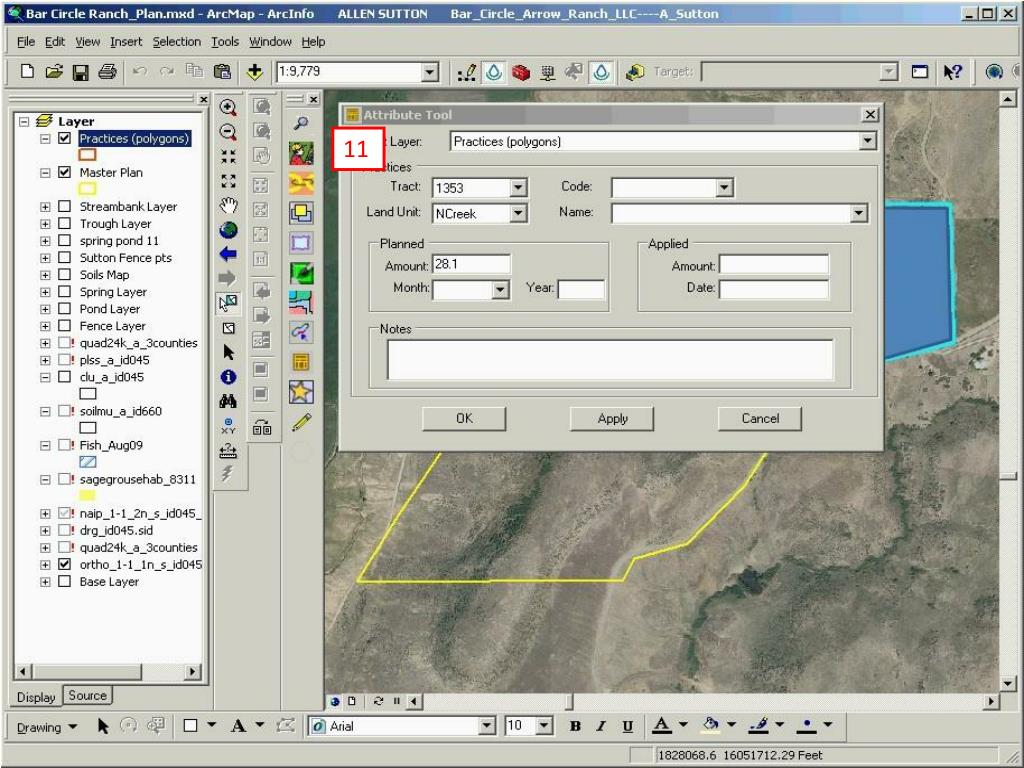

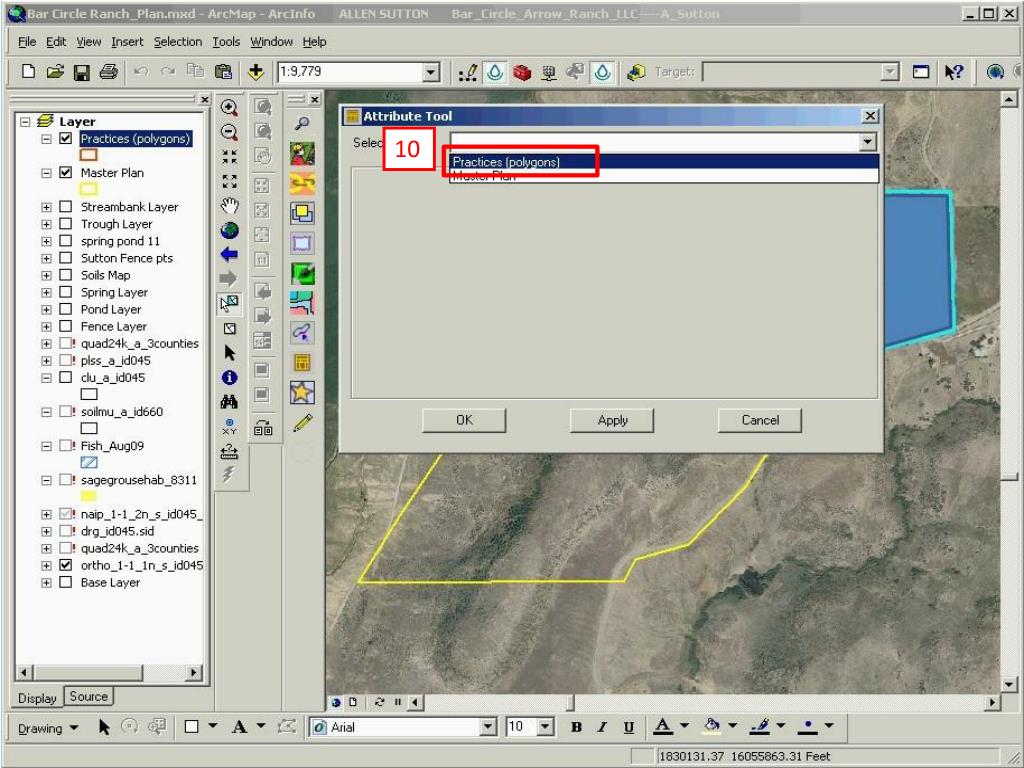

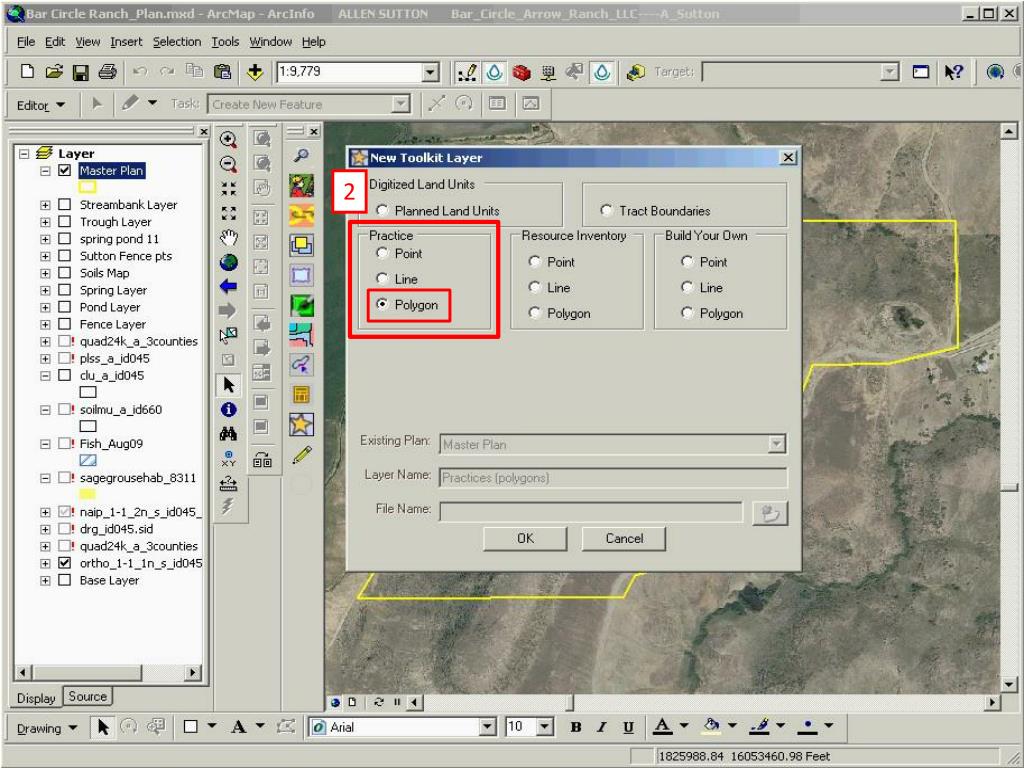

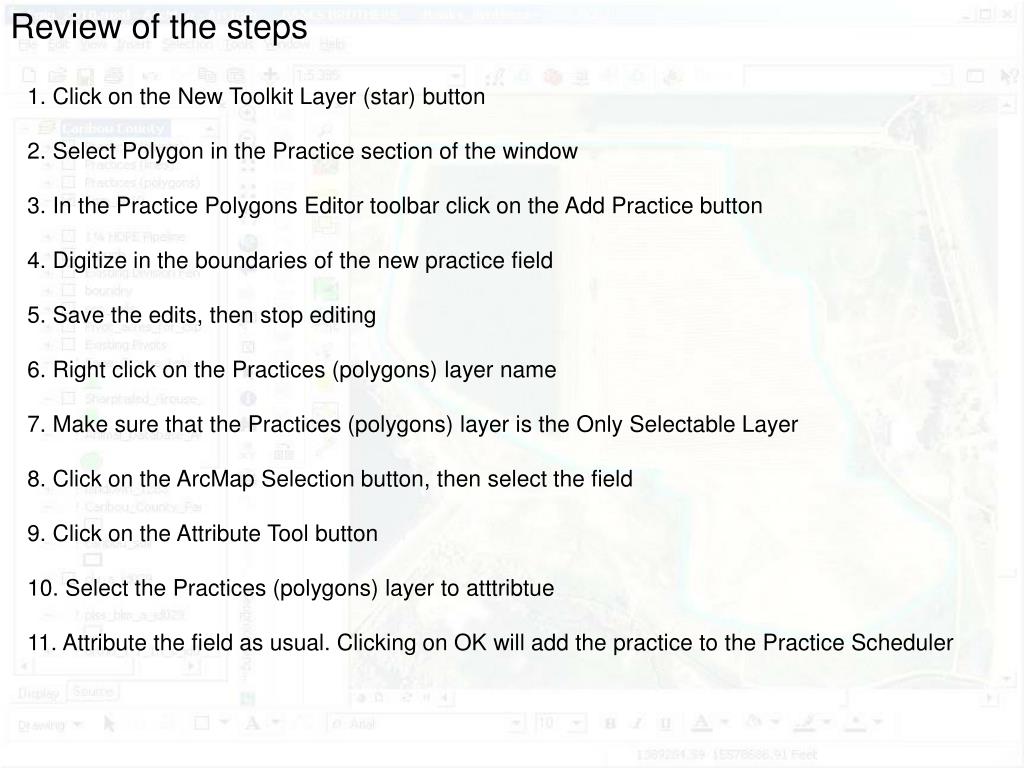

  13. Review of the steps 1. Click on the New Toolkit Layer (star) button 2. Select Polygon in the Practice section of the window 3. In the Practice Polygons Editor toolbar click on the Add Practice button 4. Digitize in the boundaries of the new practice field 5. Save the edits, then stop editing 6. Right click on the Practices (polygons) layer name 7. Make sure that the Practices (polygons) layer is the Only Selectable Layer 8. Click on the ArcMap Selection button, then select the field 9. Click on the Attribute Tool button 10. Select the Practices (polygons) layer to atttribtue 11. Attribute the field as usual. Clicking on OK will add the practice to the Practice Scheduler

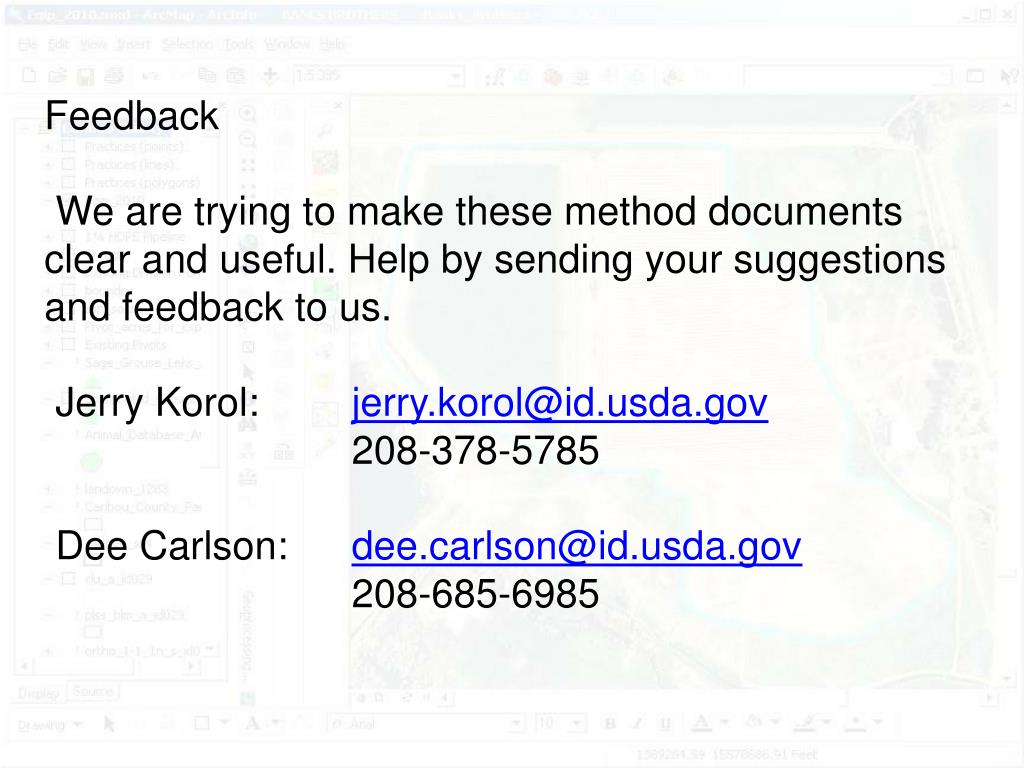

  14. Feedback We are trying to make these method documents clear and useful. Help by sending your suggestions and feedback to us. Jerry Korol: jerry.korol@id.usda.gov 208-378-5785 Dee Carlson: dee.carlson@id.usda.gov 208-685-6985
