  1. Output Transistors • Current gain / input impedance is a vital parameter of a power amplifier. • In the class A analysis, the load impedance is scaled by a factor of b. • High power transistors often have a value of b of the order of tens rather than hundreds.

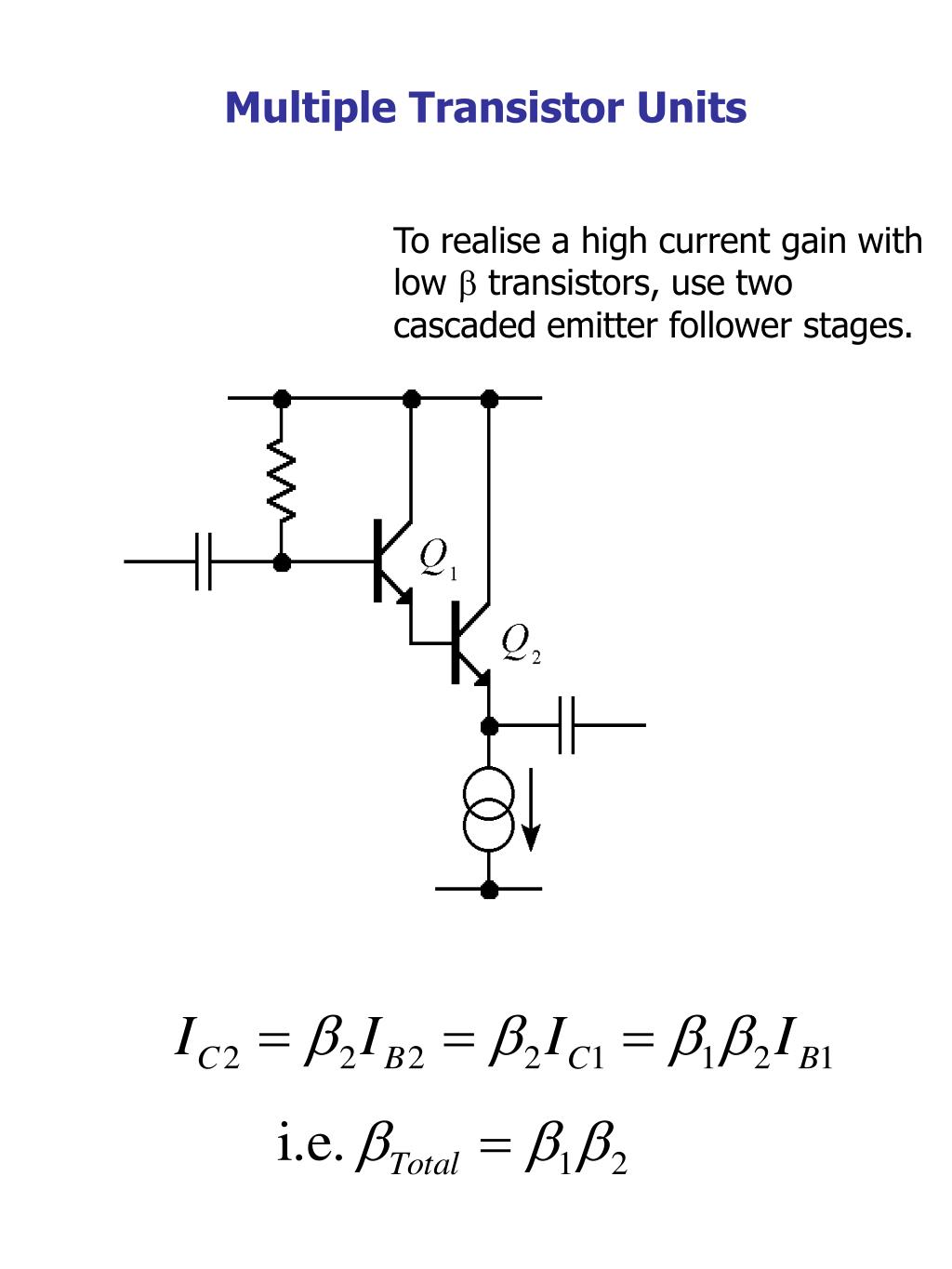

  2. Multiple Transistor Units To realise a high current gain with low b transistors, use two cascaded emitter follower stages.

  3. Darlington Pair Darlington Pair configuration is available in a single integrated package. VBE is double that of a normal transistor. b is typically between 1000 & 10000.

  4. Efficiency • The efficiency of a power amplifier is the ratio between the power delivered to the load and the power drawn from the supplies. • Power supply requirements and transistor power dissipation ratings depend on the efficiency. Power Dissipation • All power which is not delivered to the load must be dissipated by the output device(s) in the form of heat. • As a result, the temperature of the device rises. • Temperature rise changes the properties of a transistor and may, in extreme cases, destroy it.

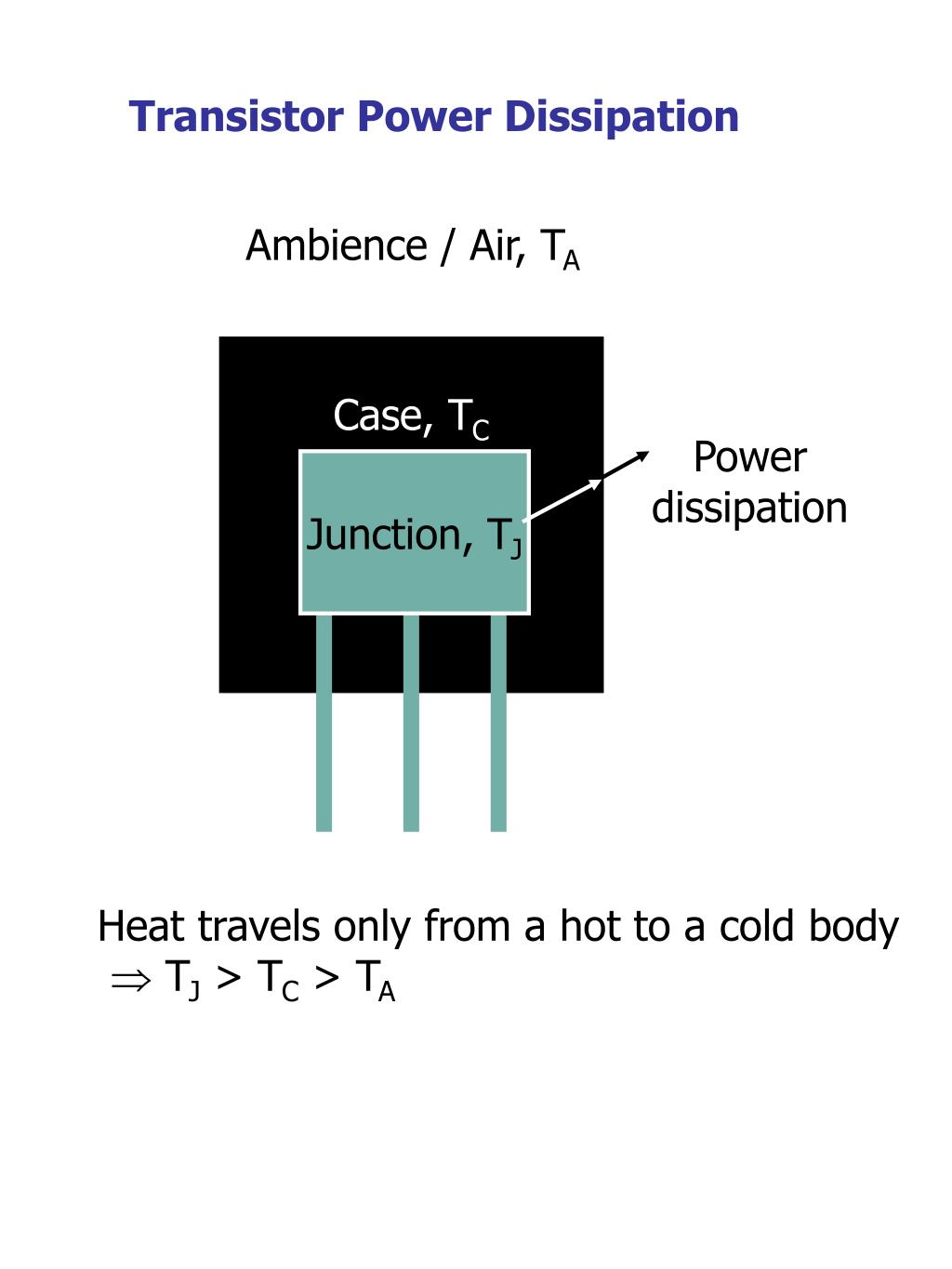

  5. Transistor Power Dissipation Ambience / Air, TA Case, TC Power dissipation Junction, TJ Heat travels only from a hot to a cold body Þ TJ > TC > TA

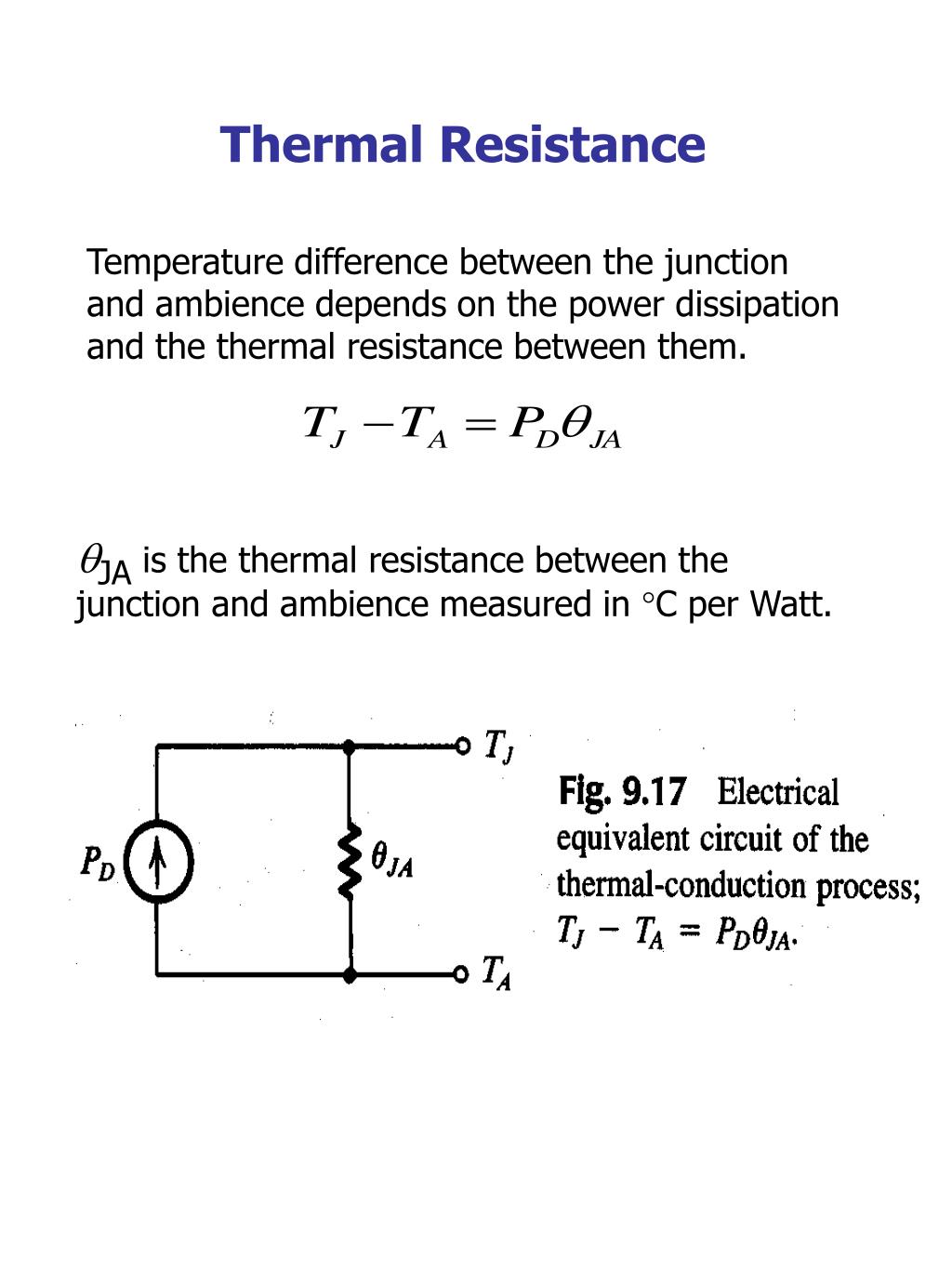

  6. Thermal Resistance Temperature difference between the junction and ambience depends on the power dissipation and the thermal resistance between them. qJA is the thermal resistance between the junction and ambience measured in °C per Watt.

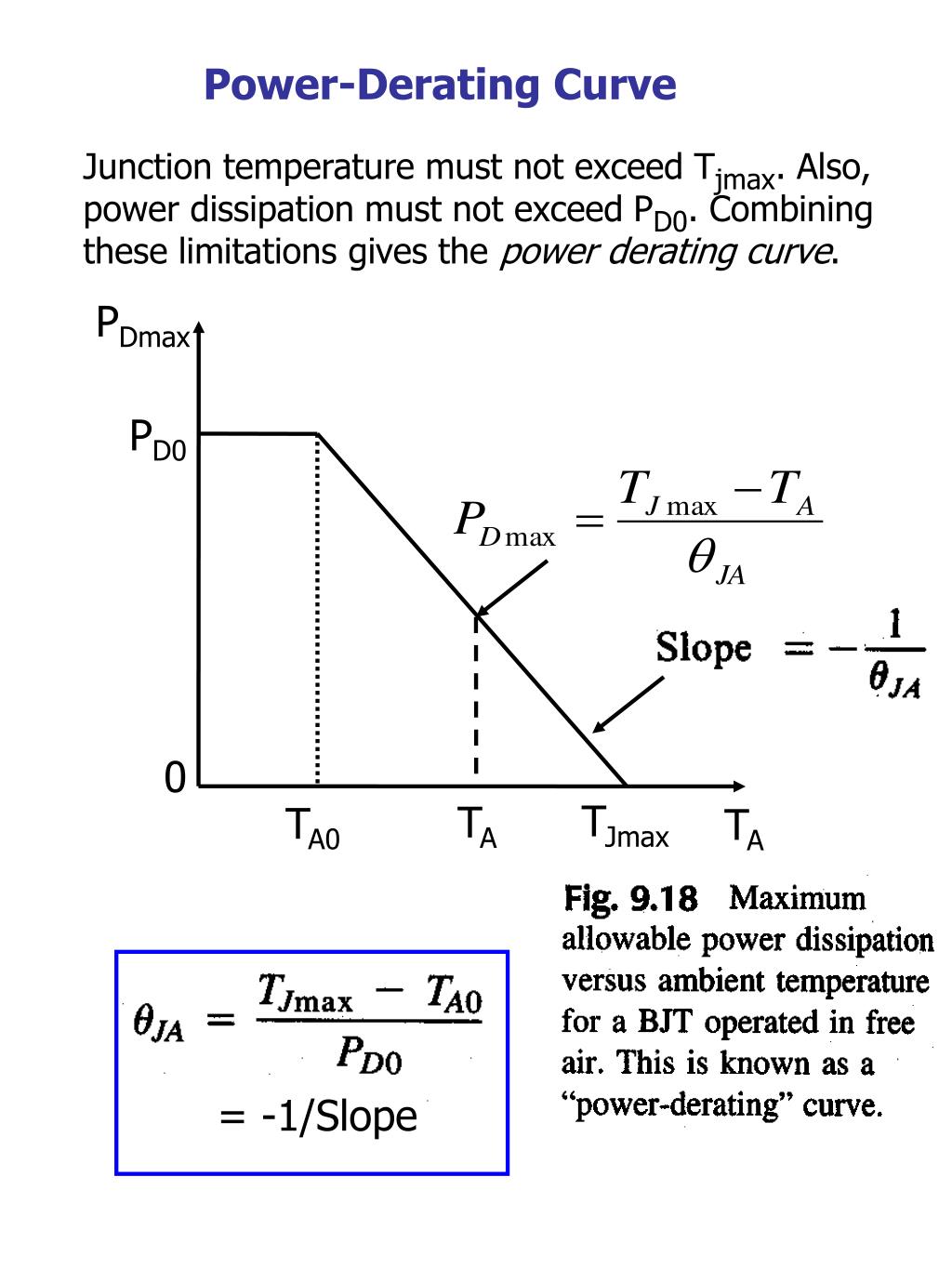

  7. Power-Derating Curve Junction temperature must not exceed Tjmax. Also, power dissipation must not exceed PD0. Combining these limitations gives the power derating curve. PDmax PD0 0 TJmax TA TA0 TA = -1/Slope

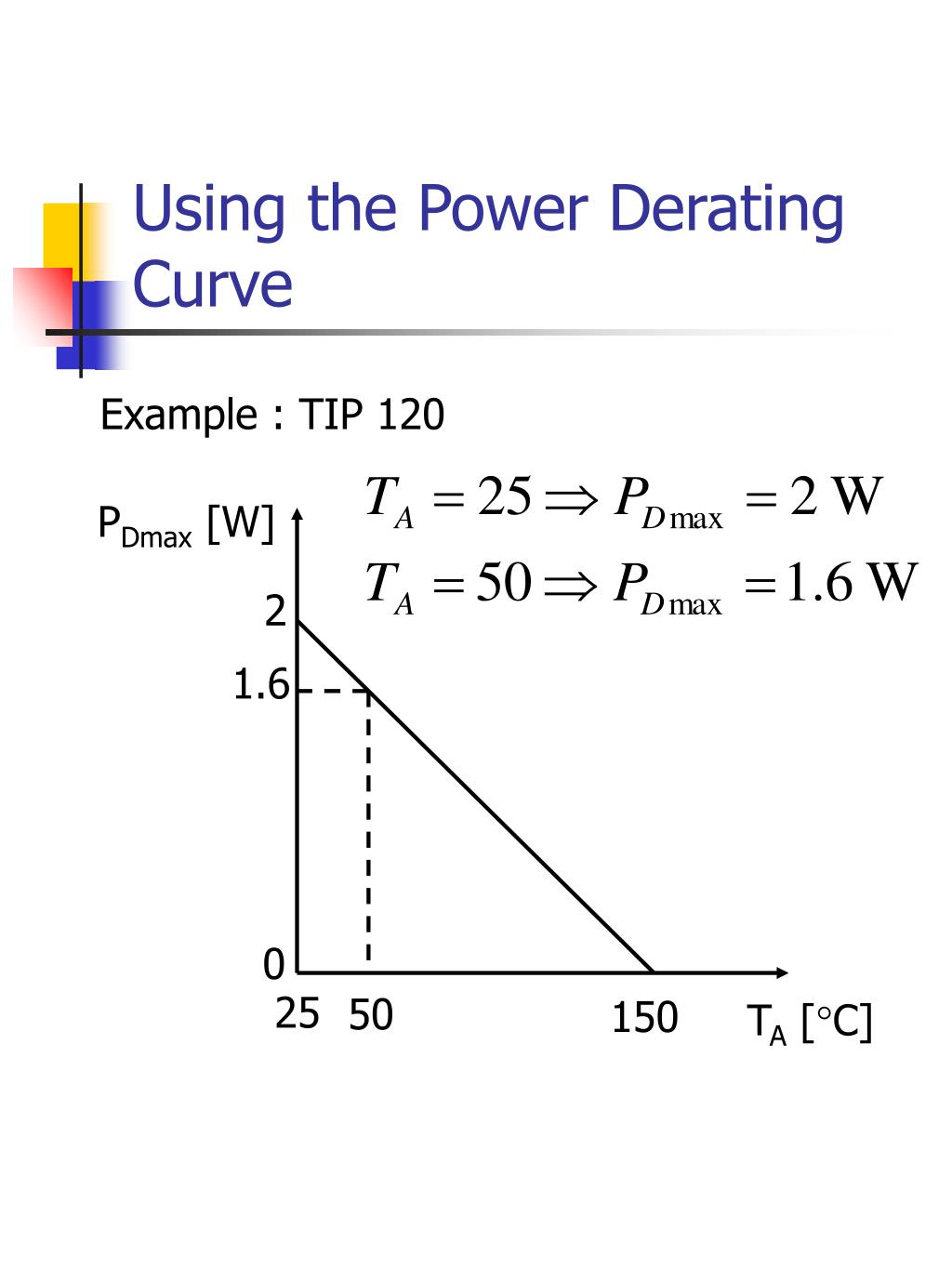

  8. Using the Power Derating Curve Example : TIP 120 PDmax [W] 2 1.6 0 25 50 150 TA [°C]

  9. Find:

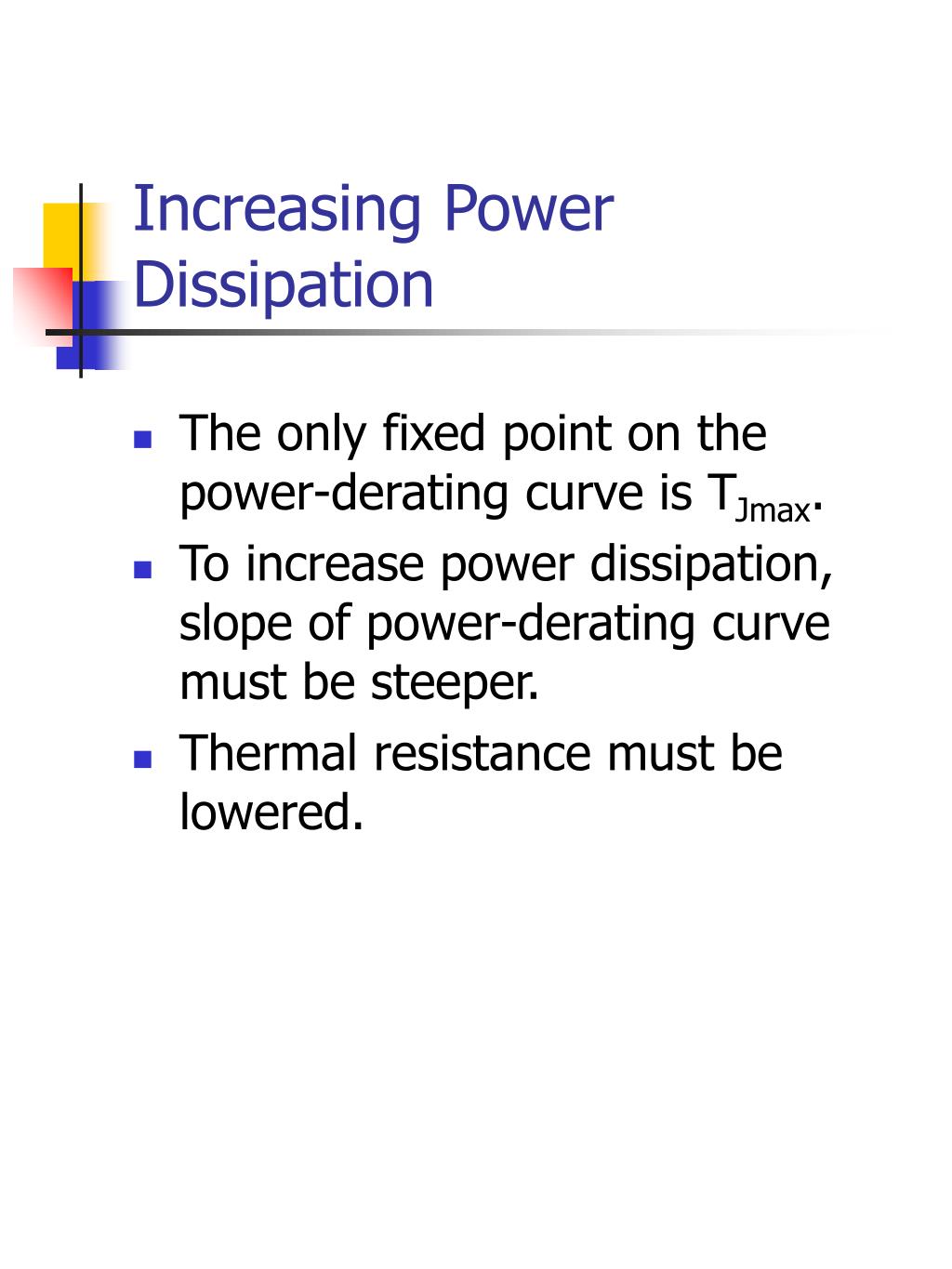

  10. Increasing Power Dissipation • The only fixed point on the power-derating curve is TJmax. • To increase power dissipation, slope of power-derating curve must be steeper. • Thermal resistance must be lowered.

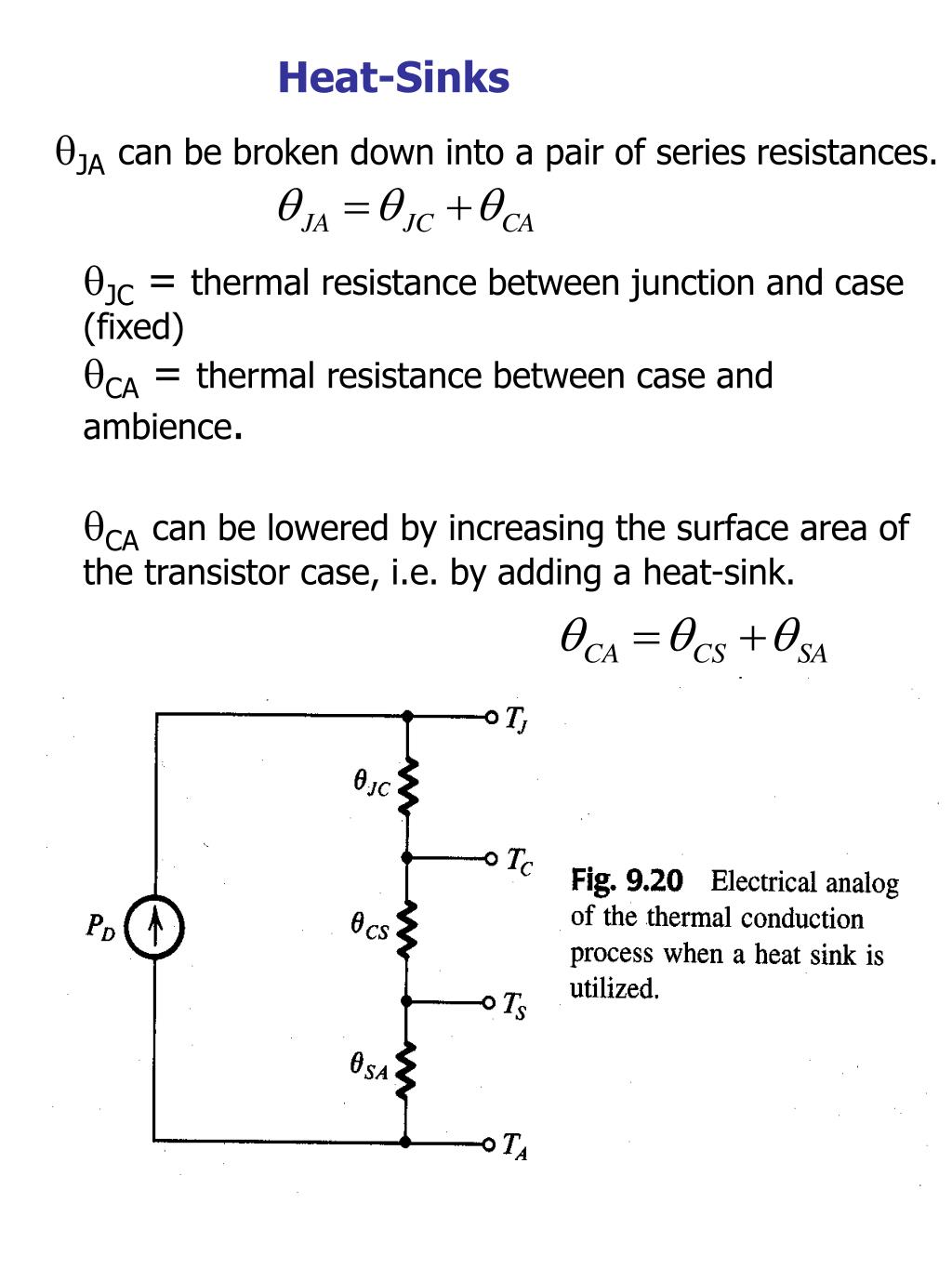

  11. Heat-Sinks qJAcan be broken down into a pair of series resistances. qJC = thermal resistance between junction and case (fixed) qCA = thermal resistance between case and ambience. qCAcan be lowered by increasing the surface area of the transistor case, i.e. by adding a heat-sink.

  12. Power-Derating Curvewith respect to Case Temp Maximum allowable power dissipation Versus transistor case temperature. PDmax Pdmax(TCO) 0 TJmax TC TC0 TC

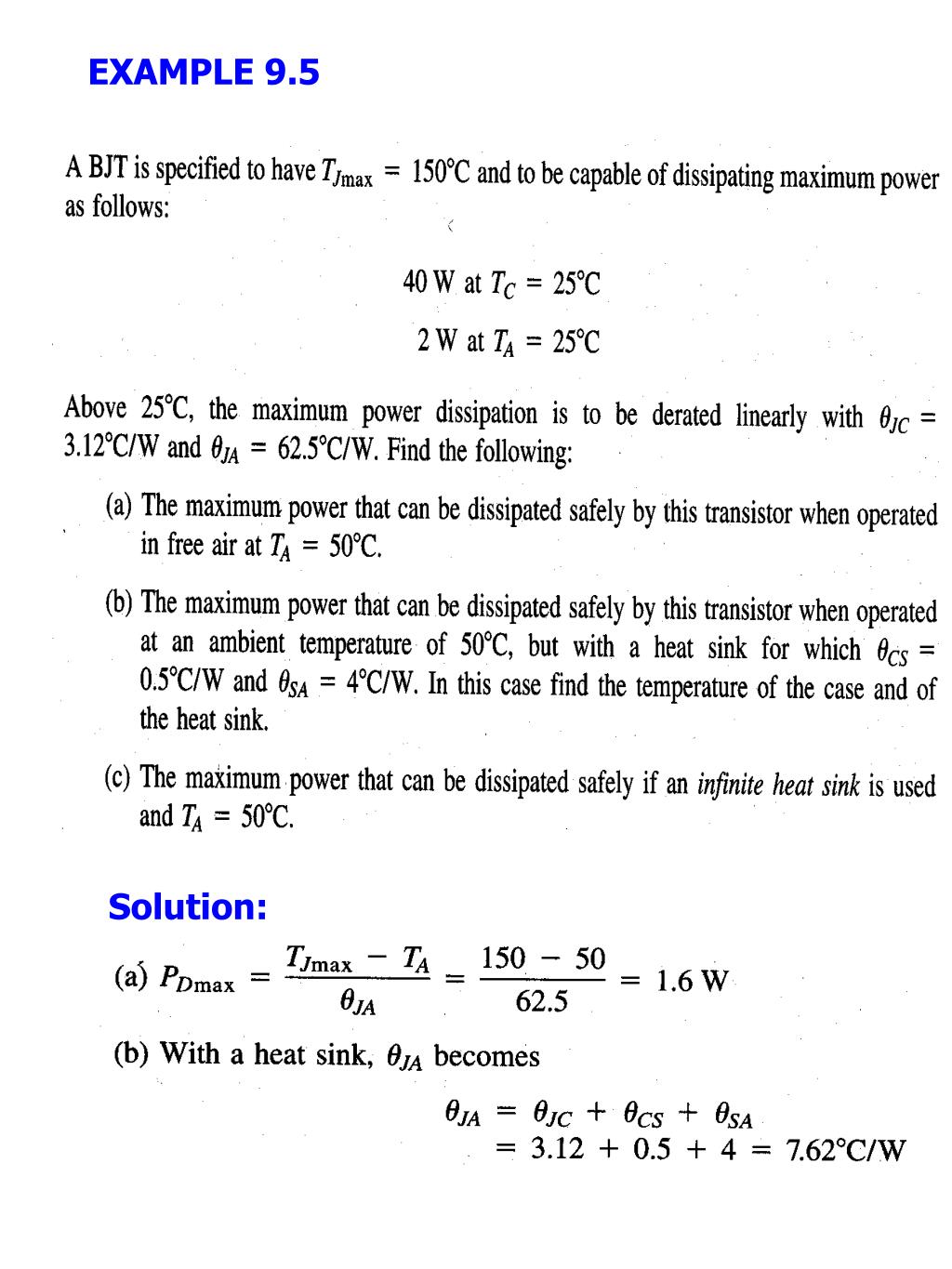

  13. EXAMPLE 9.5 Solution:

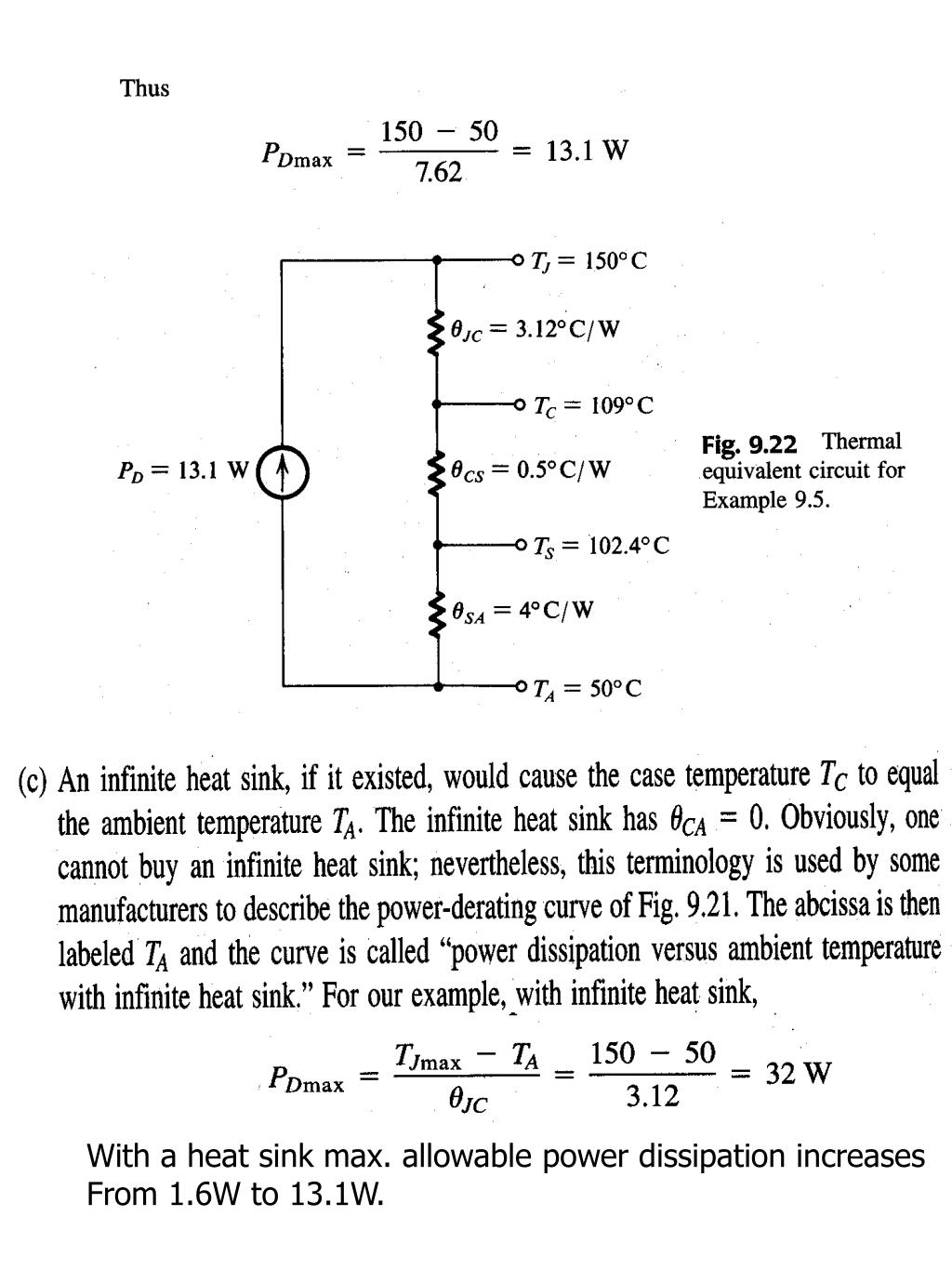

  14. With a heat sink max. allowable power dissipation increases From 1.6W to 13.1W.
