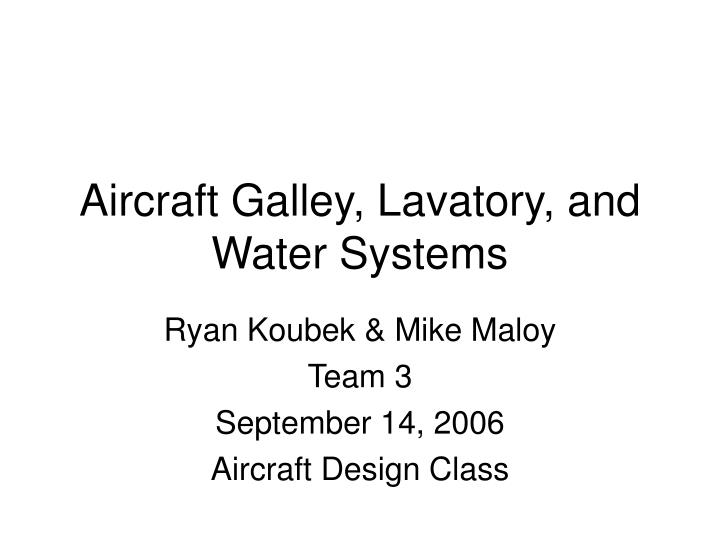

  1. Ryan Koubek & Mike Maloy Team 3 September 14, 2006 Aircraft Design Class Aircraft Galley, Lavatory, and Water Systems

  2. Lavatory, Galley, and Water System • Important to include in preliminary design. • Large investment in weight • Large investment in volume

  3. Typical Layouts

  4. Galley • All food prep is done on the ground • Equipment • Coolers • Warmers • Coffee Makers • 90 – 100 KVA allocated

  5. http://www.airchive.com/SITE%20PAGES/PLANE-INTERIORS.html

  6. http://images.google.com/imgres?imgurl=http://staff.tay.ac.uk/bstmjc/cabin_galley_s.jpg&imgrefurl=http://staff.tay.ac.uk/bstmjc/mjc_research1.htm&h=512&w=640&sz=66&hl=en&start=2&tbnid=fiDKSomwSI52VM:&tbnh=110&tbnw=137&prev=/images%3Fq%3Dairplane%2Bgalley%26svnum%3D10%26hl%3Den%26lr%3D%26sa%3DGhttp://images.google.com/imgres?imgurl=http://staff.tay.ac.uk/bstmjc/cabin_galley_s.jpg&imgrefurl=http://staff.tay.ac.uk/bstmjc/mjc_research1.htm&h=512&w=640&sz=66&hl=en&start=2&tbnid=fiDKSomwSI52VM:&tbnh=110&tbnw=137&prev=/images%3Fq%3Dairplane%2Bgalley%26svnum%3D10%26hl%3Den%26lr%3D%26sa%3DG

  7. Water supply • .3 gallons per person • Pressurized by pneumatic system • Water quality regulated by EPA • Tanks have to be flushed and disinfected

  8. http://www.edocorp.com/CompositesTanksVessels.htm

  9. http://www.generalecology.com/aircraftsystem.htm http://www.taycoeng.com/pro03.htm

  10. Roskam, Jan. “Airplane Design: Layout Design of Landing Gear & Systems”

  11. Lavatory http://static.flickr.com/25/96134734_4cf183cc7f_m.jpg

  12. Lavatories • Rule of Thumb: 1 lavatory per 30 passengers • They use very little water (about 0.5 gallons per flush)

  13. Lavatory • They can use much smaller diameter sewer pipes • They can flush in any direction, including upward. Since a vacuum system does not use gravity to move the water, there is nothing to stop the sewer pipe from going straight up • They can be put anywhere in the aircraft

  14. Waste System • Self contained • Waste tanks and flushing units mix the waste with chemicals • Vacuum flush from in flight pressure differential (No gravity plumbing) • Must be serviced after every flight. • Drain locations need to be positioned carefully

  15. Roskam, Jan. “Airplane Design: Layout Design of Landing Gear & Systems”

  16. Roskam, Jan. “Airplane Design: Layout Design of Landing Gear & Systems”

  17. Removing Waste http://www.airport-technology.com/contractors/groundequipment/combi_box/combi_box5.html

  18. Food for Thought • Doesn't apply for UAVs or HPA • Military Transports?

  19. Works Cited • “Aircraft galley systems . . . ” http://www.freshpatents.com/Aircraft-galley-systems-and-methods-for-managing-electric-power-for-aircraft-galley-systems-dt20050609ptan20050121978.php • “Composites: Tanks and Vessels,”EDO Corp. http://www.edocorp.com/CompositesTanksVessels.htm • Roskam, Jan. “Airplane Design: Layout Design of Landing Gear & Systems”
