Design by Contract

Design by Contract Where Agile Meets Formal Methods

What is Design by Contract? • Motivation • History • Concept • Integrate with Agile • Example • Reviews • Current State

Motivation • Improve software quality and reliability • Second NASA Formal Methods Symposium (April 13 – 15, 2010) • Verification and Validation of Flight-Critical Systems • An Overview of Formal Methods at Intel • Decision Engine for Software Analysis at Microsoft.

Motivation • What are Formal Methods? “mathematically rigorous techniques and tools for developing specification, design and verification of software and hardware systems” -- Wikipedia

Motivation • Agile: Are we building the right product? • making sure clients get what they want • won’t waste resources unnecessarily • Formal: Are we building the product right? • making sure code does exactly as specified • separate process to determine right product

Motivation • Is there a common ground? • Alloy (MIT) • Object Constraint Language (IBM) • Design by Contract (Effiel)

Motivation • Why should the Agile community care? • Tests often insufficient to safeguard changes • Documentations are poorly-written or outdated • Collective code ownership  misinterpretation • Why should the FM community care? • Overemphasized full formalization of design • Few people understand formal notations

Design by Contract – History • Bertrand Meyer developed DbC in 1986 “The quality factors on which we have concentrated — reusability, extendibility, compatibility — must not be attained at the expense of reliability (correctness and robustness).” -- Bertrand Meyer, Object Oriented Software Construction • Correctness Assertions • Robustness  Exception Handling

Design by Contract – Concept Example: a contract between an airline and a customer

Design by Contract – Concept • Precondition: • an obligationfor the client and a benefitfor the supplier • Postcondition: • a benefit for the client and an obligation for the supplier

Class Invariant: global property of the instances of a class, which must be preserved by all routines Design by Contract – Concept Example: a contract between an airline and a customer

Design by Contract – Concept Example: a contract between an airline and a customer

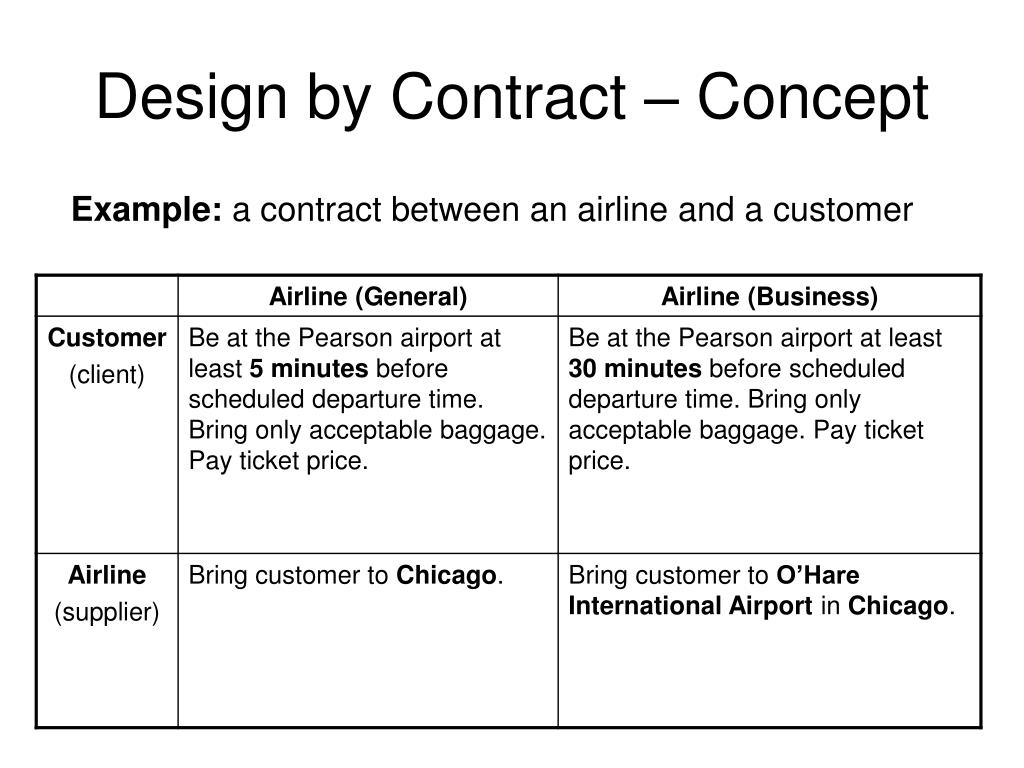

Design by Contract – Concept • Subcontract: • Precondition can be weaken • Postcondition can be strengthen

Design by Contract – Concept Example: a contract between an airline and a customer • Exception: • a run-time event that may cause a routine call to fail

Design by Contract – Integrate "We will derive tremendous benefits from writing the assertions at the same time as we write the software, or indeed before we write the software." -- Bertran Meyer, Object Oriented Software Construction • Differ from TDD, DbC checks for all cases • ESC/Java2 checks spec consistency at runtime • JMLUnit auto-generates test cases • JMLDoc embeds JML in JavaDoc

Design by Contract – Reviews “I've tried to use [DbC] in a number of enterprise application settings, and I've found that in many situations it's as hard to write the pre and post conditions as it is to write the solution.” -- Martin Fowler “Design by Contract practice lessened the number of person-hours required to perform software testing.” -- An Experience With Design by Contract

Design by Contract – Current State • Effiel – built into the language • Java – JCR305 submitted for JML • Microsoft – Spec# and Boggie

Q & A
