Atomic structure

Atomic Structure

Atoms, Elements & Isotopes


Atomic structure

proton, neutron and electron

isotopes exist

Dalton’s Atomic Theory

  • Four postulates (1808)...

  • All elements are composed of tiny, indivisible particles called ‘atoms’.

  • Atoms of the same element are identical... each element is unique

  • Atoms of different elements can physically mix or chemically combine (compounds).

  • Chemical reactions occur when atoms are separated, joined, or rearranged.

    • Much of this theory is still accepted, ….. with 2 exceptions.


Atomic structure

Atomic Scientists

  • J. J. Thomson discovered electrons (e-) in 1897.

  • He passed an electric current through a glass tube filled with gas.

  • He discovered that a beam of negative charges traveled from the cathode (-) to the anode (+).


Atomic structure

Atomic Scientists

  • E. Goldstein discovered positive particles in atoms in 1886.

  • He observed rays traveling in the opposite direction of cathode rays.

  • These particles were termed ‘ protons’ (p+) by Ernest Rutherford in 1920.

  • James Chaddwick discovered neutrons (n0) in 1932.

    • His discovery was based on the fact that different atoms’ atomic mass and atomic # (# of protons) were not adding up.


Atomic structure

Atomic Scientists

  • Robert Millikan furthered Thomson’s work by describing the electron more in depth

  • all e- carry exactly one unit of negative charge.

  • mass of an e- is 1/1840 the mass of a hydrogen atom (p+).


Atomic structure

The Bohr-Rutherford Model

  • Ernest Rutherford conducted the famous ‘gold foil experiment’ (1911) which concluded that:

    • 1. atoms are mostly space. (football arena)

    • 2. atoms have a solid nucleus at the centerwhich contains most of the mass

  • This overturned the accepted ‘plum pudding model’ of the time.


Atomic structure

The Bohr-Rutherford Model

  • The Gold Foil Experiment...

  • Stats...

    • 98% of particles went straight through (expected)

    • 2% of particles deflected at large angles

    • 0.01% of particles deflected straight back (canon balls & tissue!)


Atomic structure

The Bohr-Rutherford Model

  • After Rutherford’s findings, Niels Bohr further explained the atom by concentrating on the e- (1913).

  • Why don’t the (-) e- fall into the (+) nucleus?

  • Bohr proposed that the e- travel on concentric orbits around the nucleus.

    • Each orbit has a fixed energy (energy level) and e- do not lose energy.

  • The progression of the atom...

Plum Pudding

Rutherford

Quantum

Rutherford-Bohr

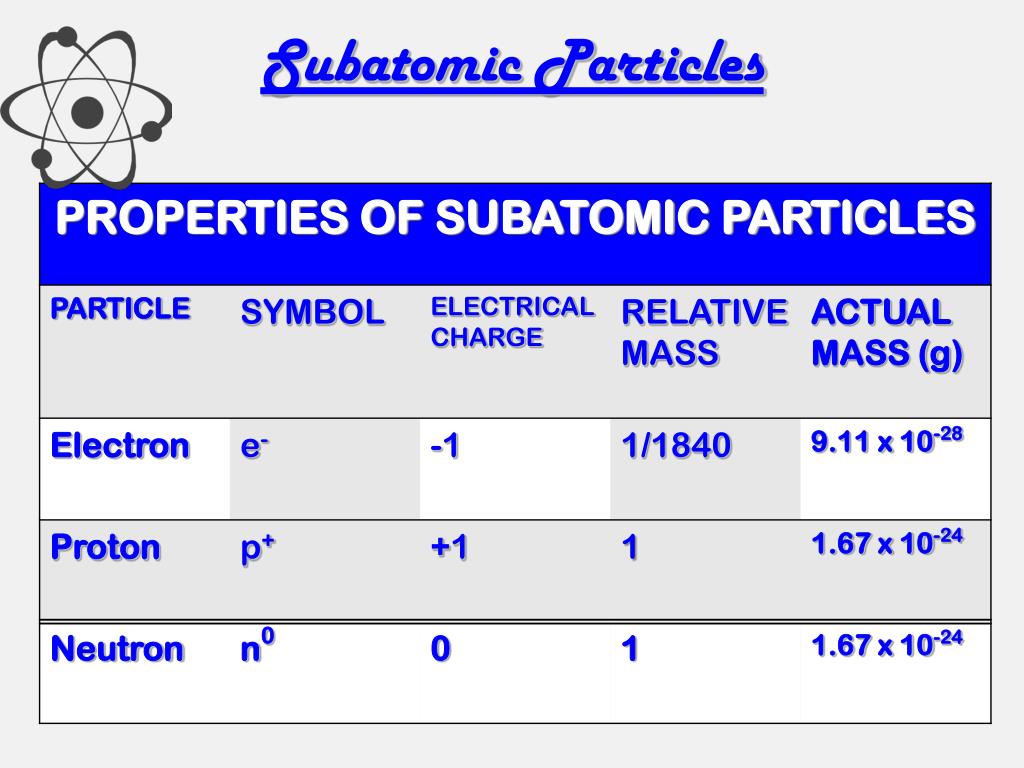

Subatomic particles

Subatomic Particles


Atomic structure

19

K

Potassium

39.098

Characteristics of Elements

Atomic Number

Element Symbol

Element Name

Atomic Mass


Atomic structure

Characteristics of Elements

  • Atomic Number : Number of p+ in an atom

    • identifies element (change atomic # = change of element).

      • # p+ = # e- in neutral atom

      • (+) charge = less e- than p+

      • (-) charge = more e- than p+

  • Atomic mass: (a.k.a. Mass Number)

    • mass of the nucleus

      • p+ + n0

      • units are a.m.u. (atomic mass unit)


Atomic structure

X

#

element symbol

#

X

#

Atomic Symbols

  • There are two ways to represent elements:

  • Symbol Form:

OR

atomic mass

atomic #

(# of p+)

element symbol

atomic mass

  • Shorthand Form: name of element followed by atomicmass.

  • Ex...

    • Aluminum - 27

    • Nitrogen – 14

    • Carbon – 14

  • You can find mass number, atomic number, number of n0, and number of e- with either notation!


Atomic structure

X

#

element symbol

#

X

#

Atomic Symbols

  • There are two ways to represent elements:

  • Symbol Form:

atomic mass

atomic #

(# of p+)

element symbol

atomic mass

OR

  • Shorthand Form:

  • name of element followed by atomic mass.

    • Ex...Aluminum – 27

  • Find the following elements on the Periodic Table:Beryllium, Copper, Sulfur, Neonand write them in both notations.


  • Atomic structure

    atomic mass

    X

    #

    element symbol

    atomic #

    #

    (# of p+)

    • Now find for each element the:

    • atomic mass

    • atomic number

    • # of p+ (same as atomic#)

    • # of n0 (mass# - atomic#)

    • # of e- (same as # of protons)

    Atomic Symbols

    • Using the symbol form for neutral elements:

    • Symbol Form:

    • Ex...

    1. Beryllium-

    2. Copper -

    3. Sulfur-

    4. Neon -


    Atomic calculations

    Atomic Calculations

    • All mass of the atom is in the nucleus.

      • only p+ and n0 are in the nucleus.

      • if you know the mass of any atom, you can find the # of n0.

      • if you know the # of n0 and the # of p+, you can find the mass.

        • Ex...electrical charge on atom

          Manganese - 55

    P

    +1

    31

    15


    Atomic structure

    Isotopes

    Neon - 20

    X

    +3

    X

    X

    -1

    22

    22

    25

    Fluorine - 20

    12

    10

    10

    Neon - 22

    • Isotopes: atoms of the same element with different atomic masses.

      • - different # of n0 !!!

        • Three isotopes of Carbon:

        • Carbon - 12 (6p+, 6n0) element of life

        • Carbon - 13 (6p+, 7n0) extremely rare

        • Carbon - 14 (6p+, 8n0) radioactive…carbon dating

      • Note: atomic # will NEVERchange in isotopes… only mass and # of n0 do!

      • Which of the following are isotopes of the same element?


    Atomic structure

    Average Mass of Isotopes

    • Isotopes are naturally occurring.

    • The mass # of an element (periodic table) is the weighted avg. of allisotopes that exist in nature.

      • - abundance of isotope is just as important as mass!

    • Ex...

      • Natural copper (Cu) consists of 2 isotopes …

      • Copper - 63 (mass = 62 .930 g/mole) @ 69%

      • Copper - 65 (mass = 64 .930 g/mole) @ 31%

    • To calculate avg. mass...

      • Step 1 : mass x abundance for each isotope

      • Step 2 :add the two values from step 1 together

      • 62 .93 x .69 = 43.42 43.42

      • 64 .93 x .31 = 20.13+ 20.13

    63.55 g/mole


    Atomic structure

    Average Mass of Isotopes

    • The average mass of an element is closest to the isotope that is mostplentiful in nature.

    • Ex...

      • Three isotopes of Oxygen:

        • Oxygen - 16 99 . 759%

        • Oxygen - 17 0.037%

        • Oxygen - 18 0.204%

  • The avg. mass (from P.T.) is closest to 16, therefore, Oxygen-16 is the isotope that is most abundant in nature.
