Bobbin box

“Bobbin Box”

A lidded box with a snug fitting lid


Simple steps

Simple Steps

  • Eight side the stock

  • Round the stock

  • Apply glue block

  • True glue block

  • Apply second and true.

  • Layout lid.

  • Remove lid.


Simple steps1

Simple Steps ……

  • Turn lid and create groove

  • Finish the interior of the lid.

  • Mount the bottom

  • Hollow, create the tenon. (tendon)

  • Finish the interior

  • Allow to cure

  • Fit the lid, using wax.


Simple steps2

Simple Steps …..

  • Bring up the soft touch*

  • Shape the lid and box

  • Sand to finish.

  • Remove from glue block

  • Create jamb chuck

  • Detail the bottom of box.


Mount on glue block

Mount on glue block


True face and add second block

True face and add second block

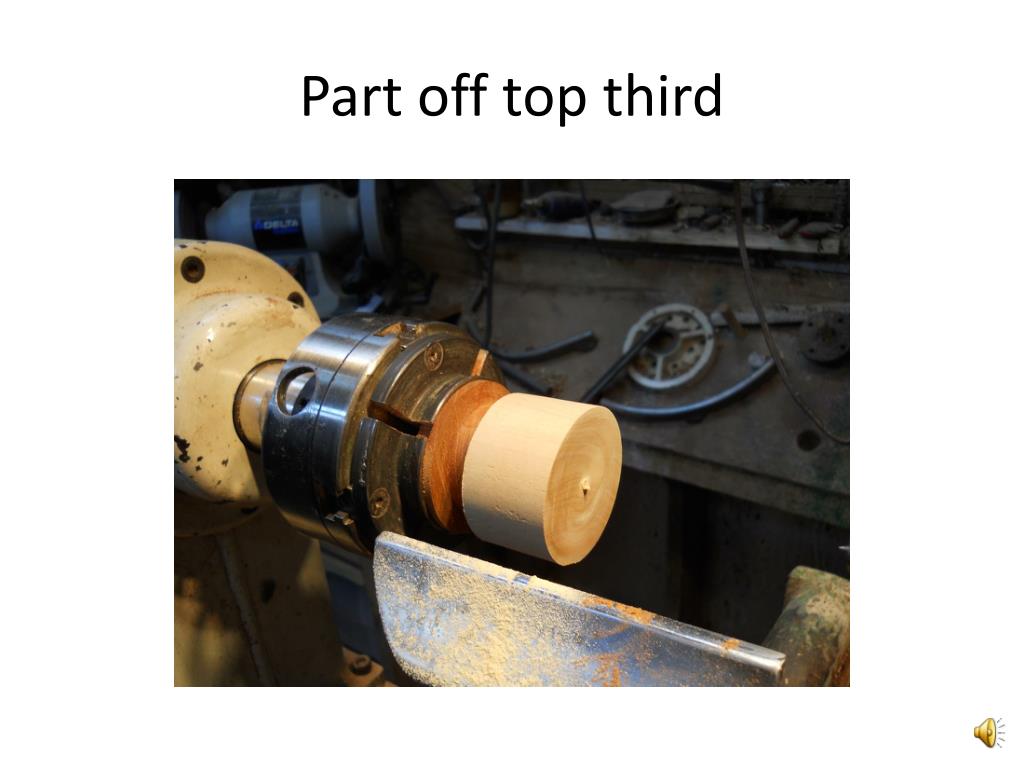

Part off top third

Part off top third


Lay out center and edges

Lay out center and edges


Hollow center add recess

Hollow Center, add recess


Mount base layout from top

Mount base, layout from top

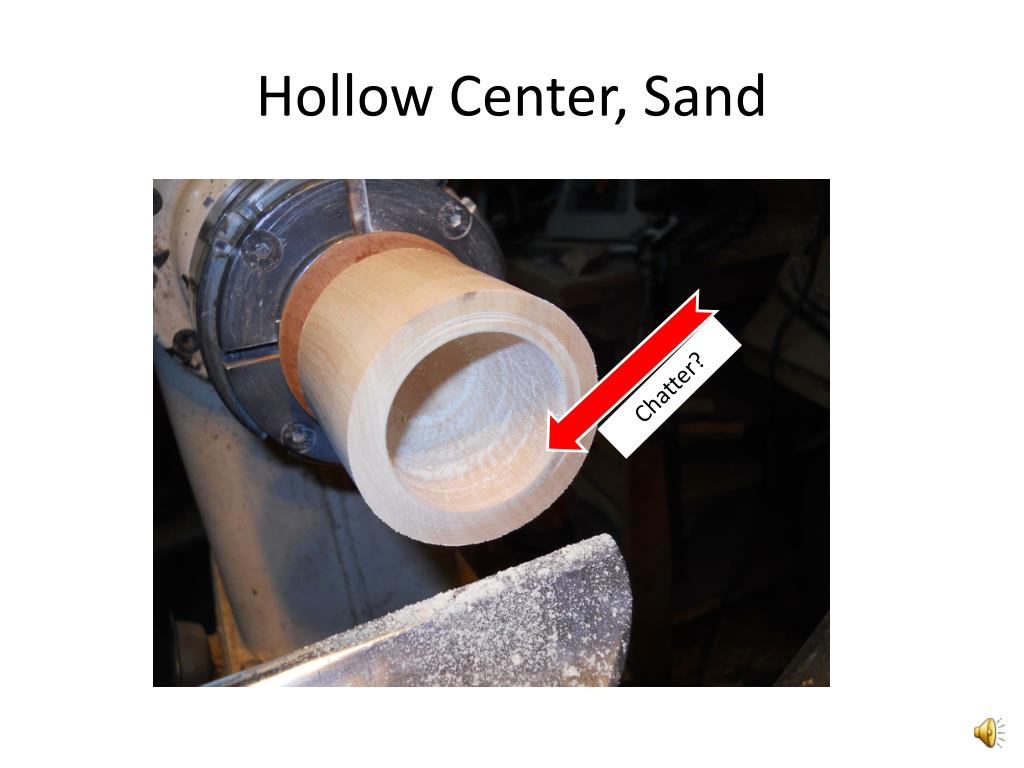

Hollow center sand

Hollow Center, Sand

Chatter?

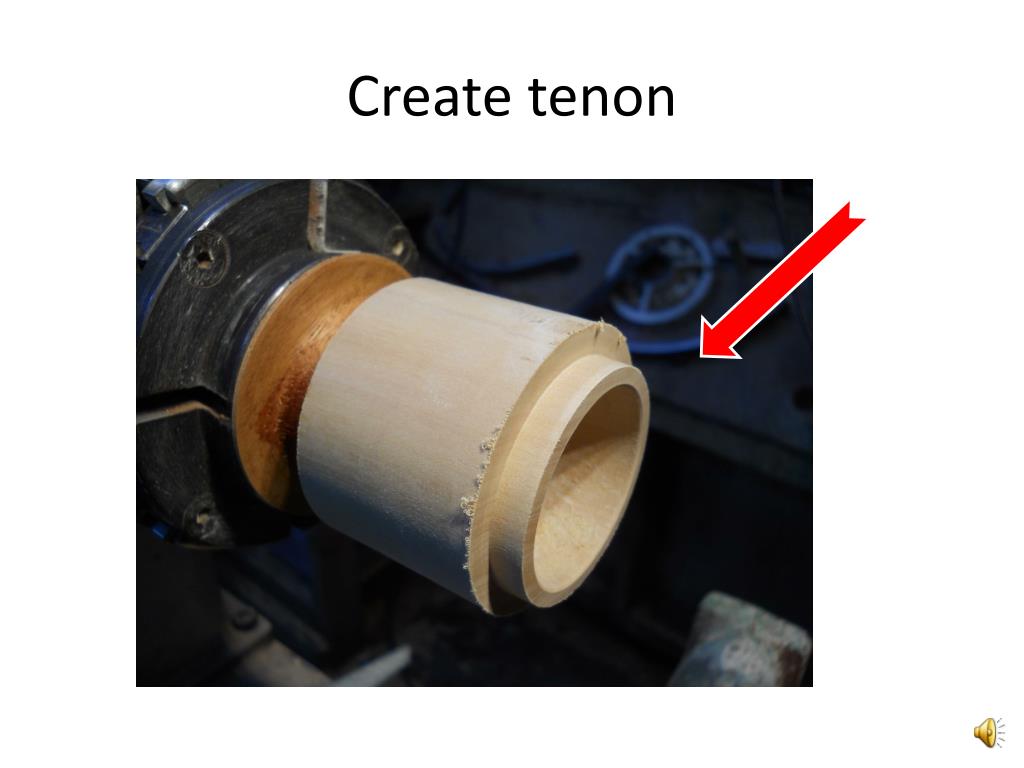

Create tenon

Create tenon


Add groove for o ring

Add groove for “O” Ring


Add o ring and fit lid

Add “O” Ring and fit lid


Install lid and begin shaping

Install Lid and begin shaping


Bring up a soft touch tip

Bring up a “soft touch” tip


Shape lid to suit

Shape lid to suit

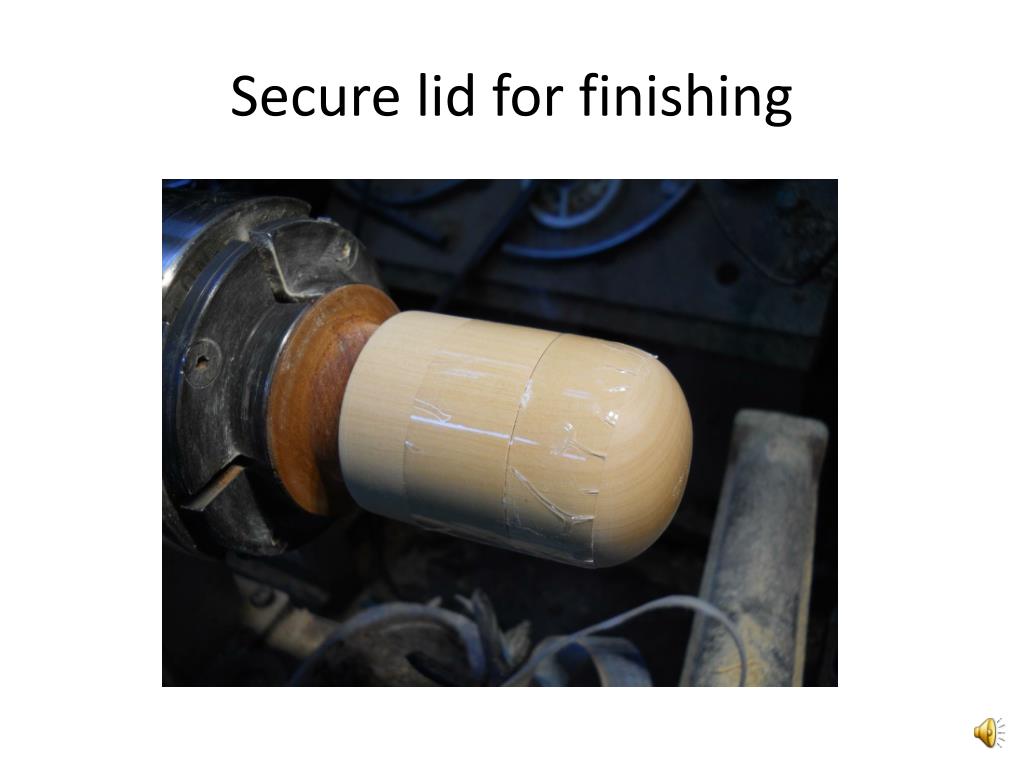

Secure lid for finishing

Secure lid for finishing


Create a jamb chuck

Create a jamb chuck


Bring up a soft touch

Bring up a “Soft Touch”


To reshape sand finish

To reshape, sand, finish.


The bobbin box

TheBobbinBox
