P11251: Side Entry Agitator Test Stand

https://edge.rit.edu/content/P11251/public/Home

MSD II: Project Review

Friday, May 13, 2011 @ 10:00-11:00AM

SPX Corporation/LIGHTNIN MIXERS

A100

A312


Project Team/Attendees

Project Sponsor : Richard O. Kehn - "ROK"

Senior Technologist - Mixing

SPX Flow Technology

MSD Team Guide: William J. Nowak Principal Engineer,

BGO/XIG/XRCW/OSL/Media & Mechatronic SystemsXerox Corporation

Team P11251: Kurt Lutz: P.M./(Measurement System w/ Integration)

Dennis Beatty: (Fluid-Tight Sealing Structure)

Joseph Bunjevac: (Physical Structure w/ Adjustability) Daniel Geiyer: (Measurement System w/ Integration)

Gregory McCarthy: Scribe/(Motor/Shaft/Coupling Integration)

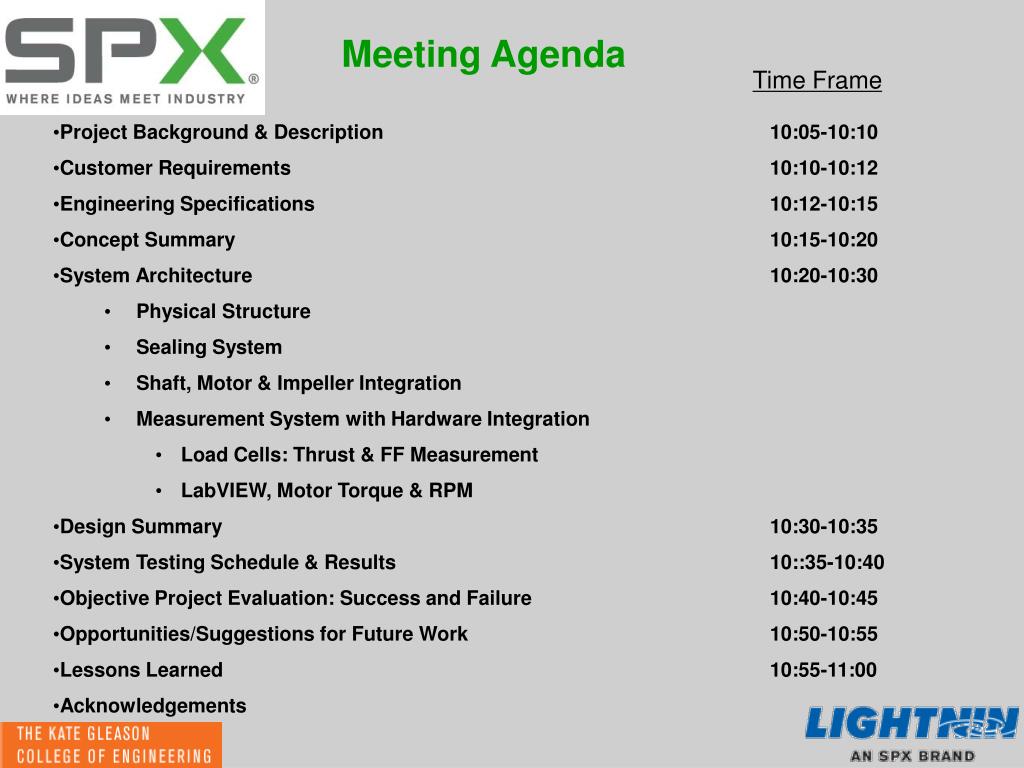

Meeting Agenda

Time Frame

  • Project Background & Description 10:05-10:10

  • Customer Requirements 10:10-10:12

  • Engineering Specifications 10:12-10:15

  • Concept Summary 10:15-10:20

  • System Architecture 10:20-10:30

    • Physical Structure

    • Sealing System

    • Shaft, Motor & Impeller Integration

    • Measurement System with Hardware Integration

      • Load Cells: Thrust & FF Measurement

      • LabVIEW, Motor Torque & RPM

  • Design Summary 10:30-10:35

  • System Testing Schedule & Results 10::35-10:40

  • Objective Project Evaluation: Success and Failure 10:40-10:45

  • Opportunities/Suggestions for Future Work 10:50-10:55

  • Lessons Learned 10:55-11:00

  • Acknowledgements

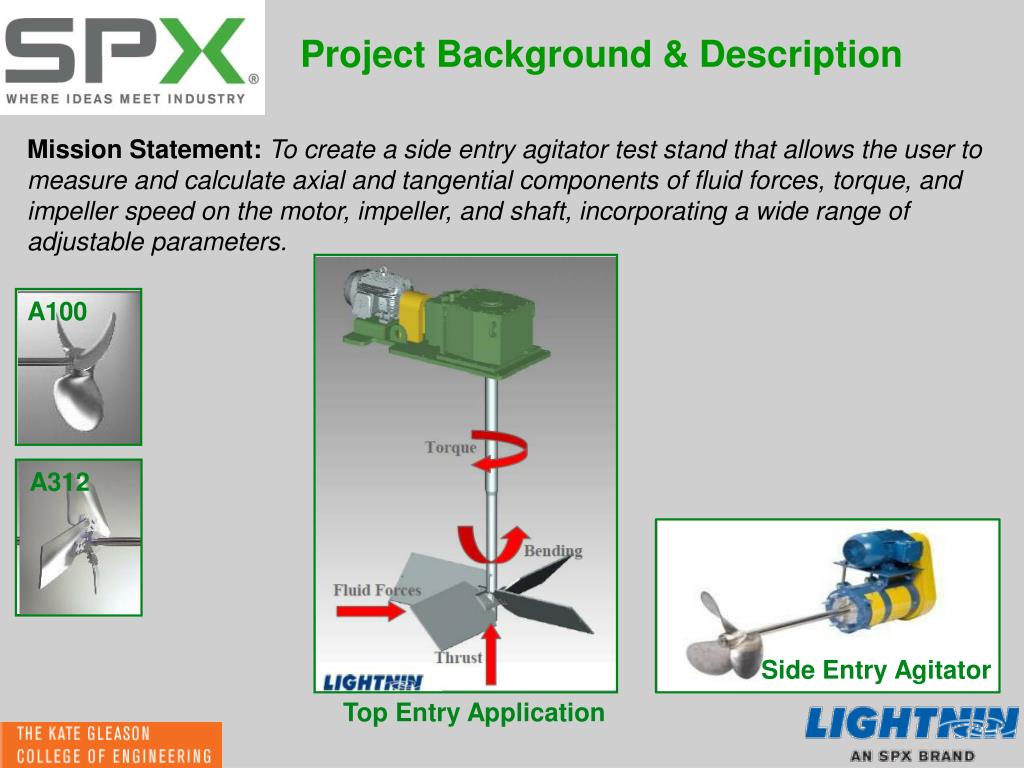

Project Background & Description

Mission Statement: To create a side entry agitator test stand that allows the user to measure and calculate axial and tangential components of fluid forces, torque, and impeller speed on the motor, impeller, and shaft, incorporating a wide range of adjustable parameters.

A100

A312

Side Entry Agitator

Top Entry Application

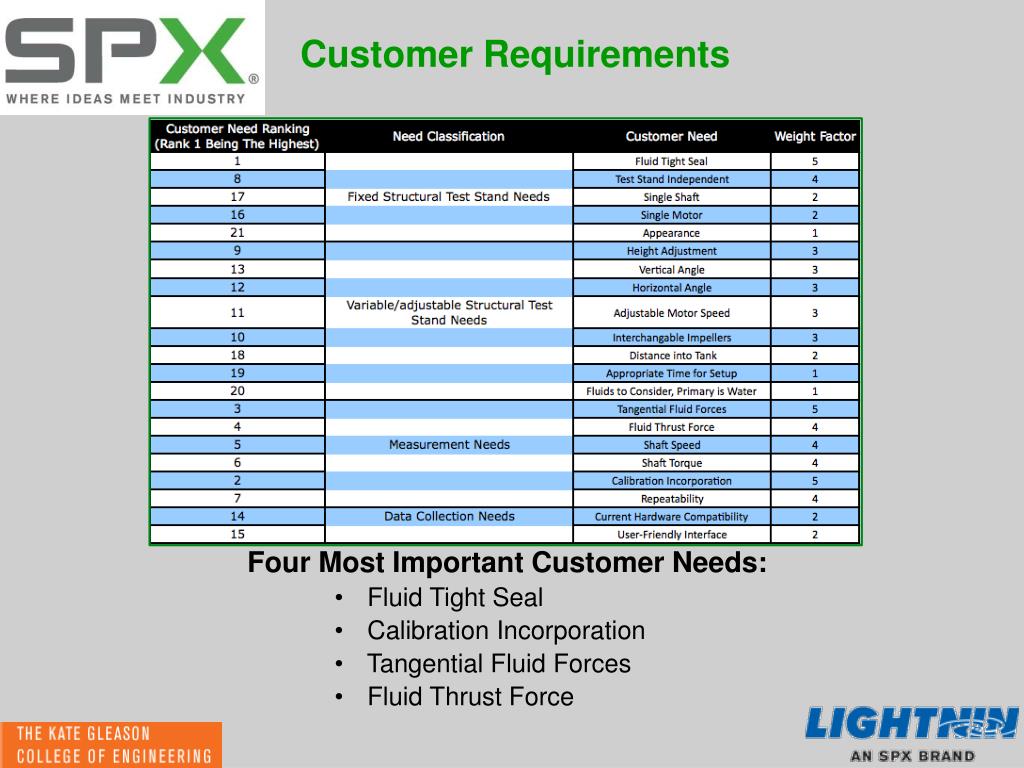

Customer Requirements

Four Most Important Customer Needs:

  • Fluid Tight Seal

  • Calibration Incorporation

  • Tangential Fluid Forces

  • Fluid Thrust Force

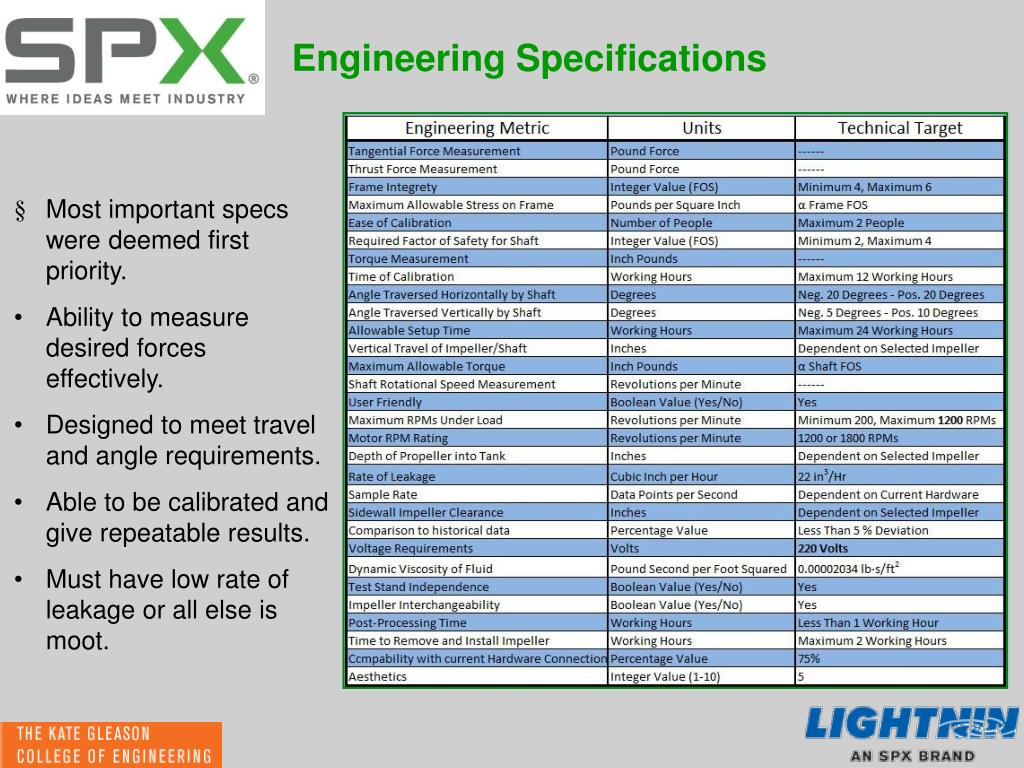

Engineering Specifications

  • Most important specs were deemed first priority.

  • Ability to measure desired forces effectively.

  • Designed to meet travel and angle requirements.

  • Able to be calibrated and give repeatable results.

  • Must have low rate of leakage or all else is moot.

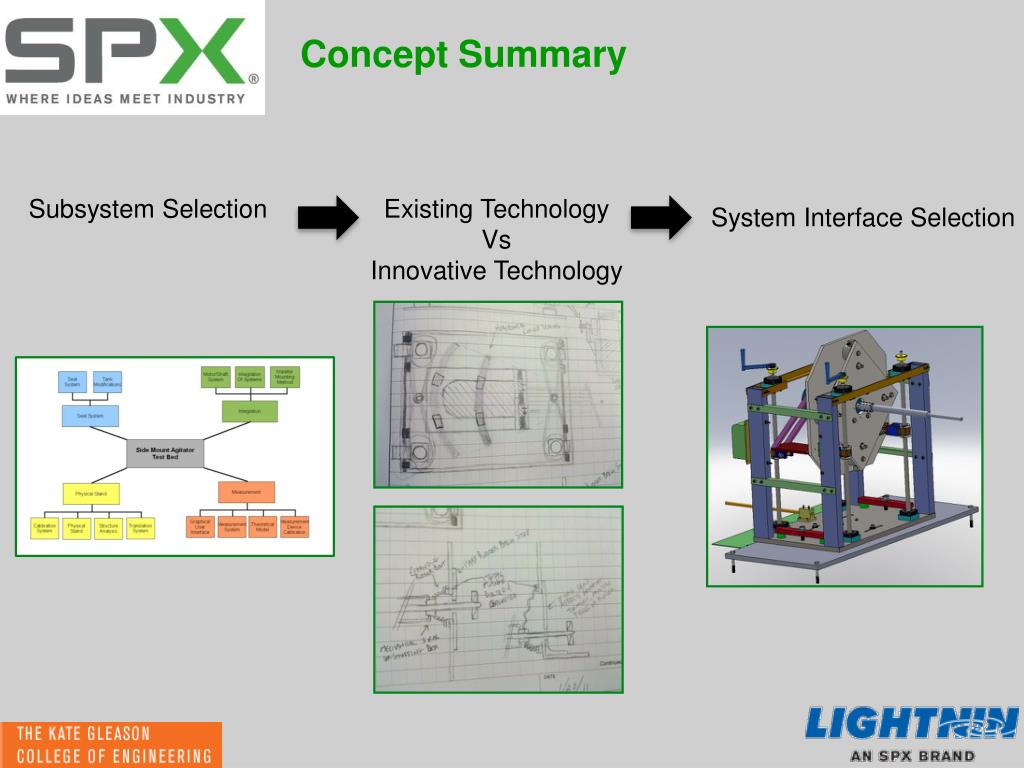

Concept Summary

Subsystem Selection

Existing Technology

Vs

Innovative Technology

System Interface Selection

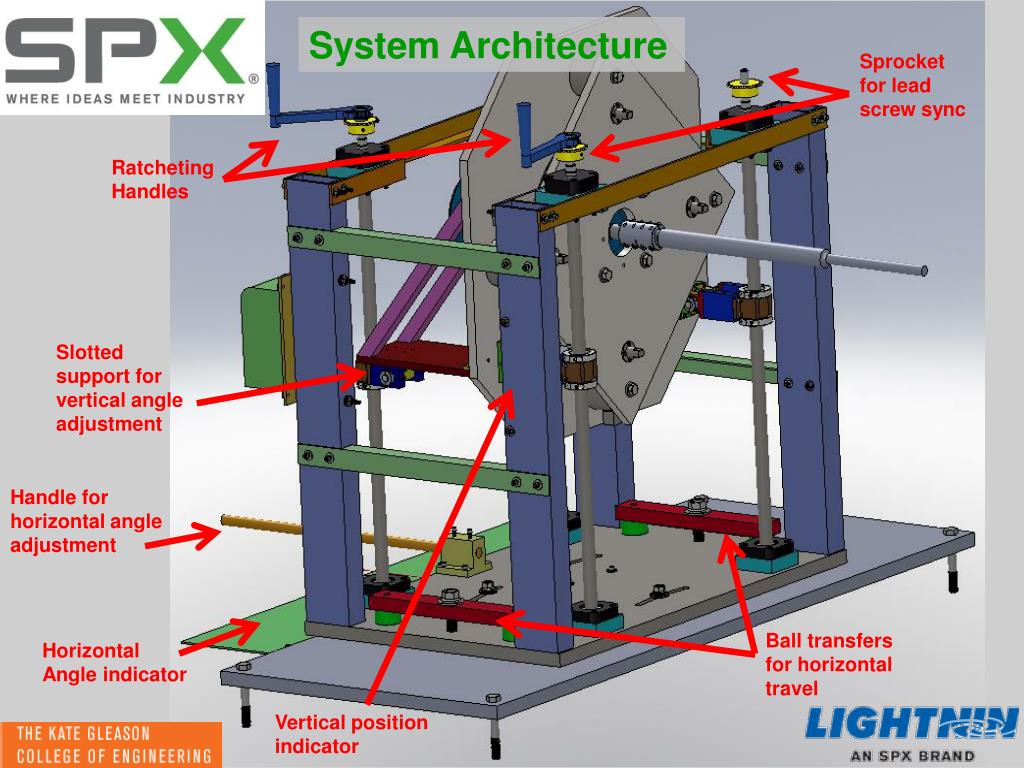

System Architecture

Sprocket for lead screw sync

Ratcheting Handles

Slotted support for vertical angle adjustment

Handle for horizontal angle adjustment

Ball transfers for horizontal travel

Horizontal Angle indicator

Vertical position indicator

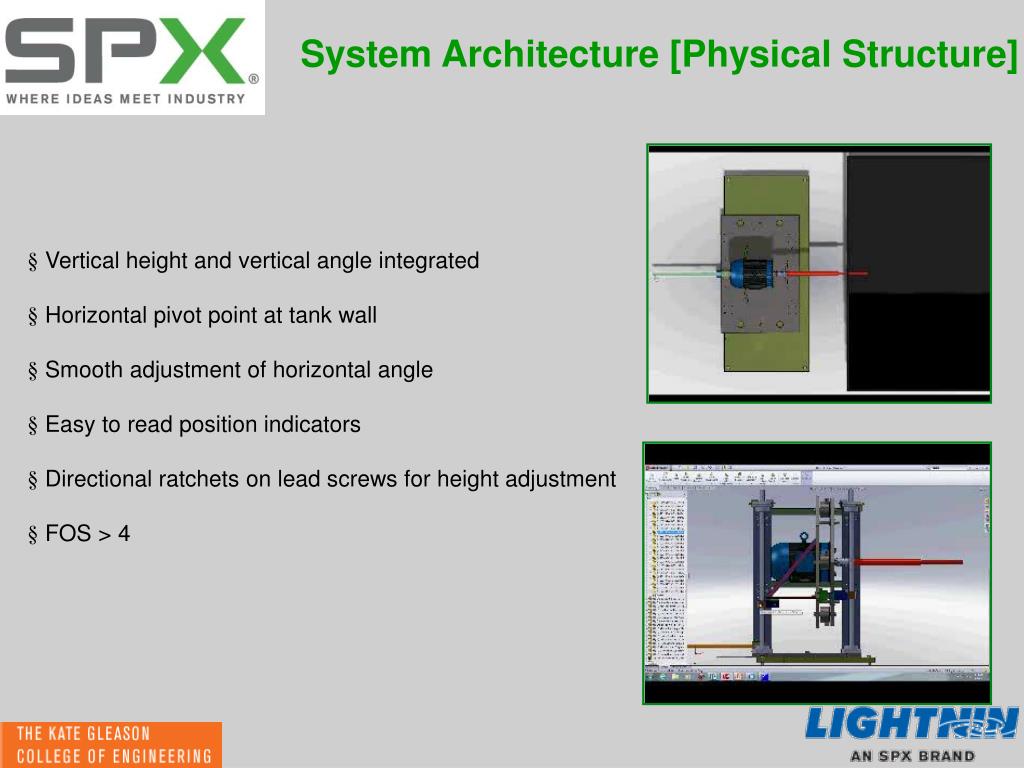

System Architecture [Physical Structure]

  • Vertical height and vertical angle integrated

  • Horizontal pivot point at tank wall

  • Smooth adjustment of horizontal angle

  • Easy to read position indicators

  • Directional ratchets on lead screws for height adjustment

  • FOS > 4

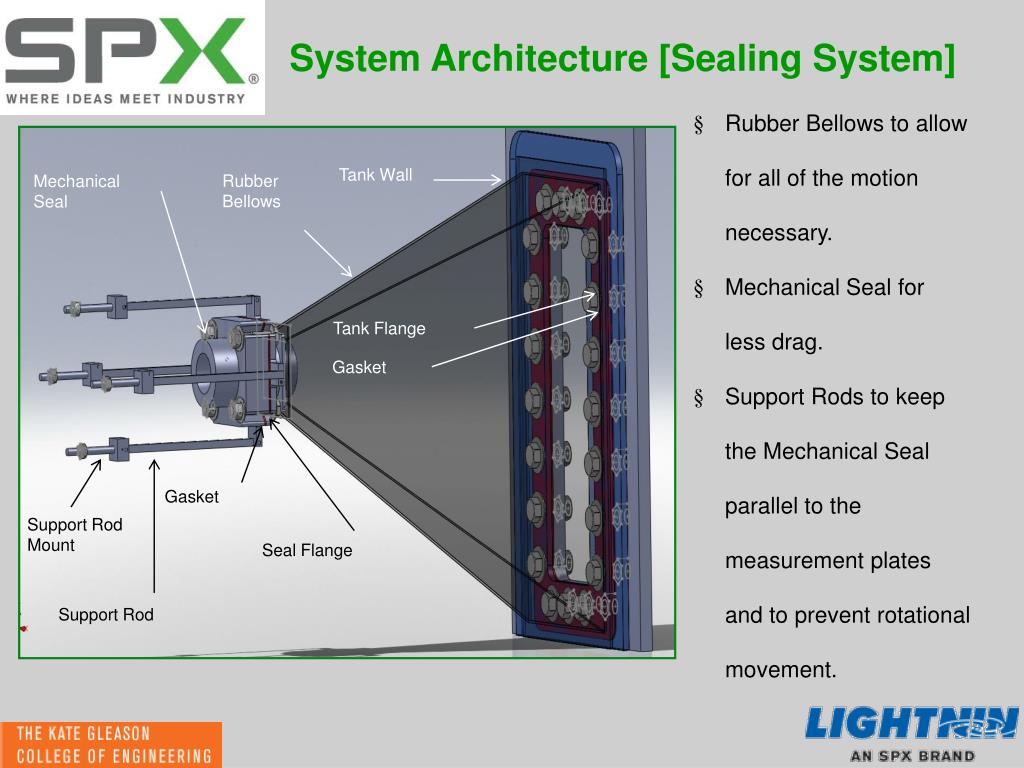

System Architecture [Sealing System]

  • Rubber Bellows to allow for all of the motion necessary.

  • Mechanical Seal for less drag.

  • Support Rods to keep the Mechanical Seal parallel to the measurement plates and to prevent rotational movement.

Tank Wall

Rubber Bellows

Mechanical Seal

Tank Flange

Gasket

Gasket

Support Rod Mount

Seal Flange

Support Rod

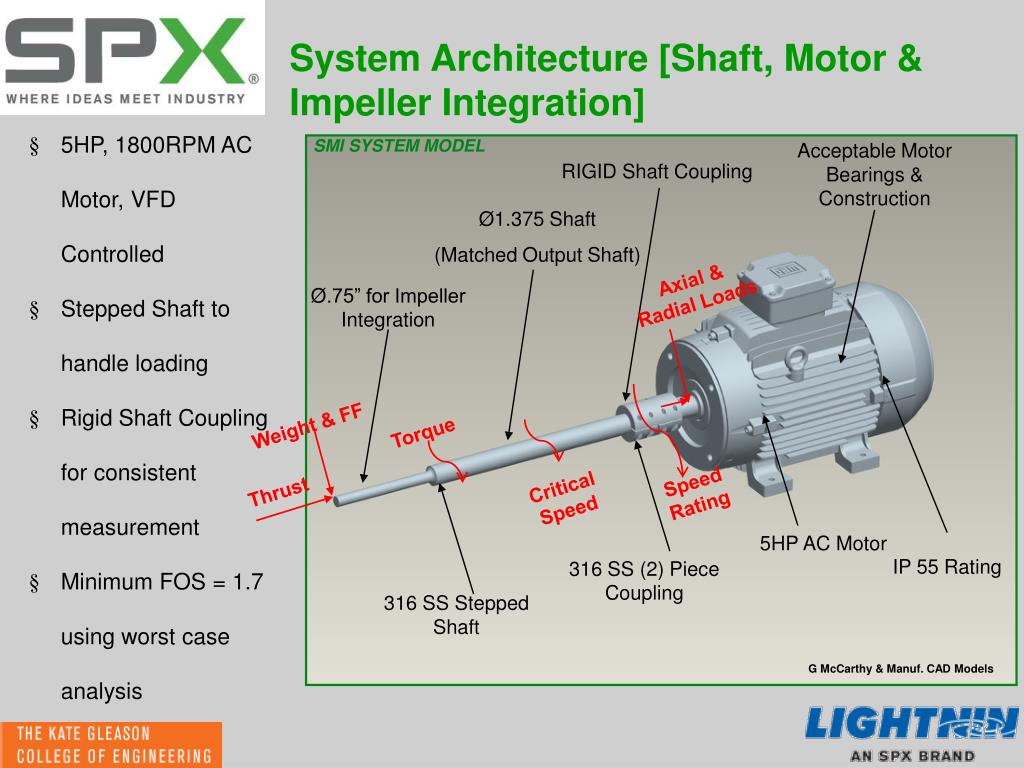

System Architecture [Shaft, Motor & Impeller Integration]

  • 5HP, 1800RPM AC Motor, VFD Controlled

  • Stepped Shaft to handle loading

  • Rigid Shaft Coupling for consistent measurement

  • Minimum FOS = 1.7 using worst case analysis

SMI SYSTEM MODEL

Acceptable Motor Bearings & Construction

RIGID Shaft Coupling

Ø1.375 Shaft

(Matched Output Shaft)

Axial &

Radial Loads

Ø.75” for Impeller Integration

Weight & FF

Torque

Speed Rating

Critical Speed

Thrust

5HP AC Motor

IP 55 Rating

316 SS (2) Piece Coupling

316 SS Stepped Shaft

G McCarthy & Manuf. CAD Models

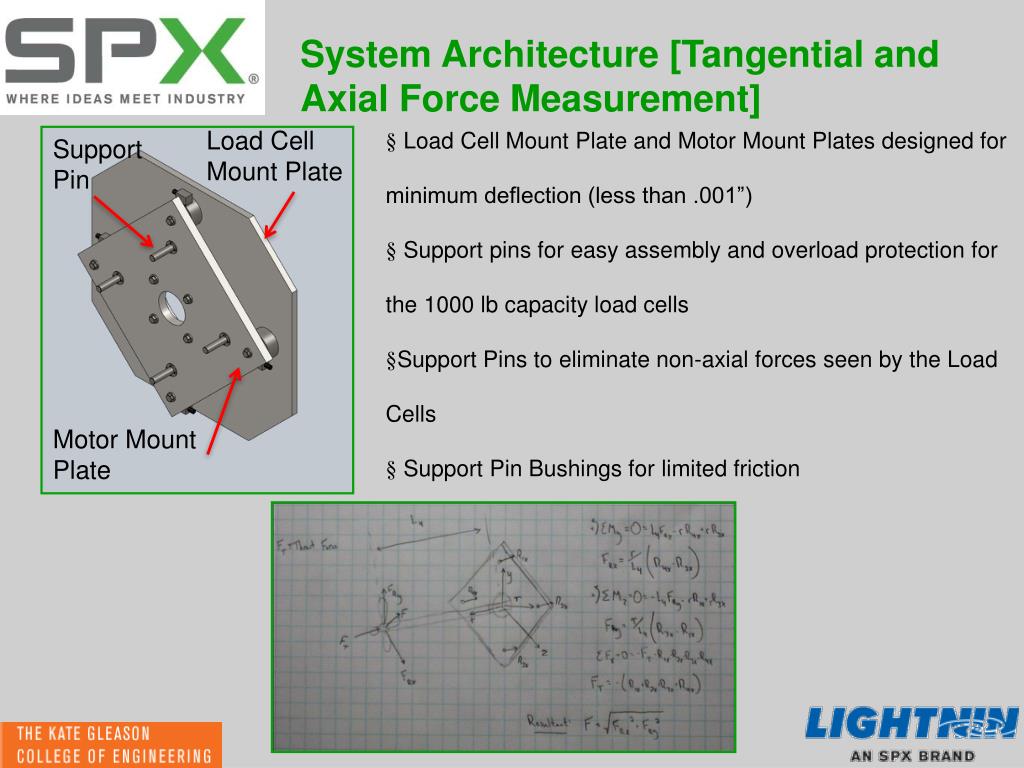

System Architecture [Tangential and Axial Force Measurement]

  • Load Cell Mount Plate and Motor Mount Plates designed for minimum deflection (less than .001”)

  • Support pins for easy assembly and overload protection for the 1000 lb capacity load cells

  • Support Pins to eliminate non-axial forces seen by the Load Cells

  • Support Pin Bushings for limited friction

Load Cell Mount Plate

Support Pin

Motor Mount Plate


System Architecture [LabVIEW, Motor Torque & RPM]

Signal Amplifier

  • RPM dialed in as constant

  • Torque measured from VFD, input to LabView

  • Load cell signal acquired and converted to axial and tangential forces

  • Data written to spreadsheet file for future manipulation in Matlab and Excel

Load Cell

DAQ System

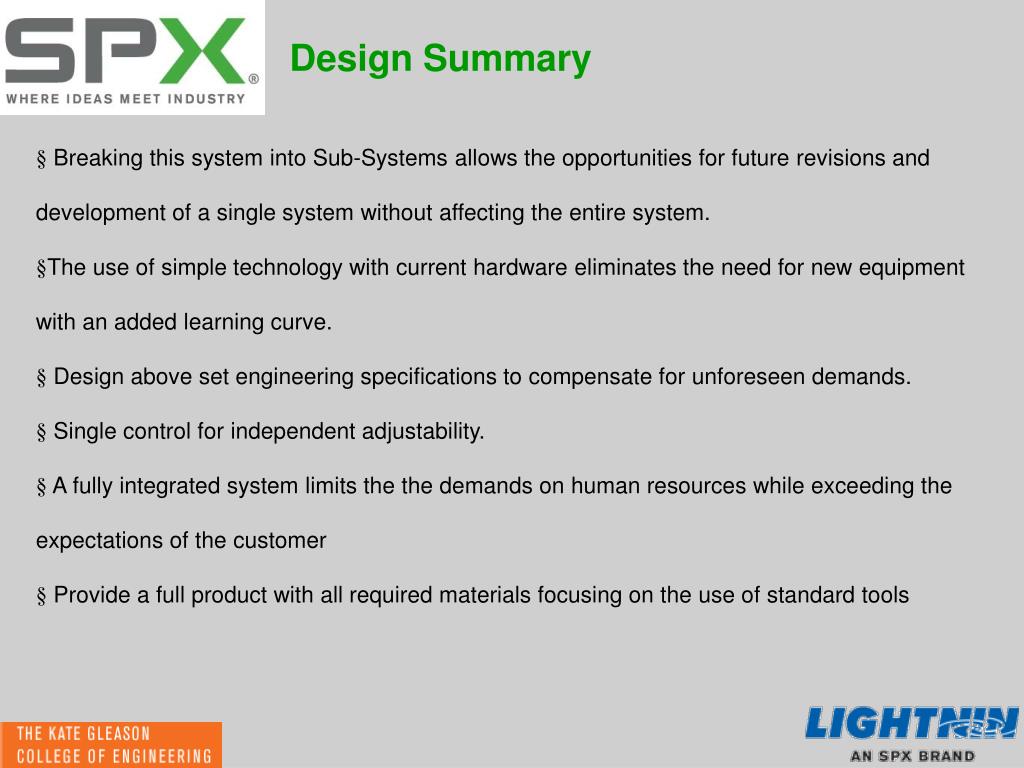

Design Summary

  • Breaking this system into Sub-Systems allows the opportunities for future revisions and development of a single system without affecting the entire system.

  • The use of simple technology with current hardware eliminates the need for new equipment with an added learning curve.

  • Design above set engineering specifications to compensate for unforeseen demands.

  • Single control for independent adjustability.

  • A fully integrated system limits the the demands on human resources while exceeding the expectations of the customer

  • Provide a full product with all required materials focusing on the use of standard tools

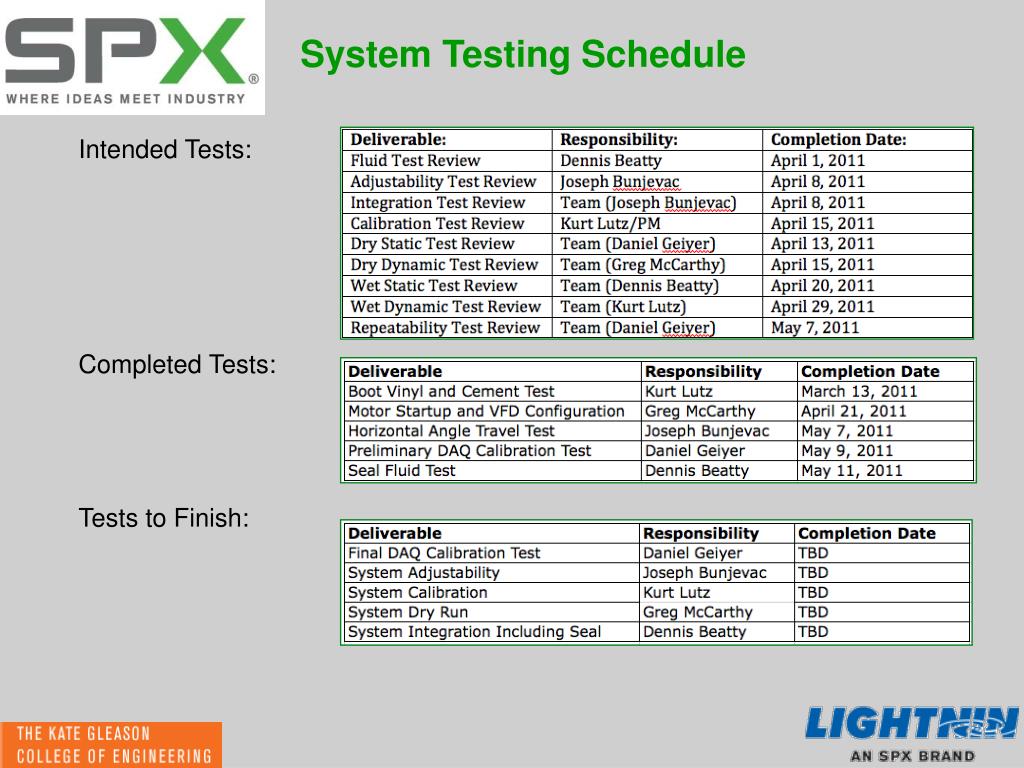

System Testing Schedule

Intended Tests:

Completed Tests:

Tests to Finish:

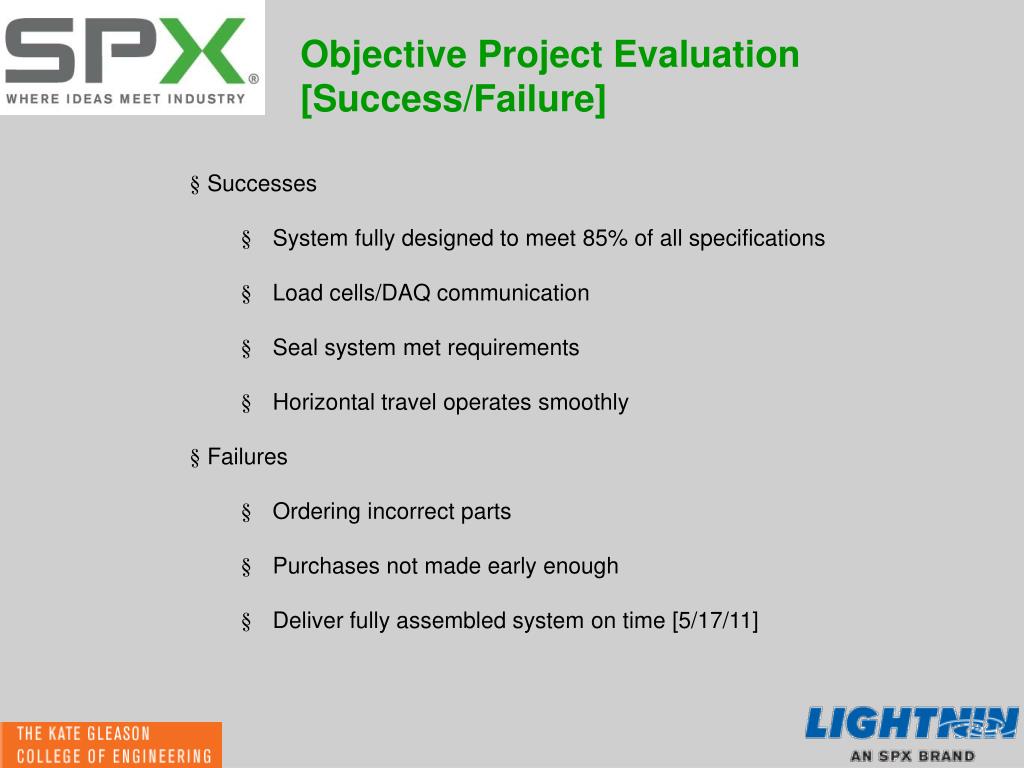

Objective Project Evaluation [Success/Failure]

  • Successes

    • System fully designed to meet 85% of all specifications

    • Load cells/DAQ communication

    • Seal system met requirements

    • Horizontal travel operates smoothly

  • Failures

    • Ordering incorrect parts

    • Purchases not made early enough

    • Deliver fully assembled system on time [5/17/11]

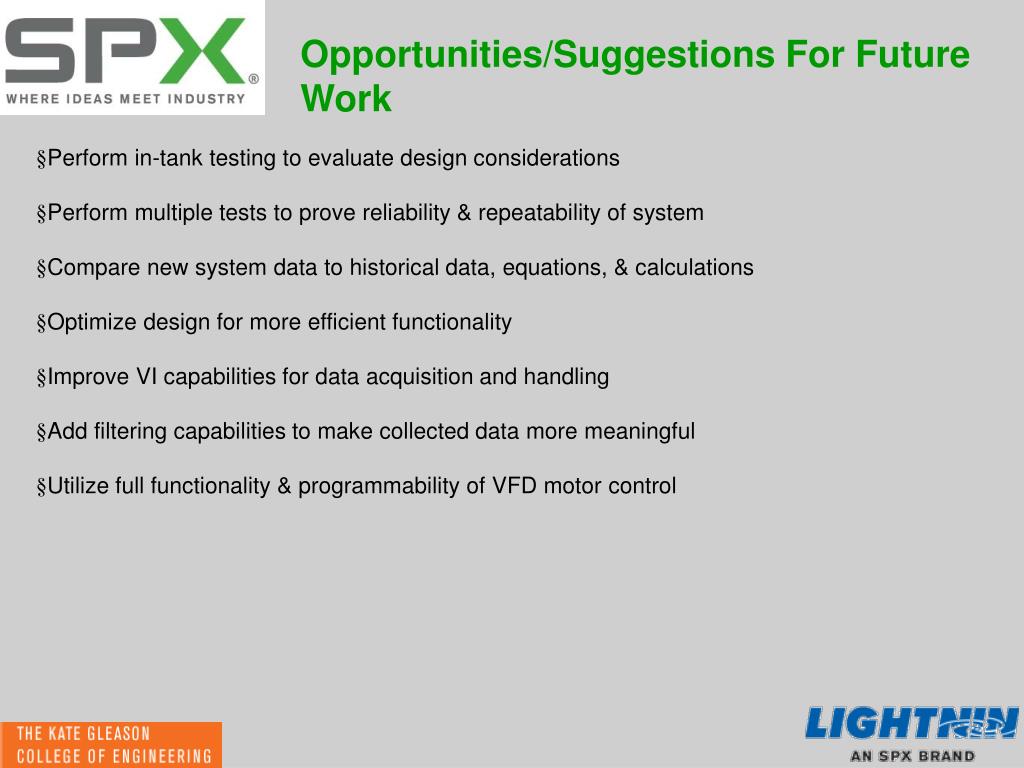

Opportunities/Suggestions For Future Work

  • Perform in-tank testing to evaluate design considerations

  • Perform multiple tests to prove reliability & repeatability of system

  • Compare new system data to historical data, equations, & calculations

  • Optimize design for more efficient functionality

  • Improve VI capabilities for data acquisition and handling

  • Add filtering capabilities to make collected data more meaningful

  • Utilize full functionality & programmability of VFD motor control

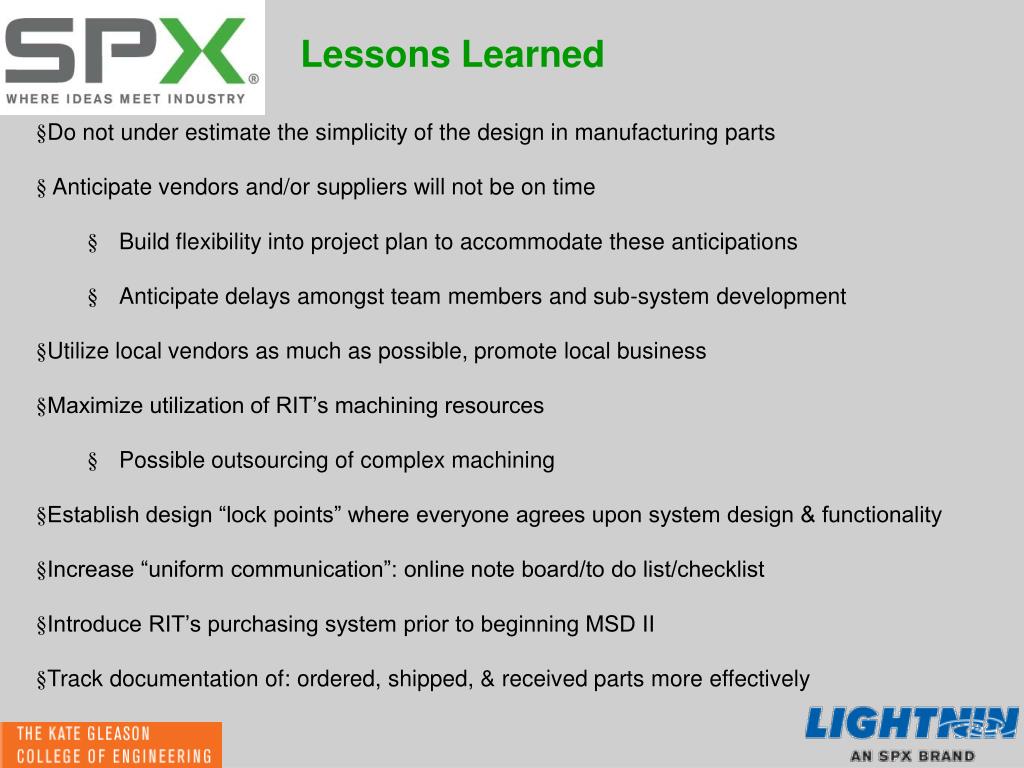

Lessons Learned

  • Do not under estimate the simplicity of the design in manufacturing parts

  • Anticipate vendors and/or suppliers will not be on time

    • Build flexibility into project plan to accommodate these anticipations

    • Anticipate delays amongst team members and sub-system development

  • Utilize local vendors as much as possible, promote local business

  • Maximize utilization of RIT’s machining resources

    • Possible outsourcing of complex machining

  • Establish design “lock points” where everyone agrees upon system design & functionality

  • Increase “uniform communication”: online note board/to do list/checklist

  • Introduce RIT’s purchasing system prior to beginning MSD II

  • Track documentation of: ordered, shipped, & received parts more effectively


Acknowledgements

  • Special Thanks to:

  • Richard Kehn, Bernie Gigas & Tom Taylor, on behalf of SPX, for making this project possible

  • Bill Nowak for providing guidance & field experience throughout the project

  • Prof. John Wellin for LabView & DAQ input

  • Dr. Kempski & Dr. Bodeo for technical advising & theoretical input

  • Dave Hathaway, Steve Kosciol, & Rob Kraynik for their assistance with machining, welding, and constructing the system.

  • John Bonzo & the Brinkman Lab for CNC machining select parts

  • Ryan Crittenden & FMS for electrical advise and wiring to NYS Code
