SAP1 (Simple-As-Possible) Computer

1. SAP1 (Simple-As-Possible) Computer

2. Architecture • Program counter • 4-bit wide • Input & MAR • Includes the address & data switch registers • Send 4 address bits and 8 data bits to the RAM • RAM • 16 x 8 • Instruction Register • Loads the content of the addressed memory location through the W bus • Upper nibble goes directly to the Controller-Sequencer • Lower nibble is read onto the W bus when needed

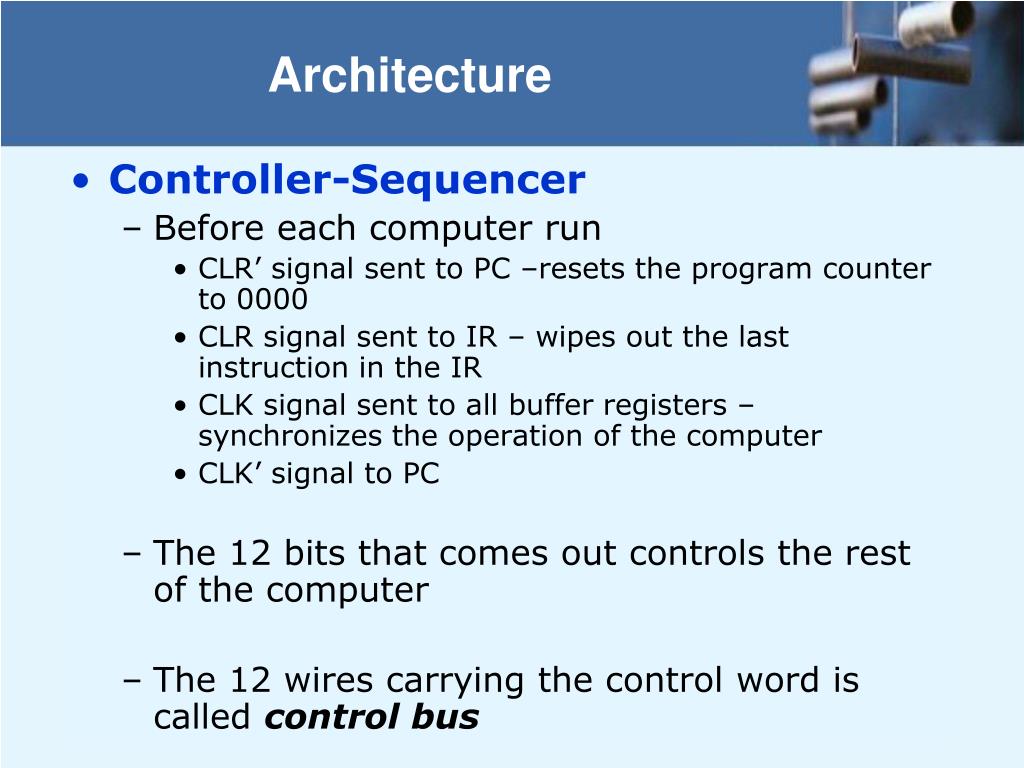

3. Architecture • Controller-Sequencer • Before each computer run • CLR’ signal sent to PC –resets the program counter to 0000 • CLR signal sent to IR – wipes out the last instruction in the IR • CLK signal sent to all buffer registers – synchronizes the operation of the computer • CLK’ signal to PC • The 12 bits that comes out controls the rest of the computer • The 12 wires carrying the control word is called control bus

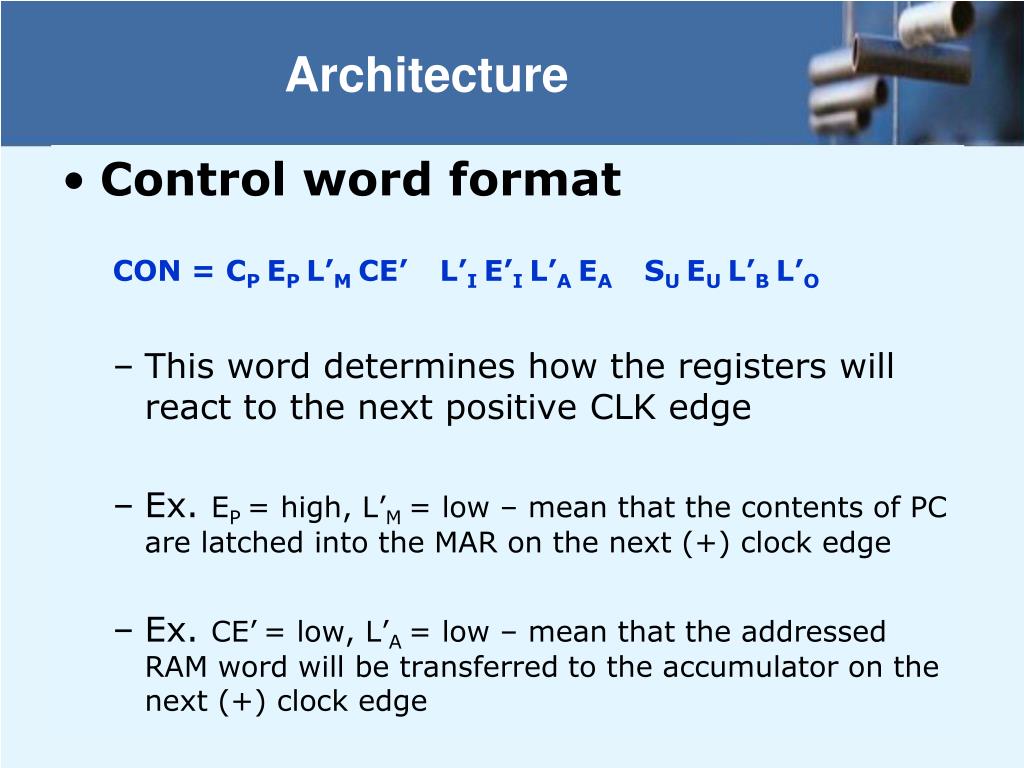

5. Architecture • Control word format CON = CP EP L’M CE’L’I E’I L’A EA SU EU L’B L’O • This word determines how the registers will react to the next positive CLK edge • Ex. EP = high, L’M = low – mean that the contents of PC are latched into the MAR on the next (+) clock edge • Ex. CE’= low, L’A = low – mean that the addressed RAM word will be transferred to the accumulator on the next (+) clock edge

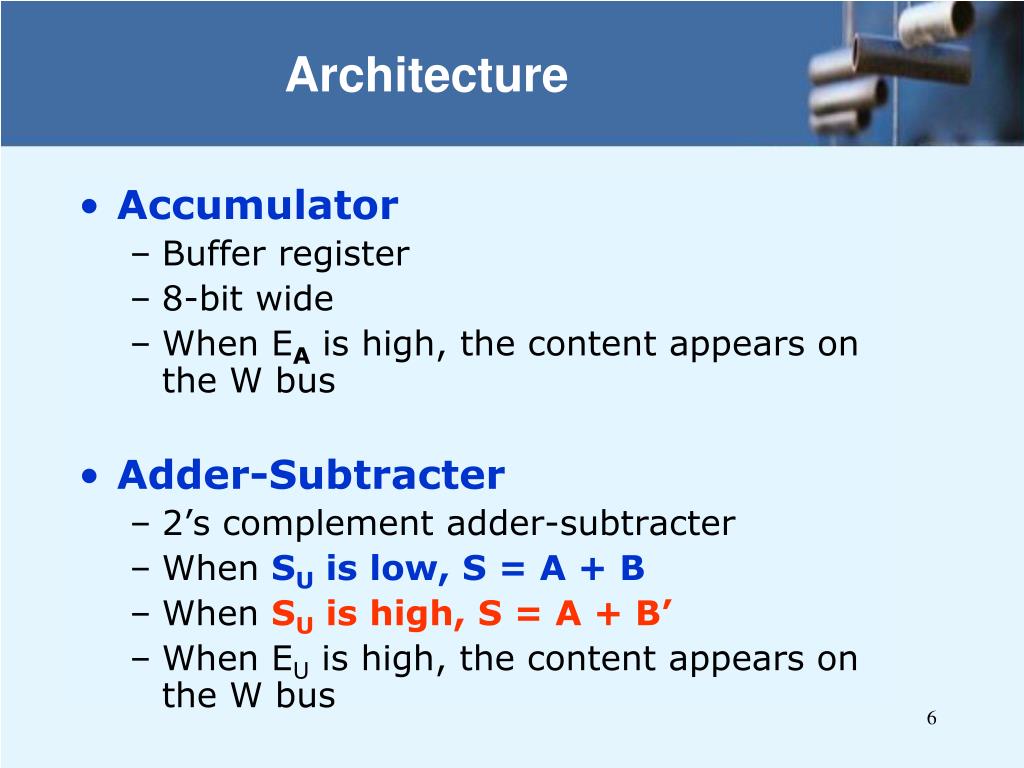

6. Architecture • Accumulator • Buffer register • 8-bit wide • When EAis high, the content appears on the W bus • Adder-Subtracter • 2’s complement adder-subtracter • When SU is low, S = A + B • When SU is high, S = A + B’ • When EU is high, the content appears on the W bus

7. Architecture • B Register • Another 8-bit wide buffer register • Used in arithmetic operations • When L’Bis low & (+) clock edge, the word on the W bus will be loaded • Output Register • Often called the output port • When EAis high & L’Ois low , the next (+) clock edge loads the accumulator word into the output register • Binary display • Row of 8 LEDs • Each LED connects to 1 flip-flop (FF) of the output port

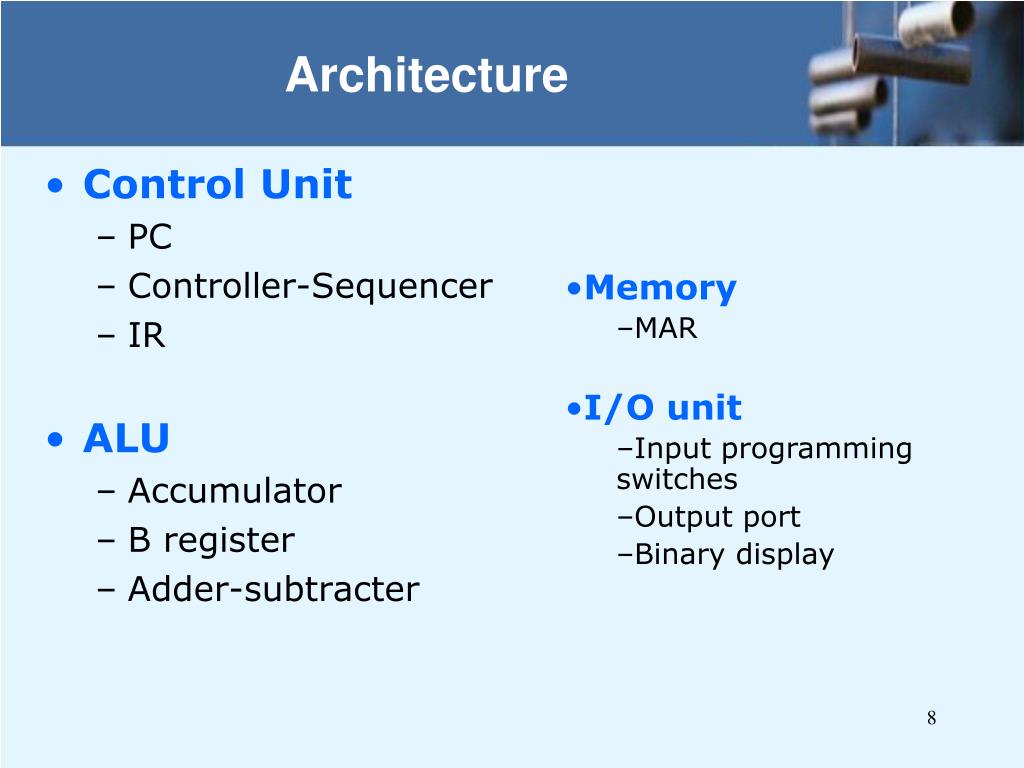

8. Architecture • Control Unit • PC • Controller-Sequencer • IR • ALU • Accumulator • B register • Adder-subtracter • Memory • MAR • I/O unit • Input programming switches • Output port • Binary display

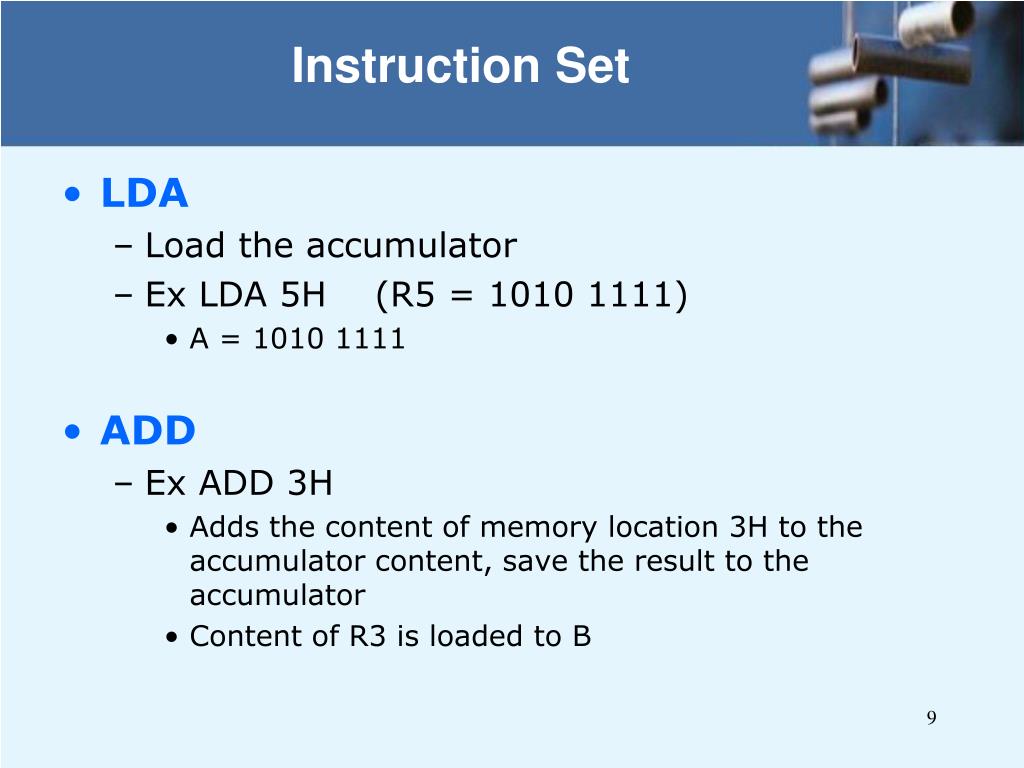

9. Instruction Set • LDA • Load the accumulator • Ex LDA 5H (R5 = 1010 1111) • A = 1010 1111 • ADD • Ex ADD 3H • Adds the content of memory location 3H to the accumulator content, save the result to the accumulator • Content of R3 is loaded to B

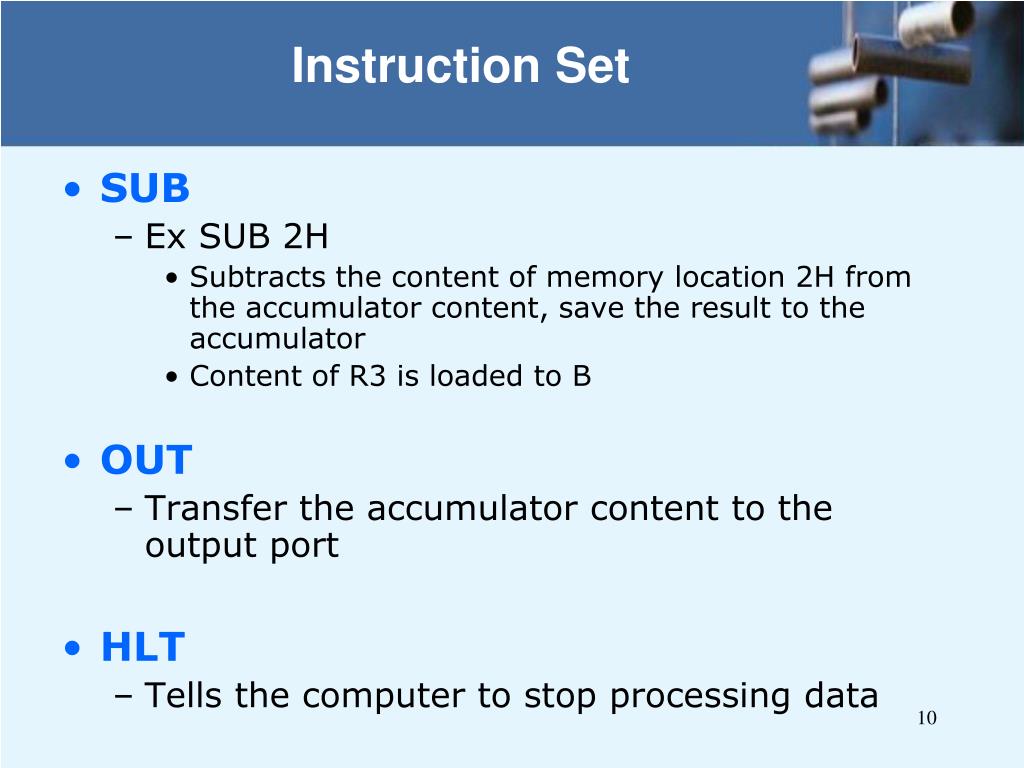

10. Instruction Set • SUB • Ex SUB 2H • Subtracts the content of memory location 2H from the accumulator content, save the result to the accumulator • Content of R3 is loaded to B • OUT • Transfer the accumulator content to the output port • HLT • Tells the computer to stop processing data

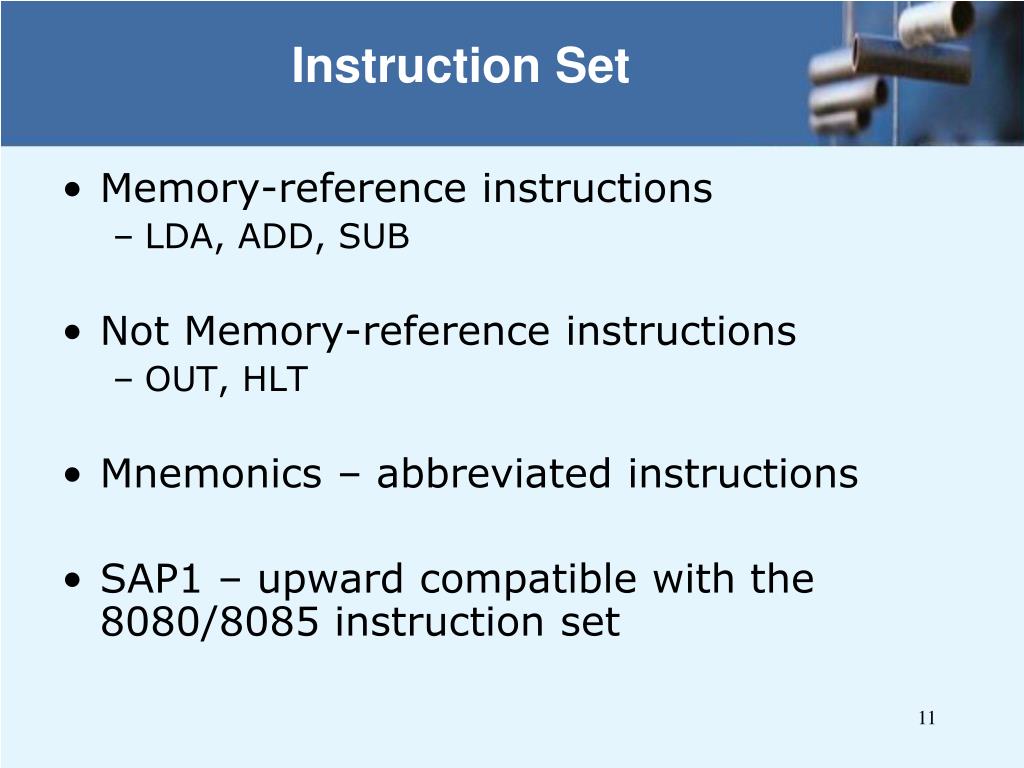

11. Instruction Set • Memory-reference instructions • LDA, ADD, SUB • Not Memory-reference instructions • OUT, HLT • Mnemonics – abbreviated instructions • SAP1 – upward compatible with the 8080/8085 instruction set

12. Fetch Cycle T1 – address state - the address from PC is transferred to MAR CON = CP EP L’MCE’L’I E’I L’A EA SU EU L’B L’O = 0 1 0 1 1 1 1 0 0 0 1 1 T2 – increment state - PC +1 CON = CPEP L’M CE’L’I E’I L’A EA SU EU L’B L’O = 1 0 1 1 1 1 1 0 0 0 1 1

13. Fetch Cycle T3 – memory state - the addressed RAM instruction is transferred from the memory to IR CON = CP EP L’M CE’L’IE’I L’A EA SU EU L’B L’O = 0 0 1 0 0 1 1 0 0 0 1 1

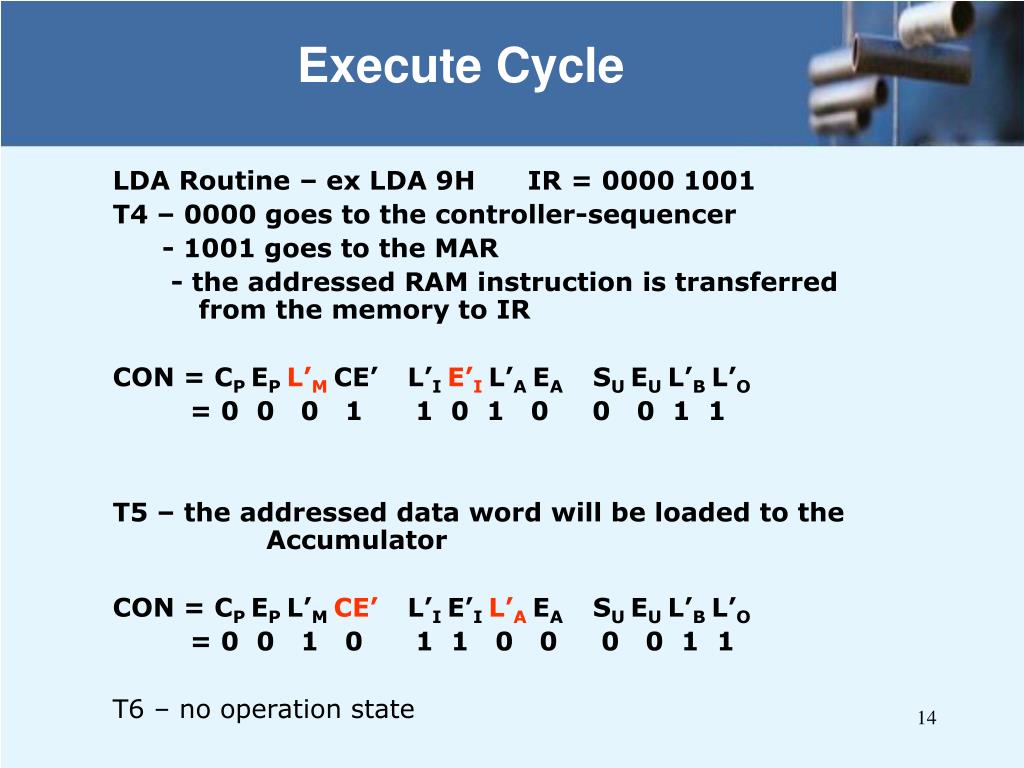

14. Execute Cycle LDA Routine – ex LDA 9H IR = 0000 1001 T4 – 0000 goes to the controller-sequencer - 1001 goes to the MAR - the addressed RAM instruction is transferred from the memory to IR CON = CP EP L’M CE’L’I E’IL’A EA SU EU L’B L’O = 0 0 0 1 1 0 1 0 0 0 1 1 T5 – the addressed data word will be loaded to the Accumulator CON = CP EP L’M CE’L’I E’I L’AEA SU EU L’B L’O = 0 0 1 0 1 1 0 0 0 0 1 1 T6 – no operation state
