Presentation Transcript


To provide a database designed for models focuses on application metadata

  • To provide a database designed for models

    • Focuses on application metadata

    • Optimizes storing many models in one database

    • Supports secure data sharing and reuse

  • To provide common model schemas

    • Build models that relate to the application lifecycle

    • Enable Microsoft and third-party solutions

  • Goals of SQL Server Modeling Services


To provide a database designed for models focuses on application metadata

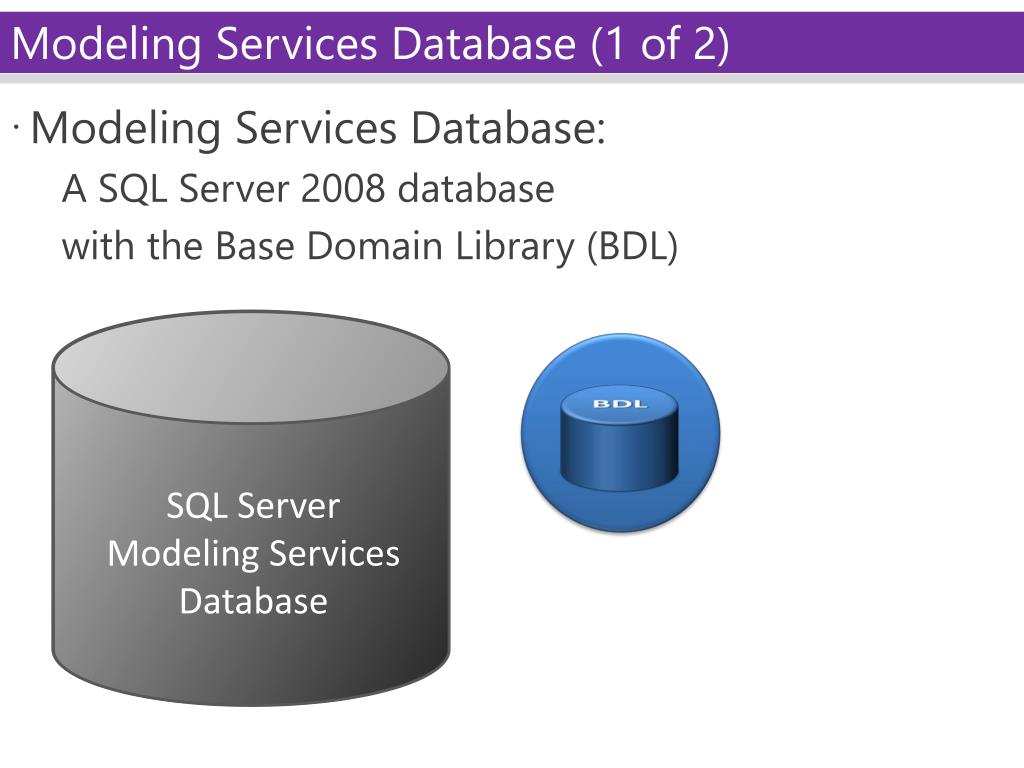

  • Modeling Services Database:

    A SQL Server 2008 database

    with the Base Domain Library (BDL)

  • Modeling Services Database (1 of 2)

Base Domain Library

BDL

SQL ServerModeling Services Database


To provide a database designed for models focuses on application metadata

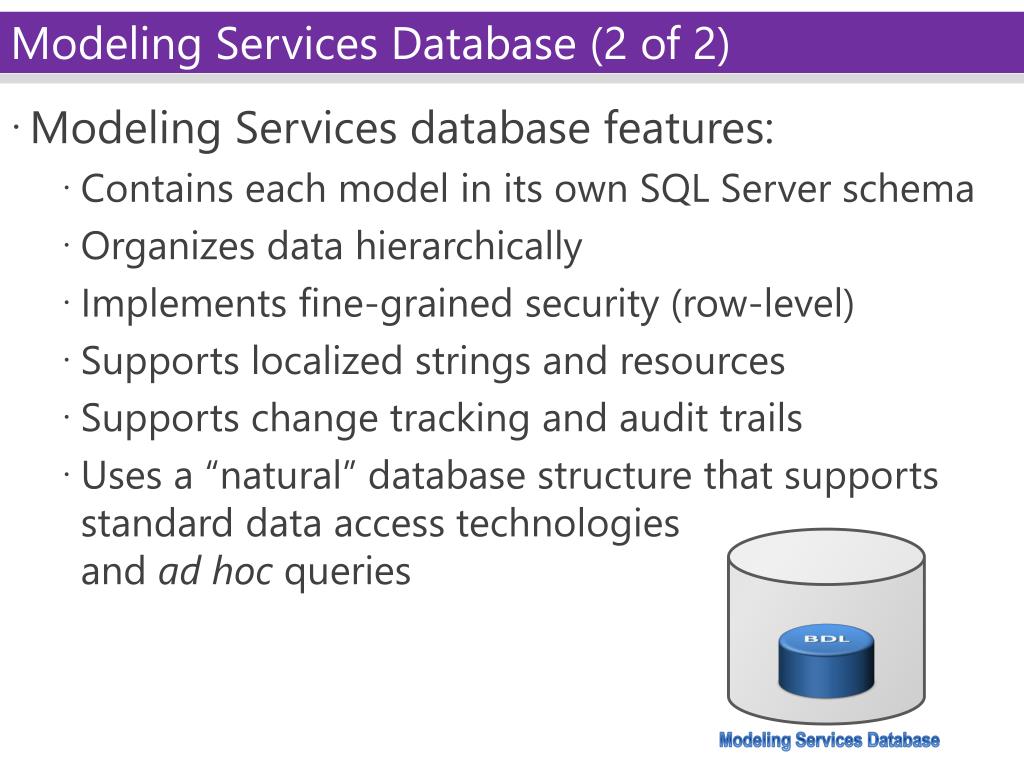

  • Modeling Services database features:

    • Contains each model in its own SQL Server schema

    • Organizes data hierarchically

    • Implements fine-grained security (row-level)

    • Supports localized strings and resources

    • Supports change tracking and audit trails

    • Uses a “natural” database structure that supports standard data access technologies and ad hoc queries

  • Modeling Services Database (2 of 2)

BDL

Modeling Services Database


To provide a database designed for models focuses on application metadata

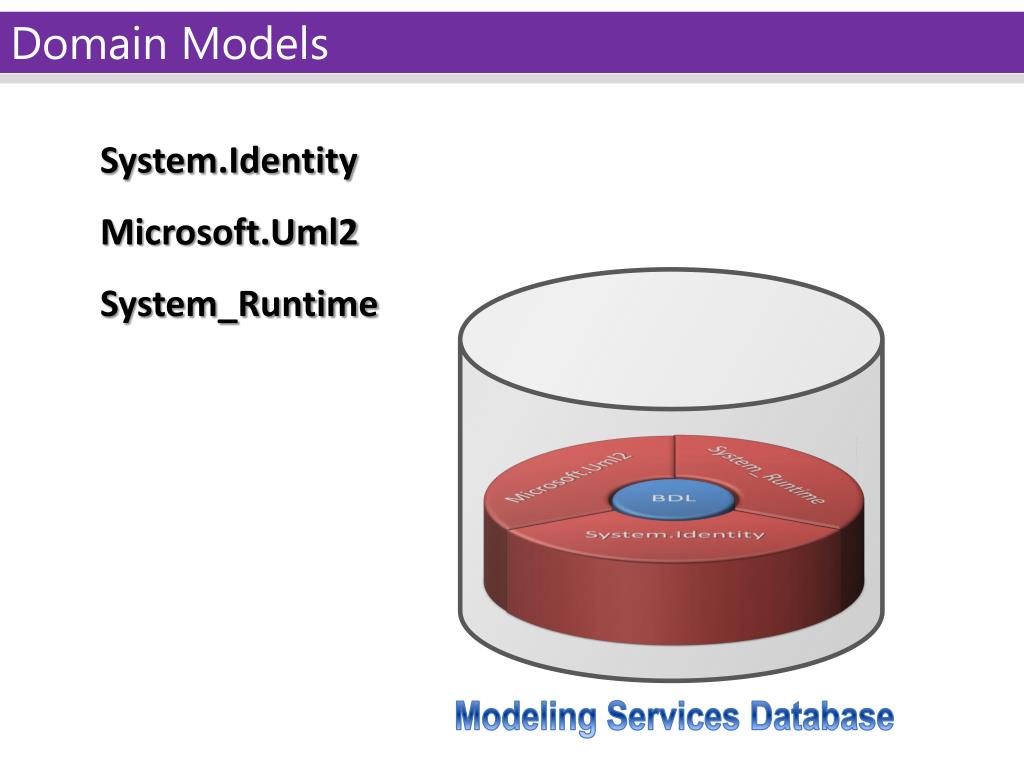

  • Domain Models

System.Identity

Microsoft.Uml2

System_Runtime

BDL

Microsoft.Uml2

System_Runtime

System.Identity

Modeling Services Database


To provide a database designed for models focuses on application metadata

  • Models .NET Framework assembly metadata

  • Previously located in physical files

  • Enables new analysis possibilities and solutions

  • System_Runtime Domain Benefits

.NET Assembly File

.NET Assembly File

System_Runtime

System_Runtime

.NET Assembly File

select * from [System_Runtime].[Methods]


To provide a database designed for models focuses on application metadata

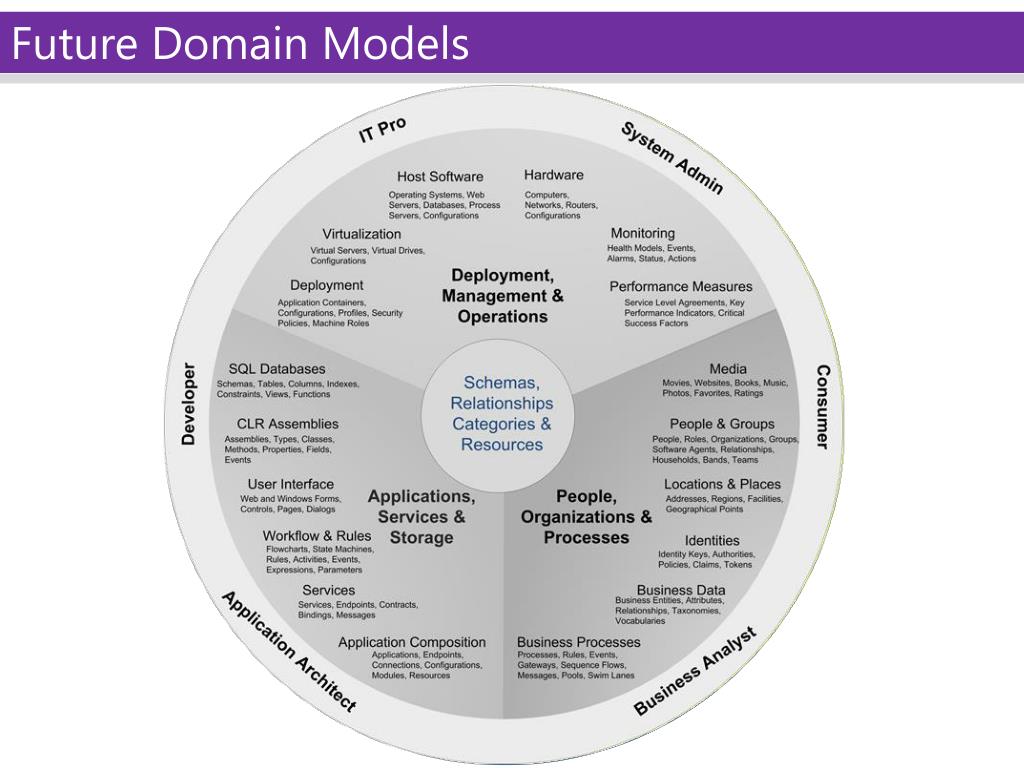

  • Future Domain Models


To provide a database designed for models focuses on application metadata

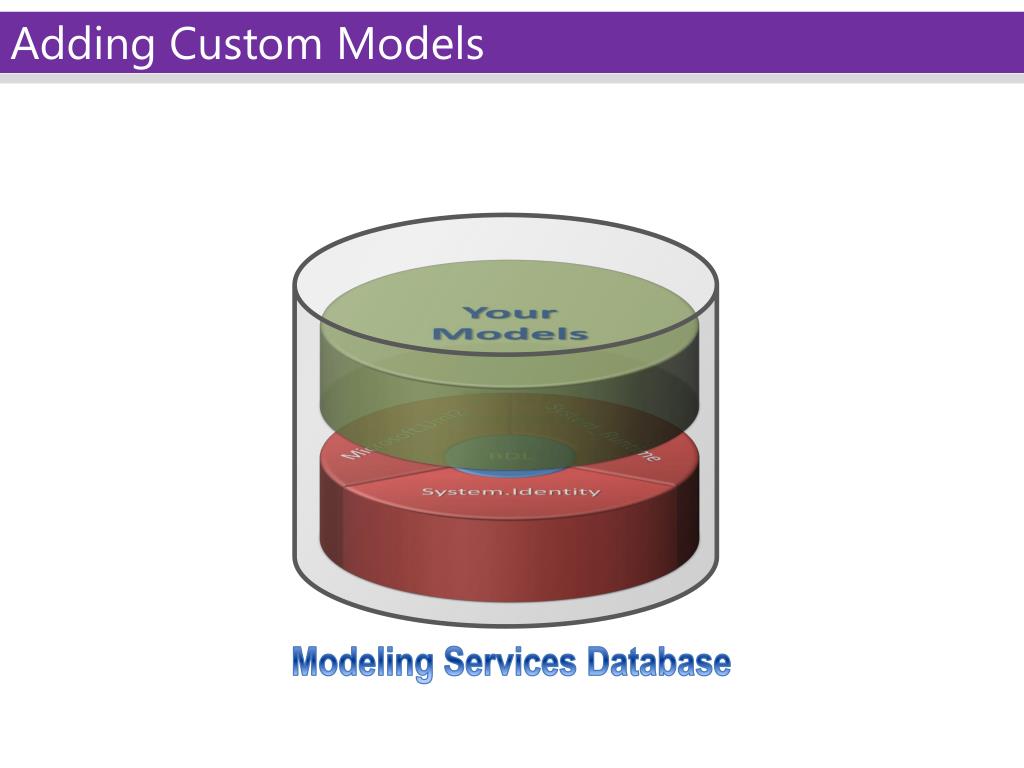

  • Adding Custom Models

Your Models

Microsoft.Uml2

System_Runtime

BDL

System.Identity

Modeling Services Database


To provide a database designed for models focuses on application metadata

  • Step 1: Write “M” Code for Your Model


To provide a database designed for models focuses on application metadata

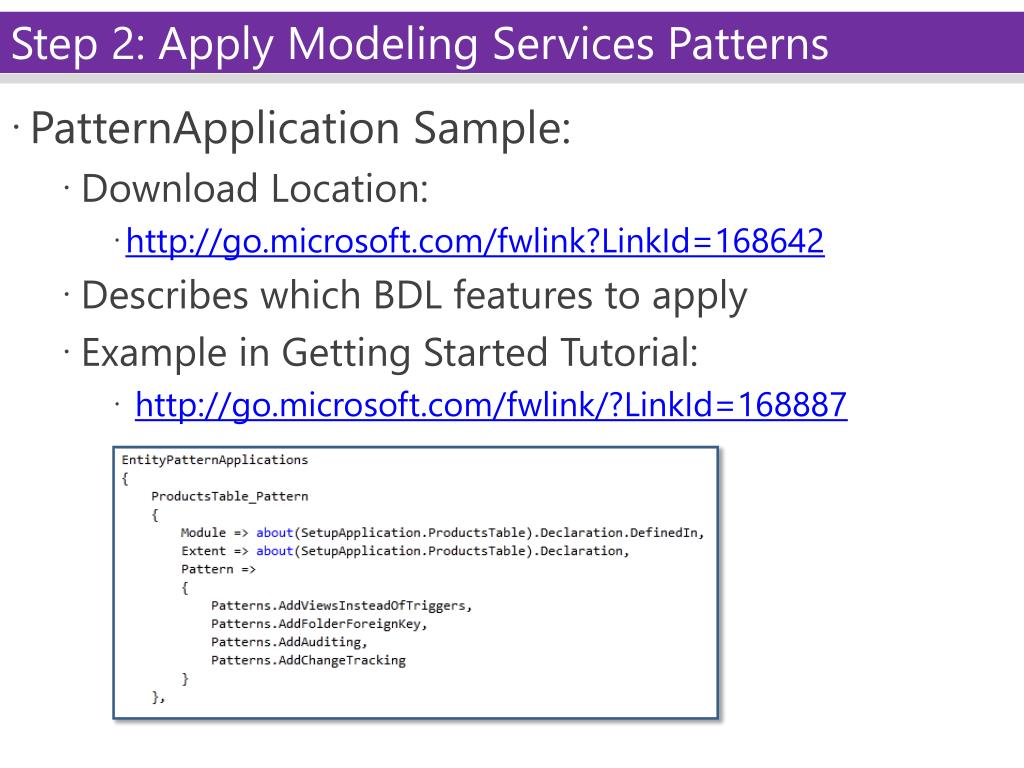

  • PatternApplication Sample:

    • Download Location:

      • http://go.microsoft.com/fwlink?LinkId=168642

    • Describes which BDL features to apply

    • Example in Getting Started Tutorial:

      • http://go.microsoft.com/fwlink/?LinkId=168887

  • Step 2: Apply Modeling Services Patterns


To provide a database designed for models focuses on application metadata

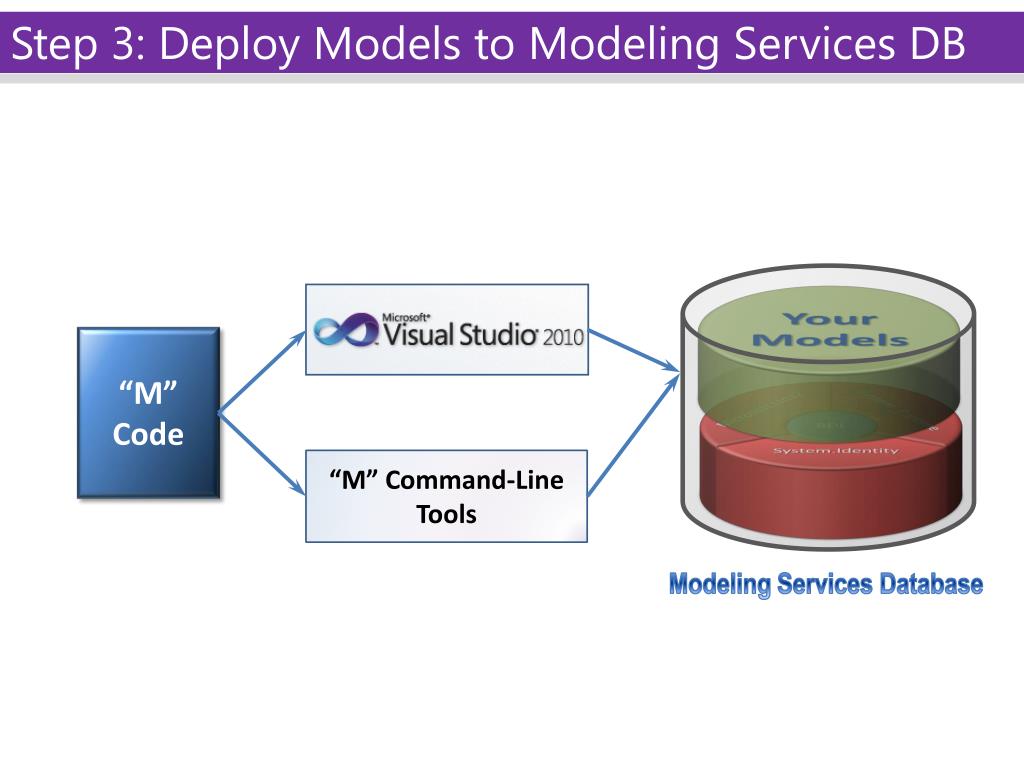

  • Step 3: Deploy Models to Modeling Services DB

Your Models

“M” Code

Microsoft.Uml2

“M” Command-Line Tools

System_Runtime

BDL

System.Identity

Modeling Services Database


To provide a database designed for models focuses on application metadata

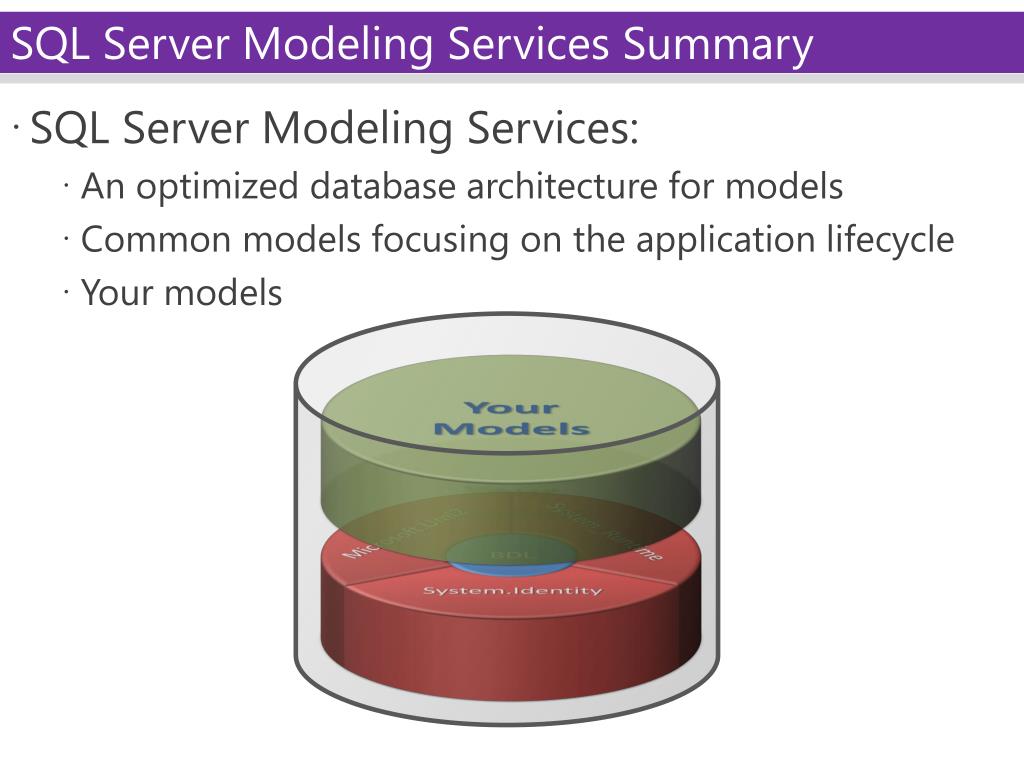

  • SQL Server Modeling Services:

    • An optimized database architecture for models

    • Common models focusing on the application lifecycle

    • Your models

  • SQL Server Modeling Services Summary

Your Models

Microsoft.Uml2

System_Runtime

BDL

BDL

System.Identity

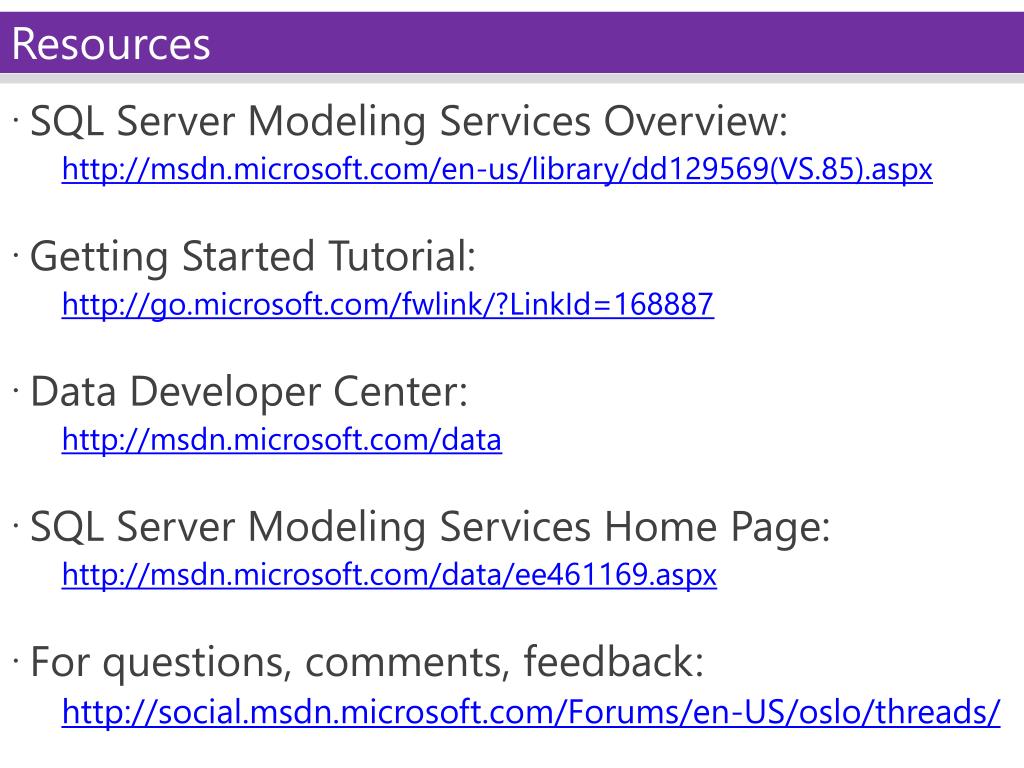

To provide a database designed for models focuses on application metadata

  • SQL Server Modeling Services Overview:

    http://msdn.microsoft.com/en-us/library/dd129569(VS.85).aspx

  • Getting Started Tutorial:

    http://go.microsoft.com/fwlink/?LinkId=168887

  • Data Developer Center:

    http://msdn.microsoft.com/data

  • SQL Server Modeling Services Home Page:

    http://msdn.microsoft.com/data/ee461169.aspx

  • For questions, comments, feedback:

    http://social.msdn.microsoft.com/Forums/en-US/oslo/threads/

  • Resources
