Presentation Transcript


15 441 computer networking

15-441 Computer Networking

Mobility


Many mobility scenario s

Many Mobility Scenario’s

  • Mobile hosts connecting to networked infrastructure (focus of this lecture)

    • Cell phones connecting to cell towers

    • Laptops connecting to access points

  • Ad hoc networks: a set of mobile nodes communicating with each other with no additional networked infrastructure

    • Extra challenges: routing and possible mobility

  • Sensor networks (ad hoc +)

    • More resource constrained mobile nodes

  • Vehicular networks

    • Extreme mobility


Routing to mobile nodes

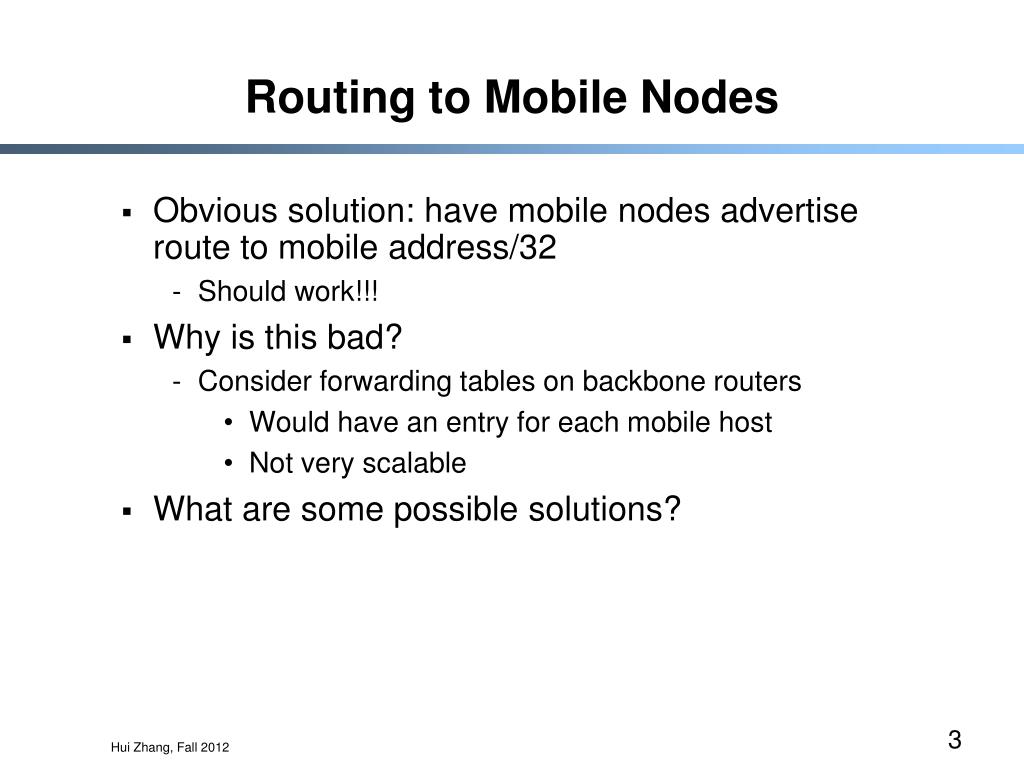

Routing to Mobile Nodes

  • Obvious solution: have mobile nodes advertise route to mobile address/32

    • Should work!!!

  • Why is this bad?

    • Consider forwarding tables on backbone routers

      • Would have an entry for each mobile host

      • Not very scalable

  • What are some possible solutions?


How to handle mobile nodes addressing

How to Handle Mobile Nodes?(Addressing)

  • Dynamic Host Configuration (DHCP)

    • Host gets new IP address in new locations

    • Problems

      • Host does not have constant name/address  how do others contact host

      • What happens to active transport connections?


How to handle mobile nodes naming

How to Handle Mobile Nodes?(Naming)

  • Naming

    • Use DHCP and update name-address mapping whenever host changes address

    • Fixes contact problem but not broken transport connections


How to handle mobile nodes transport

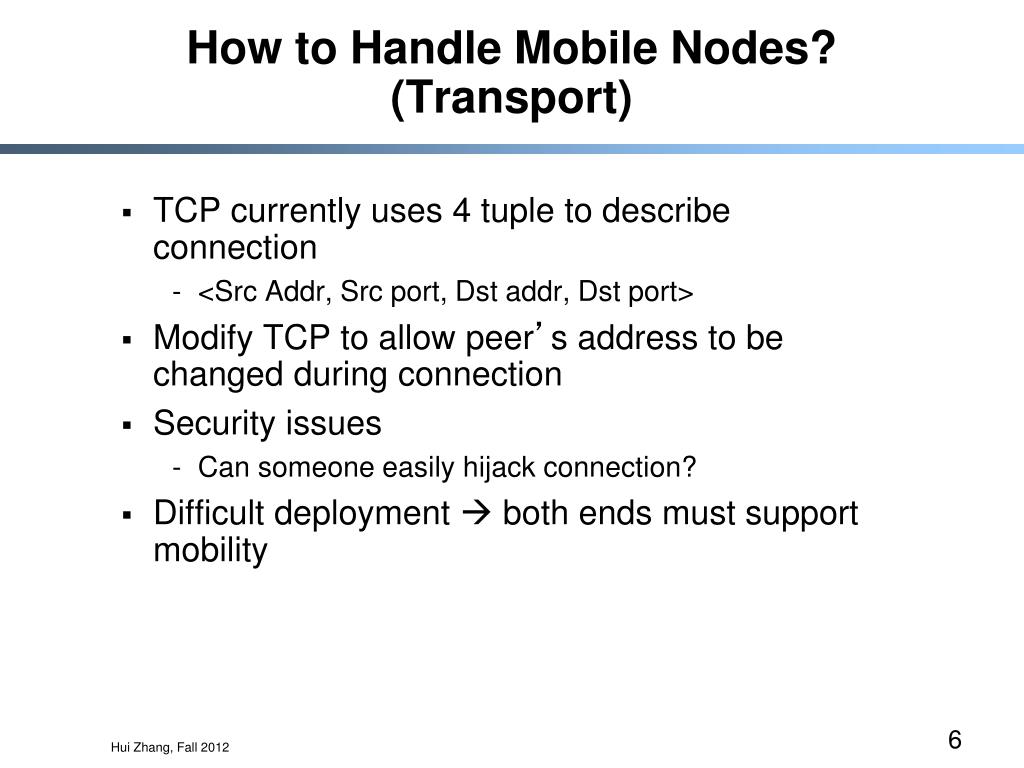

How to Handle Mobile Nodes? (Transport)

  • TCP currently uses 4 tuple to describe connection

    • <Src Addr, Src port, Dst addr, Dst port>

  • Modify TCP to allow peer’s address to be changed during connection

  • Security issues

    • Can someone easily hijack connection?

  • Difficult deployment  both ends must support mobility


How to handle mobile nodes link layer

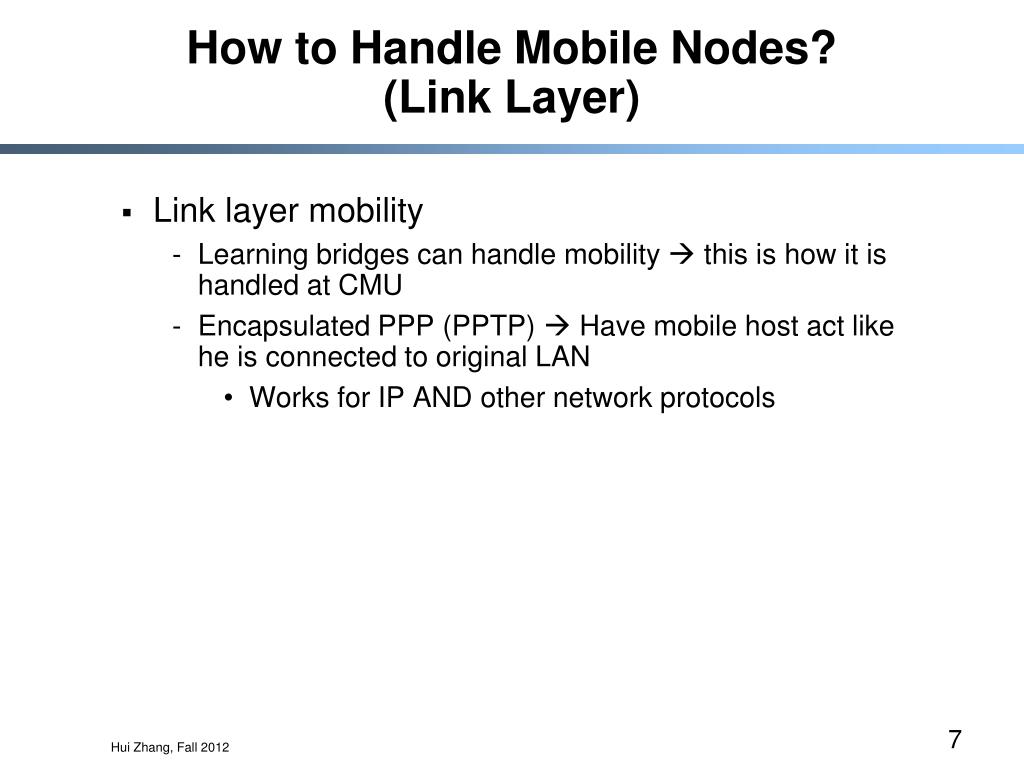

How to Handle Mobile Nodes?(Link Layer)

  • Link layer mobility

    • Learning bridges can handle mobility  this is how it is handled at CMU

    • Encapsulated PPP (PPTP)  Have mobile host act like he is connected to original LAN

      • Works for IP AND other network protocols


How to handle mobile nodes routing

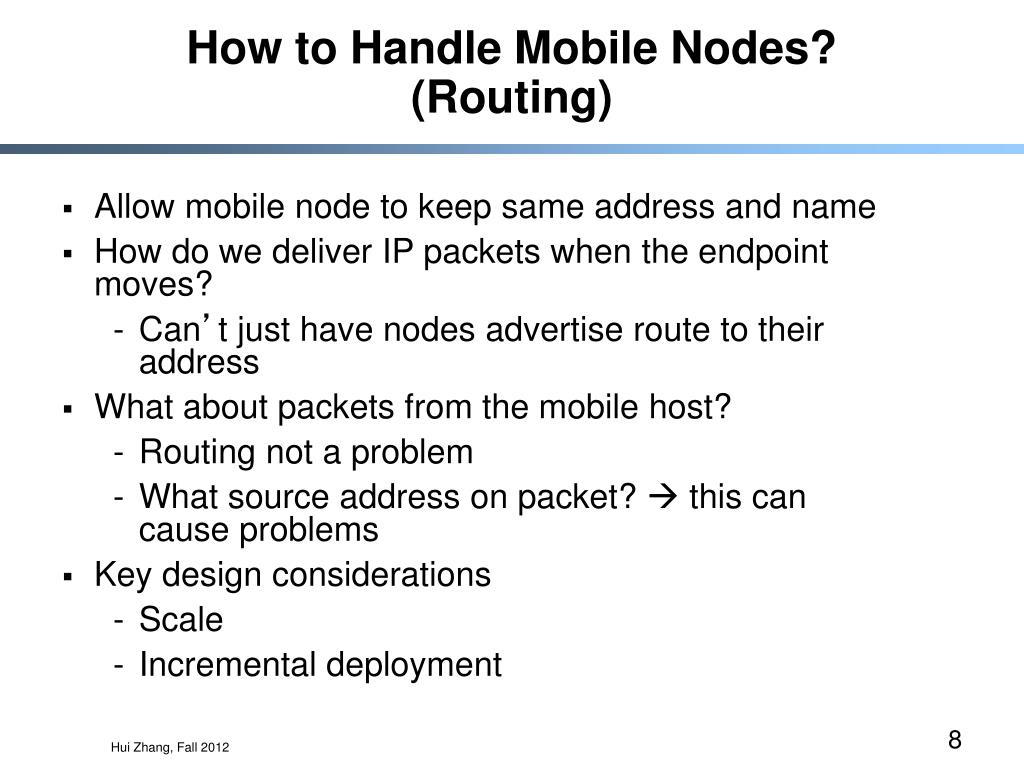

How to Handle Mobile Nodes?(Routing)

  • Allow mobile node to keep same address and name

  • How do we deliver IP packets when the endpoint moves?

    • Can’t just have nodes advertise route to their address

  • What about packets from the mobile host?

    • Routing not a problem

    • What source address on packet?  this can cause problems

  • Key design considerations

    • Scale

    • Incremental deployment


Basic solution to mobile routing

Basic Solution to Mobile Routing

  • Same as other problems in computer science

    • Add a level of indirection

  • Keep some part of the network informed about current location

    • Need technique to route packets through this location (interception)

  • Need to forward packets from this location to mobile host (delivery)

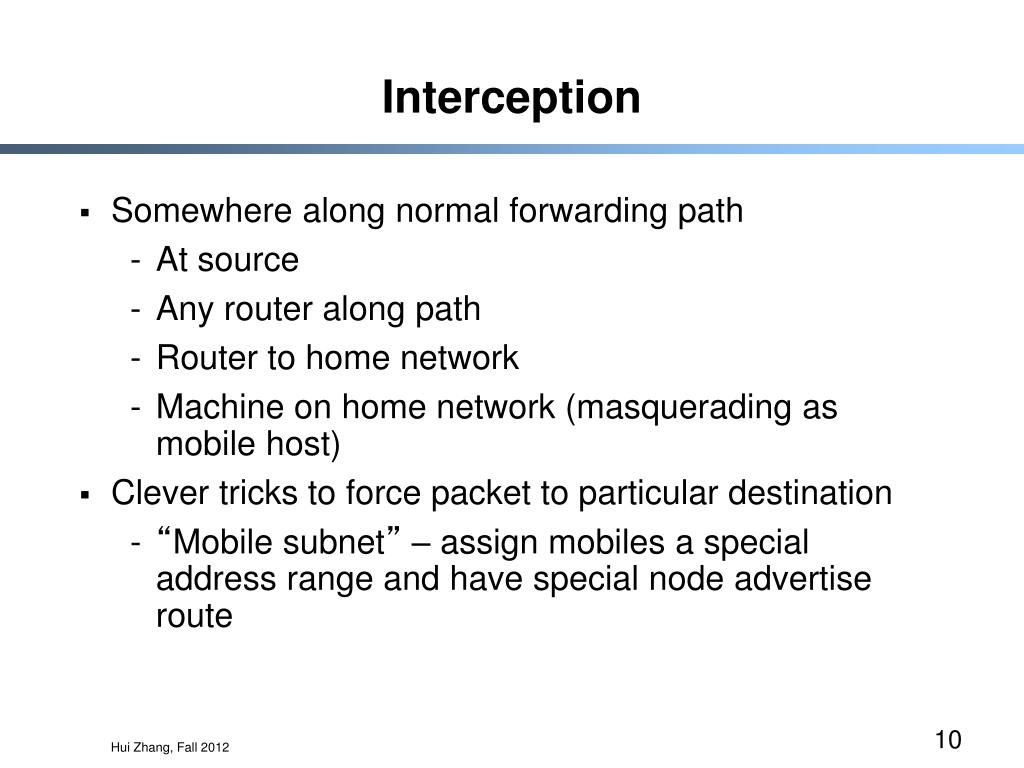

Interception

Interception

  • Somewhere along normal forwarding path

    • At source

    • Any router along path

    • Router to home network

    • Machine on home network (masquerading as mobile host)

  • Clever tricks to force packet to particular destination

    • “Mobile subnet” – assign mobiles a special address range and have special node advertise route


Delivery

Delivery

  • Need to get packet to mobile’s current location

  • Tunnels

    • Tunnel endpoint = current location

    • Tunnel contents = original packets

  • Source routing

    • Loose source route through mobile current location


Mobile ip rfc 2290

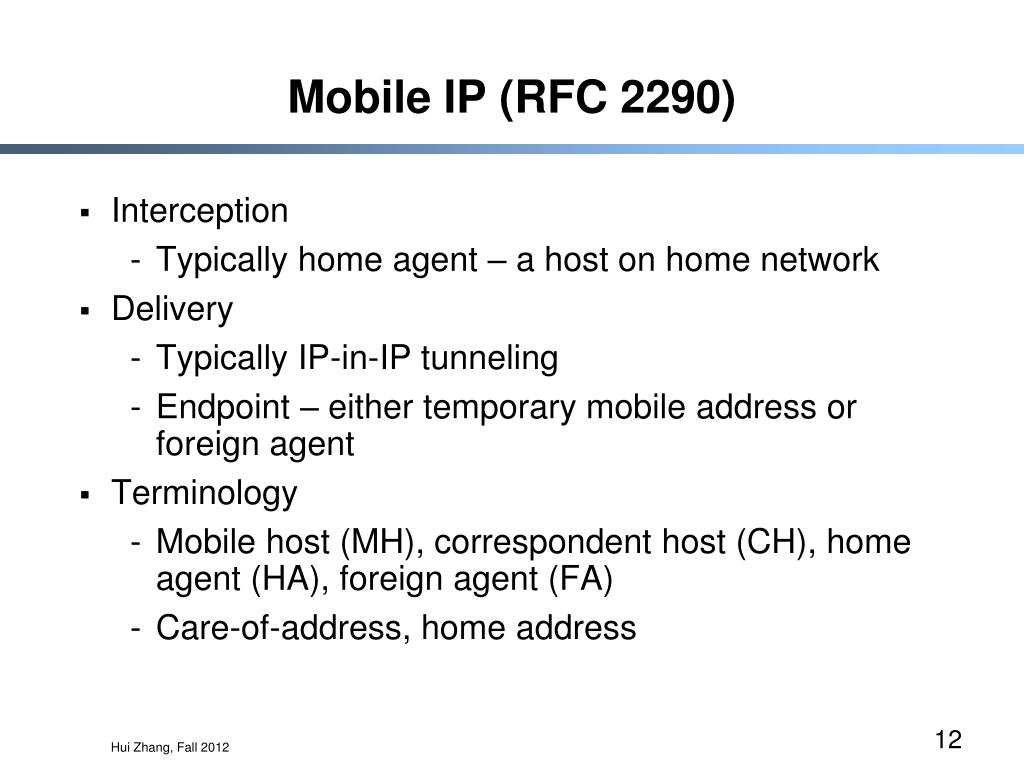

Mobile IP (RFC 2290)

  • Interception

    • Typically home agent – a host on home network

  • Delivery

    • Typically IP-in-IP tunneling

    • Endpoint – either temporary mobile address or foreign agent

  • Terminology

    • Mobile host (MH), correspondent host (CH), home agent (HA), foreign agent (FA)

    • Care-of-address, home address


Mobile ip mh at home

Lecture 21: 2006-11-16

Mobile IP (MH at Home)

Packet

Correspondent Host (CH)

Internet

Visiting Location

Home

Mobile Host (MH)


Mobile ip mh moving

Mobile IP (MH Moving)

Packet

Correspondent Host (CH)

Internet

Visiting Location

Home

Home Agent (HA)

Mobile Host (MH)

I am here


Mobile ip mh away fa

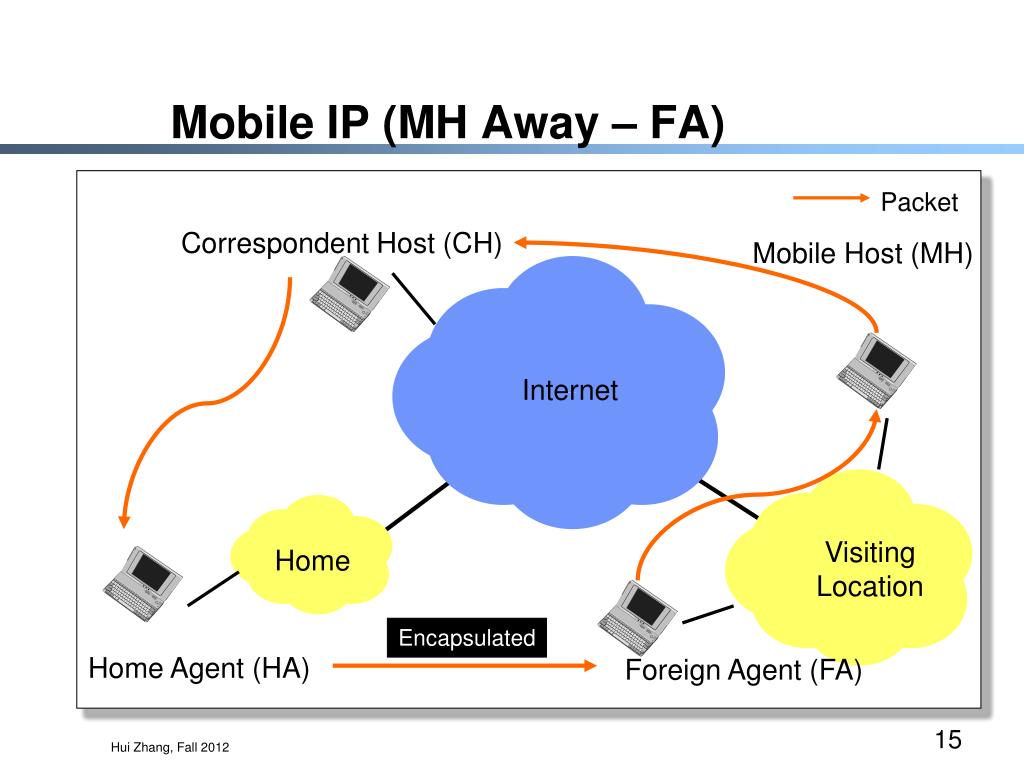

Mobile IP (MH Away – FA)

Packet

Correspondent Host (CH)

Mobile Host (MH)

Internet

Visiting Location

Home

Encapsulated

Home Agent (HA)

Foreign Agent (FA)


Mobile ip mh away collocated

Mobile IP (MH Away - Collocated)

Packet

Correspondent Host (CH)

Internet

Visiting Location

Home

Encapsulated

Home Agent (HA)

Mobile Host (MH)


Other mobile ip issues

Other Mobile IP Issues

  • Route optimality

    • Resulting paths can be sub-optimal

    • Can be improved with route optimization

      • Unsolicited binding cache update to sender

  • Authentication

    • Registration messages

    • Binding cache updates

  • Must send updates across network

    • Handoffs can be slow

  • Problems with basic solution

    • Triangle routing

    • Reverse path check for security

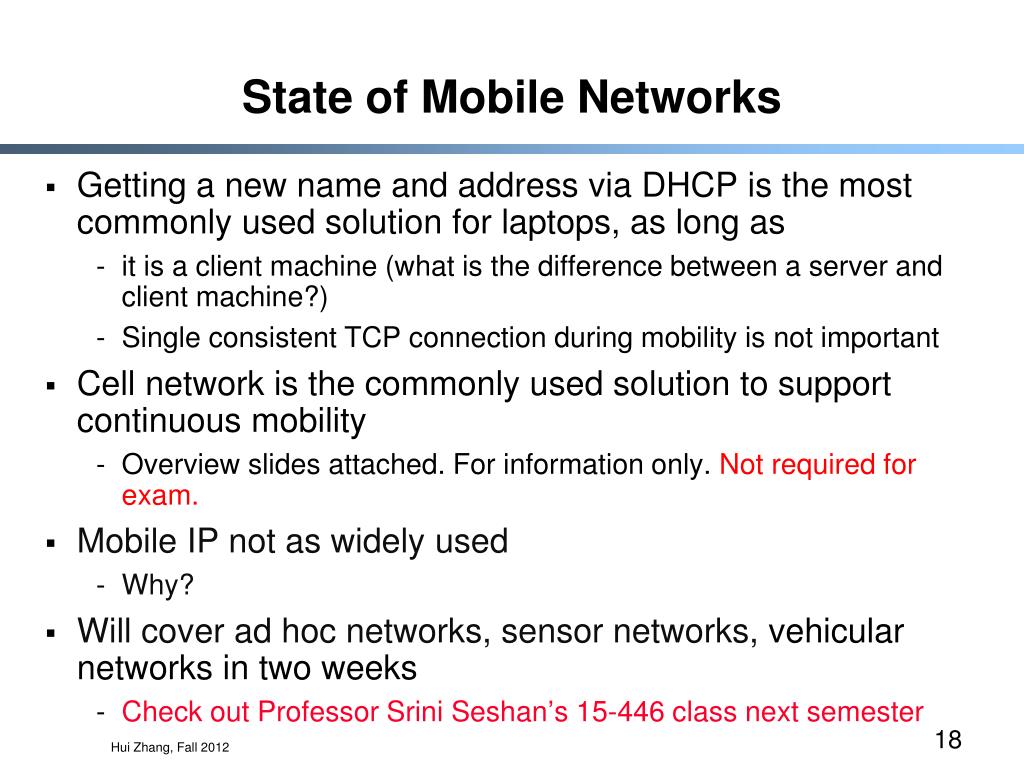

State of mobile networks

State of Mobile Networks

  • Getting a new name and address via DHCP is the most commonly used solution for laptops, as long as

    • it is a client machine (what is the difference between a server and client machine?)

    • Single consistent TCP connection during mobility is not important

  • Cell network is the commonly used solution to support continuous mobility

    • Overview slides attached. For information only. Not required for exam.

  • Mobile IP not as widely used

    • Why?

  • Will cover ad hoc networks, sensor networks, vehicular networks in two weeks

    • Check out Professor Srini Seshan’s 15-446 class next semester


Gsm mobility management not required for exam

GSM Mobility Management (not required for exam)

Originals by: Rashmi Nigalye, Mouloud Rahmani, Aruna Vegesana, Garima Mittal, Fall 2001

Prof. M. Veeraraghavan, Polytechnic University, New York

  • GSM architecture overview

    • Network layout

    • Protocols

    • Addresses & identifiers

  • Location management

    • Call delivery + location update

  • Handover management


Gsm network layout

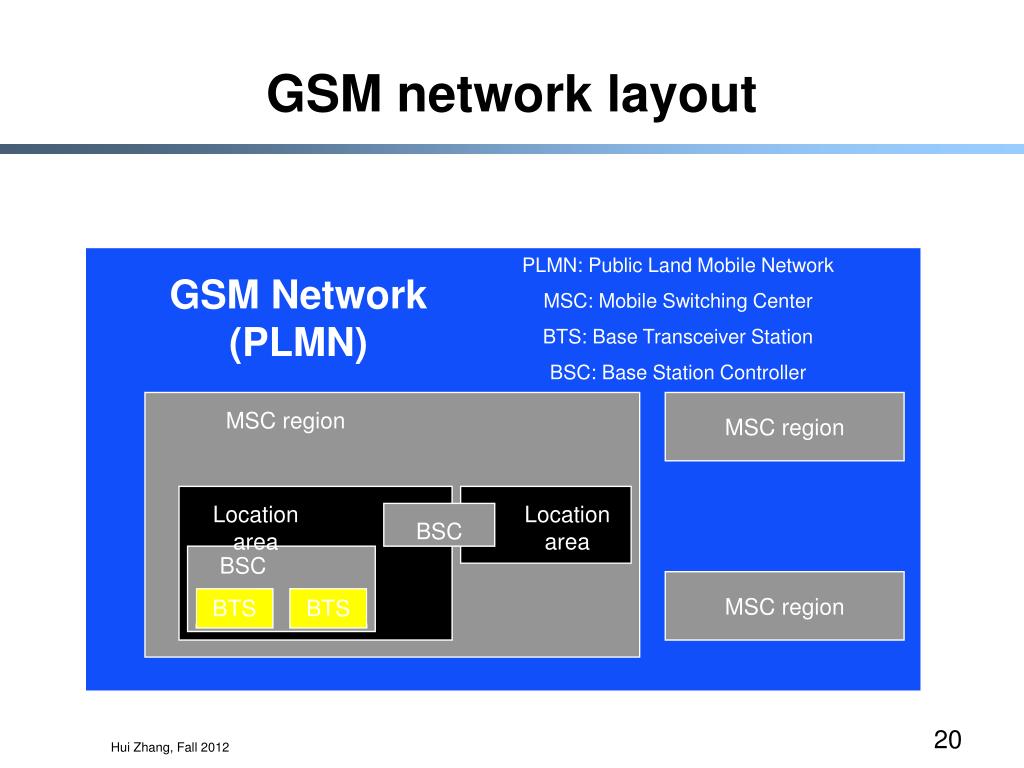

GSM network layout

PLMN: Public Land Mobile Network

MSC: Mobile Switching Center

BTS: Base Transceiver Station

BSC: Base Station Controller

GSM Network (PLMN)

MSC region

MSC region

Location area

Location area

BSC

BSC

MSC region

BTS

BTS


Gsm network layout1

GSM network layout

PSTN

ISDN

OMC

BSC

MSC

GMSC

E

Abis

BSC

A

B,C

BTS

HLR

EIR

BTS

VLR

AUC

Um

BTS

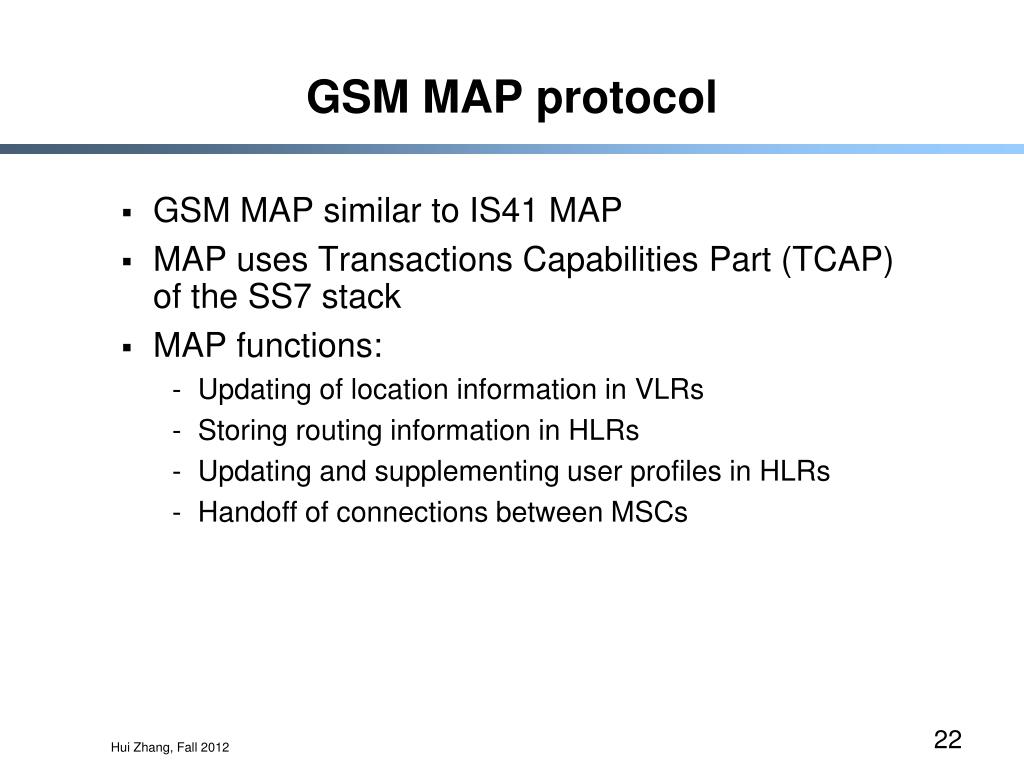

Gsm map protocol

GSM MAP protocol

  • GSM MAP similar to IS41 MAP

  • MAP uses Transactions Capabilities Part (TCAP) of the SS7 stack

  • MAP functions:

    • Updating of location information in VLRs

    • Storing routing information in HLRs

    • Updating and supplementing user profiles in HLRs

    • Handoff of connections between MSCs

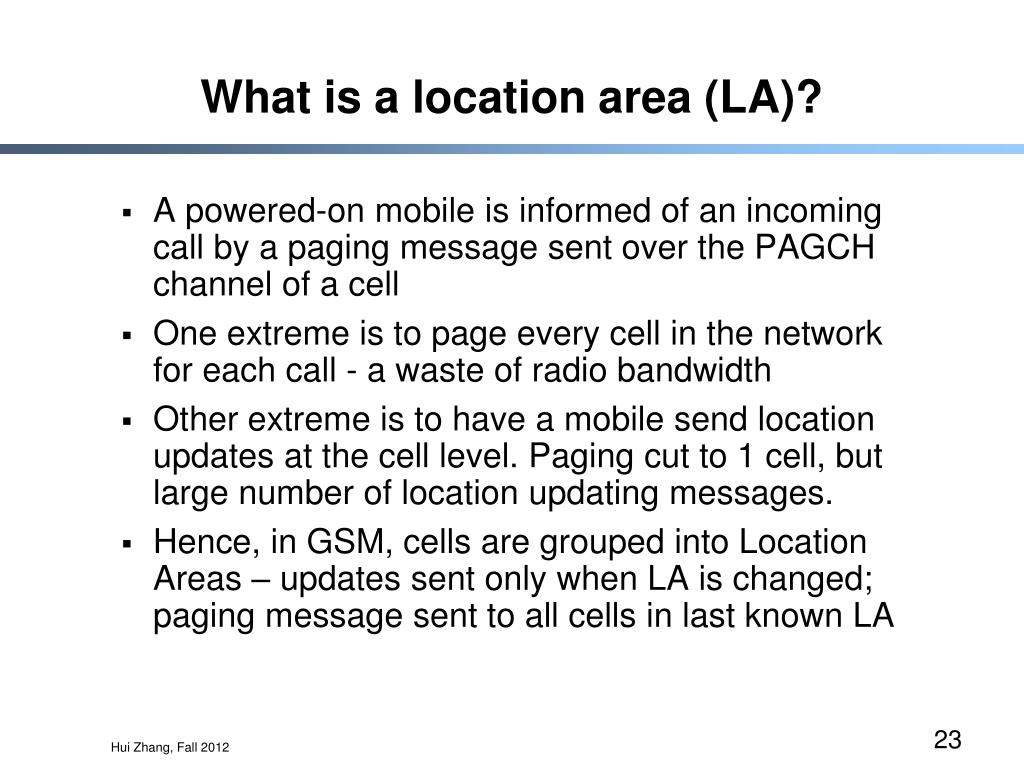

What is a location area la

What is a location area (LA)?

  • A powered-on mobile is informed of an incoming call by a paging message sent over the PAGCH channel of a cell

  • One extreme is to page every cell in the network for each call - a waste of radio bandwidth

  • Other extreme is to have a mobile send location updates at the cell level. Paging cut to 1 cell, but large number of location updating messages.

  • Hence, in GSM, cells are grouped into Location Areas – updates sent only when LA is changed; paging message sent to all cells in last known LA

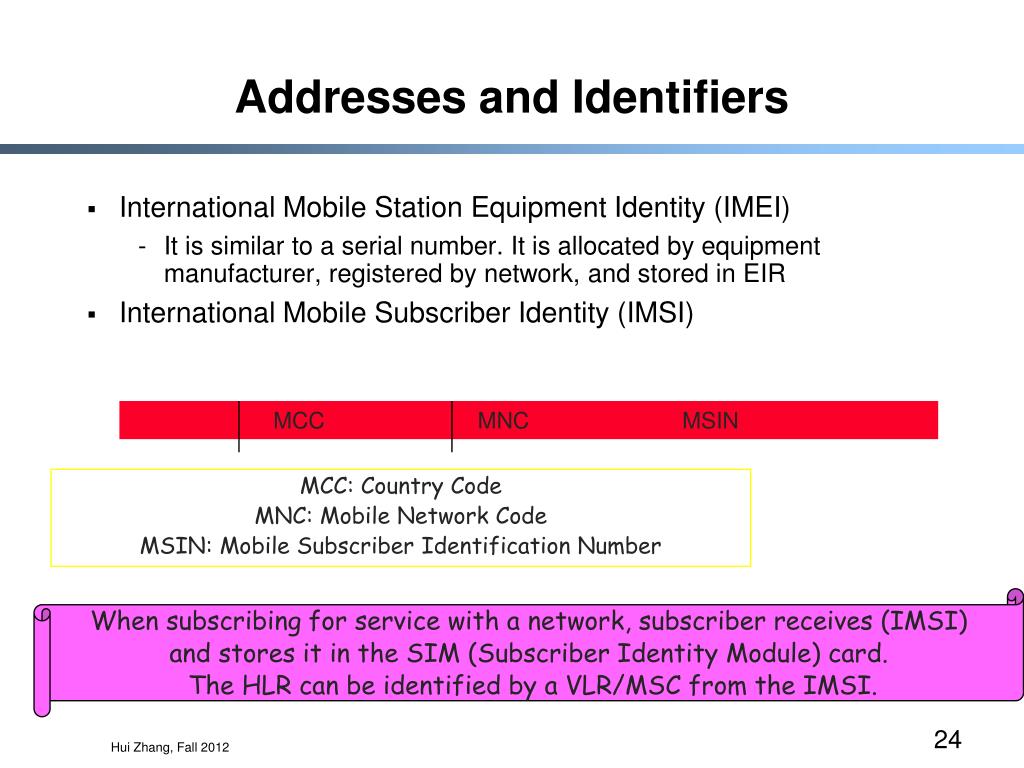

Addresses and identifiers

MCCMNCMSIN

MCC: Country Code

MNC: Mobile Network Code

MSIN: Mobile Subscriber Identification Number

Addresses and Identifiers

  • International Mobile Station Equipment Identity (IMEI)

    • It is similar to a serial number. It is allocated by equipment manufacturer, registered by network, and stored in EIR

  • International Mobile Subscriber Identity (IMSI)

When subscribing for service with a network, subscriber receives (IMSI)

and stores it in the SIM (Subscriber Identity Module) card.

The HLR can be identified by a VLR/MSC from the IMSI.


Addresses and identifiers1

CCNDCSN

Addresses and Identifiers

  • Mobile Subscriber ISDN (MSISDN)

    • The “real telephone number”: assigned to the SIM

    • The SIM can have several MSISDN numbers for selection of different services like voice, data, fax

NDC: National Destination Code (NDC identifies operator); SN: Subscriber Number; CC: Country Code;

Digits following NDC identifies the HLR


Addresses and identifiers2

CCNDCSN

Addresses and Identifiers

  • Mobile Station Roaming Number (MSRN)

    • It is temporary location dependent ISDN number

    • It is assigned by local VLR to each MS in its area.


Addresses and identifiers3

Addresses and identifiers

  • Temporary Mobile Subscriber Identity (TMSI)

    • It is an alias of the IMSI and is used in its place for privacy.

    • It is used to avoid sending IMSI on the radio path.

    • It is an temporary identity that is allocated to an MS by the VLR at inter-VLR registration, and can be changed by the VLR

    • TMSI is stored in MS SIM card and in VLR.

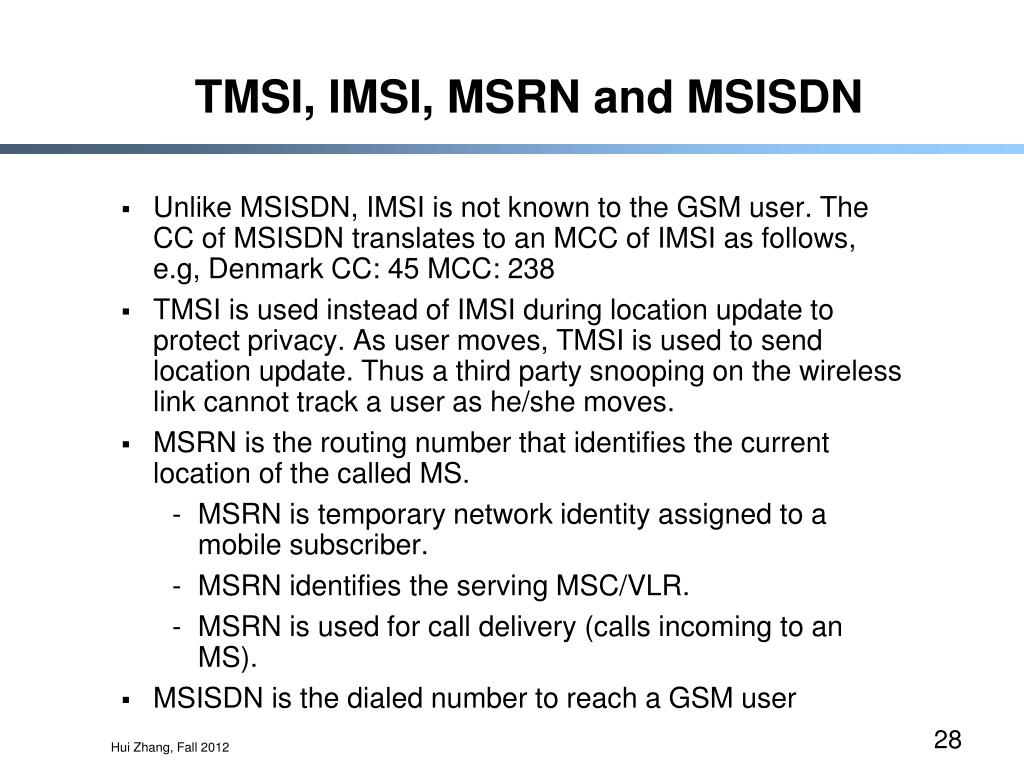

Tmsi imsi msrn and msisdn

TMSI, IMSI, MSRN and MSISDN

  • Unlike MSISDN, IMSI is not known to the GSM user. The CC of MSISDN translates to an MCC of IMSI as follows, e.g, Denmark CC: 45 MCC: 238

  • TMSI is used instead of IMSI during location update to protect privacy. As user moves, TMSI is used to send location update. Thus a third party snooping on the wireless link cannot track a user as he/she moves.

  • MSRN is the routing number that identifies the current location of the called MS.

    • MSRN is temporary network identity assigned to a mobile subscriber.

    • MSRN identifies the serving MSC/VLR.

    • MSRN is used for call delivery (calls incoming to an MS).

  • MSISDN is the dialed number to reach a GSM user

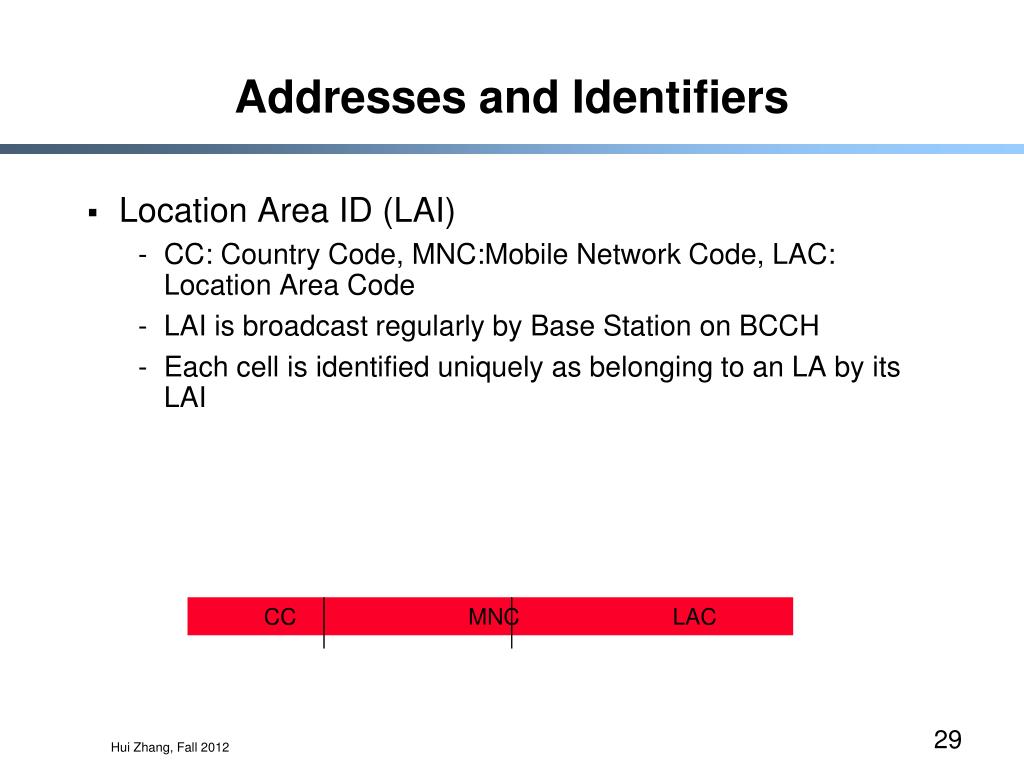

Addresses and identifiers4

CCMNCLAC

Addresses and Identifiers

  • Location Area ID (LAI)

    • CC: Country Code, MNC:Mobile Network Code, LAC: Location Area Code

    • LAI is broadcast regularly by Base Station on BCCH

    • Each cell is identified uniquely as belonging to an LA by its LAI


Location management

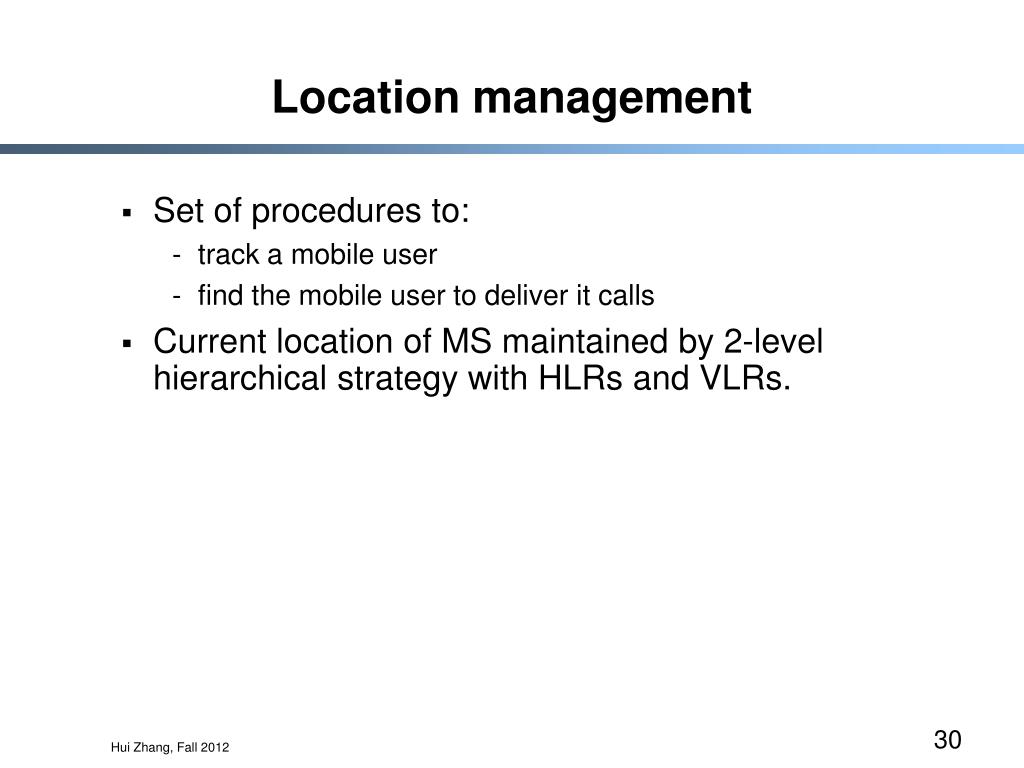

Location management

  • Set of procedures to:

    • track a mobile user

    • find the mobile user to deliver it calls

  • Current location of MS maintained by 2-level hierarchical strategy with HLRs and VLRs.

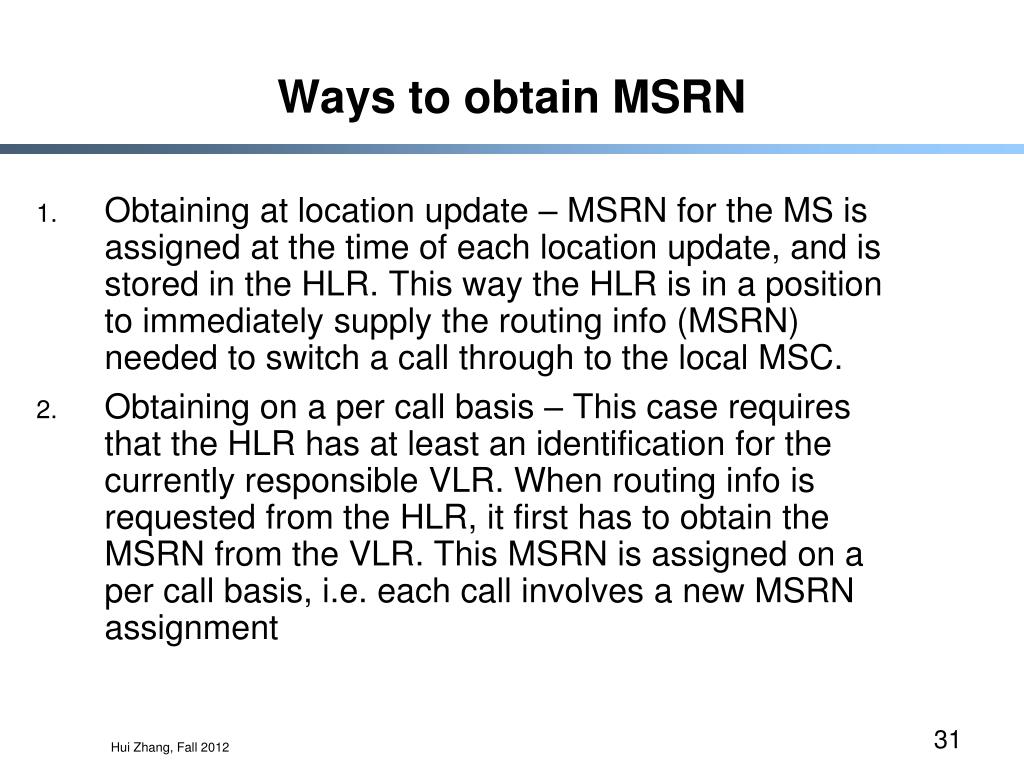

Ways to obtain msrn

Ways to obtain MSRN

  • Obtaining at location update – MSRN for the MS is assigned at the time of each location update, and is stored in the HLR. This way the HLR is in a position to immediately supply the routing info (MSRN) needed to switch a call through to the local MSC.

  • Obtaining on a per call basis – This case requires that the HLR has at least an identification for the currently responsible VLR. When routing info is requested from the HLR, it first has to obtain the MSRN from the VLR. This MSRN is assigned on a per call basis, i.e. each call involves a new MSRN assignment


Routing information case when msrn is selected per call by vlr msc

IMSI

MSISDN

MSRN

MSRN

MSISDN

MSRN

GMSC

Routing information: case when MSRN is selected per call by VLR/MSC

  • If MSRN is allocated to each subscriber visiting at an MSC, then the number of MSRNs required is large. If instead, an MSRN is allocated only when a call is to be established, then the number of MSRNs is roughly equal to number of circuits at MSC – a much smaller number – hence MSRNs typically allocated per call by VLR/MSC

MSISDNIMSI, VLR number

HLR

MSC/VLR


Call routing to a mobile station case when hlr returns msrn

Call routing to a mobile station: case when HLR returns MSRN

1

MSISDN

GMSC

ISDN

LA 1

1

4

MSRN

2

MSISDN

3

MSRN

BSC

MSC

MSC

HLR

BTS

7

TMSI

5

MSRN

7

TMSI

LA 2

BSC

EIR

BTS

VLR

8

TMSI

7

TMSI

AUC

6

TMSI

BTS

MS


Messages exchanged call delivery

Messages exchanged: call delivery

5

GMSC

1

4

PSTN

HLR

2

VLR

3

6

Target

MSC

Target MSC

VLR

HLR

GMSC

Originating Switch

1. ISUP IAM

2. MAP_SEND_ROUTING_INFO

3. MAP_PROVIDE_ROAMING_NUMBER

4. MAP_PROVIDE_ROAMING_NUMBER_ack

5. MAP_SEND_ROUTING_INFO_ack

6. ISUP IAM


Find operation in gsm

Find operation in GSM

  • ISDN switch recognizes from the MSISDN that the call subscriber is a mobile subscriber. Therefore, forward the call to the GMSC of the home PLMN (Public Land Mobile Network)

  • GMSC requests the current routing address (MSRN) from the HLR using MAP

  • By way of MSRN the call is forwarded to the local MSC

  • Local MSC determines the TMSI of the MS (by querying VLR) and initiates the paging procedure in the relevant LA

  • After MS responds to the page the connection can be switched through.

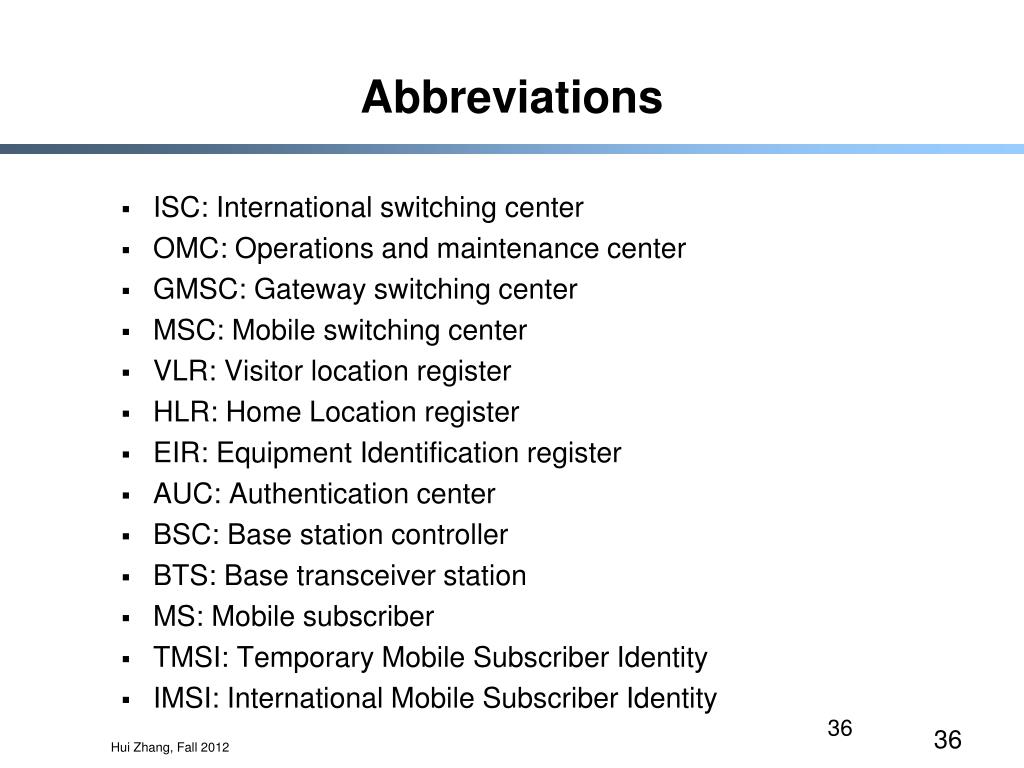

Abbreviations

Abbreviations

  • ISC: International switching center

  • OMC: Operations and maintenance center

  • GMSC: Gateway switching center

  • MSC: Mobile switching center

  • VLR: Visitor location register

  • HLR: Home Location register

  • EIR: Equipment Identification register

  • AUC: Authentication center

  • BSC: Base station controller

  • BTS: Base transceiver station

  • MS: Mobile subscriber

  • TMSI: Temporary Mobile Subscriber Identity

  • IMSI: International Mobile Subscriber Identity


  • Login
