Containment and disposal of waste water in hp and uhpwj operations l.jpg

Containment and Disposal of Waste Water in HP and UHPWJ Operations

Richard A. Burgess

KTA-Tator, Inc.

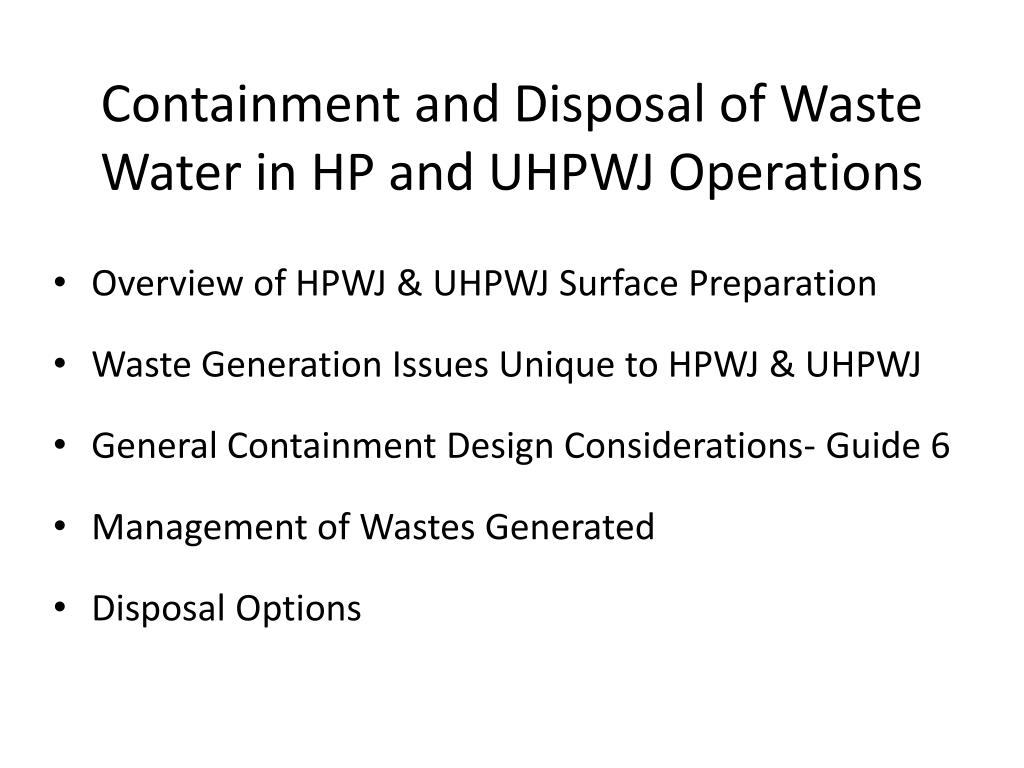

Containment and disposal of waste water in hp and uhpwj operations2 l.jpg
Containment and Disposal of Waste Water in HP and UHPWJ Operations

  • Overview of HPWJ & UHPWJ Surface Preparation

  • Waste Generation Issues Unique to HPWJ & UHPWJ

  • General Containment Design Considerations- Guide 6

  • Management of Wastes Generated

  • Disposal Options


Overview of hpwj uhpwj surface preparation l.jpg
Overview of HPWJ & UHPWJ Surface Preparation Operations

  • Equipment

  • Definitions and Terminology

  • Cleanliness Standards



Jetting lance rotating barrel and 5 jet tips l.jpg
Jetting Lance OperationsRotating Barrel and 5 Jet Tips



Different design of remotely operated waterjetting unit l.jpg
Different Design of Remotely Operated OperationsWaterjetting Unit

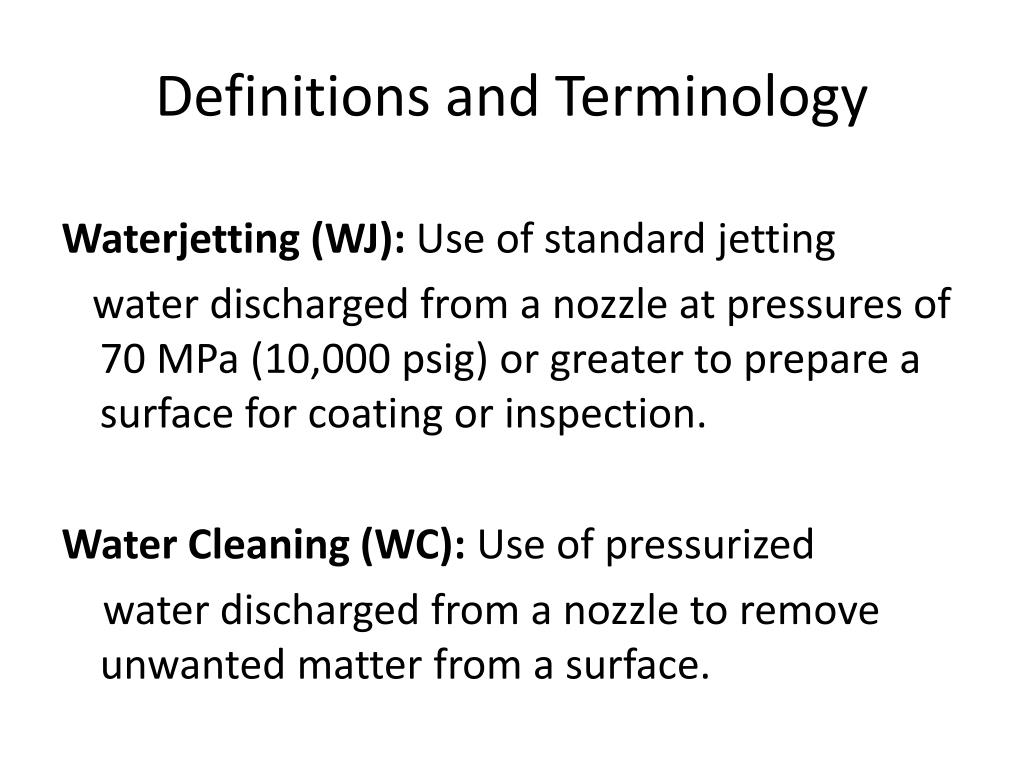

Definitions and terminology l.jpg
Definitions and Terminology Operations

Waterjetting (WJ): Use of standard jetting

water discharged from a nozzle at pressures of 70 MPa (10,000 psig) or greater to prepare a surface for coating or inspection.

Water Cleaning (WC): Use of pressurized

water discharged from a nozzle to remove unwanted matter from a surface.


Definitions and terminology10 l.jpg
Definitions and Terminology Operations

Low-Pressure Water Cleaning (LP WC):

  • Water cleaning performed at pressures less than 34 MPa (5,000 psig). This is also called “power washing” or “pressure washing.”

    High-Pressure Water Cleaning (HP WC):

  • Water cleaning performed at pressures from 34 to 70 MPa (5,000 to 10,000 psig).


Definitions and terminology11 l.jpg
Definitions and Terminology Operations

High-Pressure Waterjetting (HP WJ):

Waterjettingperformed at pressures from 70 to 210 Mpa (10,000 to 30,000 psig).

Ultrahigh-Pressure Waterjetting (UHP WJ):

Waterjetting performed at pressures above 210 Mpa (30,000 psig).


Cleanliness standards l.jpg
Cleanliness Standards Operations

Joint Surface Preparation Standard

SSPC-SP 12/NACE No. 5

Surface Preparation and Cleaning of Metals by

Waterjetting Prior to Recoating

Revised July 2002

Approved 1995

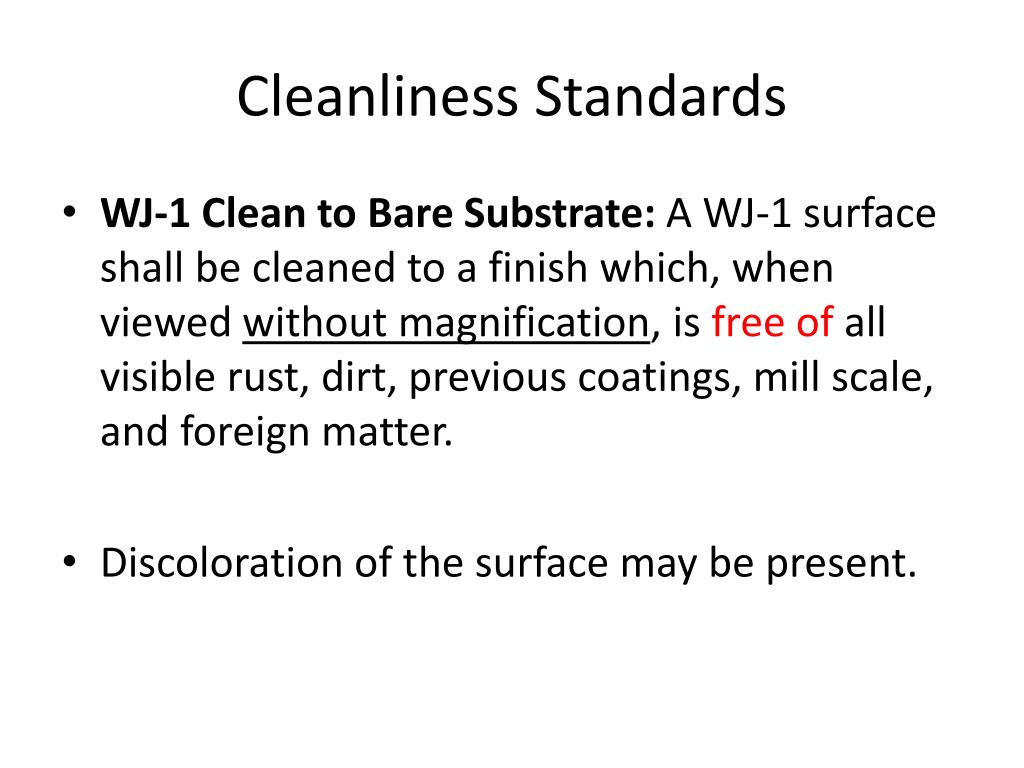

Cleanliness standards13 l.jpg
Cleanliness Standards Operations

  • WJ-1 Clean to Bare Substrate: A WJ-1 surface shall be cleaned to a finish which, when viewed without magnification, is free of all visible rust, dirt, previous coatings, mill scale, and foreign matter.

  • Discoloration of the surface may be present.


Cleanliness standards14 l.jpg
Cleanliness Standards Operations

  • WJ-2 Very Thorough or Substantial Cleaning: A WJ-2 surface shall be cleaned to a matte (dull, mottled) finish which, when viewed without magnification, is free of all visible oil, grease, dirt, and rust except for randomly dispersed stains of rust, tightly adherent thin coatings, and other tightly adherent foreign matter.

  • The staining or tightly adherent matter is limited to a maximum of 5% of the surface.


Cleanliness standards15 l.jpg
Cleanliness Standards Operations

  • WJ-3 Thorough Cleaning: A WJ-3 surface shall be cleaned to a matte (dull, mottled) finish which, when viewed without magnification, is free of all visible oil, grease, dirt, and rust except for randomly dispersed stains of rust, tightly adherent thin coatings, and other tightly adherent foreign matter.

  • The staining or tightly adherent matter is limited to a maximum of 33% of the surface.


Cleanliness standards16 l.jpg
Cleanliness Standards Operations

  • WJ-4 Light Cleaning: A WJ-4 surface shall be cleaned to a finish which, when viewed without magnification, is free of all visible oil, grease, dirt, dust, loose mill scale, loose rust, and loose coating.

  • Any residual material shall be tightly adherent.

    (Dull Putty Knife Test)

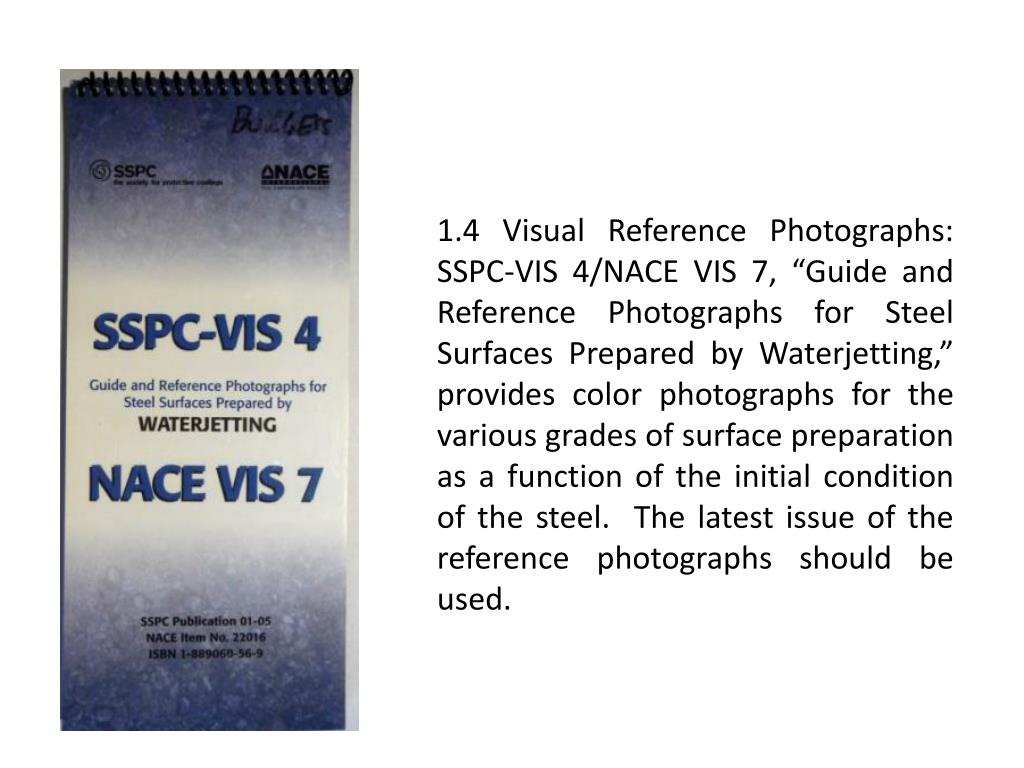

Slide18 l.jpg

1.4 Visual Reference Photographs: SSPC-VIS 4/NACE OperationsVIS 7, “Guide and Reference Photographs for SteelSurfaces Prepared by Waterjetting,” provides color photographs for the various grades of surface preparation as a function of the initial condition of the steel. The latest issue of the reference photographs should be used.


Initial condition h deteriorated brittle multi coat painting system l.jpg
Initial Condition H OperationsDeteriorated brittle multi-coat painting system


Pressure and flow rate l.jpg
Pressure and Flow Rate Operations

  • Pressure at Nozzle 70 MPa (10,000 psig)

    Flow 12.9 L/min (3.42 gpm)

  • Pressure at Nozzle 140 MPa (20,000 psig)

    Flow 8.3 L/min (2.2 gpm)

  • Pressure at Nozzle 280 MPa (40,000 psig)

    Flow 2.0 L/min (0.52 gpm)


Energy l.jpg
Energy Operations

70-MPa (10,000-psig)

Jets may not significantly erode the coatings- they are typically used for partial removal or for cleaning loose detritus


Energy22 l.jpg
Energy Operations

140-MPa (20,000-psig)

Jets erode the coatings fairly rapidly- typically used for partial removal.


Energy23 l.jpg
Energy Operations

280-MPa (40,000-psig)

Jets erode and destroy coatings very fast -typically used when most or all of the coating is to be removed


Quantity of waste water l.jpg
Quantity of Waste Water Operations

PSI GPM Lbs/Hra Ft3/Hr

10,000 3.4 1700 27.4

20,000 2.2 1102 17.6

40,000b 2 260 4.2

a-A gallon of water weighs 8.34 lbs.

b-At this level of energy surfaces dry quickly due to heat


Production rates l.jpg
Production Rates Operations

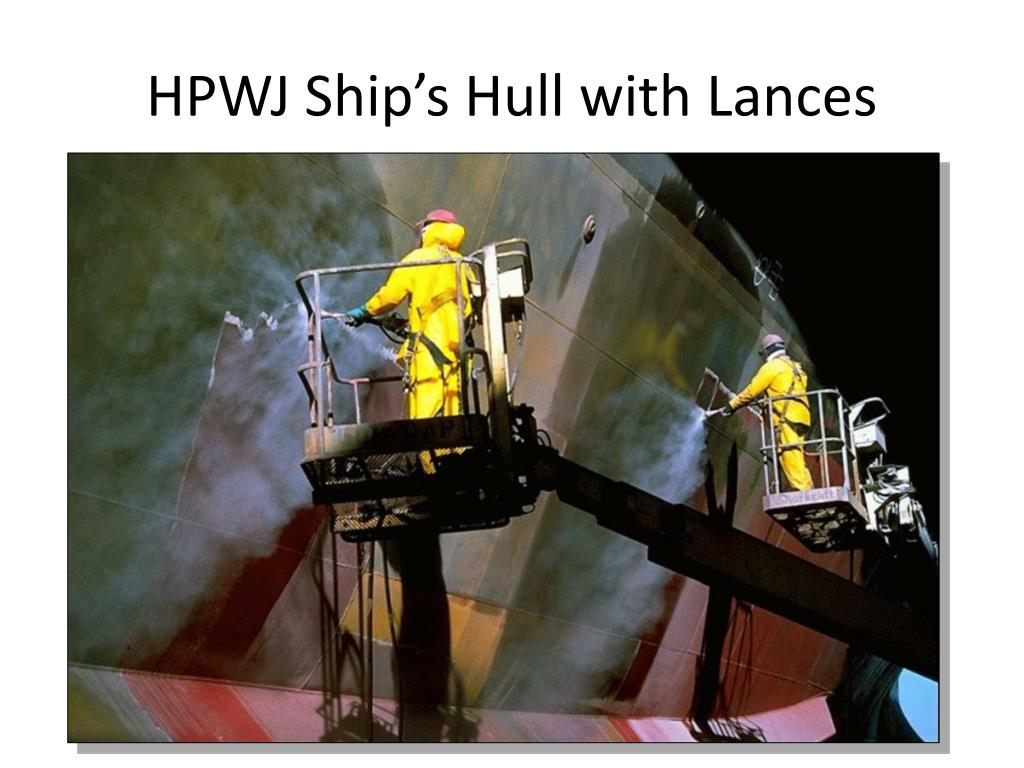

Selective stripping of outer hull coatings open-cycle, hand held lance-

39 ft2/hr/gun - 89 ft2/hr/gun.

Sweep and spot “water-blast” inside of tanks with hand-held lances-

157 ft2/hr/gun - 171 ft2/hr/gun


Production rates26 l.jpg
Production Rates Operations

Sweep and spot “water-blast” of outer hull coatings with hand-held lances –

Average, 198 ft2/hr/gun

Complete removal of severely damaged outer hull coatings with hand-held lances-

Average, 152 ft2/hr/gun

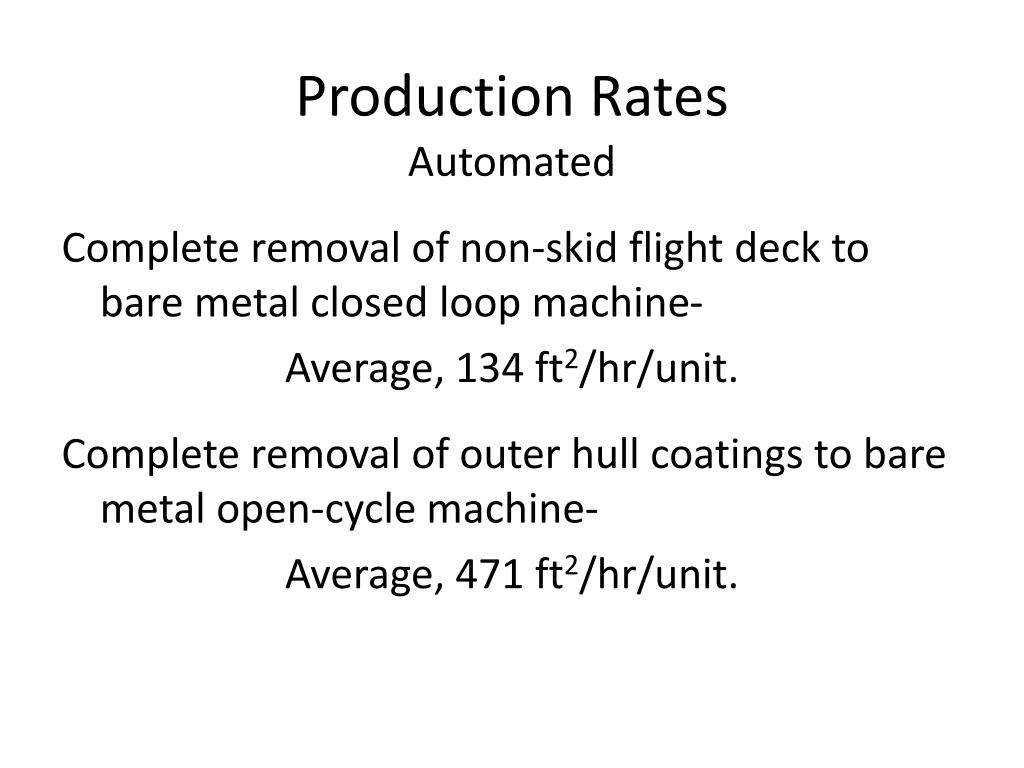

Production rates27 l.jpg
Production Rates Operations

Automated

Complete removal of non-skid flight deck to bare metal closed loop machine-

Average, 134 ft2/hr/unit.

Complete removal of outer hull coatings to bare metal open-cycle machine-

Average, 471 ft2/hr/unit.


Waste stream characteristics l.jpg
Waste Stream Characteristics Operations

Influenced by

  • The condition of the existing coating

  • Pressures employed

  • Volume of water used


Waste generation issues unique to hpwj uhpwj l.jpg
Waste Generation Issues Unique to HPWJ & UHPWJ Operations

  • Mists and Gravity

  • Quantity-Flow Rate and Volume

  • Energy-

  • Fluids Slurries Sludges Solids


Mists and gravity l.jpg
Mists and Gravity Operations

  • Mists, droplets of water suspended in the air that can contain small particulates including pigments and particles of coating

  • Water flows due to gravity, just like abrasives- but water will find and collect in the lowest point- seeks it own level.


Fluids slurries sludges solids l.jpg
Fluids Slurries Sludges Solids Operations

  • Fluid, liquid water where the solids content does not influence the flow or movement

  • Slurry, liquid water with suspended insoluble solids being carried and influencing flow

  • Sludge, wet or moist solids that settle and resist flow

  • Solids, mostly caked particles with little moisture content



Containment classes materials penetrability and permeability l.jpg
Containment Classes OperationsMaterials, Penetrability and Permeability


Containment classes ventilation l.jpg
Containment Classes OperationsVentilation


Table w containment notes l.jpg
Table W Containment Notes Operations

  • Note 1: When designing a ventilation system, care must be taken to balance the static pressure with the input airflow to avoid collapsing the containment or ductwork due to high negative pressure.

  • Note 2: The table occasionally identifies two options for a given component. For example, containment materials (5.3.1) are shown as being either rigid or flexible. If the specifier requires the use of rigid materials only, this restriction must be specified separately.

  • Note 3: Class 4W will capture dislodged paint chips and debris, but will not contain the water used for cleaning.

  • * When vacuum shrouded waterjetting is employed, ground covers or free-hanging tarpaulins may provide controls equivalent to Class 1W.

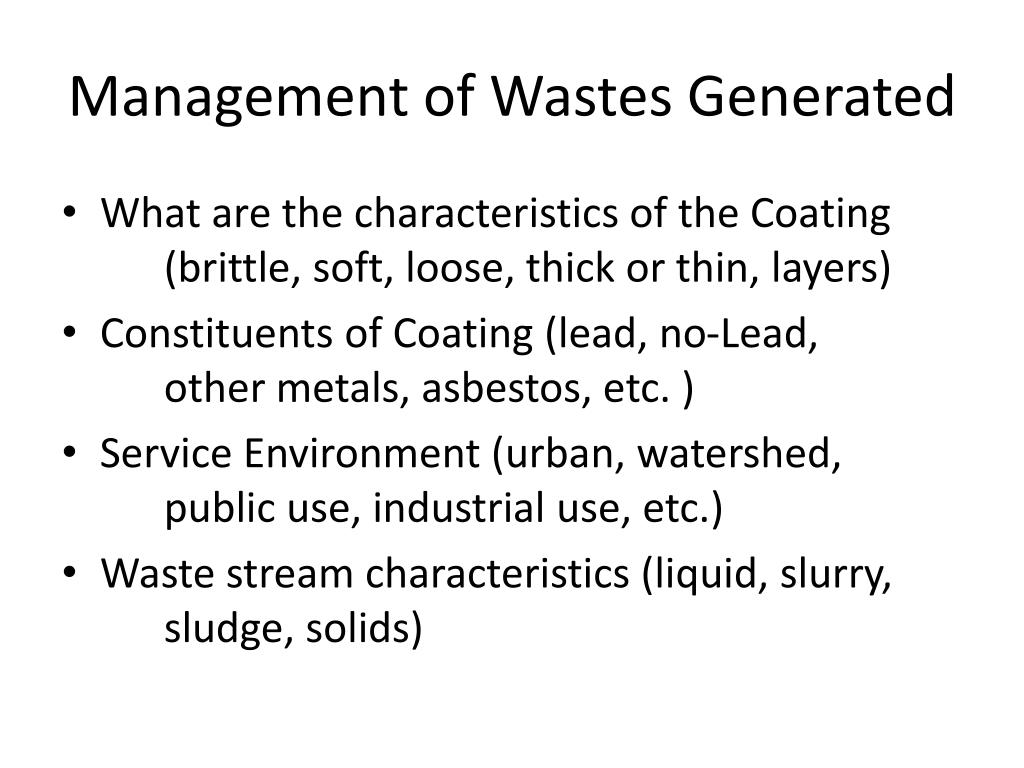

Management of wastes generated l.jpg
Management of Wastes Generated Operations

  • What are the characteristics of the Coating (brittle, soft, loose, thick or thin, layers)

  • Constituents of Coating (lead, no-Lead, other metals, asbestos, etc. )

  • Service Environment (urban, watershed, public use, industrial use, etc.)

  • Waste stream characteristics (liquid, slurry, sludge, solids)


Total and dissolved heavy metals l.jpg
Total and Dissolved Heavy Metals Operations

Separating Lead in Wash Water by Physical Means

Example- All Lead

  • 100 grams in Wash Water 100%

  • 80 grams in Screened Wash Water 80%

  • 18 grams in Filtered (5µ) Wash Water 18%

  • 0.24 grams are dissolved metal 0.24%

    Dissolved Metals, 0.45µ filter


Full containment and collection l.jpg
Full Containment and Collection Operations

  • Designed to keep water from storm drains and running off site- portable containment pools or pits

  • Manufactured wastewater collection systems- pits to close-loop self contained units

  • Wet/dry vacuums, sump pumps, diaphragm pumps


Collection and handling options l.jpg
Collection and Handling Options Operations

  • No collection required, separation of solids from the liquid by screen or geo-textile. Retention requirement for solids.

  • Collection required, separation of large solids, filter to remove small solids. Test and open discharge.

  • Collection required, separation of large solids, filter to remove small solids. Test and controlled discharge.


Non lead based paint removal projects example l.jpg
NON-LEAD BASED PAINT REMOVAL PROJECTS Operations(Example)

Water washing of the bridge for the purpose of removing chalk, dirt, grease, oil, bird nests, and other surface debris can be performed without additional containment provided paint chips and removed debris are removed and collected prior to washing or are cleaned from the site after cleaning is completed each day.

At the Contractor’s option, SSPC Class 4W permeable containment materials described above under “Water Jetting or Wet Abrasive Blast Cleaning for the Removal of Paint” can be used to collect the debris while the washing is underway.


Lead based paint removal projects example l.jpg
LEAD BASED PAINT REMOVAL PROJECTS Operations(Example)

Water washing of the bridge for the purpose of removing chalk, dirt, grease, oil, bird nests, and other surface debris, and water jetting or wet abrasive blast cleaning for the purpose of removing paint and surface debris shall be conducted within a containment designed, installed, and maintained in order to capture and contain all water and waste materials. (SSPC Class 2W-3W)

When water is used for surface cleaning, the collected water shall be filtered to separate the particulate from the water. Recycling of the water is preferred in order to reduce the volume of waste that is generated.

The water after filtration shall be collected and disposed of according to the waste handling portions of this specification.

When a slurry is created by injecting water into the abrasive blast stream, the slurry need not be filtered to separate water from the particulate.

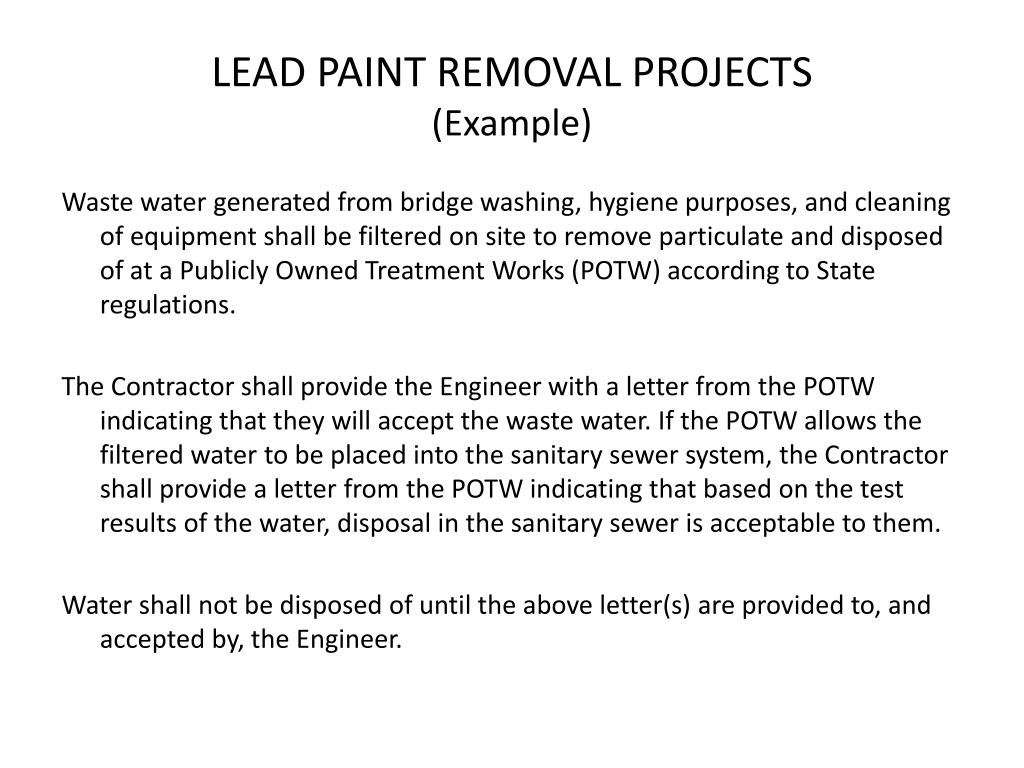

Lead paint removal projects example l.jpg
LEAD PAINT REMOVAL PROJECTS Operations(Example)

Waste water generated from bridge washing, hygiene purposes, and cleaning of equipment shall be filtered on site to remove particulate and disposed of at a Publicly Owned Treatment Works (POTW) according to State regulations.

The Contractor shall provide the Engineer with a letter from the POTW indicating that they will accept the waste water. If the POTW allows the filtered water to be placed into the sanitary sewer system, the Contractor shall provide a letter from the POTW indicating that based on the test results of the water, disposal in the sanitary sewer is acceptable to them.

Water shall not be disposed of until the above letter(s) are provided to, and accepted by, the Engineer.


Recycling water l.jpg
Recycling Water Operations

  • Minimize water consumption

  • Minimize waste quantities

  • Cleaning Recycled Water


Waste streams l.jpg
Waste Streams Operations

  • Waterjetting Waste Water

  • Hygiene Water

  • Screened solids

  • Filtered Solids, Filters



Inline water filters sequentially smaller filter sizes l.jpg
Inline Water Filters OperationsSequentially Smaller Filter Sizes




Waste water disposal most common practices l.jpg
Waste Water Disposal OperationsMost Common Practices

  • Permission to discharge to a POTW sanitary sewer line- Discharge limits (0.4 to 1.0 mg/L)

  • Permission to truck water to the POTW

  • Obtain Permit to discharge to stream, creek, etc.- not likely to be feasible- Client’s permit does not necessarily cover contractors waste stream


Waste water disposal some uncommon practices l.jpg
Waste Water Disposal OperationsSome Uncommon Practices

  • Fixed Facility Operations

    Natural Evaporation of Waste Water (CAP)

    On-site Treatment and discharge (Treatment Plant)

    Drying, Sludge Cake


Disposal of waterjetting waste solids l.jpg
Disposal of Waterjetting OperationsWaste Solids

Solid Waste- Sample, Test and Classify

  • Hazardous Waste

  • Non- Hazardous Waste

  • Special, Industrial, Restricted Wastes

    (State regulations)


Containment and disposal of waste water in hp and uhpwj operations52 l.jpg

Containment and Disposal of Waste Water Operations in HP and UHPWJ Operations

THANK YOU

QUESTIONS?
