The maven team @ apache

The Maven Team @ Apache

Maven 2


Overview

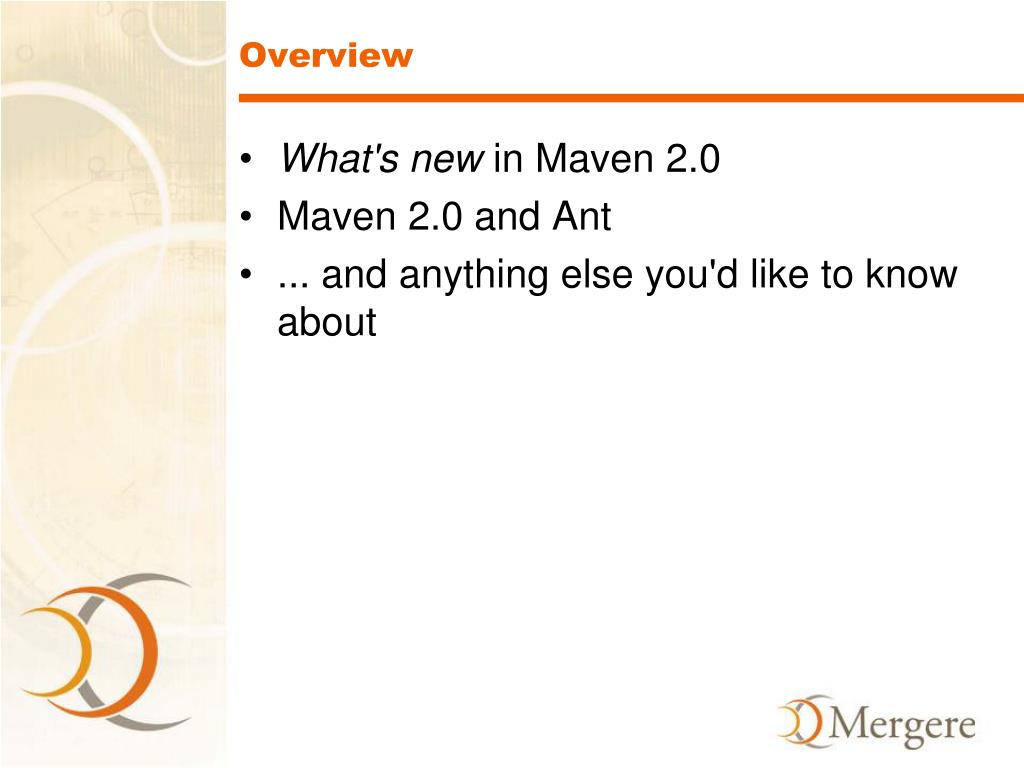

Overview

  • What's new in Maven 2.0

  • Maven 2.0 and Ant

  • ... and anything else you'd like to know about


Maven 2 0

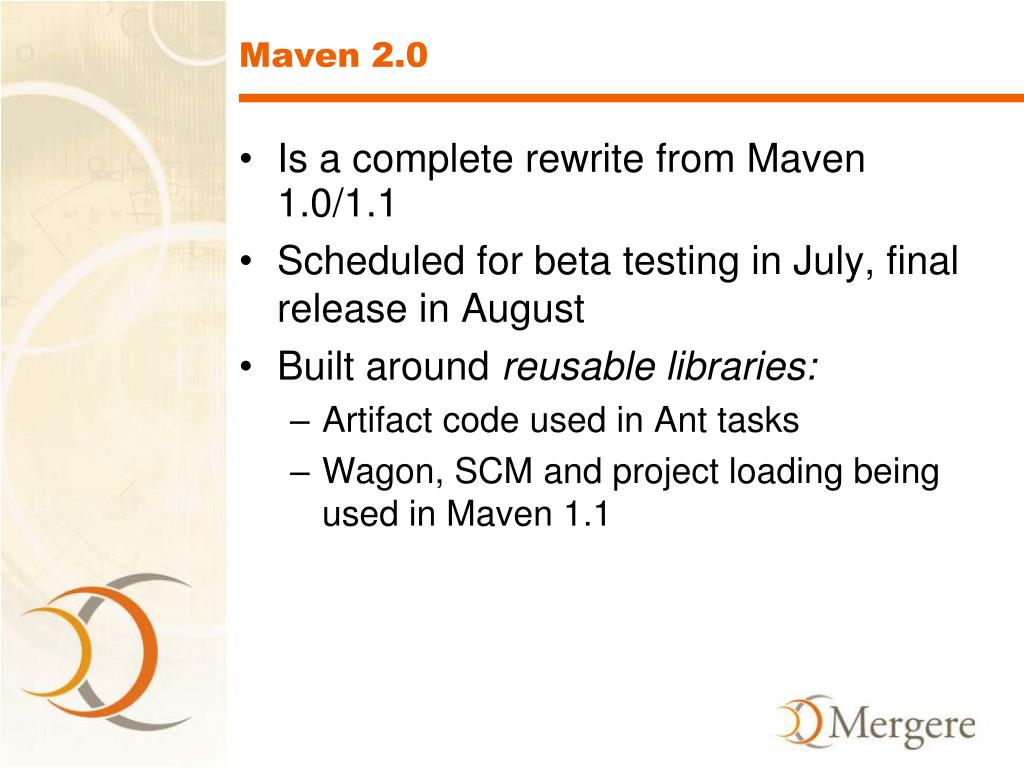

Maven 2.0

  • Is a complete rewrite from Maven 1.0/1.1

  • Scheduled for beta testing in July, final release in August

  • Built around reusable libraries:

    • Artifact code used in Ant tasks

    • Wagon, SCM and project loading being used in Maven 1.1


Why rewrite maven for 2 0

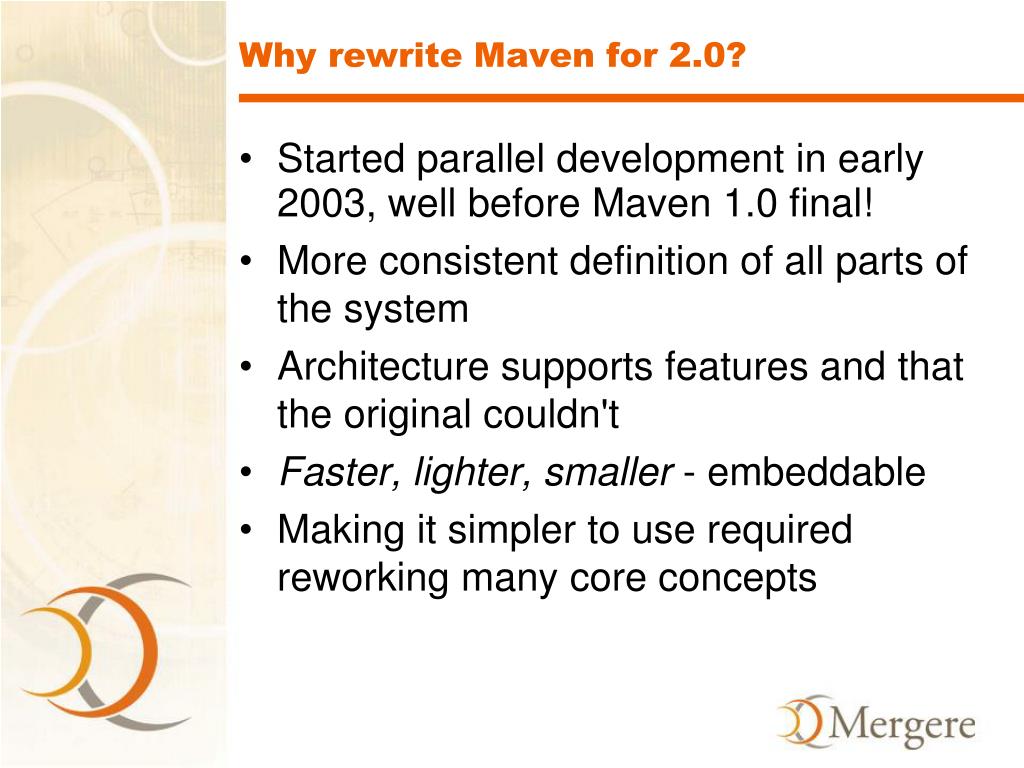

Why rewrite Maven for 2.0?

  • Started parallel development in early 2003, well before Maven 1.0 final!

  • More consistent definition of all parts of the system

  • Architecture supports features and that the original couldn't

  • Faster, lighter, smaller - embeddable

  • Making it simpler to use required reworking many core concepts


Maven 2 0 architecture

Maven 2.0 Architecture


Maven 2 0 architecture plexus

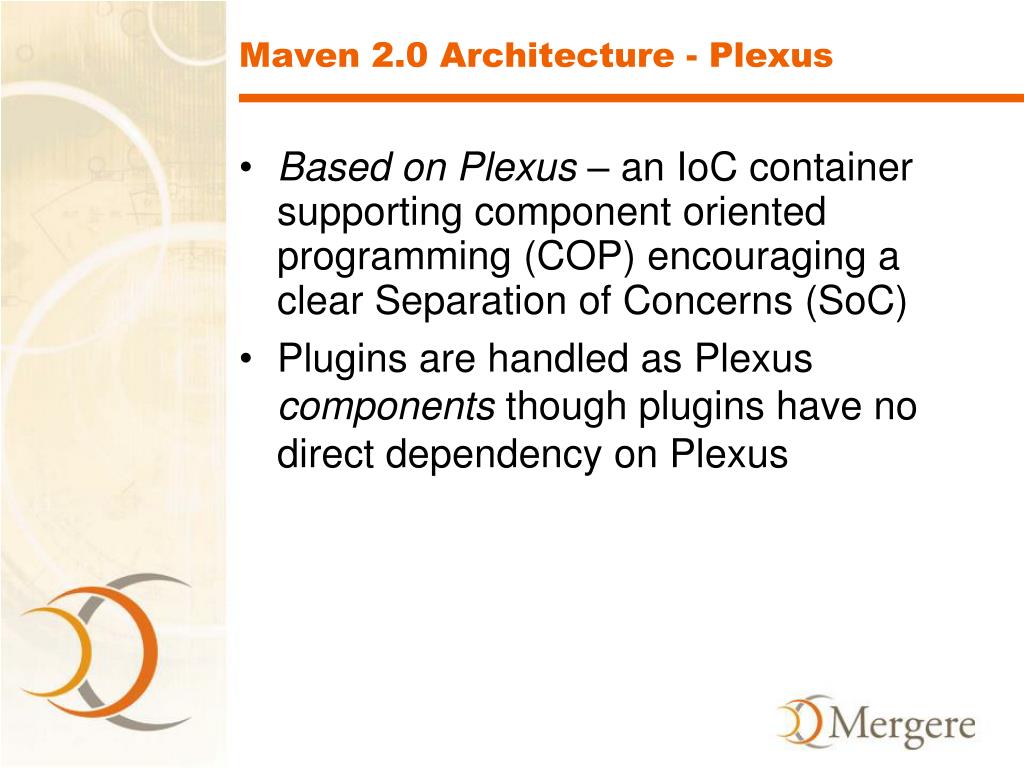

Maven 2.0 Architecture - Plexus

  • Based on Plexus – an IoC container supporting component oriented programming (COP) encouraging a clear Separation of Concerns (SoC)

  • Plugins are handled as Plexus components though plugins have no direct dependency on Plexus


Maven 2 0 component architecture

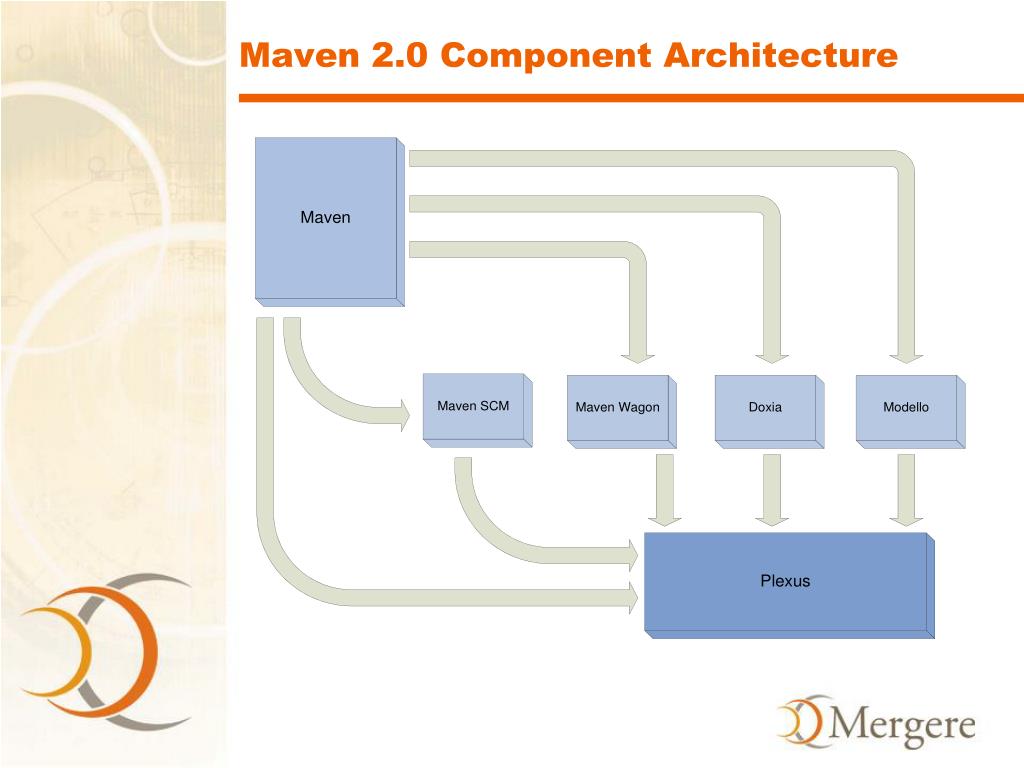

Maven 2.0 Component Architecture


Maven 2 0 new features alpha 3

Maven 2.0 New Features (alpha-3)

  • Enhanced dependency support

  • Build life cycle

  • Unified project file

  • Enhanced plug-in support

  • Multi-module project support

  • Site and documentation enhancements

  • Release management

  • Archetypes - project templates

  • Build Profiles


Adding dependencies

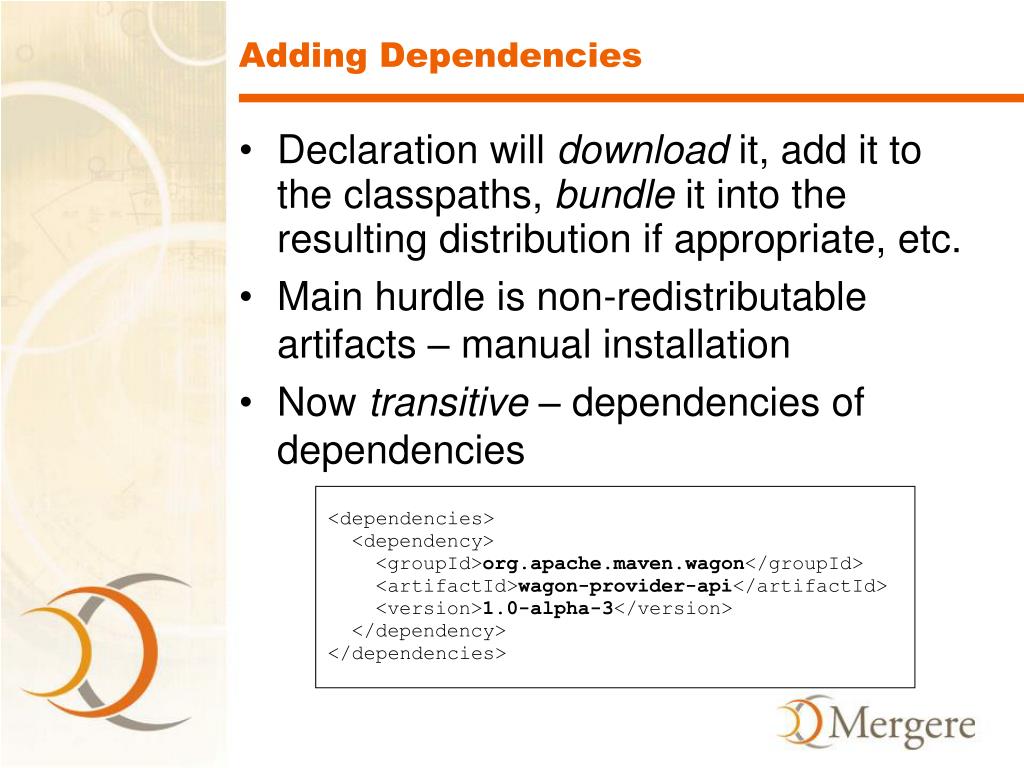

Adding Dependencies

  • Declaration will download it, add it to the classpaths, bundle it into the resulting distribution if appropriate, etc.

  • Main hurdle is non-redistributable artifacts – manual installation

  • Now transitive – dependencies of dependencies

<dependencies>

<dependency>

<groupId>org.apache.maven.wagon</groupId>

<artifactId>wagon-provider-api</artifactId>

<version>1.0-alpha-3</version>

</dependency>

</dependencies>


Transitive dependencies

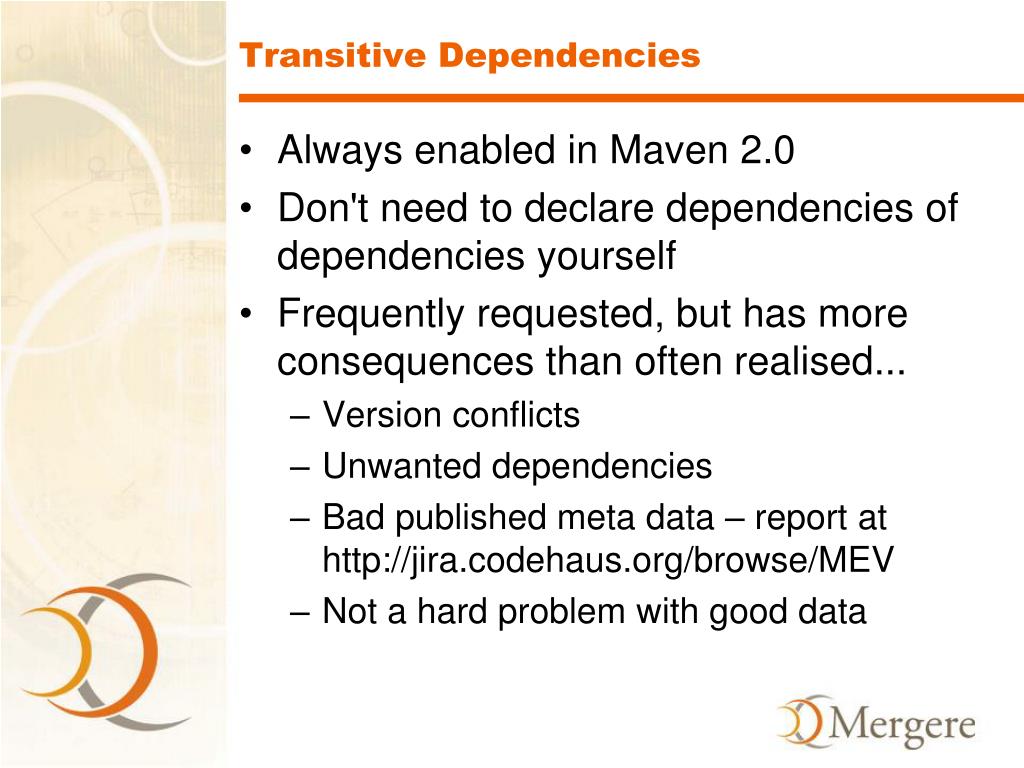

Transitive Dependencies

  • Always enabled in Maven 2.0

  • Don't need to declare dependencies of dependencies yourself

  • Frequently requested, but has more consequences than often realised...

    • Version conflicts

    • Unwanted dependencies

    • Bad published meta data – report at http://jira.codehaus.org/browse/MEV

    • Not a hard problem with good data


Dependency scope

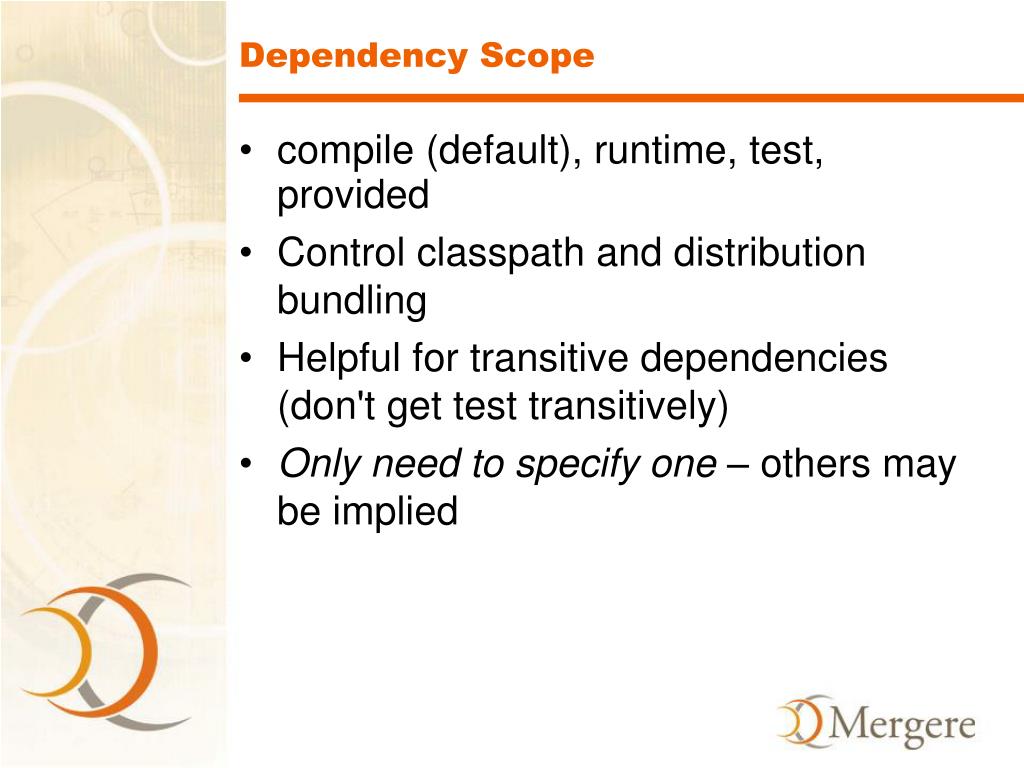

Dependency Scope

  • compile (default), runtime, test, provided

  • Control classpath and distribution bundling

  • Helpful for transitive dependencies (don't get test transitively)

  • Only need to specify one – others may be implied


Controlling transitive dependencies

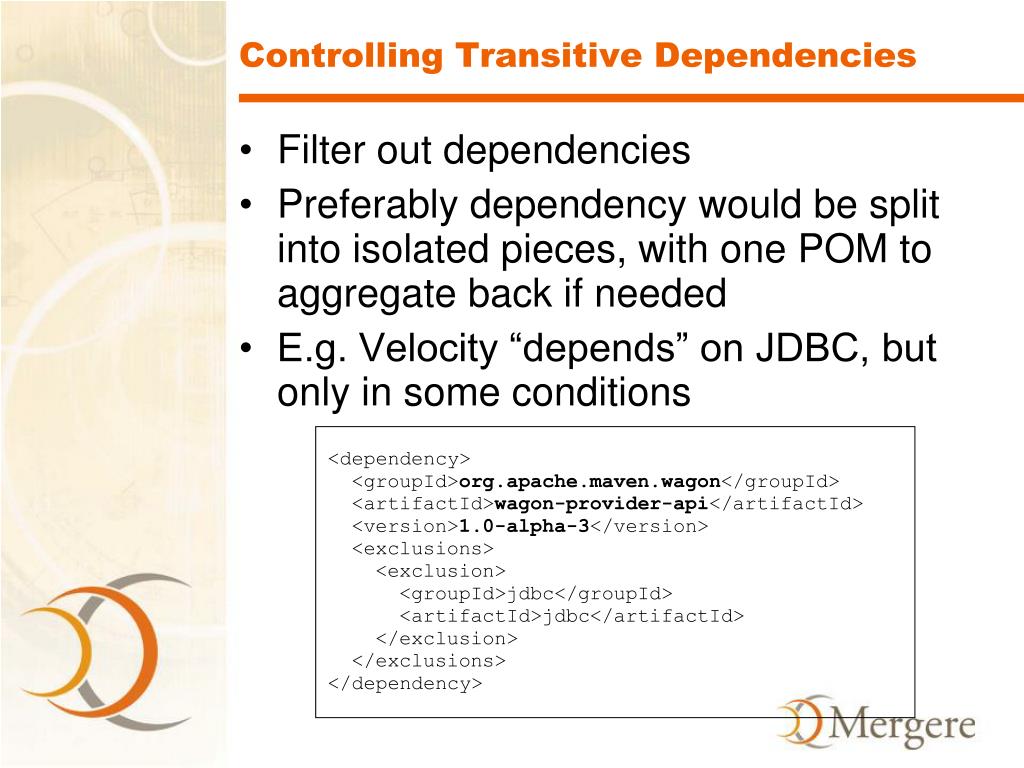

Controlling Transitive Dependencies

  • Filter out dependencies

  • Preferably dependency would be split into isolated pieces, with one POM to aggregate back if needed

  • E.g. Velocity “depends” on JDBC, but only in some conditions

<dependency>

<groupId>org.apache.maven.wagon</groupId>

<artifactId>wagon-provider-api</artifactId>

<version>1.0-alpha-3</version>

<exclusions>

<exclusion>

<groupId>jdbc</groupId>

<artifactId>jdbc</artifactId>

</exclusion>

</exclusions>

</dependency>


Snapshot handling

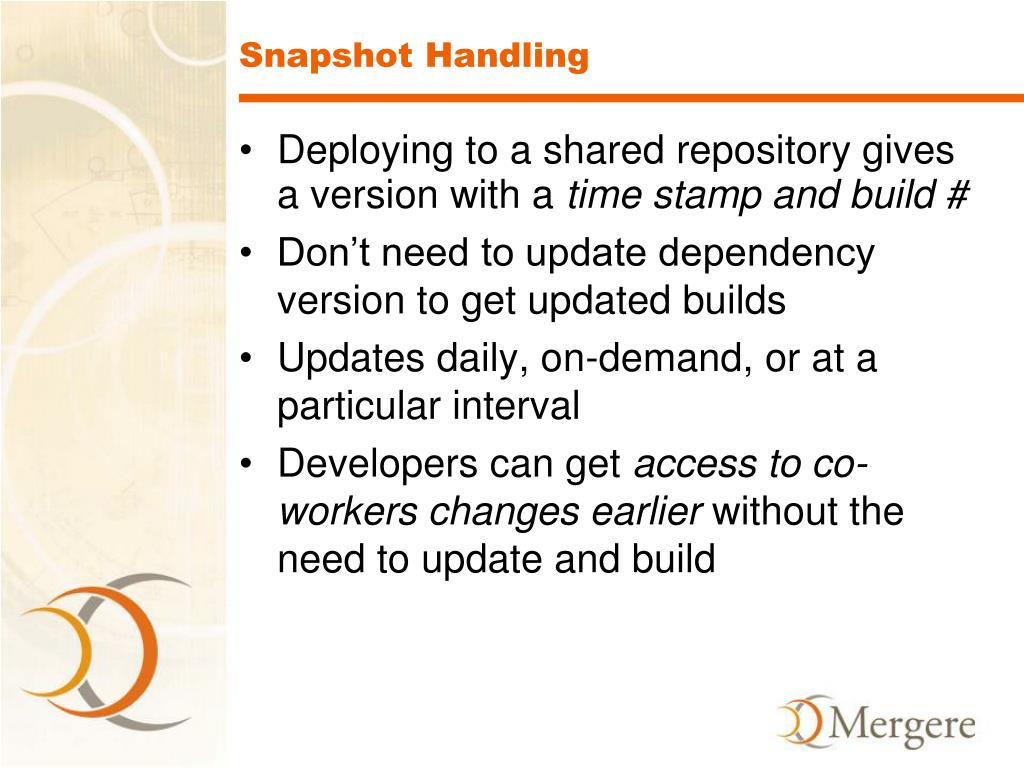

Snapshot Handling

  • Deploying to a shared repository gives a version with a time stamp and build #

  • Don’t need to update dependency version to get updated builds

  • Updates daily, on-demand, or at a particular interval

  • Developers can get access to co-workers changes earlier without the need to update and build


Build life cycle

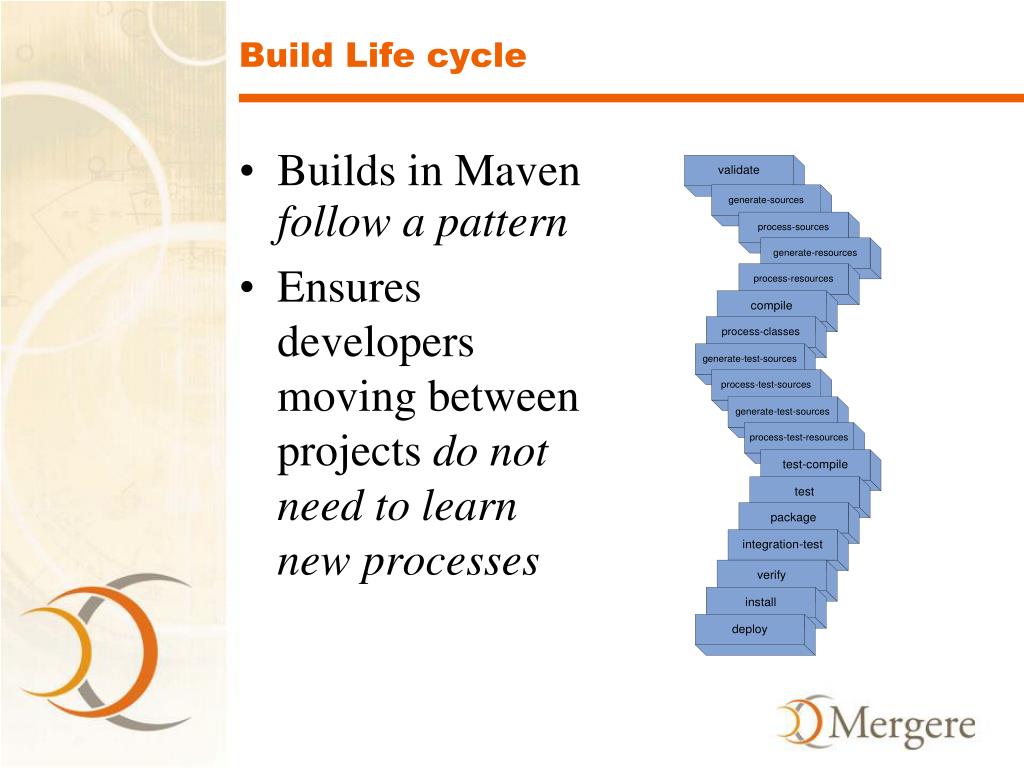

Build Life cycle

  • Builds in Maven follow a pattern

  • Ensures developers moving between projects do not need to learn new processes


Build life cycle1

Build Life cycle

  • Plugins can augment the build life cycle

  • For example:

    • JAXB could register an XSD to Java goal in generate-sources, then add it to the compilation list

    • Xdoclet could register a goal to create a Hibernate mapping in process-resources.

  • The builder still only needs to know to use m2 package

  • Replaces use of preGoal from Maven 1


Unified project file

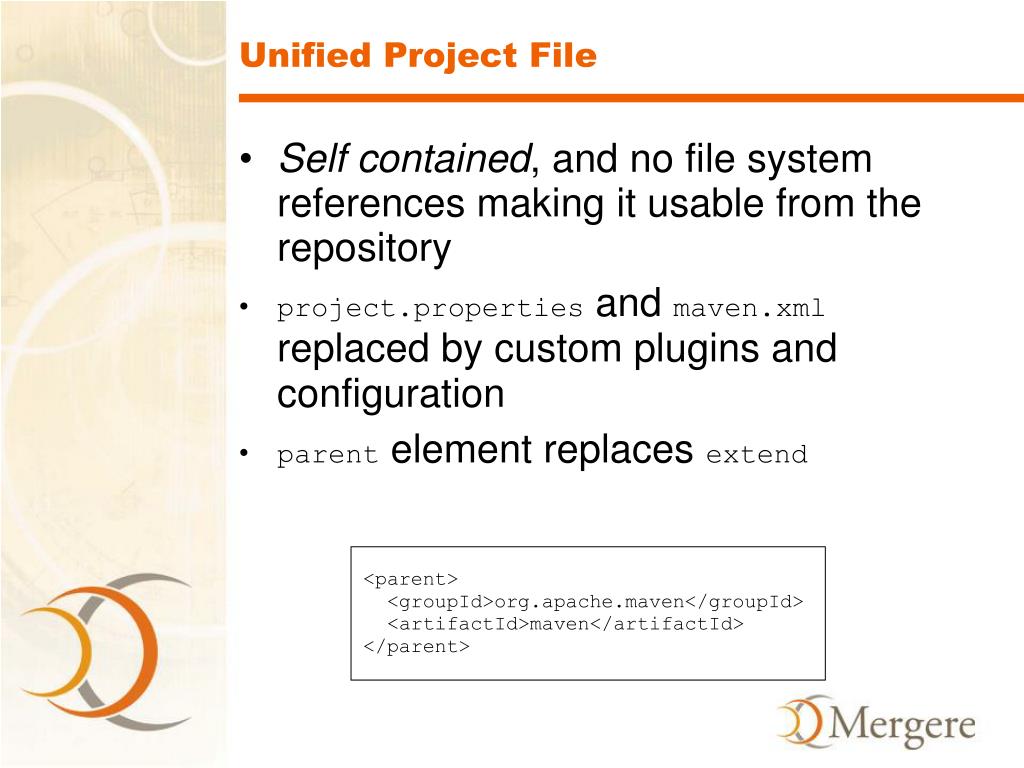

Unified Project File

  • Self contained, and no file system references making it usable from the repository

  • project.properties and maven.xml replaced by custom plugins and configuration

  • parent element replaces extend

<parent>

<groupId>org.apache.maven</groupId>

<artifactId>maven</artifactId>

</parent>


Configuring plugins

Configuring Plugins

  • Configure how your project is built

  • In Maven 1, project.properties file

  • Example: compile with JDK 5.0 options

<build>

<plugins>

<plugin>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-compiler-plugin</artifactId>

<configuration>

<source>1.5</source>

<target>1.5</target>

</configuration>

</plugin>

</plugins>

</build>


On demand features

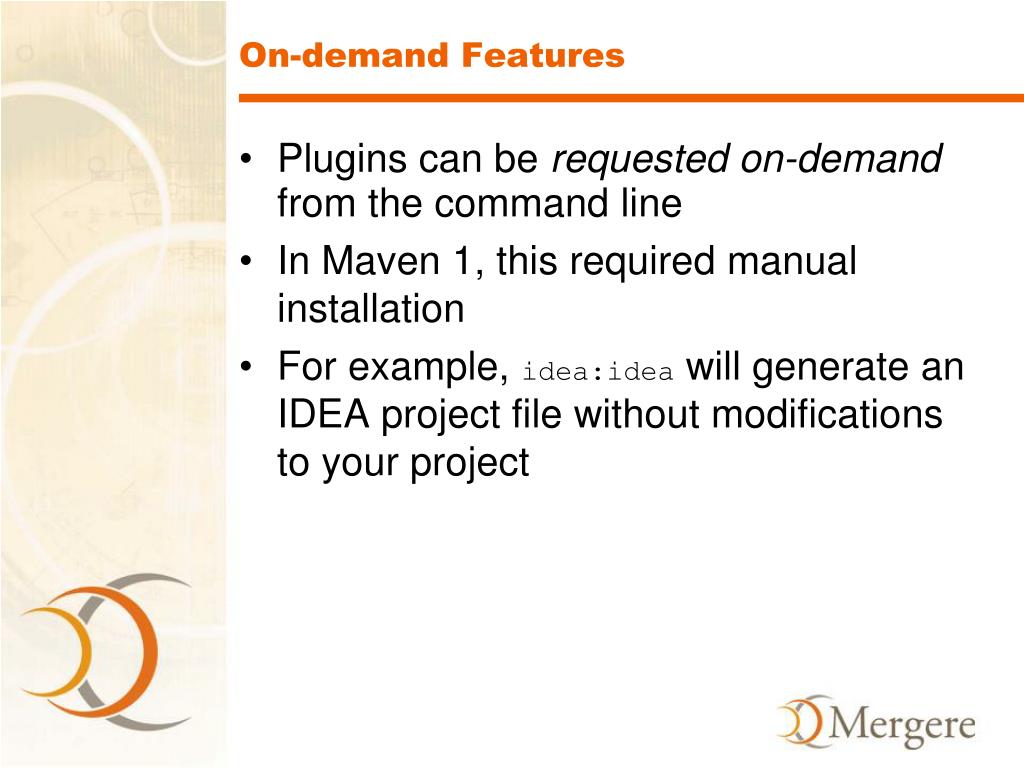

On-demand Features

  • Plugins can be requested on-demand from the command line

  • In Maven 1, this required manual installation

  • For example, idea:idea will generate an IDEA project file without modifications to your project


Plugin version discovery

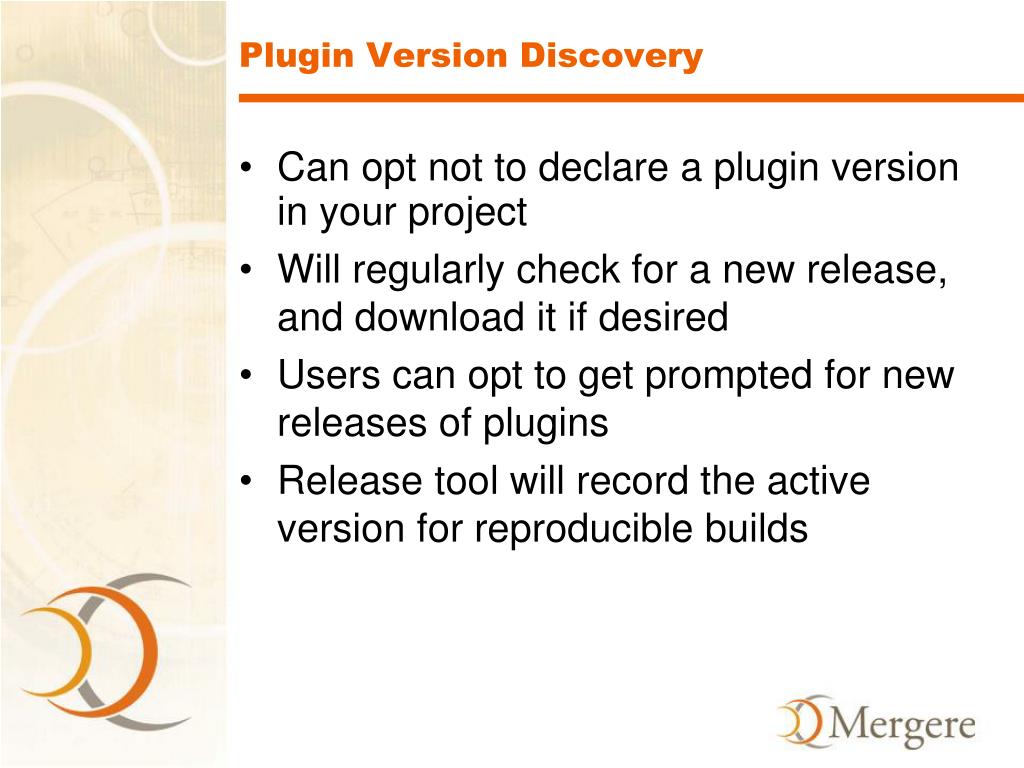

Plugin Version Discovery

  • Can opt not to declare a plugin version in your project

  • Will regularly check for a new release, and download it if desired

  • Users can opt to get prompted for new releases of plugins

  • Release tool will record the active version for reproducible builds


Plugin languages

Plugin Languages

  • Java, Beanshell, Marmalade

  • Java is the most common

  • Beanshell is new, useful for rapid prototyping

  • Marmalade is primarily to ease porting of Jelly-based plugins, and to make available Ant tasks in an XML syntax

  • Can support others with a small amount of work if there is demand

    • For example: Jython, Groovy, JRuby

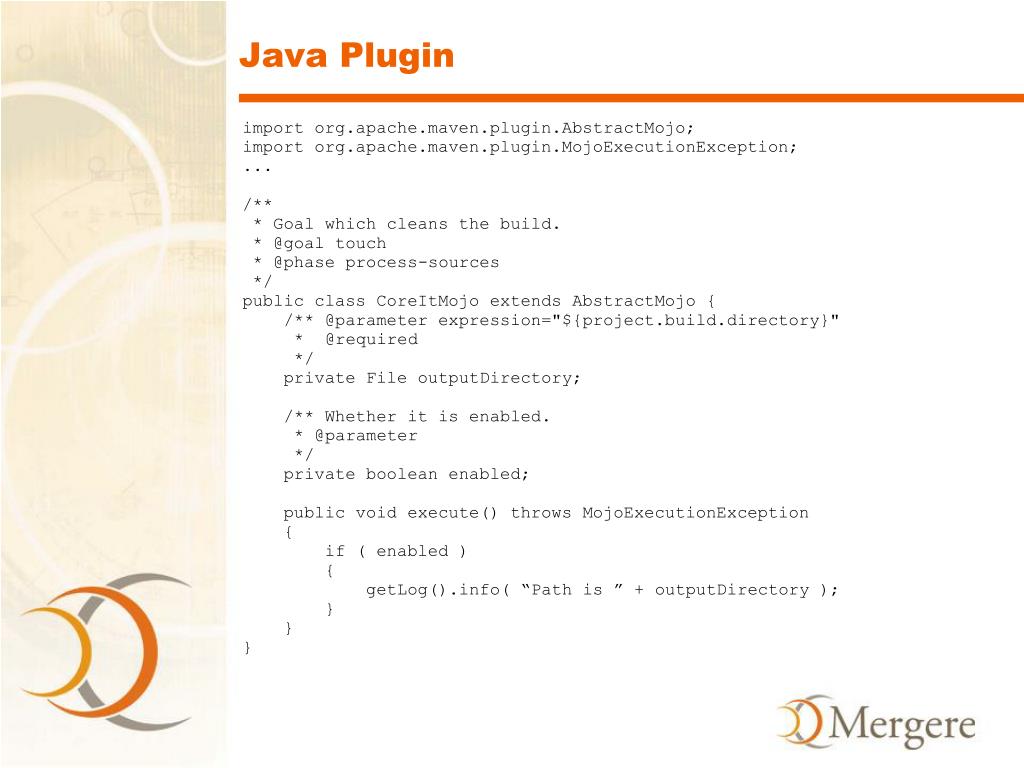

Java plugin

Java Plugin

import org.apache.maven.plugin.AbstractMojo;

import org.apache.maven.plugin.MojoExecutionException;

...

/**

* Goal which cleans the build.

* @goal touch

* @phase process-sources

*/

public class CoreItMojo extends AbstractMojo {

/** @parameter expression="${project.build.directory}"

* @required

*/

private File outputDirectory;

/** Whether it is enabled.

* @parameter

*/

private boolean enabled;

public void execute() throws MojoExecutionException

{

if ( enabled )

{

getLog().info( “Path is ” + outputDirectory );

}

}

}


Beanshell plugin

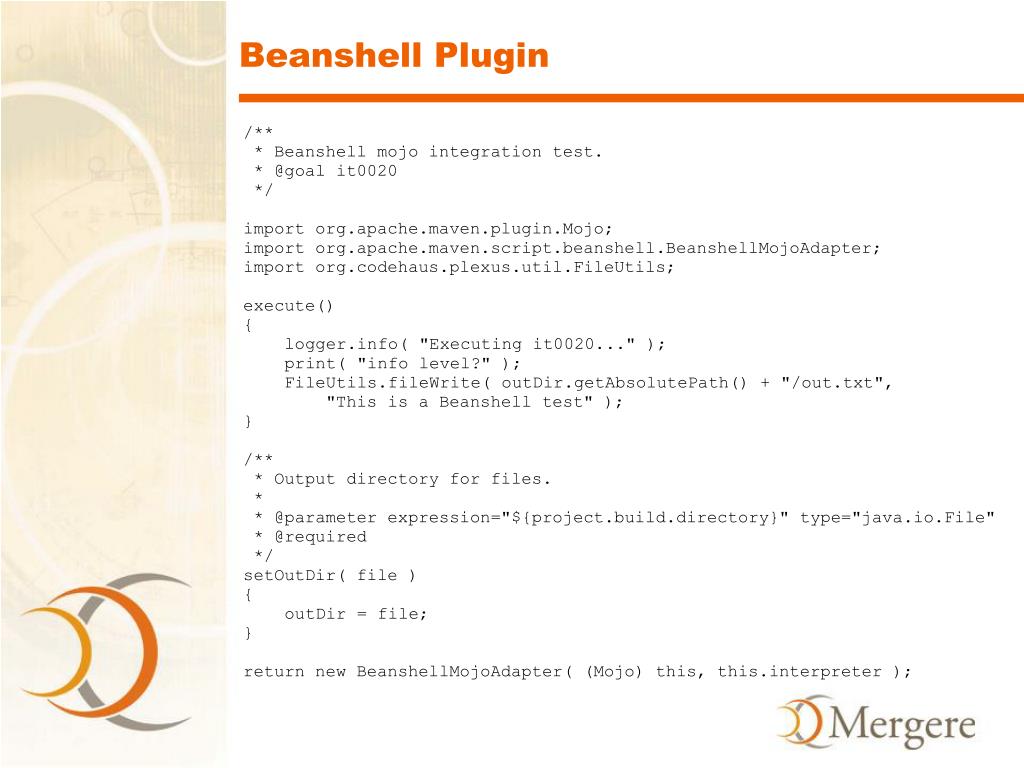

Beanshell Plugin

/**

* Beanshell mojo integration test.

* @goal it0020

*/

import org.apache.maven.plugin.Mojo;

import org.apache.maven.script.beanshell.BeanshellMojoAdapter;

import org.codehaus.plexus.util.FileUtils;

execute()

{

logger.info( "Executing it0020..." );

print( "info level?" );

FileUtils.fileWrite( outDir.getAbsolutePath() + "/out.txt",

"This is a Beanshell test" );

}

/**

* Output directory for files.

*

* @parameter expression="${project.build.directory}" type="java.io.File"

* @required

*/

setOutDir( file )

{

outDir = file;

}

return new BeanshellMojoAdapter( (Mojo) this, this.interpreter );

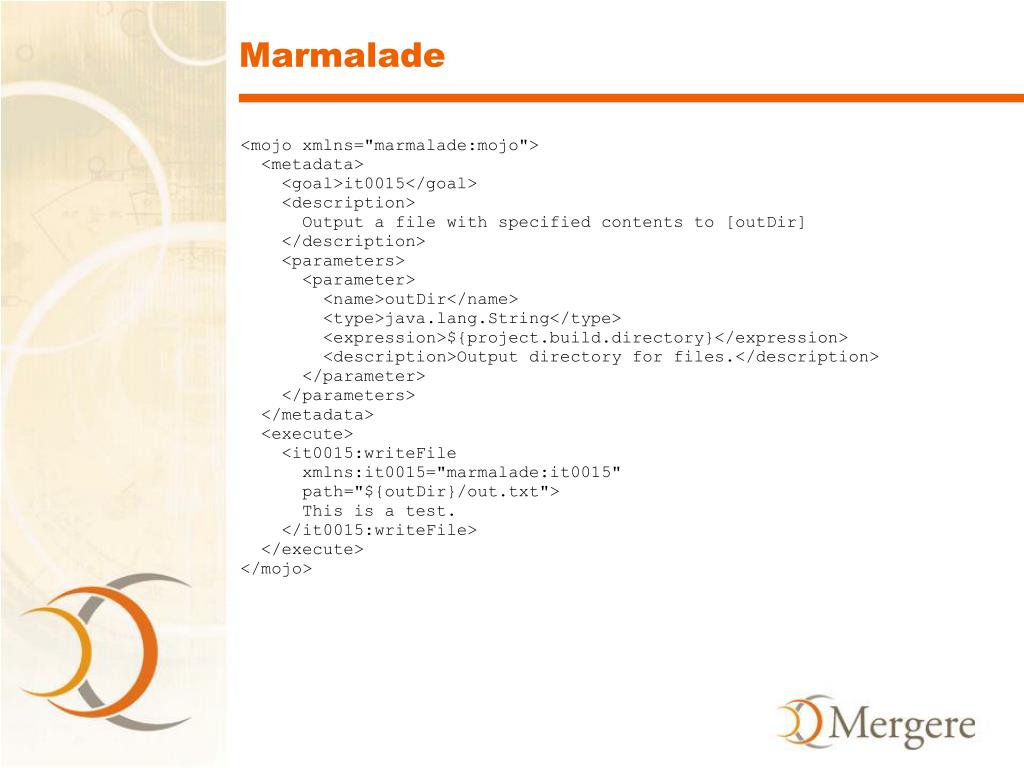

Marmalade

Marmalade

<mojo xmlns="marmalade:mojo">

<metadata>

<goal>it0015</goal>

<description>

Output a file with specified contents to [outDir]

</description>

<parameters>

<parameter>

<name>outDir</name>

<type>java.lang.String</type>

<expression>${project.build.directory}</expression>

<description>Output directory for files.</description>

</parameter>

</parameters>

</metadata>

<execute>

<it0015:writeFile

xmlns:it0015="marmalade:it0015"

path="${outDir}/out.txt">

This is a test.

</it0015:writeFile>

</execute>

</mojo>


Multiple modules

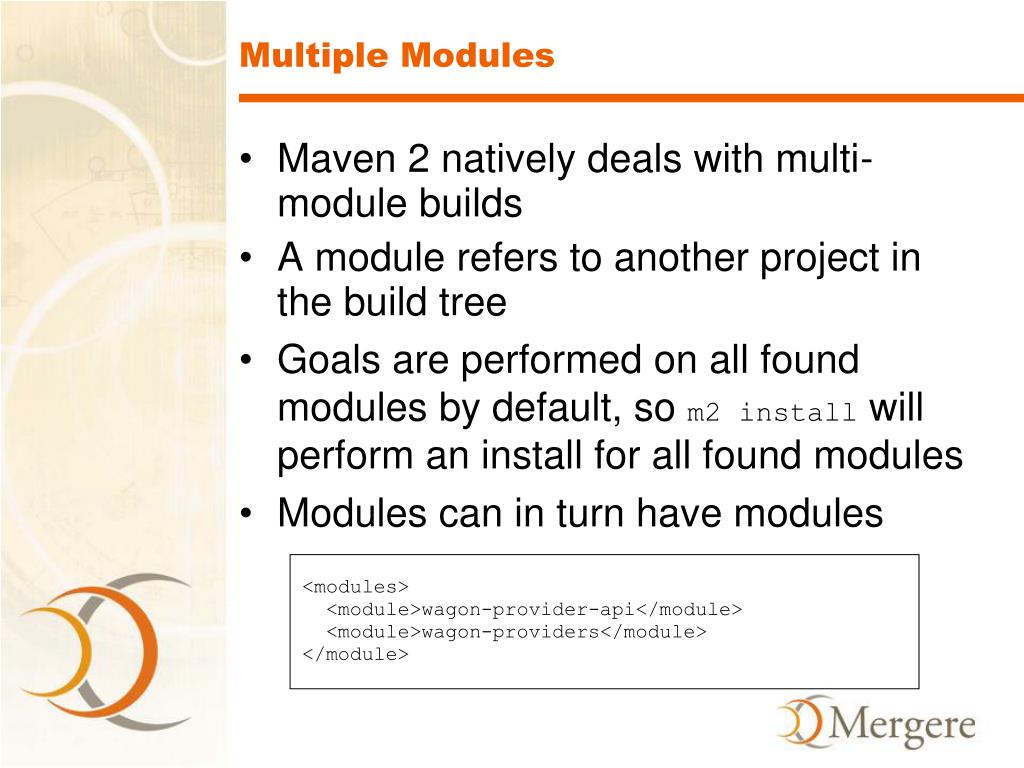

Multiple Modules

  • Maven 2 natively deals with multi-module builds

  • A module refers to another project in the build tree

  • Goals are performed on all found modules by default, so m2 install will perform an install for all found modules

  • Modules can in turn have modules

<modules>

<module>wagon-provider-api</module>

<module>wagon-providers</module>

</module>

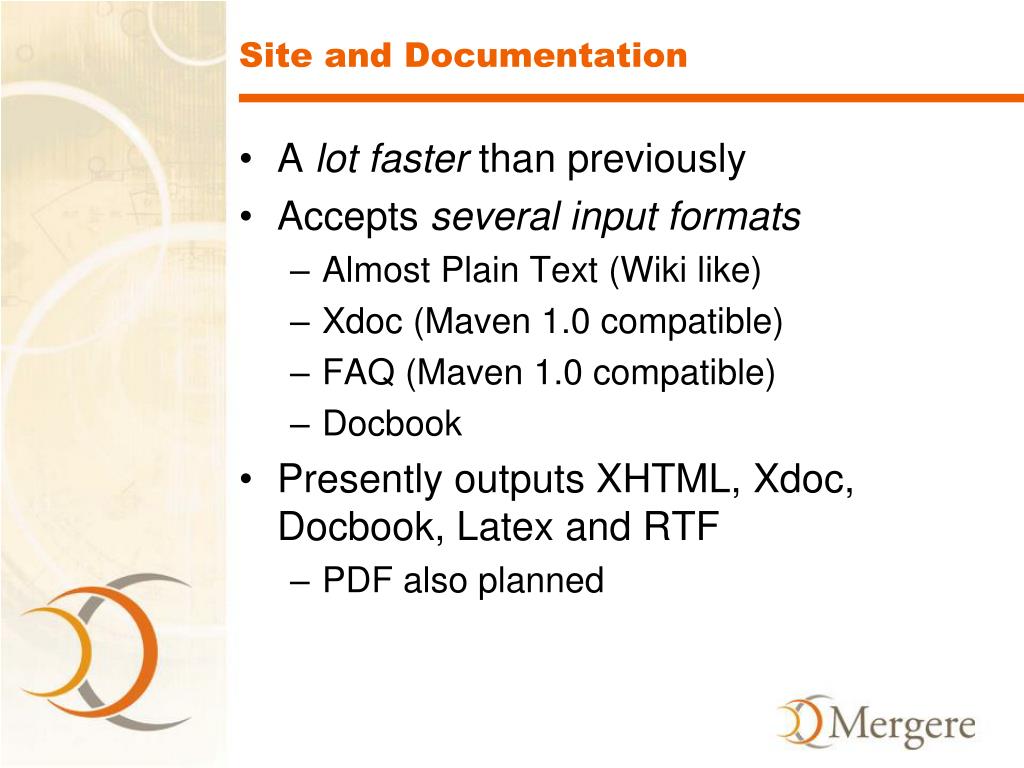

Site and documentation

Site and Documentation

  • A lot faster than previously

  • Accepts several input formats

    • Almost Plain Text (Wiki like)

    • Xdoc (Maven 1.0 compatible)

    • FAQ (Maven 1.0 compatible)

    • Docbook

  • Presently outputs XHTML, Xdoc, Docbook, Latex and RTF

    • PDF also planned

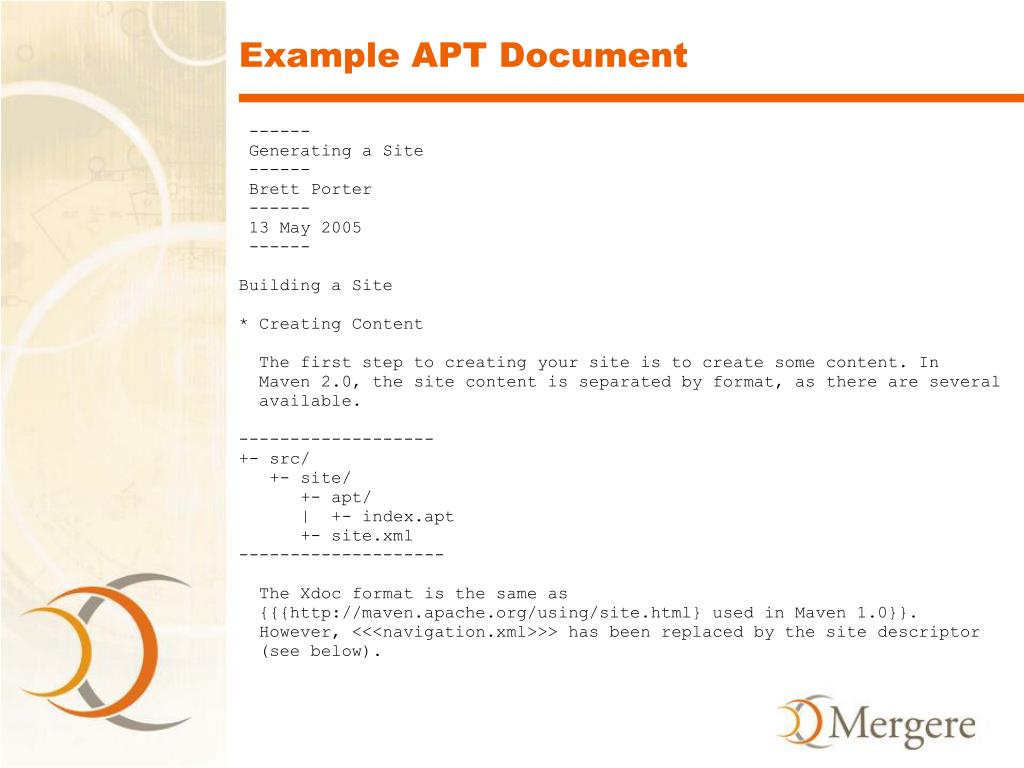

Example apt document

Example APT Document

------

Generating a Site

------

Brett Porter

------

13 May 2005

------

Building a Site

* Creating Content

The first step to creating your site is to create some content. In

Maven 2.0, the site content is separated by format, as there are several

available.

-------------------

+- src/

+- site/

+- apt/

| +- index.apt

+- site.xml

--------------------

The Xdoc format is the same as

{{{http://maven.apache.org/using/site.html} used in Maven 1.0}}.

However, <<<navigation.xml>>> has been replaced by the site descriptor

(see below).


Example apt document1

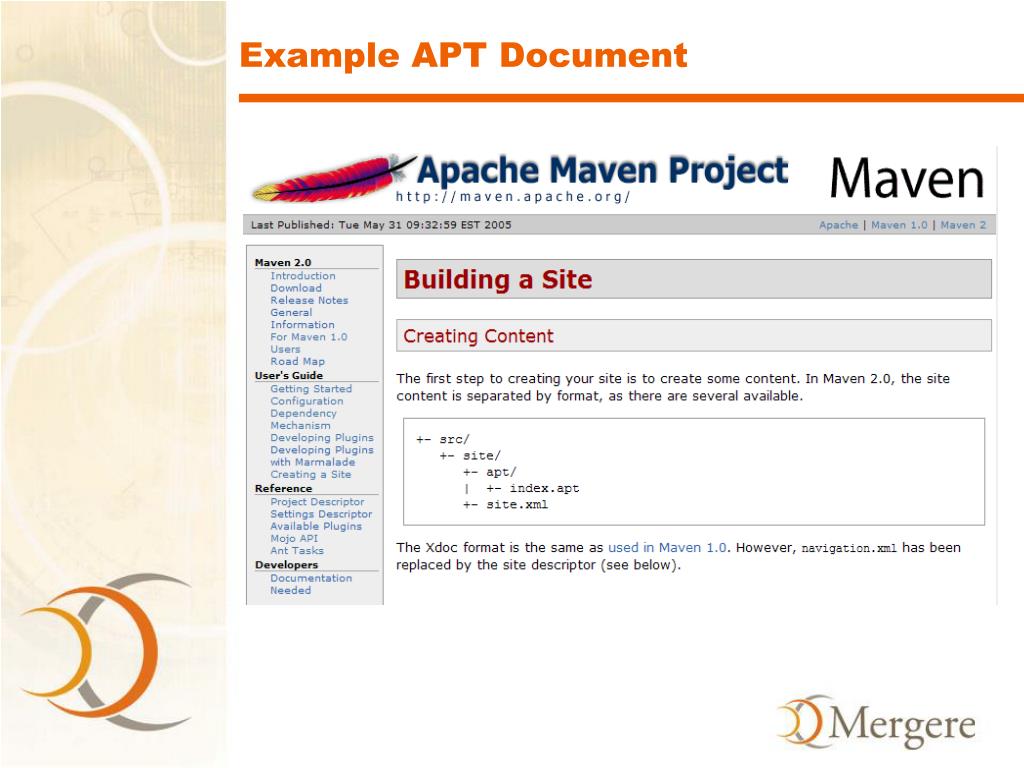

Example APT Document


Release assistance

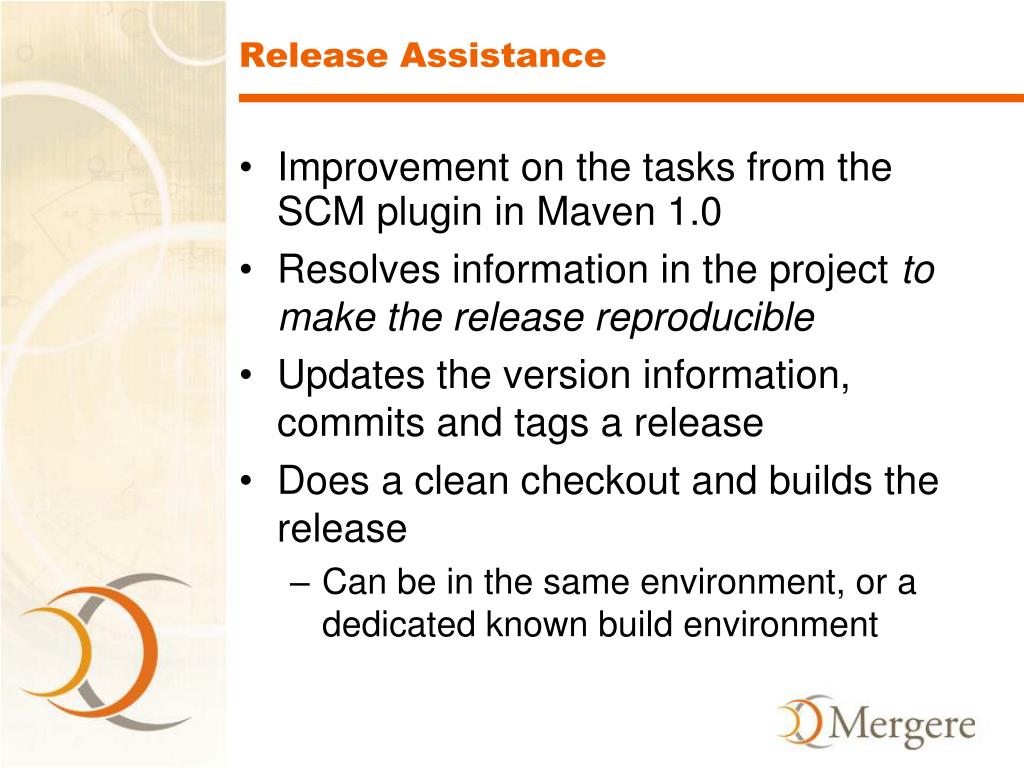

Release Assistance

  • Improvement on the tasks from the SCM plugin in Maven 1.0

  • Resolves information in the project to make the release reproducible

  • Updates the version information, commits and tags a release

  • Does a clean checkout and builds the release

    • Can be in the same environment, or a dedicated known build environment


Project archetypes

Project Archetypes

  • m2 archetype:create

  • Generates a template project for you

  • Currently archetypes for:

    • JAR/WAR

    • Site

    • Java and Marmalade Plugins

  • Can easily create your own archetypes

  • Uses Velocity

  • Downloaded from the repository so they are easily shared


Build profiles

Build Profiles

  • Change the build depending on the environment

    • Dependencies, repositories, plugins and configuration

  • Trigger by operating system, JDK, extistence of software, and so on, as well as command line parameter

  • Per user or per project

  • Used to set up standard environments:

    • Development, Test, QA and Production


Maven 2 0 features coming july

Maven 2.0 Features Coming (July)

  • More on dependency mediation

  • Other languages (maybe beyond 2.0)


Dependency mediation

Dependency Mediation

  • Allows specification of a range of versions for a dependency

  • Maven will help resolve the best version available

  • Techniques for handling conflicts

    • Fail, Newest, Nearest

  • Release tool fills in versions later

<dependency>

<groupId>jaxb</groupId>

<artifactId>jaxb-api</artifactId>

<version>[1.0.1,)</version>

</dependency>


Support for other languages

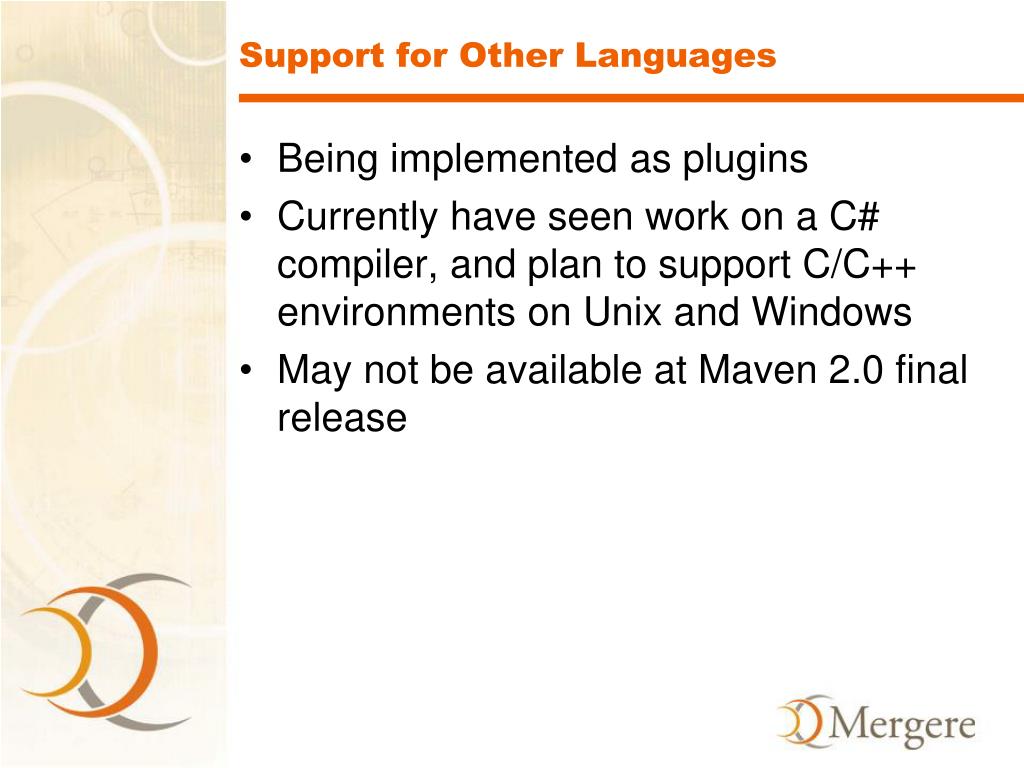

Support for Other Languages

  • Being implemented as plugins

  • Currently have seen work on a C# compiler, and plan to support C/C++ environments on Unix and Windows

  • May not be available at Maven 2.0 final release


Moving from ant to maven 2

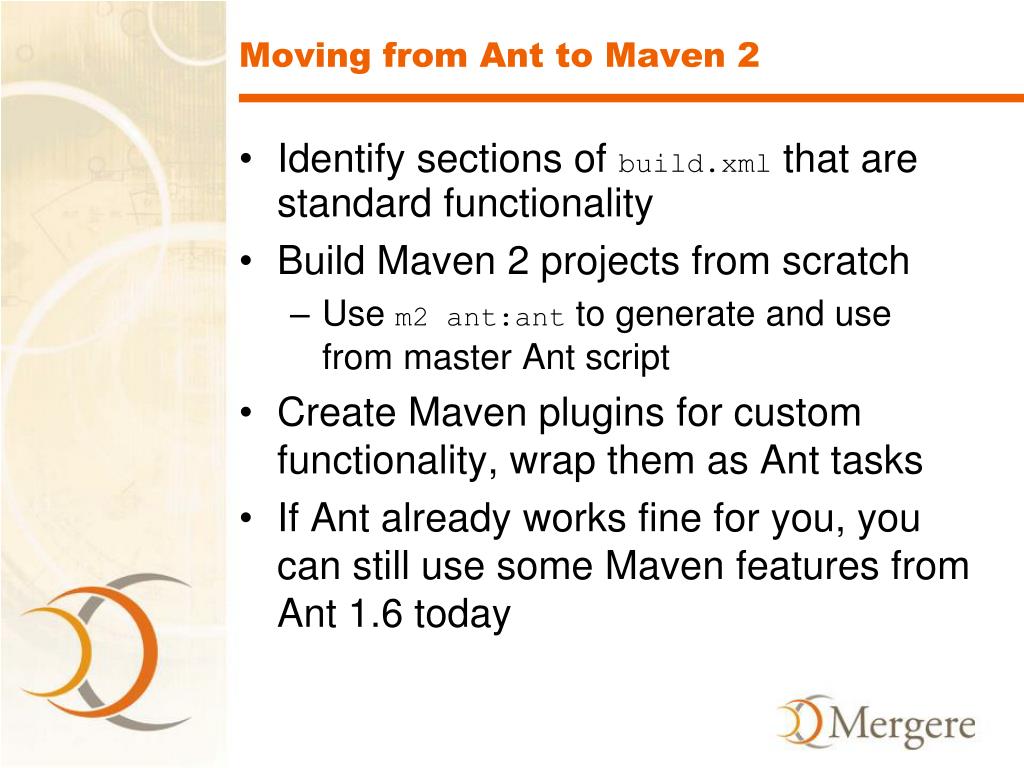

Moving from Ant to Maven 2

  • Identify sections of build.xml that are standard functionality

  • Build Maven 2 projects from scratch

    • Use m2 ant:ant to generate and use from master Ant script

  • Create Maven plugins for custom functionality, wrap them as Ant tasks

  • If Ant already works fine for you, you can still use some Maven features from Ant 1.6 today


Using maven 2 from ant

Using Maven 2 From Ant

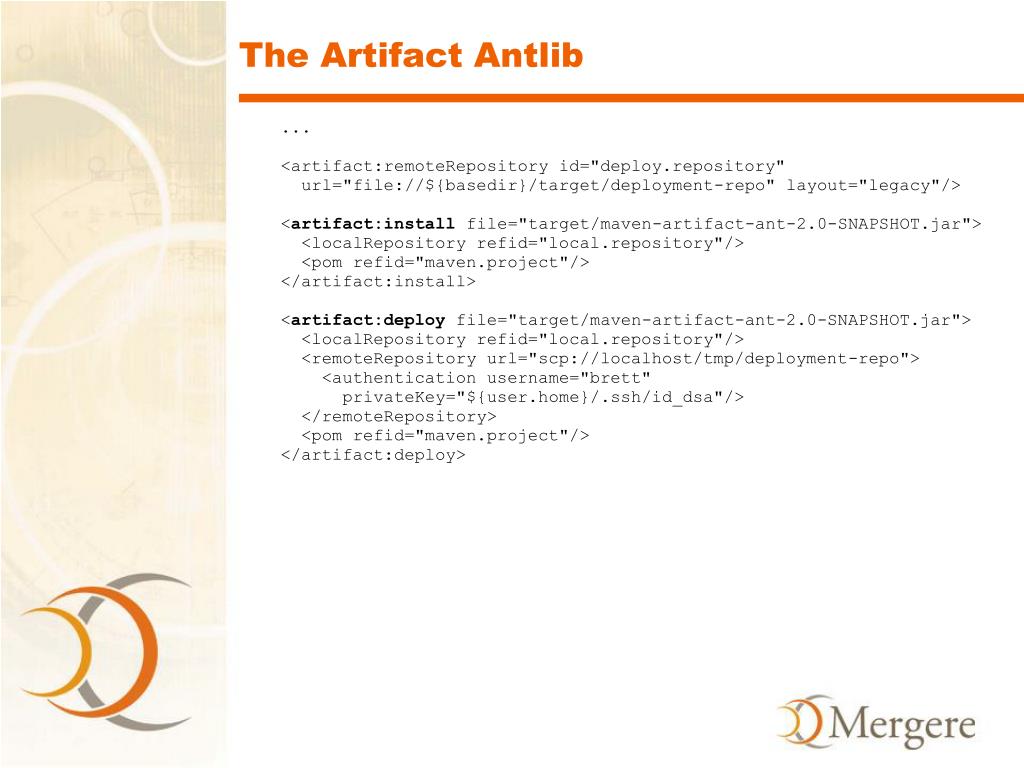

  • Currently exposes the dependency and artifact handling as Ant tasks

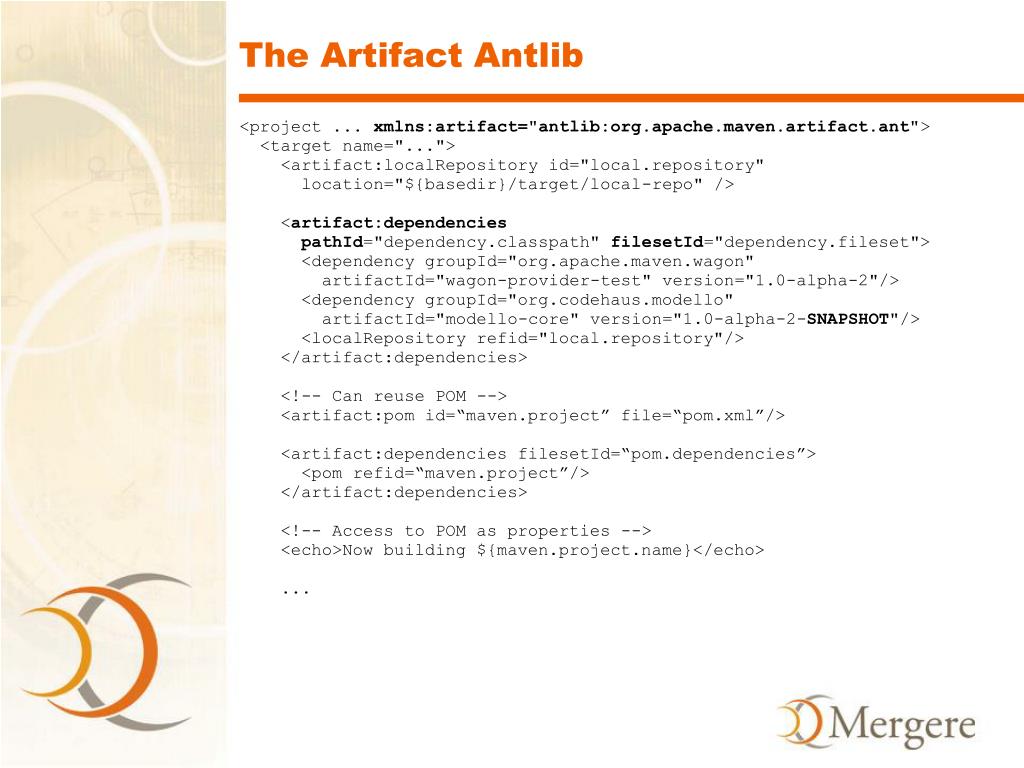

  • Ant 1.7 will utilise the artifact antlib for dependency management

    • Download dependencies (all features)

    • Share a local Maven repository

    • Install and deploy artifacts to a repository

    • Expose a POM as Ant properties


The artifact antlib

The Artifact Antlib

<project ... xmlns:artifact="antlib:org.apache.maven.artifact.ant">

<target name="...">

<artifact:localRepository id="local.repository"

location="${basedir}/target/local-repo" />

<artifact:dependencies

pathId="dependency.classpath" filesetId="dependency.fileset">

<dependency groupId="org.apache.maven.wagon"

artifactId="wagon-provider-test" version="1.0-alpha-2"/>

<dependency groupId="org.codehaus.modello"

artifactId="modello-core" version="1.0-alpha-2-SNAPSHOT"/>

<localRepository refid="local.repository"/>

</artifact:dependencies>

<!-- Can reuse POM -->

<artifact:pom id=“maven.project” file=“pom.xml”/>

<artifact:dependencies filesetId=“pom.dependencies”>

<pom refid=“maven.project”/>

</artifact:dependencies>

<!-- Access to POM as properties -->

<echo>Now building ${maven.project.name}</echo>

...


The artifact antlib1

The Artifact Antlib

...

<artifact:remoteRepository id="deploy.repository"

url="file://${basedir}/target/deployment-repo" layout="legacy"/>

<artifact:install file="target/maven-artifact-ant-2.0-SNAPSHOT.jar">

<localRepository refid="local.repository"/>

<pom refid="maven.project"/>

</artifact:install>

<artifact:deploy file="target/maven-artifact-ant-2.0-SNAPSHOT.jar">

<localRepository refid="local.repository"/>

<remoteRepository url="scp://localhost/tmp/deployment-repo">

<authentication username="brett"

privateKey="${user.home}/.ssh/id_dsa"/>

</remoteRepository>

<pom refid="maven.project"/>

</artifact:deploy>


Maven and the ide

Maven and the IDE

  • MevenIDE project

    • Started out with NetBeans, Eclipse

    • Relatively new Jbuilder and IDEA plugins

    • Shared base code

    • Changes reflect in project and IDE

    • Planning support for embedded Maven 2 and remote Continuum

    • Independent of the Maven project

  • Maven has project generation for several IDEs for one way creation

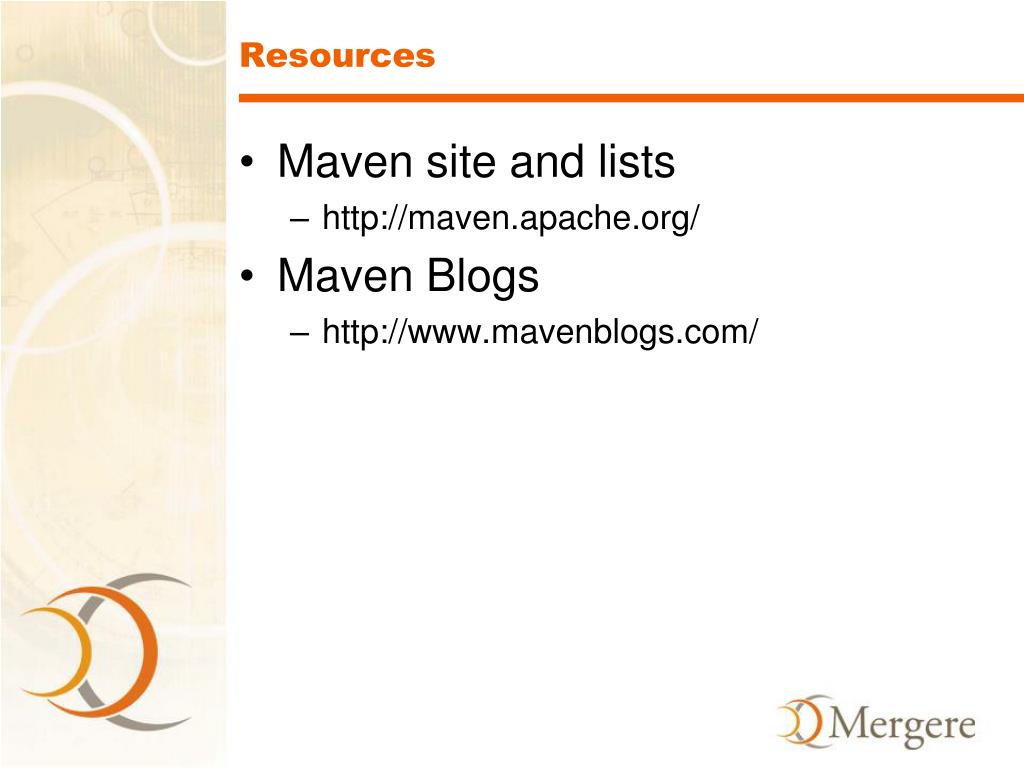

Resources

Resources

  • Maven site and lists

    • http://maven.apache.org/

  • Maven Blogs

    • http://www.mavenblogs.com/

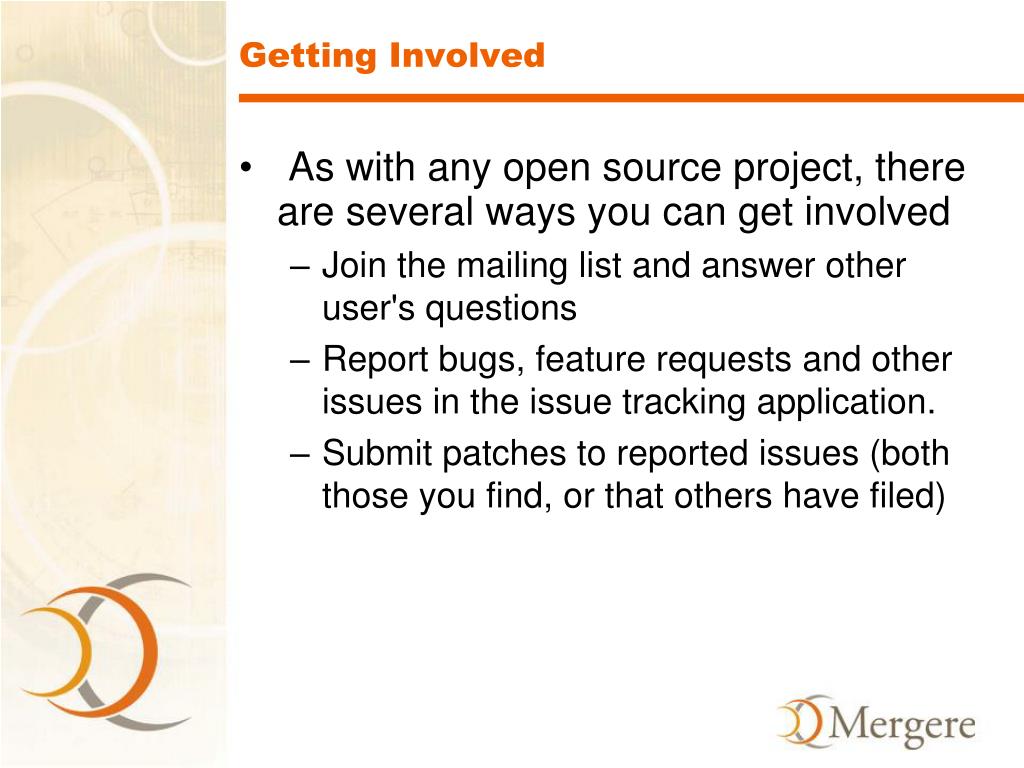

Getting involved

Getting Involved

  • As with any open source project, there are several ways you can get involved

    • Join the mailing list and answer other user's questions

    • Report bugs, feature requests and other issues in the issue tracking application.

    • Submit patches to reported issues (both those you find, or that others have filed)


Questions

Questions?

  • Thanks for listening!


  • Login
