Presentation Transcript


68 th ietf prague check republic sipping wg 23 march 2007

A mechanism for file directory with SIPdraft-garcia-sipping-resource-sharing-framework-01.txtdraft-garcia-sipping-resource-event-package-01.txtdraft-garcia-sipping-resource-desc-pidf-00.txt

68th IETF

Prague, Check Republic

SIPPING WG

23-March-2007

Miguel Garcia <[email protected]>

Marcin Matuszewski <[email protected]>

1


History

History

  • All decent communication suites allow transfer of files between endpoints

  • Requirements for file transfer already documented

    • draft-isomaki-sipping-file-transfer-00.txt

  • File transfer mechanism draft in progress

    • draft-ietf-mmusic-file-transfer-mech-00.txt

  • This discussion is about these three resource sharing drafts:

    • draft-garcia-sipping-resource-sharing-framework-01.txt

    • draft-garcia-sipping-resource-event-package-01.txt

    • draft-garcia-sipping-resource-desc-pidf-00.txt

2


File transfer push operation

File transfer: push operation

INVITE sip:[email protected]

SDP describes the file to be sent

200 OK

SDP describes the file to be received

ACK

MSRP SEND

Including a file

User is presented with the offer. He can accept of reject the file transfer

MSRP 200 OK

3


File transfer pull operation

File transfer: pull operation

How can Alice know the description of a file stored a Bob’s device?

INVITE sip:[email protected]

SDP describes the file to be received

200 OK

SDP describes the file to be sent

ACK

MSRP SEND

Including a file

User is presented with the offer. He can accept of reject the file transfer

MSRP 200 OK

4


Sip file directory the resource event package

SIP file directory: The ‘resource’ event package

PUBLISH

Event: resource

XML doc. including a resource description of available resources: files, printers, etc.

SUBSCRIBE sip:[email protected]

Event: resource

200 OK

200 OK

NOTIFY

Event: resource

XML doc. including a resource description of available resources: files, printers, etc.

PUBLISH

Event: resource

XML doc. including a resource description of available resources: files, printers, etc.

200 OK

ESC

200 OK

Now Alice is aware of the list of available files at Bob’s mobile device and laptop

5


Resource event package end to end

‘resource’ event package end-to-end

SUBSCRIBE sip:[email protected]

Event: resource

200 OK

NOTIFY

Event: resource

XML doc. including a resource description of available resources: files, printers, etc.

200 OK

6

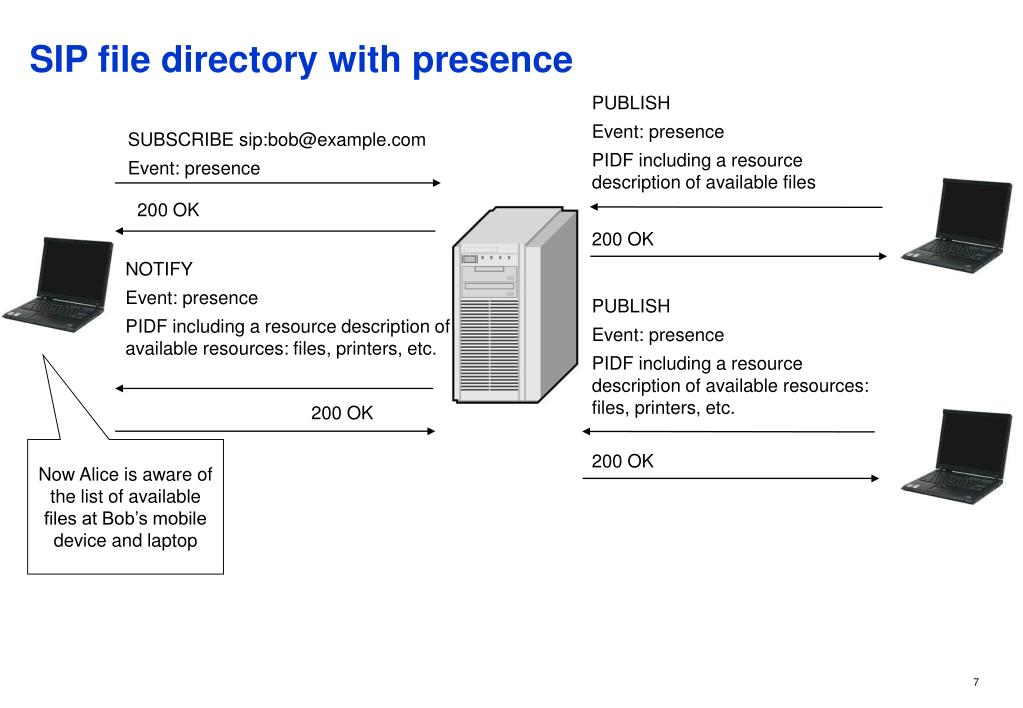

Sip file directory with presence

SIP file directory with presence

PUBLISH

Event: presence

PIDF including a resource description of available files

SUBSCRIBE sip:[email protected]

Event: presence

200 OK

200 OK

NOTIFY

Event: presence

PIDF including a resource description of available resources: files, printers, etc.

PUBLISH

Event: presence

PIDF including a resource description of available resources: files, printers, etc.

200 OK

Now Alice is aware of the list of available files at Bob’s mobile device and laptop

200 OK

7


Why sip

Why SIP?

  • By using SIP, we have passed 95% of the pain:

    • Authentication

    • Authorization

    • Rules

    • Partial notification

    • Diffs

    • Filtering

    • and probably more

8


Resource xml document

A resource XML document contains descriptions of one or more resources

A resource may be a file, a printer, a chat room hosted in an endpoint, etc.

Each resource is modeled as an identity and one or more instances

The identity describes the resource:

MIME type

Size

Hash

URN

The instance describes metadata associated to the resource and the endpoint that hosts the resource:

URI

Name

Description

Icon

creation/modification/read date

keywords

Resource XML document

Resource XML Document

Resource 1

Identity

Instance 1

Instance 2

Instance n

Resource 2

Resource n

9


Resource xml document1

Resource XML document

<?xml version="1.0" encoding="UTF-8"?>

<resource-setxmlns="urn:ietf:params:xml:ns:resource"version="123">

<resourceid="id38sh12jd">

<identityid="id9d8c9"isfile="true">

<mime-type>image/jpeg</mime-type>

<size>230432</size>

<sha1>72245FE8653DDAF371362F86D471913EE4A2CE2E</sha1>

</identity>

<instanceid="idc989c00">

<name>coolpic.jpg</name>

<description>This is my latest cool picture from my summer vacation</description>

<user-gruu>sip:[email protected];gr=urn:uuid:f81d4fae-7dec-11d0-a765-00a0c91e6bf6</user-gruu>

<user-aor>sip:[email protected]</user-aor>

<creation-date>2006-05-09T09:30:47+03:00</creation-date>

<modification-date>2006-05-09T10:24:34+03:00</modification-date>

<read-date>2006-05-10T14:24:32+03:00</read-date>

<icon-ptr>http://www.example.com/coolpic-icon.jpg</icon-ptr>

<keywords>

<keyword>summer</keyword>

<keyword>vacation</keyword>

</keywords>

</instance>

</resource>

</resource-set>

10


Documentation

Documentation

  • Three Internet-Drafts submitted:

    • A Framework for Sharing Resources with the Session Initiation Protocol (SIP)

      • Untidy collection of use cases, ideas, and solutions

      • Should be really a generic framework describing what and how to do it

    • A Session Initiation Protocol (SIP) Event Package and Data Format for Describing Generic Resources

      • New resource event package for describing files

      • Nokia has an IPR declaration

    • Resource Descriptions Extension to the Presence Information Data Format (PIDF)

      • Extending PIDF by including the resource data format

11


The big question

The big question

Is there enough interest to pursue some of the ideas and enabling the use cases and other similar to those described in the framework document?

12
