Ch.1 Distance ( 距離 ) & Displacement ( 位移 )

Tai Wai Station. Kowloon Tong Station. Ch.1 Distance ( 距離 ) & Displacement ( 位移 ). displacement 4 km to the north. distance 4.4 km. Class Exercise 1.1. Distance travelled = ?. Class Exercise 1.1. Distance travelled = 12 + 98 + 70 = 180 m. Displacement ( 位移 ) = change in position

hester
Download Presentation

Ch.1 Distance ( 距離 ) & Displacement ( 位移 )

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

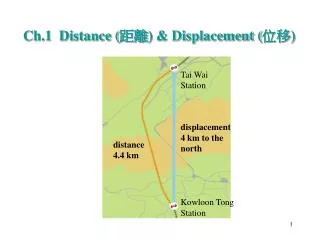

  1. Tai Wai Station Kowloon Tong Station Ch.1 Distance (距離) & Displacement (位移) displacement 4 km to the north distance 4.4 km

  2. Class Exercise 1.1 Distance travelled = ?

  3. Class Exercise 1.1 Distance travelled = 12 + 98 + 70 = 180 m

  4. Displacement(位移) = change in position The change in position is a straight line joining the start position (起點) and the end position (終點). Magnitude (量值): Length of the straight line joining the start position and the end position. Direction (方向): Direction of the straight line from the start position to the end position.

  5. North (北) West (西) East (東) South (南)

  6. N 40° Direction = ?

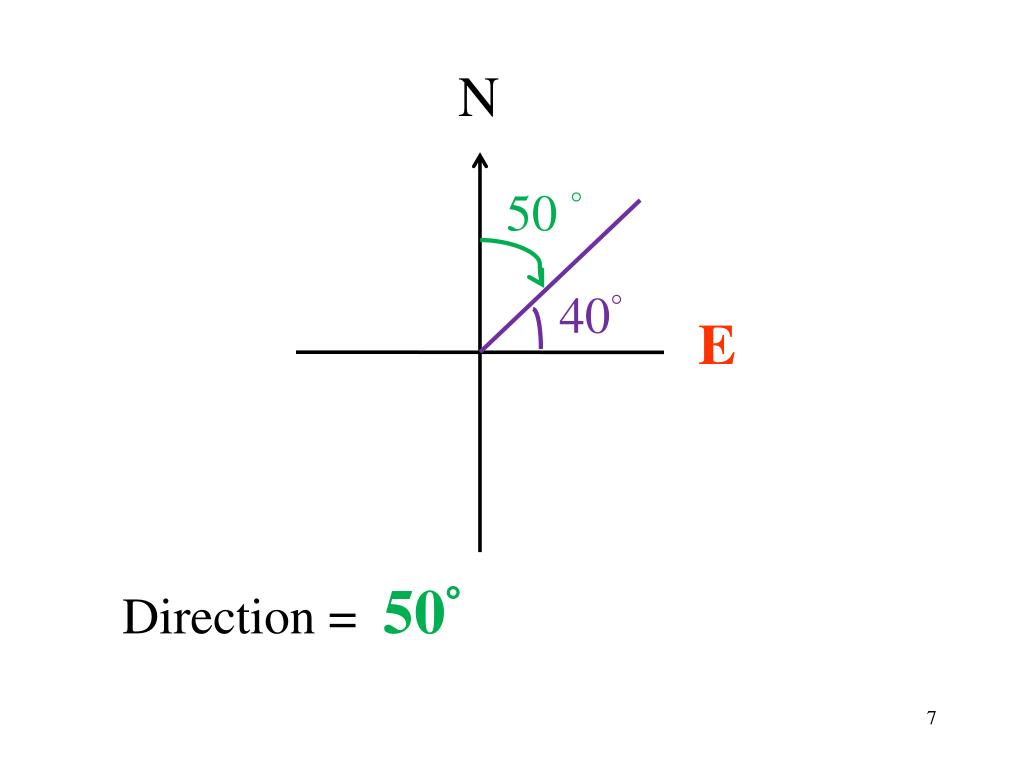

  7. N 50 ° 40° E Direction = 50°

  8. N 60° Direction = ?

  9. N 90° + 60° = 150° E 60° S Direction = 150°

  10. N 40° Direction = ?

  11. N 90° + 90° + 50° = 230 ° W 40° 50° S Direction = 230 °

  12. N 40° Direction = ?

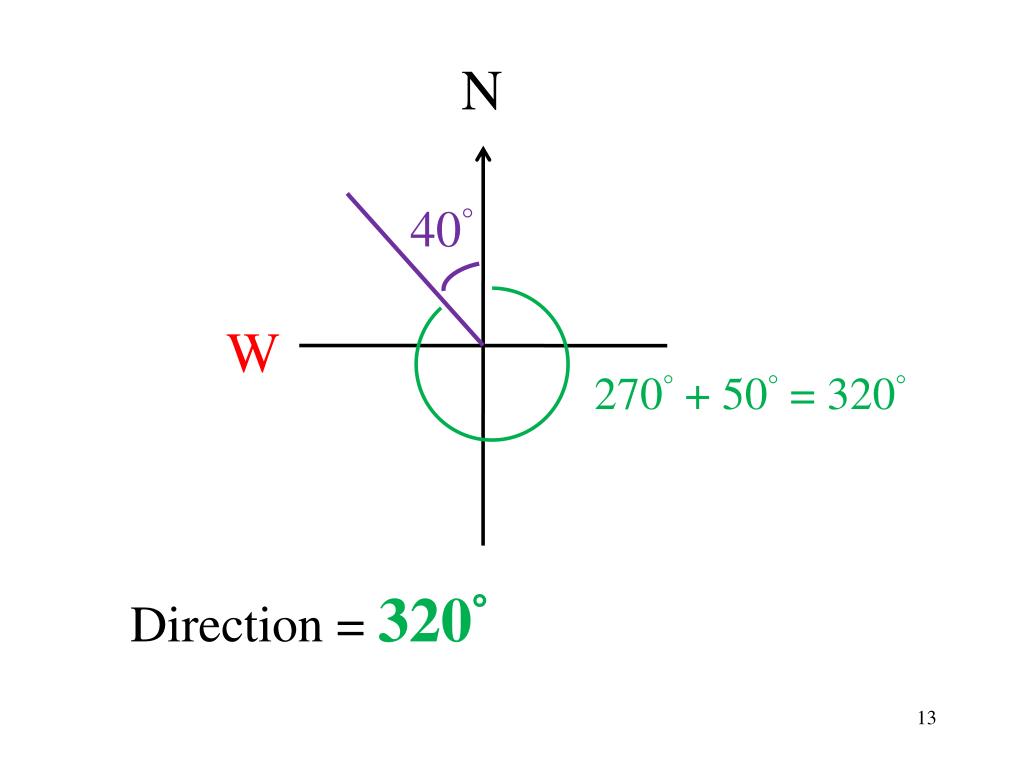

  13. N 40° W 270° + 50° = 320° Direction = 320°

  14. Class Exercise 1.2 Magnitude of displacement = ? Direction of displacement = ?

  15. Class Exercise 1.2 Magnitude of displacement = 128 m Direction of displacement = 180º + 40° =220°

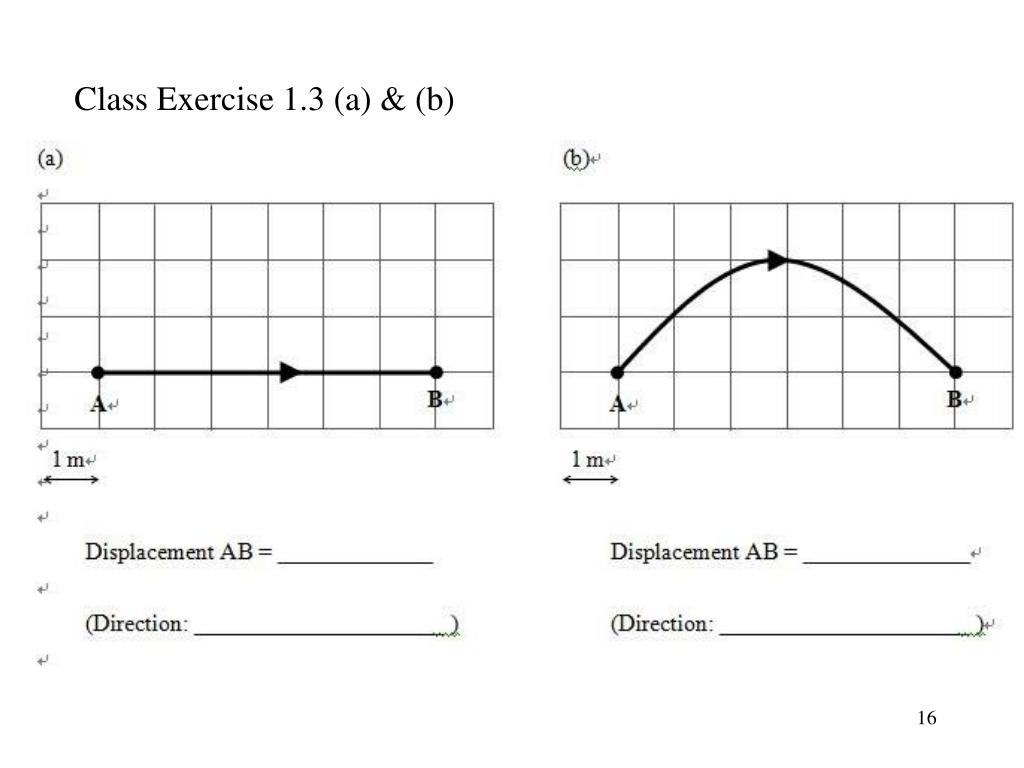

  16. Class Exercise 1.3 (a) & (b)

  17. Class Exercise 1.3 (a) & (b) 6 m 6 m East (90°) East

  18. Class Exercise 1.3 (c) & (d)

  19. Class Exercise 1.3 (c) & (d) 6 m 6 m East East

  20. Note: If the starting position and the end position are the same, the displacement is the same.

  21. Class Exercise 1.4 (a) You walk from LPSMC to the Entrance C of the Tsuen Wan MTR station. Find the magnitude and direction of your displacement.

  22. Class Exercise 1.4 (a) 6.2 cm 3.2 cm Magnitude = ? Direction = ?

  23. Class Exercise 1.4 (a) 6.2 cm 78° 3.2 cm Magnitude = (6.2 ÷ 3.2 ) × 100 = 194 m Direction = 180° + 77° = 257°(S 77 W)

  24. Class Exercise 1.4 (b) You meet your friend, Tommy, at Entrance C. He is going to the YMCA in Luk Yeung Sun Chuen. What is his displacement from Entrance C to the YMCA?

  25. Class Exercise 1.4 (b) 3.7 cm Magnitude = ? Direction = ? 3.2 cm

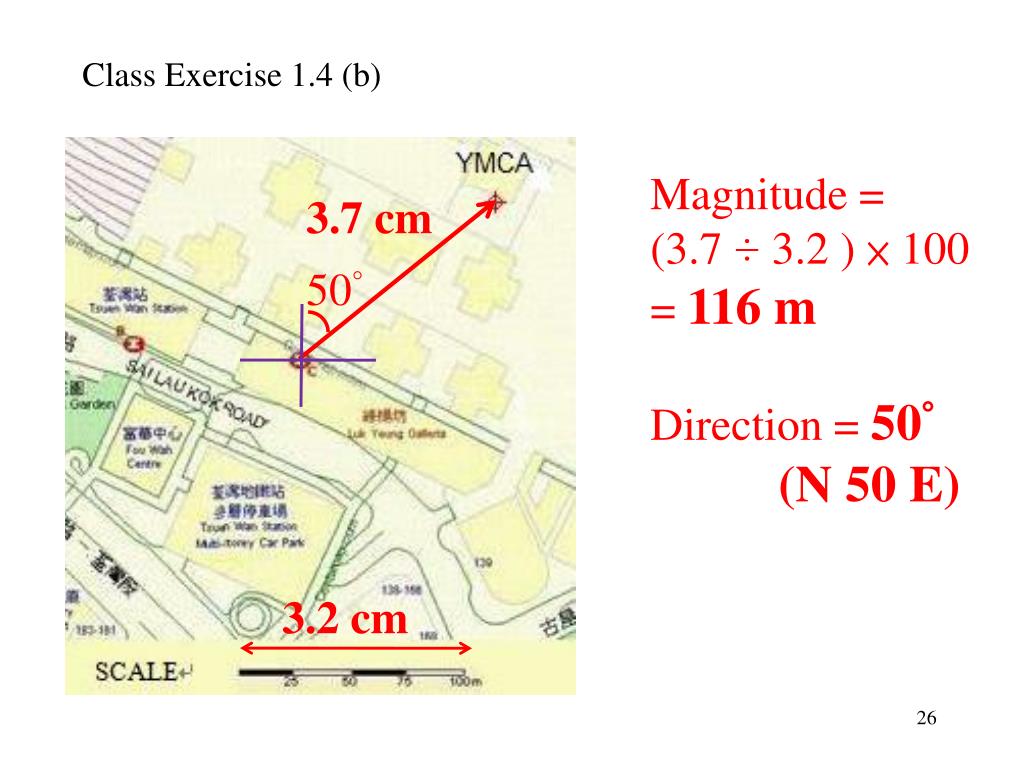

  26. Class Exercise 1.4 (b) Magnitude = (3.7 ÷ 3.2 ) × 100 = 116 m Direction = 50° (N 50 E) 3.7 cm 50° 3.2 cm

  27. Class Exercise 1.5 Mr. Chan walks 3 m from A to the East. He turns 90 and walks 6 m to the South. Finally he walks a further distance of 9 m to the West. (a) In the space below, draw arrows to represent these displacements. (Use 1 cm to represent 1 m.)

  28. Class Exercise 1.5 (a)

  29. Class Exercise 1.5 (a)

  30. Class Exercise 1.5 (b) (b) direction and magnitude of the total displacement = ?

  31. Class Exercise 1.5 (b) 45° magnitude of the total displacement = 8.5 m direction of the total displacement = 180° + 45° = 225°

  32. Class Exercise 1.6 (a)

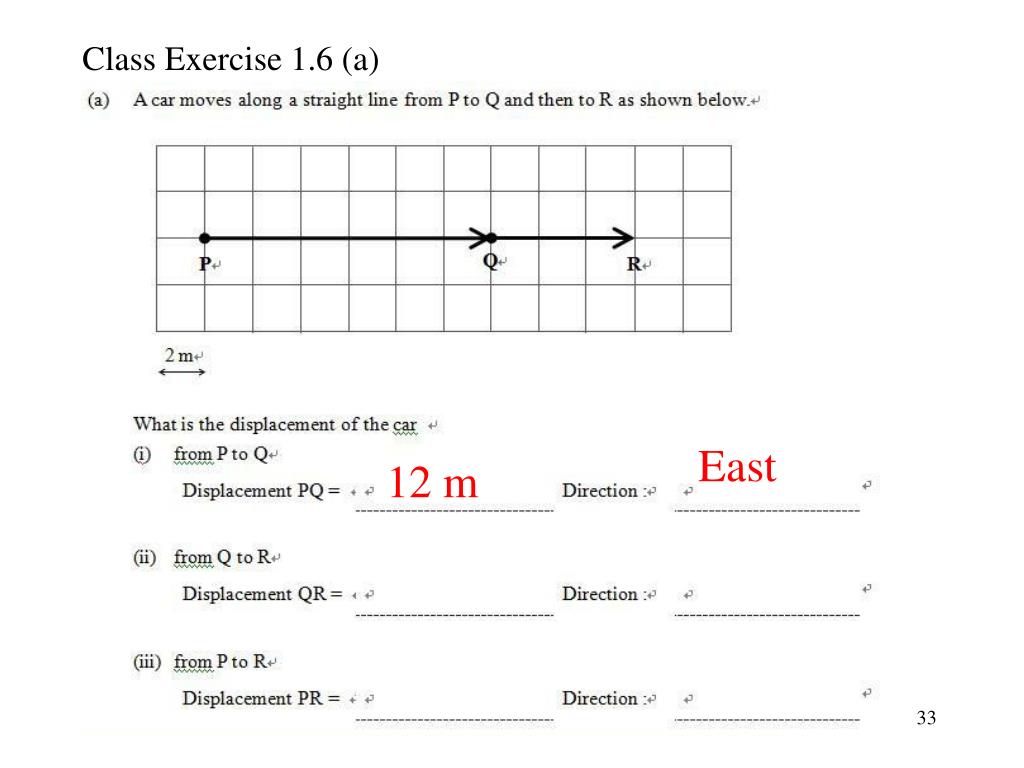

  33. Class Exercise 1.6 (a) East 12 m 33

  34. Class Exercise 1.6 (a) East 12 m East 6 m 34

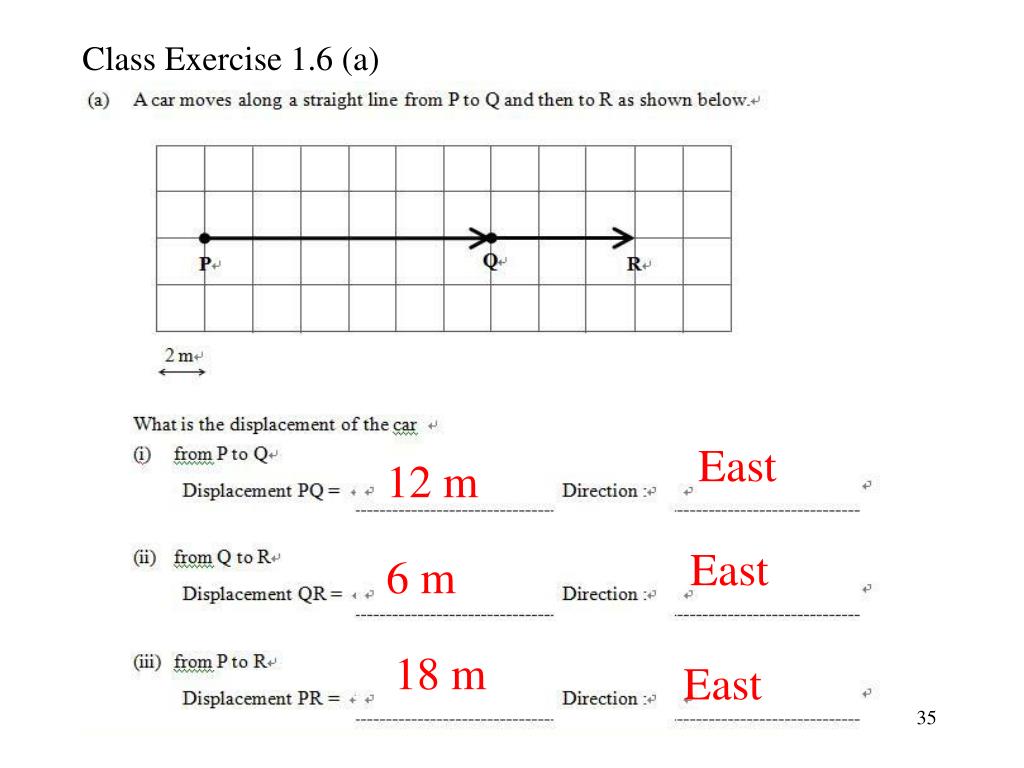

  35. Class Exercise 1.6 (a) East 12 m East 6 m 18 m East

  36. Class Exercise 1.6 (b)

  37. S Class Exercise 1.6 (b) 37

  38. S Class Exercise 1.6 (b) -10 m or 10 m (West)

  39. S Class Exercise 1.6 (b) -10 m or 10 m (West) 8 m (East) 39

  40. S Class Exercise 1.6 (b) -10 m or 10 m (West) 8 m (East) 28 m 40

  41. Class Exercise 1.7

  42. Class Exercise 1.7 distance = 3 + 4 = 7 m

  43. Class Exercise 1.7

  44. Class Exercise 1.7 53° magnitude = m direction = 90° + 37° = 127° (S 53 E)

  45. Class Exercise 1.7 62°

  46. Class Exercise 1.7 62° P

  47. Class Exercise 1.7 62° P -4.0 m or 4.0 m (West) 3.0 m (South)

  48. 1.3 Scalar and Vector

  49. Homework: Assignment Book 1. Chapter 1: Distance & Displacement Q.1 – Q.6 (p.1-5) 2. Deadline: 2011 - - ____
