Tutorial/workshop session - H.350 directory configuration -

Secure real-time audio/video communication – H.350, Encryption & Gatekeeper/Proxy – using H.323 (…and a bit SIP). Tutorial/workshop session - H.350 directory configuration -. 19 th APAN Meeting Bangkok, Thailand January 2005. H.350 implementation recipe.

herve
Download Presentation

Tutorial/workshop session - H.350 directory configuration -

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

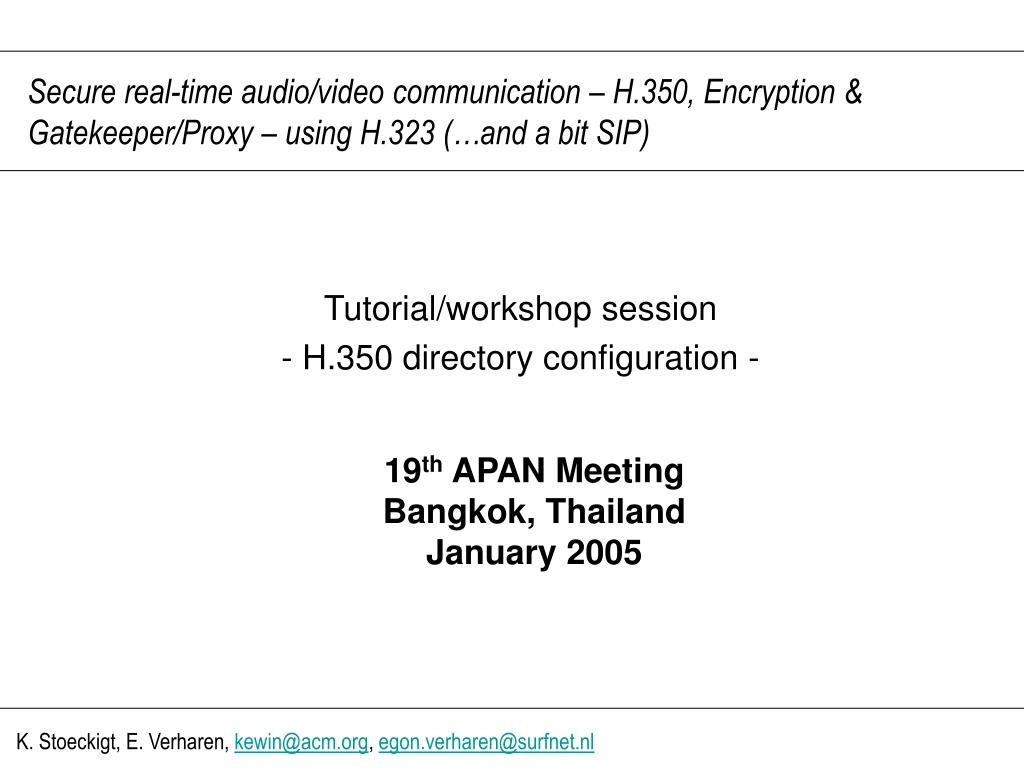

  1. Secure real-time audio/video communication – H.350, Encryption & Gatekeeper/Proxy – using H.323 (…and a bit SIP) Tutorial/workshop session - H.350 directory configuration - 19th APAN Meeting Bangkok, Thailand January 2005

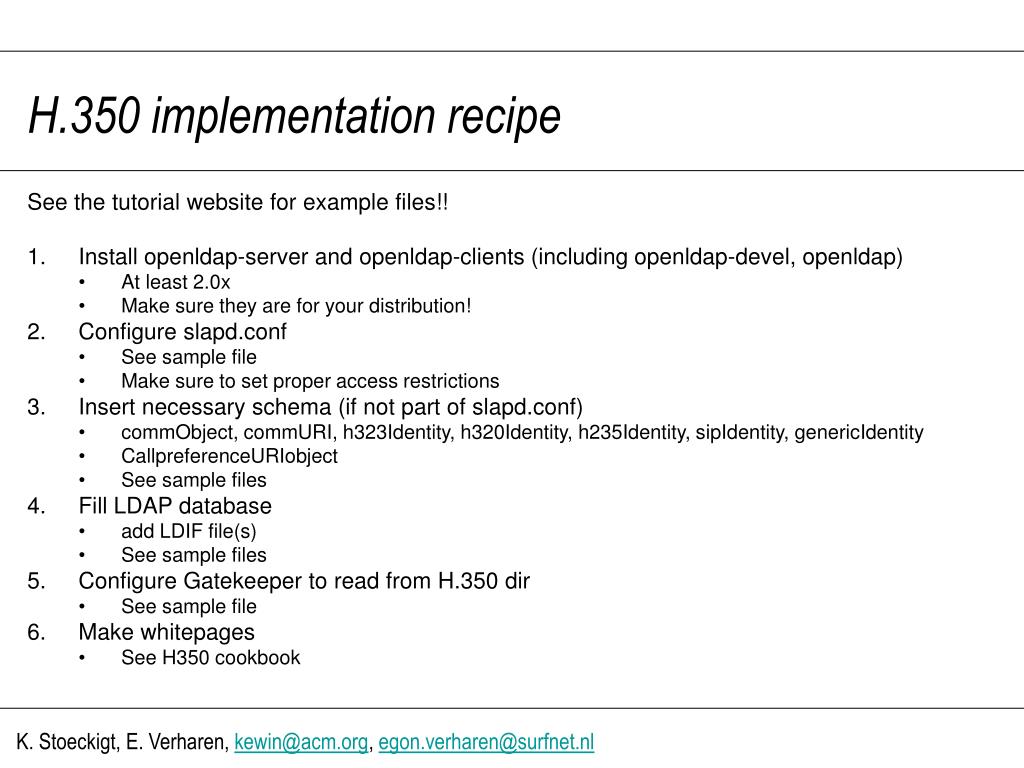

  2. H.350 implementation recipe See the tutorial website for example files!! • Install openldap-server and openldap-clients (including openldap-devel, openldap) • At least 2.0x • Make sure they are for your distribution! • Configure slapd.conf • See sample file • Make sure to set proper access restrictions • Insert necessary schema (if not part of slapd.conf) • commObject, commURI, h323Identity, h320Identity, h235Identity, sipIdentity, genericIdentity • CallpreferenceURIobject • See sample files • Fill LDAP database • add LDIF file(s) • See sample files • Configure Gatekeeper to read from H.350 dir • See sample file • Make whitepages • See H350 cookbook

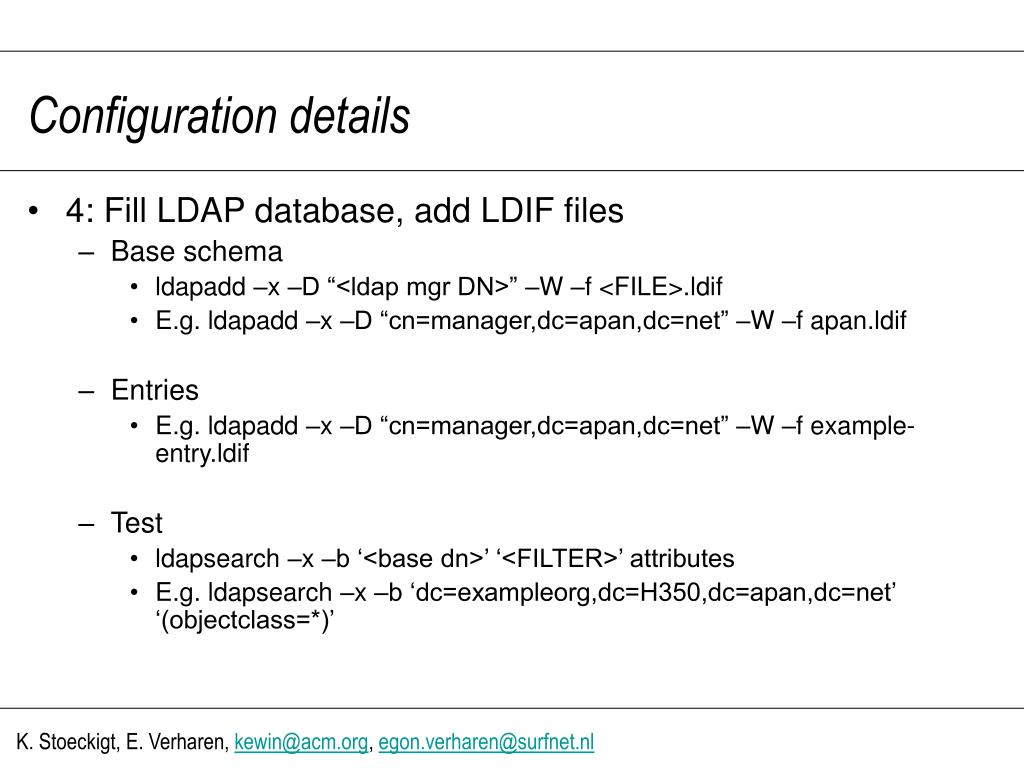

  3. Configuration details • 4: Fill LDAP database, add LDIF files • Base schema • ldapadd –x –D “<ldap mgr DN>” –W –f <FILE>.ldif • E.g. ldapadd –x –D “cn=manager,dc=apan,dc=net” –W –f apan.ldif • Entries • E.g. ldapadd –x –D “cn=manager,dc=apan,dc=net” –W –f example-entry.ldif • Test • ldapsearch –x –b ‘<base dn>’ ‘<FILTER>’ attributes • E.g. ldapsearch –x –b ‘dc=exampleorg,dc=H350,dc=apan,dc=net’ ‘(objectclass=*)’
