  1. CIS750 – Seminar in Advanced Topics in Computer ScienceAdvanced topics in databases – Multimedia Databases V. Megalooikonomou Data Compression

  2. General Overview • Data Compression • Run Length Coding • Huffman Coding • PCM, DPCM, ADPCM • Quantization • Scalar quantization • Vector quantization • Image Compression • Video Compression

  3. Data Compression • Why data compression? • Storing or transmitting multimedia data requires large space or bandwidth • The size of one hour 44K sample/sec 16-bit stereo (two channels) audio is 3600x44000x2x2= 633.6MB, which can be recorded on one CD (650 MB). MP3 compression can reduce this number by factor of 10 • The size of a 500x500 color image is 750KB without compression (JPEG can reduced this by a factor of 10 to 20) • The size of one minute real-time, full size, color video clip is 60x30x640x480x3= 1.659GB. A two-hour movie requires 200GB. MPEG2 compression can bring this number down to 4.7 GB (DVD)

  4. Data Compression

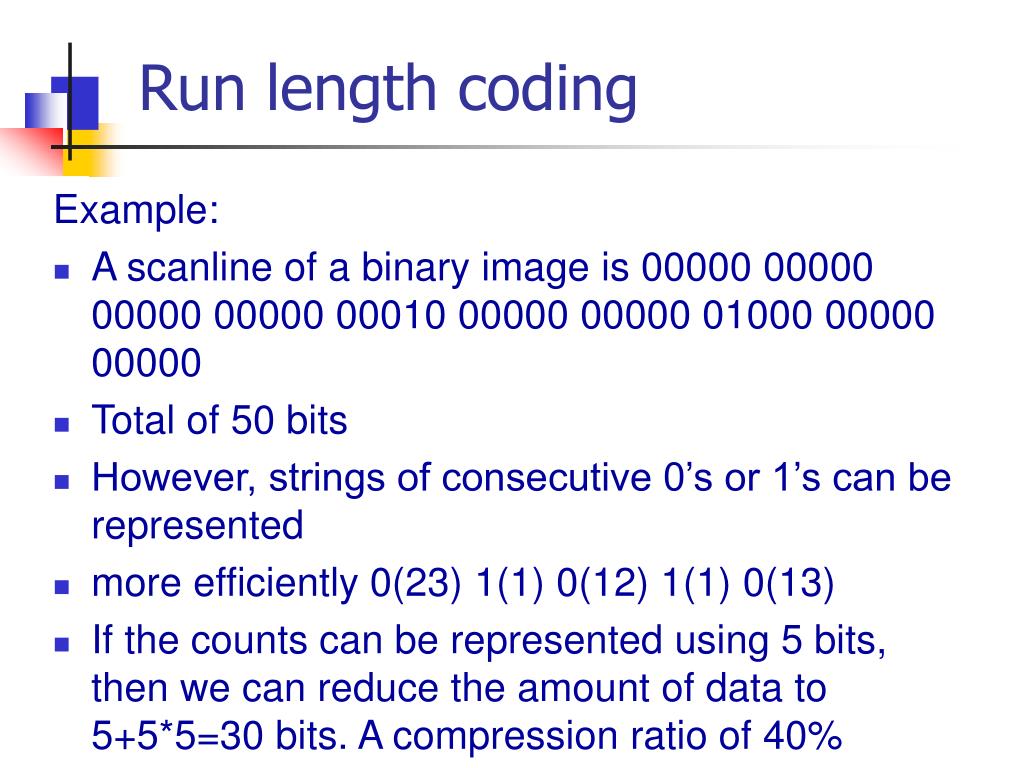

  5. Run length coding Example: • A scanline of a binary image is 00000 00000 00000 00000 00010 00000 00000 01000 00000 00000 • Total of 50 bits • However, strings of consecutive 0’s or 1’s can be represented • more efficiently 0(23) 1(1) 0(12) 1(1) 0(13) • If the counts can be represented using 5 bits, then we can reduce the amount of data to 5+5*5=30 bits. A compression ratio of 40%

  6. Huffman coding • The basic idea behind Huffman coding algorithm is to assign shorter codewords to more frequently used symbols • Example: let there be 4 letters in language “A”, “B”, “S”, “Z” • To uniquely encode each letter, we need two bits: A- 00 B-01 S-10 Z-11 • A message “AAABSAAAAZ” is encoded with 20 bits • Now how about assign A- 0, B-100, S-101, Z-11 • The same message can be encoded using 15 bits

  7. Huffman coding • Given a set of N symbols S={si, i=1,…N} with probabilities of occurrence Pi, i=1,…N, find the optimal encoding of the symbol to achieve the minimum transmission rate (bits/symbol) • Algorithm: • Each symbol is a leaf node in a tree • Combining the two symbols or composite symbols with the least probabilities to form a new parent composite symbol, which has the combined probabilities. Assign a bit 0 and 1 to the two links • Continue this process until all symbols are merged into one root node (bottom up) • For each symbol, the sequence of the 0s and 1s from the root node to the symbol is the codeword

  8. Pulse code modulation • The process of digitizing audio signal is called pulse code modulation • Sampling the analog waveform at a minimum rate • Each sample is quantized using a fixed number of bits • To reduce the amount of data, we can • Reduce the sampling rate • Reduce the number of bits per sample

  9. Differential Pulse Code Modulation (DPCM) • Encode the changes between consecutive samples • Example • The value of the differences between samples are much smaller than those of the original samples. Less bits are used to encode the signal (e.g., 7 bits instead of 8 bits) • For decoding the difference is added to the previous sample to obtain the value of the current sample. Lossless coding is achieved

  10. Adaptive Differential Pulse Code Modulation (ADPCM) • One observation is that a small difference between samples happens more often than large changes • An Entropy coding method such the Huffman coding scheme can be used to encode the difference for additional efficiency • The probabilities of occurrence of different differences are first obtained using a large data base • Huffman coding is used to determine the codeword for each difference • The codeword is fixed and made available to decoders

  11. Linear Predictive Coding (LPC) • In DPCM, the value of the current sample is guessed based on the previous sample. Can a better prediction be made ? • Yes! For example, we can use the previous two samples to predict the current one • LPC is more general than DPCM. It exploits the correlation between multiple consecutive samples

  12. General Overview • Data Compression • Run Length Coding • Huffman Coding • PCM, DPCM, ADPCM • Quantization • Scalar quantization • Vector quantization • Image Compression • Video Compression

  13. Quantization One-dimensional quantizer interval endpoints and levels indicated on a horizontal line • Quantization is the discretization of a continuous-alphabet source (signal) • X: original value, X’: codeword, Q: quantizer • Distortion: • d(X,X’): a measure of overall quality degradation due to Q • Mean Squared Error (MSE): E[(X-X’)2]

  14. Scalar Quantization One-dimensional quantizer interval endpoints and levels indicated on a horizontal line • Approximates a source symbol by its closest representative from a codebook • An N-point scalar quantizer Q is a mapping: Q: R  C where R is the real line and C={y1, y2,…, yN}  R is the codebook of size N • Q(x)=D(E(x)) where E: R I is the encoder and D: IC is the decoder I={1,2,…,N}

  15. Vector Quantization • VQ: a generalization of scalar quantization to quantization of a vector • VQ is superior to scalar quantization. Why?

  16. Vector Quantization • VQ: a generalization of scalar quantization to quantization of a vector • VQ is superior to scalar quantization. Why? • Exploits linear and non-linear dependence that exists among the components of a vector • VQ is superior even when the components of the random vector are statistically independent of each other. How? • A vector quantizer Q of dimension k and size N is a mapping from a vector (or a “point” in Rk), into a finite set C={y1, y2,…, yN}, yiRk, the codebook of size N Q: RkC • It partitions Rk into N regions or cells, Ri for iJ{1,2,…,N} Ri={x Rk: Q(x)=yi}

  17. Motivation for Vector Quantization Scalar quantization Plot two successive values as a single vector (x(1), x(2)) Scalar quantization Vector quantization

  18. Scalar vs Vector Quantization

  19. Vector Quantization - Design • The goal is to find: • A codebook (decoder) – representation levels • A partition rule (encoder) – decision levels • To maximize an overall measure of performance

  20. VQ Design – Optimality Conditions Nearest Neighbor Condition • For a given codebook, C, the optimal regions {Ri: i=1,…,N} satisfy the condition: Ri {x: d(x,yi)  d(x,yj); j} That is Q(x)=yi only if d(x,yi)  d(x,yj) j

  21. VQ Design – Optimality Conditions Centroid Condition • For given partition regions {Ri:i=1,…,N} the optimal codewords satisfy the condition: yi = cent(Ri) For the SE measure, the centroid of a set R is the arithmetic average: for R={xi : i = 1,…,|R|}

  22. VQ Design – The Generalized Lloyd Algorithm (GLA) • It produces a locally optimal codebook from a training sequence, T. It starts with an initial codebook and iteratively improves it. Lloyd Iteration • Given a codebook Cm={yi} generate an improved codebook Cm+1 as follows: • Partition T into cells Rj using the Nearest Neighbor Condition: Ri={x : d(x,yi)  d(x,yi);  ji} • Using the Centroid Condition compute the centroids of the cells just found to obtain the new codebook, Cm+1={cent(Ri)} • Compute the average distortion for Cm+1 , Dm+1. If the fractional drop (Dm- Dm+1) / Dm is below a certain threshold stop, else continue with mm+1

  23. VQ Design – The Generalized Lloyd Algorithm (GLA) To solve the initial codebook generation problem a partition split mechanism is used. How?

  24. VQ Design – The Generalized Lloyd Algorithm (GLA) To solve the initial codebook generation problem a partition split mechanism is used. How? Starts with a codebook containing only one codeword (which one?) In each repetition and before the application of the Lloyd iteration, it doubles the number of codewords from the previous iteration See: http://www.data-compression.com/vq.html#animation

  25. General Overview • Data Compression • Run Length Coding • Huffman Coding • PCM, DPCM, ADPCM • Quantization • Scalar quantization • Vector quantization • Image Compression • Video Compression

  26. Image Compression • From the 1D case, we observe that data compression can be achieved by exploiting the correlation between samples • This idea is applicable to 2D signals as well. • Instead of predicting sample values, we can use the so called transformation method to obtain a more compact representation • Discrete Cosine Transform (DCT) • DCT is the real part of the 2D Fourier Transform

  27. Discrete Cosine Transform (DCT) • DCT • Inverse DCT

  28. DCT transform of 2D Images • DCT Example • DCT of images can also be considered as the projection of the original image into the DCT basis functions. Each basis function is in the form of

  29. DCT transform of 2D Images • The basis functions for an 8x8 DCT

  30. DCT compression of 2D Images • After DCT compression, only a few DCT coefficients have large values • We need to: • Quantize the DCT coefficients • Encode the position of the large coefficients • Compress the value of the coefficients
