  1. High-Level Synthesis: Creating Custom Circuits from High-Level Code Greg Stitt ECE Department University of Florida

  2. FPGA Processor Existing FPGA Tool Flow • Register-transfer (RT) synthesis • Specify RT structure (muxes, registers, etc) • + Allows precise specification • - But, time consuming, difficult, error prone HDL RT Synthesis Technology Mapping Netlist Placement Physical Design Routing Bitfile

  3. FPGA Processor Future FPGA Tool Flow? C/C++, Java, etc. High-level Synthesis HDL RT Synthesis Technology Mapping Netlist Placement Physical Design Routing Bitfile

  4. High-level Synthesis • Wouldn’t it be nice to write high-level code? • Ratio of C to VHDL developers (10000:1 ?) • + Easier to specify • + Separates function from architecture • + More portable • - Hardware potentially slower • Similar to assembly code era • Programmers could always beat compiler • But, no longer the case • Hopefully, high-level synthesis will catch up to manual effort

  5. High-level Synthesis • More challenging than compilation • Compilation maps behavior into assembly instructions • Architecture is known to compiler • High-level synthesis creates a custom architecture to execute behavior • Huge hardware exploration space • Best solution may include microprocessors • Should handle any high-level code • Not all code appropriate for hardware

  6. High-level Synthesis • First, consider how to manually convert high-level code into circuit • Steps • 1) Build FSM for controller • 2) Build datapath based on FSM acc = 0; for (i=0; i < 128; i++) acc += a[i];

  7. Manual Example • Build a FSM (controller) • Decompose code into states acc = 0; for (i=0; i < 128; i++) acc += a[i]; acc=0, i = 0 if (i < 128) Done load a[i] acc += a[i] i++

  8. Manual Example • Build a datapath • Allocate resources for each state acc=0, i = 0 if (i < 128) a[i] Done addr acc i load a[i] 1 128 1 acc += a[i] + + < + i++ acc = 0; for (i=0; i < 128; i++) acc += a[i];

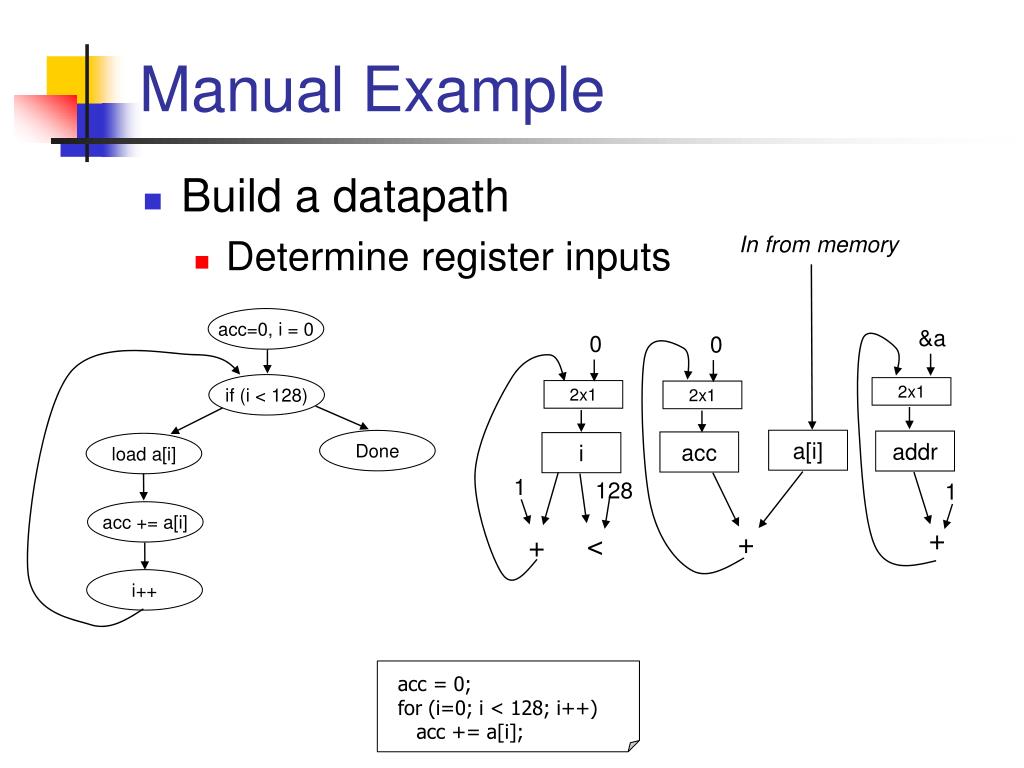

  9. Manual Example • Build a datapath • Determine register inputs In from memory acc=0, i = 0 &a 0 0 if (i < 128) 2x1 2x1 2x1 a[i] Done addr acc i load a[i] 1 128 1 acc += a[i] + + < + i++ acc = 0; for (i=0; i < 128; i++) acc += a[i];

  10. Manual Example • Build a datapath • Add outputs In from memory acc=0, i = 0 &a 0 0 if (i < 128) 2x1 2x1 2x1 a[i] Done addr acc i load a[i] 1 128 1 acc += a[i] + + < + i++ acc = 0; for (i=0; i < 128; i++) acc += a[i]; acc Memory address

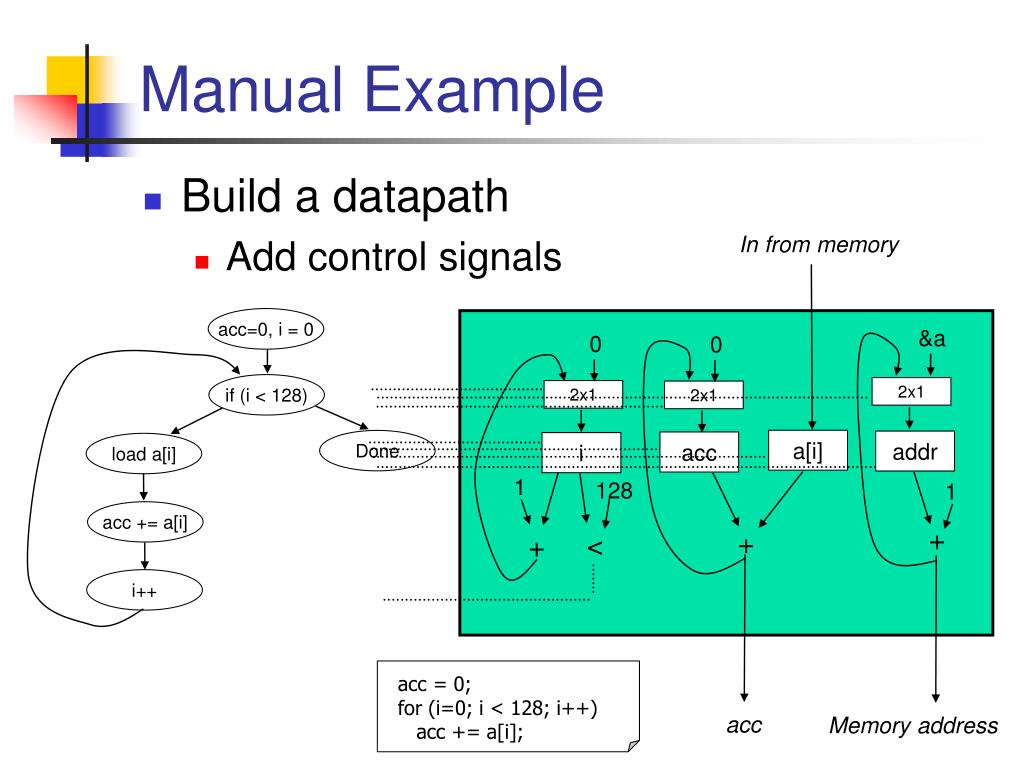

  11. Manual Example • Build a datapath • Add control signals In from memory acc=0, i = 0 &a 0 0 if (i < 128) 2x1 2x1 2x1 a[i] Done addr acc i load a[i] 1 128 1 acc += a[i] + + < + i++ acc = 0; for (i=0; i < 128; i++) acc += a[i]; acc Memory address

  12. Manual Example • Combine controller+datapath In from memory Controller &a 0 0 2x1 2x1 2x1 a[i] addr acc i 1 128 1 + + < + acc = 0; for (i=0; i < 128; i++) acc += a[i]; Done Memory Read acc Memory address

  13. Manual Example • Alternatives • Use one adder (plus muxes) In from memory &a 0 0 2x1 2x1 2x1 a[i] addr acc i 1 128 < MUX MUX + acc Memory address

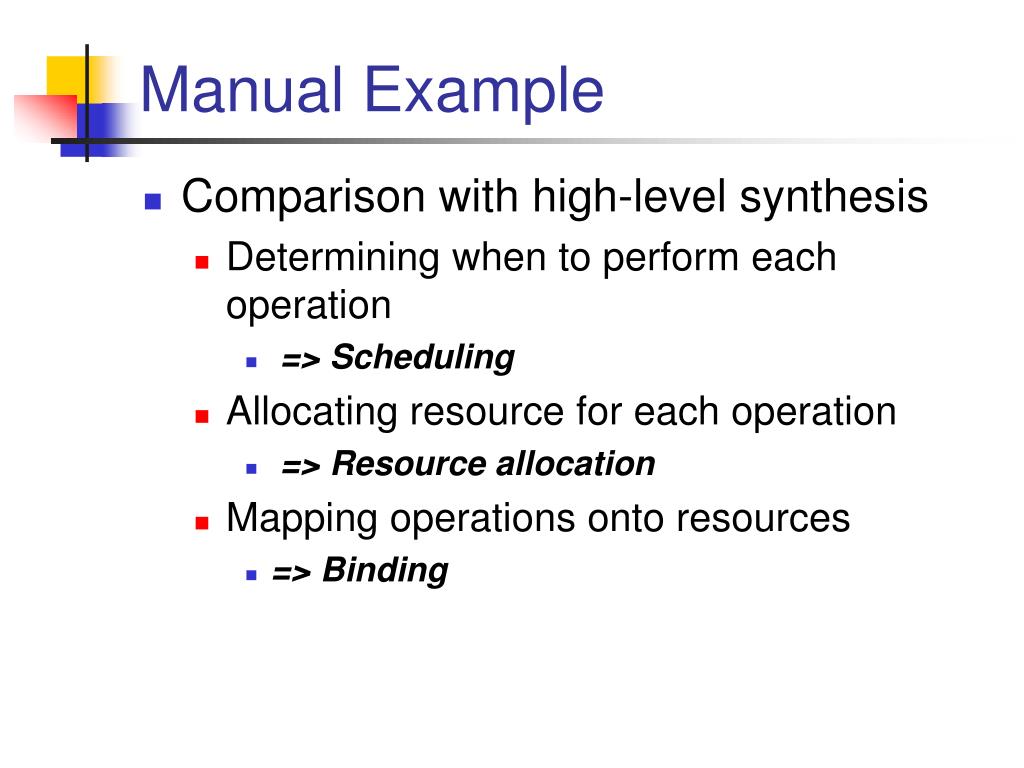

  14. Manual Example • Comparison with high-level synthesis • Determining when to perform each operation • => Scheduling • Allocating resource for each operation • => Resource allocation • Mapping operations onto resources • => Binding

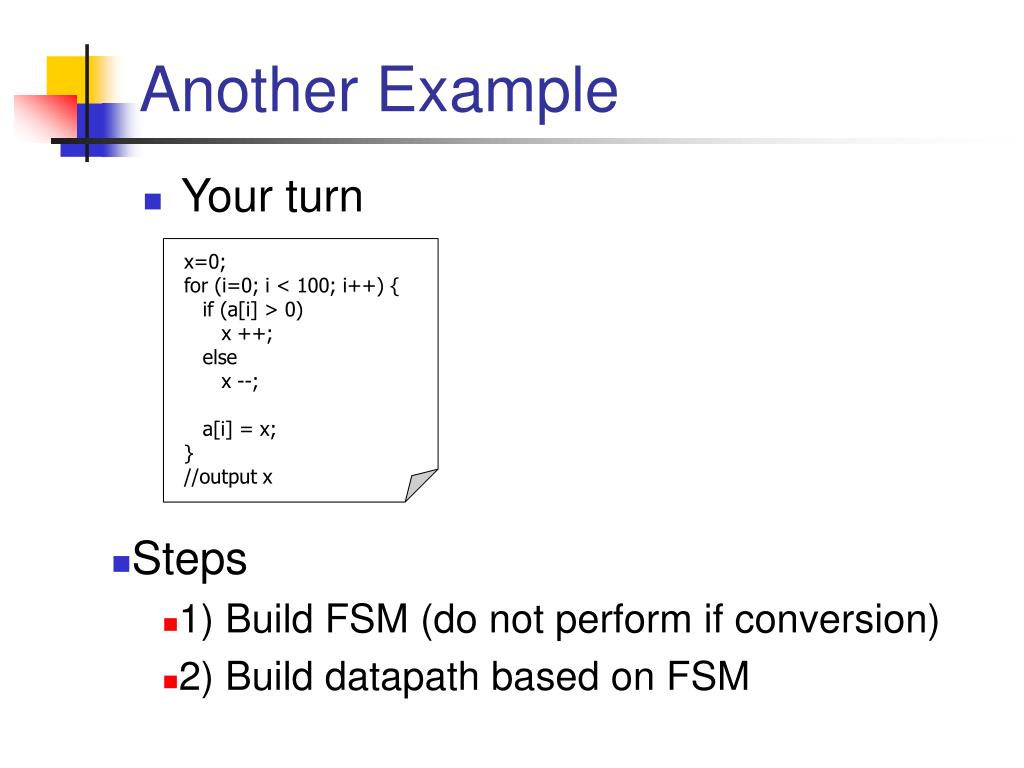

  15. Another Example • Your turn x=0; for (i=0; i < 100; i++) { if (a[i] > 0) x ++; else x --; a[i] = x; } //output x • Steps • 1) Build FSM (do not perform if conversion) • 2) Build datapath based on FSM

  16. High-Level Synthesis Could be C, C++, Java, Perl, Python, SystemC, ImpulseC, etc. High-level Code High-Level Synthesis Custom Circuit Usually a RT VHDL description, but could as low level as a bit file

  17. In from memory Controller &a 0 0 2x1 2x1 2x1 a[i] addr acc i 1 128 1 + + < + Done Memory Read acc Memory address High-Level Synthesis acc = 0; for (i=0; i < 128; i++) acc += a[i]; High-Level Synthesis

  18. Main Steps High-level Code Converts code to intermediate representation - allows all following steps to use language independent format. Front-end Syntactic Analysis Intermediate Representation Optimization Determines when each operation will execute, and resources used Scheduling/Resource Allocation Back-end Maps operations onto physical resources Binding/Resource Sharing Controller + Datapath

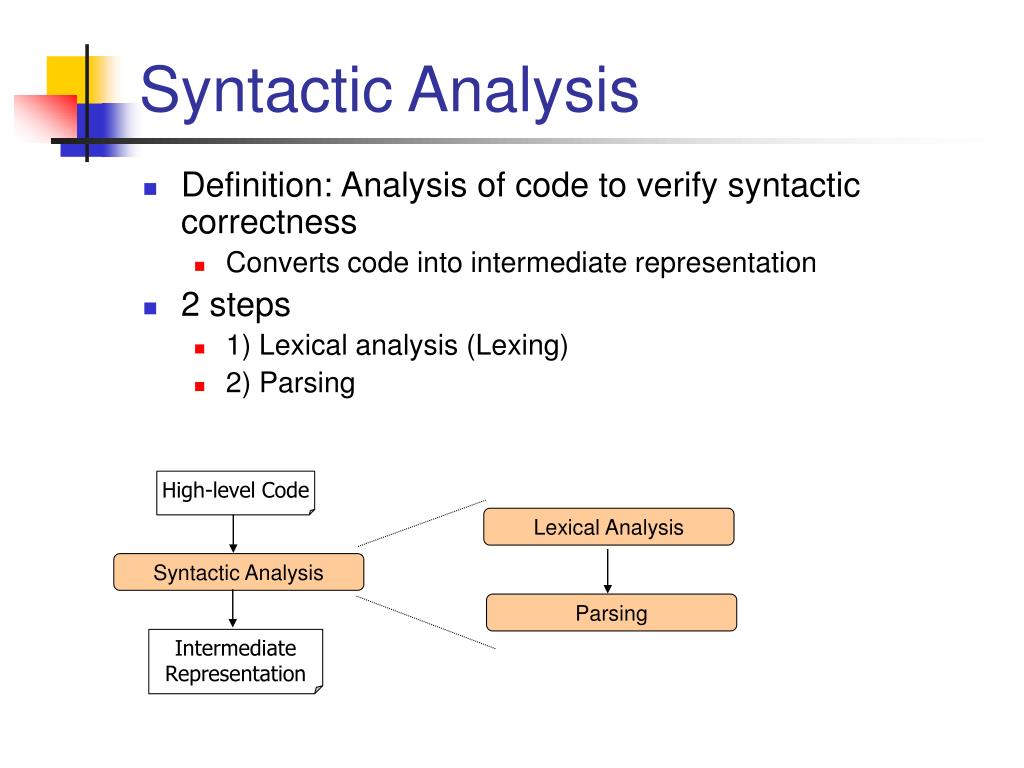

  19. Syntactic Analysis • Definition: Analysis of code to verify syntactic correctness • Converts code into intermediate representation • 2 steps • 1) Lexical analysis (Lexing) • 2) Parsing High-level Code Lexical Analysis Syntactic Analysis Parsing Intermediate Representation

  20. Lexical Analysis • Lexical analysis (lexing) breaks code into a series of defined tokens • Token: defined language constructs x = 0; if (y < z) x = 1; Lexical Analysis ID(x), ASSIGN, INT(0), SEMICOLON, IF, LPAREN, ID(y), LT, ID(z), RPAREN, ID(x), ASSIGN, INT(1), SEMICOLON

  21. Lexing Tools • Define tokens using regular expressions - outputs C code that lexes input • Common tool is “lex” /* braces and parentheses */ "[" { YYPRINT; return LBRACE; } "]" { YYPRINT; return RBRACE; } "," { YYPRINT; return COMMA; } ";" { YYPRINT; return SEMICOLON; } "!" { YYPRINT; return EXCLAMATION; } "{" { YYPRINT; return LBRACKET; } "}" { YYPRINT; return RBRACKET; } "-" { YYPRINT; return MINUS; } /* integers [0-9]+ { yylval.intVal = atoi( yytext ); return INT; }

  22. Parsing • Analysis of token sequence to determine correct grammatical structure • Languages defined by context-free grammar Correct Programs Grammar x = 0; y = 1; x = 0; Program = Exp if (a < b) x = 10; Exp = Stmt SEMICOLON | IF LPAREN Cond RPAREN Exp | Exp Exp if (var1 != var2) x = 10; Cond = ID Comp ID x = 0; if (y < z) x = 1; x = 0; if (y < z) x = 1; y = 5; t = 1; Stmt = ID ASSIGN INT Comp = LT | NE

  23. Parsing Incorrect Programs Grammar x = 3 + 5; Program = Exp Exp = S SEMICOLON | IF LPAREN Cond RPAREN Exp | Exp Exp x = 5 x = 5;; if (x+5 > y) x = 2; Cond = ID Comp ID x = y; S = ID ASSIGN INT Comp = LT | NE

  24. Parsing Tools • Define grammar in special language • Automatically creates parser based on grammar • Popular tool is “yacc” - yet-another-compiler-compiler program: functions { $$ = $1; } ; functions: function { $$ = $1; } | functions function { $$ = $1; } ; function: HEXNUMBER LABEL COLON code { $$ = $2; } ;

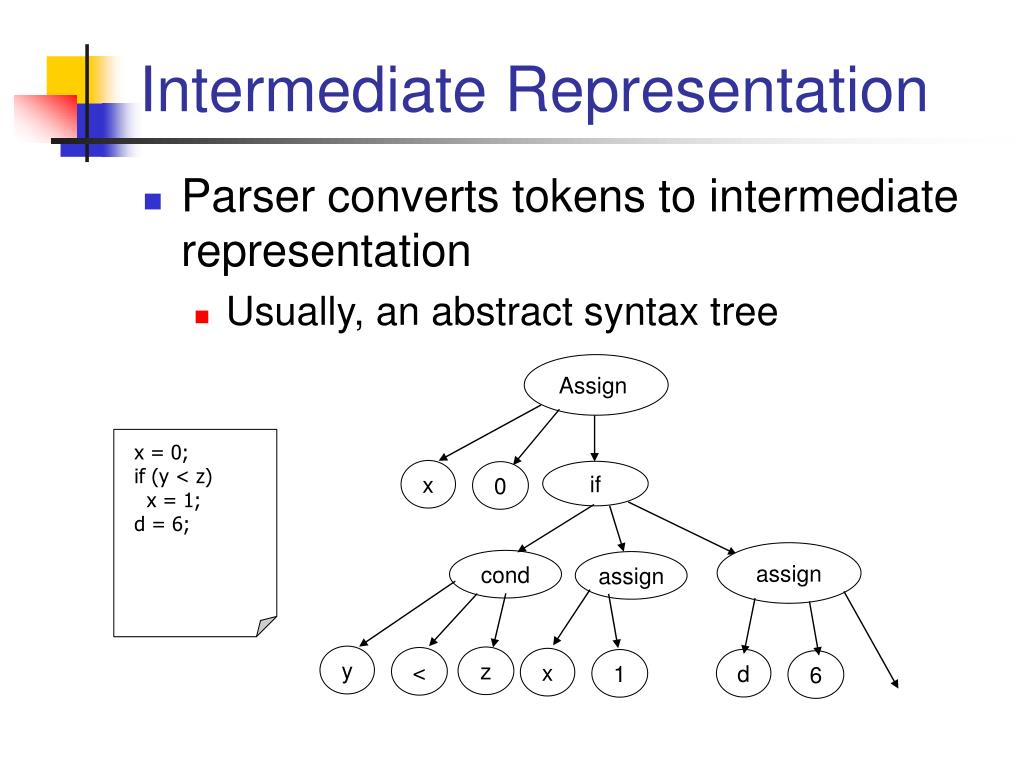

  25. Intermediate Representation • Parser converts tokens to intermediate representation • Usually, an abstract syntax tree Assign x = 0; if (y < z) x = 1; d = 6; x if 0 assign cond assign y z < x d 1 6

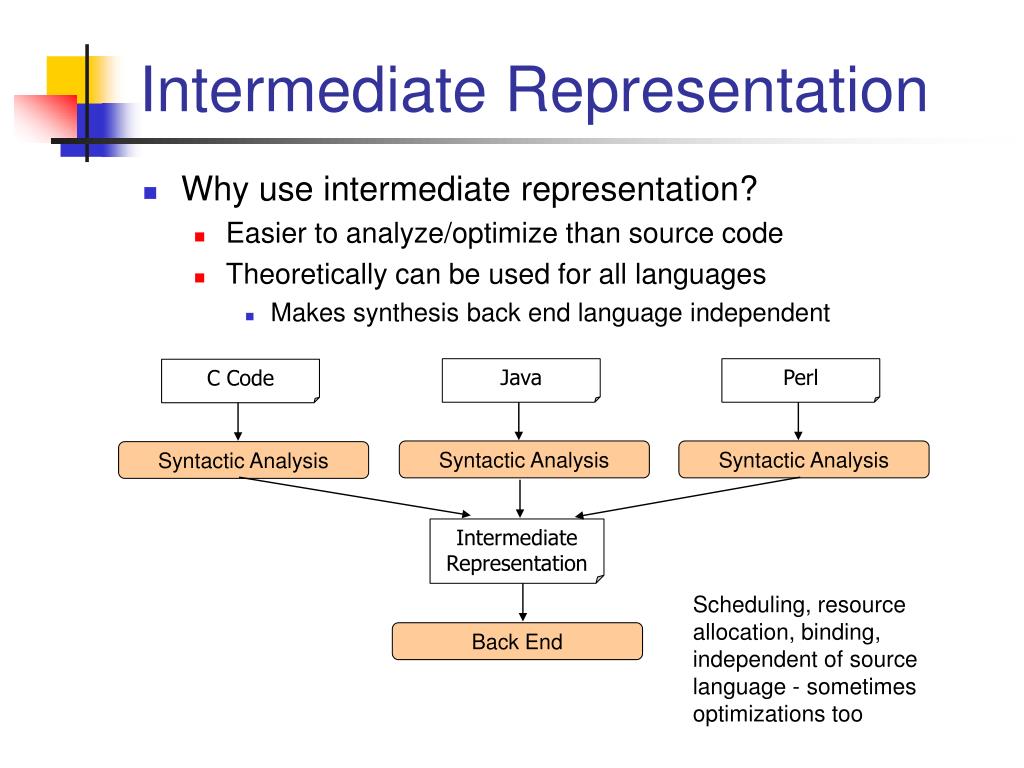

  26. Intermediate Representation • Why use intermediate representation? • Easier to analyze/optimize than source code • Theoretically can be used for all languages • Makes synthesis back end language independent Java Perl C Code Syntactic Analysis Syntactic Analysis Syntactic Analysis Intermediate Representation Scheduling, resource allocation, binding, independent of source language - sometimes optimizations too Back End

  27. Intermediate Representation • Different Types • Abstract Syntax Tree • Control/Data Flow Graph (CDFG) • Sequencing Graph • Etc. • We will focus on CDFG • Combines control flow graph (CFG) and data flow graph (DFG)

  28. Control flow graphs • CFG • Represents control flow dependencies of basic blocks • Basic block is section of code that always executes from beginning to end • I.e. no jumps into or out of block acc=0, i = 0 acc = 0; for (i=0; i < 128; i++) acc += a[i]; if (i < 128) Done acc += a[i] i ++

  29. Control flow graphs • Your turn • Create a CFG for this code i = 0; while (j < 10) { if (x < 5) y = 2; else if (z < 10) y = 6; }

  30. Data Flow Graphs • DFG • Represents data dependencies between operations c b a d * + x = a+b; y = c*d; z = x - y; - z y x

  31. Control/Data Flow Graph • Combines CFG and DFG • Maintains DFG for each node of CFG acc = 0; for (i=0; i < 128; i++) acc += a[i]; 0 0 acc i acc=0; i=0; if (i < 128) a[i] acc i 1 Done acc += a[i] i ++ + + i acc

  32. High-Level Synthesis: Optimization

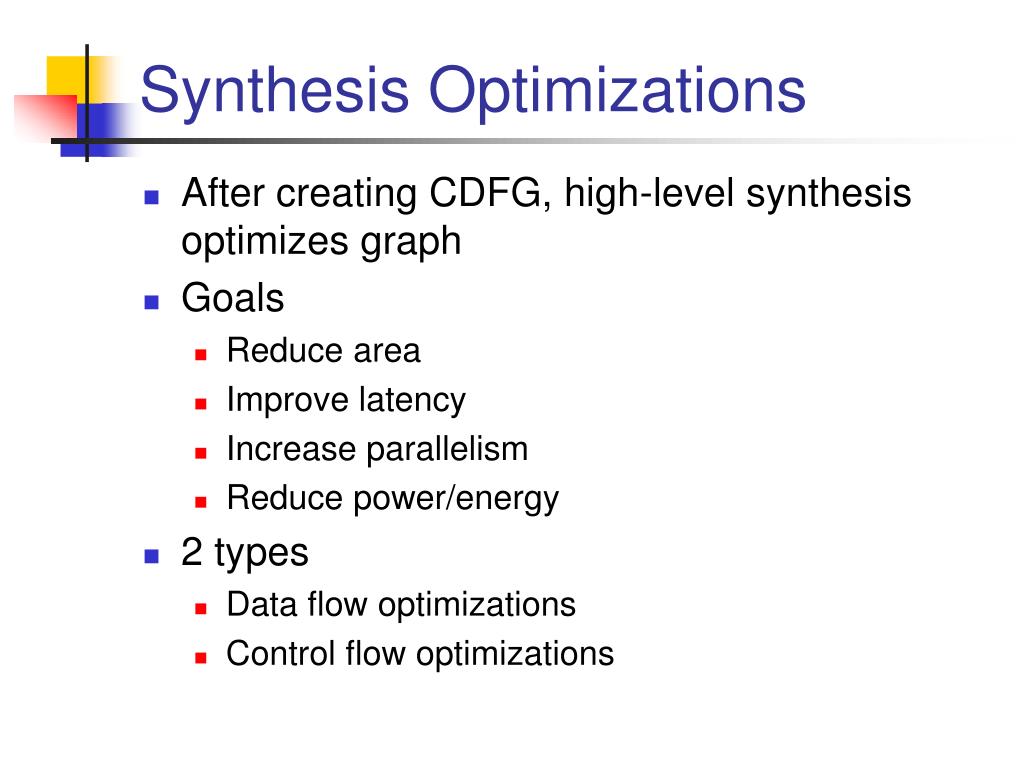

  33. Synthesis Optimizations • After creating CDFG, high-level synthesis optimizes graph • Goals • Reduce area • Improve latency • Increase parallelism • Reduce power/energy • 2 types • Data flow optimizations • Control flow optimizations

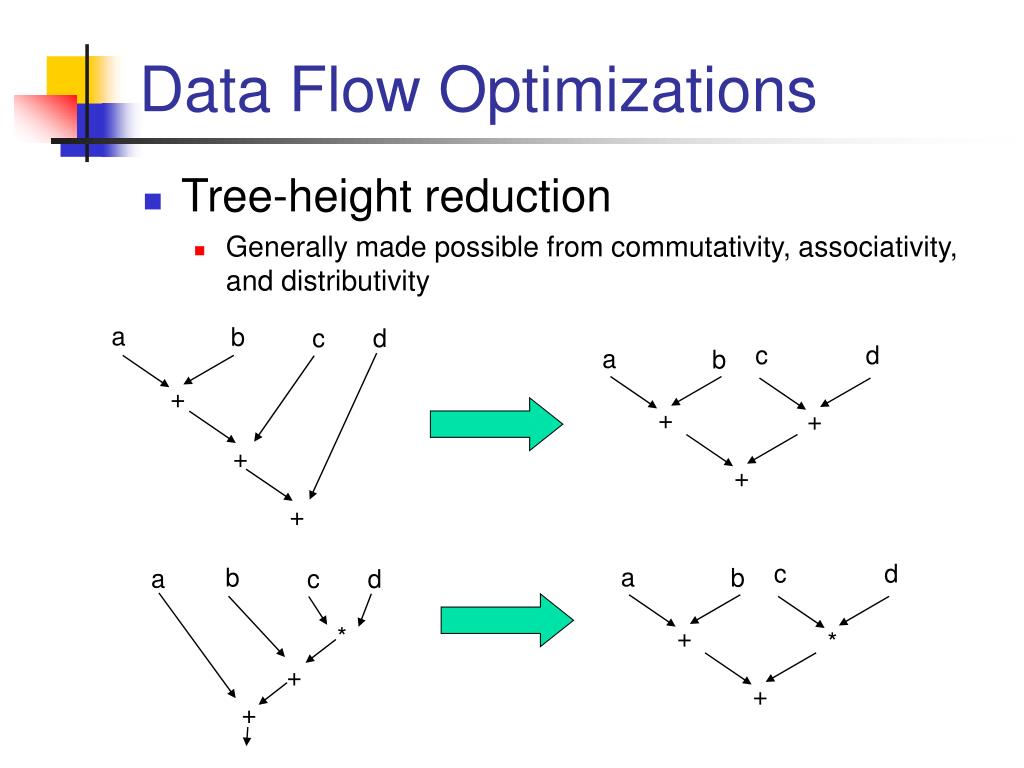

  34. Data Flow Optimizations • Tree-height reduction • Generally made possible from commutativity, associativity, and distributivity a b c d c d a b + + + + + + c d a b b a c d * + * + + +

  35. Data Flow Optimizations • Operator Strength Reduction • Replacing an expensive (“strong”) operation with a faster one • Common example: replacing multiply/divide with shift 0 multiplications 1 multiplication b[i] = a[i] << 3; b[i] = a[i] * 8; c = b << 2; a = b + c; a = b * 5; a = b * 13; c = b << 2; d = b << 3; a = c + d + b;

  36. Data Flow Optimizations • Constant propagation • Statically evaluate expressions with constants x = 0; y = x * 15; z = y + 10; x = 0; y = 0; z = 10;

  37. Data Flow Optimizations • Function Specialization • Create specialized code for common inputs • Treat common inputs as constants • If inputs not known statically, must include if statement for each call to specialized function int f (int x) { y = x * 15; return y + 10; } int f (int x) { y = x * 15; return y + 10; } int f_opt () { return 10; } Treat frequent input as a constant for (I=0; I < 1000; I++) f(0); … } for (I=0; I < 1000; I++) f_opt(0); … }

  38. Data Flow Optimizations • Common sub-expression elimination • If expression appears more than once, repetitions can be replaced a = x + y; . . . . . . . . . . . . b = c * 25 + a; a = x + y; . . . . . . . . . . . . b = c * 25 + x + y; x + y already determined

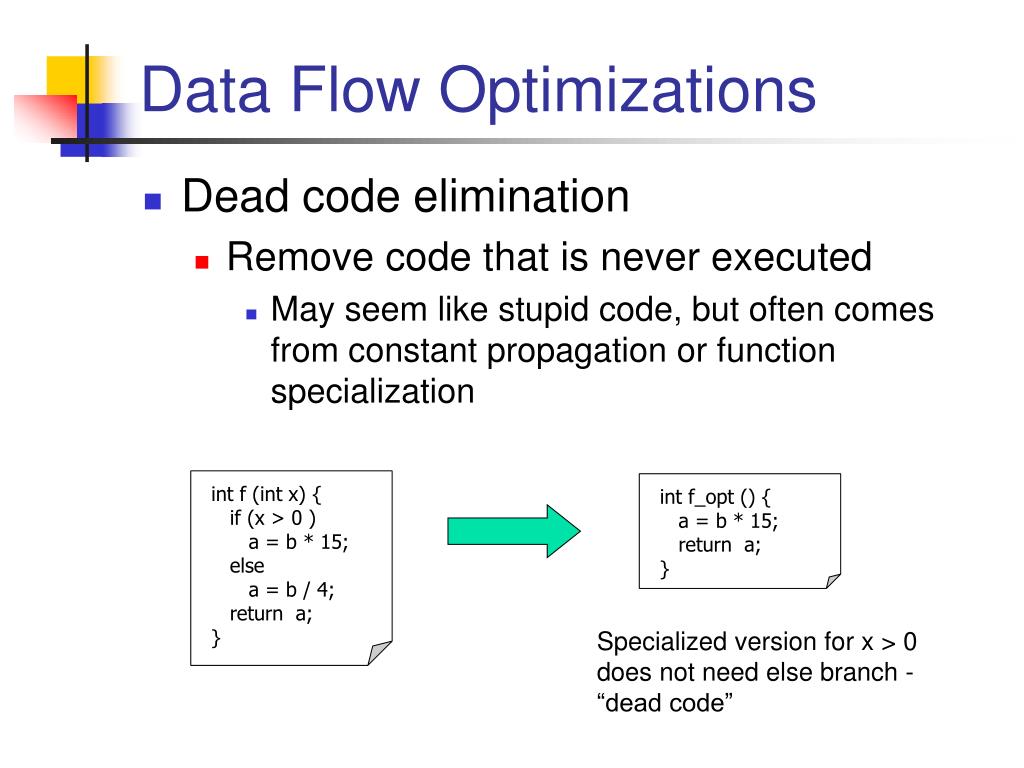

  39. Data Flow Optimizations • Dead code elimination • Remove code that is never executed • May seem like stupid code, but often comes from constant propagation or function specialization int f (int x) { if (x > 0 ) a = b * 15; else a = b / 4; return a; } int f_opt () { a = b * 15; return a; } Specialized version for x > 0 does not need else branch - “dead code”

  40. Data Flow Optimizations • Code motion (hoisting/sinking) • Avoid repeated computation for (I=0; I < 100; I++) { z = x + y; b[i] = a[i] + z ; } z = x + y; for (I=0; I < 100; I++) { b[i] = a[i] + z ; }

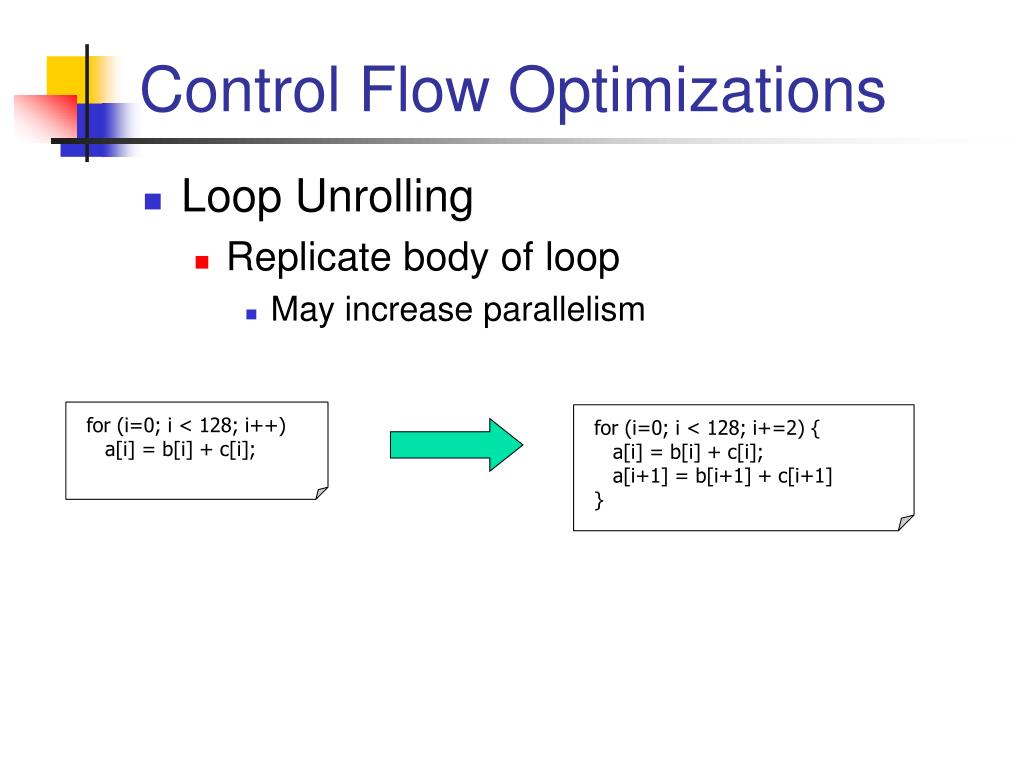

  41. Control Flow Optimizations • Loop Unrolling • Replicate body of loop • May increase parallelism for (i=0; i < 128; i++) a[i] = b[i] + c[i]; for (i=0; i < 128; i+=2) { a[i] = b[i] + c[i]; a[i+1] = b[i+1] + c[i+1] }

  42. Control Flow Optimizations • Function Inlining • Replace function call with body of function • Common for both SW and HW • SW - Eliminates function call instructions • HW - Eliminates unnecessary control states for (i=0; i < 128; i++) a[i] = f( b[i], c[i] ); . . . . int f (int a, int b) { return a + b * 15; } for (i=0; i < 128; i++) a[i] = b[i] + c[i] * 15;

  43. Control Flow Optimizations • Conditional Expansion • Replace if with logic expression • Execute if/else bodies in parallel y = ab if (a) x = b+d else x =bd y = ab x = a(b+d) + a’bd [DeMicheli] Can be further optimized to: y = ab x = y + d(a+b)

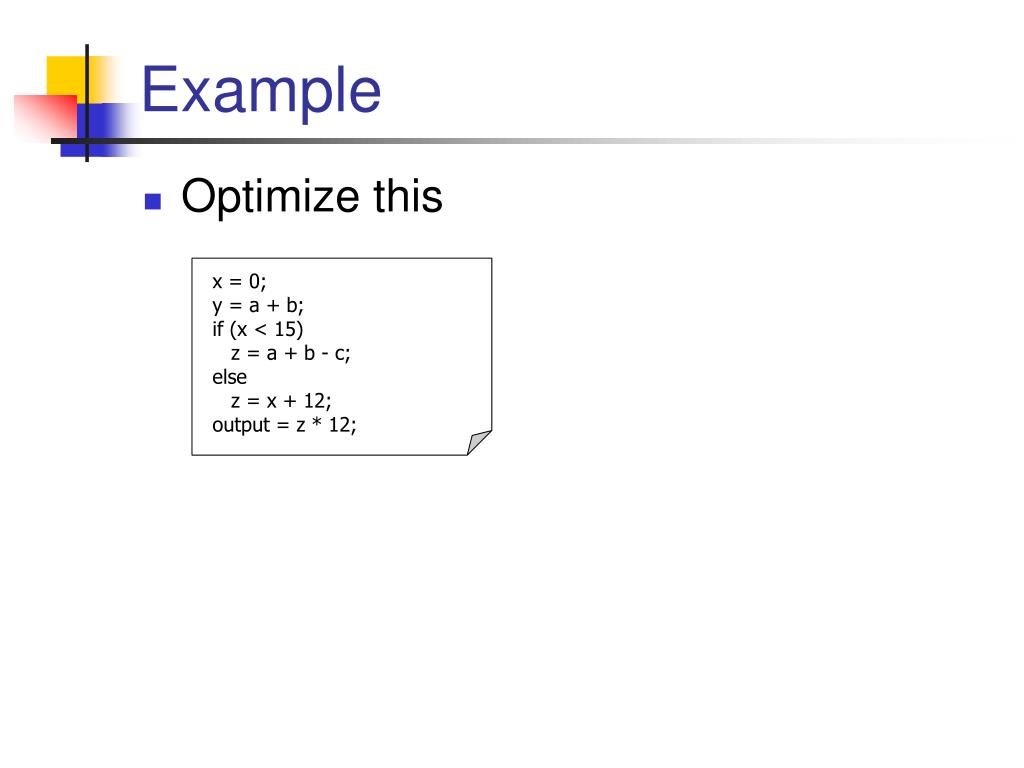

  44. Example • Optimize this x = 0; y = a + b; if (x < 15) z = a + b - c; else z = x + 12; output = z * 12;

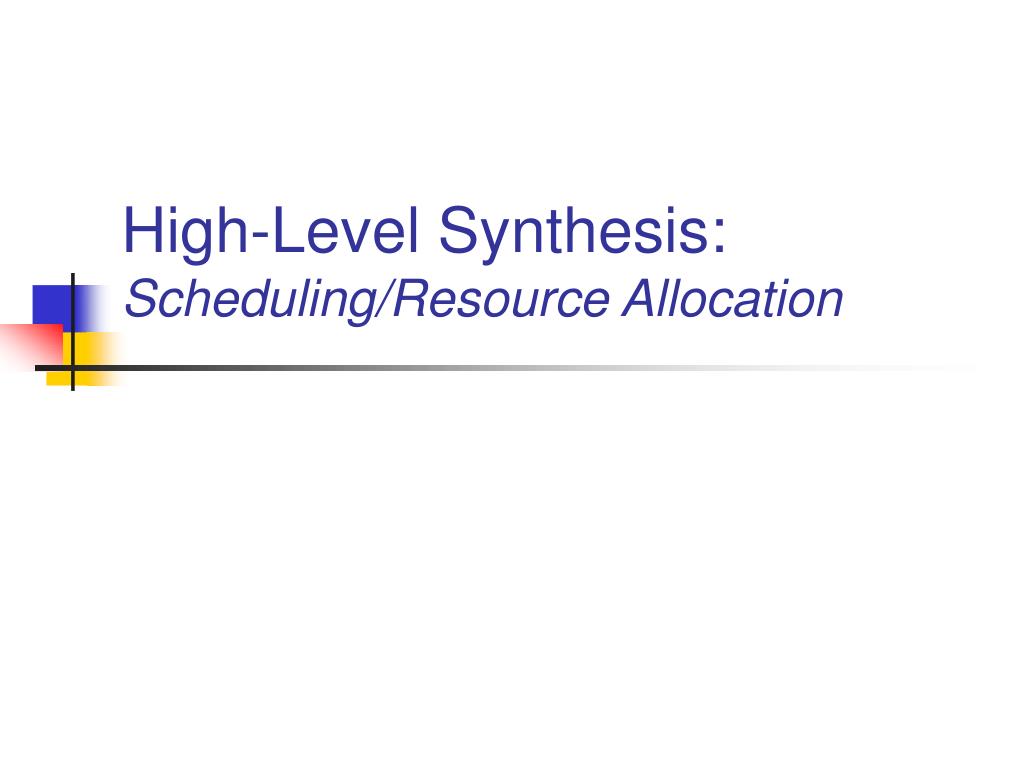

  45. High-Level Synthesis:Scheduling/Resource Allocation

  46. Scheduling • Scheduling assigns a start time to each operation in DFG • Start times must not violate dependencies in DFG • Start times must meet performance constraints • Alternatively, resource constraints • Performed on the DFG of each CFG node • => Can’t execute multiple CFG nodes in parallel

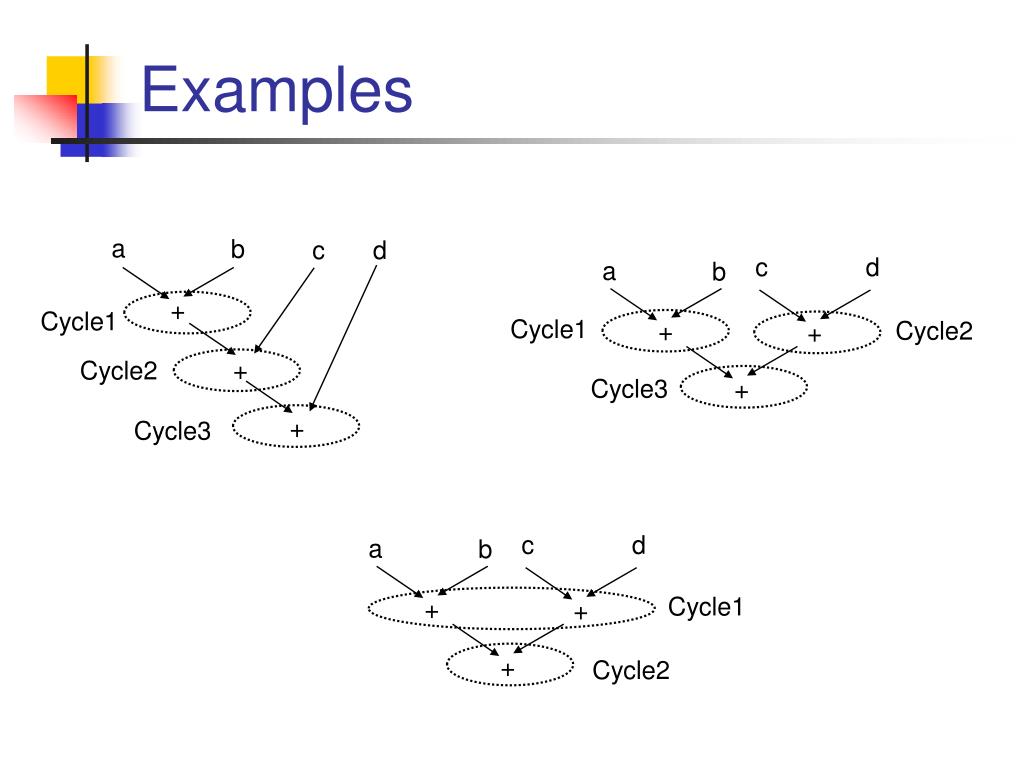

  47. Examples a b c d c d a b + Cycle1 Cycle1 Cycle2 + + + Cycle2 Cycle3 + + Cycle3 c d a b Cycle1 + + + Cycle2

  48. Scheduling Problems • Several types of scheduling problems • Usually some combination of performance and resource constraints • Problems: • Unconstrained • Not very useful, every schedule is valid • Minimum latency • Latency constrained • Mininum-latency, resource constrained • i.e. find the schedule with the shortest latency, that uses less than a specified # of resources • NP-Complete • Mininum-resource, latency constrained • i.e. find the schedule that meets the latency constraint (which may be anything), and uses the minimum # of resources • NP-Complete

  49. Minimum Latency Scheduling • ASAP (as soon as possible) algorithm • Find a candidate node • Candidate is a node whose predecessors have been scheduled and completed (or has no predecessors) • Schedule node one cycle later than max cycle of predecessor • Repeat until all nodes scheduled c d e a f b g h - < Cycle1 + + Cycle2 * Cycle3 * + Cycle4 Minimum possible latency - 4 cycles

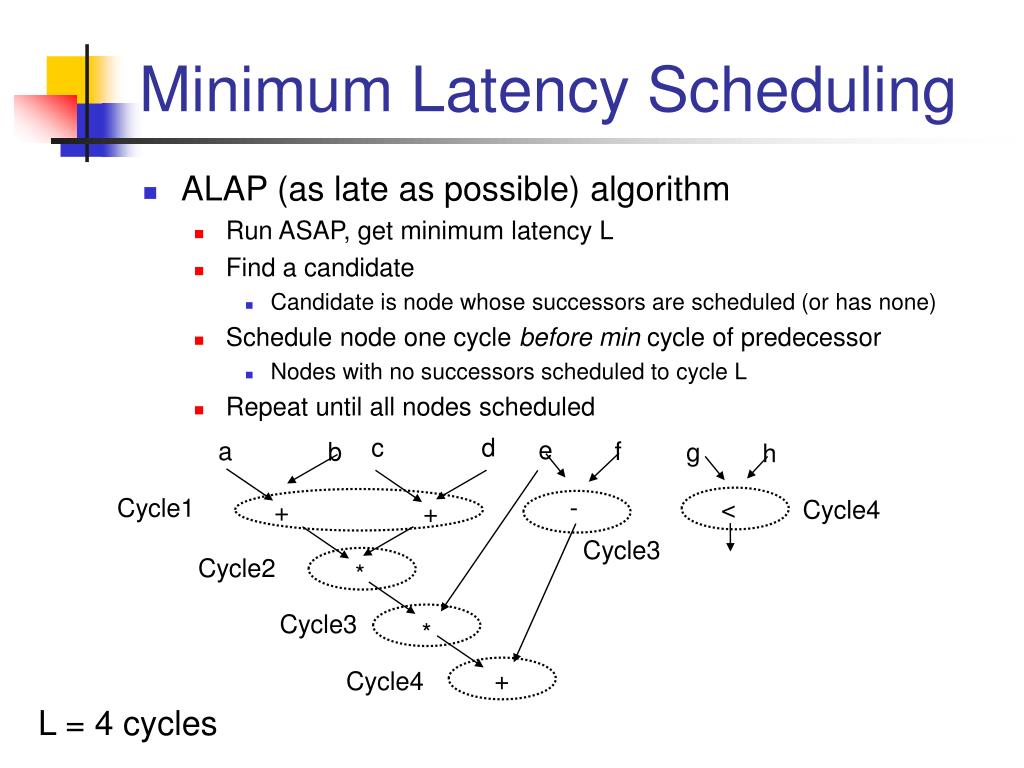

  50. Minimum Latency Scheduling • ALAP (as late as possible) algorithm • Run ASAP, get minimum latency L • Find a candidate • Candidate is node whose successors are scheduled (or has none) • Schedule node one cycle before min cycle of predecessor • Nodes with no successors scheduled to cycle L • Repeat until all nodes scheduled c d e a f b g h - Cycle1 < Cycle4 + + Cycle3 Cycle2 * Cycle3 * + Cycle4 L = 4 cycles
