It1005

IT1005

Lab session on week 11 (7th meeting)

1 or 2 more weeks to go…

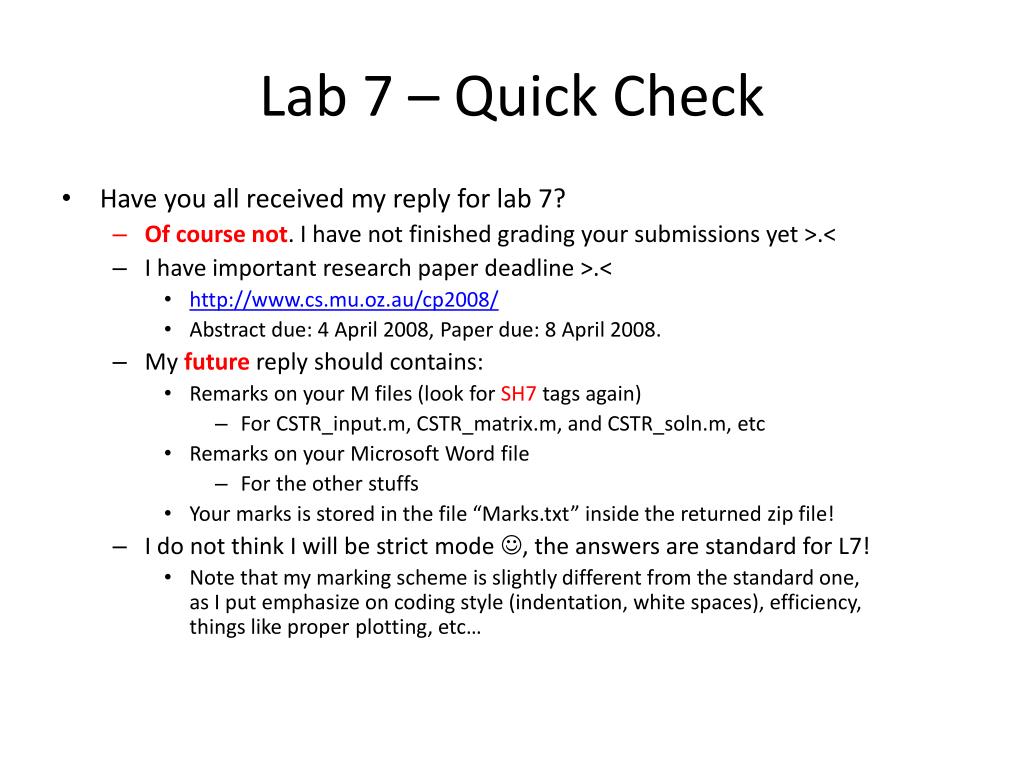

Lab 7 quick check

Lab 7 – Quick Check

  • Have you all received my reply for lab 7?

    • Of course not. I have not finished grading your submissions yet >.<

    • I have important research paper deadline >.<

      • http://www.cs.mu.oz.au/cp2008/

      • Abstract due: 4 April 2008, Paper due: 8 April 2008.

    • My future reply should contains:

      • Remarks on your M files (look for SH7 tags again)

        • For CSTR_input.m, CSTR_matrix.m, and CSTR_soln.m, etc

      • Remarks on your Microsoft Word file

        • For the other stuffs

      • Your marks is stored in the file “Marks.txt” inside the returned zip file!

    • I do not think I will be strict mode , the answers are standard for L7!

      • Note that my marking scheme is slightly different from the standard one,as I put emphasize on coding style (indentation, white spaces), efficiency,things like proper plotting, etc…


L7 q1 4 tanks cstrs

L7.Q1 – 4 tanks CSTRs

Q1. A. Transform the non standard set of Linear Equations into standard format:

-(Q+k*V)*CA1 + 0*CA2 + 0*CA3 + 0*CA4 = -Q*CA0

Q*CA1 -(Q+k*V)*CA2 + 0*CA3 + 0*CA4 = 0

0*CA1 + Q*CA2 -(Q+k*V)*CA3 + 0*CA4 = 0

0*CA1 + 0*CA2 + Q*CA3 -(Q+k*V)*CA4 = 0

Q1. B. Convert the standard format into matrix format. Another straightforward task:

[-(Q+k*V)000] *[CA1] = [-Q*CA0]

[Q-(Q+k*V)00][CA2] [0]

[0Q-(Q+k*V)0][CA3] [0]

[00Q-(Q+k*V)][CA4] [0]

Q1. C. You just need to do:

V = 1; Q = 0.01; CA0 = 10; k = 0.01;

A = [-(Q+k*V) 0 0 0; Q -(Q+k*V) 0 0; 0 Q -(Q+k*V) 0; 0 0 Q -(Q+k*V)];

b = [-Q*CA0; 0; 0; 0];

x = A\b % you should get x = [5; 2.5; 1.25; 0.625], x = inv(A) * b is NOT encouraged!

% Using fsolve for this is also not encouraged!


L7 q2 n tanks cstrs

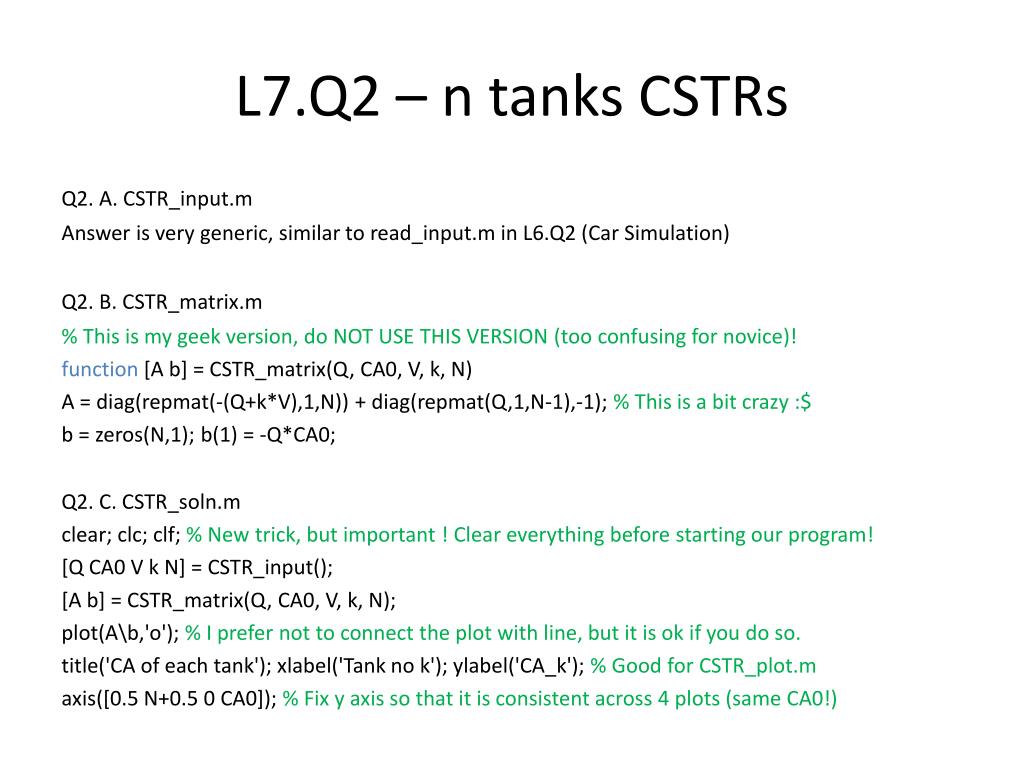

L7.Q2 – n tanks CSTRs

Q2. A. CSTR_input.m

Answer is very generic, similar to read_input.m in L6.Q2 (Car Simulation)

Q2. B. CSTR_matrix.m

% This is my geek version, do NOT USE THIS VERSION (too confusing for novice)!

function [A b] = CSTR_matrix(Q, CA0, V, k, N)

A = diag(repmat(-(Q+k*V),1,N)) + diag(repmat(Q,1,N-1),-1); % This is a bit crazy :$

b = zeros(N,1); b(1) = -Q*CA0;

Q2. C. CSTR_soln.m

clear; clc; clf; % New trick, but important ! Clear everything before starting our program!

[Q CA0 V k N] = CSTR_input();

[A b] = CSTR_matrix(Q, CA0, V, k, N);

plot(A\b,'o'); % I prefer not to connect the plot with line, but it is ok if you do so.

title('CA of each tank'); xlabel('Tank no k'); ylabel('CA_k'); % Good for CSTR_plot.m

axis([0.5 N+0.5 0 CA0]); % Fix y axis so that it is consistent across 4 plots (same CA0!)


L7 q2 good plot

L7.Q2 – Good Plot

Remember:

Plot A against B means thatA is the Y axis, B is the X axis!

Should just stop here (n = 4) for case 1


L7 q3 and q4

L7.Q3 and Q4

  • Tips for guessing logically:

  • Plot the functions with some range, see the region of zero intercepts…

  • Guess from the easiest equation!e.g. x + y + z = 5

  • log(z)… hm… z should be > 0

Q3. Type these at command window:

syms x y; % no need to say syms f1 f2, the next two lines will create f1 and f2 anyway

f1 = x^2 * y^2 - 2*x - 1;

f2 = x^2 - y^2 - 1;

[a b] = solve(f1,f2); % or >> s = solve(f1,f2); a = s.x; b = s.y;

eval(a), eval(b) % convert the symbolic values to numeric values, these are the roots

Q4. Create this function

function F = lab07d(x)

F(1) = sin(x(1)) + x(2)^2 + log(x(3)) - 7;

F(2) = 3*x(1) + 2^(x(2)) + 1 - x(3)^3;

F(3) = x(1) + x(2) + x(3) - 5;

At command window (wild guesses will likely give you many imaginary numbers):

fsolve(@lab07d, [1 1 1])  x=0.5991, y=2.3959, z=2.0050

fsolve(@lab07d, [5 -1 1])  x = 5.1004, y = -2.6442, z= 2.5438


Application 5 ivp revisited

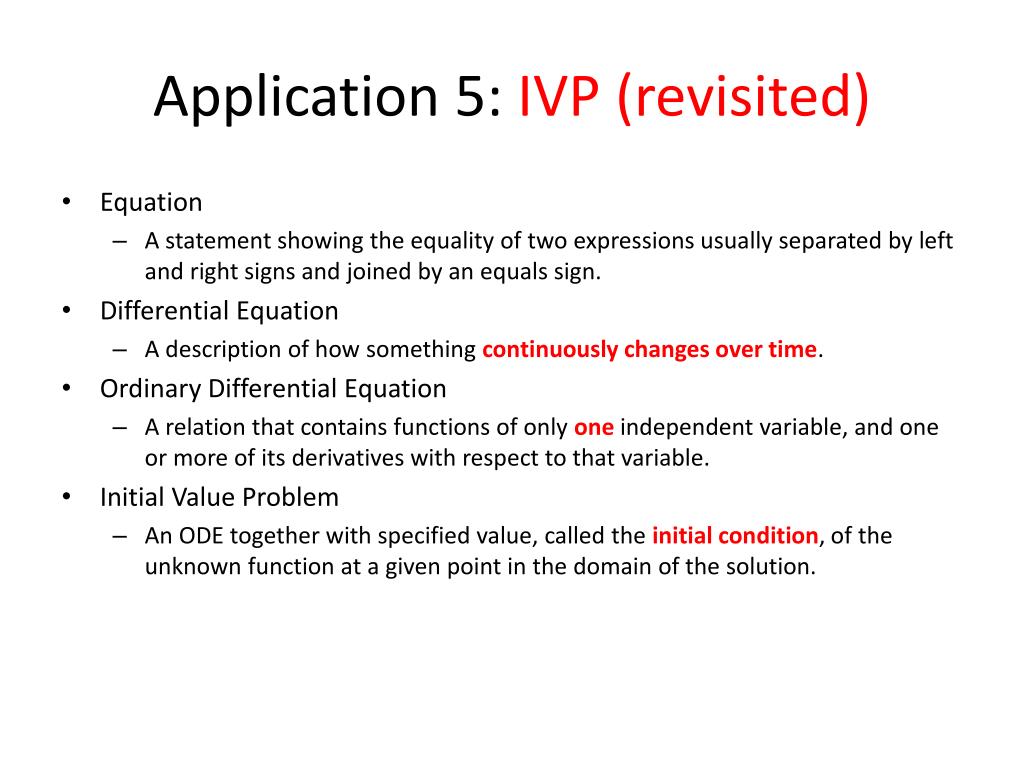

Application 5: IVP (revisited)

  • Equation

    • A statement showing the equality of two expressions usually separated by left and right signs and joined by an equals sign.

  • Differential Equation

    • A description of how something continuously changes over time.

  • Ordinary Differential Equation

    • A relation that contains functions of only one independent variable, and one or more of its derivatives with respect to that variable.

  • Initial Value Problem

    • An ODE together with specified value, called the initial condition, of the unknown function at a given point in the domain of the solution.

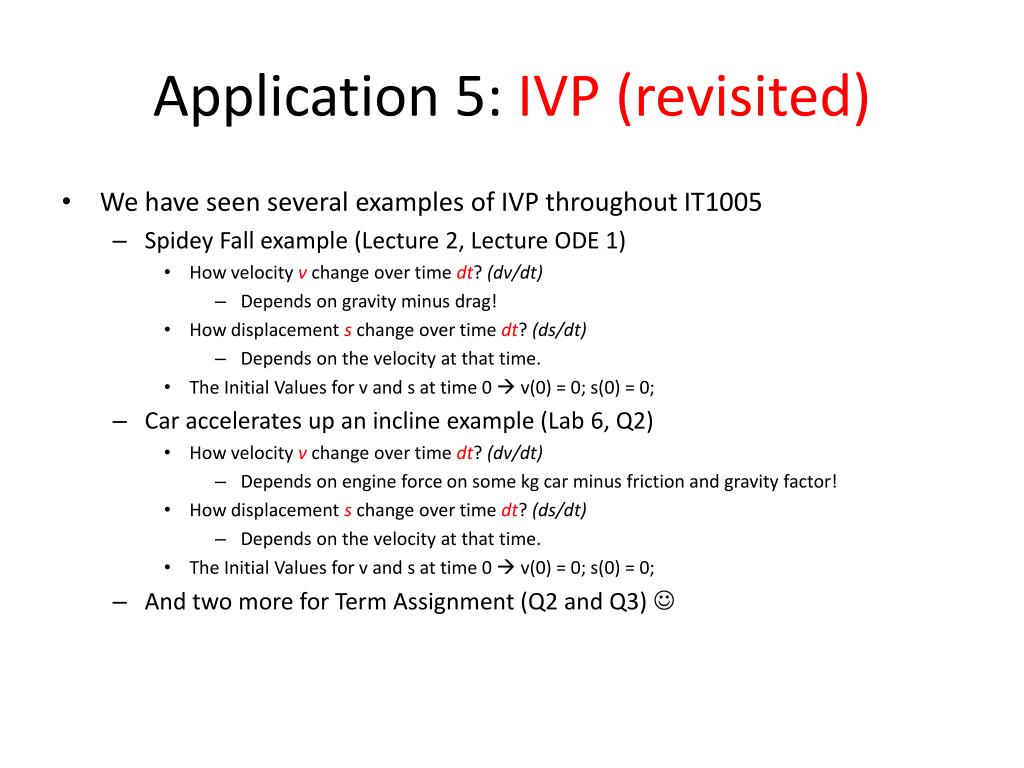

Application 5 ivp revisited1

Application 5: IVP (revisited)

  • We have seen several examples of IVP throughout IT1005

    • Spidey Fall example (Lecture 2, Lecture ODE 1)

      • How velocity v change over time dt? (dv/dt)

        • Depends on gravity minus drag!

      • How displacement s change over time dt? (ds/dt)

        • Depends on the velocity at that time.

      • The Initial Values for v and s at time 0  v(0) = 0; s(0) = 0;

    • Car accelerates up an incline example (Lab 6, Q2)

      • How velocity v change over time dt? (dv/dt)

        • Depends on engine force on some kg car minus friction and gravity factor!

      • How displacement s change over time dt? (ds/dt)

        • Depends on the velocity at that time.

      • The Initial Values for v and s at time 0  v(0) = 0; s(0) = 0;

    • And two more for Term Assignment (Q2 and Q3) 


Application 5 ivp revisited2

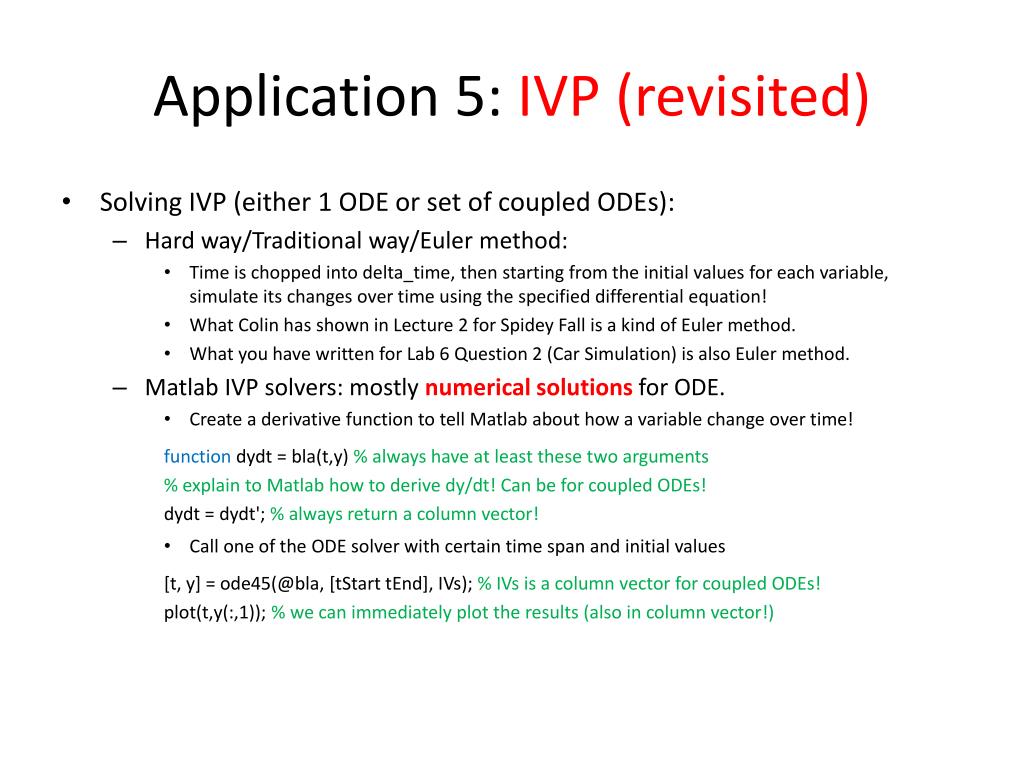

Application 5: IVP (revisited)

  • Solving IVP (either 1 ODE or set of coupled ODEs):

    • Hard way/Traditional way/Euler method:

      • Time is chopped into delta_time, then starting from the initial values for each variable, simulate its changes over time using the specified differential equation!

      • What Colin has shown in Lecture 2 for Spidey Fall is a kind of Euler method.

      • What you have written for Lab 6 Question 2 (Car Simulation) is also Euler method.

    • Matlab IVP solvers: mostly numerical solutions for ODE.

      • Create a derivative function to tell Matlab about how a variable change over time!

        function dydt = bla(t,y) % always have at least these two arguments

        % explain to Matlab how to derive dy/dt! Can be for coupled ODEs!

        dydt = dydt'; % always return a column vector!

      • Call one of the ODE solver with certain time span and initial values

        [t, y] = ode45(@bla, [tStart tEnd], IVs); % IVs is a column vector for coupled ODEs!

        plot(t,y(:,1)); % we can immediately plot the results (also in column vector!)


Term assignment admin

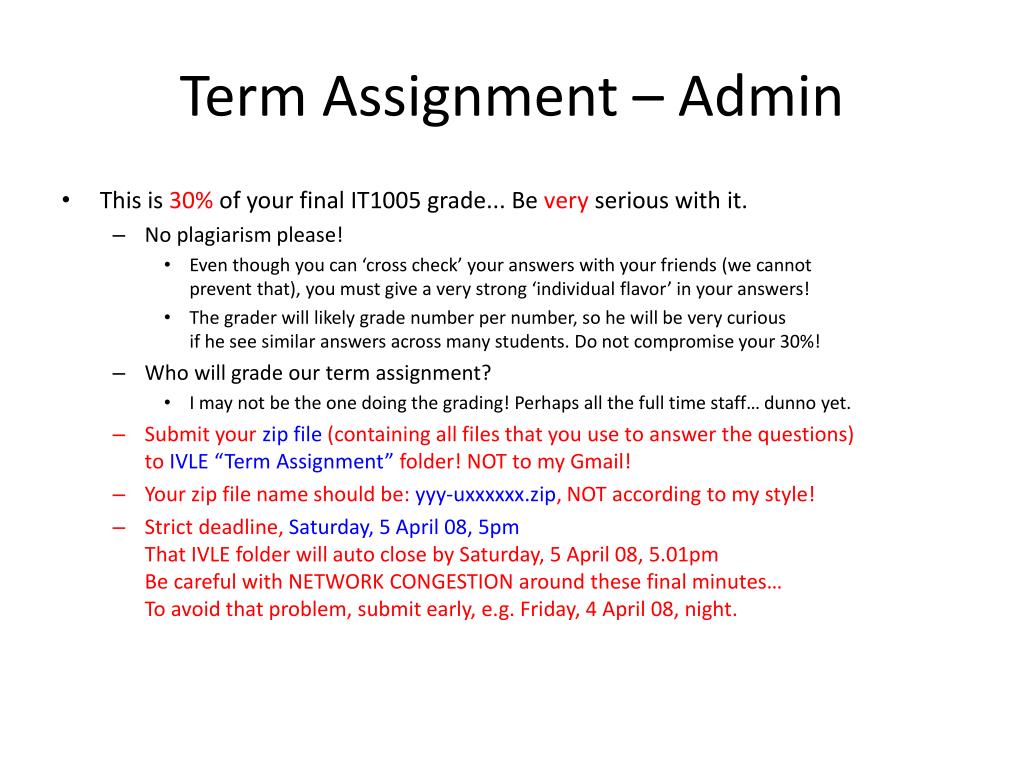

Term Assignment – Admin

  • This is 30% of your final IT1005 grade... Be very serious with it.

    • No plagiarism please!

      • Even though you can ‘cross check’ your answers with your friends (we cannotprevent that), you must give a very strong ‘individual flavor’ in your answers!

      • The grader will likely grade number per number, so he will be very curiousif he see similar answers across many students. Do not compromise your 30%!

    • Who will grade our term assignment?

      • I may not be the one doing the grading! Perhaps all the full time staff… dunno yet.

    • Submit your zip file (containing all files that you use to answer the questions)to IVLE “Term Assignment” folder! NOT to my Gmail!

    • Your zip file name should be: yyy-uxxxxxx.zip, NOT according to my style!

    • Strict deadline, Saturday, 5 April 08, 5pmThat IVLE folder will auto close by Saturday, 5 April 08, 5.01pmBe careful with NETWORK CONGESTION around these final minutes…To avoid that problem, submit early, e.g. Friday, 4 April 08, night.


Term assignment q1

Term Assignment – Q1

  • Question 1: Trapezium rule for finding integration

    • A. Naïve one. Explain your results!

    • B. More accurate one. Explain your results!

    • References:

      • help quad

      • http://en.wikipedia.org/wiki/Numerical_integration

      • http://en.wikipedia.org/wiki/Trapezium_rule

    • Revision(s) to the question:

      • Symbol ‘a’ changed to ‘c’ inside function f(t)!

      • In Q1.B, the rows in column ‘c’ are [0.001 0.5 10.0 100.0] not [0.01 0.5 1.0 10.0]!

      • In Q1.B, the range of k is changed from k = 2:n-1 to k = 1:n-1,but it is ok if you stick with the old one!


Term assignment q2

Term Assignment - Q2

  • Question 2: Zebra Population versus Lion Population

    • A. IVP, coupled, non-linear ODEs

    • B. Explain what you see in the graph of part A above.

    • C. Steady state issue.

    • D. IVP again, but change the IVs according to part C above. Comment!

    • E. IVP with different IVs, and different plotting method. Comment!

    • References:

      • Google the term ‘predator prey’ as mentioned in the question.

      • help odeXX (depends on the chosen solver)

      • http://en.wikipedia.org/wiki/Steady_state

    • Revision(s) to the question:

      • No change so far…


Term assignment q3

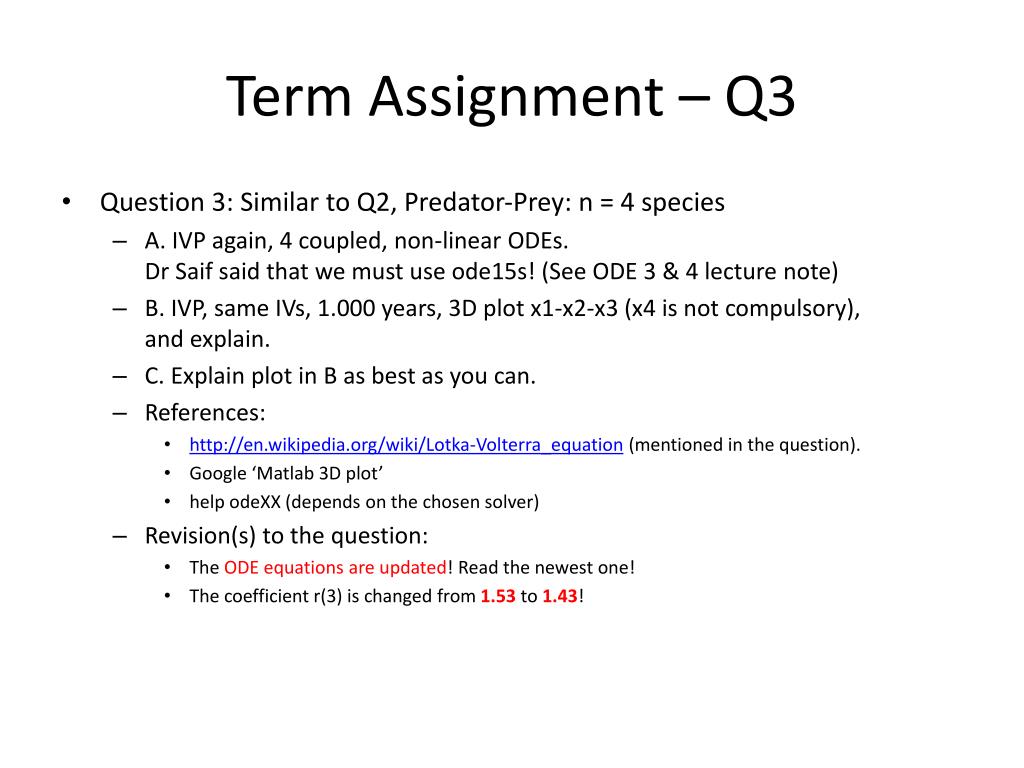

Term Assignment – Q3

  • Question 3: Similar to Q2, Predator-Prey: n = 4 species

    • A. IVP again, 4 coupled, non-linear ODEs. Dr Saif said that we must use ode15s! (See ODE 3 & 4 lecture note)

    • B. IVP, same IVs, 1.000 years, 3D plot x1-x2-x3 (x4 is not compulsory),and explain.

    • C. Explain plot in B as best as you can.

    • References:

      • http://en.wikipedia.org/wiki/Lotka-Volterra_equation (mentioned in the question).

      • Google ‘Matlab 3D plot’

      • help odeXX (depends on the chosen solver)

    • Revision(s) to the question:

      • The ODE equations are updated! Read the newest one!

      • The coefficient r(3) is changed from 1.53 to 1.43!


Free and easy time

Free and Easy Time

  • Now, you are free to explore Matlab to:

    • Do your Term Assignment (all q1, q2, and q3)

    • You should NOT use me as an oracle, e.g.

      • I cannot find the bug in my program, can you help me?

      • Are my 2-D/3-D plots correct?

      • Are my …. bla bla … correct?
