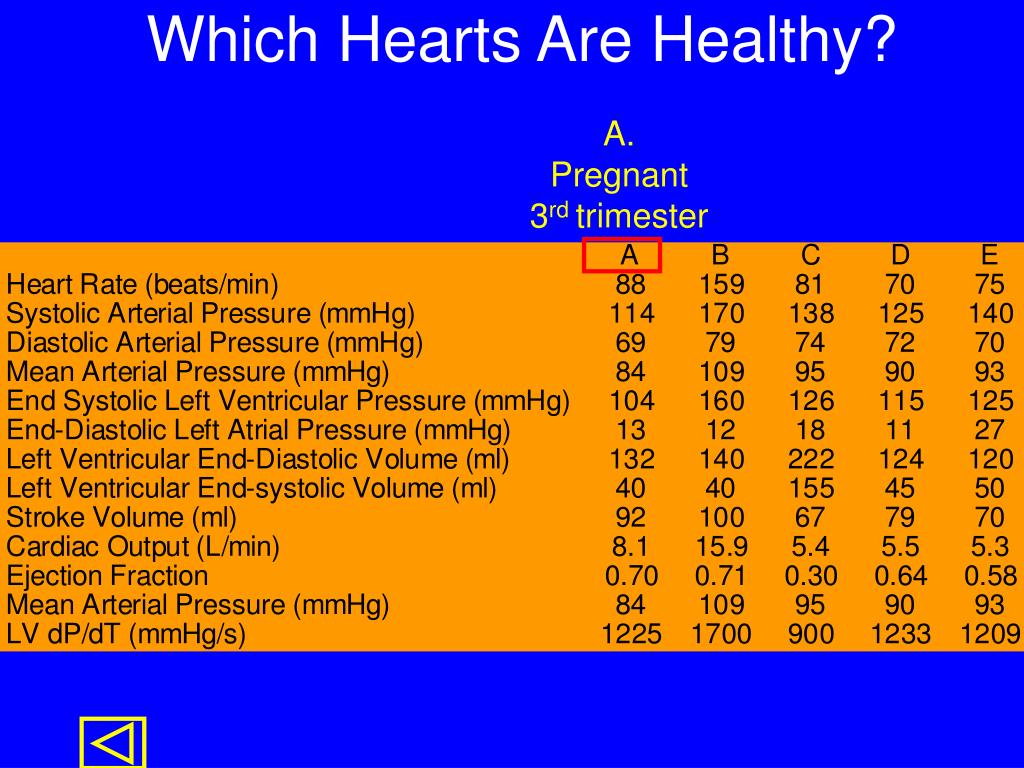

Cardiac Output. Which Hearts Are Healthy?. End-diastolic volume. Stroke volume. Left Ventricle Volume (ml). End-systolic volume. Stroke Volume?. A. B. C. D. E. Heart Rate (beats/min). 88. 159. 81. 70. 75. Stroke Volume (ml). 92. 100. 67. 79. 70. Cardiac Output (L/min). 8.1.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Cardiac Output' - henriette-angel


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript


Stroke volume

End-diastolic volume

Stroke volume

Left Ventricle Volume (ml)

End-systolic volume

Stroke Volume?


Cardiac output1

A

B

C

D

E

Heart Rate (beats/min)

88

159

81

70

75

Stroke Volume (ml)

92

100

67

79

70

Cardiac Output (L/min)

8.1

15.9

5.4

5.5

5.3

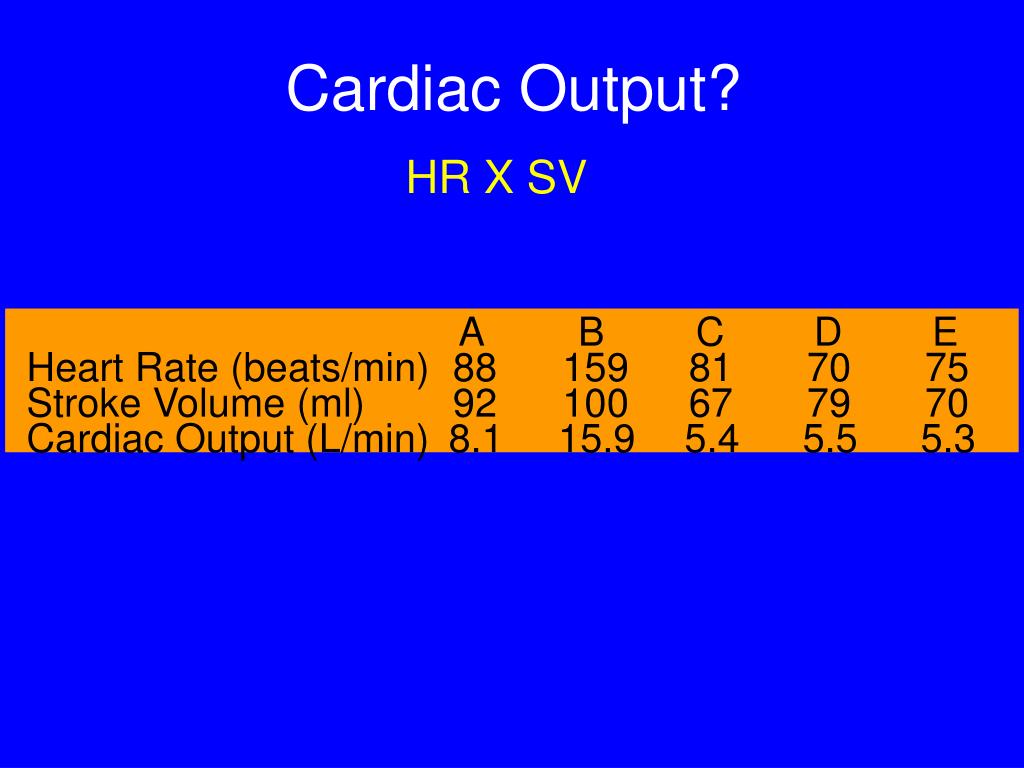

Cardiac Output?

HR X SV


What determines the stroke volume
What determines the stroke volume?

  • Preload: how stretched the muscle is when it starts to contract.

  • Afterload: the active stress the muscle has to generate in order to shorten

  • Contractility: something else, but what?


Preload

fulcrum

Preload


The effect of changing preload
The effect of changing preload

highest preload

lowest preload

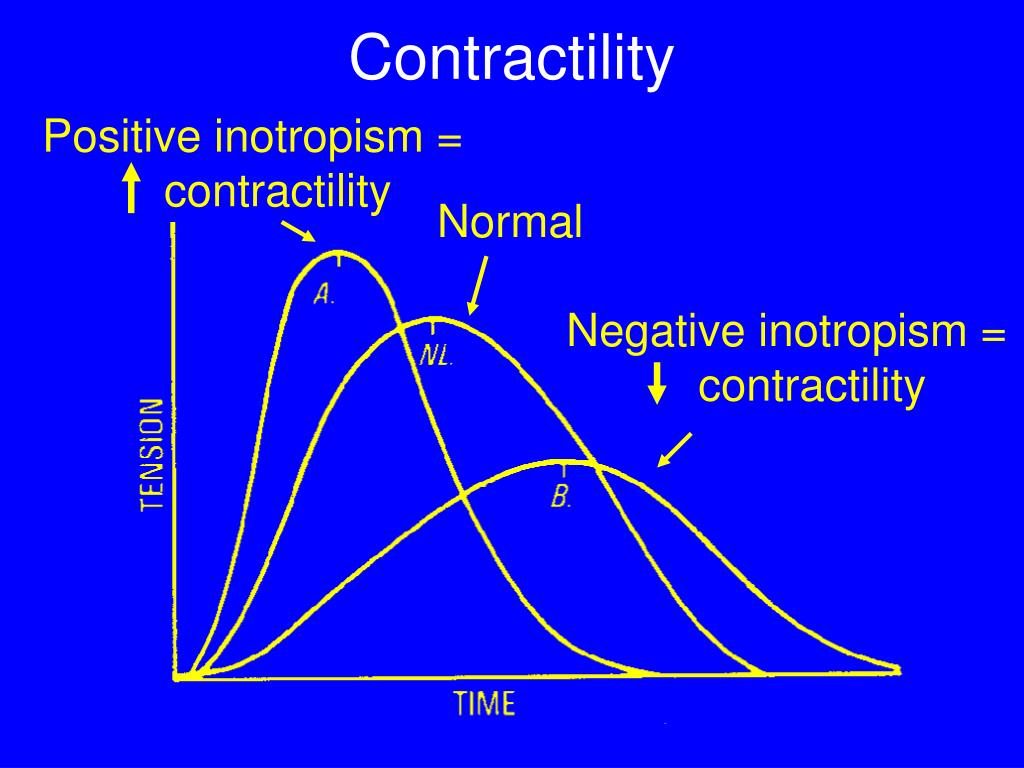

Contractility

Positive inotropism =

contractility

Normal

Negative inotropism =

contractility

Contractility


Cellular mechanism of preload effect on strength of contraction

Cellular Mechanism of Preload Effect on Strength of Contraction

Length sensitivity of cardiac and skeletal muscle result from different mechanisms.


Length sensitivity of skeletal muscle

Myosin Heads Contraction

ThinFilament

1.0 µm

Length sensitivity of skeletal muscle

Thick Filament

1.6 µm

0.2 µm

Optimum

Overlap


Length sensitivity of cardiac muscle
Length sensitivity of cardiac muscle Contraction

Skeletal

Cardiac


How does preload affect force of cardiac muscle contraction

Stretch Muscle Contraction

How does preload affect force of cardiac muscle contraction?

Muscle Length

Force of Contraction

Cytoplasmic [Ca++]

Force of Contraction


Length sensitivity of cardiac muscle1

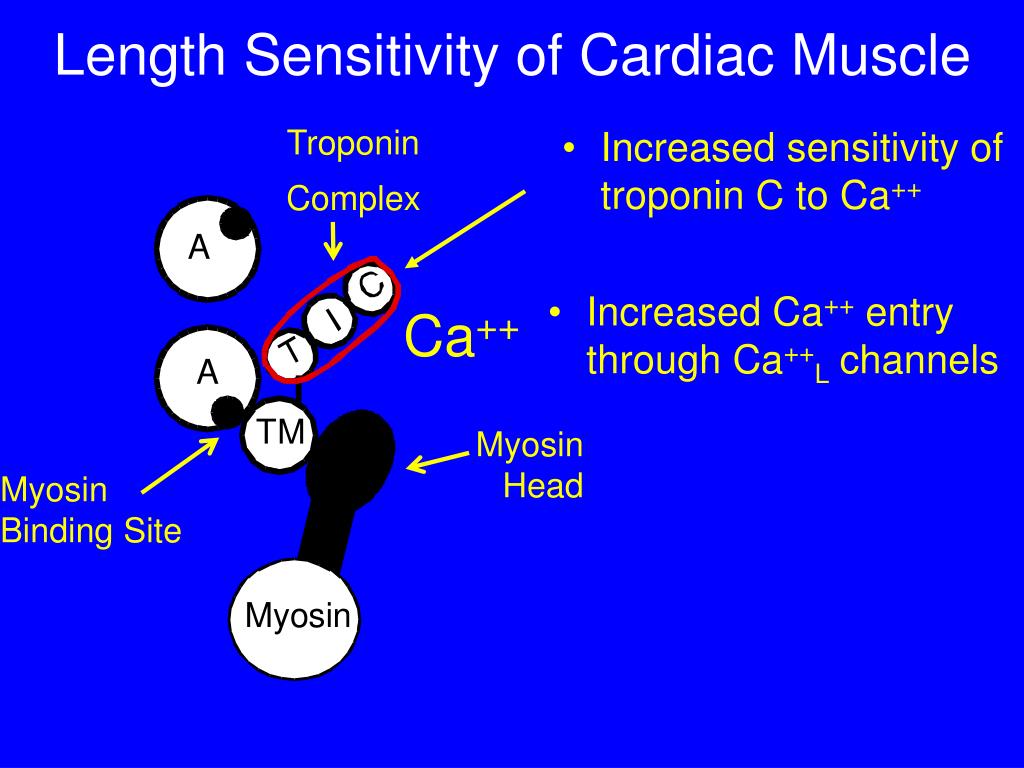

Length Sensitivity of Cardiac Muscle Contraction

  • Increased Ca++ entry through Ca++L channels

Ca++

  • Increased sensitivity of troponin C to Ca++

Troponin

Complex

Myosin Head

Myosin Binding Site


Preload afterload contractility in the working heart

Preload Contraction Afterload& Contractilityin the Working Heart

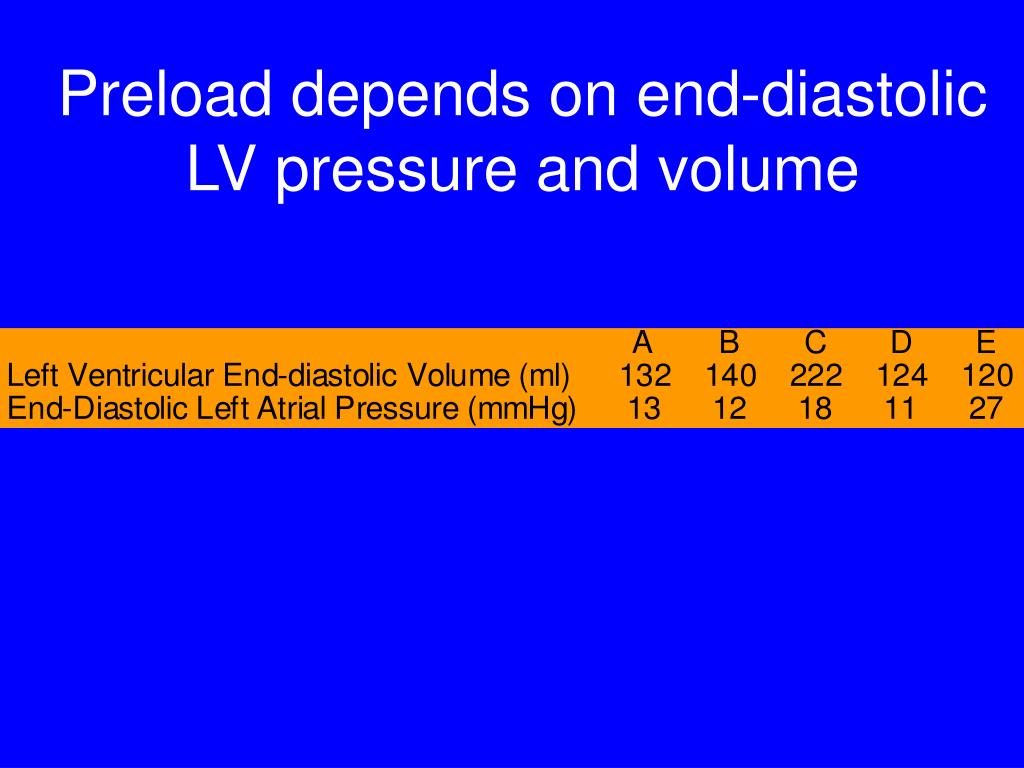

Preload depends on end diastolic lv pressure and volume

mmHg Contraction

kPa

16

120

12

80

End-diastolic LV pressure

Pressure

8

40

4

0

0

Left Ventricle Volume (ml)

150

100

50

End-diastolic LV volume

0

Preload depends on end-diastolic LV pressure and volume



Right atrial pressure as a measure of preload
Right atrial pressure as a measure of preload Contraction

PRA

Systole

Diastole


Starling s law of the heart
Starling’s Law of the Heart Contraction

Ventricular

Function Curve

The inflow equals the output


Afterload depends on systolic ejection pressure

Increased afterload Contraction

LV Systolic ejection pressure

shorter ejection time

reduced stroke volume

Afterload depends on systolic ejection pressure

mmHg

kPa

16

120

12

80

Pressure

8

40

4

0

0

Left Ventricle Volume (ml)

150

100

50

0


Afterload depends on systolic ejection pressure1

mmHg Contraction

kPa

16

120

12

80

LV Systolic ejection pressure

Pressure

8

40

4

0

0

Afterload depends on systolic ejection pressure

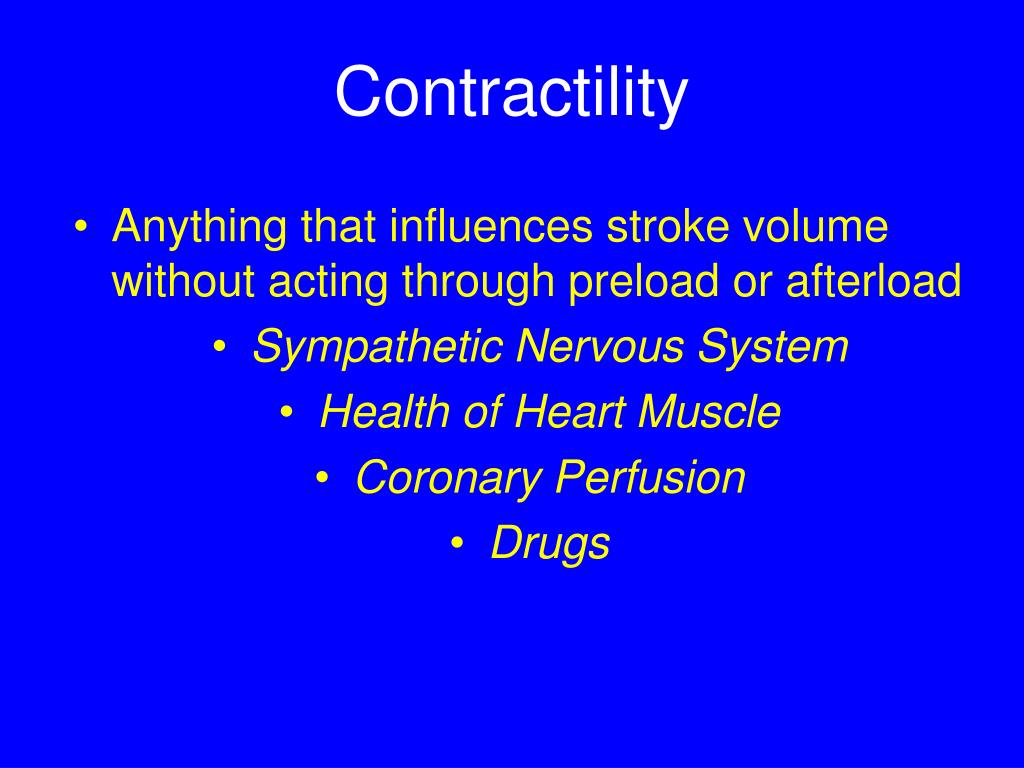

Contractility1
Contractility Contraction

  • Anything that influences stroke volume without acting through preload or afterload

  • Sympathetic Nervous System

  • Health of Heart Muscle

  • Coronary Perfusion

  • Drugs


Contractility2
Contractility Contraction

“Squeezability”: How tightly can the ventricle squeeze by the end of ejection.


Adrenoceptor influence on contractility

phosphorylates Contraction

L-type Ca++

channel

phosphorylates

SR Ca++ ATPase

to increase

Ca++ reuptake

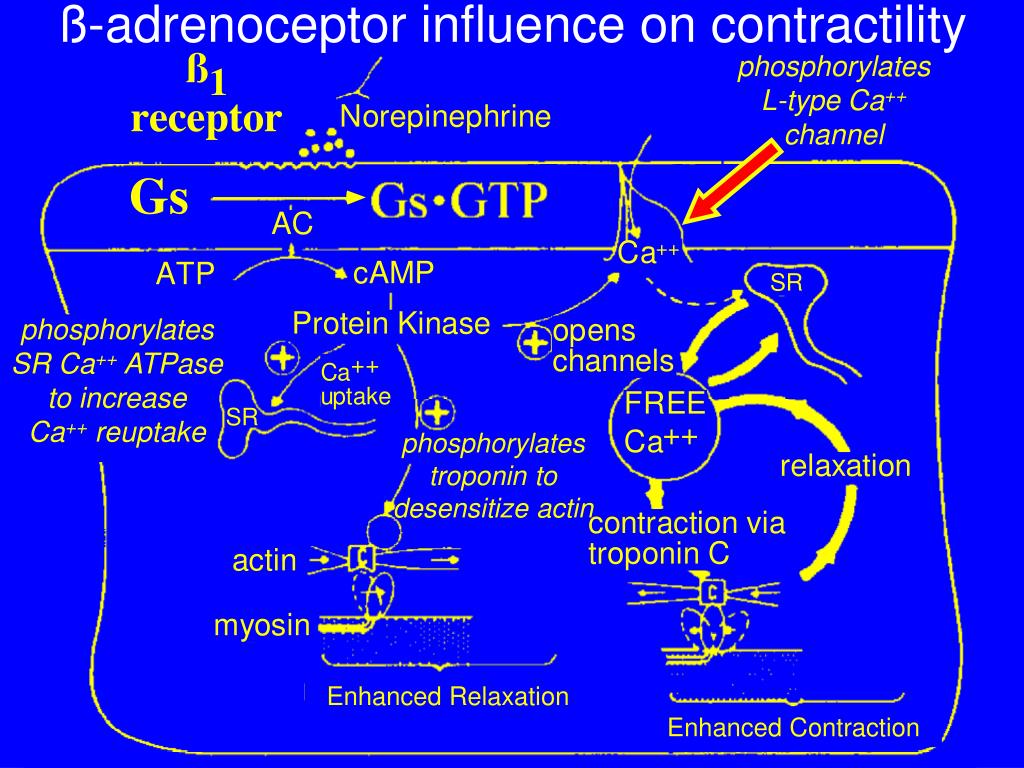

ß-adrenoceptor influence on contractility

phosphorylates troponin to desensitize actin

Enhanced Relaxation

Enhanced Contraction


Sympathetic effect on the heart

EKG Contraction

Pressure

Aortic

Left ventricular

Left ventricular volume

Sympathetic Effect on the Heart


Measuring contractility a ejection fraction

Stroke Volume Contraction

Ejection Fraction =

End-Diastolic Volume

Measuring ContractilityA. Ejection Fraction

Volume

Left Ventricle

150

(ml)

100

Stroke Volume

End-Diastolic LV Volume

50

0

End-Systolic LV Volume


Measuring contractility a ejection fraction1

Stroke Volume Contraction

Ejection Fraction =

End-Diastolic Volume

Measuring ContractilityA. Ejection Fraction


Measuring contractility b lv dp dt max

mmHg Contraction

kPa

16

120

12

Slope = LV dP/dt

80

Pressure

8

40

4

0

0

Left Ventricle Volume (ml)

150

100

50

0

Measuring ContractilityB. LV dP/dt Max


Measuring contractility b lv dp dt max1

A Contraction

B

C

D

E

LV dP/dT

1225

1700

900

1233

1209

Measuring ContractilityB. LV dP/dt Max


Measuring contractility c ventricular function curve

Increased contractility Contraction

Decreased contractility

Measuring ContractilityC. Ventricular Function Curve

16

12

Cardiac

8

Output

(liters/min)

4

0

0

4

8

12

(mm Hg)

(kPa)

0

1

2

Right Atrial Pressure


Measuring contractility c ventricular function curve1

100 Contraction

50

0

Measuring ContractilityC. Ventricular Function Curve

B

A

D

Stroke

E

C

Volume

(ml)

(mm Hg)

0

8

16

3

0

1

2

Left Atrial Pressure

(kPa)


Measuring contractility
Measuring Contractility Contraction

  • Ejection Fraction

  • LV dP/dt max

  • Ventricular Function Curve

  • Maximal Systolic Elastance


Diastolic pressure volume curve
Diastolic Pressure-Volume Curve Contraction

Left Ventricular Pressure

Left Ventricular Volume (ml)


Hypertrophy of left ventricle

Eccentric (dilated) Contraction

Normal

Stiff Ventricle

Diastolic dysfunction

Pressure Overload

Px r

stress =

2h

stress = P xr

2h

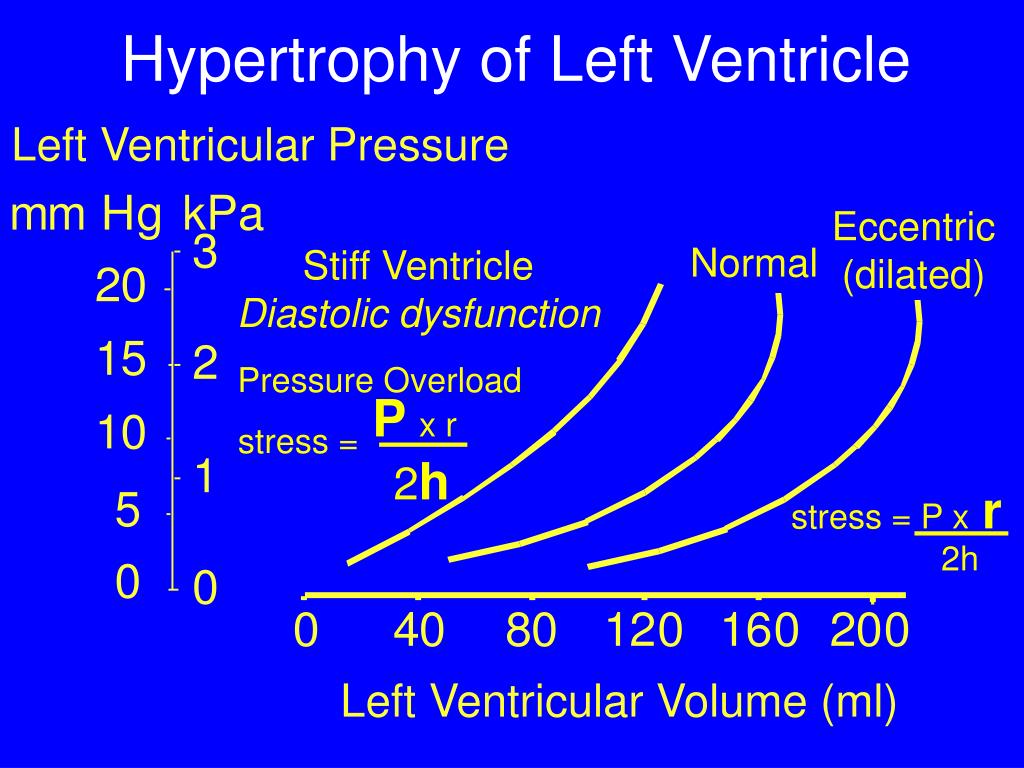

Hypertrophy of Left Ventricle

Left Ventricular Pressure

Left Ventricular Volume (ml)


End systolic pressure volume curve
End-systolic Pressure Volume Curve Contraction

Left Ventricular Pressure

End-systolic

(contracted myocardium)

mm Hg

kPa

40

300

30

200

20

Diastolic

(relaxed myocardium)

100

10

0

0

0

50

100

150

200

Left Ventricular Volume

(ml)

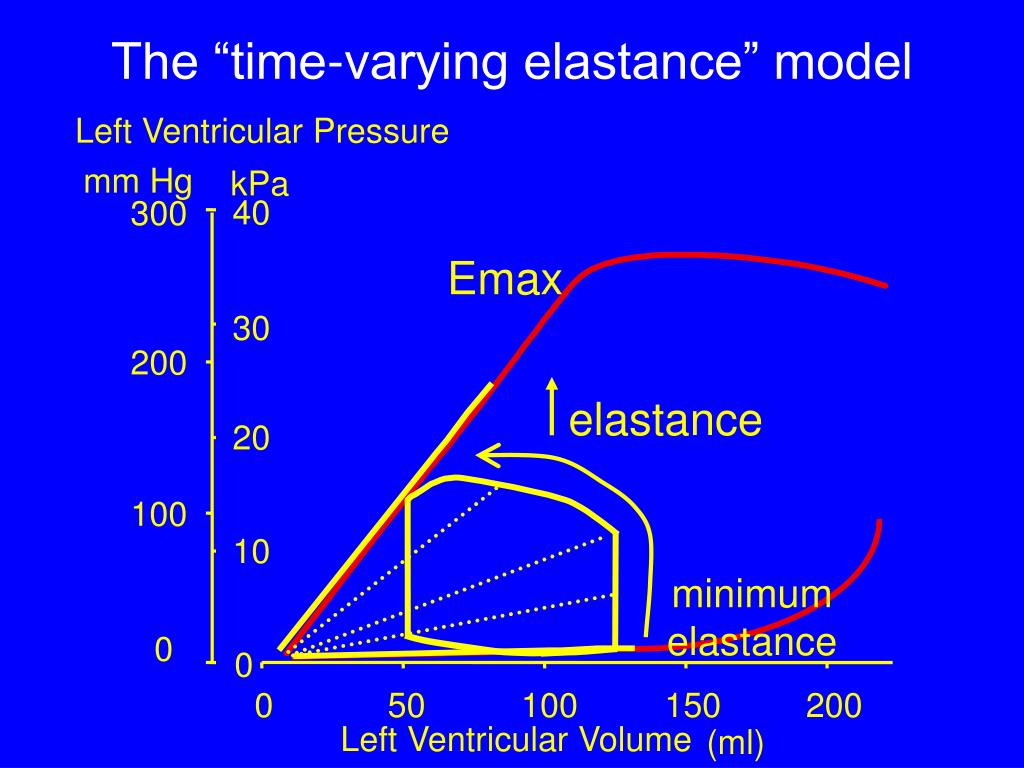

The time varying elastance model

elastance Contraction

The “time-varying elastance” model

Left Ventricular Pressure

mm Hg

kPa

40

300

Emax

30

200

20

100

10

minimum elastance

0

0

0

50

100

150

200

Left Ventricular Volume

(ml)


Measuring contractility d emax

Emax Contraction

“Afterload”

Preload

Measuring ContractilityD. Emax

Left Ventricular Pressure

mm Hg

kPa

Contractility

(slope of end-systolic PV line)

40

300

30

200

20

100

10

0

0

0

50

100

150

200

Left Ventricular Volume

(ml)

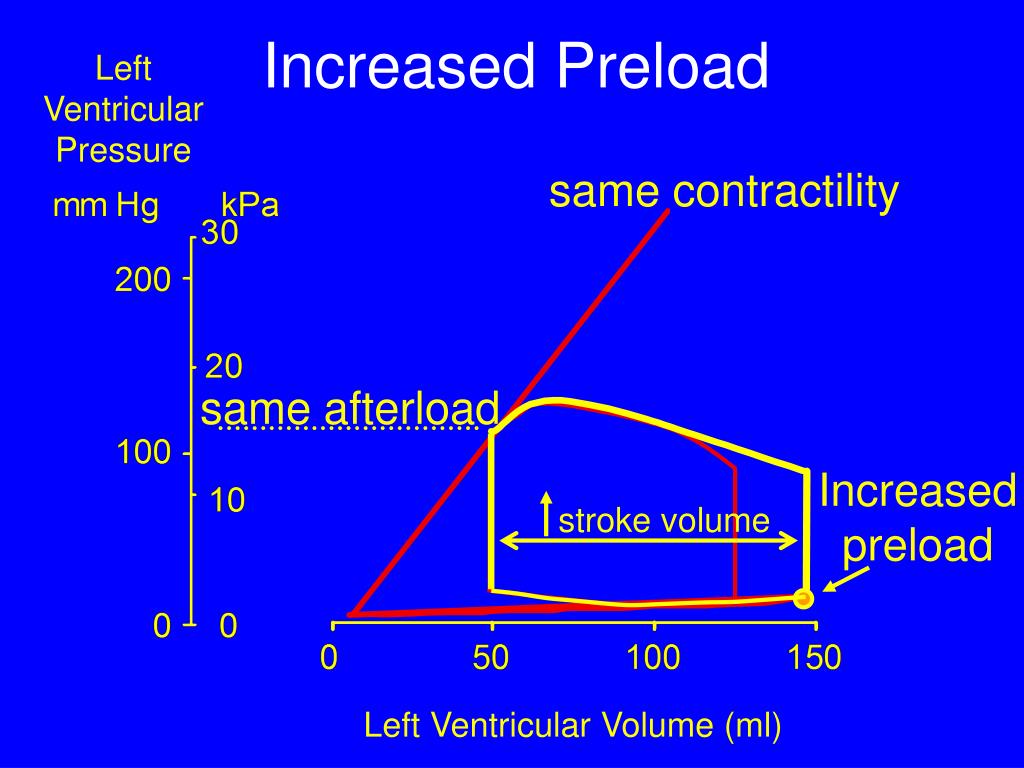

Increased preload

same contractility Contraction

same afterload

Increased preload

stroke volume

Left Ventricular Pressure

Increased Preload

Left Ventricular Volume (ml)


Increased afterload

same contractility Contraction

increase afterload

stroke volume

same preload

Left Ventricular Pressure

Increased Afterload

Left Ventricular Volume (ml)


Afterload compensation

Preload Contraction

increased

Left Ventricular Pressure

Afterload compensation

same contractility

increase afterload

Stroke volume restored

Left Ventricular Volume (ml)


Hypertension and cardiac work
Hypertension and Cardiac Work Contraction

Left Ventricular Pressure

External Work

increase afterload

Contraction I

Contraction 3

Left Ventricular Volume (ml)


Hypertension and cardiac work1
Hypertension and Cardiac Work Contraction

Left Ventricular Pressure

Internal work

increase afterload

Left Ventricular Volume (ml)


Increased contractility

stroke volume Contraction

Left Ventricular Pressure

Increased Contractility

increased contractility

same afterload

same preload

Left Ventricular Volume (ml)


Decreased contractility

Left Ventricular Pressure Contraction

Decreased Contractility

decreased contractility

same afterload

same preload

Left Ventricular Volume (ml)

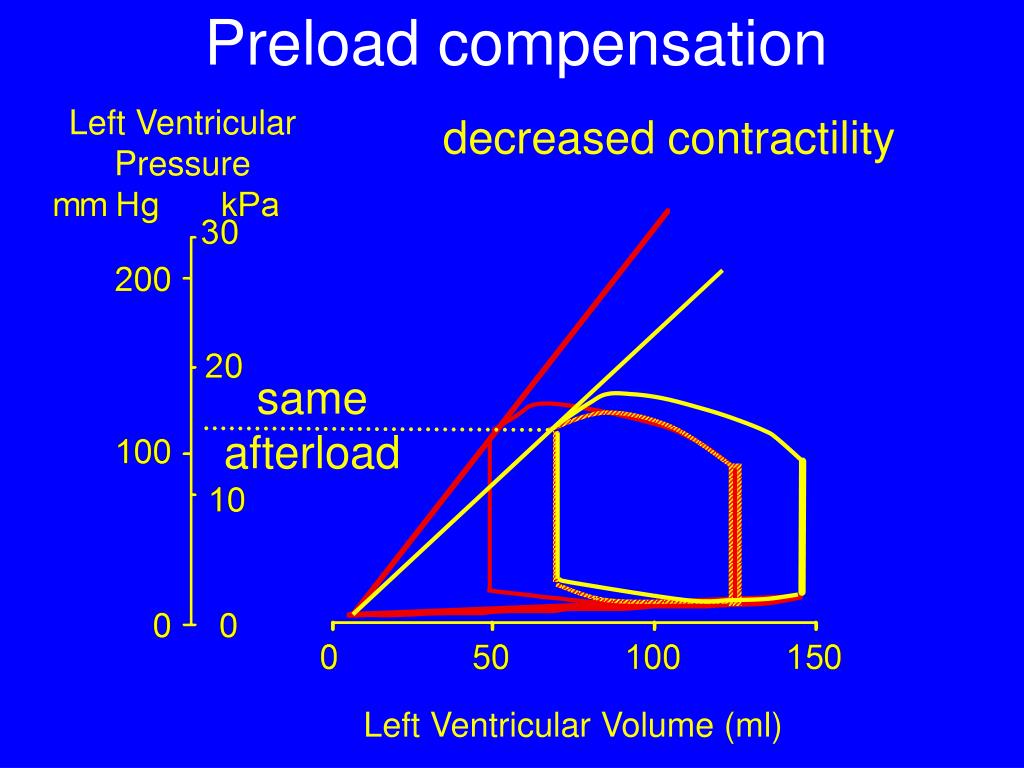

Preload compensation
