  1. Low Carbon ICT Services Kang Tang Kang.tang@oerc.ox.ac.uk Oxford e-Research Centre

  2. Why computers are left switched ON? • So they can be accessed remotely • For system update or backup • For use in distributed computing experiments(Campus Grid) • For use as service provider • Careless or bad memory

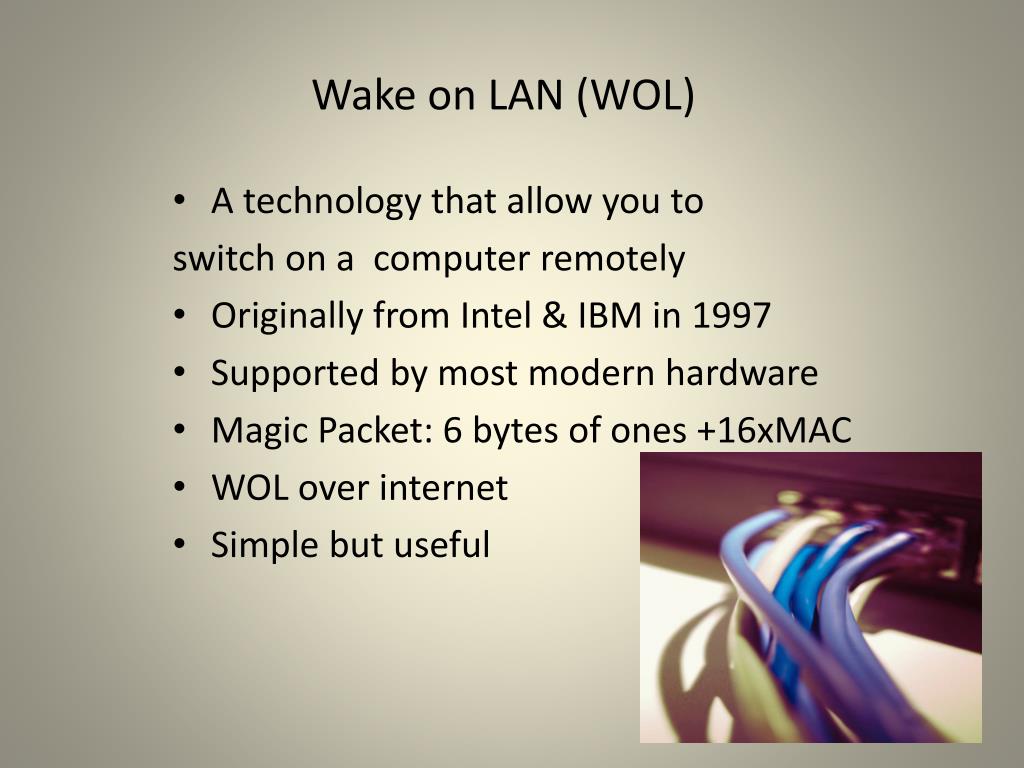

  3. Wake on LAN (WOL) • A technology that allow you to switch on a computer remotely • Originally from Intel & IBM in 1997 • Supported by most modern hardware • Magic Packet: 6 bytes of ones +16xMAC • WOL over internet • Simple but useful

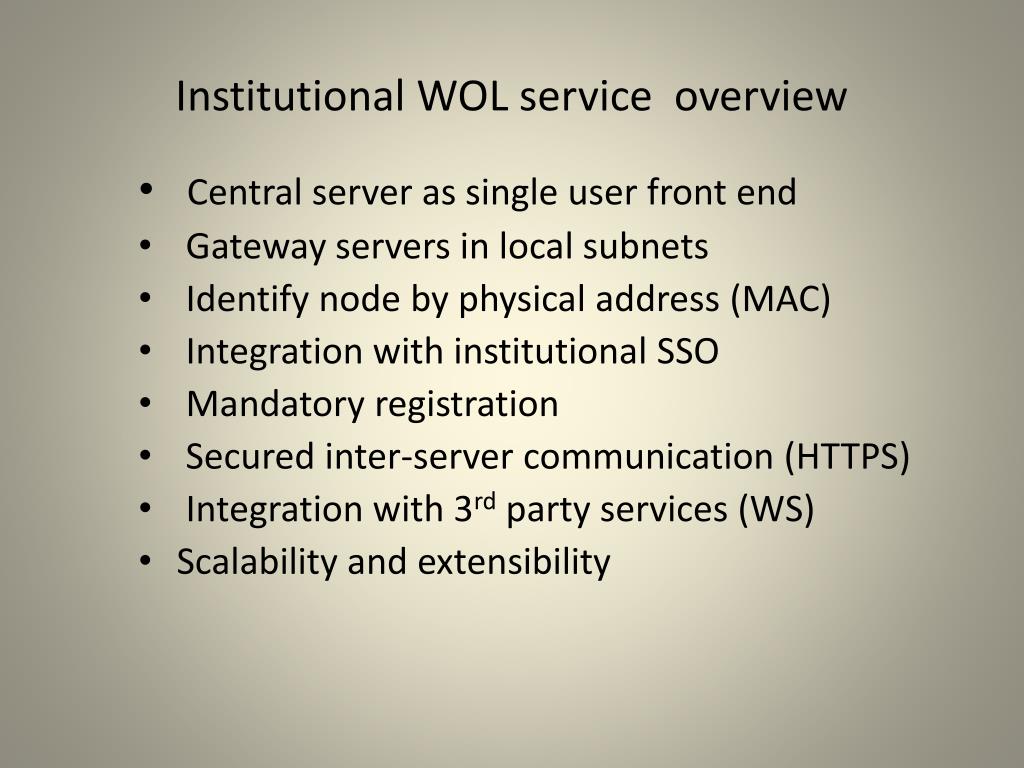

  4. Institutional WOL service overview • Central server as single user front end • Gateway servers in local subnets • Identify node by physical address (MAC) • Integration with institutional SSO • Mandatory registration • Secured inter-server communication (HTTPS) • Integration with 3rd party services (WS) • Scalability and extensibility

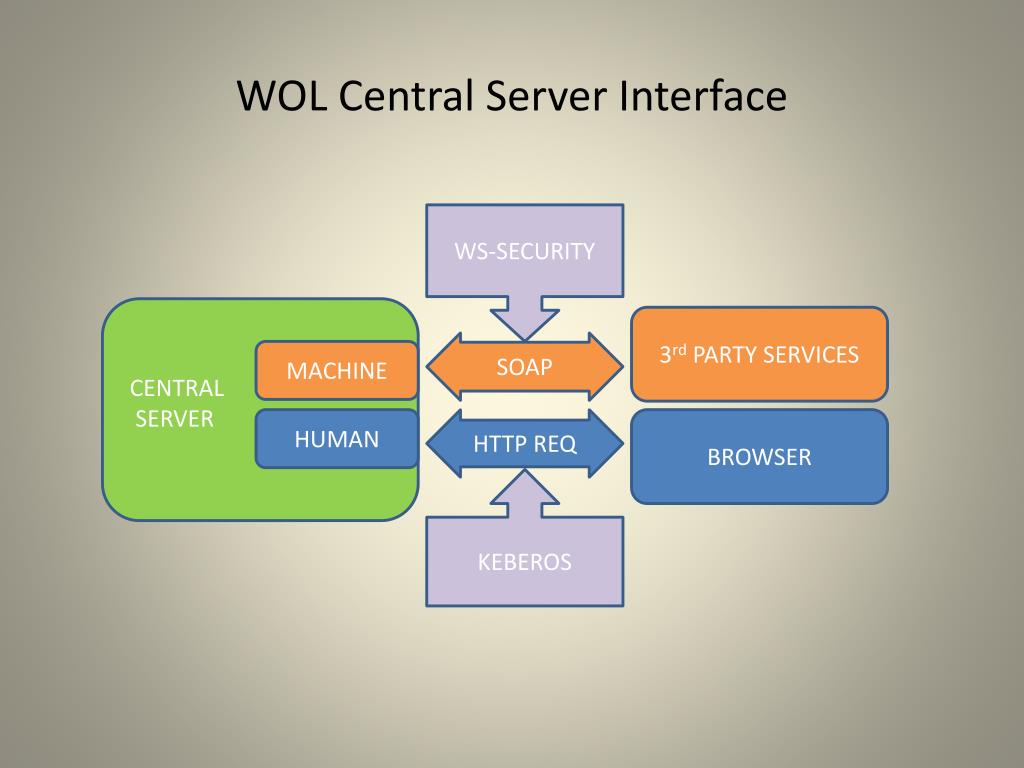

  5. WOL Central Server Interface WS-SECURITY 3rd PARTY SERVICES SOAP MACHINE CENTRAL SERVER HUMAN HTTP REQ BROWSER KEBEROS

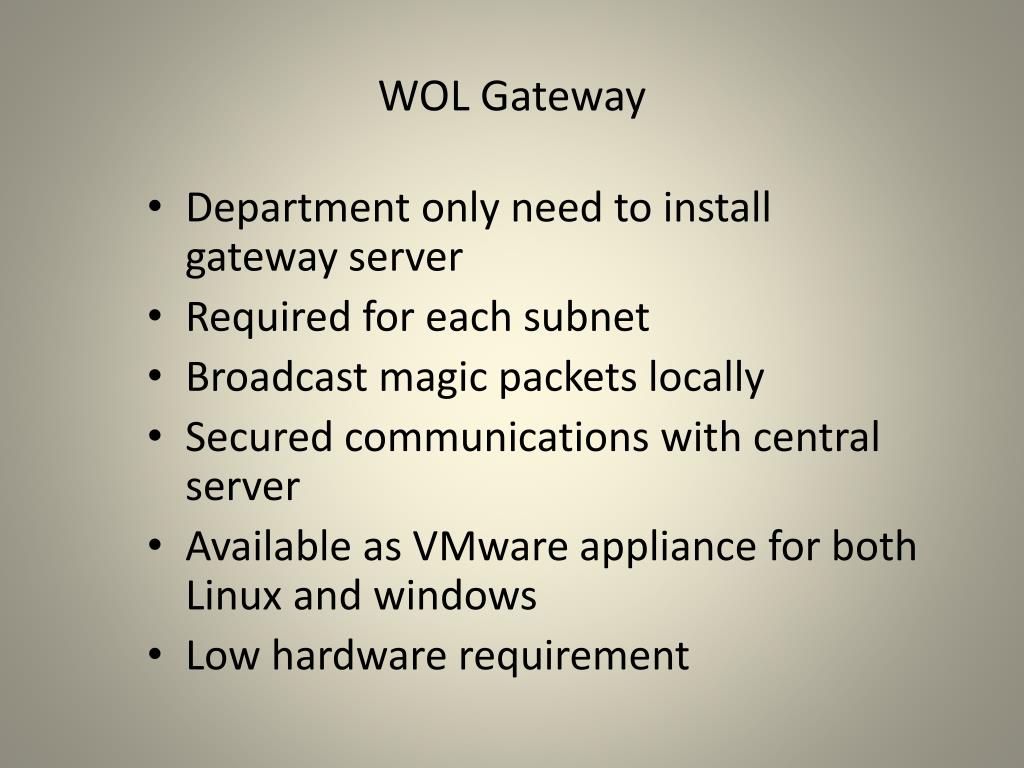

  6. WOL Gateway • Department only need to install gateway server • Required for each subnet • Broadcast magic packets locally • Secured communications with central server • Available as VMware appliance for both Linux and windows • Low hardware requirement

  7. WOL Service in Oxford OUCS Central WOL Server Gateway WebAuth SSO Registration Server Gateway Gateway Gateway HFS Service

  8. WOL user interface

  9. Monitoring Service • Motivation • Evaluate adoption of WoL • Better monitoring, better control • Make better use of existing infrastructure • Share exactly same gateway as WoL • Can be turned on easily on gateway • Integration with SSO • Attributes based authorization • Privacy concern

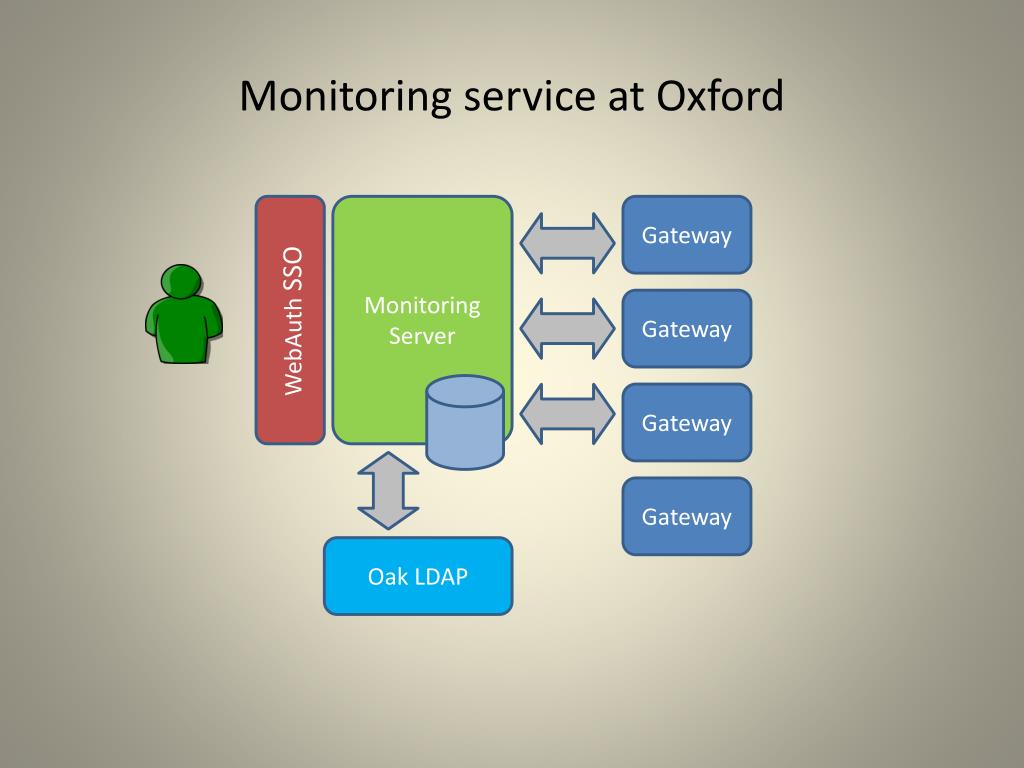

  10. Monitoring service at Oxford WebAuth SSO Monitoring Server Gateway Gateway Gateway Gateway Oak LDAP

  11. Real-time subnet status chart

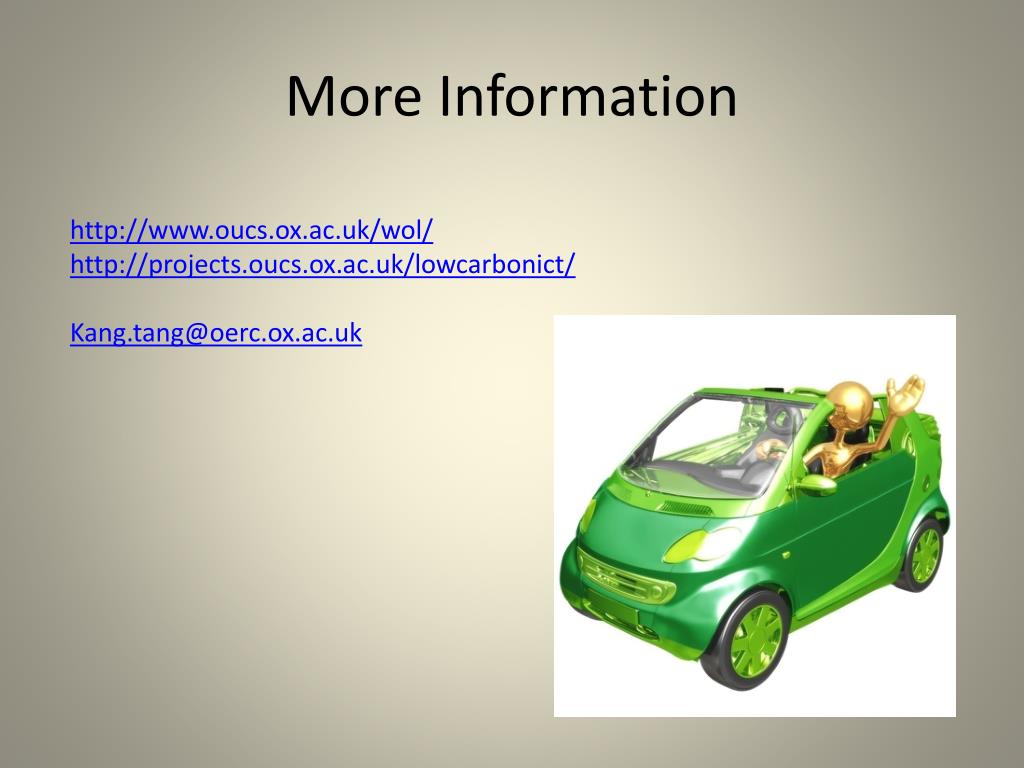

  12. More Information http://www.oucs.ox.ac.uk/wol/ http://projects.oucs.ox.ac.uk/lowcarbonict/ Kang.tang@oerc.ox.ac.uk
