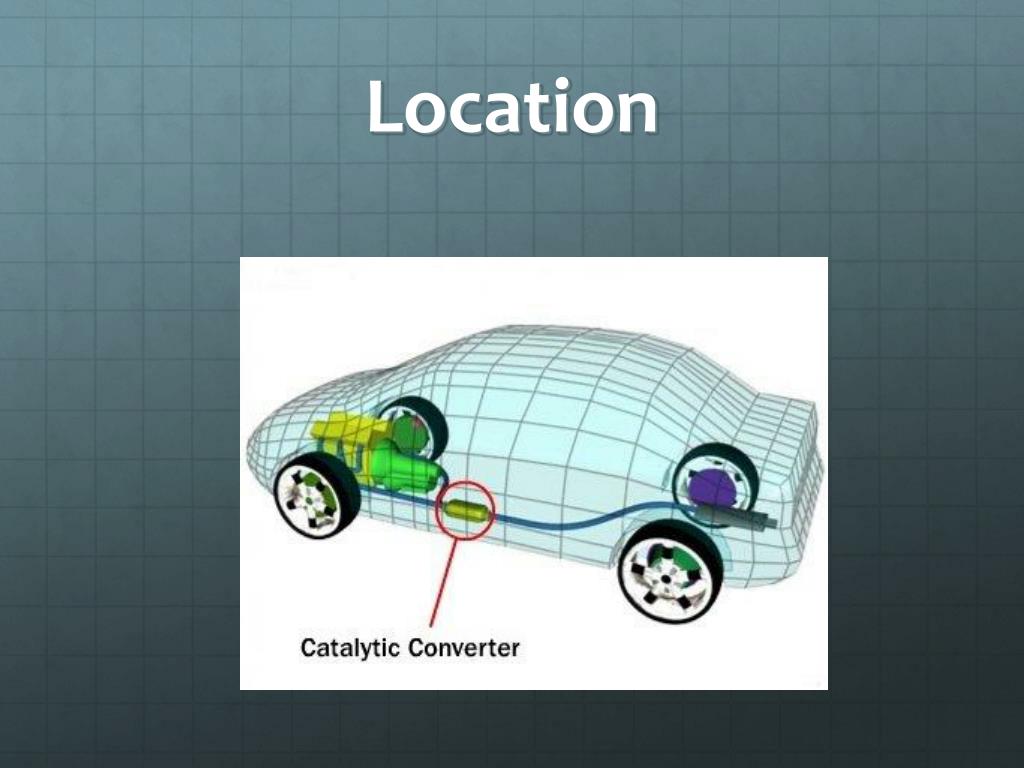

Catalytic Converter. Donga Ravi. Location. Uses of a Catalytic Converter. A catalytic converter is a device used to reduce the toxicity of emissions from an internal combustion engine . Catalytic converters are most commonly used in motor vehicle exhaust systems.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.

Download Presentation

Catalytic Converter

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript

Catalytic converter

Catalytic Converter

Donga Ravi



Uses of a catalytic converter

Uses of a Catalytic Converter

  • A catalytic converter is a device used to reduce the toxicity of emissions from an internal combustion engine.

  • Catalytic converters are most commonly used in motor vehicleexhaust systems.

  • Catalytic converters are also used on generator sets, forklifts, mining equipment, trucks, buses, trains, and other engine-equipped machines.

  • A catalytic converter provides an environment for a chemical reaction wherein toxic combustion by-products are converted to less-toxic substances.

Brief history of the catalytic converter

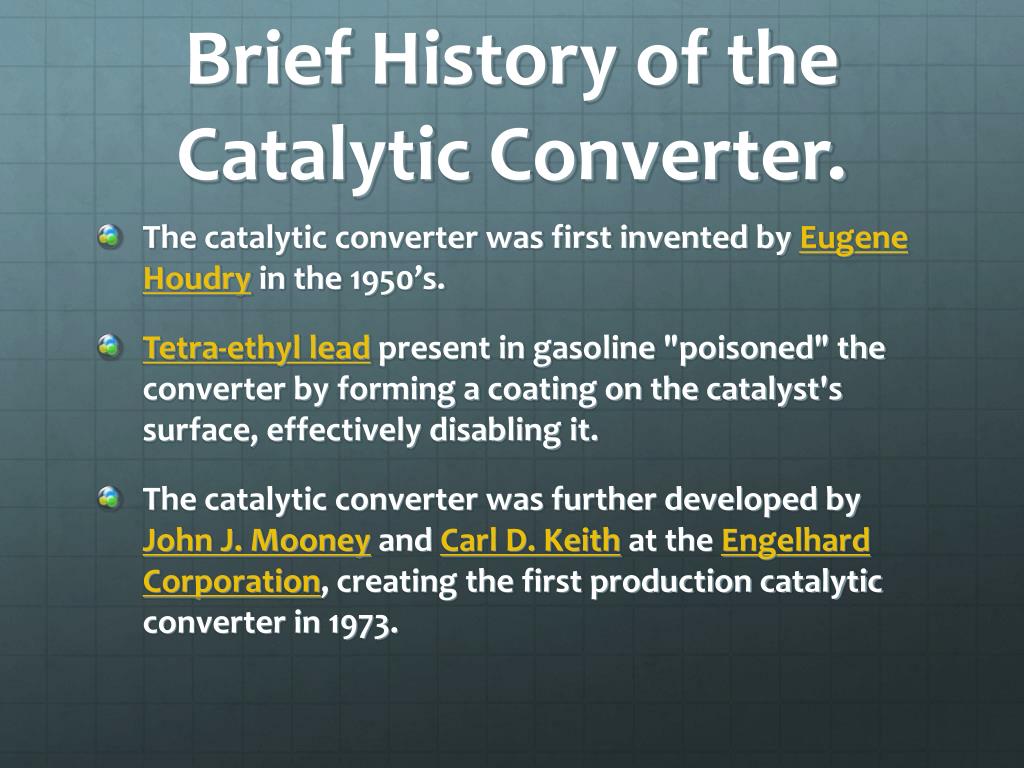

Brief History of the Catalytic Converter.

  • The catalytic converter was first invented by Eugene Houdry in the 1950’s.

  • Tetra-ethyl lead present in gasoline "poisoned" the converter by forming a coating on the catalyst's surface, effectively disabling it.

  • The catalytic converter was further developed by John J. Mooney and Carl D. Keith at the Engelhard Corporation, creating the first production catalytic converter in 1973.

Construction of a catalytic converter

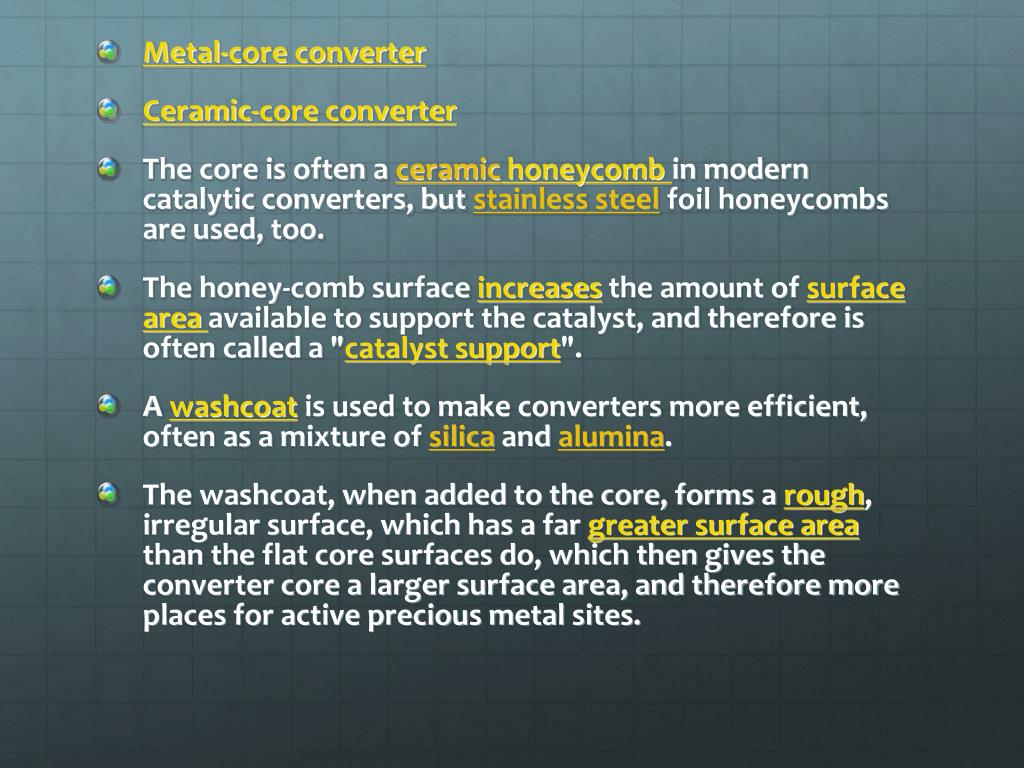

Construction of a Catalytic Converter

Catalytic converter

  • Metal-core converter

  • Ceramic-core converter

  • The core is often a ceramic honeycomb in modern catalytic converters, but stainless steel foil honeycombs are used, too.

  • The honey-comb surface increases the amount of surface area available to support the catalyst, and therefore is often called a "catalyst support".

  • A washcoat is used to make converters more efficient, often as a mixture of silica and alumina.

  • The washcoat, when added to the core, forms a rough, irregular surface, which has a far greater surface area than the flat core surfaces do, which then gives the converter core a larger surface area, and therefore more places for active precious metal sites.

Catalytic converter

  • The catalyst is added to the washcoat (in suspension) before being applied to the core.

  • Platinum is the most active catalyst and is widely used.

  • Palladium and rhodium are two other precious metals used.

  • Platinum and rhodium are used as a reduction catalyst .

  • Platinum and palladium are used as an oxidization catalyst.

  • Cerium, iron, manganese and nickel are also used.

Types of catalytic converters

Types of Catalytic Converters.

Two way catalytic converter

Two Way Catalytic Converter

  • A two-way catalytic converter has two simultaneous tasks.

  • Oxidation of carbon monoxide to carbon dioxide: 2CO + O2 → 2CO2

  • Oxidation of unburnt hydrocarbons (unburnt and partially-burnt fuel) to carbon dioxide and water: CxH(2x+2) + [(3x+1)/2] O2 → xCO2 + (x+1) H2O (a combustion reaction)

  • Unable to control NOx gases.

Three way catalytic converter

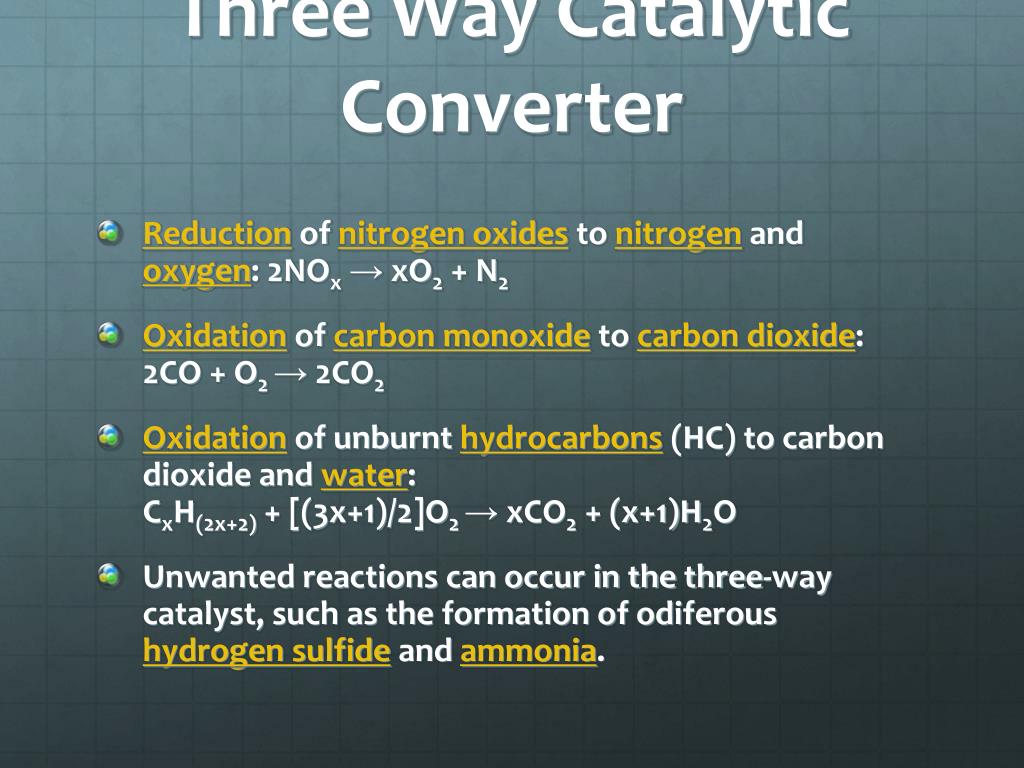

Three Way Catalytic Converter

  • Reduction of nitrogen oxides to nitrogen and oxygen: 2NOx → xO2 + N2

  • Oxidation of carbon monoxide to carbon dioxide: 2CO + O2 → 2CO2

  • Oxidation of unburnt hydrocarbons (HC) to carbon dioxide and water: CxH(2x+2) + [(3x+1)/2]O2 → xCO2 + (x+1)H2O

  • Unwanted reactions can occur in the three-way catalyst, such as the formation of odiferous hydrogen sulfide and ammonia.

Damage to catalytic converters

Damage to Catalytic Converters

  • Catalyst poisoning occurs when the catalytic converter is exposed to exhaust containing substances that coat the working surfaces, encapsulating the catalyst so that it cannot contact and treat the exhaust.

  • The most notable contaminant is lead .

  • Any condition that causes abnormally high levels of unburned hydrocarbons — raw or partially-burnt fuel — to reach the converter will tend to significantly elevate its temperature, bringing the risk of a meltdown of the substrate and resultant catalytic deactivation and severe exhaust restriction .

Negative aspects of catalytic converters

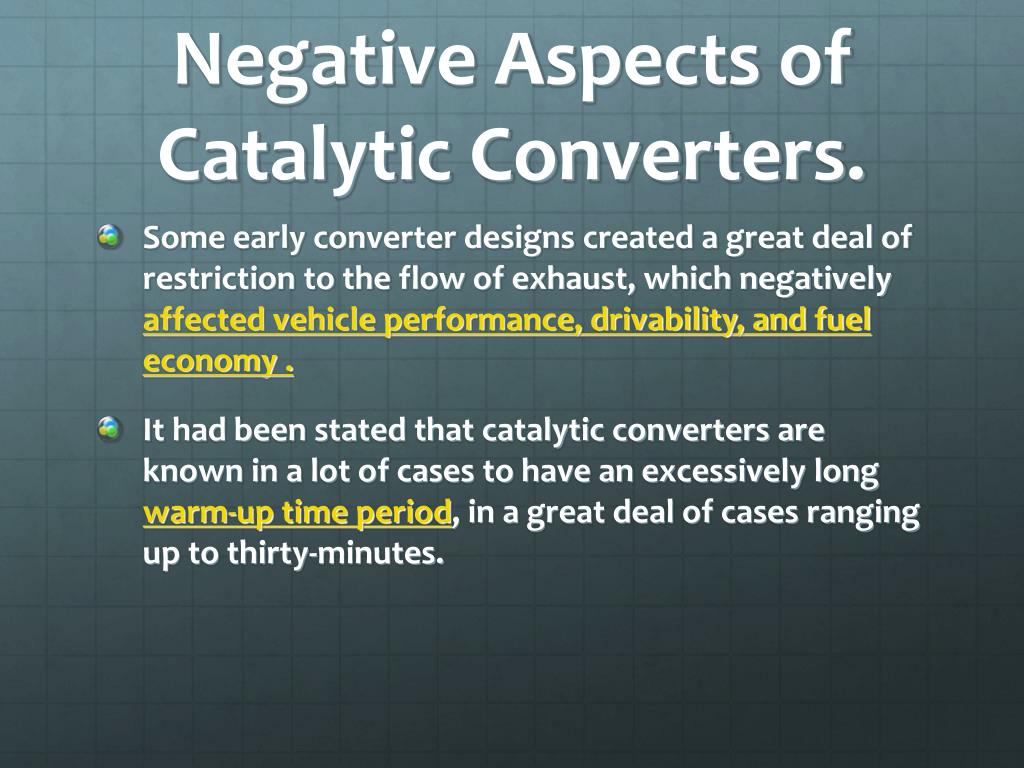

Negative Aspects of Catalytic Converters.

  • Some early converter designs created a great deal of restriction to the flow of exhaust, which negatively affected vehicle performance, drivability, and fuel economy .

  • It had been stated that catalytic converters are known in a lot of cases to have an excessively long warm-up time period, in a great deal of cases ranging up to thirty-minutes.

The environmental impact of catalytic converters

The Environmental Impact of Catalytic Converters

  • Reduces fuel economy of cars resulting in a greater use of fossil fuels.

  • Although catalytic converters are effective at removing hydrocarbons and other harmful emissions, most of exhaust gas leaving the engine through a catalytic converter is carbon dioxide (CO2), which is responsible for the green house effect.

  • Catalytic converter production requires palladium and/or platinum; part of the world supply of these precious metals is produced near the Russian city of Norilsk, where the industry (among others) has caused Norilsk to be added to Time Magazine's list of most polluted places.
