Advance java technology

Advance Java Technology

Java’s Role::MVC Architecture :: Swing

Prof.Chintan Dave


Advance java technology

Who is the Founder of Java???????


Advance java technology

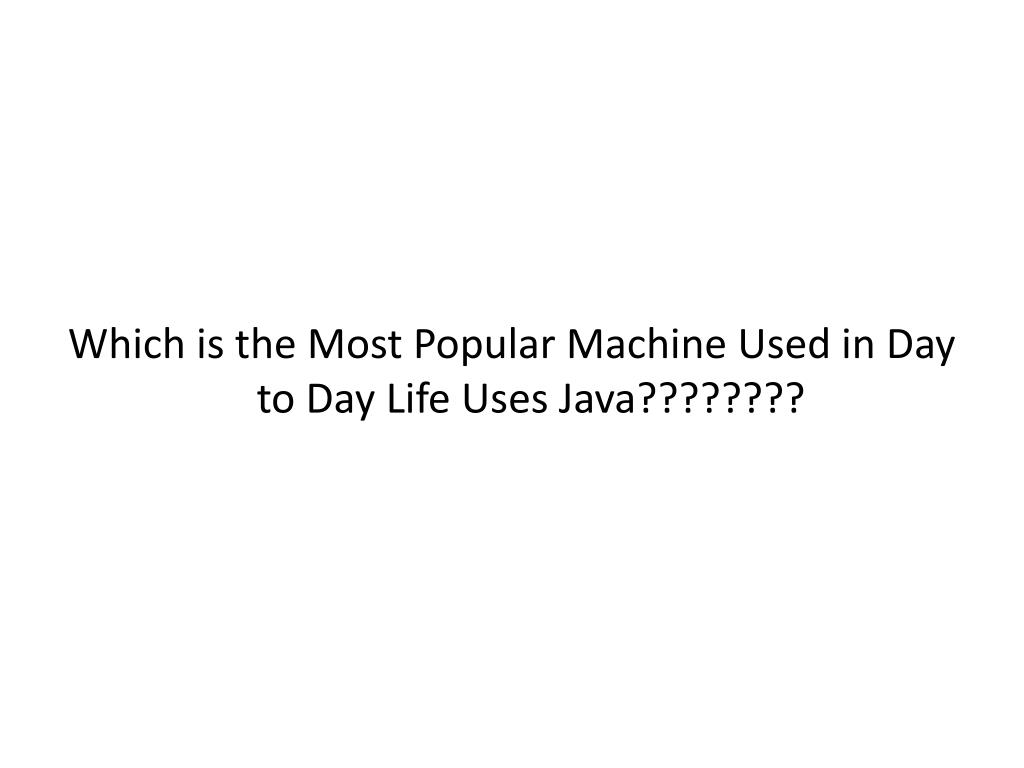

Which is the Most Popular Machine Used in Day to Day Life Uses Java????????


Advance java technology

Which is the Most Popular OS Uses Java as Prime Framework ???


Advance java technology

Most Popular Companies uses Java as Prime Technology…

Google

Yahoo

Microsoft

LinkedIn……………..endless list


Usage wise programming languages technologies

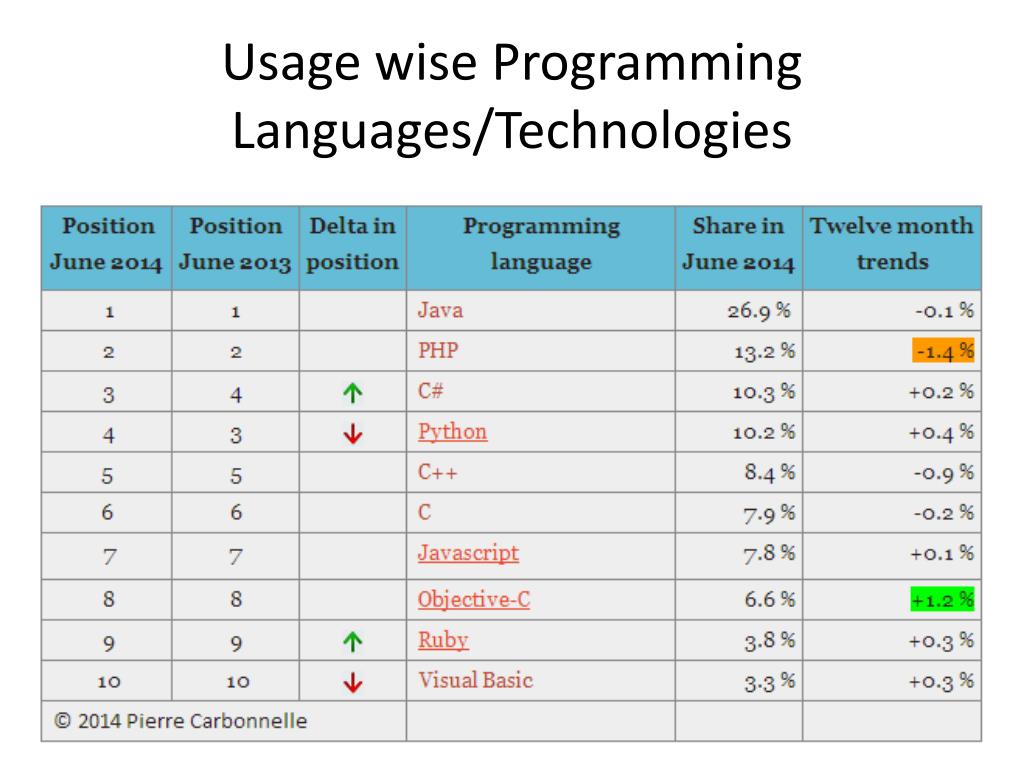

Usage wise Programming Languages/Technologies

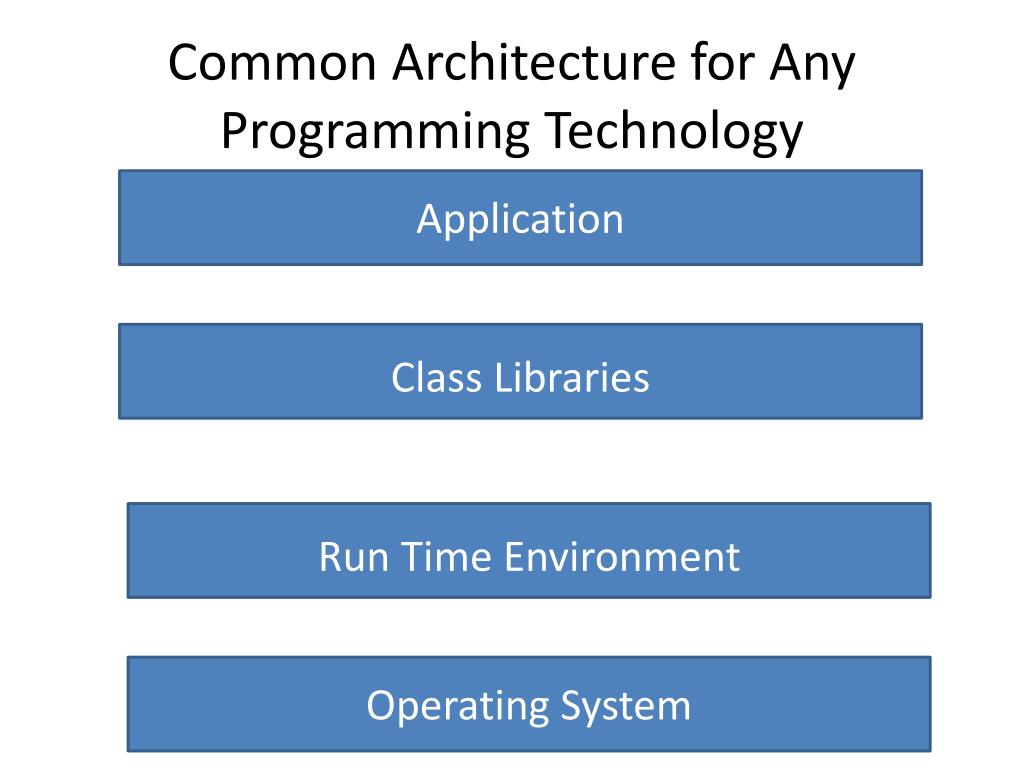

Common architecture for any programming technology

Common Architecture for Any Programming Technology

Application

Class Libraries

Run Time Environment

Operating System


Java architecture

Java Architecture

Application-Windows ,Web , Mobile …….

Class Libraries-Packages

Run Time Environment-JVM

Operating System- Windows,Mac,Solaris…

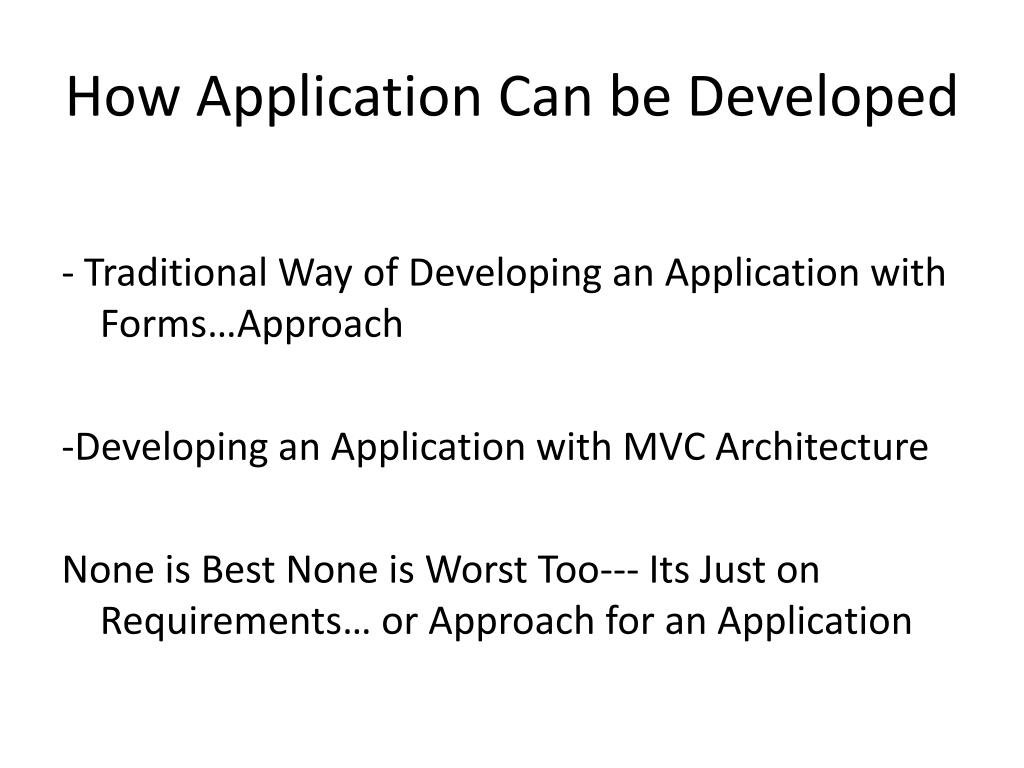

How application can be developed

How Application Can be Developed

- Traditional Way of Developing an Application with Forms…Approach

-Developing an Application with MVC Architecture

None is Best None is Worst Too--- Its Just on Requirements… or Approach for an Application

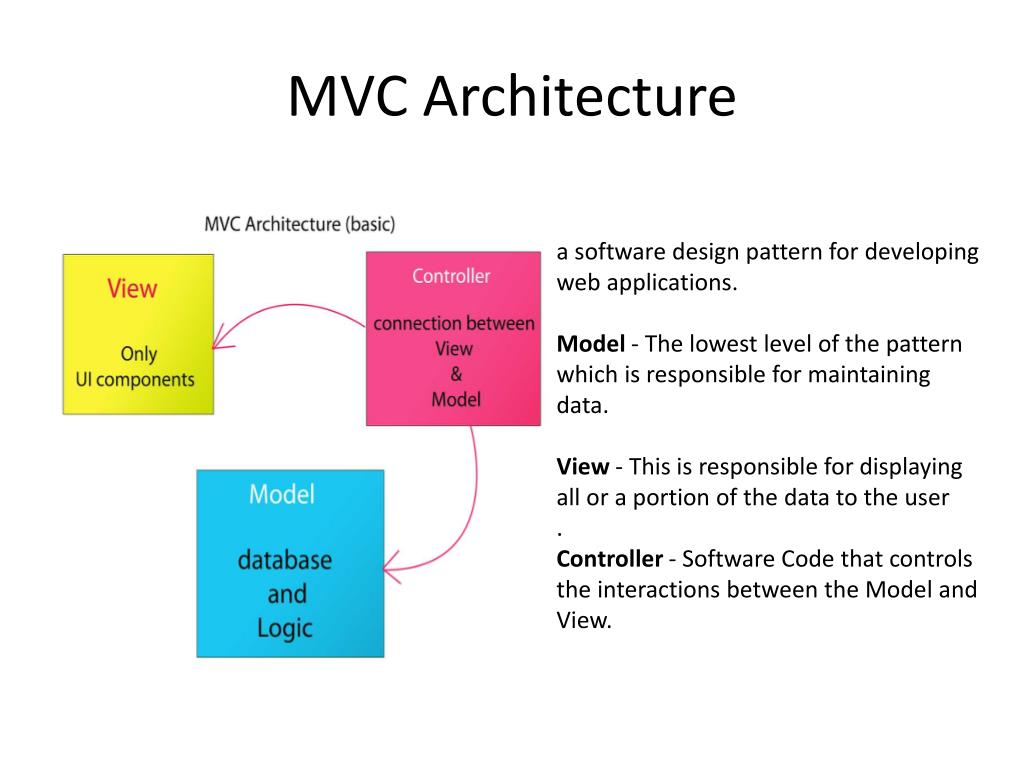

Mvc architecture

MVC Architecture

a software design pattern for developing web applications.

Model - The lowest level of the pattern which is responsible for maintaining data.

View - This is responsible for displaying all or a portion of the data to the user

.

Controller - Software Code that controls the interactions between the Model and View.


What is swing

What is Swing????

It is a SET of Programs which provides facility to Create GUI.

It is a Widget Toolkit

It is Part of JFC(Java Foundation Classes

It is Useful for Creating Rich Set of Desktop Application

IT MEANS it’s a PURE JAVA


What you need to run java swing

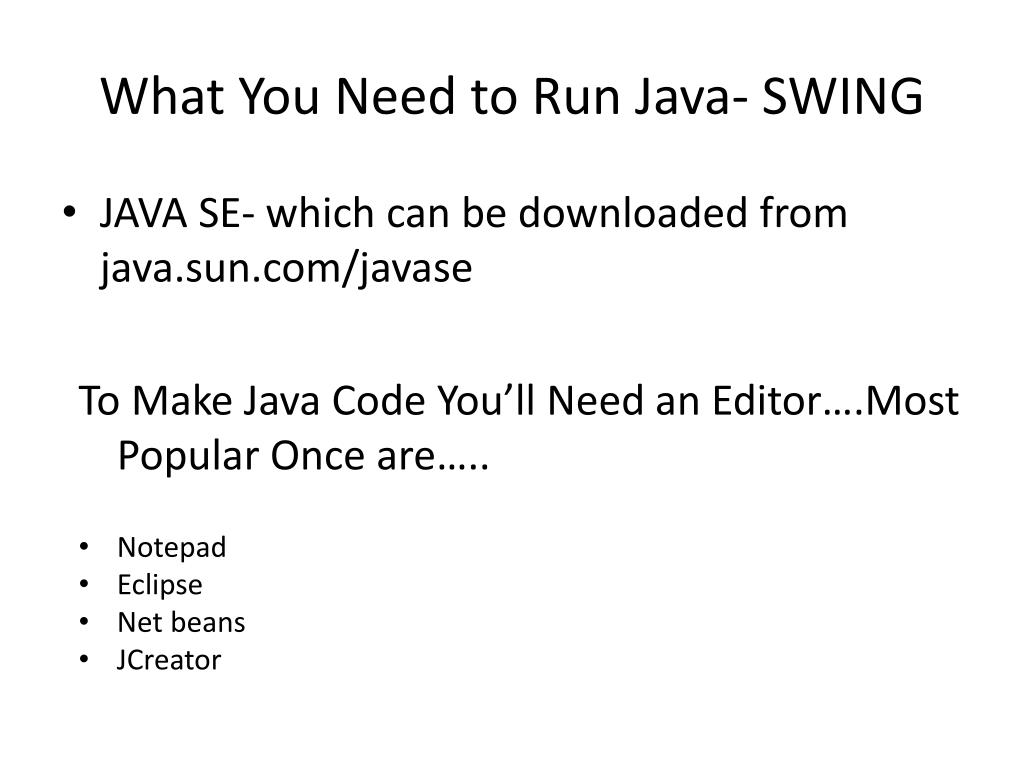

What You Need to Run Java- SWING

  • JAVA SE- which can be downloaded from java.sun.com/javase

  • To Make Java Code You’ll Need an Editor….Most Popular Once are…..

  • Notepad

  • Eclipse

  • Net beans

  • JCreator


Pluggable look n fell

Pluggable Look n Fell

Pluggable L&F (PLAF) is basically a "skin" system for Swing components - you can change the style of your application by changing its LAF

Allows an Application Development to Highly Interactive GUI Component and Effects with ready made set of APIs

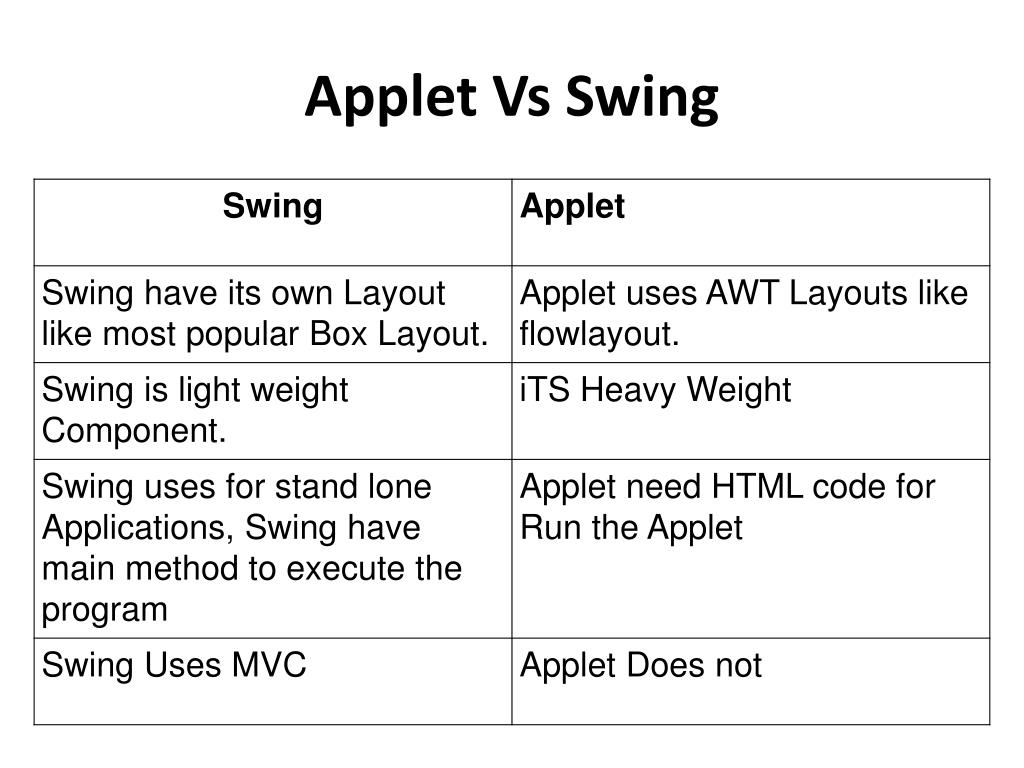

Applet vs swing

Applet Vs Swing


Swing features

Swing Features

  • Lightweight - Swing component are independent of native Operating System's API as Swing API controls are rendered mostly using pure JAVA code instead of underlying operating system calls.

  • Rich controls - Swing provides a rich set of advanced controls like Tree, Tabbed Pane, slider, color picker, table controls

  • Highly Customizable - Swing controls can be customized in very easy way as visual appearance is independent of internal representation.


To use swing components

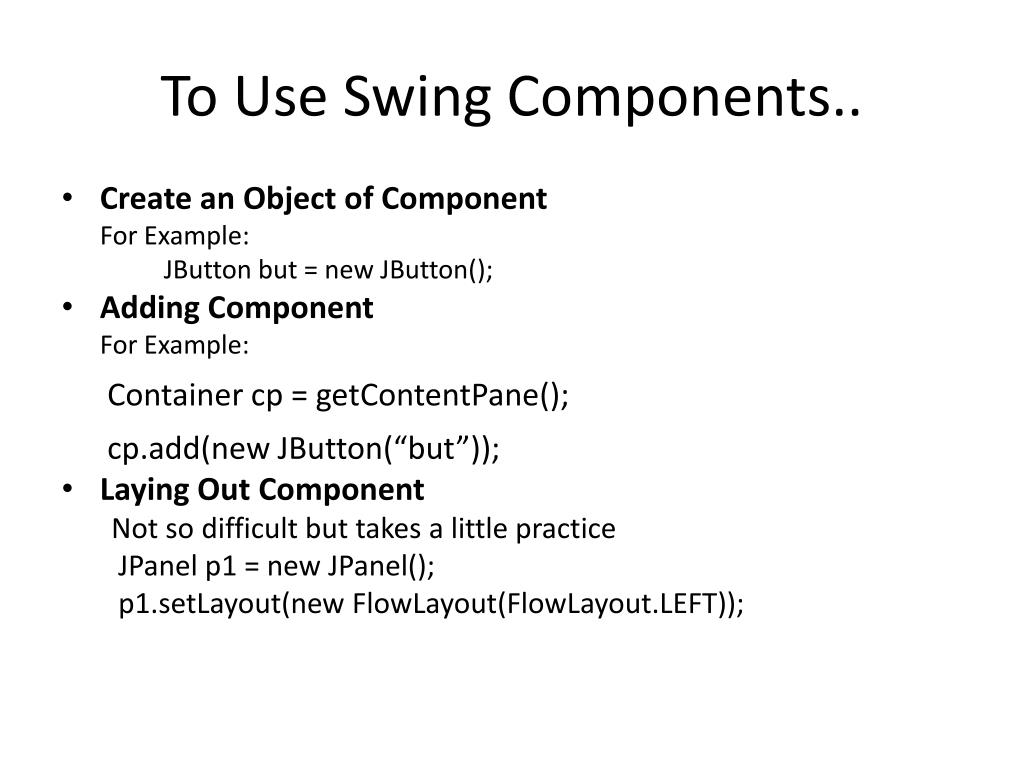

To Use Swing Components..

  • Create an Object of Component

    For Example:

    JButton but = new JButton();

  • Adding Component

    For Example:

    Container cp = getContentPane();

    cp.add(new JButton(“but”));

  • Laying Out Component

    Not so difficult but takes a little practice

    JPanel p1 = new JPanel();

    p1.setLayout(new FlowLayout(FlowLayout.LEFT));


Simple swing example

Simple Swing Example

importjavax.swing.*;

publicclass Simple {

JFrame f;

Simple()

{

f=newJFrame();

JButton b=newJButton("click");

b.setBounds(130,100,100, 40);

f.add(b);

f.setSize(400,500);

f.setLayout(null);

f.setVisible(true);

}

publicstaticvoid main(String[] args)

{

new Simple();

}  }


Jlabel

JLabel

The class JLabel can display either text, an image,

or both

Example code:

import javax.swing.*;

class hello {

public static void main(String[] args){

JFrame f = new JFrame(“title”);

JPanel p = new JPanel();

JLabel b = new JLabel(“Demo Label”);

p.add(b);// add labelto panel

f.setContentPane(p); // add panel to frame

f.show();

}

}


Jbutton

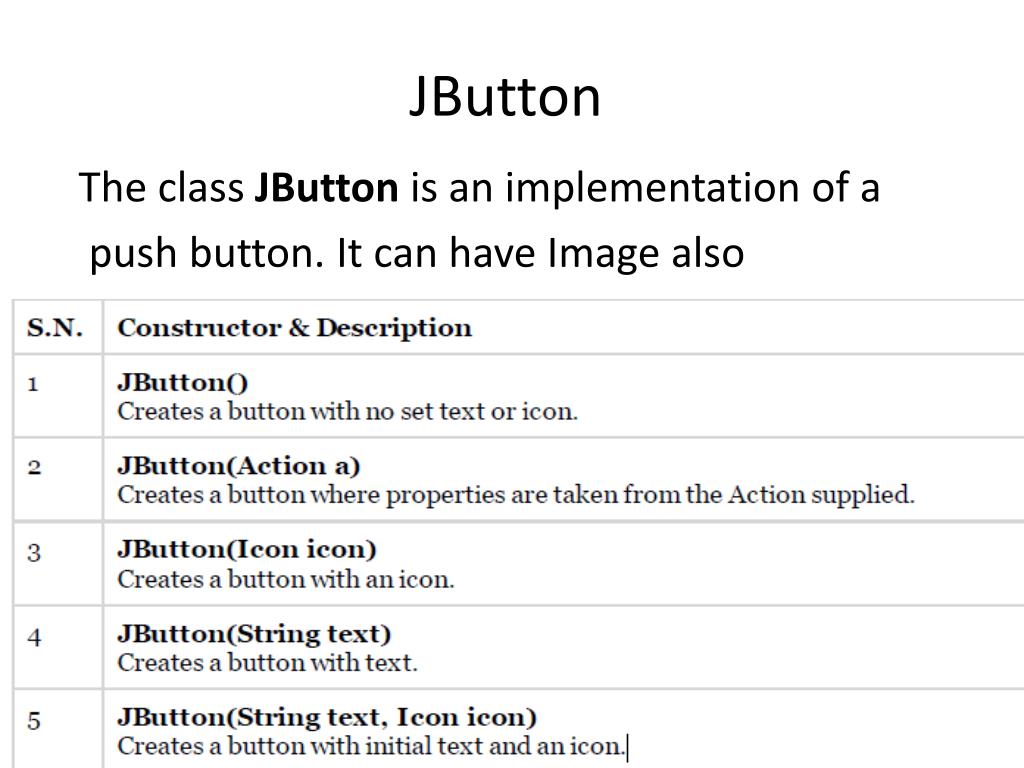

JButton

The class JButton is an implementation of a

push button. It can have Image also


Code jbutton

Code - JButton

f.setSize(400,500);

f.setLayout(null);

f.setVisible(true);

f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

}

public static void main(String[] args)

{

new SimpleButton();}

}

import javax.swing.*;

public class SimpleButton {

JFrame f;

SimpleButton()

{

f=new JFrame("Simple Button Example");

ImageIconindia = new ImageIcon("india.jpg");

JButtonjb = new JButton("Our Flag",india);

JButton b=new JButton("click");

f.add(b);

f.add(jb);

b.setBounds(130,100,100, 40);

jb.setBounds(130,200,500,200);


Jtextfield

JTextfield

The class JTextField is a component which allows the editing of a single line of text.

Common Constructors:-

  • JTextField(String text):-

    Constructs a new TextField initialized with the specified text.


Code jtextfield

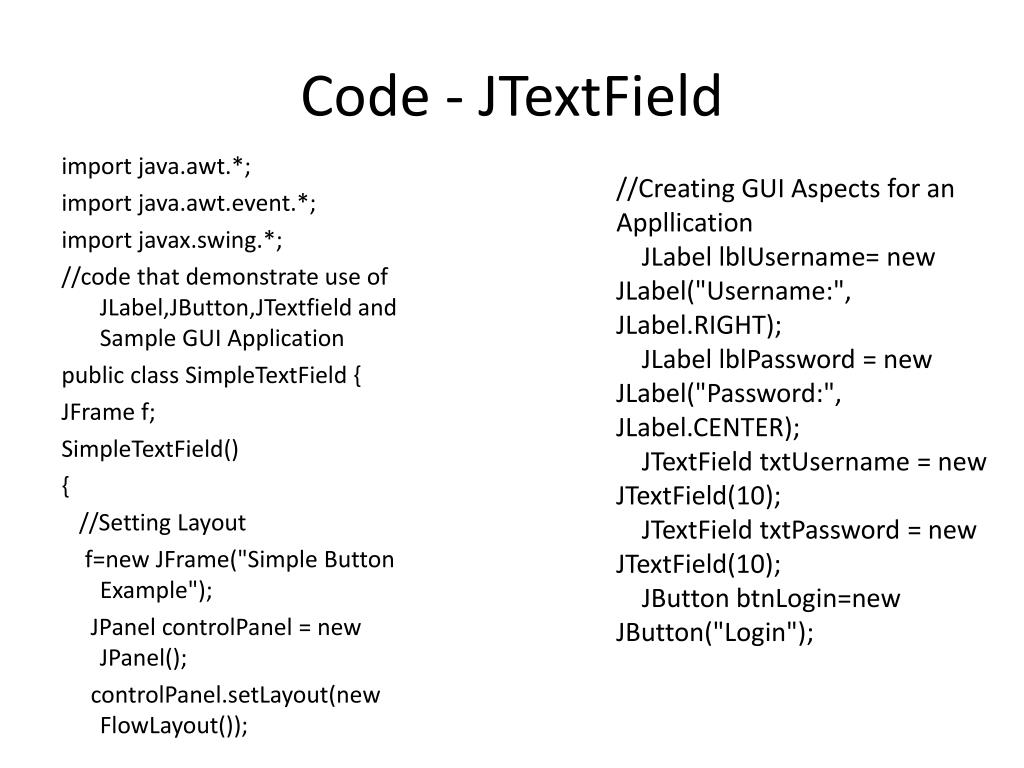

Code - JTextField

//Creating GUI Aspects for an Appllication

JLabellblUsername= new JLabel("Username:", JLabel.RIGHT);

JLabellblPassword = new JLabel("Password:", JLabel.CENTER);

JTextFieldtxtUsername = new JTextField(10);

JTextFieldtxtPassword = new JTextField(10);

JButtonbtnLogin=new JButton("Login");

import java.awt.*;

import java.awt.event.*;

import javax.swing.*;

//code that demonstrate use of JLabel,JButton,JTextfield and Sample GUI Application

public class SimpleTextField {

JFrame f;

SimpleTextField()

{

//Setting Layout

f=new JFrame("Simple Button Example");

JPanelcontrolPanel = new JPanel();

controlPanel.setLayout(new FlowLayout());


Code jtextfield continue

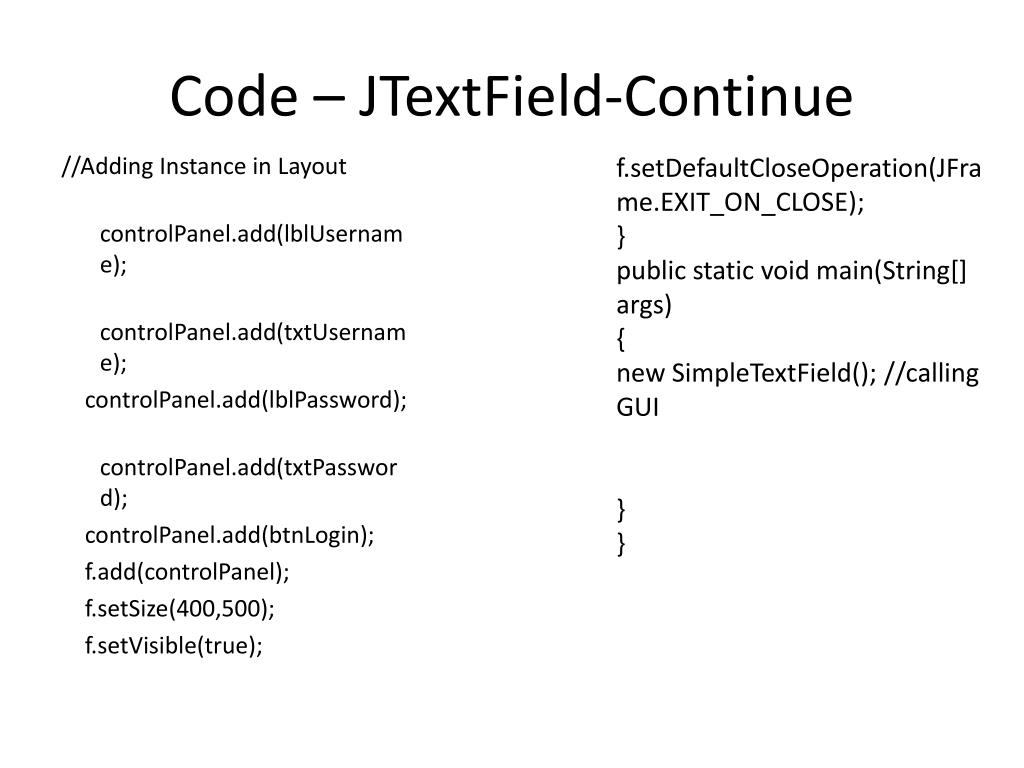

Code – JTextField-Continue

f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

}

public static void main(String[] args)

{

new SimpleTextField(); //calling GUI

}

}

//Adding Instance in Layout

controlPanel.add(lblUsername);

controlPanel.add(txtUsername);

controlPanel.add(lblPassword);

controlPanel.add(txtPassword);

controlPanel.add(btnLogin);

f.add(controlPanel);

f.setSize(400,500);

f.setVisible(true);

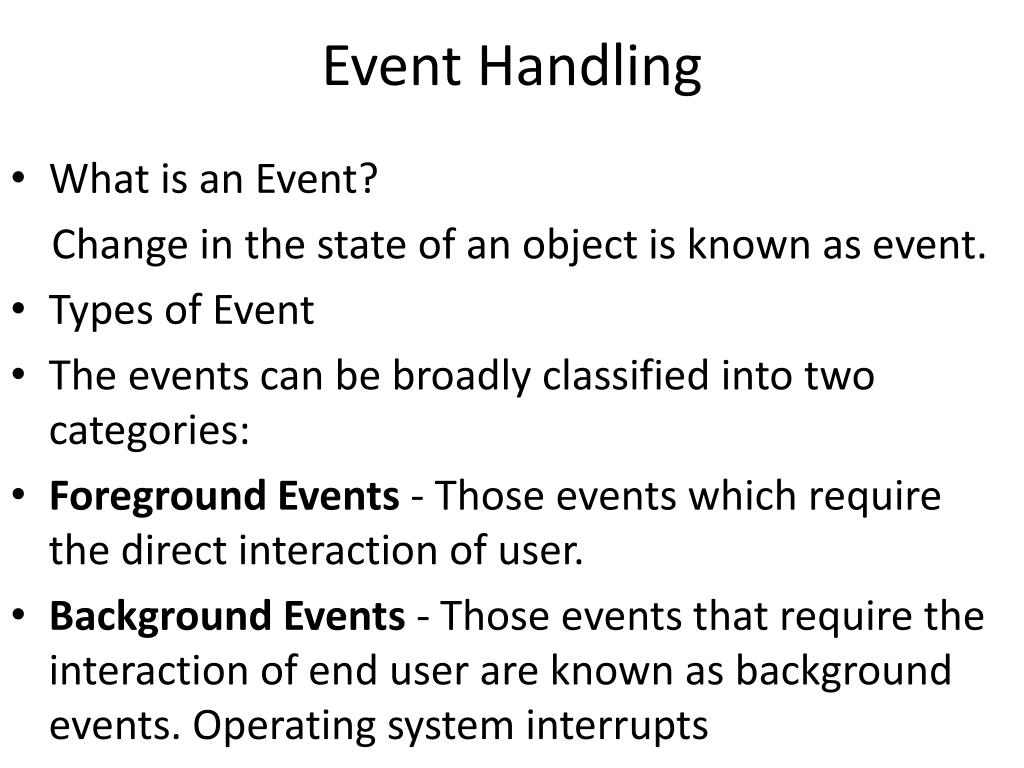

Event handling

Event Handling

  • What is an Event?

    Change in the state of an object is known as event.

  • Types of Event

  • The events can be broadly classified into two categories:

  • Foreground Events - Those events which require the direct interaction of user.

  • Background Events - Those events that require the interaction of end user are known as background events. Operating system interrupts


Code for simple even handling

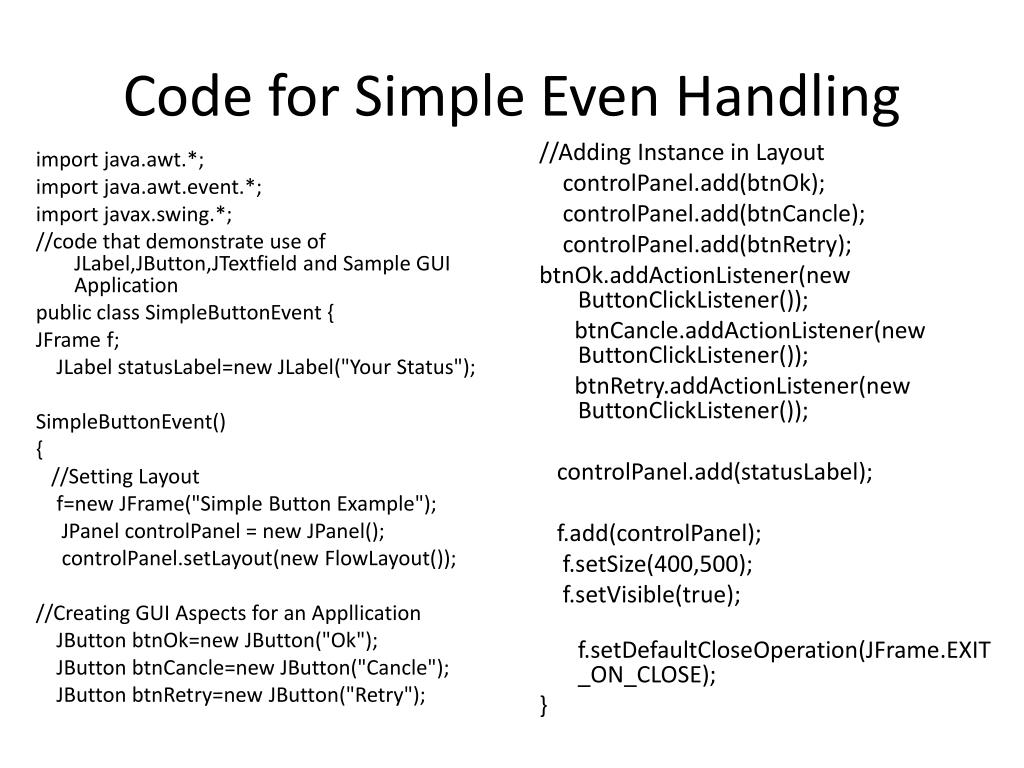

Code for Simple Even Handling

  • //Adding Instance in Layout

  • controlPanel.add(btnOk);

  • controlPanel.add(btnCancle);

  • controlPanel.add(btnRetry);

  • btnOk.addActionListener(new ButtonClickListener());

  • btnCancle.addActionListener(new ButtonClickListener());

  • btnRetry.addActionListener(new ButtonClickListener());

  • controlPanel.add(statusLabel);

  • f.add(controlPanel);

  • f.setSize(400,500);

  • f.setVisible(true);

  • f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

  • }

import java.awt.*;

import java.awt.event.*;

import javax.swing.*;

//code that demonstrate use of JLabel,JButton,JTextfield and Sample GUI Application

public class SimpleButtonEvent {

JFrame f;

JLabelstatusLabel=new JLabel("Your Status");

SimpleButtonEvent()

{

//Setting Layout

f=new JFrame("Simple Button Example");

JPanelcontrolPanel = new JPanel();

controlPanel.setLayout(new FlowLayout());

//Creating GUI Aspects for an Appllication

JButtonbtnOk=new JButton("Ok");

JButtonbtnCancle=new JButton("Cancle");

JButtonbtnRetry=new JButton("Retry");


Code for simple even handling1

Code for Simple Even Handling

public static void main(String[] args)

{

new SimpleButtonEvent(); //calling GUI

}

}

private class ButtonClickListener implements ActionListener{

public void actionPerformed(ActionEvent e) {

String command = e.getActionCommand();

if( command.equals("Ok")) {

statusLabel.setText("Ok Button clicked.");

}

else if( command.equals("Cancle") ) {

statusLabel.setText("Cancle Button clicked.");

}

else {

statusLabel.setText("Retry Button clicked.");

}

}

}


Jcheckbox

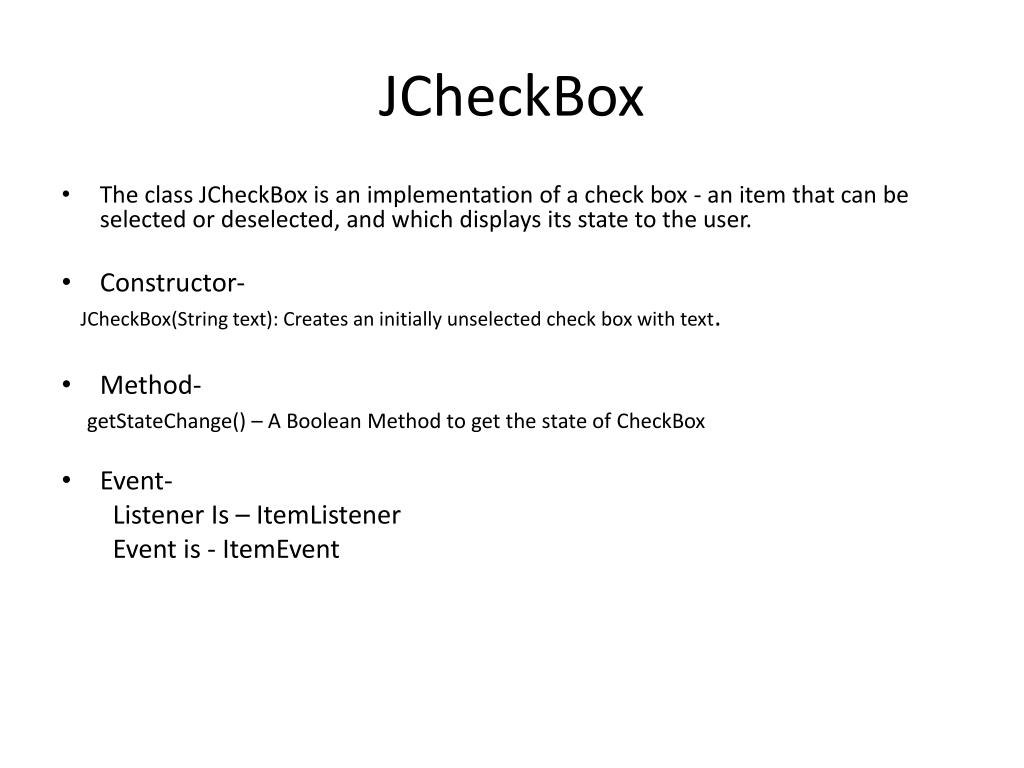

JCheckBox

  • The class JCheckBox is an implementation of a check box - an item that can be selected or deselected, and which displays its state to the user.

  • Constructor-

    JCheckBox(String text): Creates an initially unselected check box with text.

  • Method-

    getStateChange() – A Boolean Method to get the state of CheckBox

  • Event-

    Listener Is – ItemListener

    Event is - ItemEvent


Code for simple checkbox

Code for Simple Checkbox

  • chkApple.addItemListener(new ItemListener()

  • {

  • public void itemStateChanged(ItemEvent e)

  • {

  • f.setTitle("Apple Checkbox: " + (e.getStateChange()==1?"checked":"unchecked"));

  • }

  • });

  • f.add(controlPanel);

  • f.setSize(400,500);

  • f.setVisible(true);

  • f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

  • }

  • public static void main(String[] args)

  • {

  • new SimpleCheckBox(); //calling GUI

  • }

  • }

import java.awt.*;

import java.awt.event.*;

import javax.swing.*;

//code that demonstrate use of JLabel,JButton,JTextfield and Sample GUI Application

public class SimpleCheckBox {

JFrame f;

SimpleCheckBox()

{

//Setting Layout

f=new JFrame("Simple CheckBox Example");

JPanelcontrolPanel = new JPanel();

controlPanel.setLayout(new FlowLayout());

//Creating GUI Aspects for an Appllication

JCheckBoxchkApple = new JCheckBox("Apple");

JCheckBoxchkMango = new JCheckBox("Mango");

JCheckBoxchkBanana = new JCheckBox("Banana");

//Adding Instance in Layout

controlPanel.add(chkApple);

controlPanel.add(chkMango);

controlPanel.add(chkBanana);


Jradiobutton

JRadioButton

  • Same as Checkbox But……Usage…is Different as per GUI’s Needs


Jlist

JList

  • The class JList is a component which displays a list of objects and allows the user to select one or more item

  • Constructor:-

    JList()- Constructs a JList with an empty, read-only, model.

  • Method:-

    addElement(String) – To add an Element in a List

    setSelectionMode()- selection mode for the list


Code for simple list

Code for Simple List

  • chkApple.addItemListener(new ItemListener()

  • {

  • public void itemStateChanged(ItemEvent e)

  • {

  • f.setTitle("Apple Checkbox: " + (e.getStateChange()==1?"checked":"unchecked"));

  • }

  • });

  • f.add(controlPanel);

  • f.setSize(400,500);

  • f.setVisible(true);

  • f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

  • }

  • public static void main(String[] args)

  • {

  • new SimpleCheckBox(); //calling GUI

  • }

  • }

import java.awt.*;

import java.awt.event.*;

import javax.swing.*;

//code that demonstrate use of JLabel,JButton,JTextfield and Sample GUI Application

public class SimpleCheckBox {

JFrame f;

SimpleCheckBox()

{

//Setting Layout

f=new JFrame("Simple CheckBox Example");

JPanelcontrolPanel = new JPanel();

controlPanel.setLayout(new FlowLayout());

//Creating GUI Aspects for an Appllication

JCheckBoxchkApple = new JCheckBox("Apple");

JCheckBoxchkMango = new JCheckBox("Mango");

JCheckBoxchkBanana = new JCheckBox("Banana");

//Adding Instance in Layout

controlPanel.add(chkApple);

controlPanel.add(chkMango);

controlPanel.add(chkBanana);


Jcombobox

JComboBox

  • Same as Jlistbut Usage is Different- Usage is As per GUI NEED


  • Login
