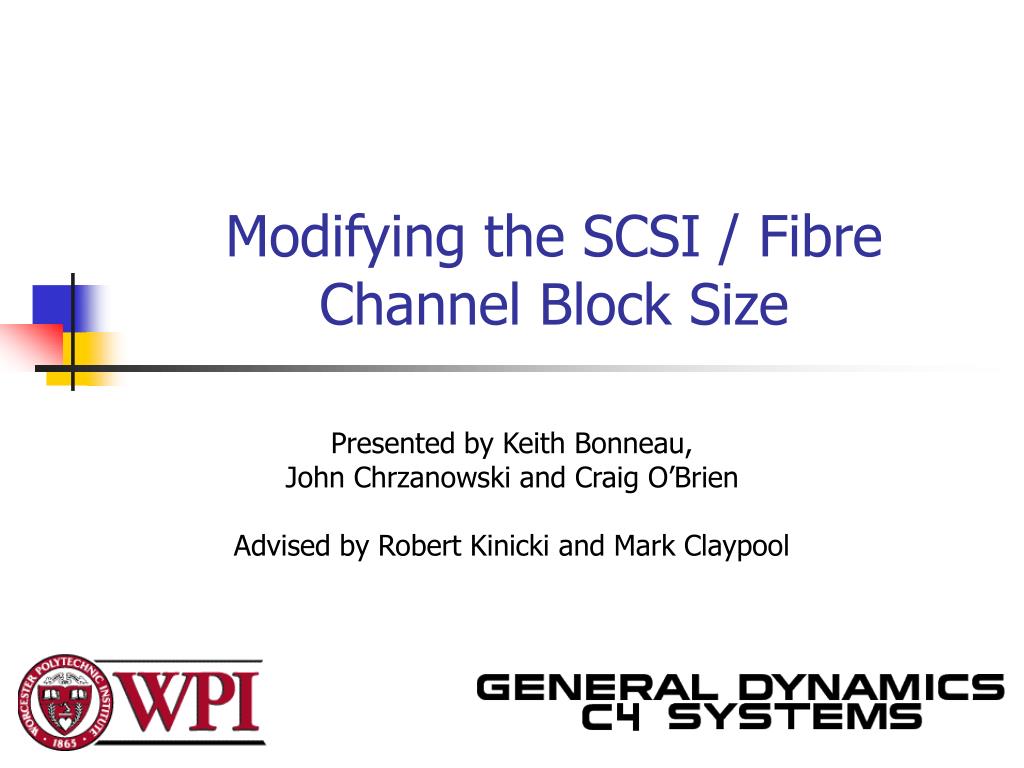

Modifying the SCSI / Fibre Channel Block Size

Presented by Keith Bonneau,

John Chrzanowski and Craig O’Brien

Advised by Robert Kinicki and Mark Claypool

project goals
Project Goals
  • Edit the Fibre Channel frame to utilize 100% of the payload for data transfer.
  • Change the block size of the hard disk to reflect the changes to the frame.
  • Make these changes transparent to the user and the Linux kernel.
  • Why?
storage area network san

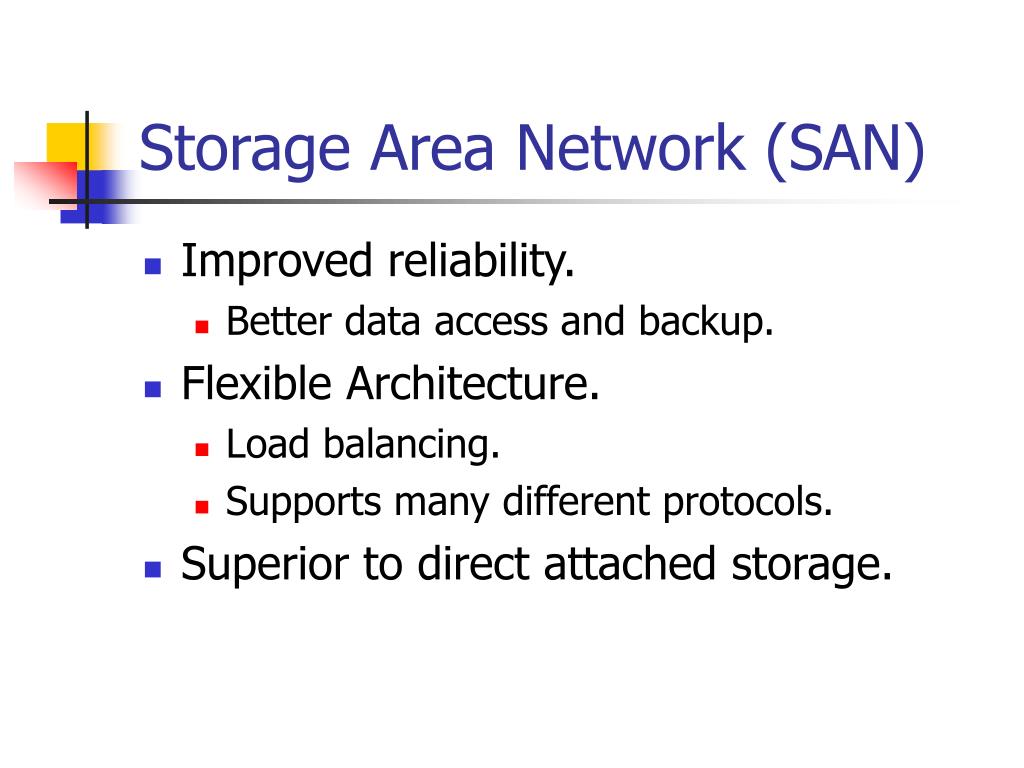

Storage Area Network (SAN)
  • Improved reliability.
    • Better data access and backup.
  • Flexible Architecture.
    • Load balancing.
    • Supports many different protocols.
  • Superior to direct attached storage.
san overview
SAN Overview

The specific configuration of the SAN we used for the project.

fibre channel

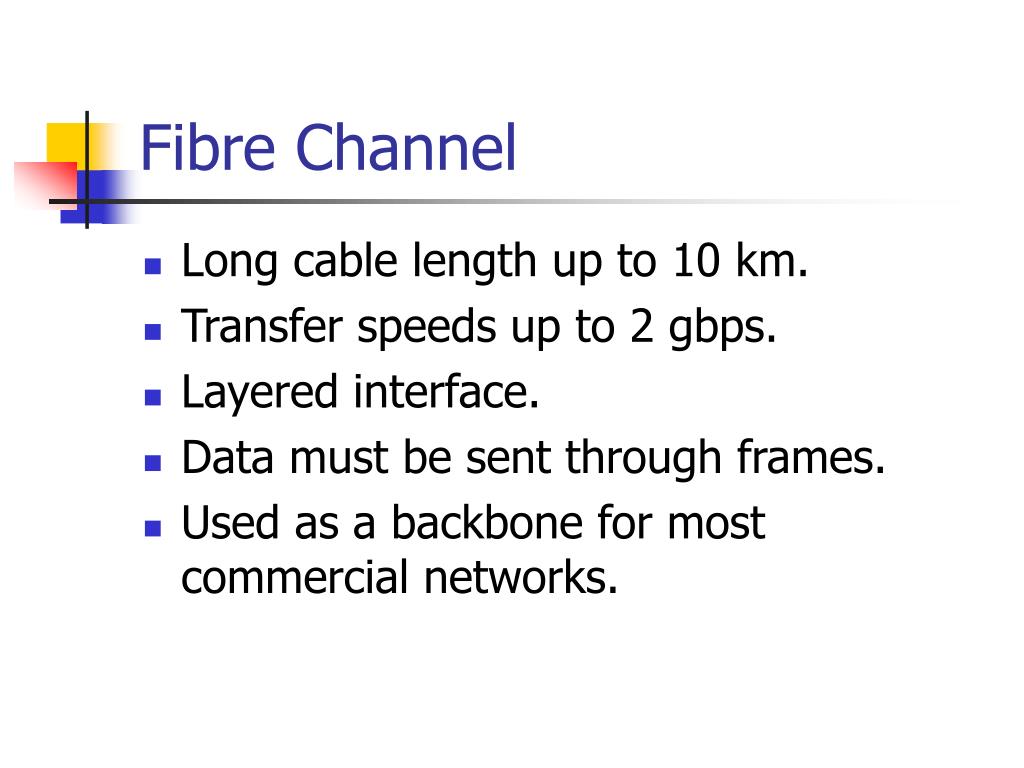

Fibre Channel
  • Long cable length up to 10 km.
  • Transfer speeds up to 2 gbps.
  • Layered interface.
  • Data must be sent through frames.
  • Used as a backbone for most commercial networks.
small computer system interface scsi
Small Computer System Interface (SCSI)
  • Communicates through specific commands.
  • Limited by cable length, and number of devices.
    • 25 meter maximum cable length.
    • 15 devices allowed on the SCSI bus.
  • Interfaces well with Fibre Channel.
methodology

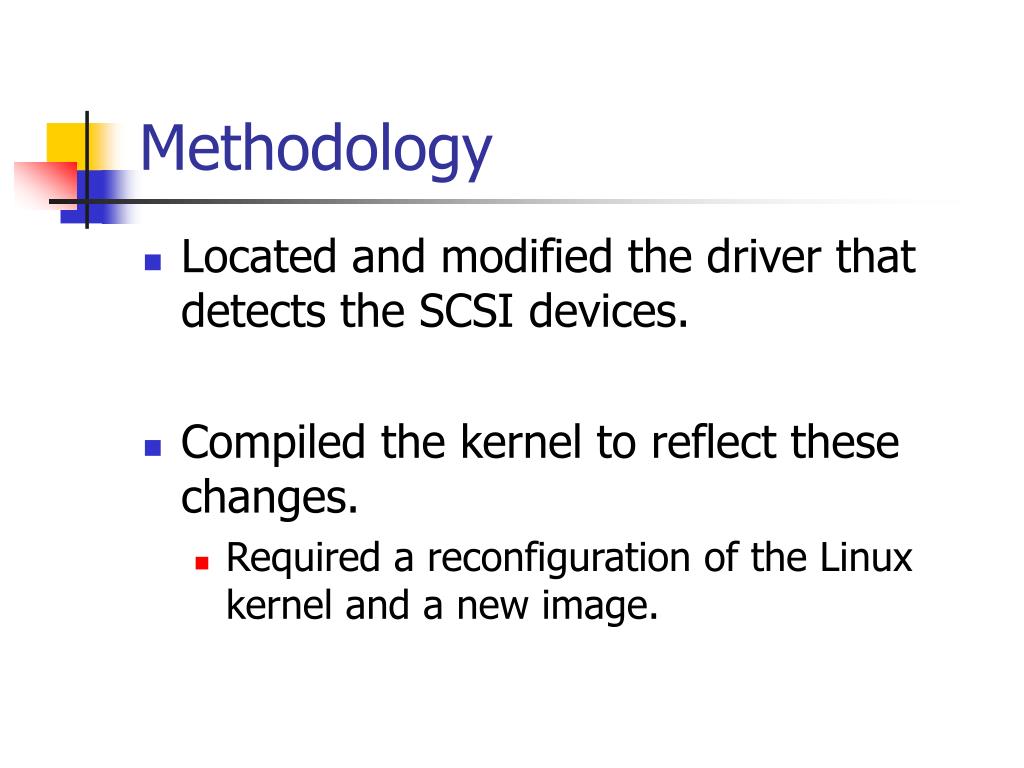

Methodology
  • Located and modified the driver that detects the SCSI devices.
  • Compiled the kernel to reflect these changes.
    • Required a reconfiguration of the Linux kernel and a new image.
methodology1

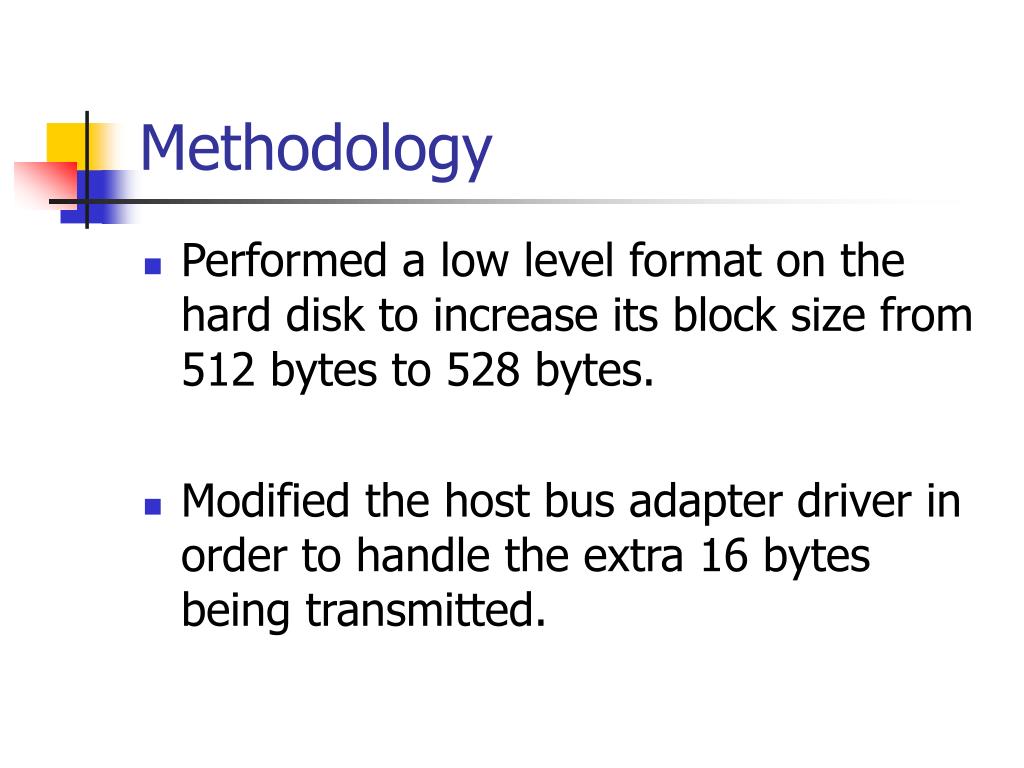

Methodology
  • Performed a low level format on the hard disk to increase its block size from 512 bytes to 528 bytes.
  • Modified the host bus adapter driver in order to handle the extra 16 bytes being transmitted.
results
Results

Figure 1: Writing to the 512 byte disk

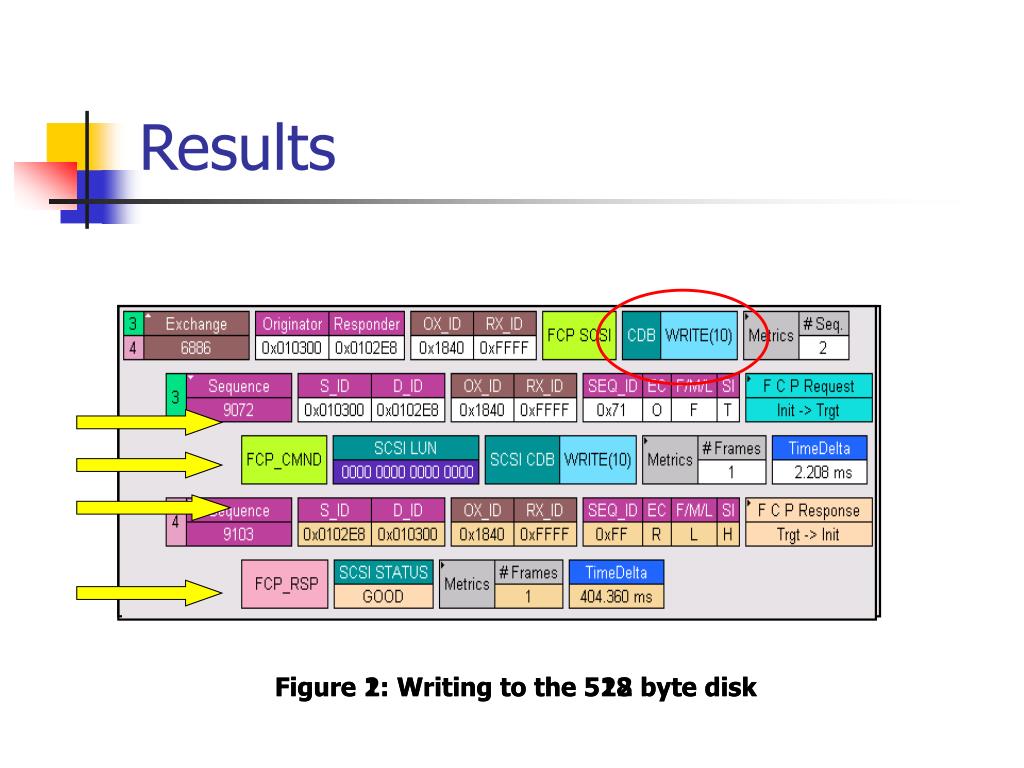

Figure 2: Writing to the 528 byte disk

conclusion
Conclusion
  • The hard disk needs a firmware update from Seagate.
  • Upon completion, the resulting data transfer would be more secure.
  • Relatively no added time or size, making this ideal for streaming media.
future recommendations

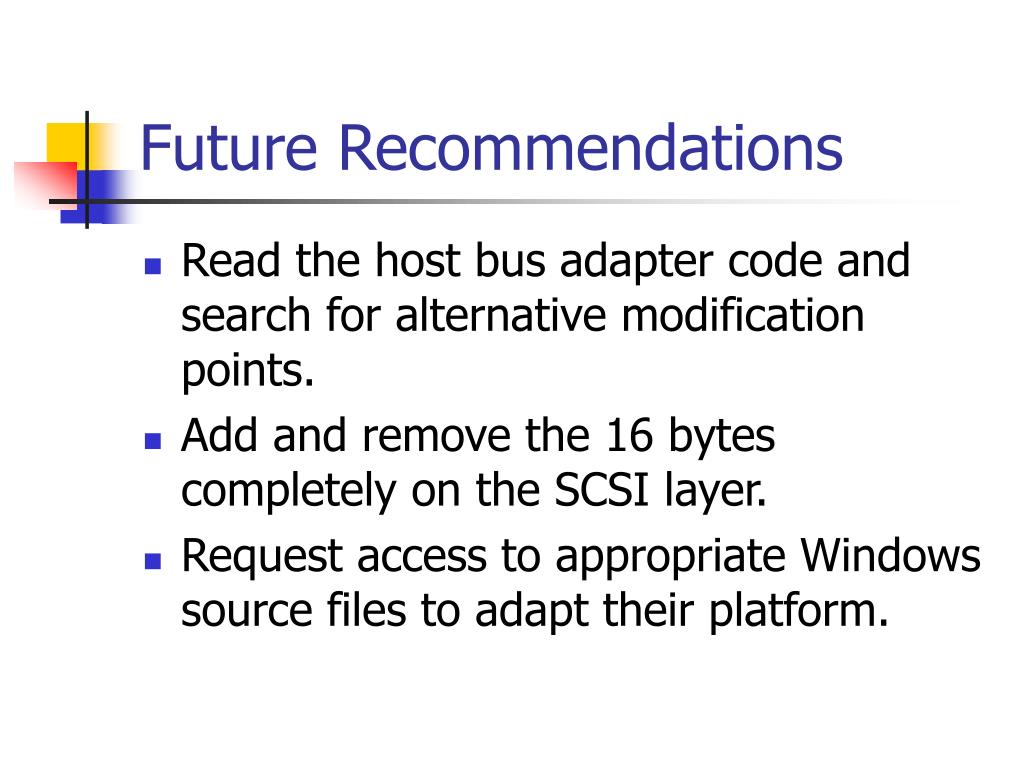

Future Recommendations
  • Read the host bus adapter code and search for alternative modification points.
  • Add and remove the 16 bytes completely on the SCSI layer.
  • Request access to appropriate Windows source files to adapt their platform.
