Presentation Transcript


5123691

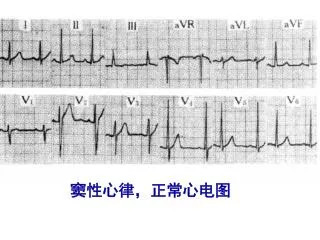

窦性心律,正常心电图


5123691

aVL

RⅠ=1.8mV,

R Ⅰ +SⅢ=3.5mV,

RaVL=1.8mV;

RV5=RV6=2.5mV,

RV5+SV1=4.8mV;

TV5~6倒置。

V1

V2

诊断:

窦性心律

左室肥厚

V5

V6


5123691

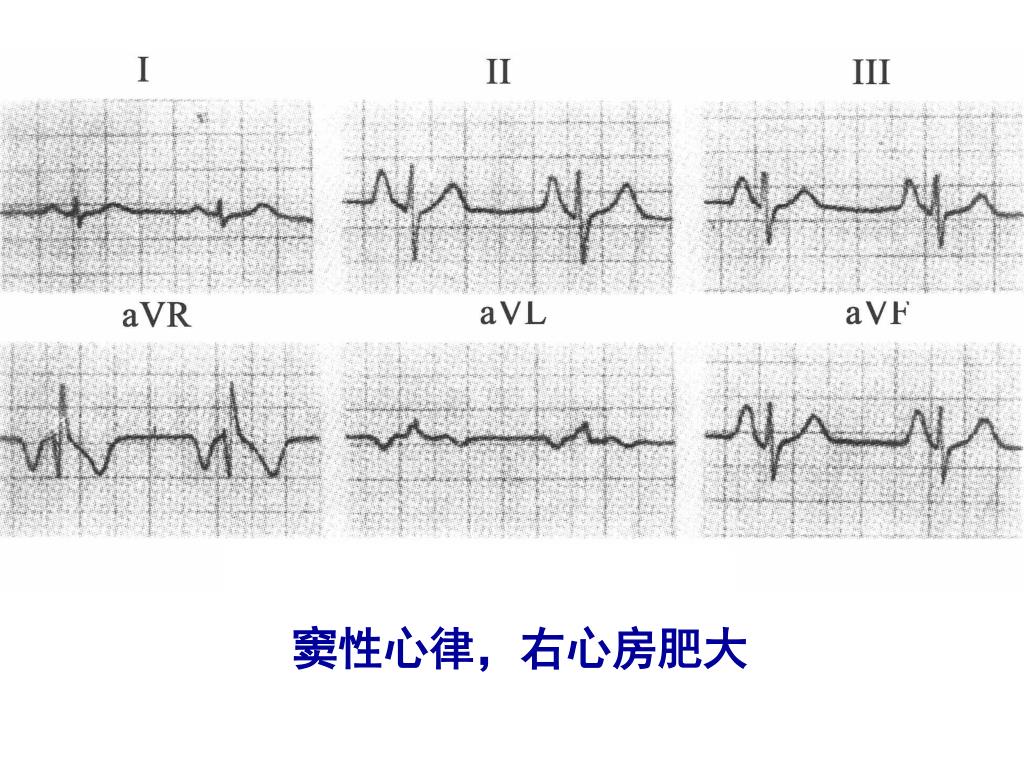

窦性心律,右心房肥大


5123691

右心室肥大


5123691

窦性心律,左心房肥大


5123691

窦性心率,心率94次/分,P-R间期0.16秒;Ⅱ、Ⅲ、aVF导联P波达0.3mV。

电轴右偏128°;

V1R=0.9mV,且R/S>1,V5 R/S<1,Rv1+Sv5=3.0mV;

RavR=0.6mV;

Ⅲ、aVF导联ST段下降0.05mV, Ⅲ导联T波倒置。

诊断:

窦性心律,右房肥大,右室肥大。


5123691

窦性心律;……;RV5=2.6mV,RV5+SV1=4.7mV;电轴-20°;Ⅰ、Ⅱ、V5、V6的ST段下降0.05~0.1mV。

诊断:窦性心律,左室肥厚。


5123691

V1呈qR型,电轴右偏;

RV5=3.0mV;

Ⅱ,Ⅲ,aVF,V1,V5,V6的T波倒置,ST段下降。

……

诊断:……,双侧心室肥厚
