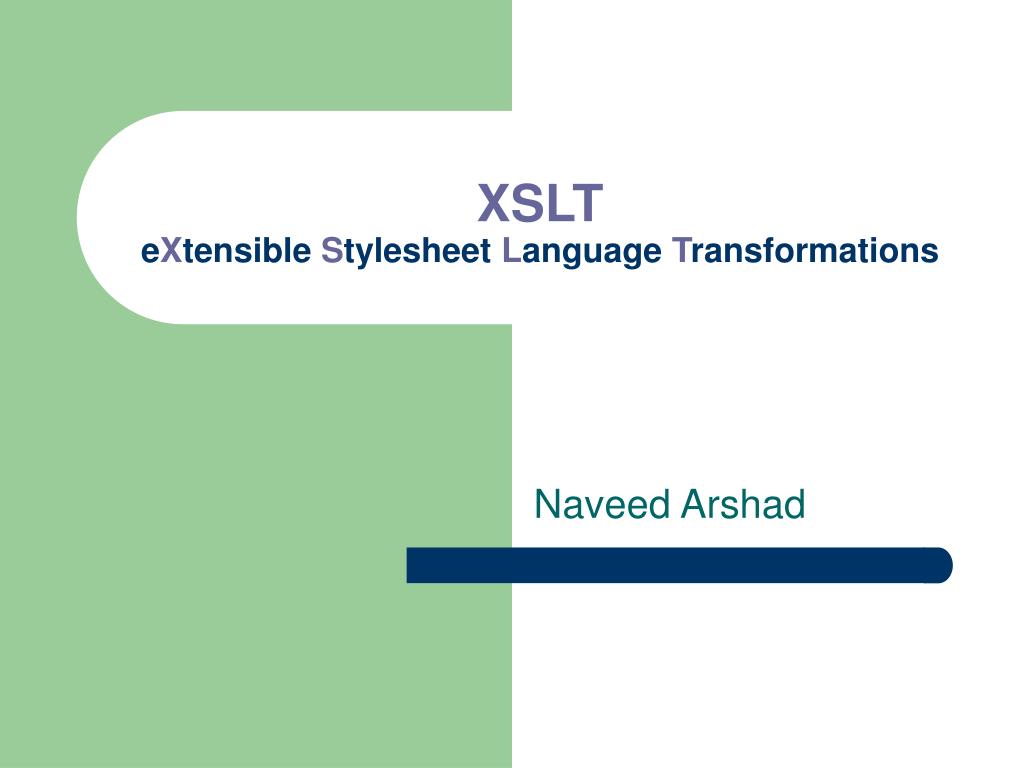

  1. XSLTeXtensible Stylesheet Language Transformations Naveed Arshad

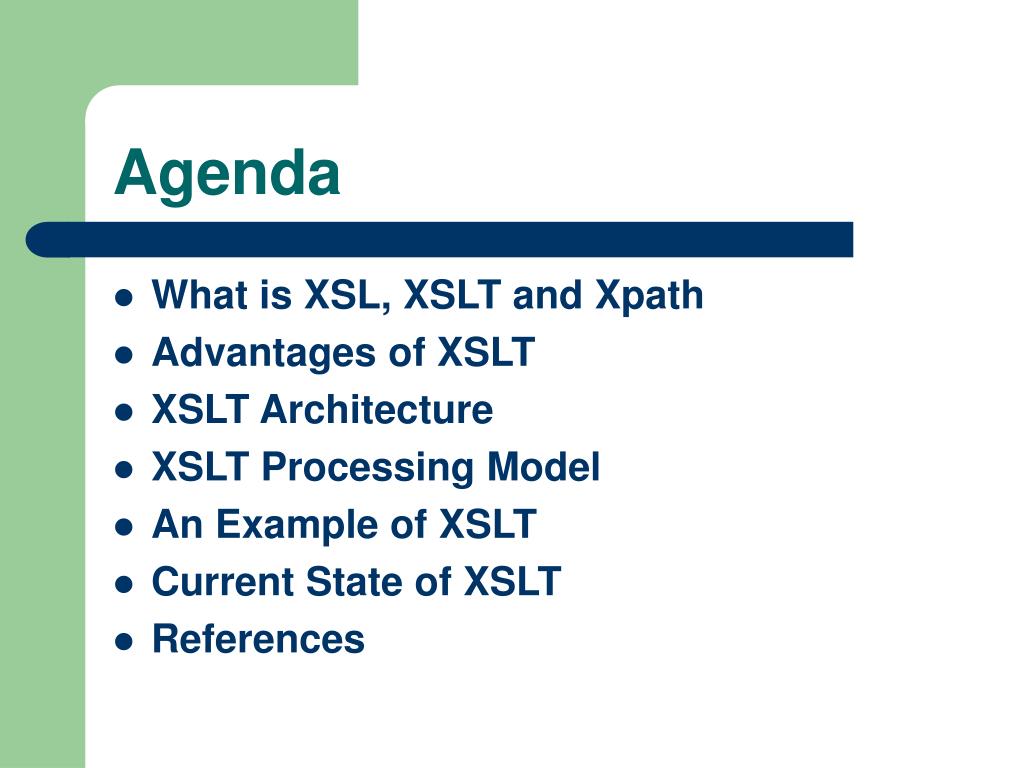

  2. Agenda • What is XSL, XSLT and Xpath • Advantages of XSLT • XSLT Architecture • XSLT Processing Model • An Example of XSLT • Current State of XSLT • References

  3. What is XSL, XSLT and Xpath? • Started of with XSL (eXtensible Stylesheet Language) • For XML TRANSFORMATION and FORMATING • XSLT for TRANSFORMATIONS and XSL for “the rest”

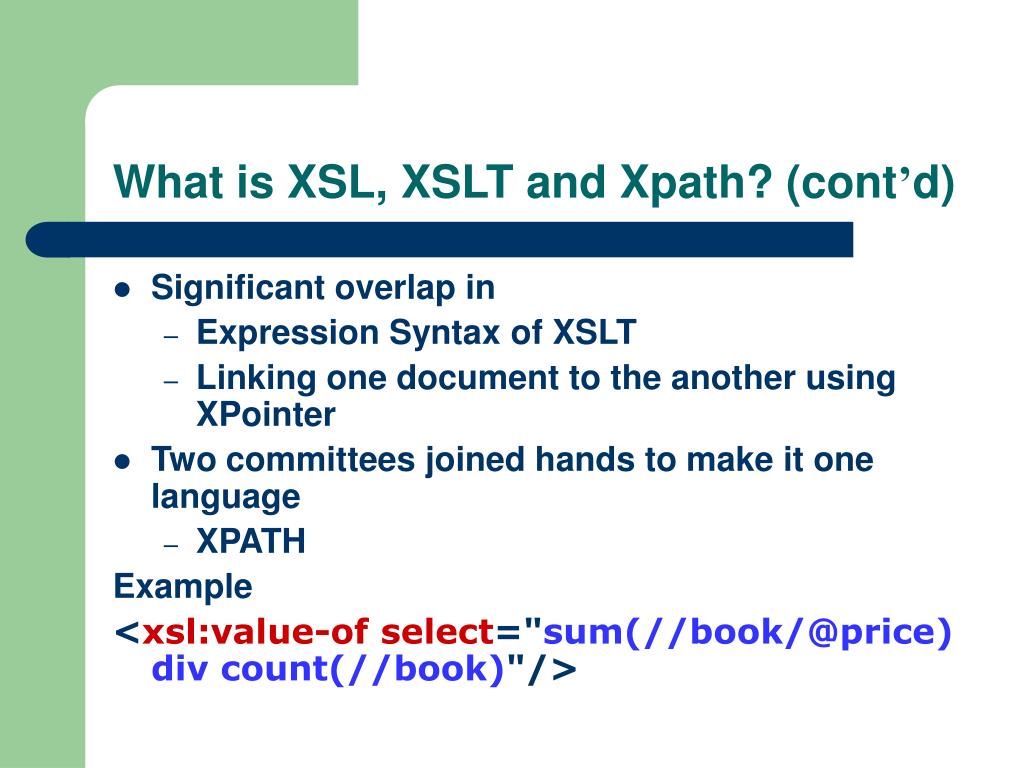

  4. What is XSL, XSLT and Xpath? (cont’d) • Significant overlap in • Expression Syntax of XSLT • Linking one document to the another using XPointer • Two committees joined hands to make it one language • XPATH Example <xsl:value-of select="sum(//book/@price) div count(//book)"/>

  5. Advantages of XSLT • Transformation from • XML document to another XML document • XML document to an HTML document • XML document to any text form ;-)

  6. XSLT Architecture • Source Tree as Input • Result Tree as Output • XSLT processor takes two inputs • XSL style sheet • XML Document as Source Tree

  7. XSLT Processing Model • Input in form of a tree thus inherently a • Recursive Process • Checks for template when a new item is encountered • Transform source nodes into result nodes • Rearranges the items based on style sheet

  8. XSLT Example • XML to XML • Takes one XML document as Source Tree • Apply templates using XSLT stylesheet • Transforms it into another XML document as a Result Tree

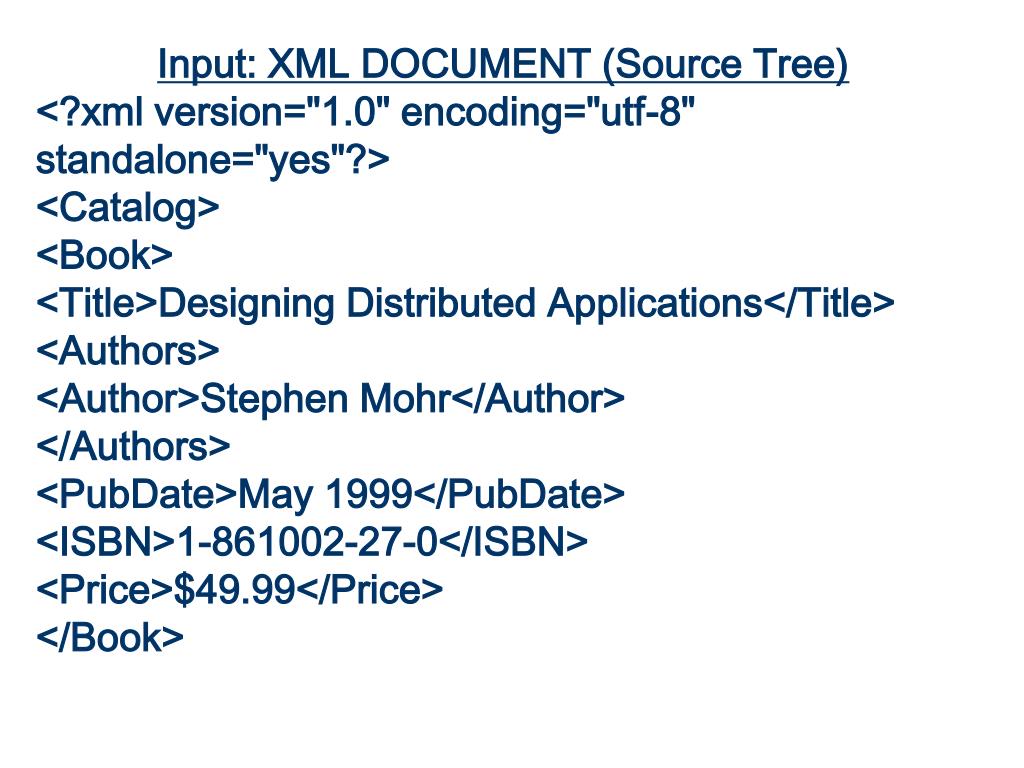

  9. Input: XML DOCUMENT (Source Tree) <?xml version="1.0" encoding="utf-8" standalone="yes"?> <Catalog> <Book> <Title>Designing Distributed Applications</Title> <Authors> <Author>Stephen Mohr</Author> </Authors> <PubDate>May 1999</PubDate> <ISBN>1-861002-27-0</ISBN> <Price>$49.99</Price> </Book>

  10. <Book> <Title>Professional ASP 3.0</Title> <Authors> <Author>Alex Homer</Author> <Author>Brian Francis</Author> <Author>David Sussman</Author> </Authors> <PubDate>October 1999</PubDate> <ISBN>1-861002-61-0</ISBN> <Price>$59.99</Price> </Book> </Catalog>

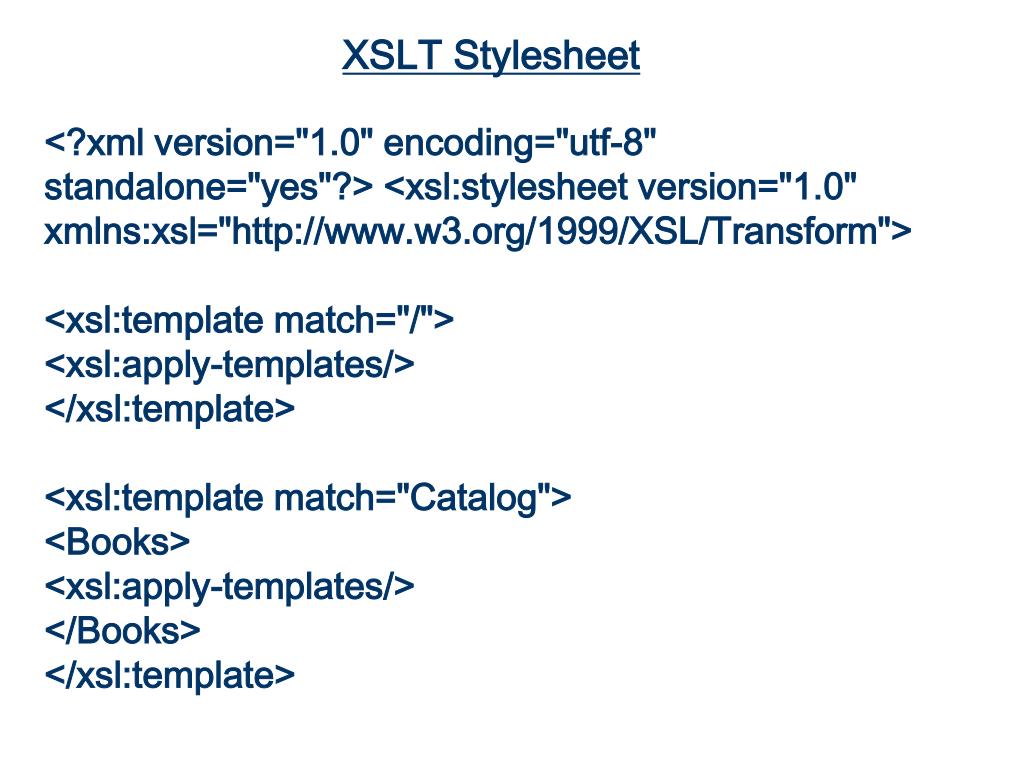

  11. XSLT Stylesheet <?xml version="1.0" encoding="utf-8" standalone="yes"?> <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform"> <xsl:template match="/"> <xsl:apply-templates/> </xsl:template> <xsl:template match="Catalog"> <Books> <xsl:apply-templates/> </Books> </xsl:template>

  12. <xsl:template match="Book"> <Book> <xsl:value-of select="Title"/>, <xsl:value-of select="PubDate"/> </Book> </xsl:template> </xsl:stylesheet>

  13. Output: XML Document (Result Tree) <?xml version="1.0" encoding="utf-8"?> <Books> <Book> Designing Distributed Applications, May1999 </Book> <Book> Professional ASP 3.0, October 1999 </Book> </Books>

  14. XSLT Processors Source: http://www.tfi-technology.com/xml/xslbench.html

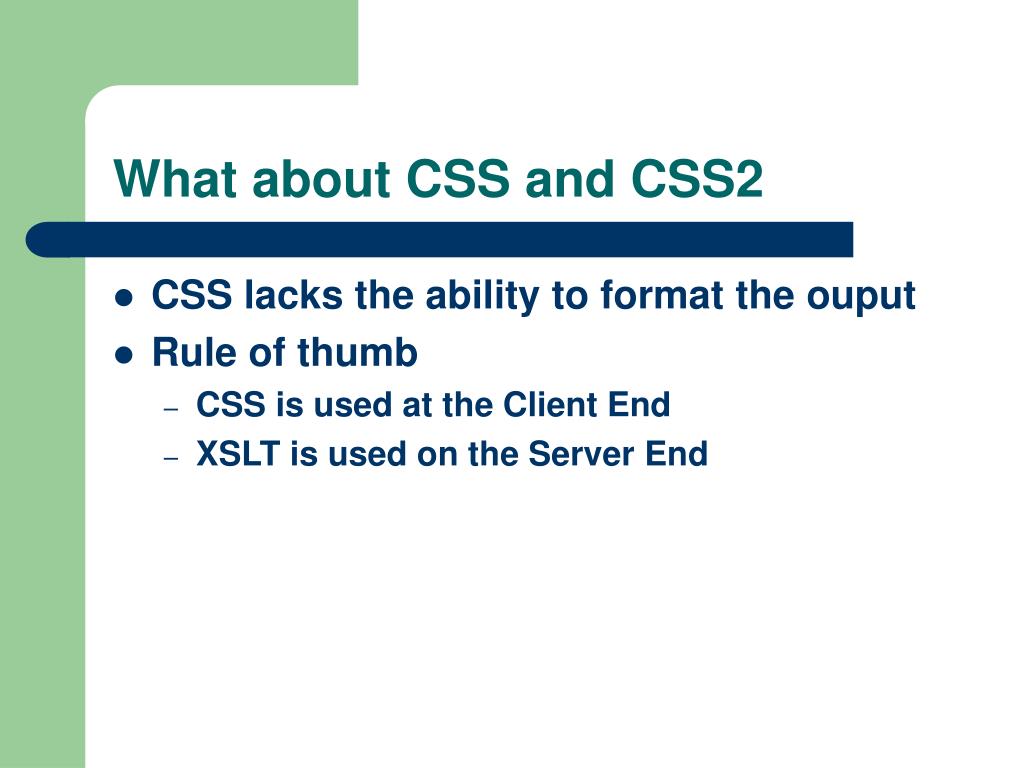

  15. What about CSS and CSS2 • CSS lacks the ability to format the ouput • Rule of thumb • CSS is used at the Client End • XSLT is used on the Server End

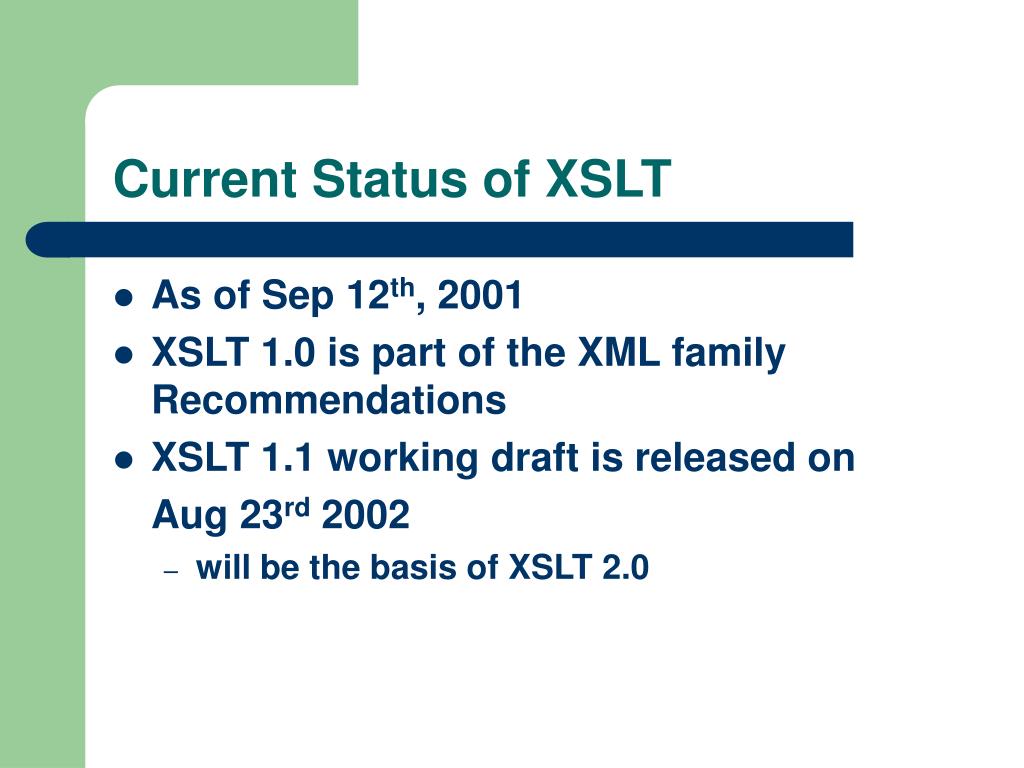

  16. Current Status of XSLT • As of Sep 12th, 2001 • XSLT 1.0 is part of the XML family Recommendations • XSLT 1.1 working draft is released on Aug 23rd 2002 • will be the basis of XSLT 2.0

  17. References • XSLT Programmer’s Reference • http://www.topxml.com/xsl/articles/xslt_what_about/ • XSLT Quick Referance • http://www.mulberrytech.com/quickref/XSLTquickref.pdf • XSLT Specifications • http://www.w3.org/Style/XSL/ • XSLT News and Resrources • http://www.ibiblio.org/xml/
