  1. Oil-fired Units March 5, 2002 Washington, D.C. Bill Maxwell EPA/ESD/CG

  2. Where do we stand on oil? • Profile of the sector • Status of the data • What the data tell us • Where to go from here

  3. Limitations of the profile data • Data not as easy to identify as for coal units • More multiple fueled units • Not as much segregation as to what oil is burned

  4. Profile of the oil-fired sector • Used four data files • EPA E-GRID2000 Boiler and Generator files (data for 1999) • EPA Score00 files - Emissions scorecard data for 2000 • EIA Tables 8 and 20 (data for 1999) • Data posted on website as one file • Databases do not agree 100%

  5. Profile -- continued • Estimate on the order of 150 oil-fired units at 70 facilities • Estimated 137 facilities in Final Report to Congress • Has been a contraction of the sector • Located in 18 States and the District of Columbia • Size appears to range from ~270 - ~9,000 MMBtu/hr heat input

  6. Profile -- concluded • Controls • From Final Report to Congress, ~1/3 use ESP • No unit found with FGD system • Approximately 10-20% may use distillate oil • Dual-fuel capability • Difficult to determine as the listing of fuels is not consistent from file to file • Gas/oil firing significantly more prevalent than oil/coal firing

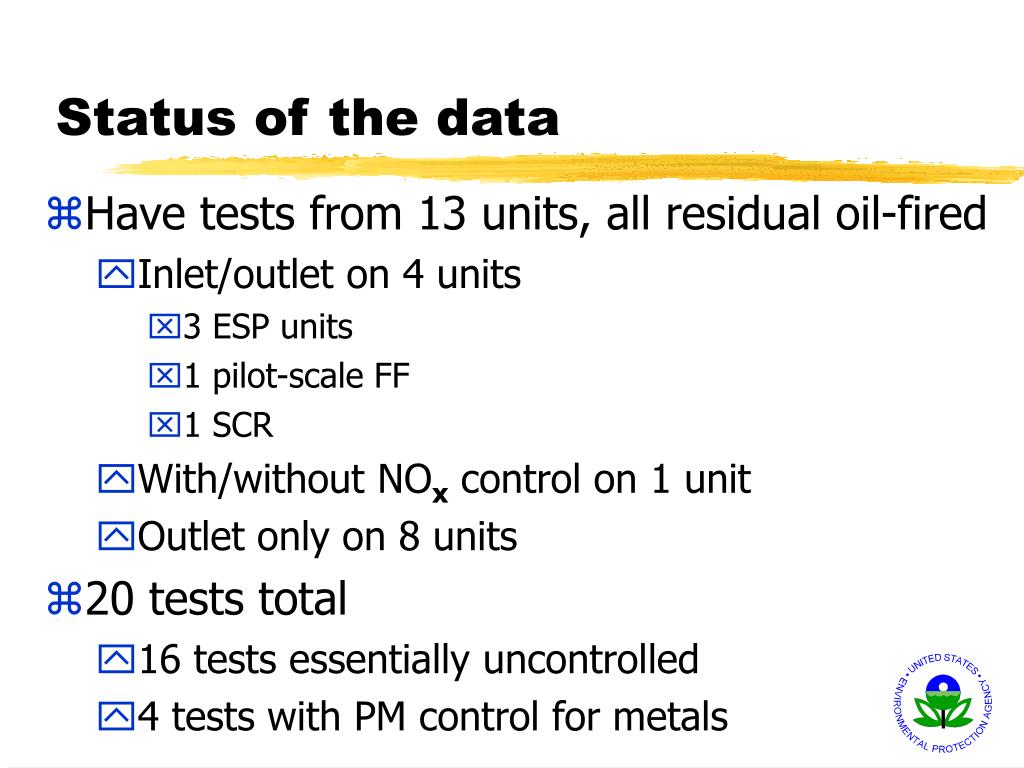

  7. Status of the data • Have tests from 13 units, all residual oil-fired • Inlet/outlet on 4 units • 3 ESP units • 1 pilot-scale FF • 1 SCR • With/without NOx control on 1 unit • Outlet only on 8 units • 20 tests total • 16 tests essentially uncontrolled • 4 tests with PM control for metals

  8. Assumptions going in • Nickel is HAP of greatest concern • CAA section 112(b)(1) lists “nickel compounds” -- not individual species • FF is not realistic control for oil-fired units • PM tends to be “sticky” • Fouls bags and presents safety hazard • Not suitable for MACT floor basis • Leaves ESP as only demonstrated control

  9. Finding the floor • More than 30 units in the sector so could use top-performing 12 percent of data • Top 12 percent would be top 2 units • Top 2 units are ESPs with reported PM efficiencies of 92 and 77 percent • Floor set based on performance of these units • Looking at individual runs will establish variability • Some uncontrolled units would be able to meet level established, depending on the metals content of the oil fired

  10. Where we go from here • Topics for further investigation • Availability of “low metal” oil • Impact on oil supply and quality of Phase II sulfur rules • Use of PM as surrogate for metals • Final floor numbers • Additional data made available in timely manner would be considered
