Presentation Transcript

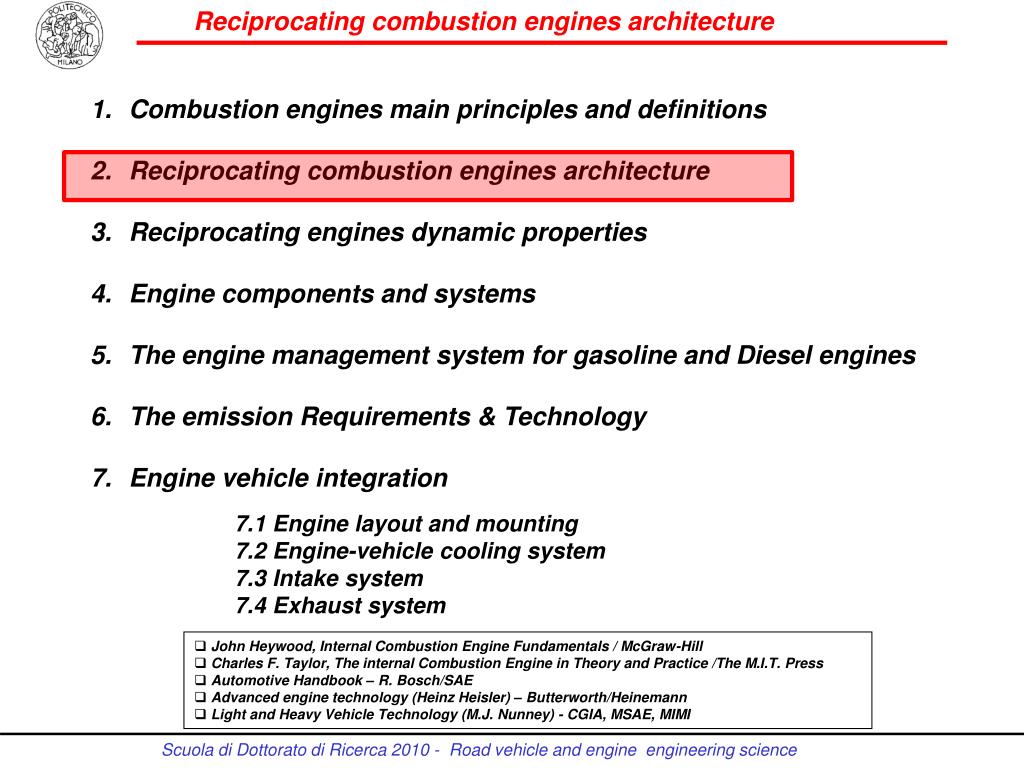

Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

Combustionenginesmainprinciples and definitions

Reciprocating combustionengines architecture

Reciprocating engines dynamic properties

Engine components and systems

The engine management system for gasoline and Diesel engines

The emission Requirements & Technology

Engine vehicle integration

7.1 Engine layout and mounting

7.2 Engine-vehicle cooling system

7.3 Intake system

7.4 Exhaust system

  • John Heywood, Internal Combustion Engine Fundamentals / McGraw-Hill

  • Charles F. Taylor, The internal Combustion Engine in Theory and Practice /The M.I.T. Press

  • Automotive Handbook – R. Bosch/SAE

  • Advanced engine technology (Heinz Heisler) – Butterworth/Heinemann

  • Light and Heavy Vehicle Technology (M.J. Nunney) - CGIA, MSAE, MIMI


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

Architecture configuration

In-line engine

The cylinders are arranged consecutively in a single plane

V-engine

The cylinders are arranged in two planes in a V configuration

Radial engine

The cylinders are arranged radially in one or more planes

Opposed-cylinder (boxer) engine

The cylinders are horizontally opposed


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

4 in-line engine configuration


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

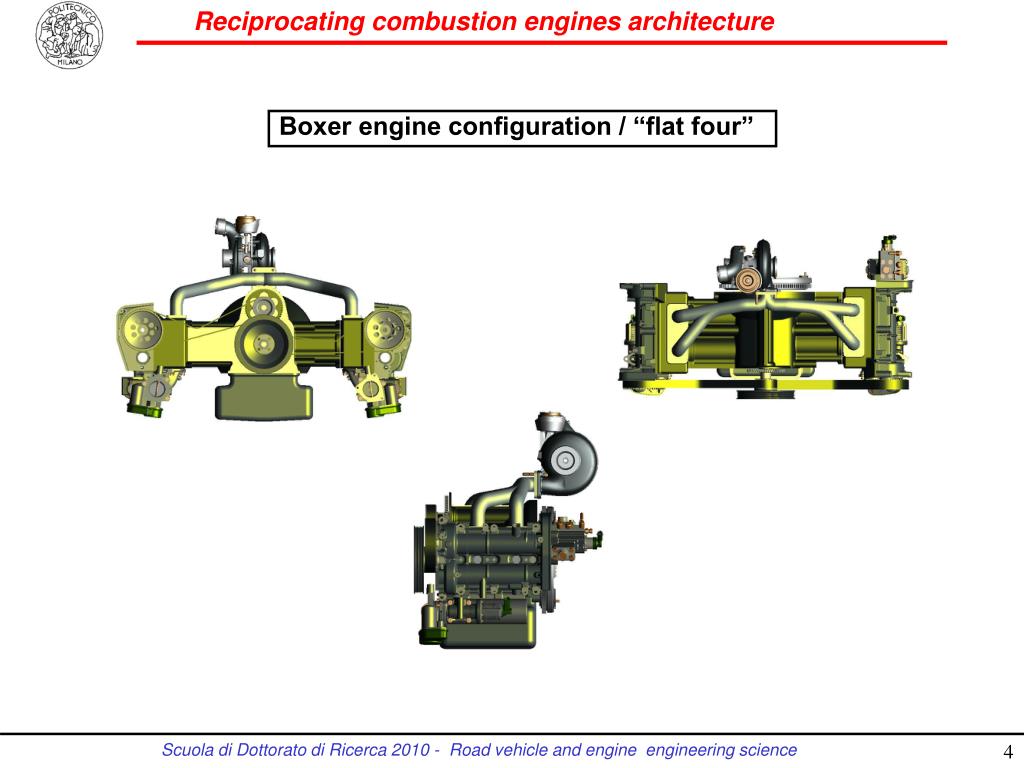

Boxer engine configuration / “flat four”


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

5 in-line engine configuration


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

V6 @ 60° engine configuration


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

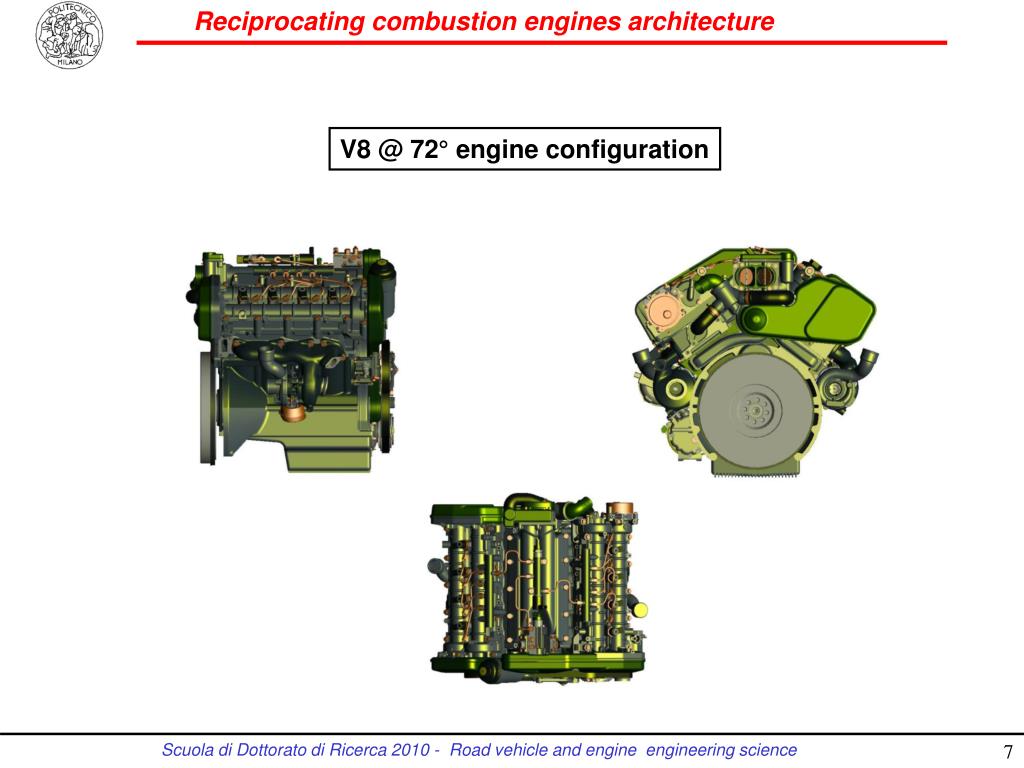

V8 @ 72° engine configuration


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

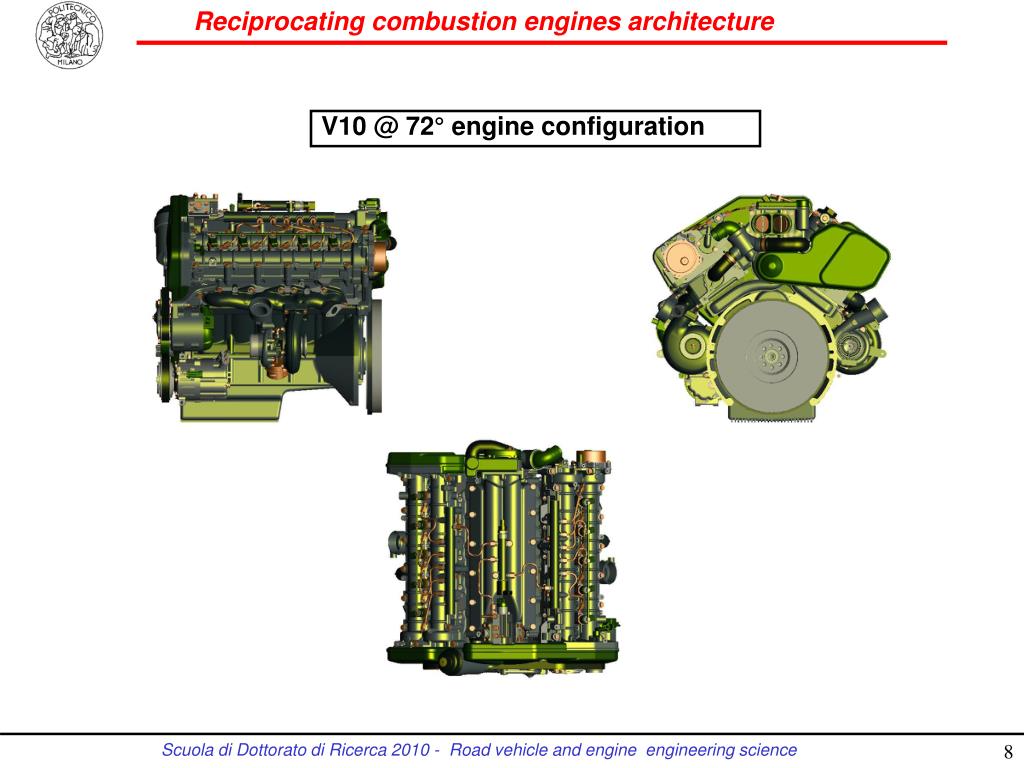

V10 @ 72° engine configuration


Combustion engines main principles and definitions reciprocating combustion engines architecture reciprocating engines

A model 5 cylinder radial engine built by Ron Lane.

1850hp Wright R-2600-29 Cyclone 14-cylinder radial. Note that this is effectively two 7 cylinder radials back to back with the rear bank of cylinders being rotated half the cylinder to cylinder spacing.
