Gravitation

Gravitation. AHL 8.2. F = GMm/r 2. All objects exert a force on each other If either mass increases the force increases Double the mass doubles the force If the distance decreases the force increases Half the distance gives 4 times the force. Gravitational field strength.

hedley-boone
Download Presentation

Gravitation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Gravitation AHL 8.2

  2. F = GMm/r2 • All objects exert a force on each other • If either mass increases the force increases • Double the mass doubles the force • If the distance decreases the force increases • Half the distance gives 4 times the force

  3. Gravitational field strength • Gravitational field strength is the force per unit mass • g = F/m • On Earth g = 10Nkg-1 • How much force wil the Earth’s gravity exert on 3 kg • 30N • The force on 10kg on the moon is 17N. Calculate g on the moon • g = F/m = 1.7 Nkg-1

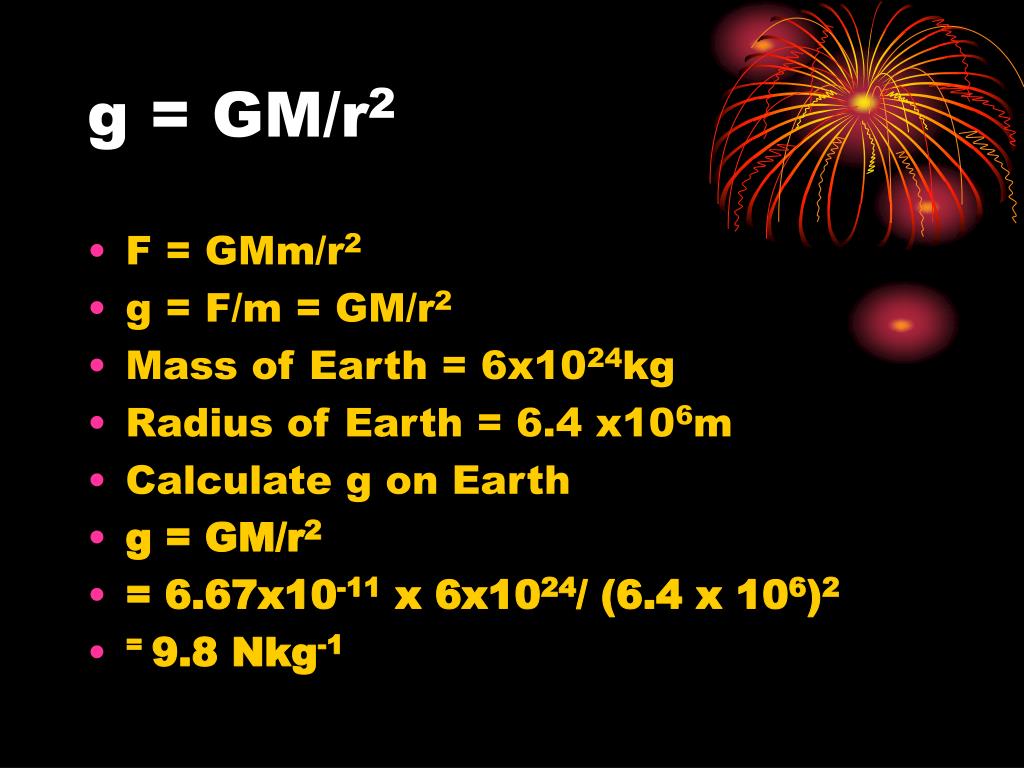

  4. g = GM/r2 • F = GMm/r2 • g = F/m = GM/r2 • Mass of Earth = 6x1024kg • Radius of Earth = 6.4 x106m • Calculate g on Earth • g = GM/r2 • = 6.67x10-11 x 6x1024/ (6.4 x 106)2 • = 9.8 Nkg-1

  5. Star planet g is a vector g from star g from planet Total g = Vector sum

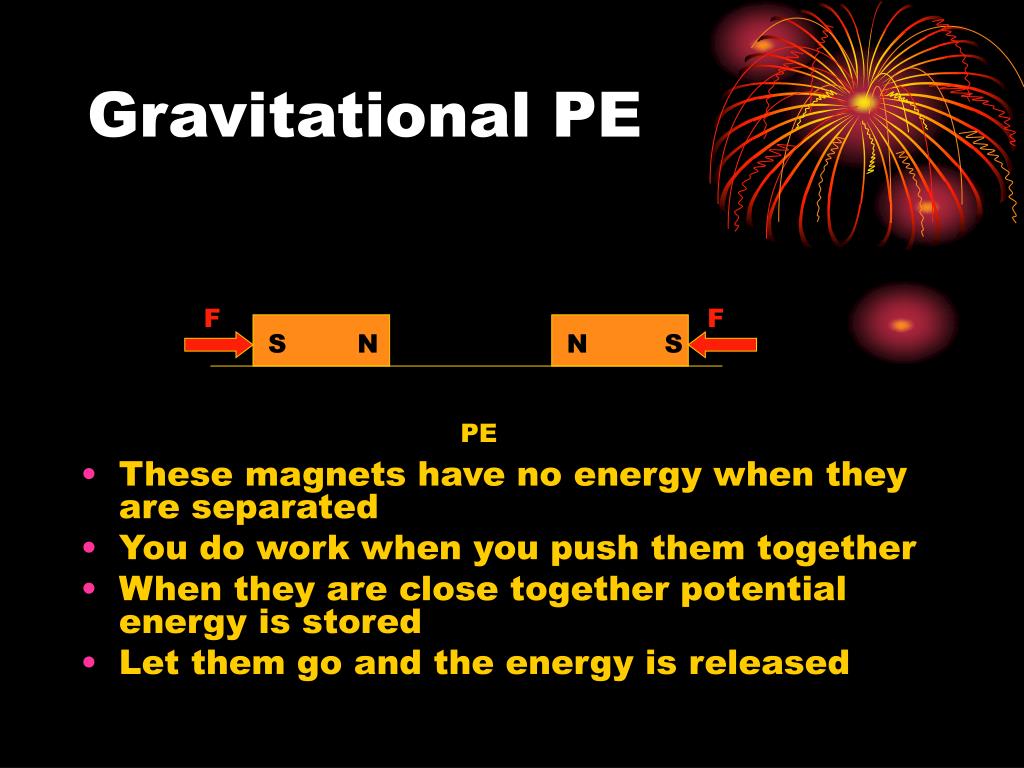

  6. F F S N N S Gravitational PE • These magnets have no energy when they are separated • You do work when you push them together • When they are close together potential energy is stored • Let them go and the energy is released PE

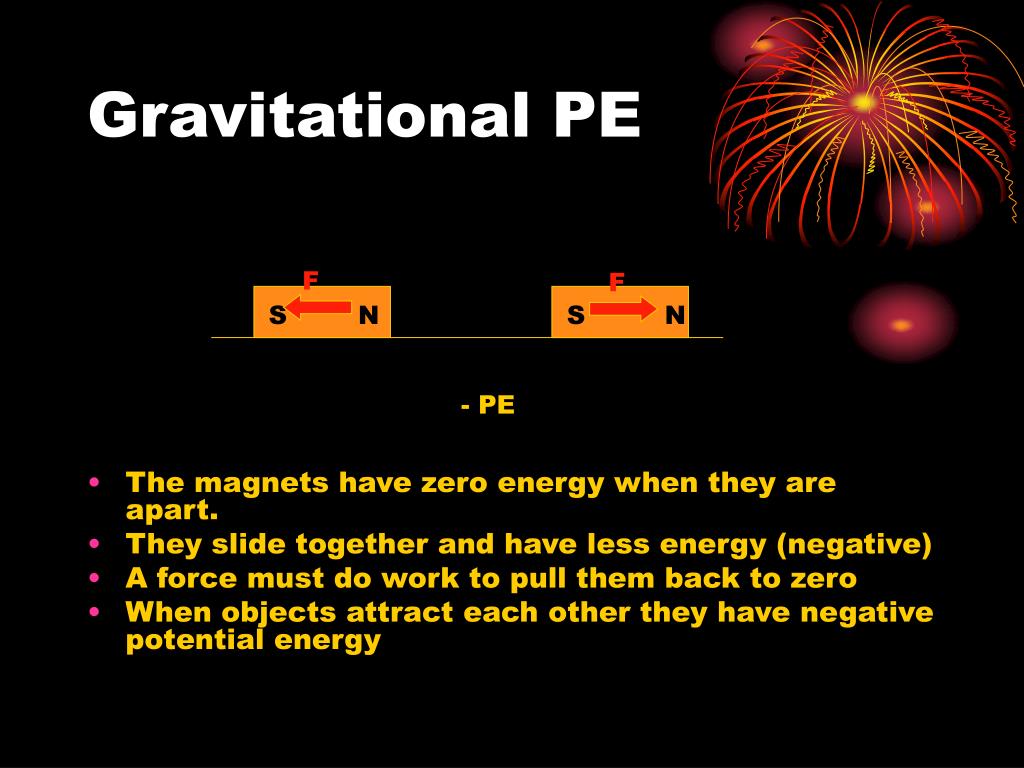

  7. S N F F S N Gravitational PE • The magnets have zero energy when they are apart. • They slide together and have less energy (negative) • A force must do work to pull them back to zero • When objects attract each other they have negative potential energy - PE

  8. Amount of work needed to remove object Zero energy Gravitational Potential • Gravitational potential is always negative • The potential at a point is the amount of energy needed to move 1 kg from infinity to that point • V = -GM/r Back to zero energy Attracted by gravity Negative PE planet A distant object has zero PE

  9. Amount of work needed to remove 2 kg Amount of work needed to remove 1kg Zero energy Gravitational Potential Energy V = -GMm/r The potential at a point is the energy needed to move 1 kg from infinity to that point The potential energy of an object is the energy needed to move the object from infinity to that point PE = mV = -GMm/r Back to zero energy Attracted by gravity Negative PE 1 kg 2kg planet

  10. planet Escape velocity • How fast must an object go so that it doesn’t come back? • It must have enough KE to overcome the negative PE (-GMm/r) and get to zero energy • 1/2mv2 = GMm/r • V2 = 2GM/r • V = (2GM/r) Calculate the escape velocity of Earth r= 6.4 x106m m =6 x 1024 kg v = (2GM/r) =  (2 x 6.67 x 10-11 x 6 x1024 / 6.4 x106) = 11 000 ms-1 = 11kms-1
