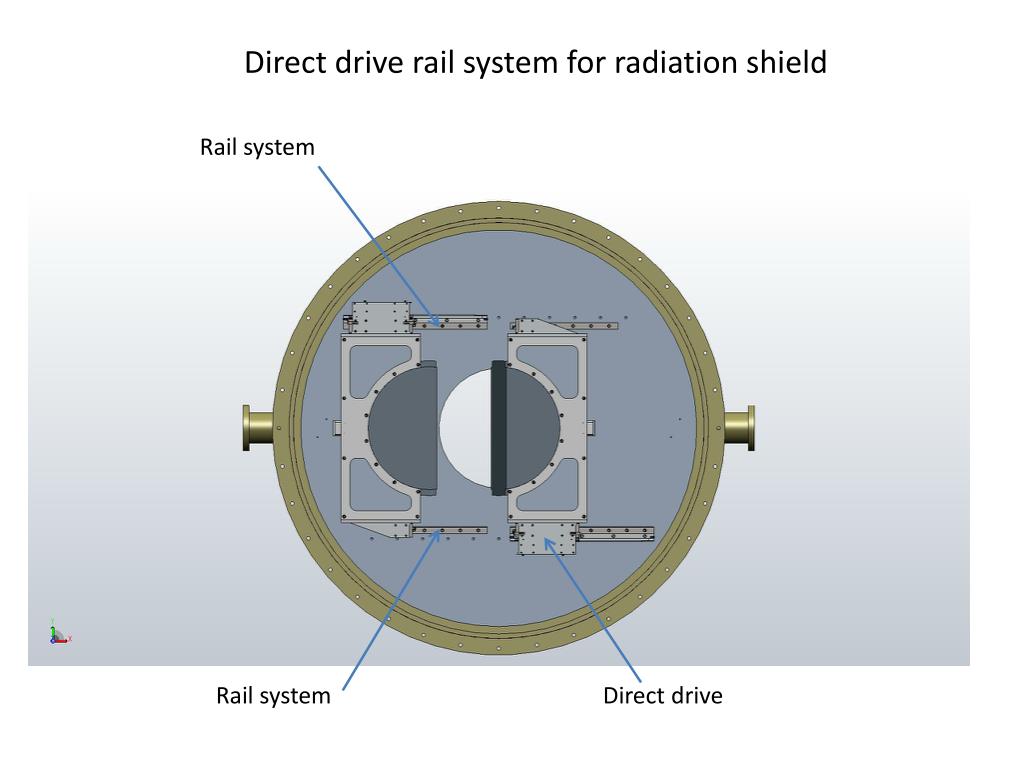

  1. Rail system Direct drive rail system for radiation shield Rail system Direct drive

  2. Can we use a material with a permeability of 1.01 for the radiation shield rail system at the end of the Spectrometer Solenoid? Slide system The slide measures 12mm x 12mm x 1m top and bottom.

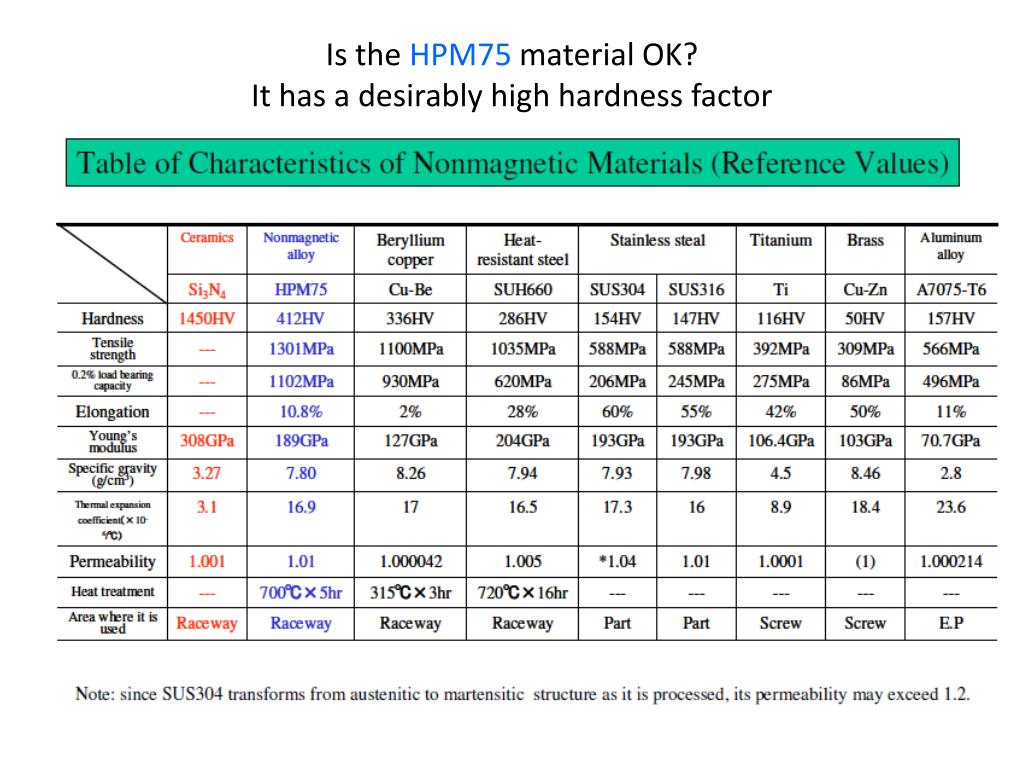

  3. Is the HPM75 material OK?It has a desirably high hardness factor
