  1. LAN design CCNA Exploration Semester 3 Chapter 1 S Ward Abingdon and Witney College

  2. Topics • Networks and business needs • The 3-level hierarchical network design model • Including voice and video over IP in the design • Devices at each layer of the hierarchy • Cisco switches for each layer S Ward Abingdon and Witney College

  3. LAN Design Basic Switch Concepts Wireless VLANs STP Inter-VLAN routing VTP Semester 3 S Ward Abingdon and Witney College

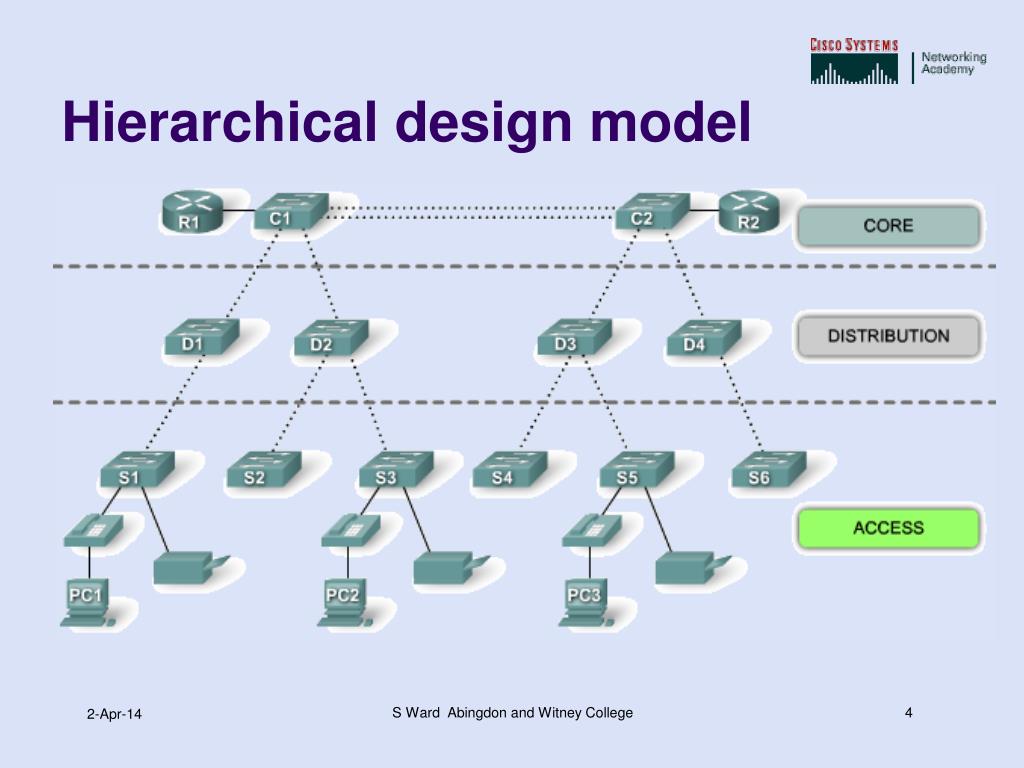

  4. Hierarchical design model S Ward Abingdon and Witney College

  5. Hierarchical design model High speed backbone. S Ward Abingdon and Witney College

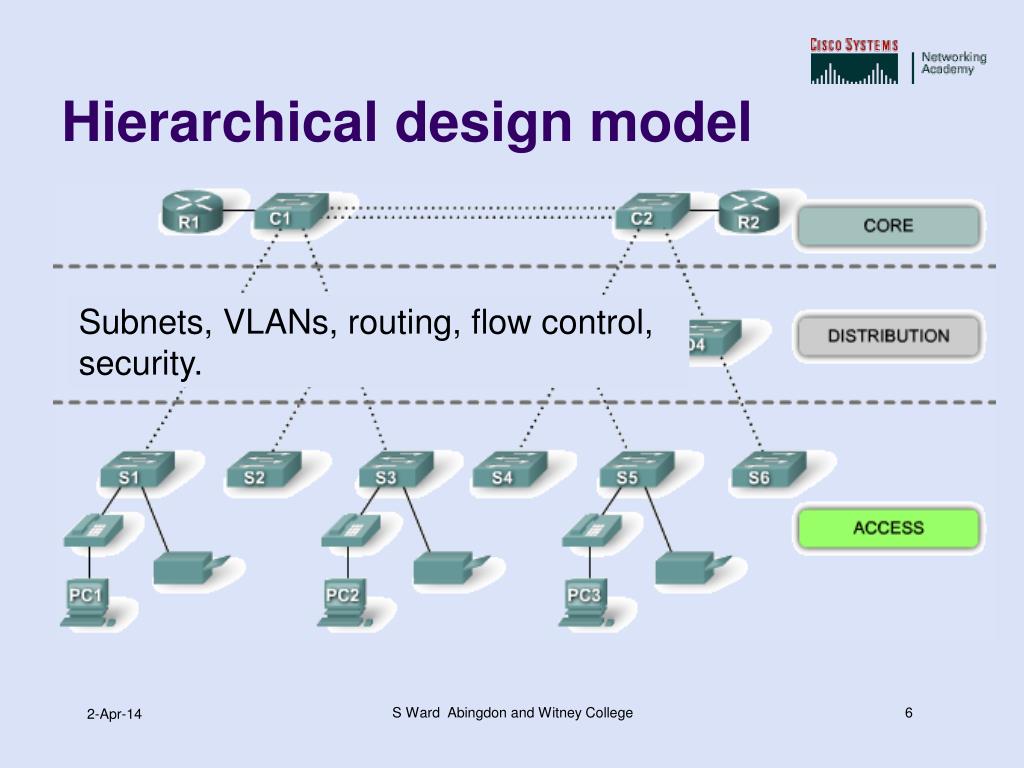

  6. Hierarchical design model Subnets, VLANs, routing, flow control, security. S Ward Abingdon and Witney College

  7. Hierarchical design model Connects end devices. Controls which devices connect. S Ward Abingdon and Witney College

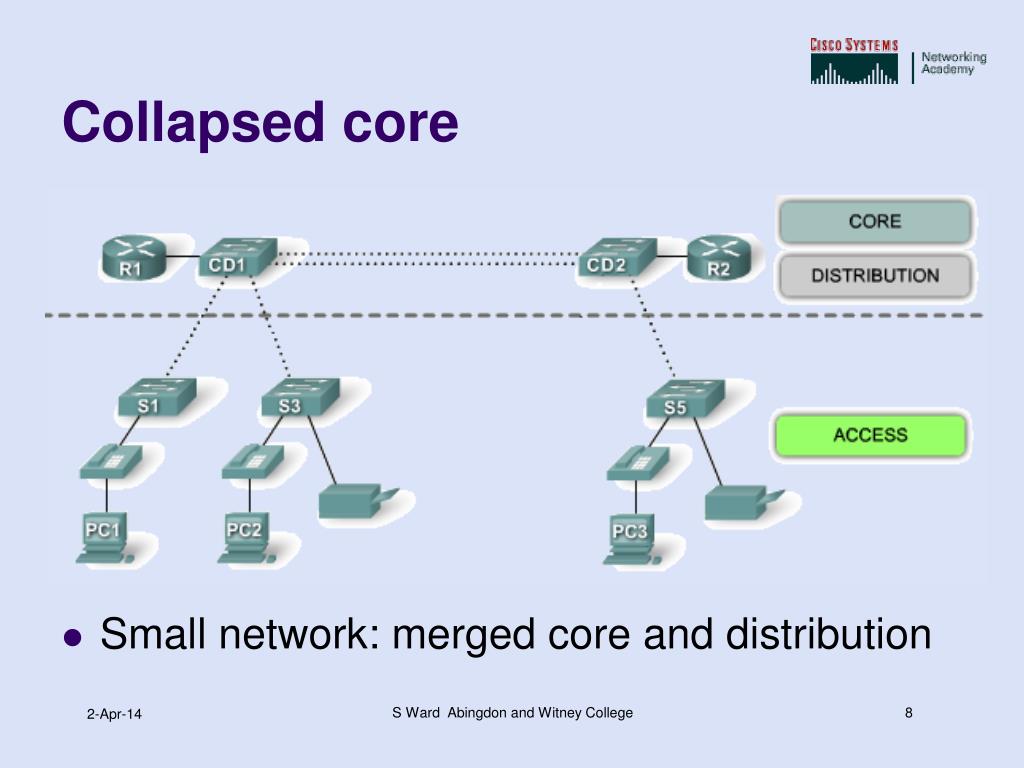

  8. Collapsed core • Small network: merged core and distribution S Ward Abingdon and Witney College

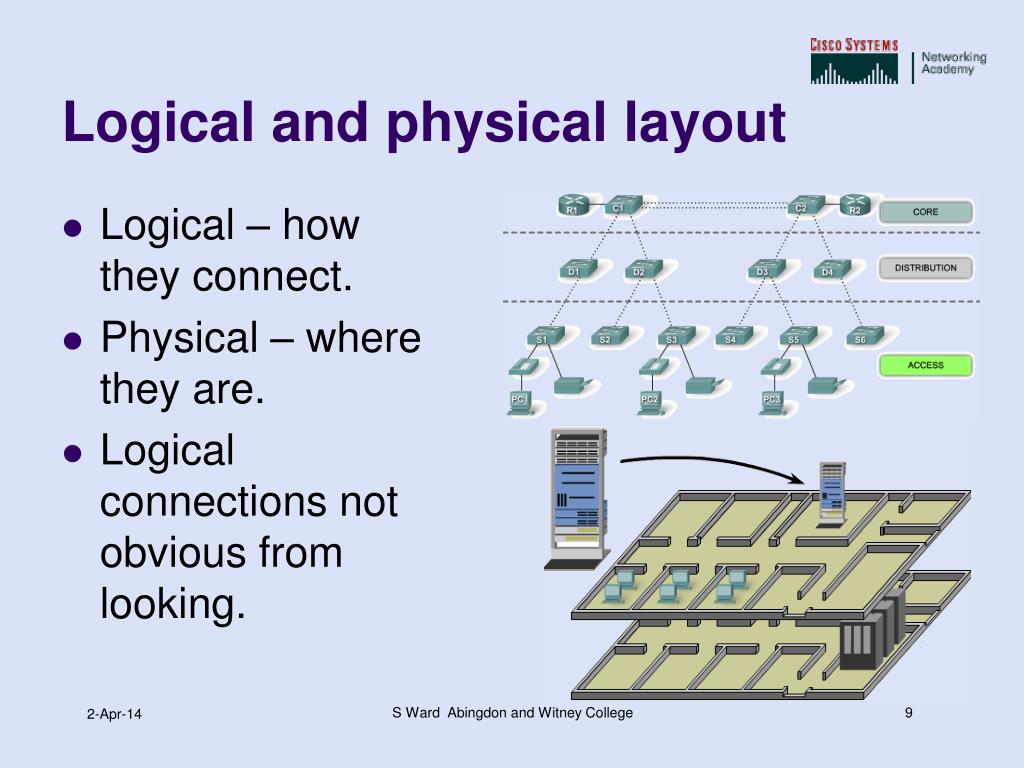

  9. Logical and physical layout • Logical – how they connect. • Physical – where they are. • Logical connections not obvious from looking. S Ward Abingdon and Witney College

  10. Benefits of Hierarchical Network • Scalability – easy to expand • Redundancy – at core and distribution layers • Performance – route packets through fast devices • Security – at access and distribution layers • Manageability – similar functions within layer • Maintainability - modular S Ward Abingdon and Witney College

  11. Design principles • Network diameter – how many devices must packet pass through? Keep it low. • Bandwidth aggregation – combine ports where high bandwidth is needed. • Redundant links/devices – in core and distribution layers. Too expensive for access. • Start design at the access layer. How many devices, how much bandwidth needed? S Ward Abingdon and Witney College

  12. Converged network • Combines data, voice, video. • (Not converged as in “all routers have consistent information”. Same word used.) • Needs quality of service (QoS) to give priority to voice and video. • Was very expensive, needed expertise, needed to replace legacy equipment. • Now more affordable. S Ward Abingdon and Witney College

  13. Advantages of converged network • One network to manage/ keep up to date • One set of cabling and networking devices • One group of people to run it • One service provider • Can have voice and video on PC using headset, webcam and software – no separate equipment. S Ward Abingdon and Witney College

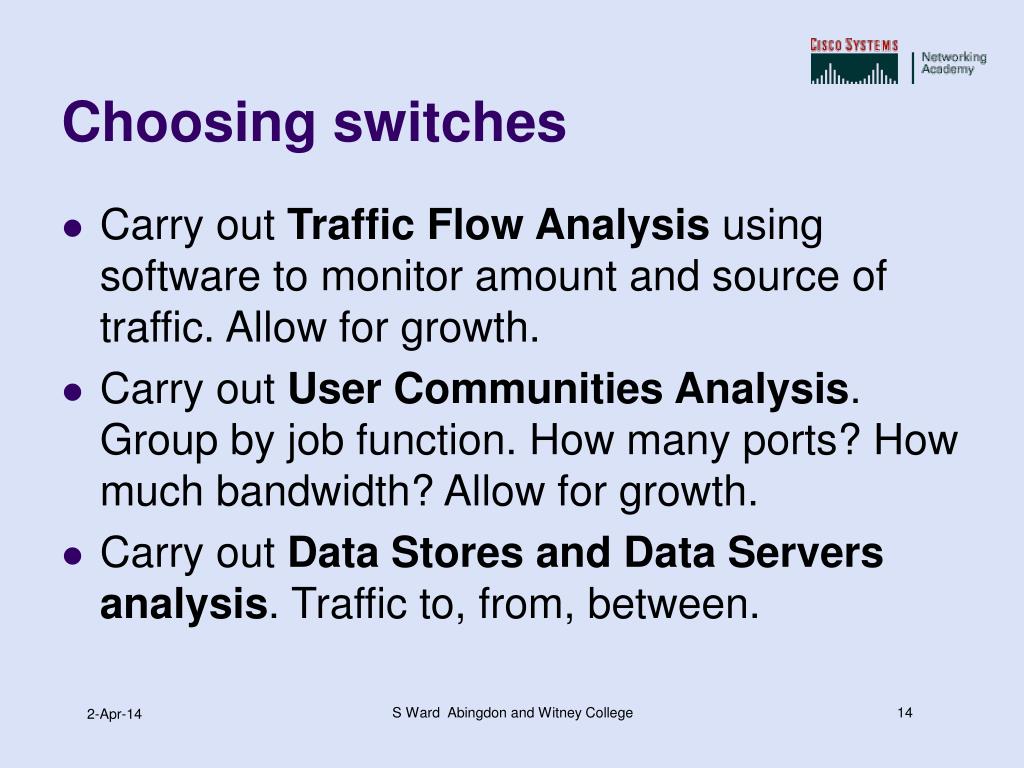

  14. Choosing switches • Carry out Traffic Flow Analysis using software to monitor amount and source of traffic. Allow for growth. • Carry out User Communities Analysis. Group by job function. How many ports? How much bandwidth? Allow for growth. • Carry out Data Stores and Data Servers analysis. Traffic to, from, between. S Ward Abingdon and Witney College

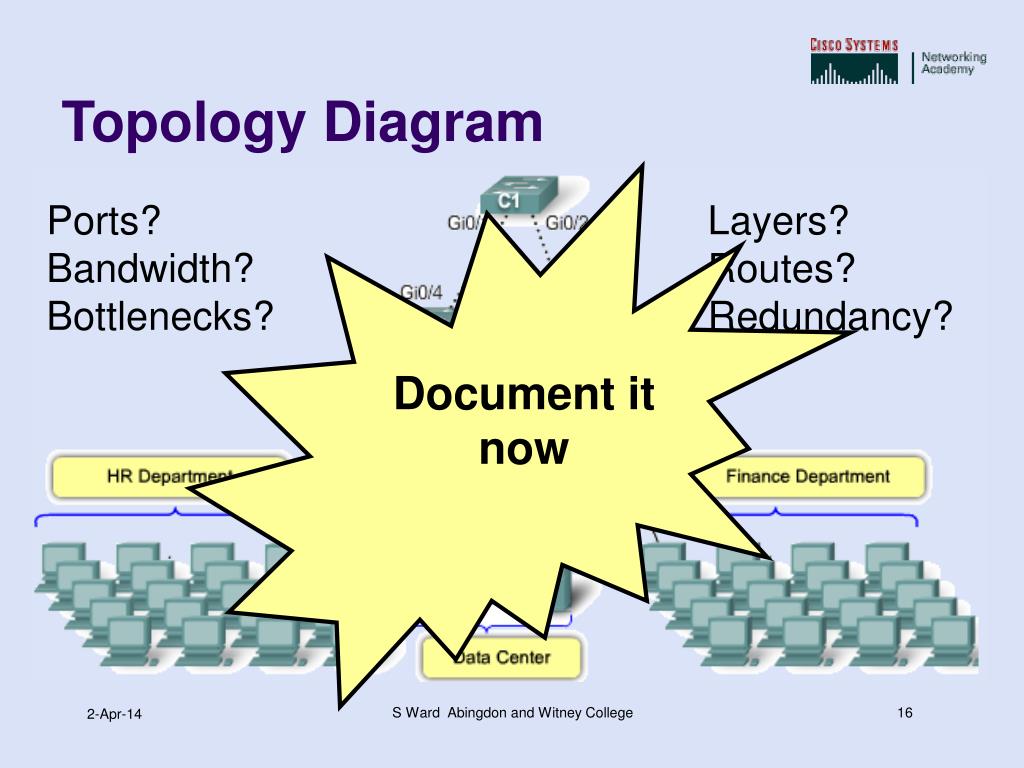

  15. Topology Diagram Ports?Bandwidth?Bottlenecks? Layers?Routes?Redundancy? S Ward Abingdon and Witney College

  16. Document it now Topology Diagram Ports?Bandwidth?Bottlenecks? Layers?Routes?Redundancy? S Ward Abingdon and Witney College

  17. Choosing switches (contd) 1 rack unit (1U) Form factor • Fixed configuration – ports on chassis • Modular – ports on cards • Stackable – act as one switch, linked by special ports. S Ward Abingdon and Witney College

  18. Choosing switches (contd) • Port density – how many ports? (Allow for links between switches.) • Forwarding rate – How many Gbps can it process? Can all ports work simultaneously at maximum speed? • Link aggregation (EtherChannel) – up to 8 ports bound together, acting as one, with combined bandwidth – can it do this? S Ward Abingdon and Witney College

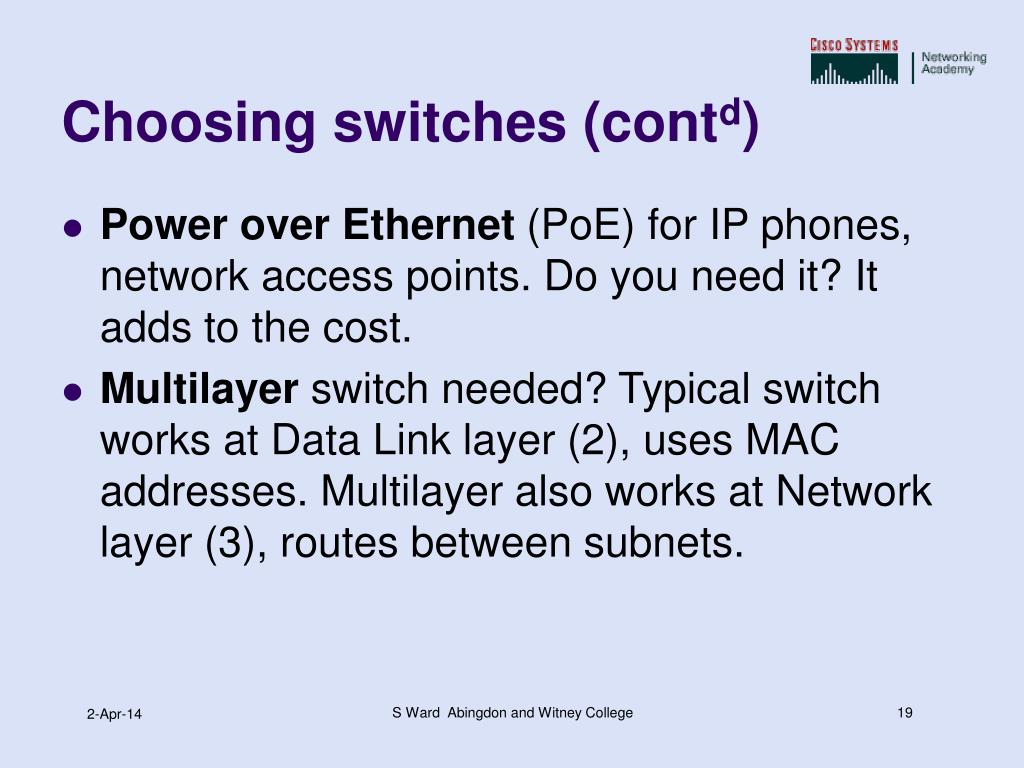

  19. Choosing switches (contd) • Power over Ethernet (PoE) for IP phones, network access points. Do you need it? It adds to the cost. • Multilayer switch needed? Typical switch works at Data Link layer (2), uses MAC addresses. Multilayer also works at Network layer (3), routes between subnets. S Ward Abingdon and Witney College

  20. Access Layer Switch Features • Port security – choose which devices may connect. All Cisco switches support this. • VLANs – connected devices on different subnets. • Speed – Fast Ethernet (100Mbps) or Gigabit. • Power over Ethernet (PoE) – expensive • Link aggregation – for uplinks • Quality of service (QoS) if needed S Ward Abingdon and Witney College

  21. Distribution Layer Switch Features • Layer 3 support – route between VLANs • High forwarding rate (processing) • Port speed Gbps, 10Gbps ports • Redundancy • Security – Access control lists • Link aggregation • Quality of service • Availability. Hot swappable power supply? S Ward Abingdon and Witney College

  22. Core Layer Switch Features • Support for Network layer (3) - routing • Very high forwarding rate • Very high port speed (1Gbps, 10Gbps) • Redundancy • Link aggregation • Quality of service • Avoid security and other distractions here. Go for speed. S Ward Abingdon and Witney College

  23. Catalyst Switch product lines S Ward Abingdon and Witney College

  24. Concentrate on general features Catalyst Switch product lines S Ward Abingdon and Witney College

  25. The End S Ward Abingdon and Witney College
