Special right triangles and area

45°- 45° - 90°

30° - 60° - 90°

Area of Parallelogram

Area of Triangles

Pythagorean Theorem

10

10

10

10

10

20

20

20

20

20

30

30

30

30

30

40

40

40

40

40

50

50

50

Special Right Triangles and Area


Special right triangles and area

In triangle ABC, is a right angle and 45°. Find BC. If you answer is not an integer, leave it in simplest radical form.


Special right triangles and area

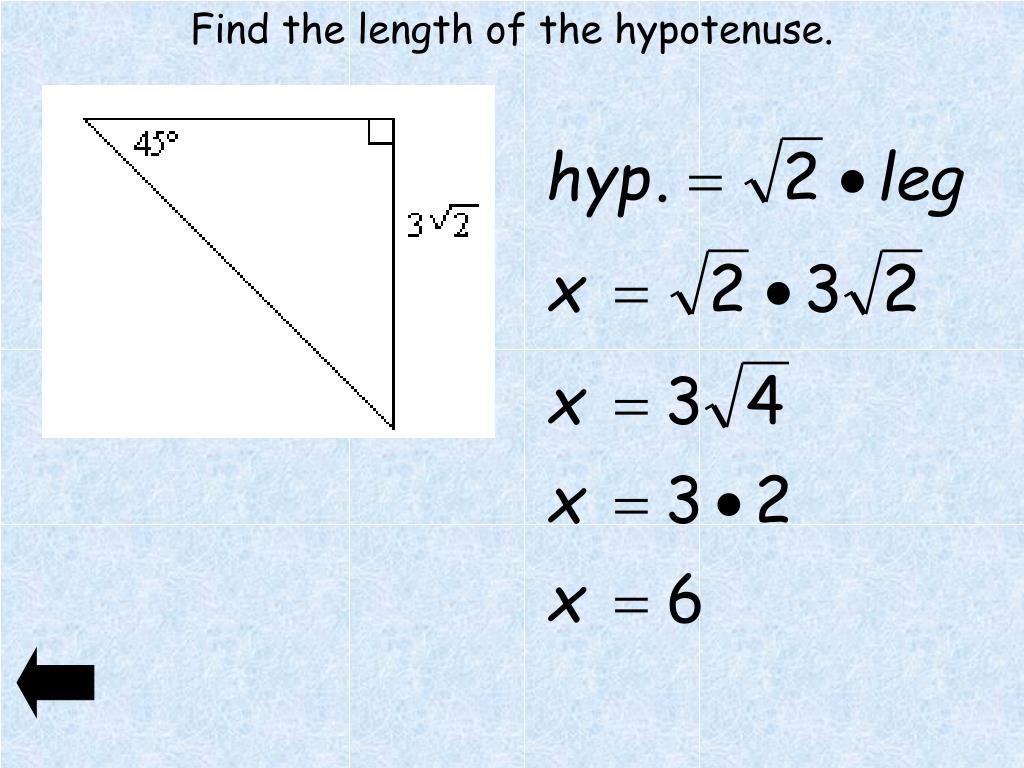

Find the length of the hypotenuse.


Special right triangles and area

Find the length of the leg. If your answer is not an integer, leave it in simplest radical form.


Special right triangles and area

Find the lengths of the missing sides in the triangle.


Special right triangles and area

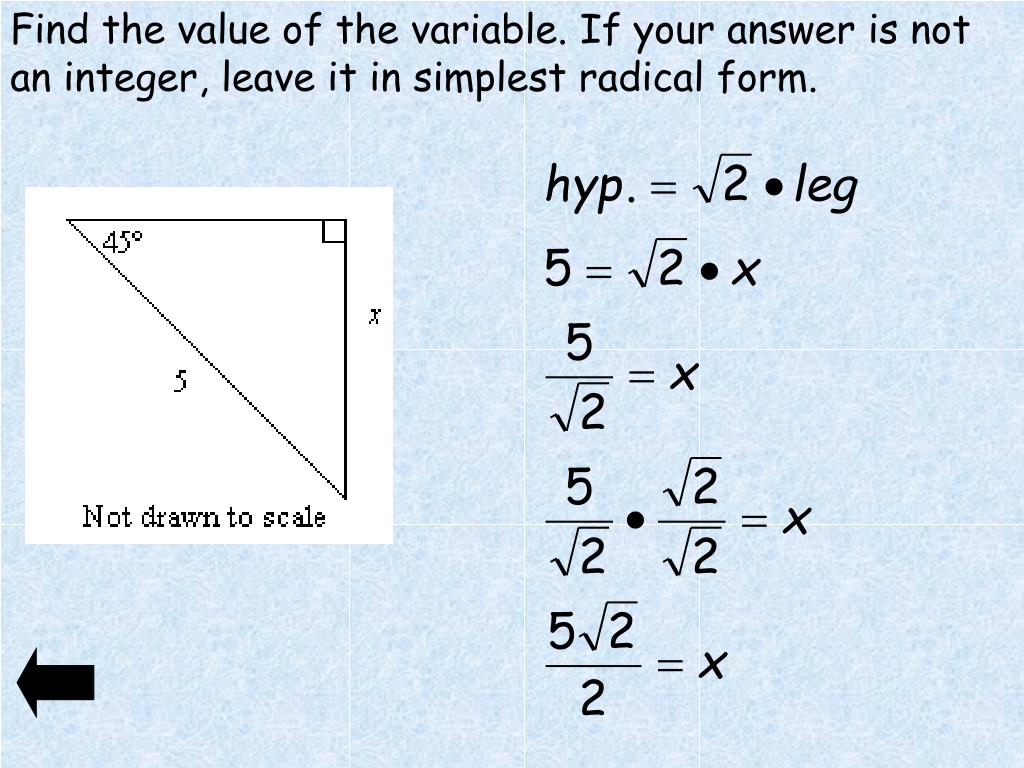

Find the value of the variable. If your answer is not an integer, leave it in simplest radical form.


Special right triangles and area

60°

8

x

30°

y

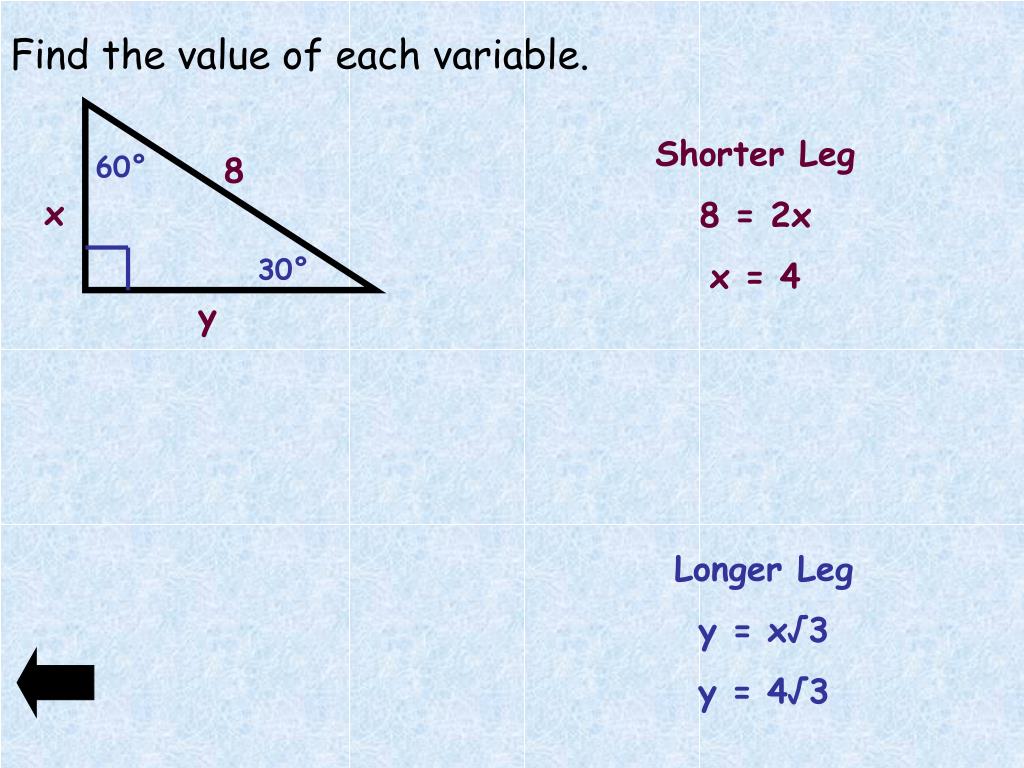

Find the value of each variable.

Shorter Leg

8 = 2x

x = 4

Longer Leg

y = x√3

y = 4√3


Special right triangles and area

Find the lengths of a 30°-60°-90° triangle with hypotenuse of length 12.

60°

12

x

30°

y

Shorter Leg

12 = 2x

x = 6

Longer Leg

y = x√3

y = 6√3


Special right triangles and area

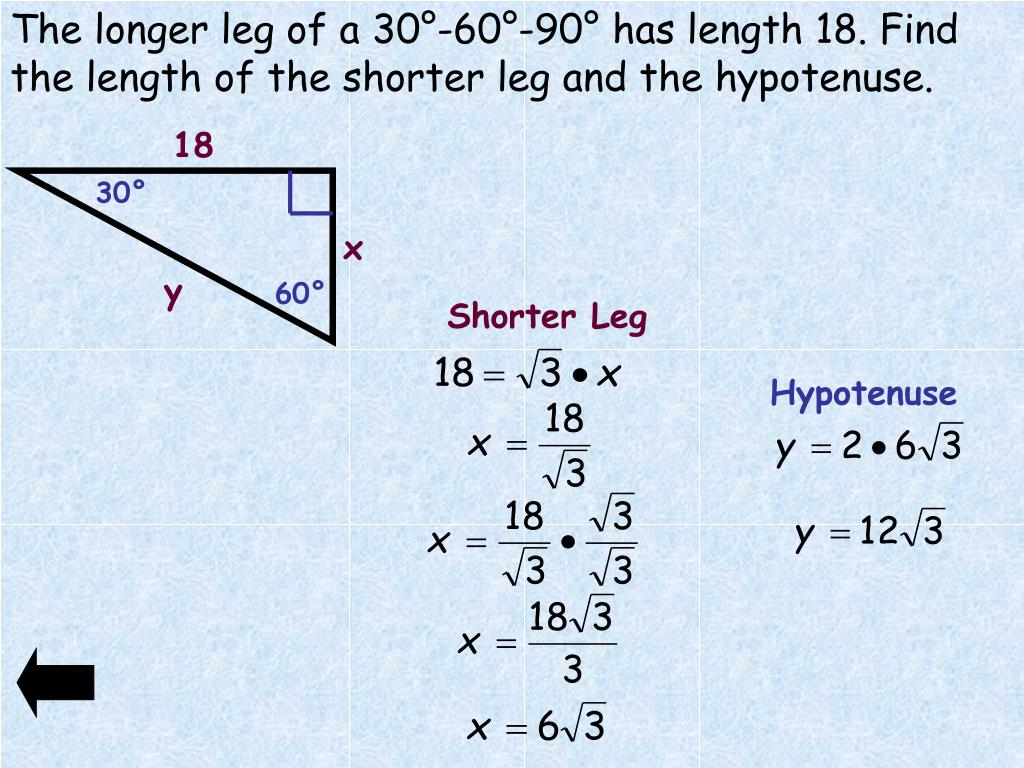

The longer leg of a 30°-60°-90° has length 18. Find the length of the shorter leg and the hypotenuse.

30°

60°

18

x

y

Shorter Leg

Hypotenuse


Special right triangles and area

Find the area. The figure is not drawn to scale.


Special right triangles and area

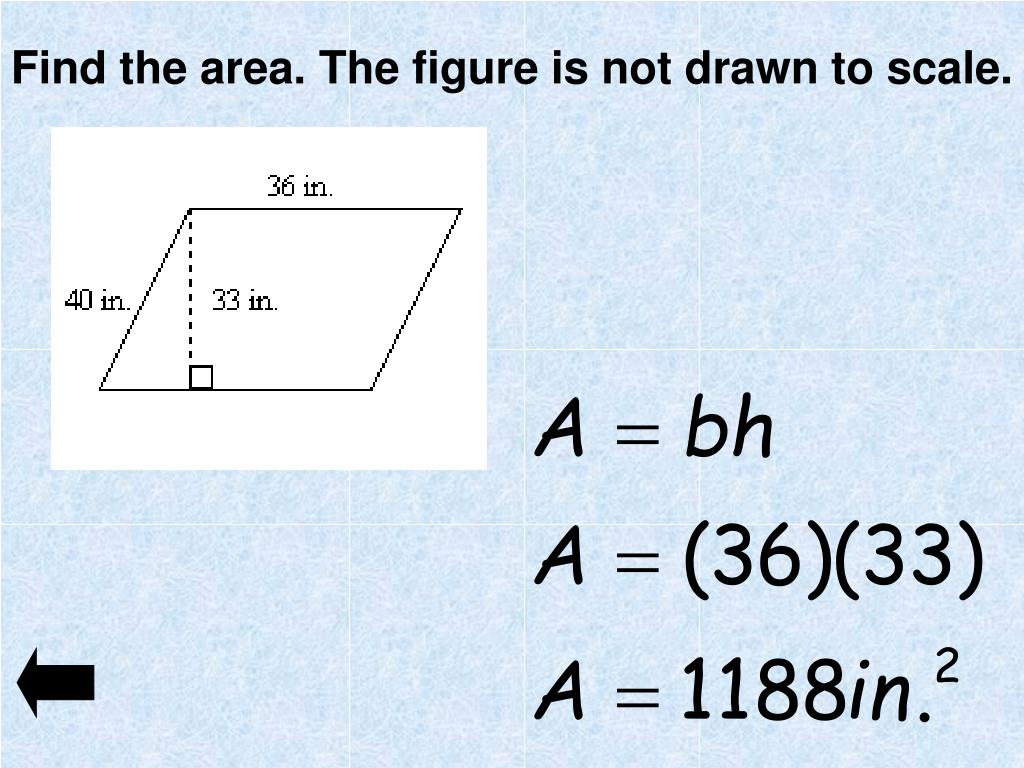

Find the area. The figure is not drawn to scale.


Special right triangles and area

Find the area of a parallelogram with the given vertices.

P(1, 3), Q(3, 3), R(7, 8), S(9, 8)

10 units2


Special right triangles and area

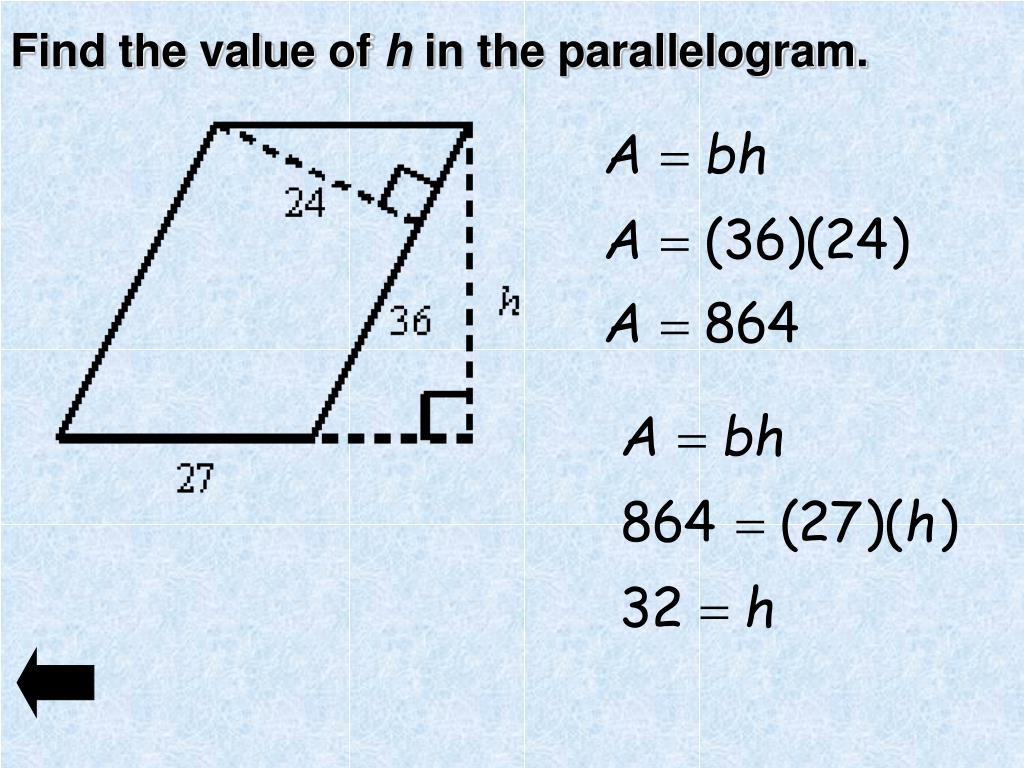

Find the value of h in the parallelogram.


Special right triangles and area

50


Special right triangles and area

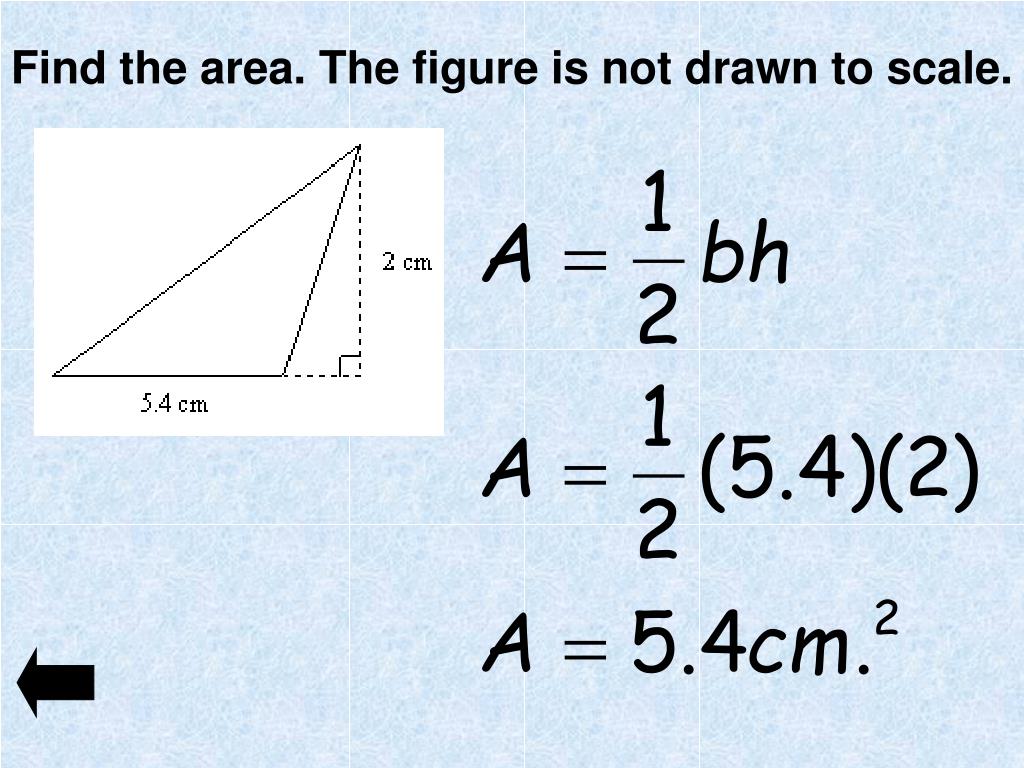

Find the area. The figure is not drawn to scale.


Special right triangles and area

Find the area. The figure is not drawn to scale.


Special right triangles and area

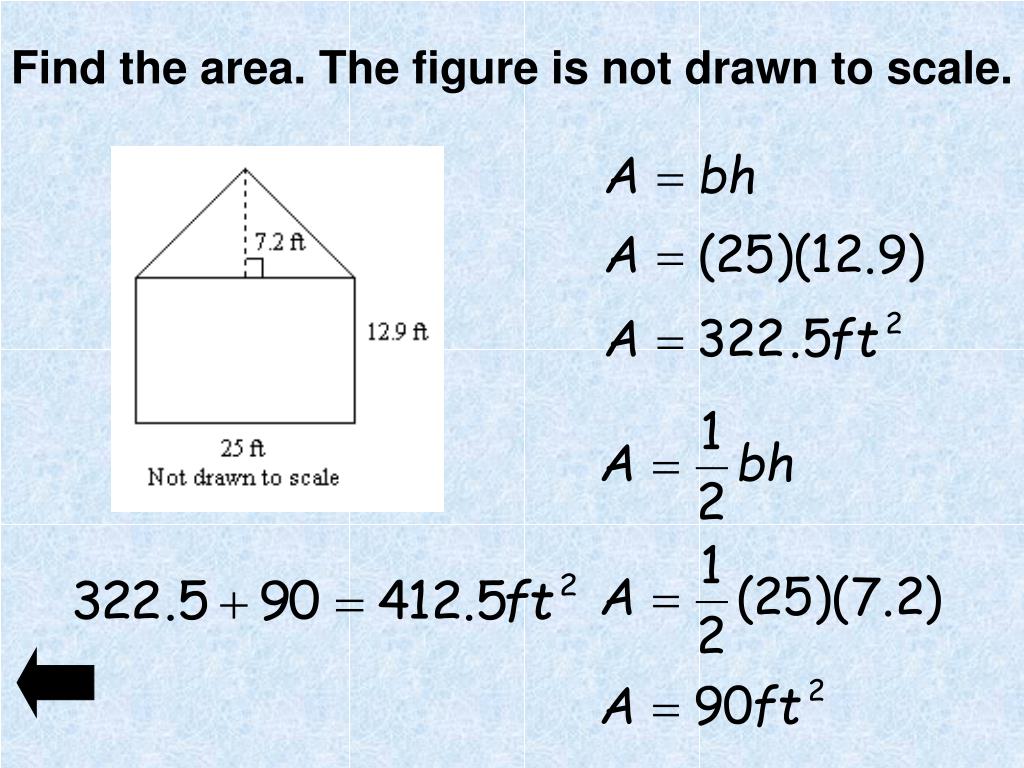

Find the area. The figure is not drawn to scale.


Special right triangles and area

Find the area. The figure is not drawn to scale.


Special right triangles and area

Find the length of the missing side. The triangle is not drawn to scale.


Special right triangles and area

Find the length of the missing side. The triangle is not drawn to scale.


Special right triangles and area

Find the length of the missing side. The triangle is not drawn to scale.


Special right triangles and area

Find the area of the triangle. Leave your answer in simplest radical form.


Special right triangles and area

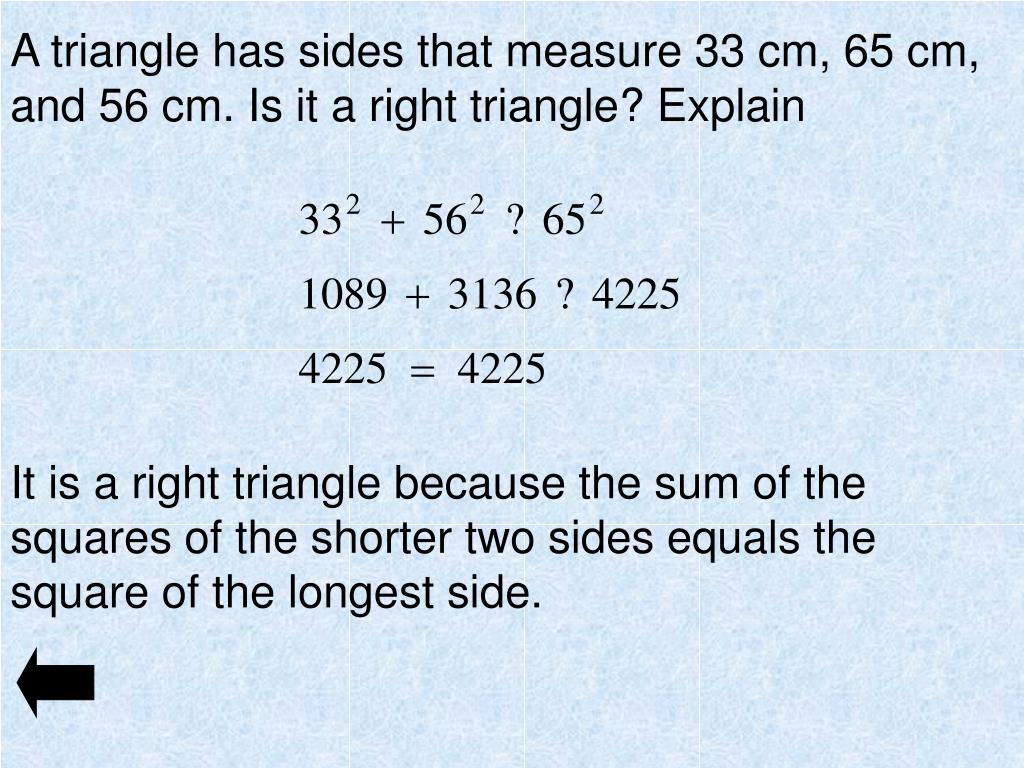

A triangle has sides that measure 33 cm, 65 cm, and 56 cm. Is it a right triangle? Explain

It is a right triangle because the sum of the squares of the shorter two sides equals the square of the longest side.
