Paxos Made Simple

1. Paxos Made Simple Jinghe Zhang

2. Introduction • Lock is the easiest way to manage concurrency • Mutex and semaphore. • Read and write locks. • In distributed system: • No master for issuing locks. • Failures.

3. Problem • How to reach consensus/data consistency in distributed system that can tolerate non-malicious failures?

4. Requirements • Safety • Only a value that has been proposed may be chosen. • Only a single value is chosen. • A node never learns that a value has been chosen unless it actually has been. • Liveness • Some proposed value is eventually chosen. • If a value has been chosen, a node can eventually learn the value

5. Paxos Properties • Paxos is an asynchronous consensus algorithm • Asynchronous networks • No common clocks or shared notion of time (local ideas of time are fine, but different processes may have very different “clocks”) • No way to know how long a message will take to get from A to B

6. Paxos Properties • Paxos is guaranteed safe. • Consensus is a stable property: once reached it is never violated; the agreed value is not changed.

7. Paxos Properties • Paxos is not guaranteed live. • Consensus is reached if “a large enough subnetwork...is non-faulty for a long enough time.” • Otherwise Paxos might never terminate.

8. Paxos Algorithm • Key Assumptions: • Set of processes that run Paxos is known a-priori • Processes suffer crash failures • All processes have Greek names (but translate as “Fred”, “Cynthia”, “Nancy”…)

9. Paxos Algorithm • 3 roles • proposer • acceptor • Learner • A node can act as more than one clients (usually 3). • 2 phases • Phase 1: Prepare request  Response • Phase 2: Accept request  Response

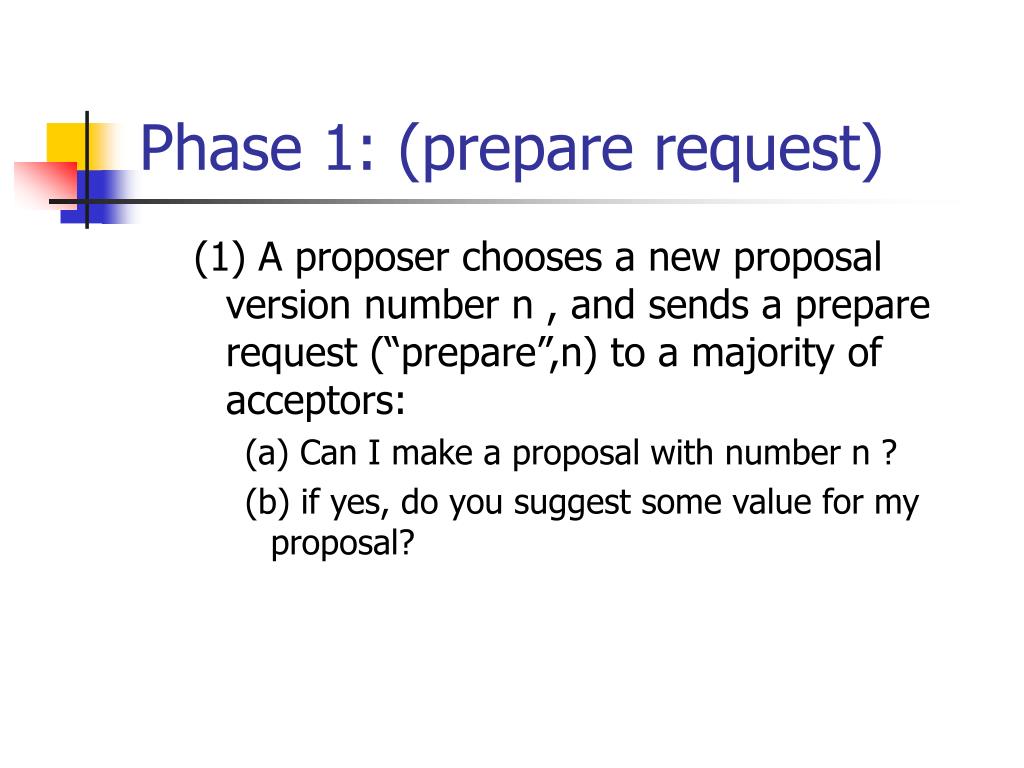

10. Phase 1: (prepare request) (1) A proposer chooses a new proposal version number n , and sends a prepare request (“prepare”,n) to a majority of acceptors: (a) Can I make a proposal with number n ? (b) if yes, do you suggest some value for my proposal?

11. Phase 1: (prepare request) (2) If an acceptor receives a prepare request (“prepare”, n) with n greater than that of any prepare request it has already responded, sends out (“ack”, n, n’, v’) or (“ack”, n,  , ) (a) responds with a promise not to accept any more proposals numbered less than n. (b) suggest the value v of the highest-number proposal that it has accepted if any, else 

12. Phase 2: (accept request) (3) If the proposer receives responses from a majority of the acceptors, then it can issue an accept request (“accept”, n , v) with number n and value v: (a) n is the number that appears in the prepare request. (b) v is the value of the highest-numbered proposal among the responses

13. Phase 2: (accept request) (4) If the acceptor receives an accept request (“accept”, n , v) , it accepts the proposal unless it has already responded to a prepare request having a number greater than n.

14. Learning the decision • Obvious algorithm: whenever acceptor accepts a proposal, respond to all learners (“accept”, n, v). • No Byzantine-Failures: Acceptors informs a distinguished learner and let the distinguished learner broadcast the result. • Learner receives (“accept”, n, v) from a majority of acceptors, decides v, and sends (“decide”, v) to all other learners. • Learners receive (“decide”, v), decide v

15. In Well-Behaved Runs 1 1 1 1 1 2 2 2 (“prepare”,1) (“accept”,1 ,v1) . . . . . . . . . (“ack”,1, ^, ^) n n n (“accept”,1 ,v1) 1: proposer 1-n: acceptors 1-n: learners decide v1

16. Paxos is safe… • Intuition: • If a proposal with value v is decided, then every higher-numbered proposal issued by any proposer has value v. next prepare request with Proposal Number n+1 (what if n+k?) A majority of acceptors accept (n, v), v is decided

17. Safety (proof) • Suppose (n, v)is the earliest proposal that passed. If none, safety holds. • Let (n’, v’) be the earliest issued proposal after (n, v) with a different value v’!=v • As (n’, v’) passed, it requires a major of acceptors. Thus, some process approve both (n, v) and (n’, v’), though it will suggest value v with version number k>= n. • As (n’, v’) passed, it must receive a response (“ack”, n’, j, v’) to its prepare request, with n<j<n’. Consider (j, v’) we get the contradiction.

18. Liveness • Fischer-Lynch-Patterson (1985) • No consensus can be guaranteed in an asynchronous communication system in the presence of any failures. • Intuition: a “failed” process may just be slow, and can rise from the dead at exactly the wrong time.

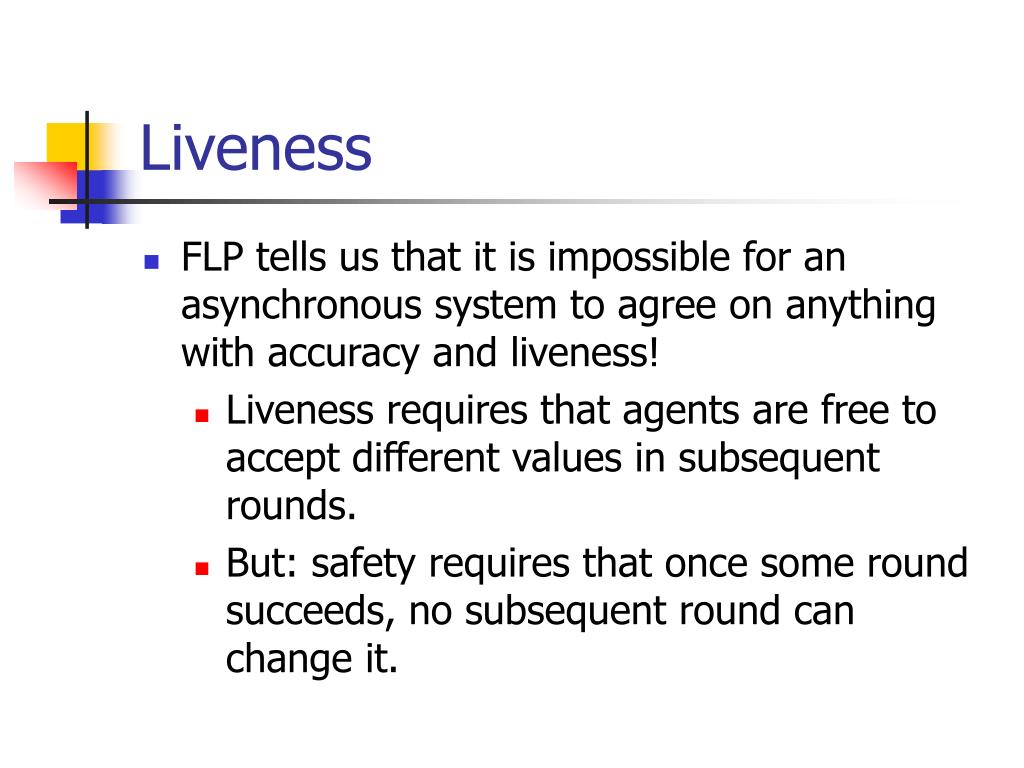

19. Liveness • FLP tells us that it is impossible for an asynchronous system to agree on anything with accuracy and liveness! • Liveness requires that agents are free to accept different values in subsequent rounds. • But: safety requires that once some round succeeds, no subsequent round can change it.

20. Liveness(cont.) • Paper gives us a scenario with 2 proposers, and during the scenario no decision can be made. • As the paper points out, selecting a distinguished proposer will solve the problem. • “Leader election” • But Paxos doesn’t block in case of a lost message • Phase 1 can start with new rank even if previous attempts never ended

21. Applications • Chubby lock service. • Petal: Distributed virtual disks. • Frangipani: A scalable distributed file system.

22. Summary • Consensus is “impossible” • But this doesn’t turn out to be a big obstacle • We can achieve consensus with probability one in many situations • Paxos is an example of a consensus protocol, very simple

23. If you are interested... • Lamport, Leslie (May 1998). "The Part-Time Parliament". ACM Transactions on Computer Systems16 (2): 133–169. (http://research.microsoft.com/users/lamport/pubs/lamport-paxos.pdf)

24. Questions? Jenkins, if I want another yes-man, I’ll build one!
