SUBATOMIC PARTICLE. LOCATION (in the atom). RELATIVE CHARGE. MASS (amu). In nucleus. Proton. +1. 1. Neutron. In nucleus. 0. 1. Electron. electron cloud. -1. 0. Do Now : First fill in the table below. Which one of these particles is NOT counted in the mass number?.

Download Presentation

electron cloud

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Do now first fill in the table below which one of these particles is not counted in the mass number

SUBATOMIC

PARTICLE

LOCATION

(in the atom)

RELATIVE

CHARGE

MASS

(amu)

In nucleus

Proton

+1

1

Neutron

In nucleus

0

1

Electron

electron

cloud

-1

0

Do Now: First fill in the table below.Which one of these particles is NOT counted in the mass number?


Do now first fill in the table below which one of these particles is not counted in the mass number1

SUBATOMIC

PARTICLE

LOCATION

(in the atom)

RELATIVE

CHARGE

MASS

(amu)

In nucleus

Proton

+1

1

Neutron

In nucleus

0

1

Electron

electron

cloud

-1

0

Do Now: First fill in the table below.Which one of these particles is NOT counted in the mass number?


Interpretation of a chemical formulas

O

O

S

O

O

H

H

Interpretation of a Chemical Formulas

1 molecule of sulfuric acid

H2SO4

Two atoms

of hydrogen

Four atoms

of oxygen

One atom

of sulfur

How many hydrogen atoms are in three

molecules of sulfuric acid?

3 x 2 = 6 H atoms

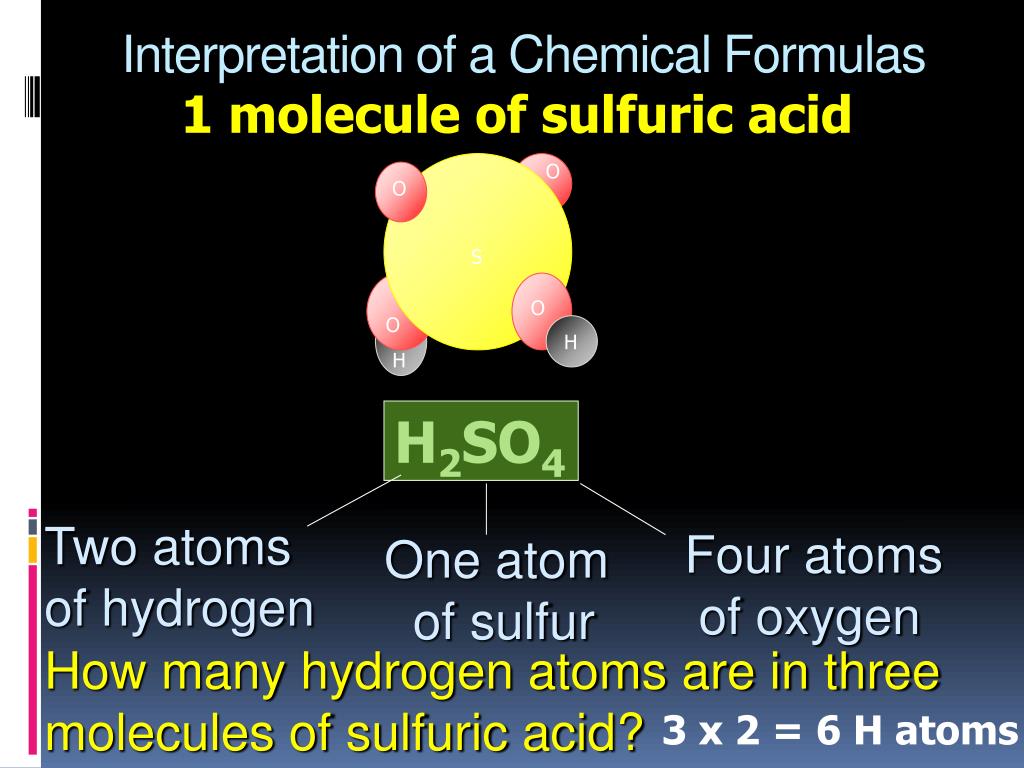

Interpretation of a chemical formulas1

O

O

S

O

O

H

H

Interpretation of a Chemical Formulas

1 molecule of sulfuric acid

H2SO4

Two atoms

of hydrogen

Four atoms

of oxygen

One atom

of sulfur

How many hydrogen atoms are in three

molecules of sulfuric acid?

3 x 2 = 6 H atoms


Models of the atom

-

e

+

-

e

+

e

-

e

+

+

+

+

e

-

+

e

e

-

e

+

e

+

e

Models of the Atom

Democritus’s model

(400 B.C.)

Dalton’s model

(1803)

Thomson’s plum-pudding

model (1897)

Rutherford’s model

(1909)

Bohr’s model

(1913)

Charge-cloud model

(present)

1897 J.J. Thomson, a British

scientist, discovers the electron,

leading to his "plum-pudding"

model. He pictures electrons

embedded in a sphere of

positive electric charge.

1911 New Zealander

Ernest Rutherford states

that an atom has a dense,

positively charged nucleus.

Electrons move randomly in

the space around the nucleus.

1926 Erwin Schrodinger

develops mathematical

equations to describe the

motion of electrons in

atoms. His work leads to

the electron cloud model.

1803 John Dalton

pictures atoms as

tiny, indestructible

particles, with no

internal structure.

1913 In Niels Bohr's

model, the electrons move

in spherical orbits at fixed

distances from the nucleus.

1800 1805 ..................... 1895 1900 1905 1910 1915 1920 1925 1930 1935 1940 1945

1932 James

Chadwick, a British

physicist, confirms the

existence of neutrons,

which have no charge.

Atomic nuclei contain

neutrons and positively

charged protons.

1924 Frenchman Louis

de Broglie proposes that

moving particles like electrons

have some properties of waves.

Within a few years evidence is

collected to support his idea.

1904 Hantaro Nagaoka, a

Japanese physicist, suggests

that an atom has a central

nucleus. Electrons move in

orbits like the rings around Saturn.

Dorin, Demmin, Gabel, Chemistry The Study of Matter , 3rd Edition, 1990, page 125

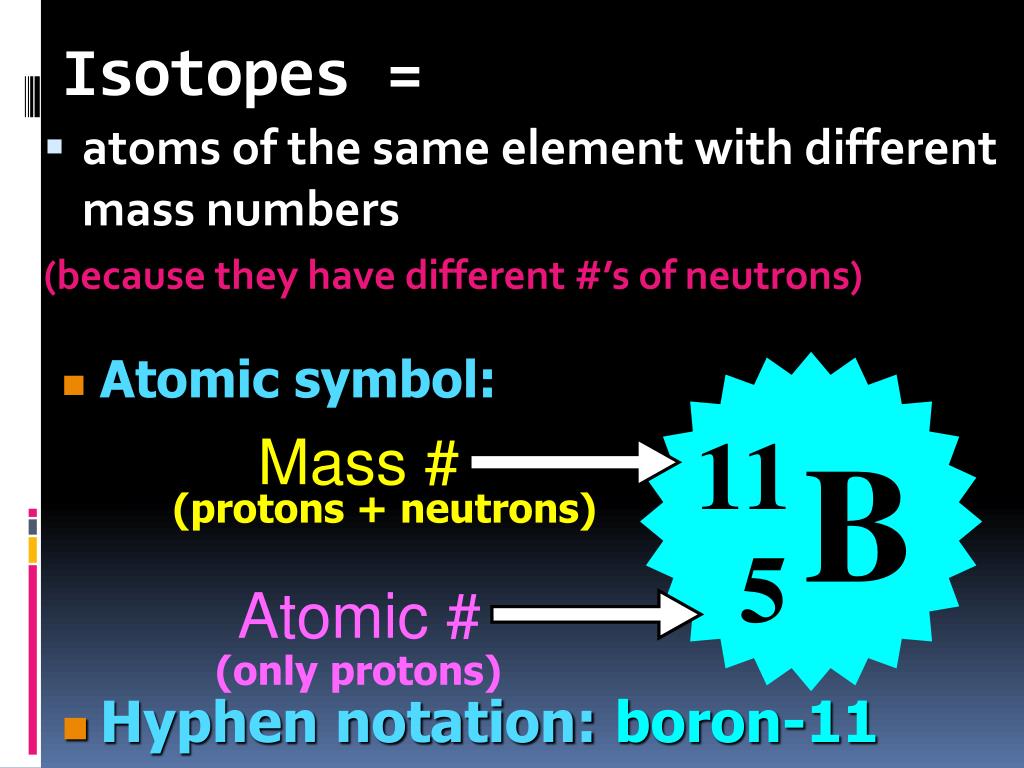

Isotopes

Mass #

Atomic #

Isotopes =

  • atoms of the same element with different mass numbers

    (because they have different #’s of neutrons)

  • Atomic symbol:

(protons + neutrons)

(only protons)

  • Hyphen notation: boron-11

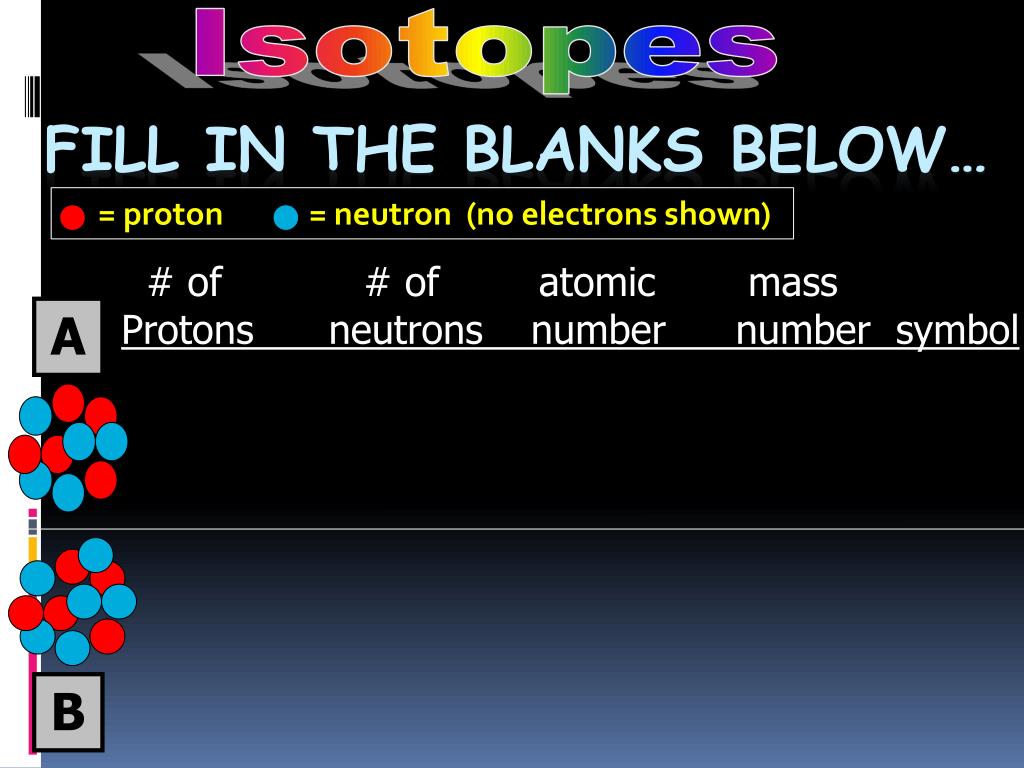

Proton neutron no electrons shown

Isotopes

# of # ofatomic mass

Protons neutronsnumbernumber symbol

A

= proton = neutron (no electrons shown)

Fill in the blanks below…

B


Proton neutron no electrons shown1

11

10

5B

5B

Isotopes

# of # ofatomic mass

Protons neutronsnumbernumber symbol

A

= proton = neutron (no electrons shown)

5

5

5

10

Fill in the blanks below…

5

6

5

11

B

What’s the hyphen notation for A? boron-10


Proton neutron no electrons shown2

11

10

5B

5B

Isotopes

# of # ofatomic mass

Protons neutronsnumbernumber symbol

A

= proton = neutron (no electrons shown)

5

5

5

10

Fill in the blanks below…

5

6

5

11

B

What’s the hyphen notation for A? boron-10

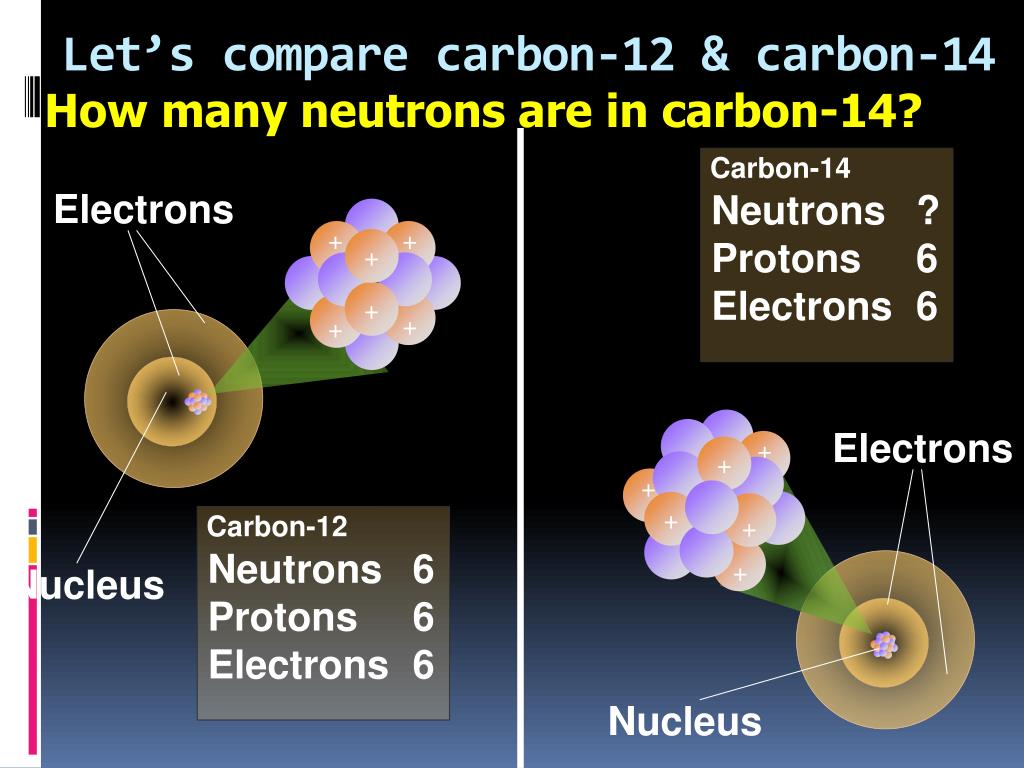

Let s compare carbon 12 carbon 14

+

+

+

+

+

Carbon-14

Carbon-12

+

Neutrons 6

Protons 6

Electrons6

Neutrons ?

Protons 6

Electrons6

+

+

+

+

+

+

Let’s compare carbon-12 & carbon-14

How many neutrons are in carbon-14? 8 n

Electrons

Electrons

Nucleus

Nucleus

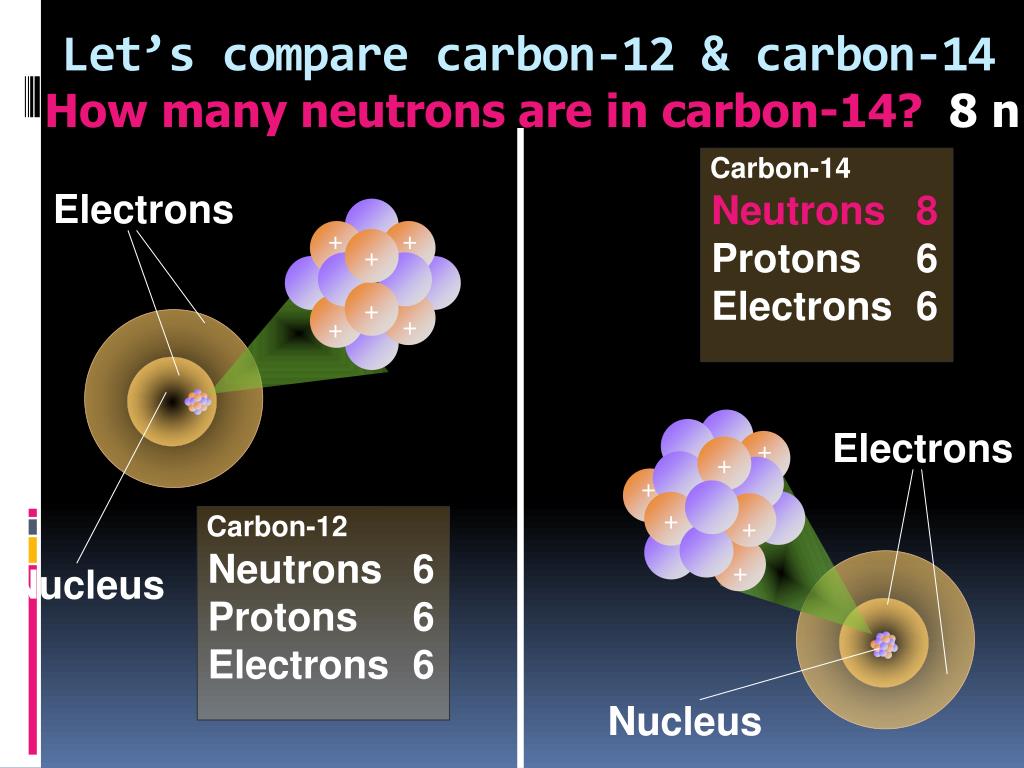

Let s compare carbon 12 carbon 141

+

+

+

+

+

Carbon-14

Carbon-12

+

Neutrons 6

Protons 6

Electrons6

Neutrons8

Protons 6

Electrons6

+

+

+

+

+

+

Let’s compare carbon-12 & carbon-14

How many neutrons are in carbon-14? 8 n

Electrons

Electrons

Nucleus

Nucleus


Electron cloud

Mass #

Mass #

Atomic #

Atomic #

Carbon-12

Carbon-14


Isotopes review how many neutrons in chlorine 37 20 n

Isotopes – reviewHow many neutrons in chlorine-37?20n

  • Chlorine-37

    • atomic #: 17

    • mass #: 37

    • # of protons: 17

    • # of electrons: 17

    • # of neutrons: ???

Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem

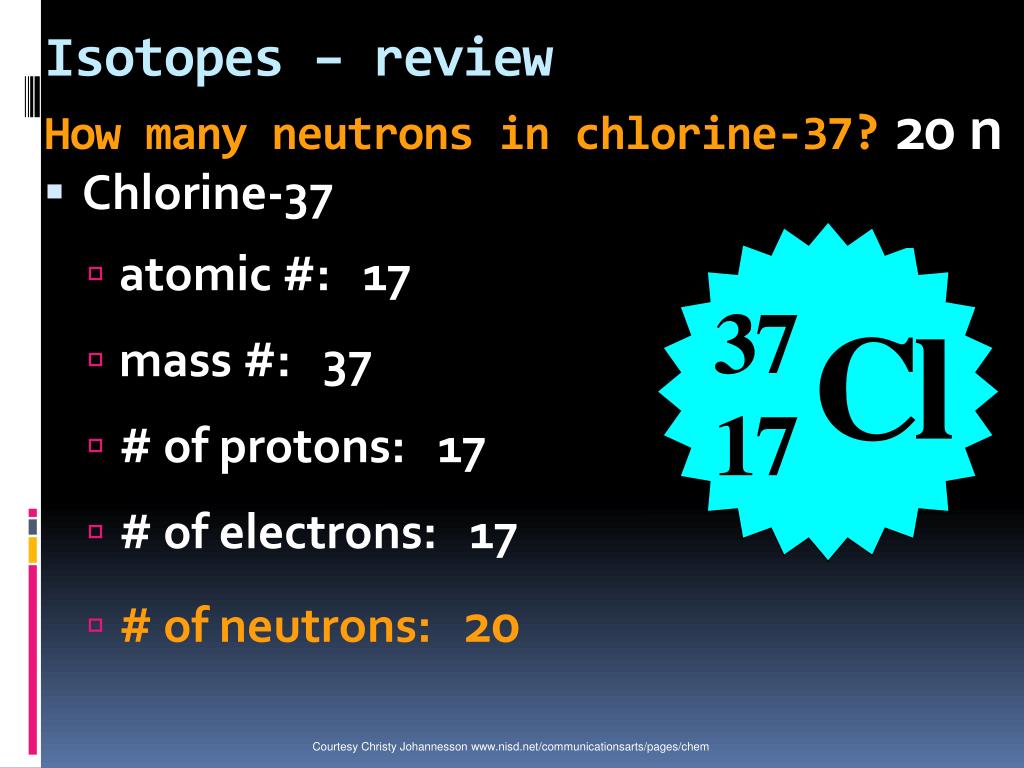

Isotopes review how many neutrons in chlorine 37 20 n1

Isotopes – reviewHow many neutrons in chlorine-37?20n

  • Chlorine-37

    • atomic #: 17

    • mass #: 37

    • # of protons: 17

    • # of electrons: 17

    • # of neutrons: 20

Courtesy Christy Johannesson www.nisd.net/communicationsarts/pages/chem


Electron cloud

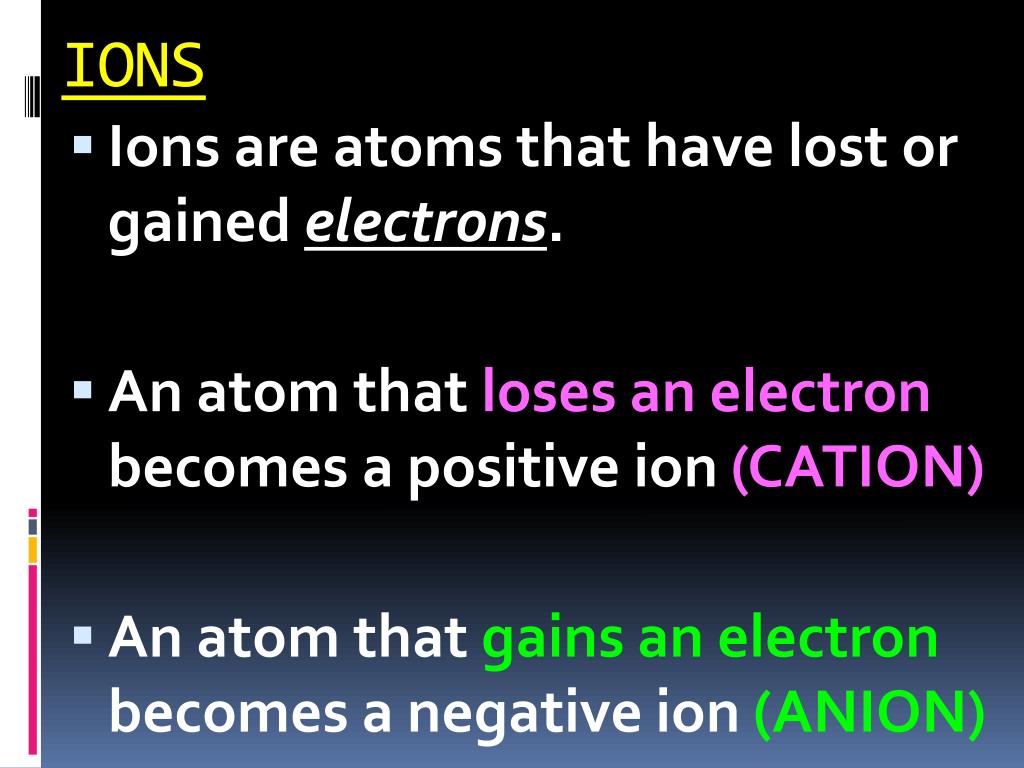

IONS

  • Ions are atoms that have lost or gained electrons.

  • An atom that loses an electron becomes a positive ion (CATION)

  • An atom that gains an electron becomes a negative ion (ANION)


Review of sub super scripts

REVIEW OF SUB/SUPER-SCRIPTS

E

mass #

charge

atomic #

formula

HOMEWORK –

  • #’s 29-33,38,40

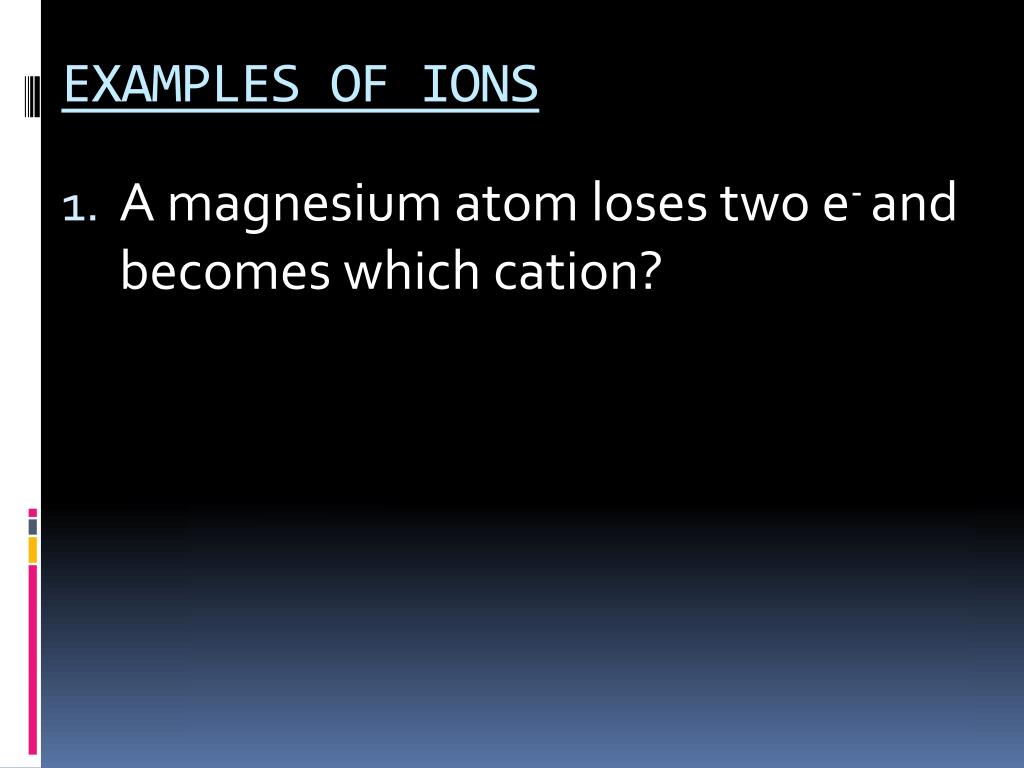

Examples of ions

EXAMPLES OF IONS

  • A magnesium atom loses two e- and becomes which cation?

Mg2+

  • 12 protons

  • 12 neutrons (usually)

  • 12 electrons

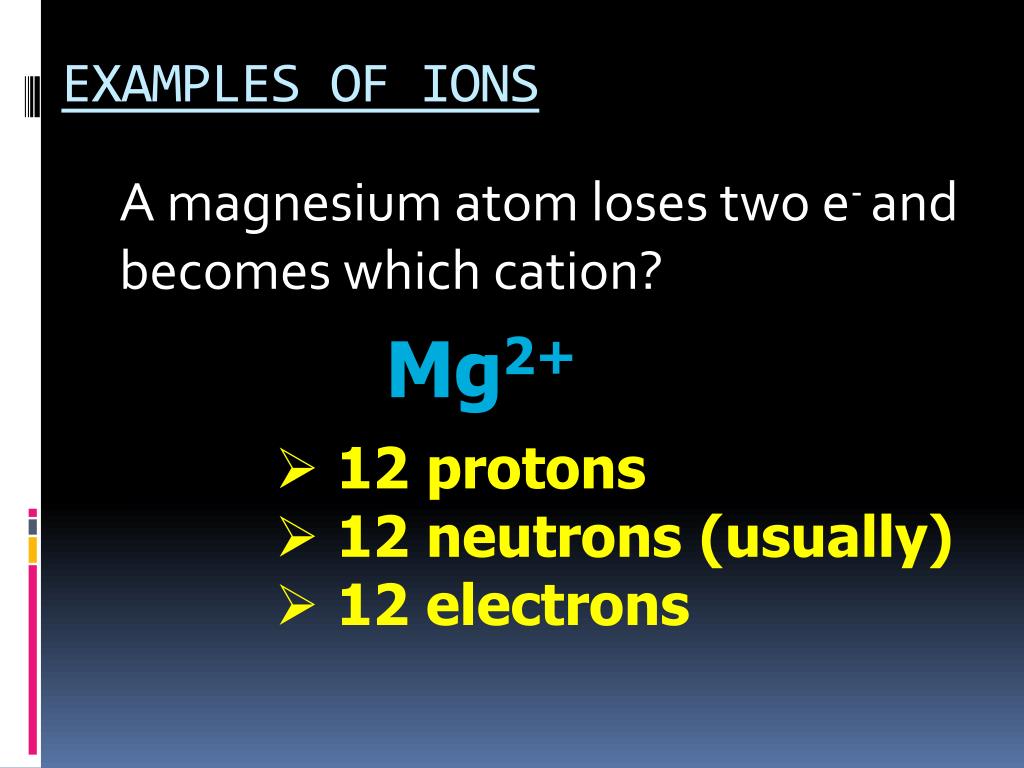

Examples of ions1

EXAMPLES OF IONS

A magnesium atom loses two e- and becomes which cation?

Mg2+

  • 12 protons

  • 12 neutrons (usually)

  • 12 electrons


Examples of ions2

EXAMPLES OF IONS

A chlorine atom gains one e- and becomes which anion?

Cl1-

  • 17 protons

  • 18 neutrons (usually)

  • 17 electrons

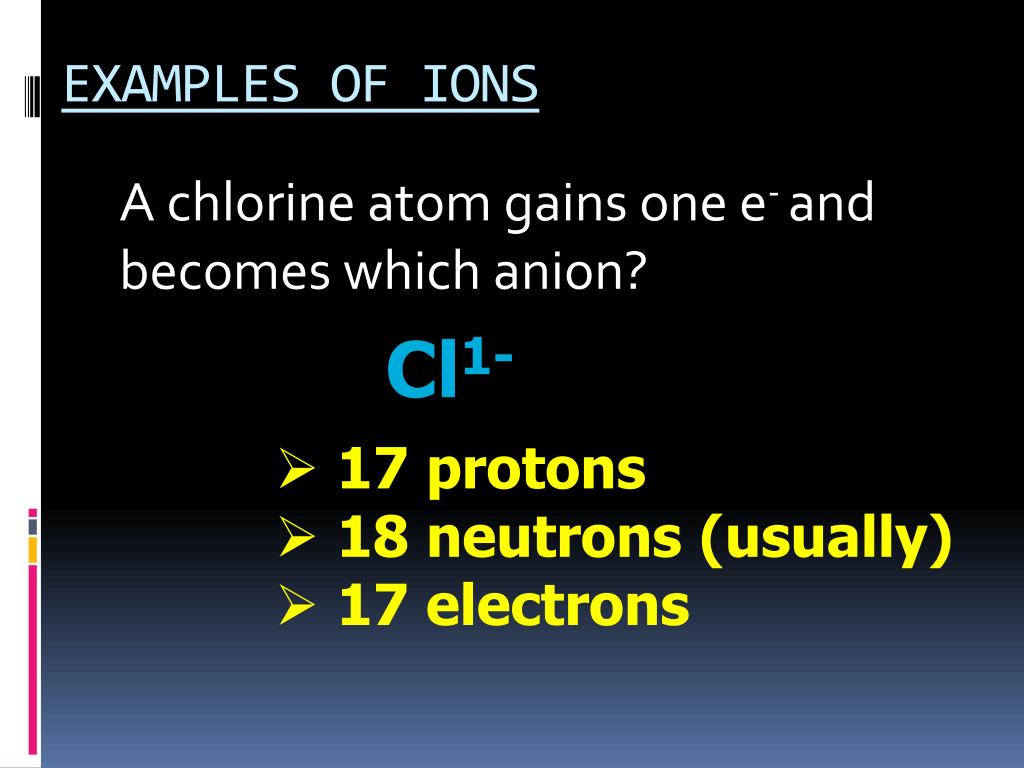

Examples of ions3

EXAMPLES OF IONS

A chlorine atom gains one e- and becomes which anion?

Cl1-

  • 17 protons

  • 18 neutrons (usually)

  • 17 electrons


Examples of ions4

EXAMPLES OF IONS

If magnesium and chloride bond together, what’s the formula of the compound they form?

MgCl2

magnesium chloride…

more on this next chapter 

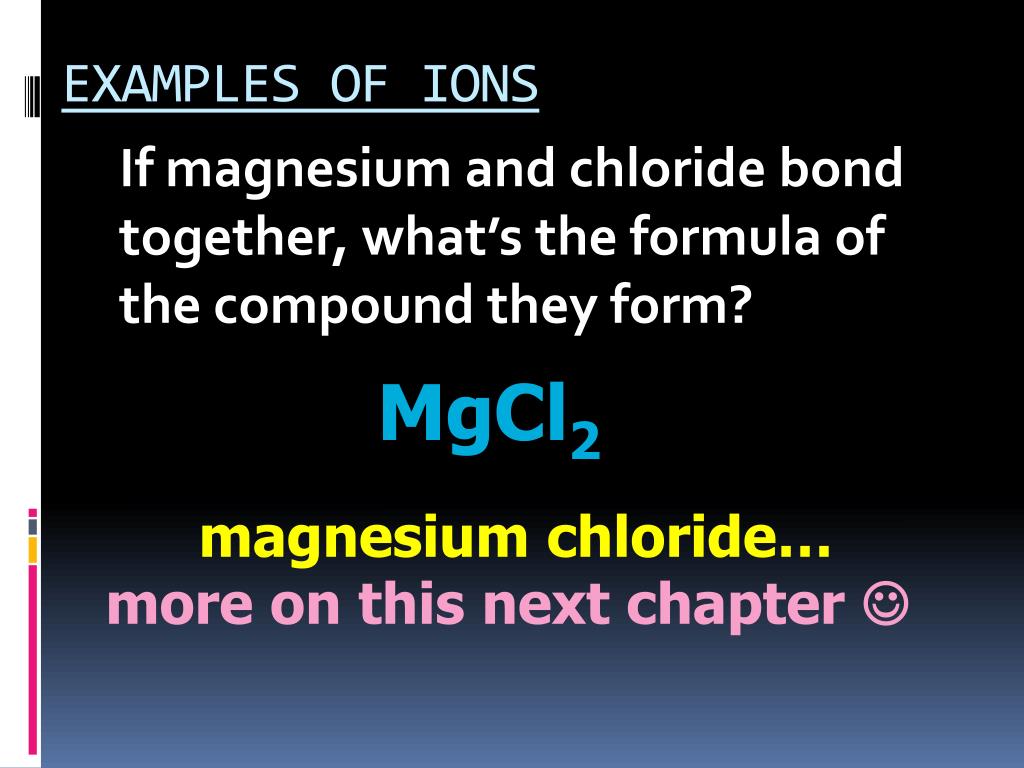

Examples of ions5

EXAMPLES OF IONS

If magnesium and chloride bond together, what’s the formula of the compound they form?

MgCl2

magnesium chloride…

more on this next chapter 
