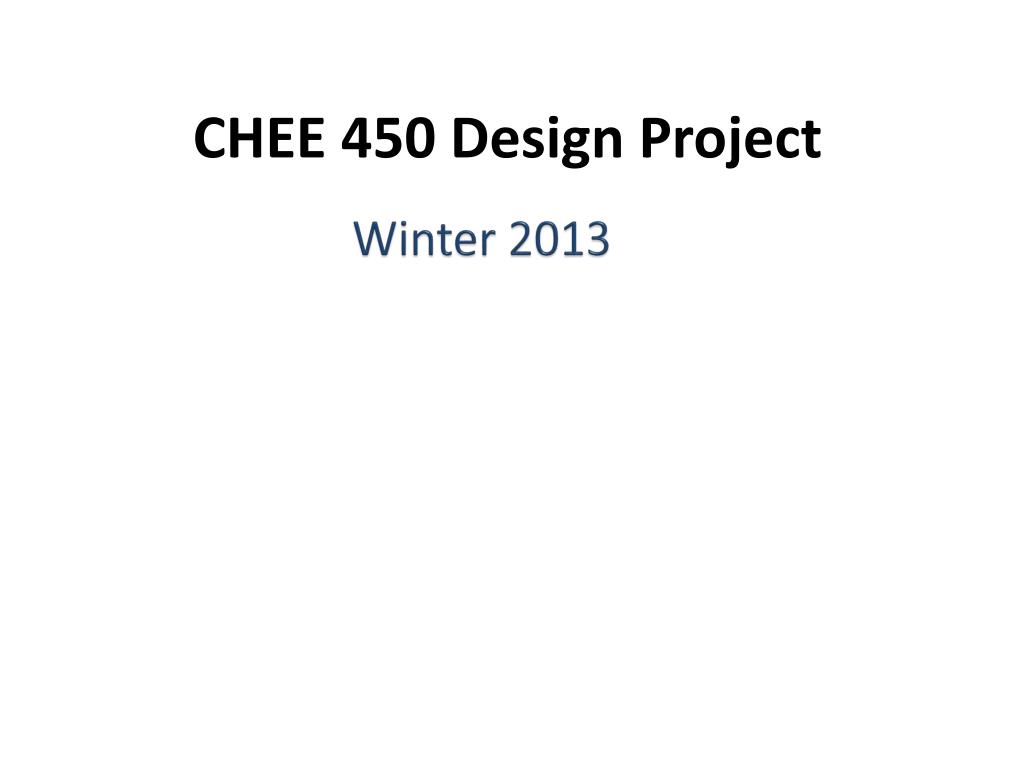

CHEE 450 Design Project

Winter 2013. CHEE 450 Design Project. Philip Fernandes. Project Description. Perform front-end engineering design of 2 unit operation in biodiesel or insulin production process Design must be feasible – consult real companies and try to get real quotes

hea
Download Presentation

CHEE 450 Design Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Winter 2013 CHEE 450 Design Project Philip Fernandes

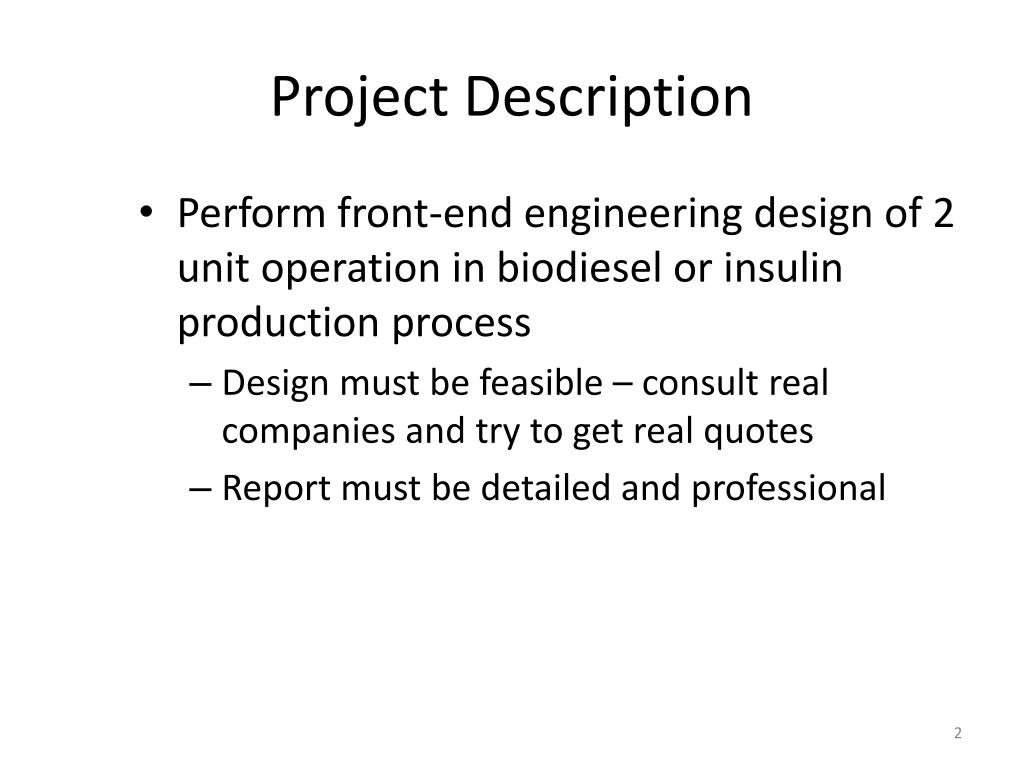

  2. Project Description • Perform front-end engineering design of 2unit operation in biodiesel or insulin production process • Design must be feasible – consult real companies and try to get real quotes • Report must be detailed and professional

  3. Project 1: Insulin Production • Production of purified biosynthetic human insulin (BHI) using transformed E. coli cellsand a capacity of around 1,800 kg of BHI per year. • Insulinis a peptide hormoneproduced by the beta cells of the pancreas. • Its main function is to stimulate liver, skeletal muscle and fat tissue to uptake glucose from the bloodstream. • It binds to insulin receptors that regulate the production of cell membrane protein that transport glucose into the cell. • It is used in the treatment of diabetes, particularly type 1 where patients’ own beta cells cannot produce insulin. Process description • Fermentation • Primary Recovery • Reactions • Final Purification

  4. Project 2: BiodieselProduction • There are three dominant ways of biodiesel production. • Most of the biodiesel produced today is done with the base catalyzed reaction for several reasons: • It requires low temperature and pressure. • It yields high conversion (98%) with minimal side reactions and reaction time. • It is a direct conversion to biodiesel with no intermediate compounds. • Your design project analyzes the production of 33,635 metric tons (MT) per year of biodiesel using crude degummed soy bean oil Process description • Reaction Section • Biodiesel Refining Section • Glycerol Purification Section

  5. A word about SuperPro • Unit operations are controlled mainly by user-specified input • Not a thermodynamics modeling package like Aspen HYSYS

  6. What should SuperPro be used for? • Getting an idea of the overall process • Determining inlet and outlet flows and compositions • Scheduling information • SuperPro does not tell you the logistics of running a batch process

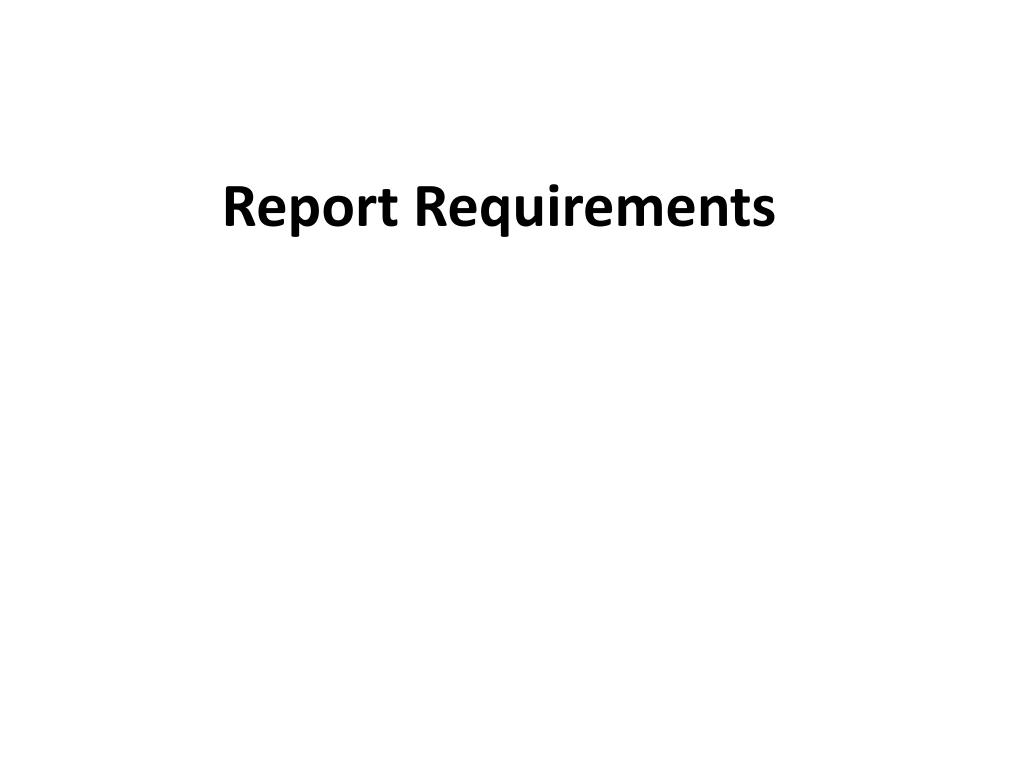

  7. Report Requirements

  8. Report Components • Title Page • Executive Summary • Table of Contents (incl. appendices) • List of Tables • List of Figures • Introduction • Discussion • Conclusion & recommendations • Appendices

  9. Report Components • 4 page maximum (excluding cover page, executive summary, tables of contents, and appendices) • Times font, size 12, 1.5 line spacing • Submit online by 16:00 on April 2nd, 2013

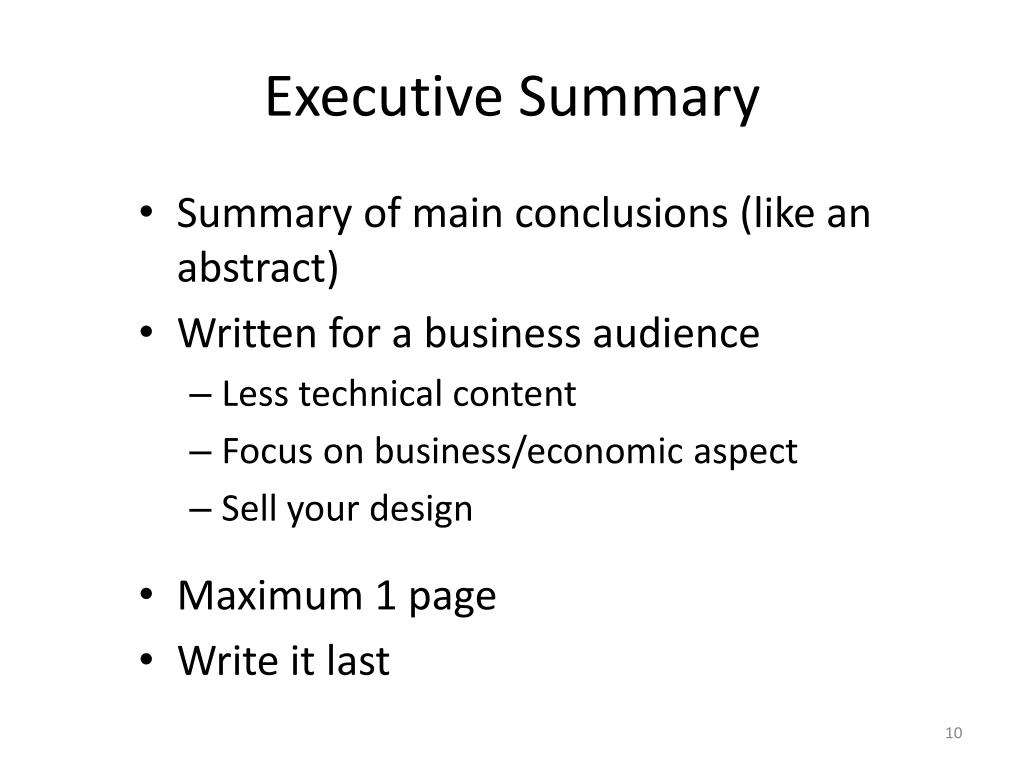

  10. Executive Summary • Summary of main conclusions (like an abstract) • Written for a business audience • Less technical content • Focus on business/economic aspect • Sell your design • Maximum 1 page • Write it last

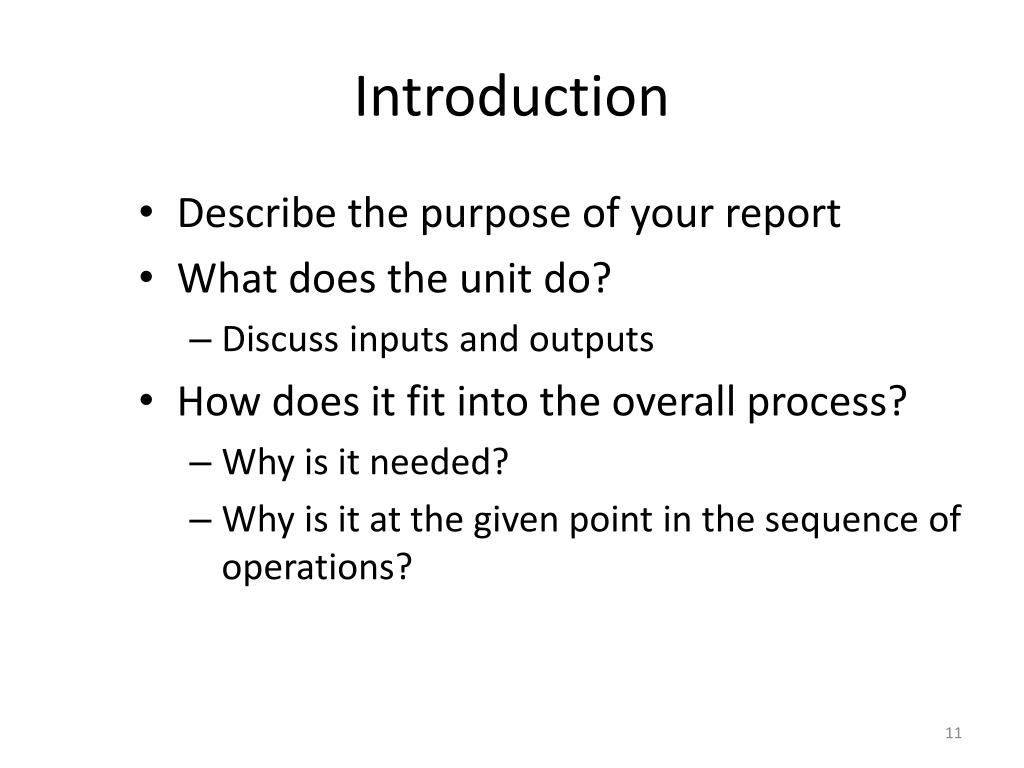

  11. Introduction • Describe the purpose of your report • What does the unit do? • Discuss inputs and outputs • How does it fit into the overall process? • Why is it needed? • Why is it at the given point in the sequence of operations?

  12. Discussion • Sizing (capacity & dimensions), materials of construction, configuration • Use the specified flow rates & compositions • Find real suppliers and get quotes; work within limits of what is commercially available • Utility requirements • Safety aspects (backups, emergency shutoff, spills, etc.) • Environmental concerns (i.e. handling of waste) • Cleaning & maintenance issues • Manpower requirements (i.e. manual vs. automatic operation)

  13. Discussion (continued) • Importance of unit within overall process • Scheduling of batch processes • Consequences of unit shutdown/malfunction • Comment on robustness, i.e. note the consequences of: • Varying inlet conditions • Changing operating parameters • Note inefficiencies/limitations • Consider alternatives • Justify your design decisions

  14. Conclusion & Recommendations • Do not just restate the executive summary • Can be more technical than ES • Draw together main points about the design and the conclusions that were made in each section (i.e. utilities, safety, environment, capital and operating costs, etc.) • Provide recommendations

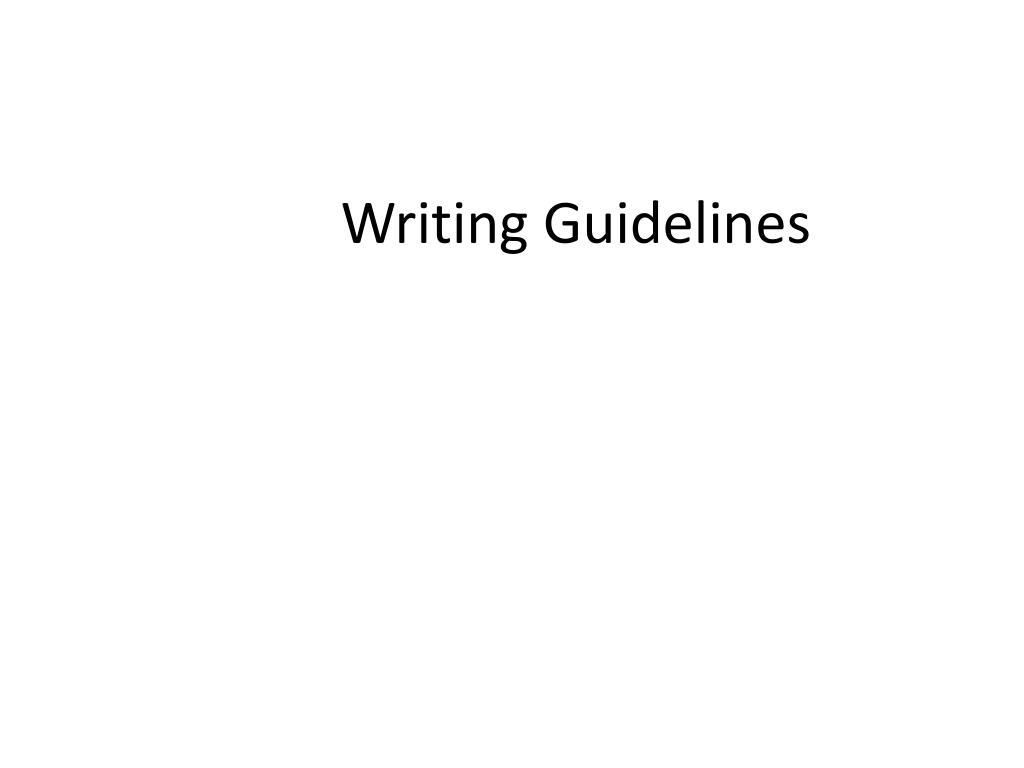

  15. Writing Guidelines

  16. Main Report • Each section should have a clear introduction, discussion, and conclusion • Technical description is not enough – explain rationale behind design decisions • Equipment quotes should be in an appendix and referenced in the main report • Consistent style, format, professional tone • Know the difference between their and there; affect and effect; etc.

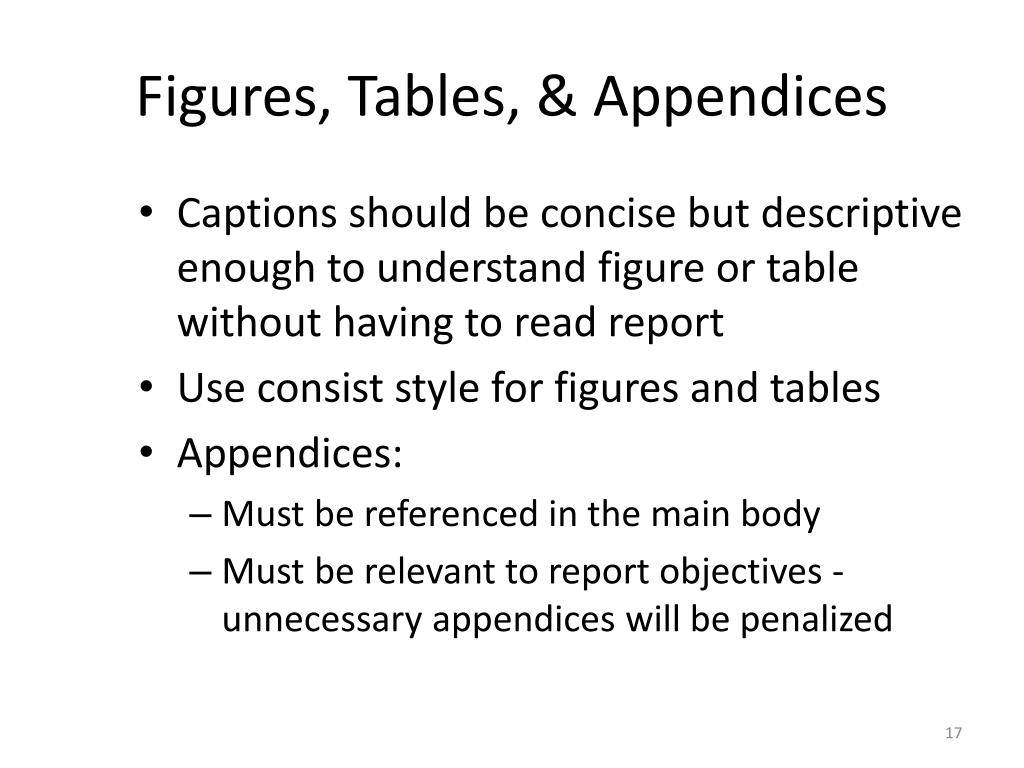

  17. Figures, Tables, & Appendices • Captions should be concise but descriptive enough to understand figure or table without having to read report • Use consist style for figures and tables • Appendices: • Must be referenced in the main body • Must be relevant to report objectives -unnecessary appendices will be penalized

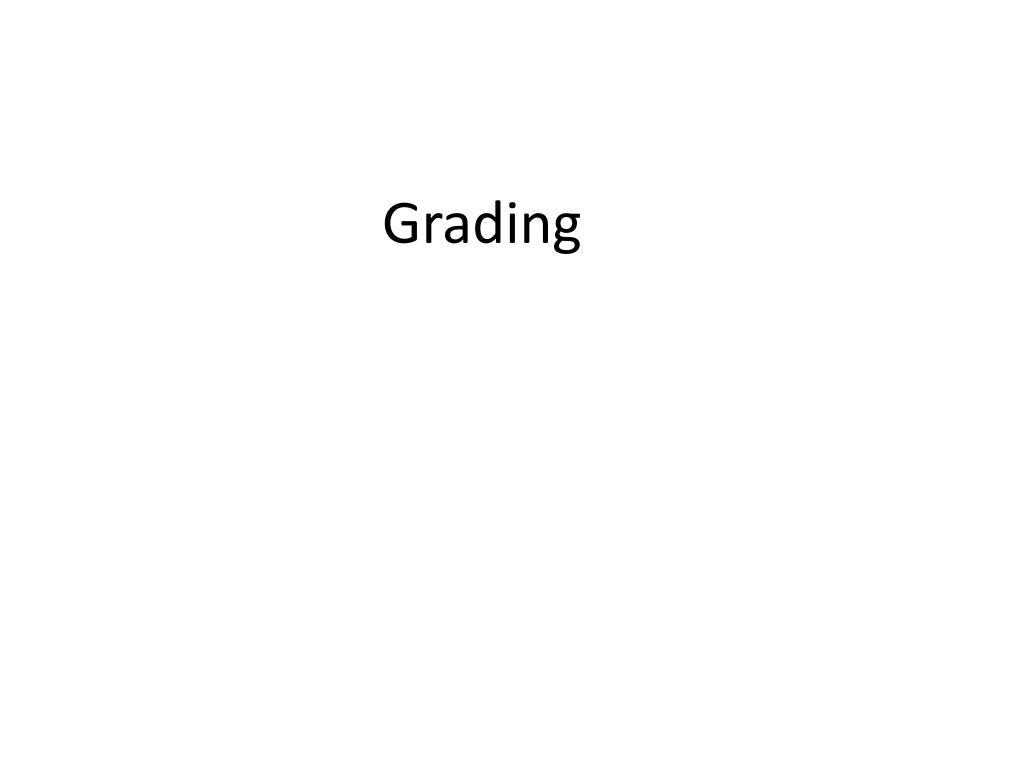

  18. Grading

  19. Marking Scheme Style (/10) • Includes professionalism, relevancy, grammar and spelling, consistency Technical Content (/30) • All design factors considered, supplier found and recommended • Rational analysis, justification of design, consideration of alternatives Conclusion (/10) • Understandable without reading the body • Should be succinct Poster (/5) • Present a summary of your report during last week of class

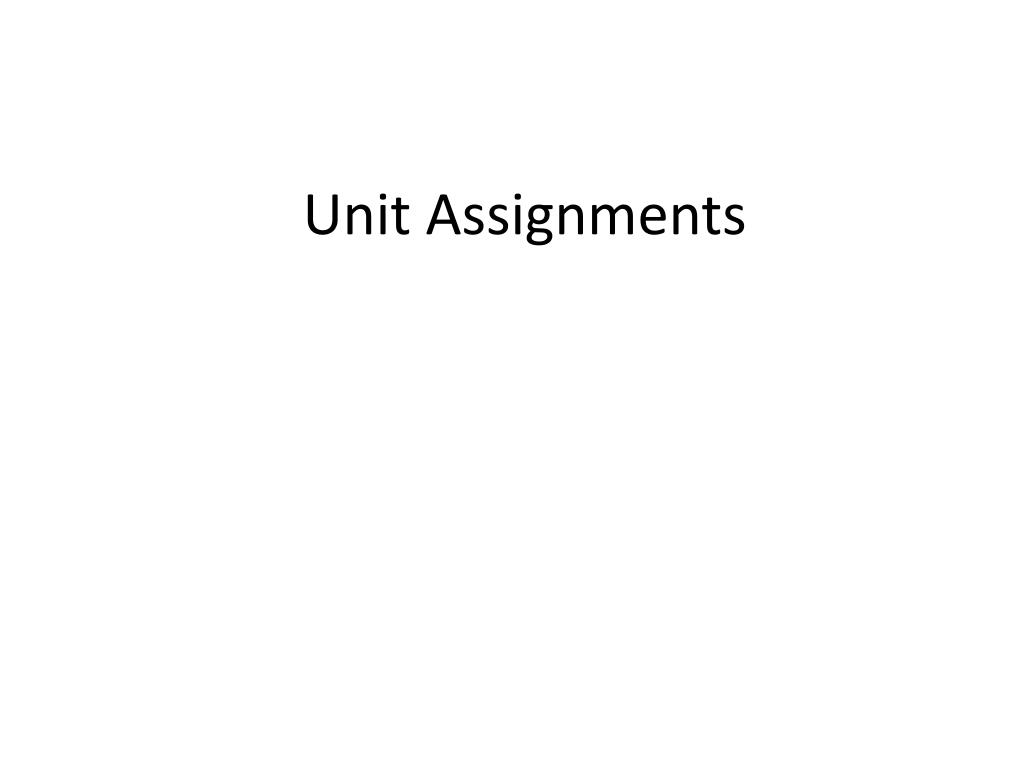

  20. Unit Assignments

  21. Signup • 3 people per group, ONE contact email • Choose a team name and a leader who will forward details to me • Units will be assigned Friday by e-mail
