8 channel ip to atsc modulator namd 800a switching hub jack module nshb 800a

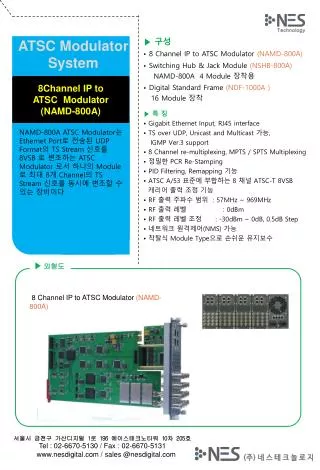

허허허허

ATSC Modulator System

8Channel IP to

ATSC Modulator

(NAMD-800A)

▶ 특 징

•Gigabit Ethernet Input, RJ45 interface

•TS over UDP, Unicast and Multicast 가능,

IGMP Ver.3 support

•8 Channel re-multiplexing, MPTS / SPTS Multiplexing

•정밀한 PCR Re-Stamping

•PID Filtering, Remapping 기능

•ATSC A/53 표준에 부합하는 8 채널 ATSC-T 8VSB

캐리어 출력 조정 기능

•RF 출력 주파수 범위 : 57MHz ~ 969MHz

• RF 출력 레벨 : 0dBm

• RF 출력 레벨 조정 : -30dBm ~ 0dB, 0.5dB Step

•네트워크 원격제어(NMS) 가능

•착탈식 Module Type으로 손쉬운 유지보수

NAMD-800A ATSC Modulator는 Ethernet Port로 전송된 UDP Format의 TS Stream 신호를 8VSB 로 변조하는 ATSC Modulator 로서 하나의 Module로 최대 8개 Channel의 TS Stream 신호를 동시에 변조할 수 있는 장비이다

▶ 구성

•8 Channel IP to ATSC Modulator (NAMD-800A)

•Switching Hub & Jack Module (NSHB-800A)

NAMD-800A 4 Module 장착용

•Digital Standard Frame (NDF-1000A )

16 Module 장착

▶외형도

8 Channel IP to ATSC Modulator (NAMD-800A)

서울시 금천구 가산디지털 1로 196 에이스테크노타워 10차 205호

Tel : 02-6670-5130 / Fax : 02-6670-5131

www.nesdigital.com / sales @nesdigital.com


8 channel ip to atsc modulator namd 800a switching hub jack module nshb 800a

IP Port

GE x 4

8VSB Modulator 1

▶ 규 격

Up

Converter

8VSB Modulator 2

ATSC 8 Ch RF Output

G1

G2

S1

S2

•IP Input

Gigabit Ethernet

•Modulation

Standard : ATSC A/53

Constellation : 8VSB

Channel : 8 EA

FEC : RS 208 / 188 + Trellis

PSI/SI Table Generation

정밀한 PCR 조정, PID Re-Stamping , NMS Stream지원

•RF Output

Frequency Range: 57MHz ~ 969MHz, 10KHz Step

Output Level : 0dB

Output Level Adjust : -30dB ~ 0dB, 0.5dB Step

•Control

원격 네트워크 제어(NMS)

8VSB Modulator 3

8VSB Modulator 4

Network Interface

Channel Combiner

8VSB Modulator 5

MPU

8VSB Modulator 6

Gb Ethernet Switching Hub (NSHB-800A)

Control

Network

Network

Interface

8VSB Modulator 7

8VSB Modulator 8

NAMD-800A #1

NAMD-800A #2

▶ Block Diagram

NAMD-800A #3

NAMD-800A #4

서울시 금천구 가산디지털 1로 196 에이스테크노타워 10차 205호

Tel : 02-6670-5130 / Fax : 02-6670-5131

www.nesdigital.com / sales @nesdigital.com
