  1. A100 Training Course Baseband

  2. Presentation Outline • Block Diagram • Circuit Diagram • Test Points

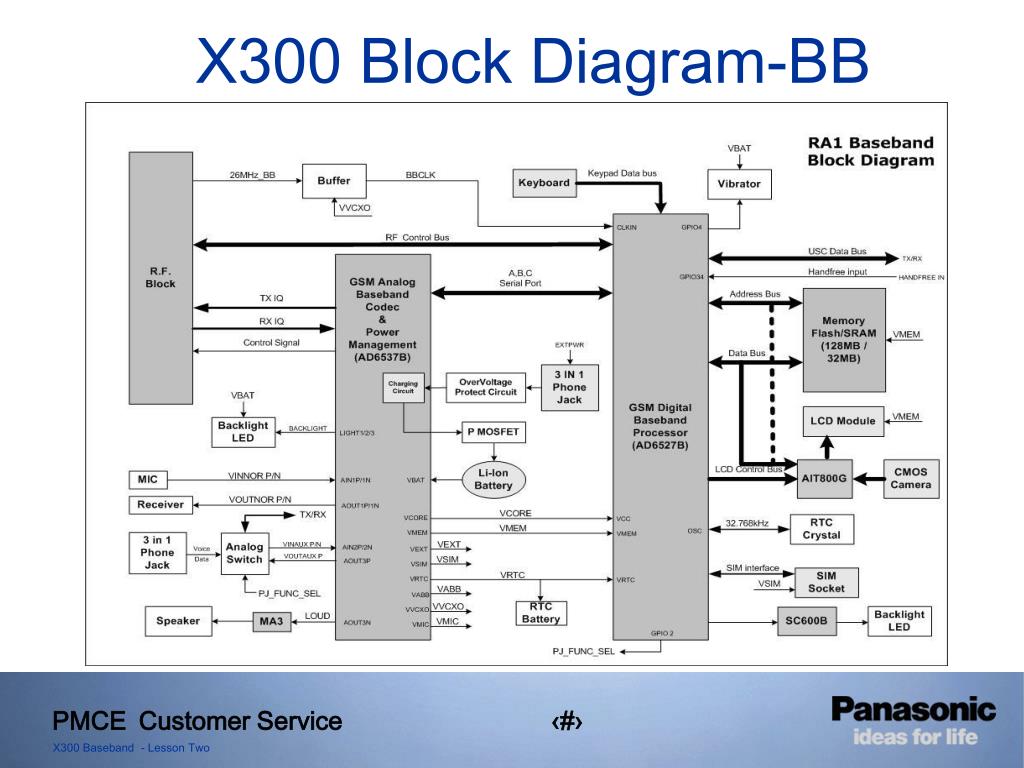

  3. X300 Block Diagram-BB

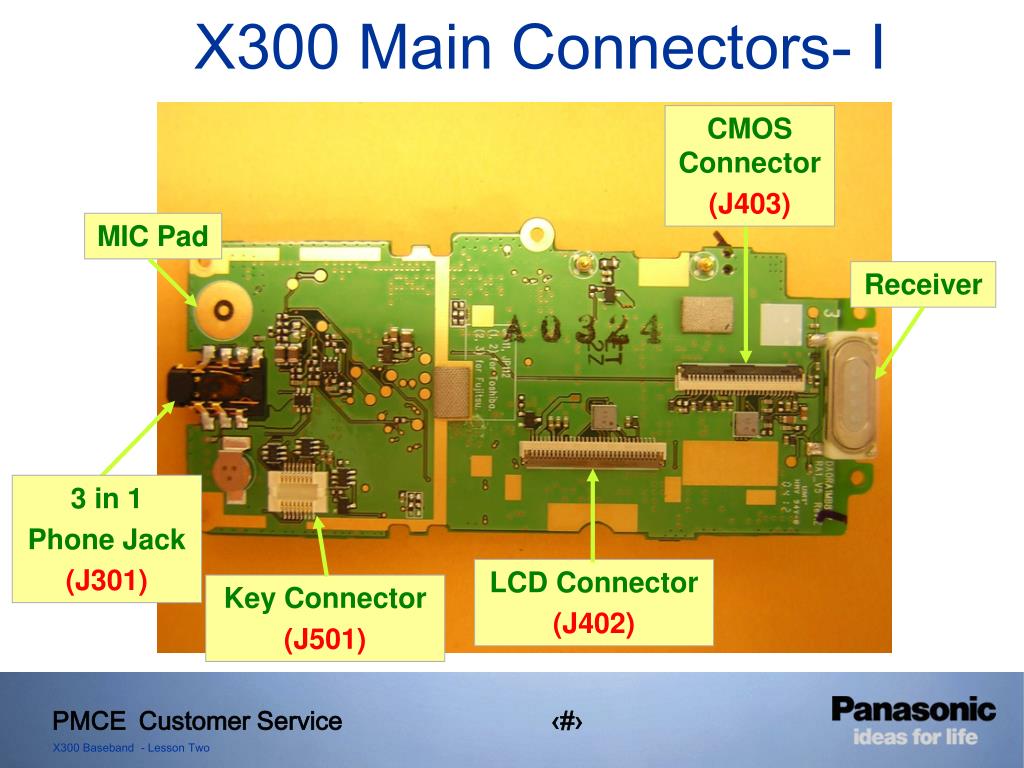

  4. X300 Main Connectors- I CMOS Connector (J403) MIC Pad Receiver 3 in 1 Phone Jack (J301) LCD Connector (J402) Key Connector (J501)

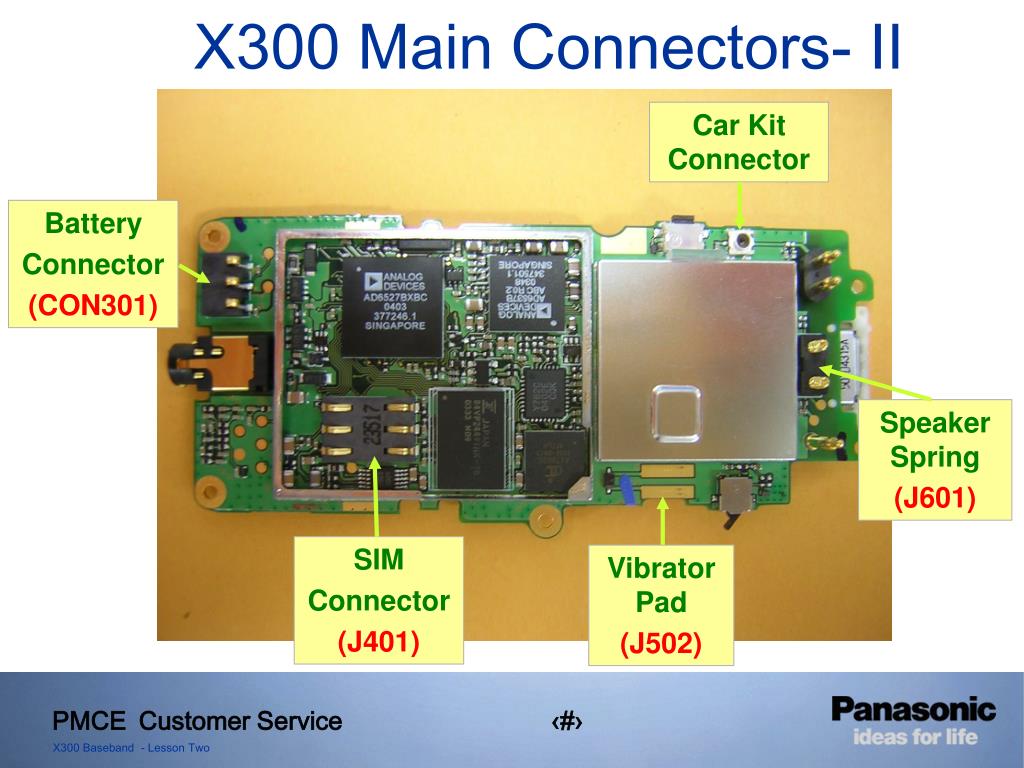

  5. X300 Main Connectors- II Car Kit Connector Battery Connector (CON301) Speaker Spring (J601) SIM Connector (J401) Vibrator Pad (J502)

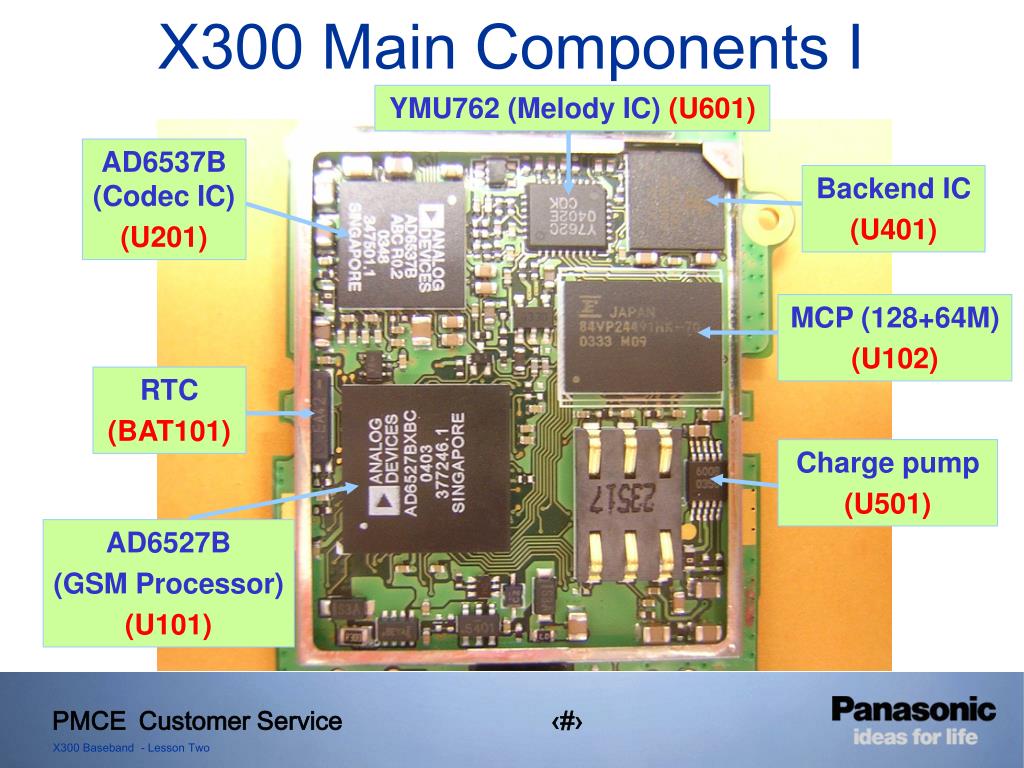

  6. X300 Main Components I YMU762 (Melody IC) (U601) AD6537B (Codec IC) (U201) Backend IC (U401) MCP (128+64M) (U102) RTC (BAT101) Charge pump (U501) AD6527B (GSM Processor) (U101)

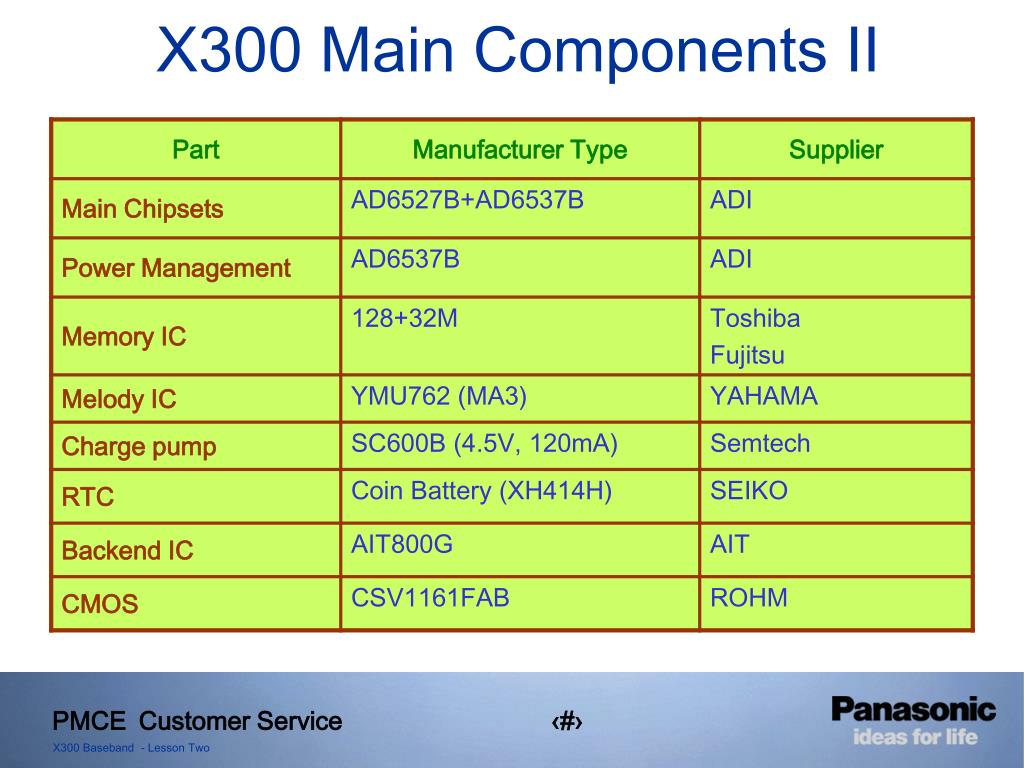

  7. X300 Main Components II

  8. X300 Circuit Diagram See Attached PDF

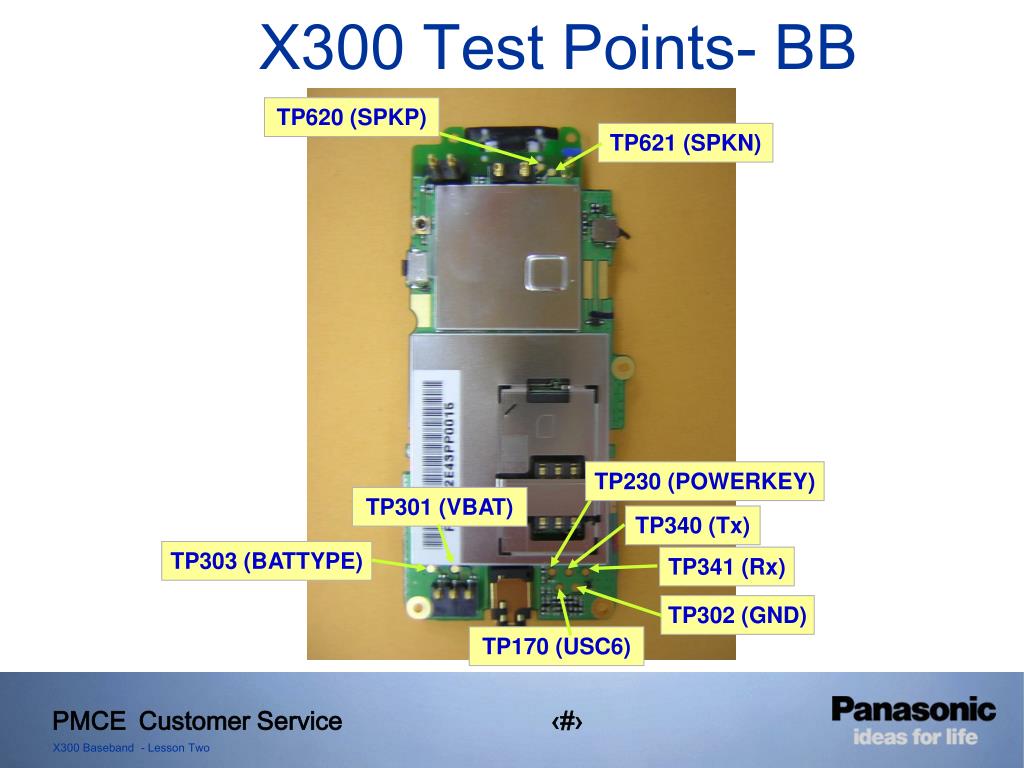

  9. X300 Test Points- BB TP620 (SPKP) TP621 (SPKN) TP230 (POWERKEY) TP301 (VBAT) TP340 (Tx) TP303 (BATTYPE) TP341 (Rx) TP302 (GND) TP170 (USC6)
