Csc 311

CSC 311

CHAPTER TEN

CONNECTING NETWORKS


Csc 3111

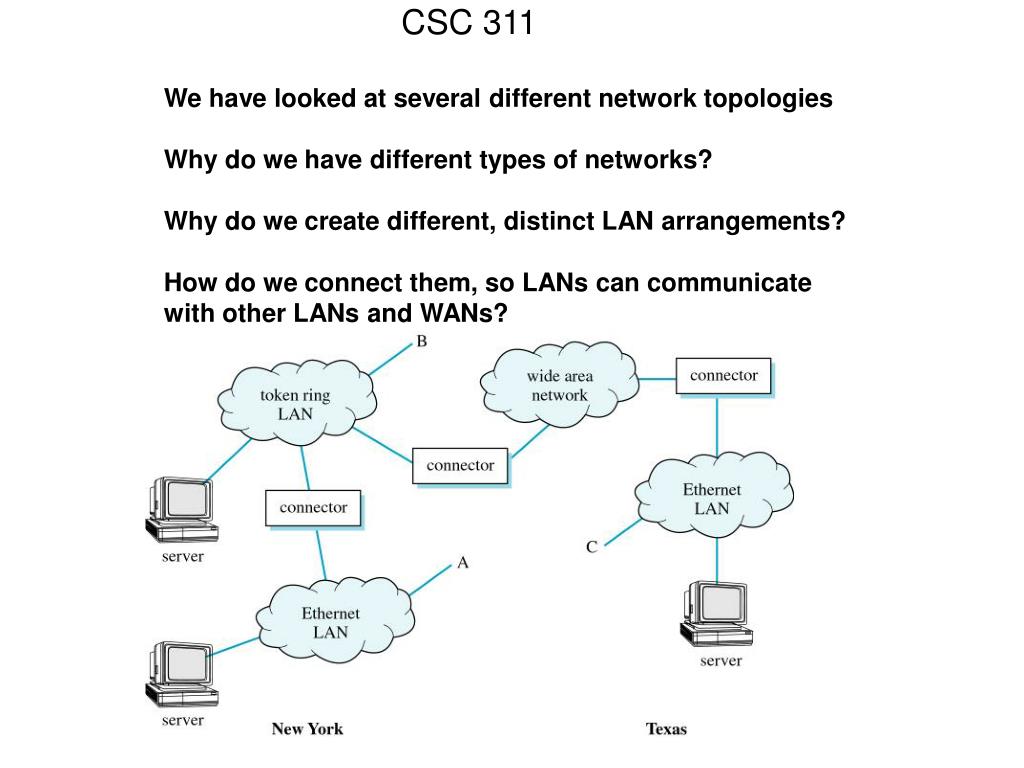

We have looked at several different network topologies

Why do we have different types of networks?

Why do we create different, distinct LAN arrangements?

How do we connect them, so LANs can communicate

with other LANs and WANs?

CSC 311


Csc 3112

How we connect networks depends, to some degree, upon

what we are trying to accomplish?

CSC 311

Are we connecting segments of a LAN, similar LANs, dissimilar LANs,

or wide area networks?


Csc 3113

Contrary to what the author says, repeaters do not connect LANs, they connect

segments of a LAN. The figure shown below would, logically, behave as

a single Local Area Network.

All devices, on any of these so-called LANs lie in the same collision

domain, and thus, on the same LAN.

CSC 311


Csc 3114

As we discussed when examining the Ethernet Topology, Ethernet

Networks today commonly use hubs and their star configuration,

nevertheless, they constitute a single LAN

CSC 311


Csc 3115

We would, more likely, wish to use layer two connections, why?

For this purpose, we might use a bridge rather than a repeater.

CSC 311

To use a bridge, all of these LANs must be of the same type.

A bridge does not alter the frames it transmits, all networks would

be using the same MAC protocol. It is not technically correct to refer

to a device connecting two dissimilar LANs as a bridge, it is more of

a router. It does alter frames and must have the MAC protocol of both

types of networks.


Csc 3116

How does a bridge know when, or where, to forward a particular

frame, or whether it should be forwarded at all?

Next slide….

Bridges use routing tables, these can be installed on the bridge

by the systems manager or it can be a transparent bridge that will

“learn” its routing table based on the traffic.

following slide…

CSC 311


Csc 3117

Routing tables for the network in previous figure.

CSC 311


Csc 3118

18. 10 pts. Indicate the contents of the bridge forwarding table given the following traffic. Indicate after each message, what action the bridge would take and the current contents of the routing table.

CSC 311

A B C

F

G

  • 1. A sends a packet to C

  • 2 . B sends a packet to E

  • 3. E sends a packet to C

  • 4. C sends a packet to E

  • C sends a packet to D

  • G sends a packet to A

  • D sends a packet to F

D E


Csc 3119

You must, however, be careful if you are using transparent bridges,

certain configurations can cause difficulty.

CSC 311

What would the two routing tables look like if B sent a packet to A?


Csc 31110

Often there may be multiple paths with different costs associated as

shown in the figure below.

CSC 311

In the absence of some learning protocol, this network would be

flooded with copies of frames


Csc 31111

CSC 311

To solve this problem, we use a spanning tree algorithm.

From your data structures: A spanning tree corresponds to a minimal

subset of edges taken from a connected graph that connects the graph’s

vertices.

We must assign a cost associated with each bridge to LAN connection, we

can then produce the following graph.


Csc 31112

CSC 311


Csc 31113

We won’t go into the details of how to use the spanning tree algorithm.

We would produce the following spanning tree.

CSC 311


Csc 31114

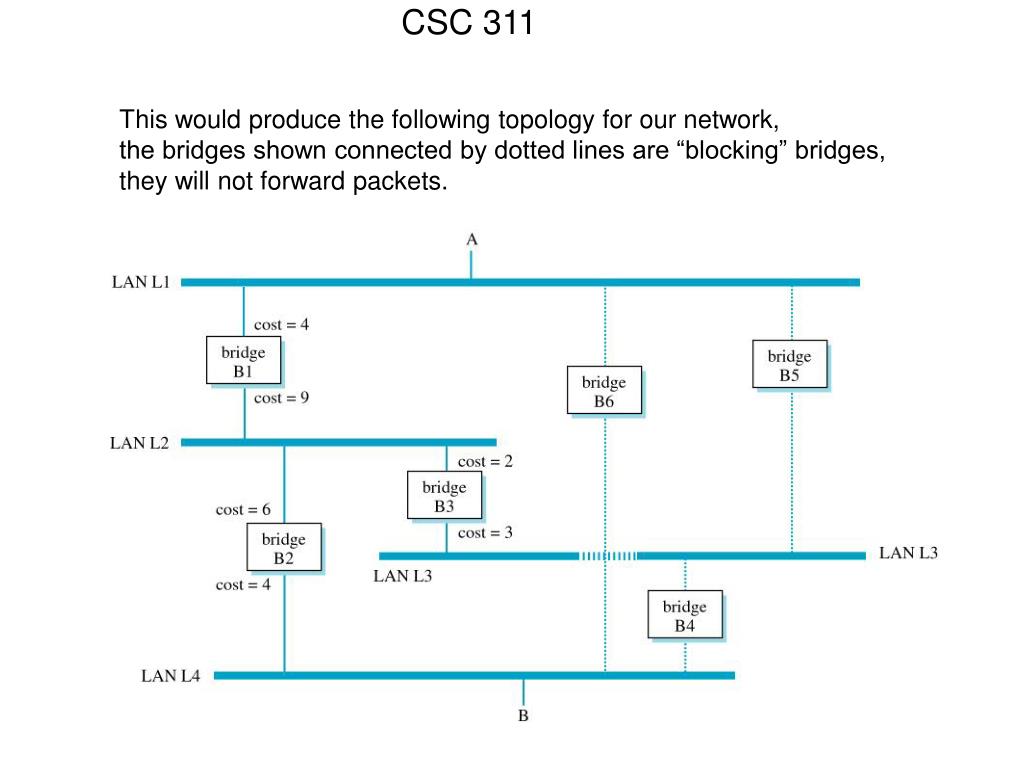

This would produce the following topology for our network,

the bridges shown connected by dotted lines are “blocking” bridges,

they will not forward packets.

CSC 311


Csc 31115

We have discussed two routing strategies for bridges, namely:

Routing tables loaded into each bridge by the system administrator

FIXED ROUTING

Transparent bridges that “learn” the routes

ADAPTIVE ROUTING, ROUTE LEARNING, ETC.

A third method is SOURCE ROUTING:

The source specifies the route to the destination, routing info

is included in the packet.

CSC 311


Csc 31116

Switches and Switched Ethernet

Since Ethernet is the dominant LAN, we will assume, hereafter, that

all of our LANs are Ethernets.

Switches perform the same function as bridges.

While bridges typically connect a couple of LANs, switches may

have a couple of dozen ports which provides many more connections.

CSC 311

Note, that there

is only one switch

in this drawing,

the remaining

devices are

hubs, with no

switching logic


Csc 31117

A more common installation, one that is much more efficient, is a

FULLY SWITCHED ETHERNET

Note: there are no collisions in this topology so CSMA/CD is not needed.

CSC 311


Csc 31118

CSC 311

Virtual Lans

Use the “intelligence” of the switch to create Virtual LANs that are

really part of a single physical LAN. You might use this approach

to isolate different workgroups working on different projects

without having to physically separate them on separate LANs.


Csc 31119

CSC 311

Layer Three Connections

LANs and the layer 1 and 2 connections typically cover

small geographic areas

Wide Area Networks (WAN) span the globe and need more

sophisticated techniques

Much like the highway system, internets or the Internet provide

multiple paths from one point in the Internet to another. We

need a technique to select the best among these many

possibilities.

In the highway example, what do you do if a bridge is out?

Find an alternate route.

Networks are frequently faced with the same problem when one

of the nodes in the network fails or becomes congested.


Csc 31120

CSC 311

Generalized Network Topology …. many routes


Csc 31121

In order to determine the best route through a network, we need some

way to evaluate those routes. We generally associate a cost with each

link in the route… such as shown below.

CSC 311

Routing tables can be developed using this information to specify

the optimum route between any two points in the network.


Csc 31122

Routing Tables may be used. These tables do not usually contain

the entire route to a destination, rather, the next node in the route

to that ultimate destination

CSC 311

This is a partial routing table for nodes A, B, and E

Who defines these routing tables and how?

The process by which a routing table is defined is called a routing algorithm


Csc 31123

CSC 311

  • Routing Strategies

  • Centralized

  • Distributed

  • Static

  • Adaptive


Csc 31124

Centralized Routing

All interconnection information is generated and maintained at

a centralized location.

That location then broadcasts this information to all network nodes

so that each may define its own routing tables.

One way… routing matrix

CSC 311

Routing Matrix for Network in Figure 10.19


Csc 31125

CSC 311

Distributed Routing:

No centralized control.

Each node determines and maintains its routing information

Nodes exchange control information


Csc 31126

CSC 311

Static Routing:

Once a node determines its routing table, the node does not change it.

Adaptive Routing:

Nodes respond to changes in the network and update their routing

tables accordingly.


Csc 31127

DIJKSTRA’S ALGORITHM

Used to determine path and cost for shortest possible path

between any two nodes in the graph.

The example that we will work will produce the path and the

cost of the shortest possible path between one node and

every other node in the graph.

CSC 311

How does

it work?


Csc 31128

Graph for Dijkstra example:

CSC 311


Csc 31129

Skip Bellman-Ford

CSC 311


Csc 31130

  • Additional Routing Methods:

  • Link state routing:

  • Each node communicates what it knows to its neighbors

    • bit rate

    • delay

    • queue length

    • reliability

  • a node builds a link state packet for each link

  • nodes receiving link state packets forward them to neighbors

  • as these packets are exchanged , nodes learns about the network

CSC 311


Csc 31131

  • Hierarchical Routing

  • Nodes are divided into groups, called domains

  • routes between two nodes in the domain are determine by

  • than networks protocols

  • each domain has one or more designated routers

  • a large domain may have multiple subdomains.

CSC 311

The “Internet” uses such a hierarchical addressing scheme.


Csc 31132

Large networks, such the Internet, can be viewed as a collection of

domains.

In such networks, we define two main categories of routing strategies:

interior and exterior

Interior routing protocols control routing among routers within an

autonomous system or domain

Exterior routing protocols control routers among routers from

different autonomous systems.

CSC 311

To send a

packet from X to

A, we would

use an interior

protocol

------------------------------

To send a packet from Z

to X, Z sends to its router

W, which sends across

subdomains to C, which

sends to A, which sends

to X


Csc 31133

This domain concept can be represented using an hierarchical structure

CSC 311


Csc 31134

IPv4 Internet Addressing

Internet addresses are 32 bit numbers, usually shown in dotted decimal

notation

143.200.128.3 is an example, each of the decimal numbers can be

represented by 8 bits.

The Internet uses a class address system, each such address can be

interpreted as having two parts: an Internet Protocol (IP) address which

is assigned to the network and a local device address.

The address above is an example of a class B address, the first 16 bits

(143.200), is the IP network address and the other 16 bits (128.3)

represents the address of the particular device on that network.

A class B address provides addresses for over 65,000 possible users,

so it is quite common to further subdivide these users into subnets.

Using subnet addressing, the local management might designate part of

the lower 16 bits to represent a subnet address.

CSC 311


Csc 31135

  • One example of an interior protocol:

  • Routing Information Protocol RIP

  • Use hop count

CSC 311

Hop count from N1 to N2 is 1

Hop count from N1 to N4 is 2

The routers exchange information packets to obtain this information


Csc 31136

CSC 311

Another interior routing protocol:

Open Shortest Path First (OSPF)

In this case, the “open” means the algorithm is not proprietary

can also use other factors in determining best route such as delay, bit rates,

actual dollar cost.


Csc 31137

Exterior Protocols

Border Gateway Protocol:

current version is BGP-4

used in the Internet to establish paths among routers in different

autonomous systems.

Often concerned with just getting to destination, not necessarily the cheapest

route. There may be other considerations, such as avoiding a particular

country in international traffic.

CSC 311


Csc 31138

CSC 311

Within AS3, an interior routing protocol would be used. In leaving AS3, an exterior

routing protocol would be used. The gateway routers (A,B,C,F) , would share

information about their subnetworks.


Csc 31139

  • Congestion and Deadlock:

  • We have already discussed congestion and flow control. The routing

  • strategies must deal with the problem of congestion.

  • As congestion increases the efficiency of the network declines:

  • How to deal with it?

  • Packet elimination

  • Flow control

  • Buffer allocation

  • Choke packets

CSC 311


Csc 31140

In the worst case, Deadlock can occur.

Deadlock: congestion is so severe that nothing moves.

CSC 311

Problem described is “store and forward deadlock”


Csc 31141

CSC 311

Situation illustrated above is reassembly deadlock:

Buffers are full, packet 0 from both A and B cannot be accepted.


Csc 31142

Deadlock prevention:

Reassembly deadlock can be prevented by establishing and reserving

sufficient buffer space to handle the window size for a particular

communication

Store and forward is handled by allocating sufficient buffer space,

but… how much buffer space is enough?

One approach to deadlock is to allow it to occur and then deal with it.

It might be more cost effective to either prevent deadlock or take steps

to reduce the probability of occurrence.

CSC 311


Csc 31143

Another deadlock prevention technique uses hop count.

CSC 311

Nodes divide their buffer space into groups based on number of hops,

hop count on a packet is incremented after each hop, a packet must wait

on available space in its hop count group at the previous node, so a packet is

always waiting on a higher numbered group.


Csc 31144

CSC 311


Csc 31145

CSC 311


  • Login
