  1. Practical Application of a Kite Brent Littlejohn Christopher Nolan Sean Preller Justin Bernardo

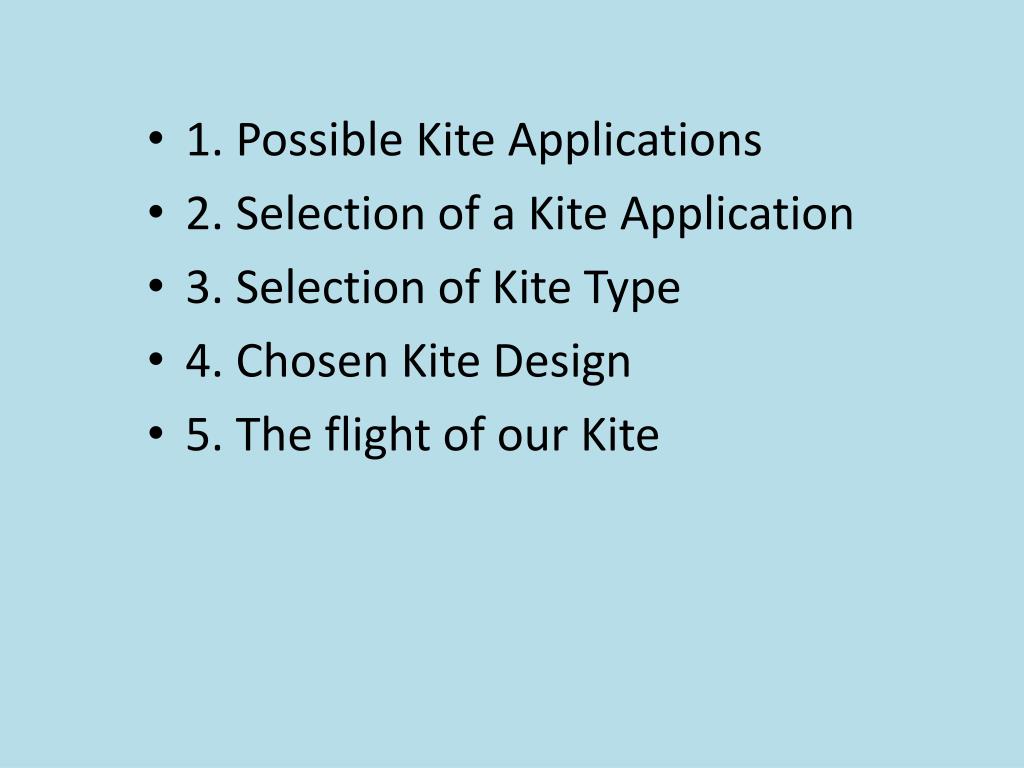

  2. 1. Possible Kite Applications • 2. Selection of a Kite Application • 3. Selection of Kite Type • 4. Chosen Kite Design • 5. The flight of our Kite

  3. Transportation/Propulsion Kite • Large 160 square meter kites are being used to reduce fuel costs for large commercial ships by 20%. These sail kites are steered by a computer system allowing optimal wind power. • A smaller version of this system could be adopted for personal transportation such as skateboards.

  4. Meteorology Kite • Kite would contain a thermometer, wind speed and direction gauge, barometer, and UV index measurer, among other things • Would have to be made out of lite materials to support the equipment including a wire frame and lite fabric • Shaped in a square for stability with UV index on top and the rest of the equipment residing inside the box along with a transmitter to relay data to the ground

  5. Energy-Generating Kite • Will use a small fan mounted on the kite to generate electricity • Energy will be stored in a small lightweight Lithium-Ion battery on the kite

  6. Aerial Photography • The Dopero Kite design is great for an aerial photography application because of its ability to lift a lot of weight with light winds. • These kites can raise straight upward potentially 150 meters in the air making it perfect for taking a picture.

  7. After deciding what the most practical application was for the kite, it was then decided what kite design should be used • Box Kite • Delta Kite • Diamond Kite • DoperoKite

  8. Our Design • We have chosen to use the Dopero Kite design. • The is due to the fact that it takes up a small amount of materials. • Also, it also is simple enough to be done in our limited amount of time. http://www.kiteplans.org/planos/dopero/dopero_2.html

  9. The Dopero Kite • Dopero stands for Double Pearson Roller. • This kite is designed by combining two Pearson kite designs to make one large, stable kite. • This kite design is typically seen used either for entertainment or for aerial photography. =

  10. The Dopero Kite Cont. • It can lift a lot of weight, which serves our purpose of lifting a camera. • It is also best known for being an excellent kite for flying in light winds. http://www.cobrakite.com/kap.html
